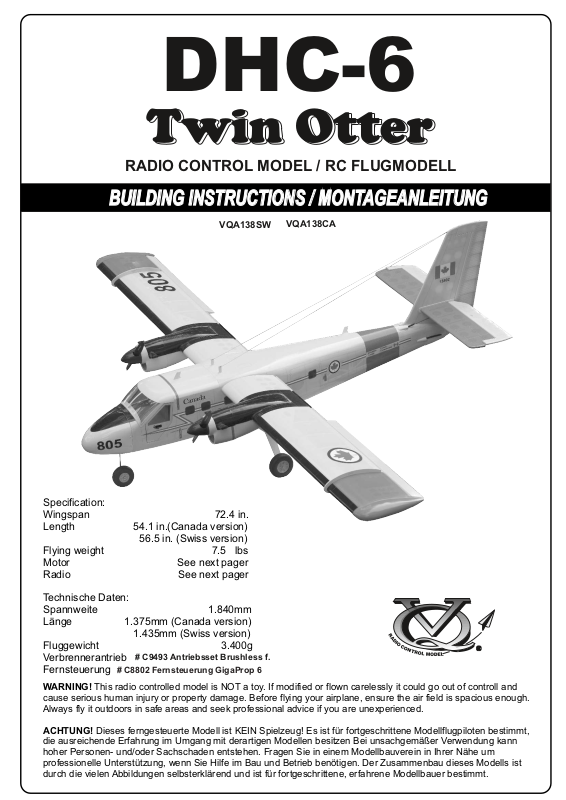

VQ Model DHC-6 Twin Otter User guide

DHC-6

RADIO CONTROL MODEL / RC FLUGMODELL

Semi scale model

BUILDING INSTRUCTIONS / MONTAGEANLEITUNG

VQA138SW

VQA138CA

Specification:

Wingspan 72.4 in.

Length 54.1 in.(Canada version)

56.5 in. (Swiss version)

Flying weight 7.5 lbs

Motor See next pager

Radio See next pager

Technische Daten:

Spannweite 1.840mm

Länge 1.375mm (Canada version)

1.435mm (Swiss version)

Fluggewicht 3.400g

Verbrennerantrieb

Fernsteuerung

WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and

cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.

Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,

die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann

hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um

professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist

durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

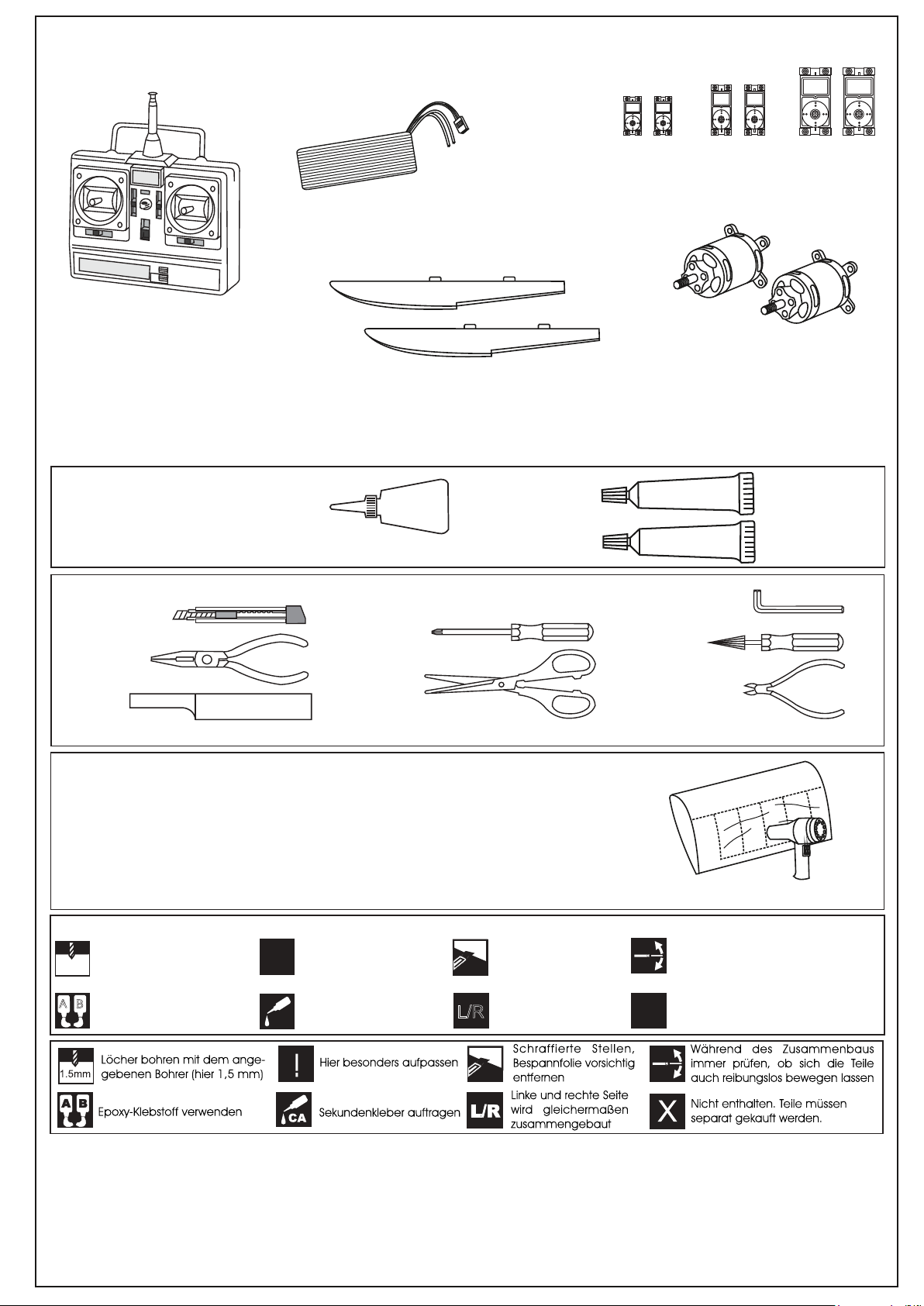

# C9493 Antriebsset Brushless f.

# C8802 Fernsteuerung GigaProp 6

Sonderzubehör (empfohlen) / Opional Accessories (recommended):

2x # C5185 MASTER SERVO S2112

2x # C5638 MASTER SERVO S3012MG

# C6788 LiPo Akku RED POWER 4500-11.1V

# C8802 Fernsteuerung GigaProp 6

Radio Set GigaProp 6

Schwimmer Set für Twin Otter

Floats kit for Twin Otter

# C9278 gelb / yellow

# C9278 weiss / white

Infos und Bezugsmöglichkeiten:

www.pichler-modellbau.de

2x # C1687 MASTER SERVO S4020

# C9493 Antriebsset Brushless f.

Twin Otter

Brushless Power Set for Twin Otter

GLUE

Klebstoffe sind separat erhältlich

(nicht im Lieferumfang)

TOLLS REQUIRED

Hobby knife

(Purchase separately)

# X3572

CA

Zoom CA

Cyanoacrylate Glue (thin type)

Phillip screw driver

EPOXY A

EPOXY B

Hex Wrench

Awl

Needle nose Pliers

Scissors

Wire Cutters

Sander

.........................................................

Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits

If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the

model in a cool place will let the wrinkles disappear. Otherwise, remove

wrinkles in covering film with a hair dryer, starting with

low temperature. You can fix the corners by using a hot iron.

Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten

entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie

zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !

Symbols used throughout this instruction manual, comprise:

Drill holes using the stated

1.5mm

size of drill

(in this case 1.5 mm )

A

B

Use epoxy glue

Take particular care here

!

Apply cyano glue

CA

Hatched-in areas:

remove covering

film carefully

Assemble left and right

L/R

sides the same way.

Check during assembly that these

parts move freely, without binding

Not included.

These parts must be

X

purchased separately

# X3598-120

5-Min Epoxy

Low seting

Read through the manual before you begin, so you will have an overall idea of what to do.

CONVERSION TABLE

1.0mm = 3/64”

1.5mm = 1/16”

2.0mm = 5/64”

2.5mm = 3/32”

3.0mm = 1/8”

4.0mm = 5/32”

5.0mm = 13/64”

6.0mm = 15/64”

10mm = 13/32”

12mm = 15/32”

15mm = 19/32”

20mm = 51/64”

25mm = 1”

30mm = 1-3/16”

45mm = 1-51/64”

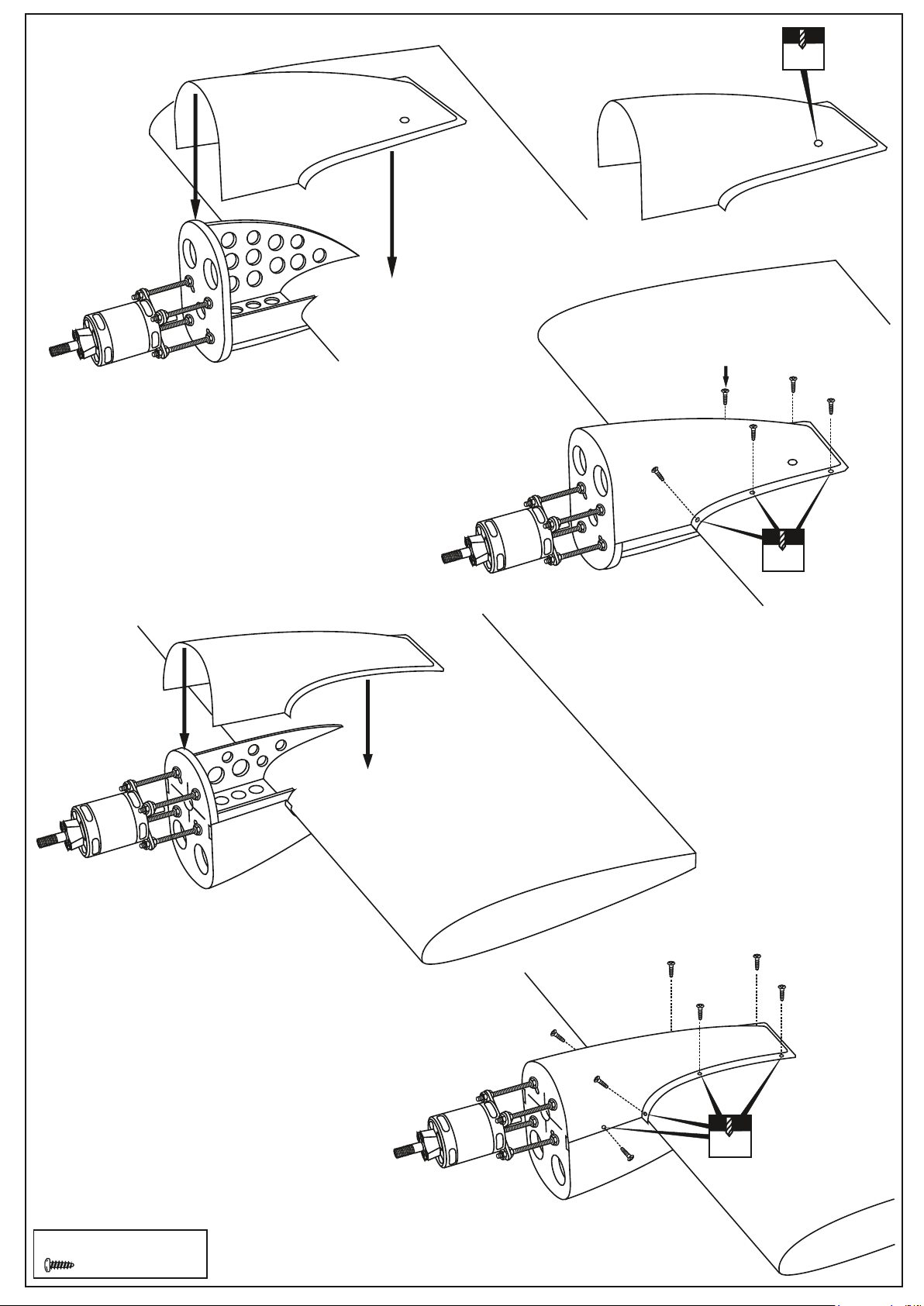

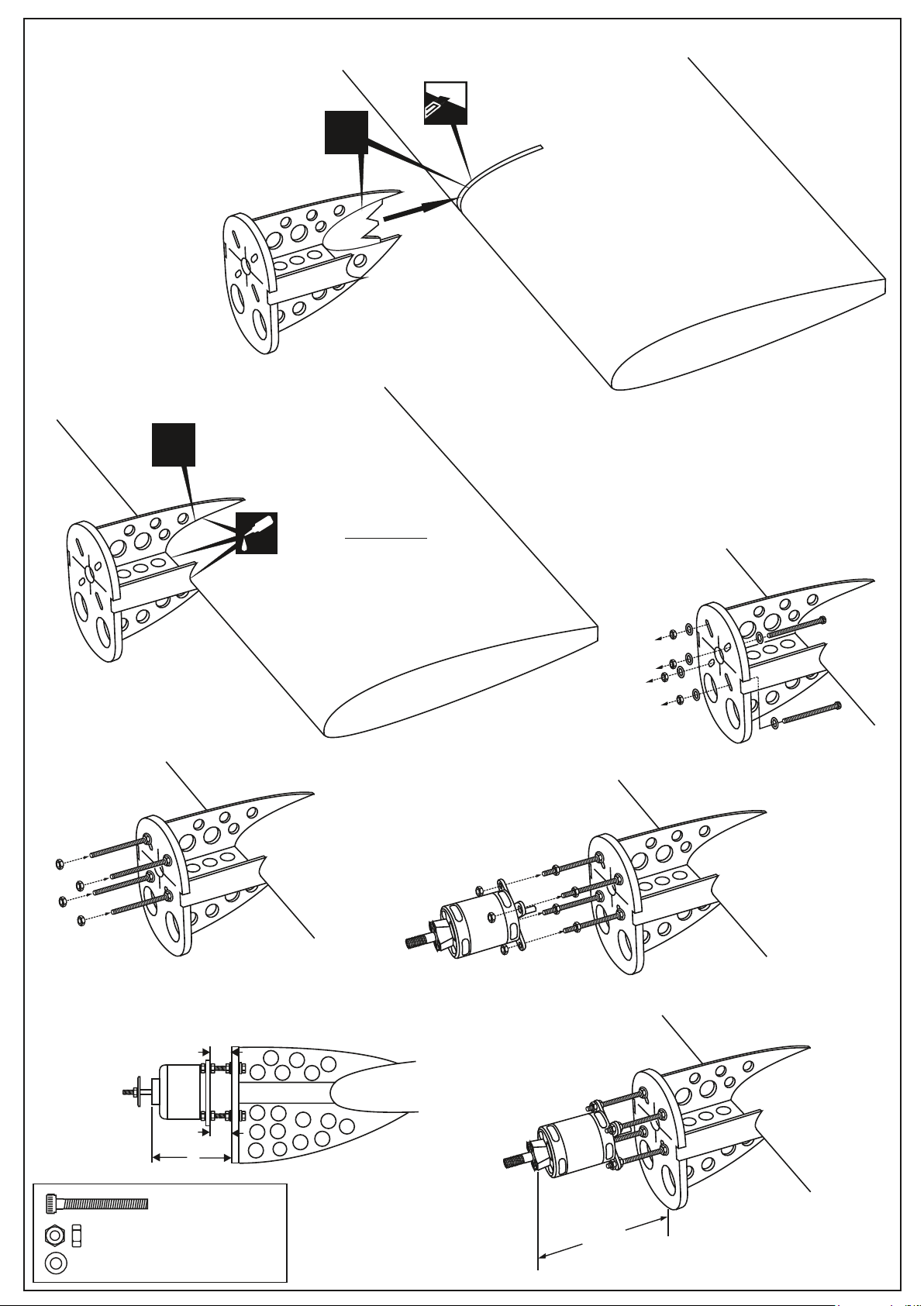

1- Motor mount

Cut away only

the covering

1A

Carefully, push the Motor mounting onto

the slot on the wing as shown.

Check the mark on the motor

mounting with the surface of the

wing before glue.

!

1B

Using the thin CA glue

CA

!

WING

(Top side)

WING

(Top side)

1C

B=B’

A= 71-73mm

3mm nut.........................12

3mm washer.....................8

MOTOR MOUNT - SIDE VIEW

B

B’

A

3x35mm screw....4

1E

1F

Wing

71-73mm

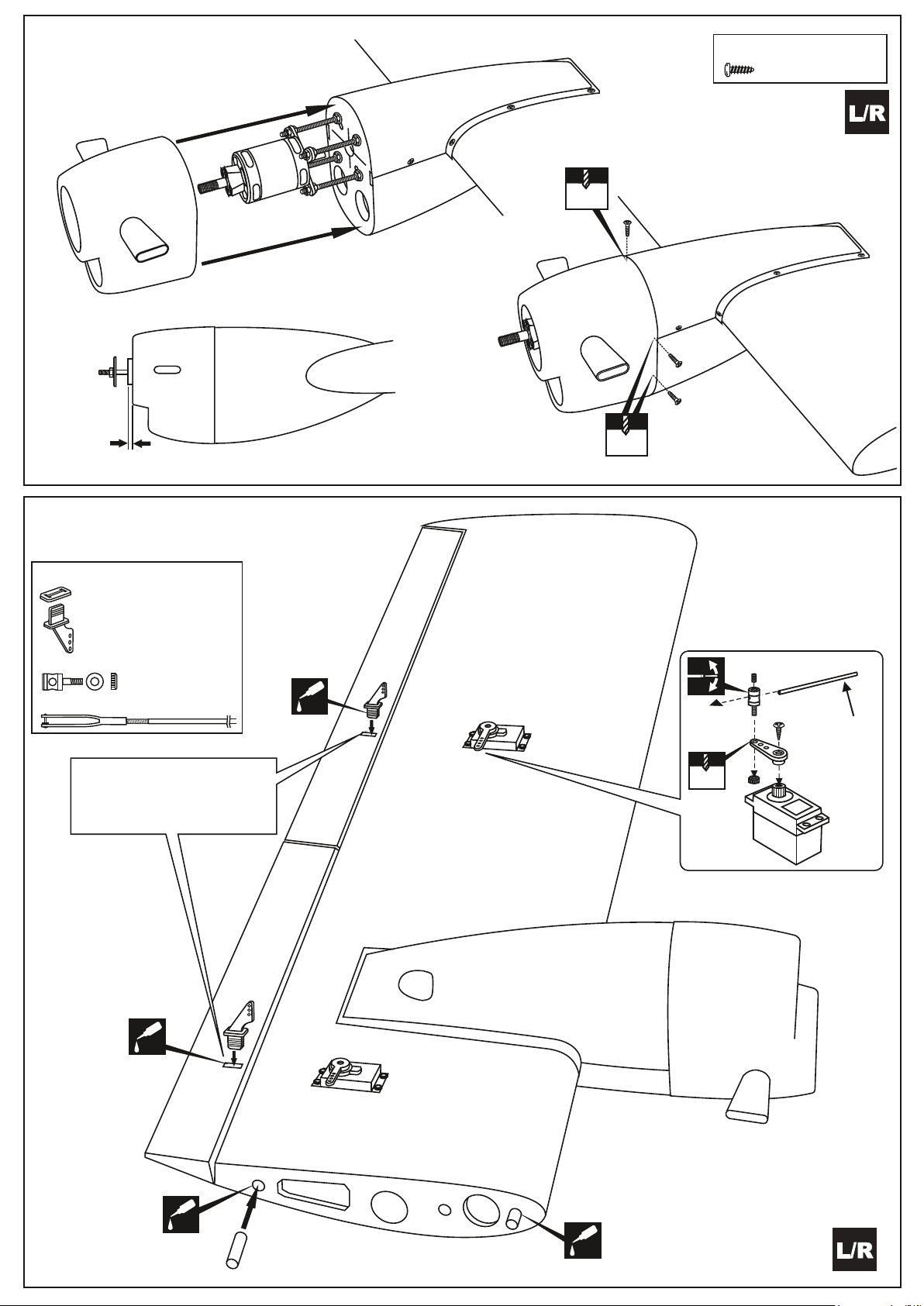

2- Motor mount

2B

5mm

2A

WING

(Bottom side)

WING

(Bottom side)

2x8mm self tapping screw

2B

2C

1mm

WING

(Top side)

2x8mm self tapping screw

2D

2x8mm self tapping screw

.....................28

1mm

3- Cowling

3A

2x8mm self tapping screw

.....................4

1mm

2x8mm self tapping screw

3B

Wing

2mm

4- Wing: servo

Plastic control horn

.....................2

Linkage Stopper set

..................2

2x175mm pushrod

Note: The rectangular hole

for the control horn installation

is pre- cut at factory. Cut away

only the covering.

......2

Thin CA

CA

WING - BOTTOM VIEW

1mm

3mm set Screw

Aileron and Flap

pushrod

2 mm

Aileron and

Flap servo

Thin CA

CA

Thin CA

CA

Wooden dowel

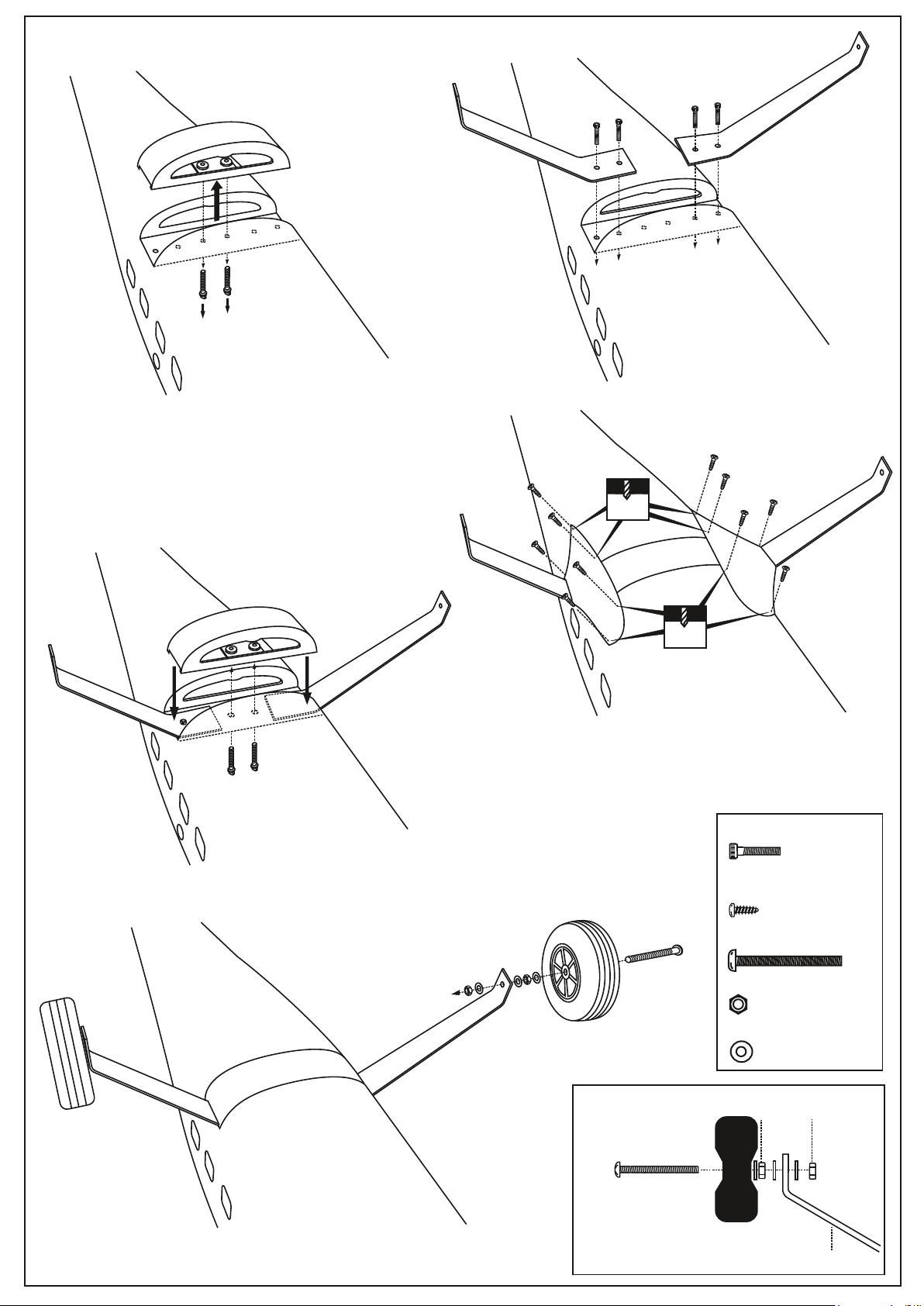

5- Main landing gear

4x20mm

plastic bolt

3x15mm screw

5A5B

Turn the 4x20mm plastic bolt inside the fuselage

and move the landing gear hatch.

5C

5D

2x8mm self tapping screw

1mm

Slide the ABS landing gear cover onto the aluminum

landing gear and secure it in place using 2x8mm self

tapping screws.

3x15mm screw

................4

5E

2x8mm self tapping

screw

.....................10

4X45mm screw

...2

4mm nut

............4

4mm washer

............6

4mm nut

4x45mm screw

Aluminum landing gear

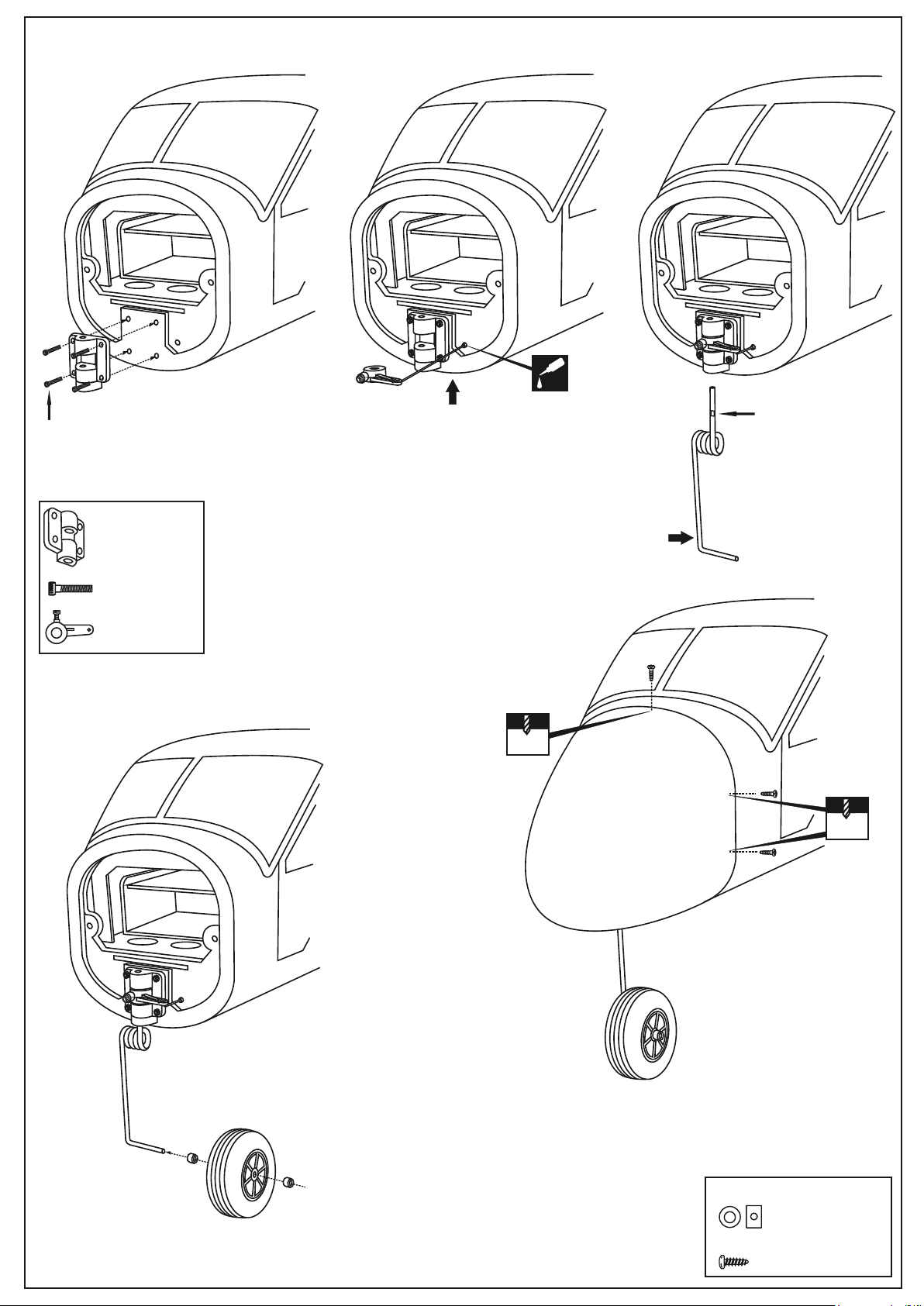

6- Nose landing gear

3x20mm screw

Attach the nose gear mount onto the

fire-wall and secure it in place using

four 3x20mm screws.

Nose gear mount

..............1

3x20mm screw...4

Steering arm...1

6A

6B

CA

Route the steering linkage into the fuselage

and through the fire-wall.

Glue the outer tube in place as shown.

Insert “Z” bend of steering linkage into the hole

of steering arm.

Slide the nose landing gear through the nose gear

6C

mount and steering arm with the flat to front.

Tighten the screw of the steering arm to the nose

landing gear.

1mm

Flat

1mm

6D

6E

Attach the fiberglass dome to the fuselage and secure it

in place using 2x8mm self tapping screws.

4mm collar

..........2

2x8mm self tapping screw

..........5

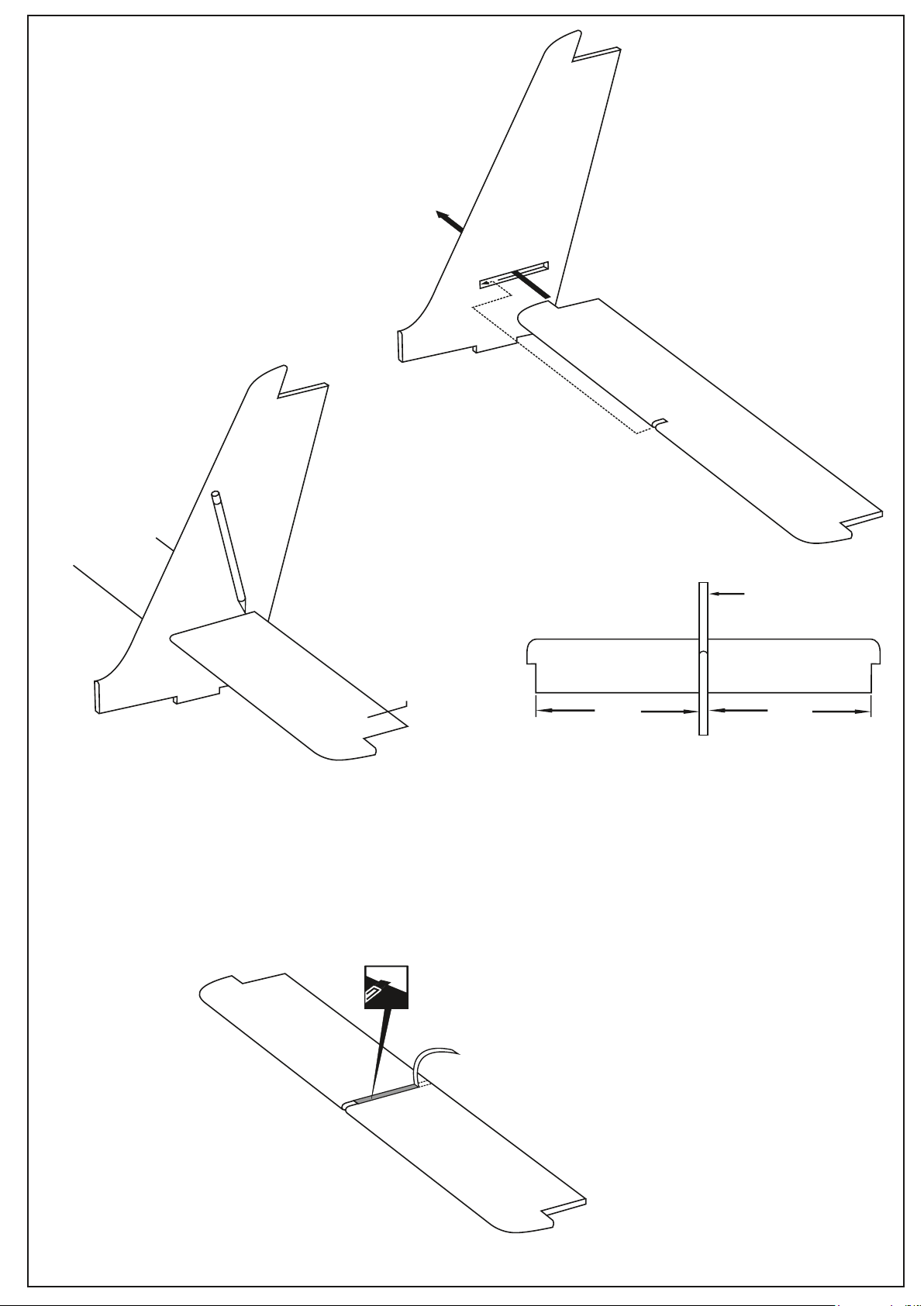

7- Stabilizer

7A

Slowly, slide the horizontal stabilizer through

the vertical stabilizer.

7B

Check the alignment of the horizontal stabilizer,

the distance must be equal on both sides (A=A’).

When you are satisfied with the alignment, use

a pencil to trace around the top and bottom of

the horizontal stabilizer where it meets the

vertical stabilizer. Remove the horizontal stabilizer.

Vertical stabilizer

Remove the horizontal stabilizer

7C

from the vertical stabilizer. Using a straight edge

and a sharp hobby knife, carefully cut away

the covering inside the lines which were marked

above. Be cautious not to cut into the wood-this

will weaken the structure.

Cut away only

the covering

both sides.

Horizontal stabilizer

A

A’

TOP VIEW

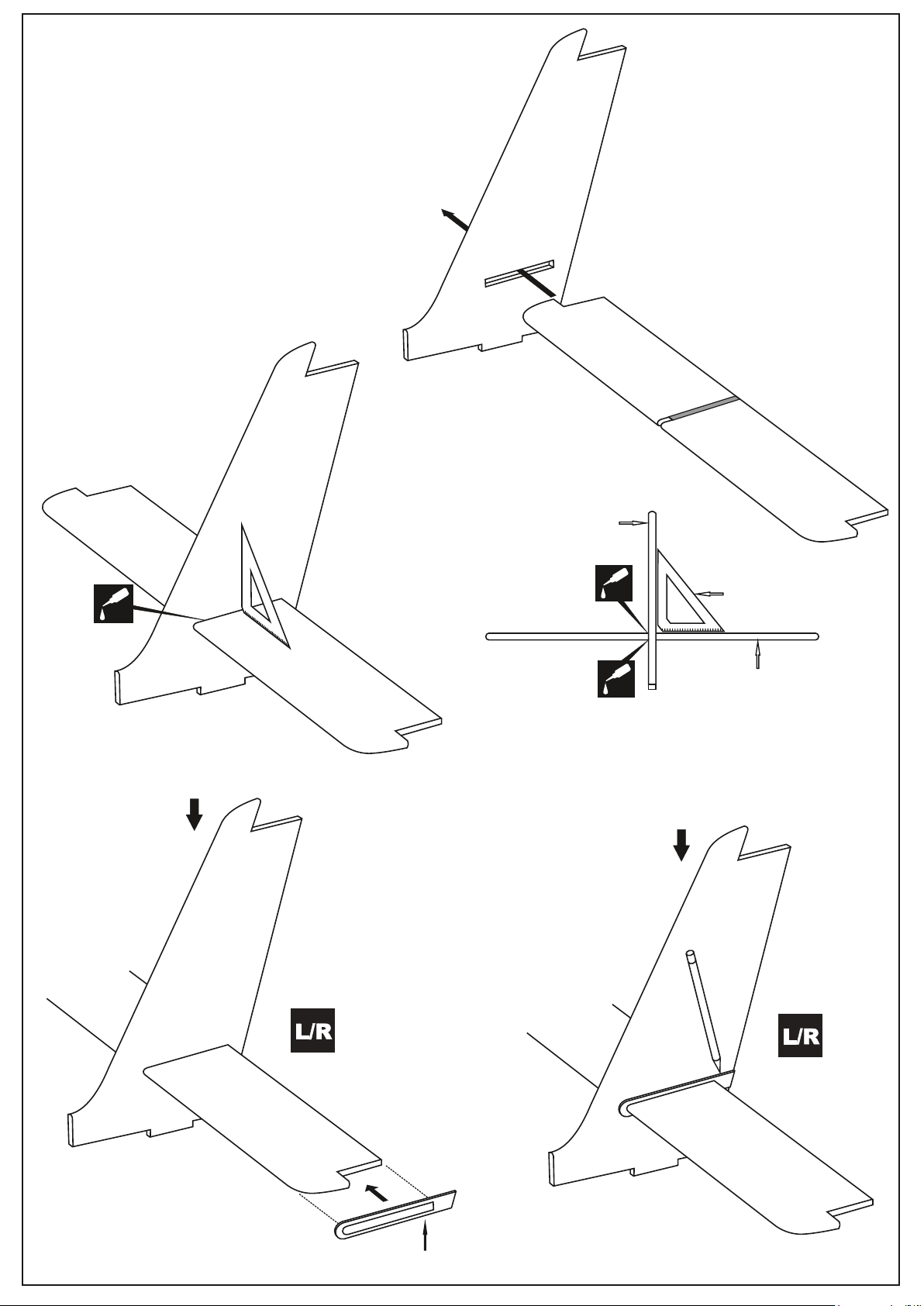

8- Stabilizer Continued

8A

Again, slide the horizontal stabilizer through

the vertical stabilizer.

8B

With the perpendicular, check the

alignment of the vertical stabilizer

and the horizontal stabilizer during

glue.

! Securely glue together. If coming off during fly,

you lose control of your air plane.

CA

Thin CA

8C

Slide the horizontal stabilizer holder onto

the horizontal stabilizer as shown.

Vertical stabilizer

Thin CA

CA

Perpendicular

Horizontal stabilizer

8D

When you are satisfied with the alignment, use

a pencil to trace around the top and bottom of

the horizontal stabilizer holder where it meets the

vertical stabilizer. Remove the holder from the

horizontal stabilizer.

Horizontal stabilizer holder

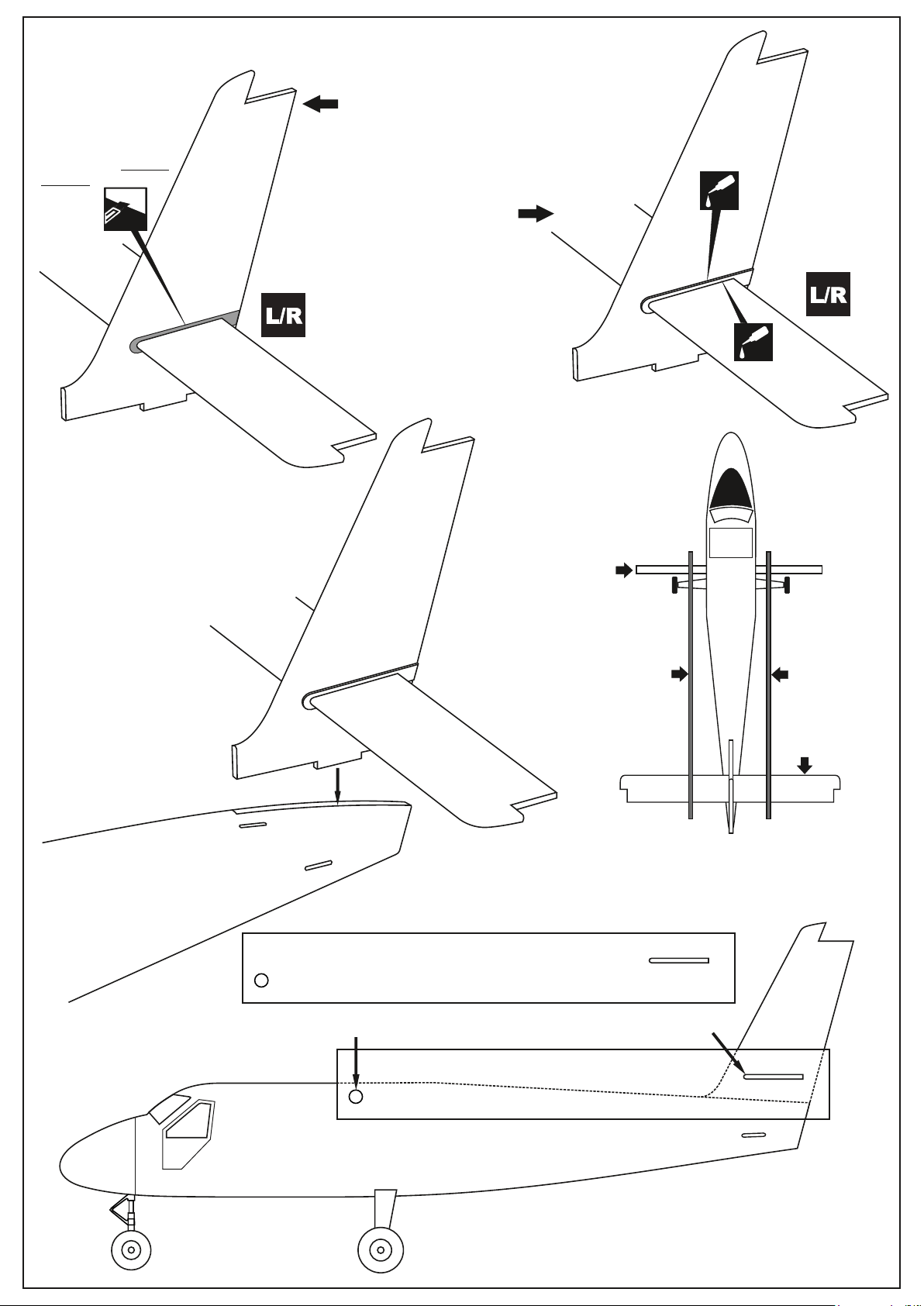

9- Stabilizer Continued

Using a sharp hobby knife, carefully cut away

9A

the covering inside the lines which were marked

above. Be cautious not to cut into the wood-this

will weaken the structure.

Cut away only the

covering and inside

the line

Carefully, insert the vertical stabilizer

9C

into the slot on the fuselage as shown.

9B

Again, slide the holder onto the horizontal stabilizer

Apply the thin CA glue on the vertical stabilizer

where it contacts the holder.

Apply the thin CA glue on the

horizontal stabilizer where it

contacts the holder.

Aluminum tube

Thin CA

CA

Thin CA

Aluminum tube

Laser cut carton template

Left carton

template

Right carton

template

Horizontal

stabilizer

9D

Check the incidence angle of the horizontal

stabilizer using the laser cut carton template

Horizontal stabilizer

- Slide the aluminum tube through the fuselage.

- Slide the left and right carton template through

the aluminum tube and the horizontal stabilizer

as shown (see pic. 9D)

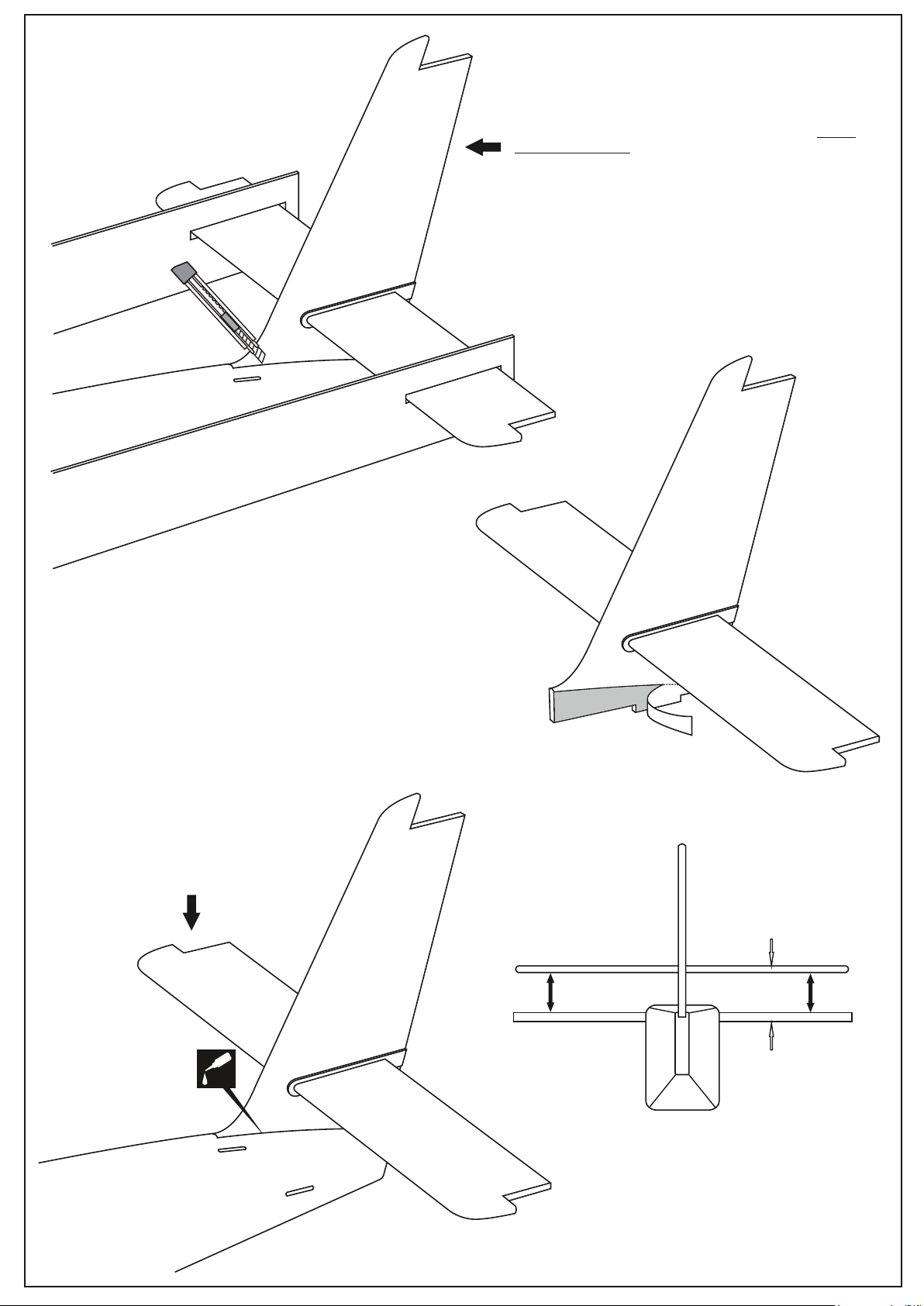

10- Stabilizer Continued

Carton template

10A

When you are satisfied with the alignment, use a sharp

hobby knife, carefully cut the covering where the

vertical stabilizer meet the fuselage. Be cautious not to

cut into the wood - this will weaken the structure.

Carton template

10B

Remove the vertical stabilizer from the fuselage

and cut away the covering on the vertical

stabilizer as shown.

10C

Again, insert the vertical stabilizer into

the slot on the fuselage. When you are

satisfied with the alignment (Step 10A),

glue the vertical stabilizer where it meets

the fuselage.

! Securely glue together. If coming off during fly,

you lose control of your air plane.

Horizontal stabilizer

Thin CA

AA’

Aluminum tube

CA

A=A’

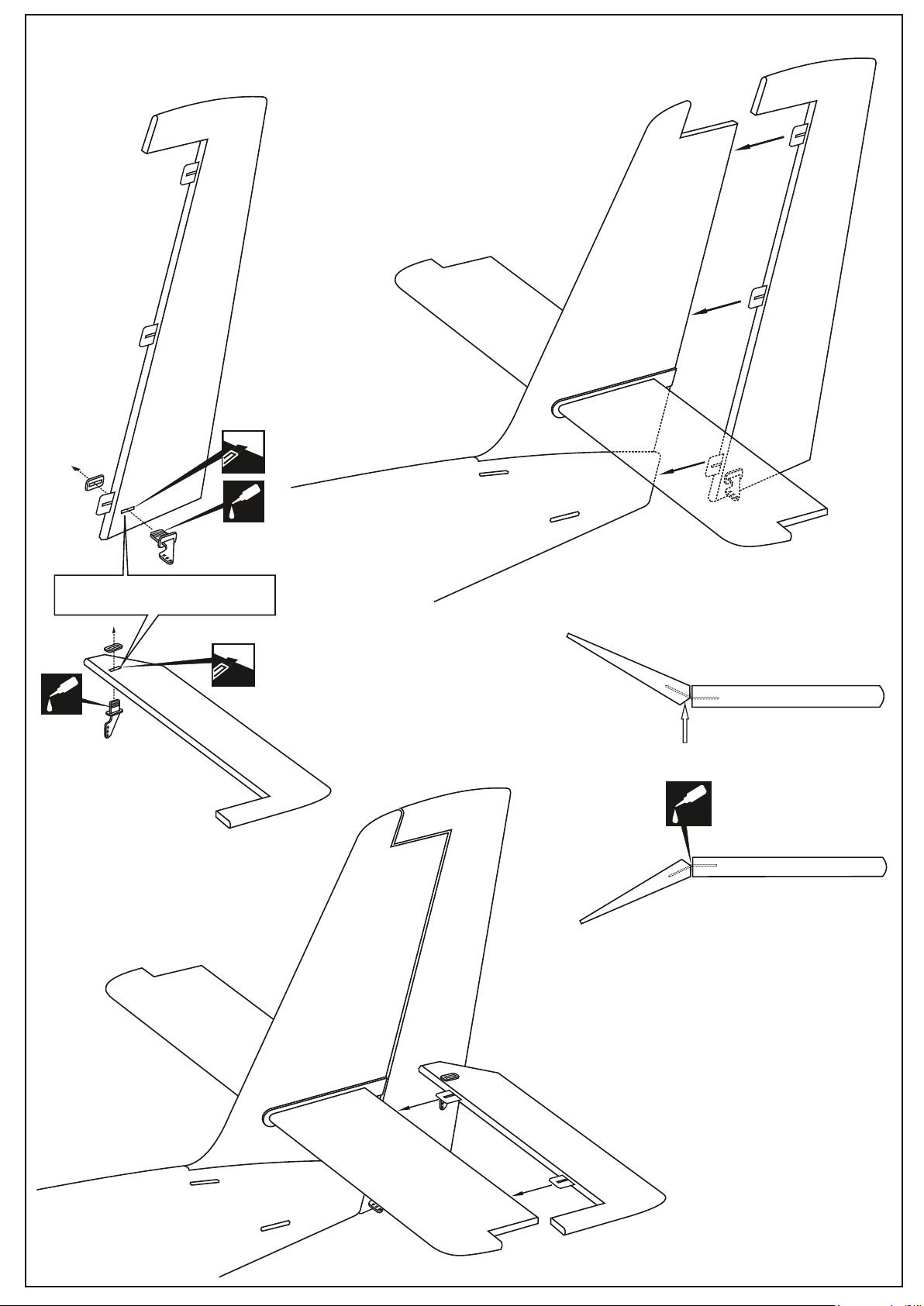

11- Rudder and Elevator

Cut away only

the covering

11A

11B

CA

Thin CA

Note: The rectangular holes are

pre-laser cut at factory

Cut away only

the covering

CA

Thin CA

11C

! Securely glue together. If coming off during fly,

you lose control of your air plane.

TOP-SIDE

HORIZONTAL STABILIZER

Apply a thin layer of petroleum jelly

Apply thin CA

glue on the top

CA

of the hinge

TOP-SIDE

HORIZONTAL STABILIZER

Do the same way with bottom side

! Securely glue together. If coming off during fly,

you lose control of your air plane.

11D

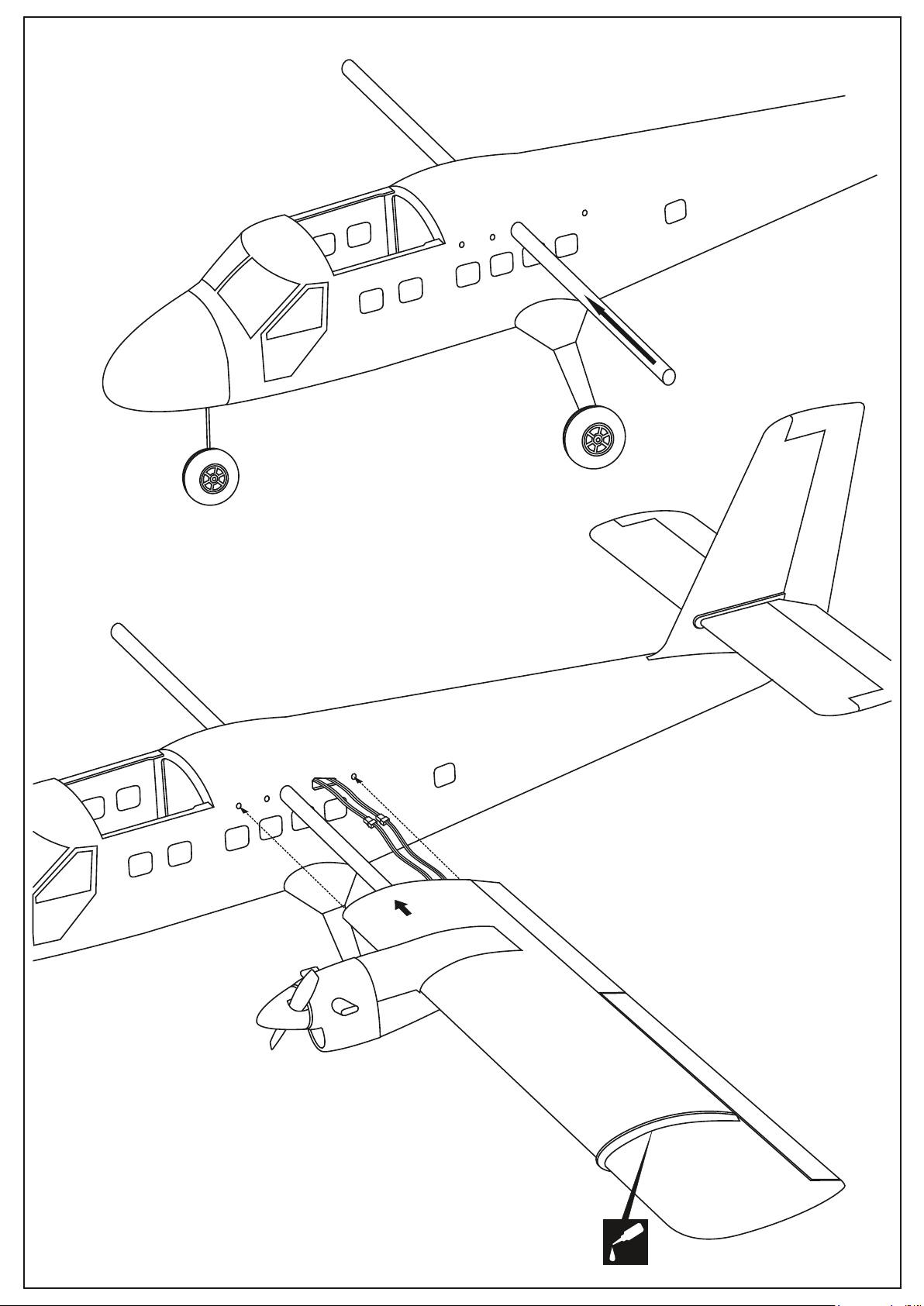

12- Wing installation

Slowly, push the aluminum tube through

the fuselage.

Note: Push the top hatch to the side of the

fuselage and full it to remove.

12A

Carefully, push the wing to the fuselage as shown.

12B

CA

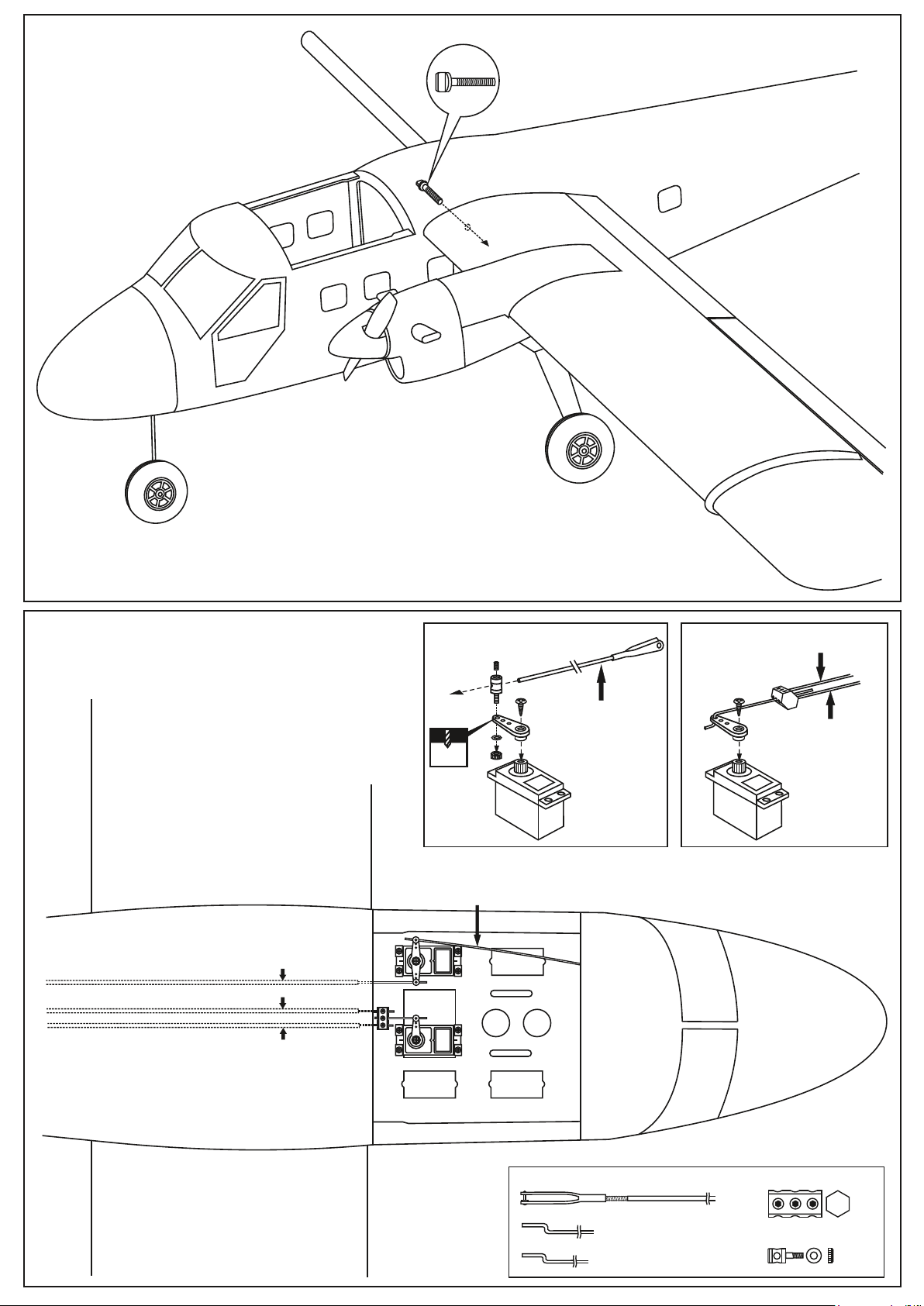

13- Wing installation

4x25mm plastic bolt

When the wing meet the fuselage with no gap, secure the wing in place

using the 4x25mm plastic bolt.

14- Servo and Linkages

Nylon pushrod guide

To rudder control horn

2 mm

To nose gear arm

Elevator push-rod

Rudder push-rod

Elevator push-rod

FUSELAGE - TOP VIEW

Nylon pushrod guide

To left elevator control horn

To right elevator control horn

950mm long

2x120mm

.............................1

1.2x500mm rod

.............................1

...3

Connector

....1

Connector

....2

15- Shield and Wing brace

1mm

2x8mm self tapping screw

...........4

3mm blind nut

...........2

3x15mm screw

.........2

3x12mm self tapping screw

...........2

15- Decal

805

The rectangular hole on the

fuselage is pre-laser cut at

factory.

Cut away only the covering.

2mm

N

D

Decal application: See the label on top box

Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once.

Peel off one corner of the backing and cut off with scissors.

Arrange sticker on model and when satisfied adhere the corner without backing.

Carefully peel back the rest of the backing while at the same time adhering the rest of the sticker.

Try not to make air bubbles, if there are some, carefully puncture sticker (center of bubble) but not model surface with

the tip of the knife or sharp pin and squeeze out the air.

At curves stretch sticker and apply a little heat so that no ceases occur.

Cut off the excess that is produced.

E

A

Decal of Otter Canada version

R

G

N

D

E

A

R

G

Decal of Otter Swiss version

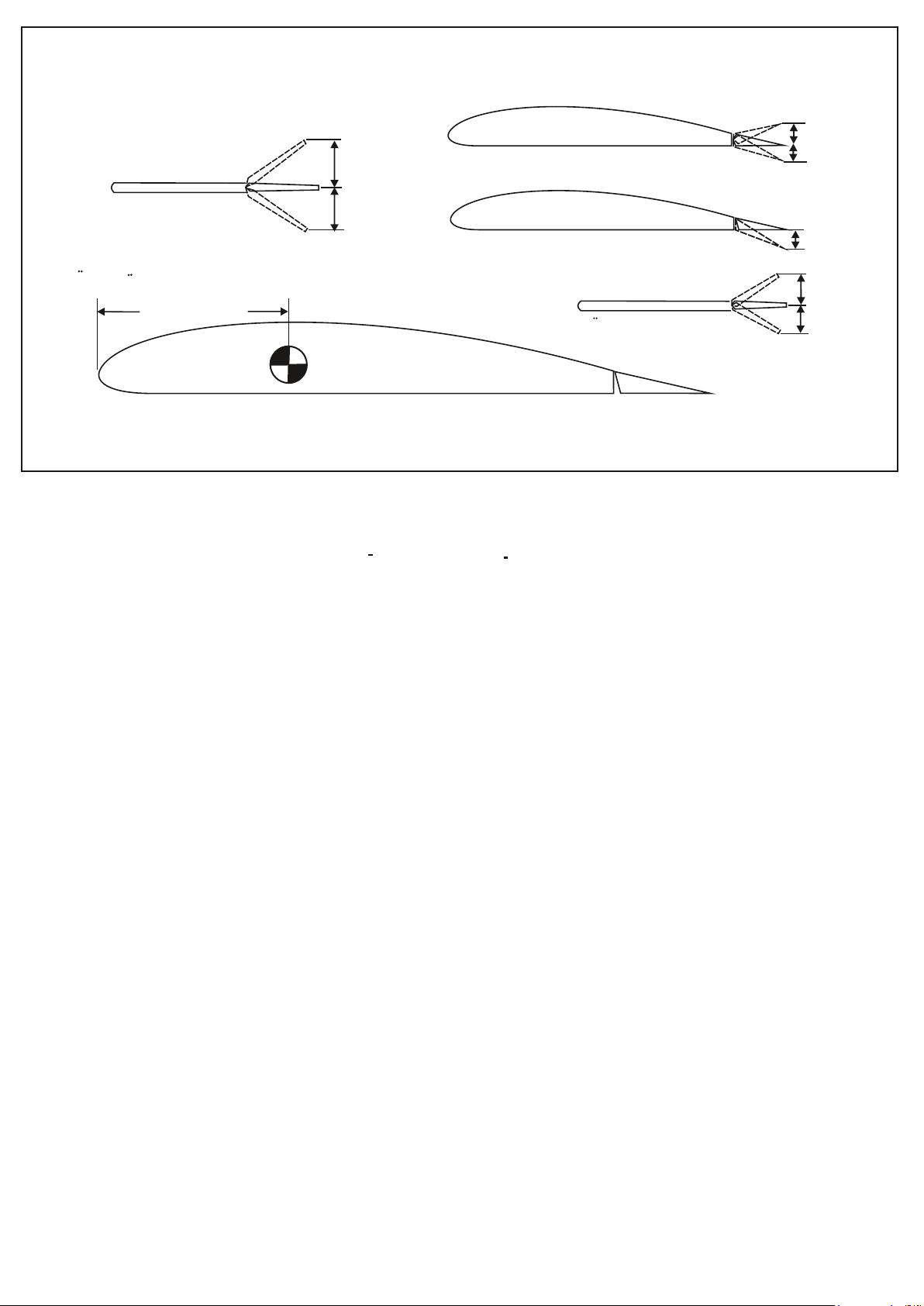

16- Control Surface

Rudder

25mm

Aileron

Querruderausschlag

12mm

Flap

Seitenruderausschlag

Do not try to fly an out-of balance model!

Uberprufen Sie vor dem Flug den Schwerpunkt.

25mm

Elevator

56 ~ 60mm

Hohenruderausschlag

Adjust the travel of the control surfaces to achieve the values stated in the diagrams.

These value will be suitable for average flight requirements. Adjust the values to suit your particular needs.

IMPORTANT:

Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner

to clean on surface of your model to keep the colour not fade.

All details are subject to change

without notice !

Technische Anderungen und Irrtumer

vorbehalten !

18mm

15mm

VQ Model DHC-6 Twin Otter User guide [en, de]
