Radio control model / Flugmodel

JAPANESE DIVE BOMBER

AICHI D3A1 “VAL”

VQ No: VQA138 GREEN

VQ No: VQA138 GRAY

ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY

Instruction manual / Montageanleitung

SPECIFICATIONS

Wingspan:......................................1540mm

Length:...........................................1120mm

Electric Motor:.....................See next pager

Glow Engine:.................... .46 2-T / .70 4-T

RTF Weight: 3.5Kg (will vary with equipment

use)

Radio:....................6 Channel / 8-9 Servos

Function: Ailerons-Elevator-Rudder-Throttle

Flaps.

WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and

cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.

Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

TECHNISCHE DATEN

Spannweite:...................................1540mm

Lange:............................................1120mm

Elektroantrieb.............(siehe nächste Seite)

Verbrennerantrieb:...............7.45cc - 11.5cc

Fluggewicht:.......................................3.5Kg

Fernsteuerung..........6 Kanal / 8-9 Servos

ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,

die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann

hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um

professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist

durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

Page 2

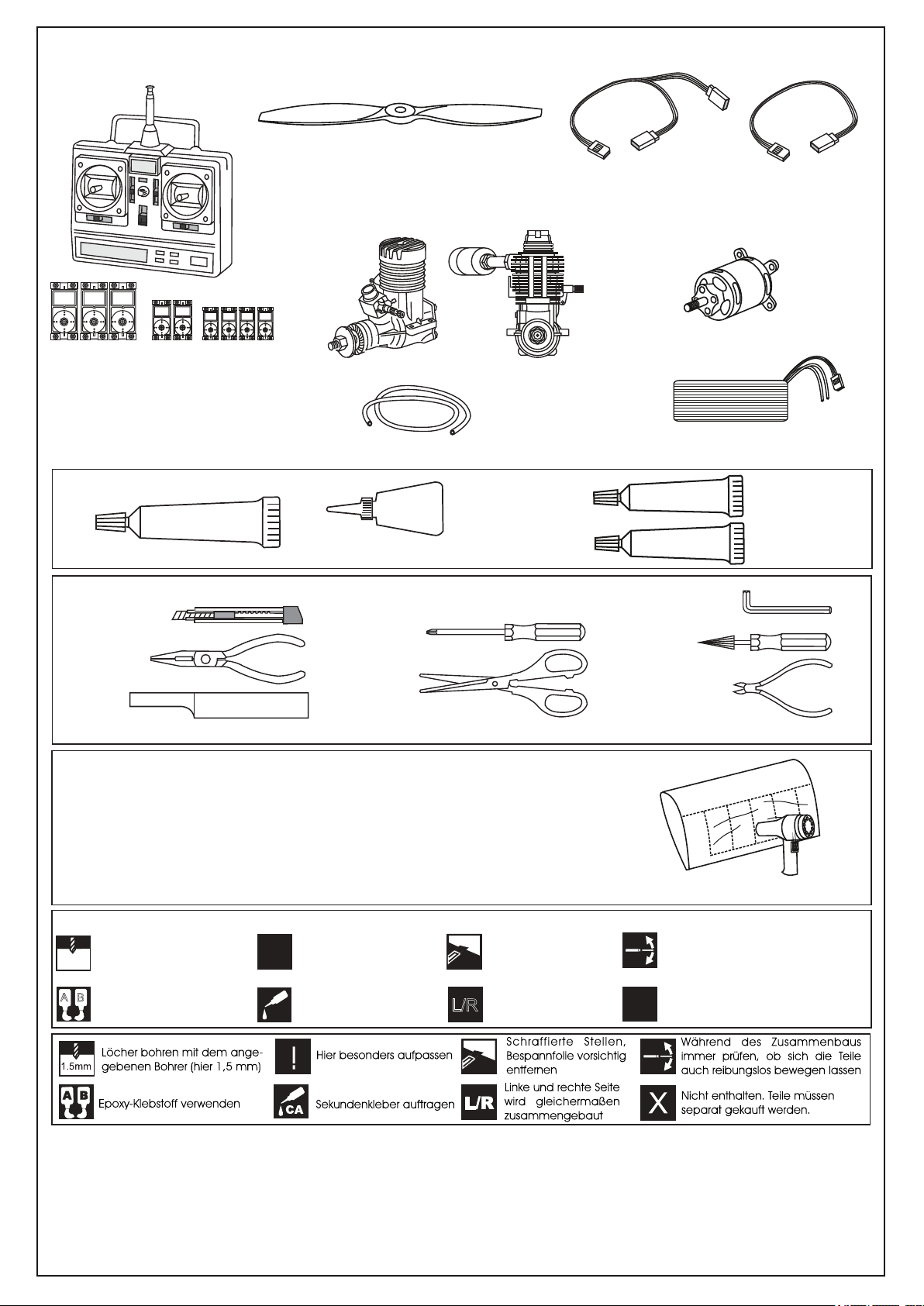

REQUIRED FOR OPERATION (Purchase separately)

10.5x6 for .40 - 2 cycle engine

11x6 for .46 - 2 cycle engine

12x6 for .60 - 4 cycle engine

12x7 for .70 - 4 cycle engine

13x7 - 13x8 for electric motor

Flap: “Y” x2 pcs

Aileron: “Y”x1pcs

Aileron: 50cmx2 pcs

Flap: 30cmx2 pcs

Rx battery pack: 20cmx1 pcs

Standard

Mini

Minimum 6 channel radio

Micro

.46 ~ .50 - 2 cycle

.60 ~.70 - 4 cycle

Elevator : 1 standard servo

Rudder: 1 standard servo

Aileron: 2 mini servo

Flaps: 4 micro servo

Throttle: 1 standar servo (for glow engine only)

GLUE

(Purchase separately)

SILICON

Silicon sealer

TOLLS REQUIRED

Hobby knife

(Purchase separately)

Silicone tube

Cyanoacrylate Glue (thin type)

Phillip screw driver

Needle nose Pliers

Scissors

Sander

.........................................................

Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits

If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the

model in a cool place will let the wrinkles disappear. Otherwise, remove

wrinkles in covering film with a hair dryer, starting with

low temperature. You can fix the corners by using a hot iron.

700-800W Brushless Motor

5 cell 4500mAh LiPo battery

EPOXY A

Epoxy Glue

(30 minute type)

EPOXY B

Hex Wrench

Awl

Wire Cutters

Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten

entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie

zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !

Symbols used throughout this instruction manual, comprise:

Drill holes using the stated

1.5mm

size of drill

(in this case 1.5 mm )

Use epoxy glue

Take particular care here

Apply cyano glue

Hatched-in areas:

remove covering

film carefully

Assemble left and right

L/R

sides the same way.

Check during assembly that these

parts move freely, without binding

Not included.

These parts must be

purchased separately

Read through the manual before you begin, so you will have an overall idea of what to do.

CONVERSION TABLE

1.0mm = 3/64”

1.5mm = 1/16”

2.0mm = 5/64”

2.5mm = 3/32”

3.0mm = 1/8”

4.0mm = 5/32”

5.0mm = 13/64”

6.0mm = 15/64”

10mm = 13/32”

12mm = 15/32”

15mm = 19/32”

20mm = 51/64”

25mm = 1”

30mm = 1-3/16”

45mm = 1-51/64”

Low seting

Page 3

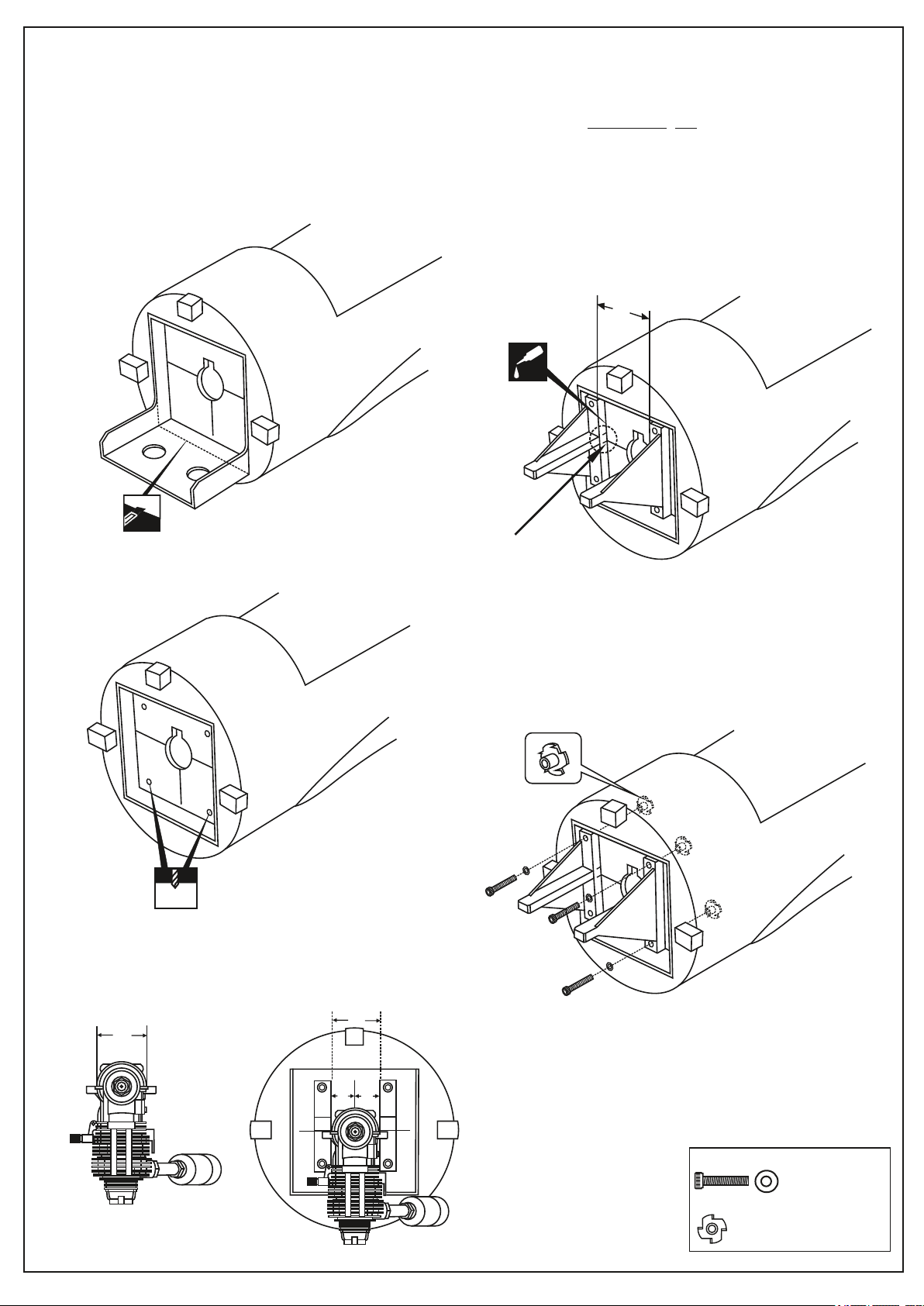

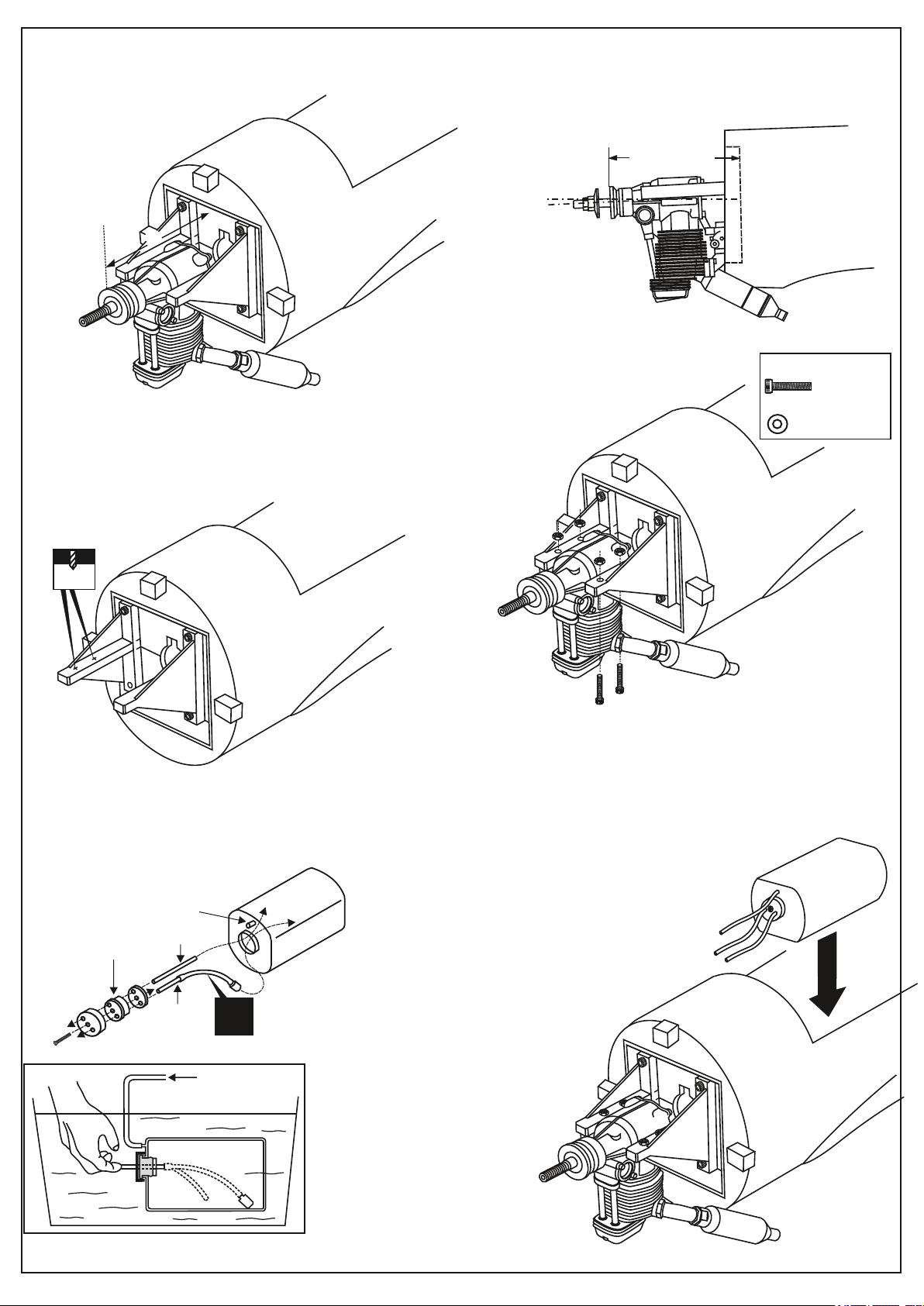

1- ENGINE MOUNT

Push left (or right) the magnetic fuel tank hatch

and full it out of the fuselage.

Cut the wood along the line as shown

(1A) in case of 4T engine using

Attach the engine mount beams onto the fire-wall

so the distance between of two engine mount beams

is “A”,and B=B’ as show.

Secure the engine mount beams onto the fire-wall

with litter CA glue (1B)

! Align the mark on both engine mount

beams with the mark on the fuselage

Using a pencil or felt tipped pen, mark

the fire wall where the four holes are to

be drilled(1B))

6mm

! Align the mark on both

engine mount beams with

the mark on the fire-wall.

Carefully remove the engine mount beams

and drill a 6mm hole through the fire-wall

at each of the four marks made above (1C)

FRONT-VIEW

B’

B=B’

Insert the blind-nut onto each

of the four holes make above (1D).

Reposition the engine mount beams on to the fire-wall

and secure them with four 4x25mm screw (1D)

4x25mm screw - washer

...................4

Blind-nut

....................4

Page 4

2- ENGINE

C=122-124mm

! Engine thrust on balk head

is already adjust at factory

Position the engine to the engine mounts so the distance from the prop hub

to the fire-wall is 122 - 124mm.

Mark the engine mounting plate where the four holes are to be drilled (2A)

3mm

122-124mm

FUSELAGE

SIDE-VIEW

3x25mm screw

.......4

Washer

.......4

Remove the engine and drill a 3mm holes through the beam at each

of the four marks made above (2B)

Marking sure that you drill the hole perpendicular to the beam of the

engine mount.

To muffler

Rubber stopper

3x35mm screw

Filler tube

To engine

Blow

Reposition the engine on the engine mount

beams, aligning it with the holes. Secure the

engine to the engine mount using four

3x25mm screws (2C)

Note: Apply Silicon sealer to each of the

3x25mm screw and nut.

Carefully install the fuel tank

to ensure that they will not

shift during flight (2F).

Water

Checking for leaks - block the vents

and blow into the feed - if in doubt

submersing the tank in a blow of

water will show up any problems.

Page 5

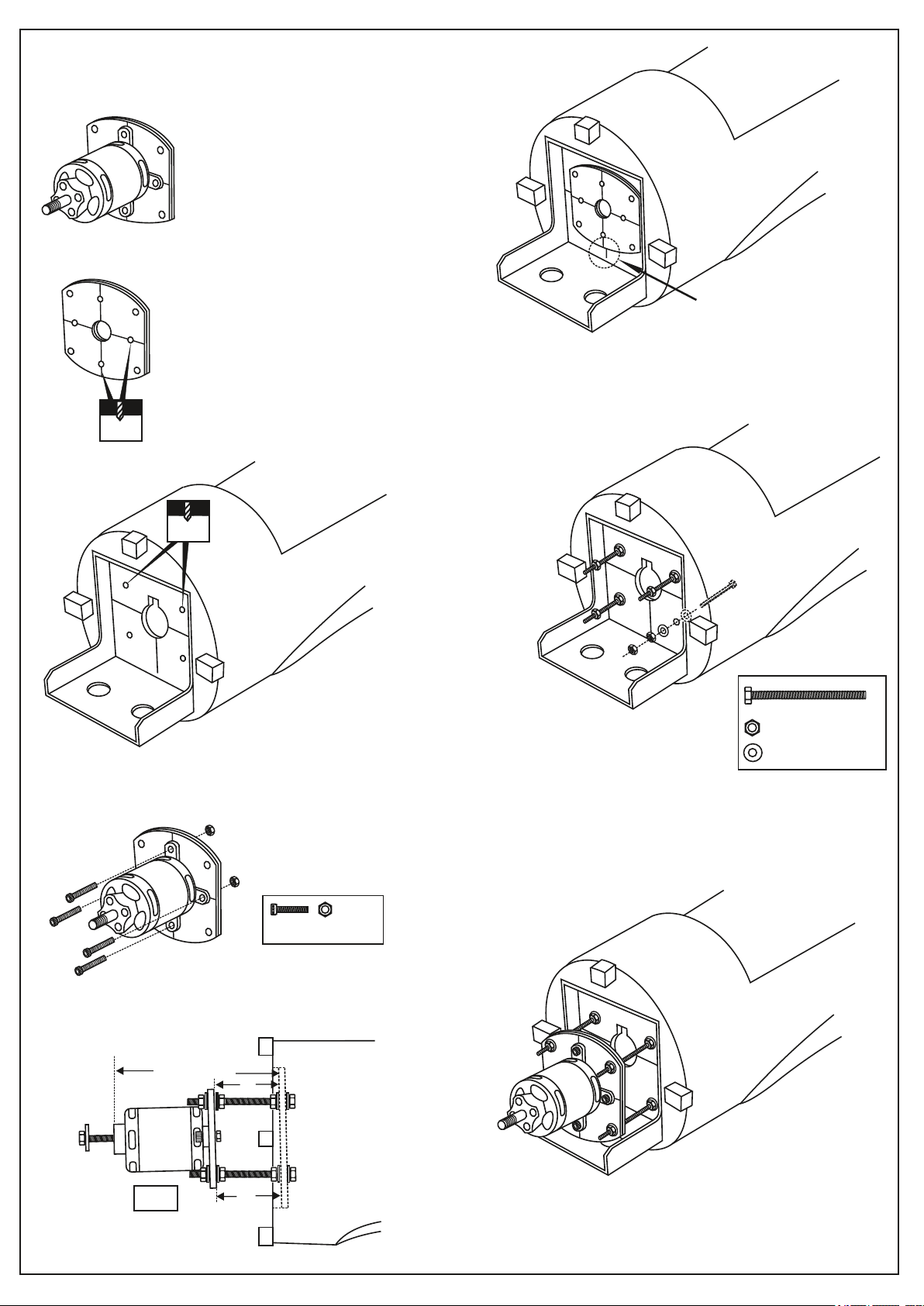

3- ELECTRIC MOTOR

Using a aluminum motor mounting plate

as a template, mark the plywood motor

mounting plate where the four holes are

to be drilled.

3mm

Remove the aluminum motor mounting

plate and drill a 1/8”(3mm) hole through

the plywood at each of the four marks

marked .

6mm

! Align the mark on wooden motor

mounting plate with the mark on

the fire-wall.

Using a wooden motor mounting plate as a template,

mark the fire-wall where the four holes are to be drilled (3C).

122-124mm

Remove the wooden motor mounting

plate and drill a 6mm hole through

the fire-wall at each of the four marks

marked (3D) .

Secure the Motor to the wooden

motor mounting plate using the

four 3mm bolts.

3mm bolt / nut...4

SIDE-VIEW / Seitenansicht

FUSELAGE

Attach the four 5x70mm bolts

and nuts to the fire-wall as

shown (3E).

6x100mm bolt.....4

6mm nut..........12

6mm washer...16

B=B’

! Motor thrust on balk head

is already adjust at factory

B’

Page 6

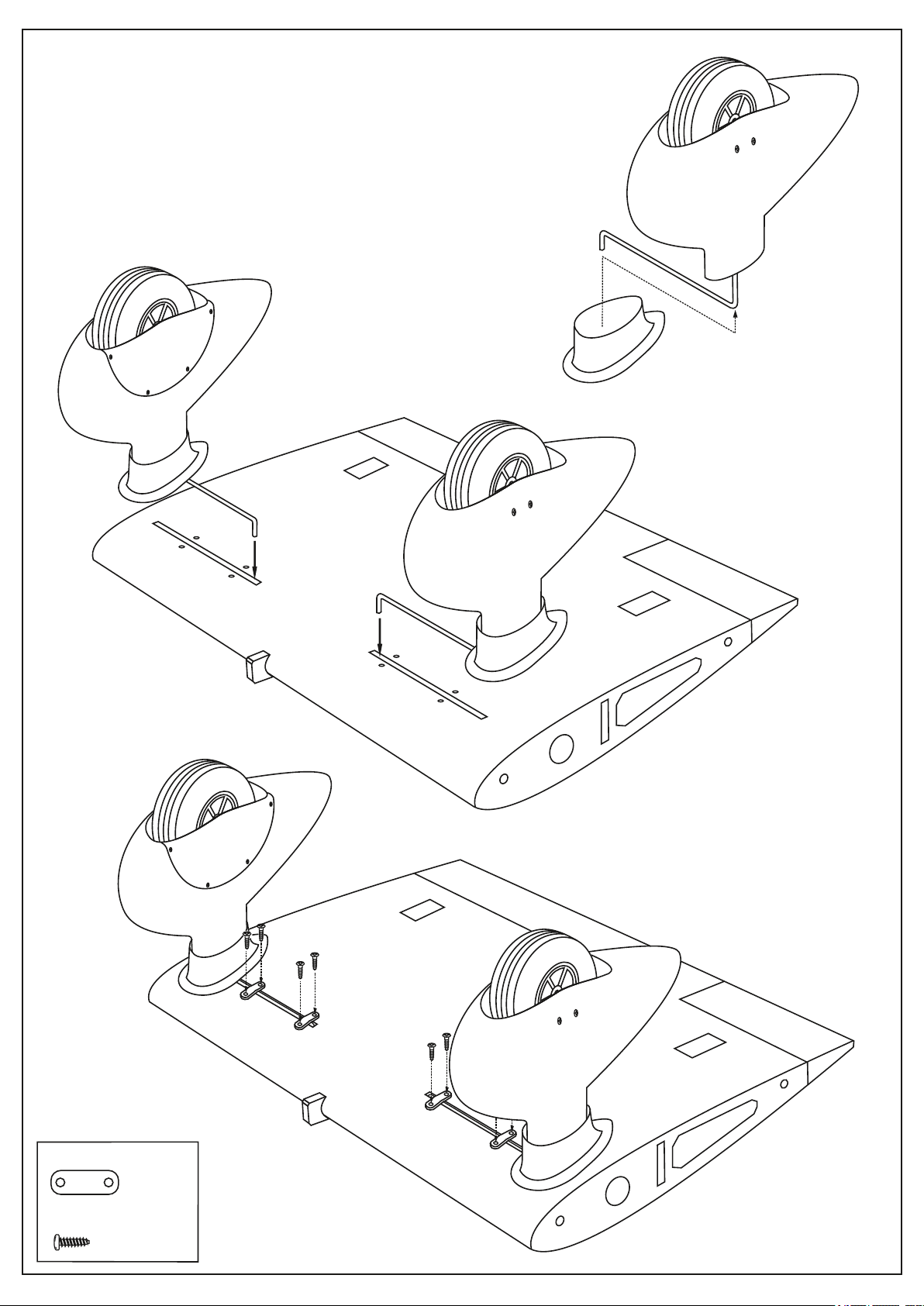

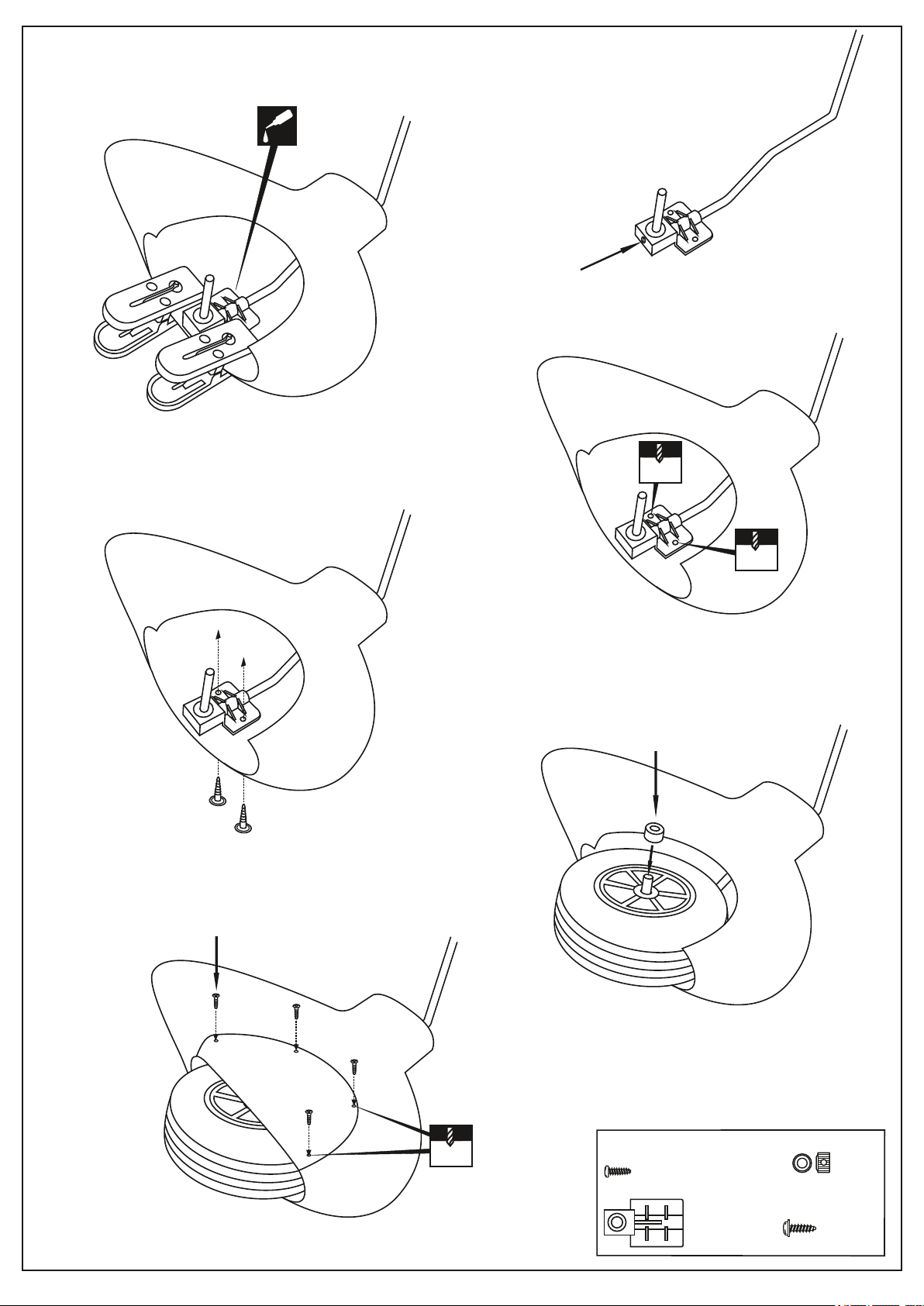

4- WHEEL PANT

Slide the landing gear with the wheel pant into the

fiber glass wheel pant and secure it in place using

the two clothespin and litter thin CA glue as shown (4B).

Slide the wheel pant mount

onto the landing gear

Secure the wheel pant

mount in place using the

3mm screw set.

1.5mm

2.5x10mm

self tapping screw

2x6mm self tapping screw

Remove the clothespin and drill the two 1.5mm holes

as shown (4C).

4mm collar

1.5mm

2x6mm self tapping

screw

..........8

Wheel pant mount

...2

4mm collar

....2

2.5x10mm self

tapping screw

..........4

Page 7

5- WHEEL PANT continued

Nylon gear strap

...........4

3x10mm self tapping

screw

..............8

Page 8

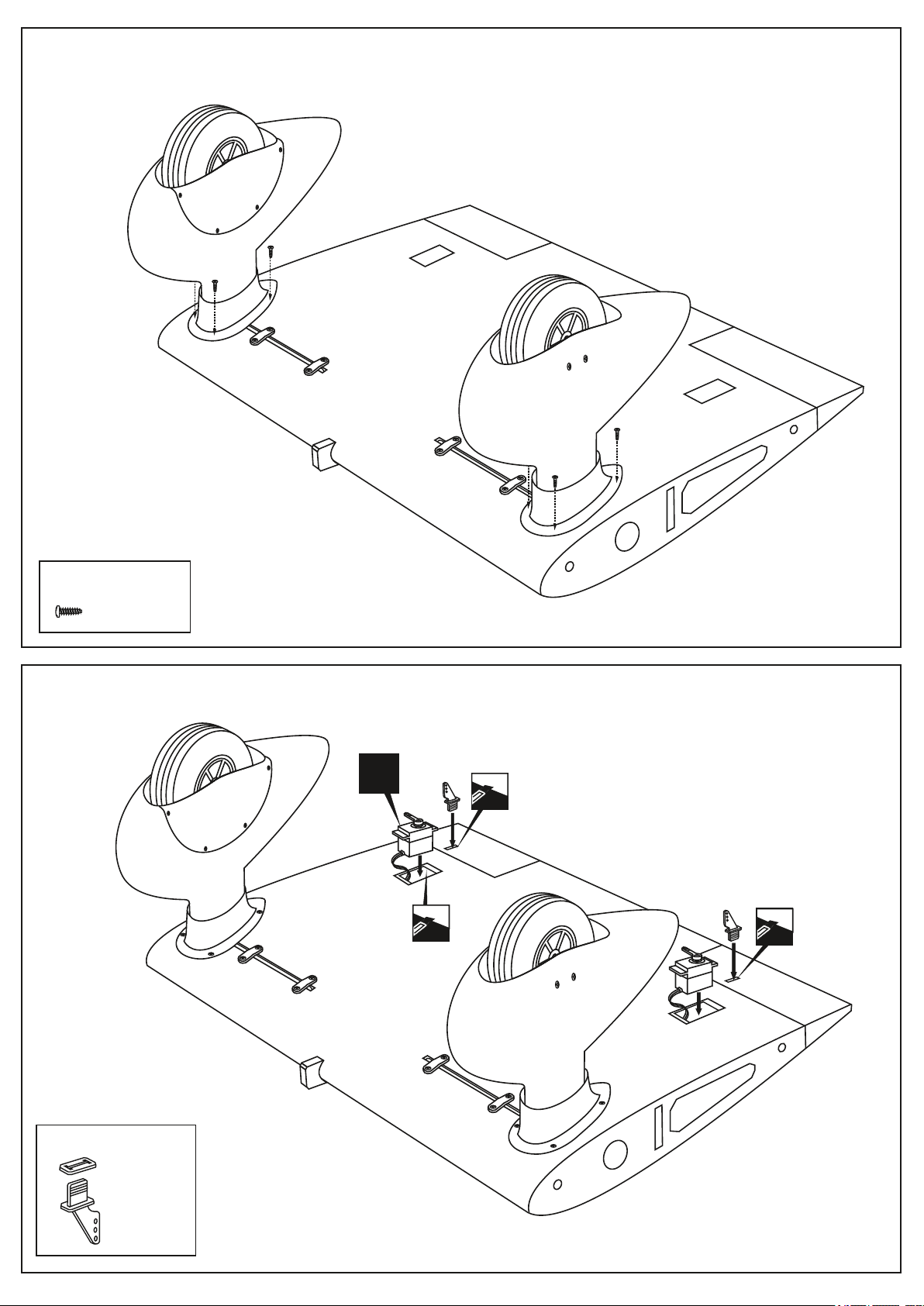

6- WHEEL PANT continued

2x6mm self tapping

screw

.............8

7- SERVO & CONTROL HORN

Cut away only

the covering

Cut away only

the covering

Cut away only

the covering

Plastic control horn

......2 set

Page 9

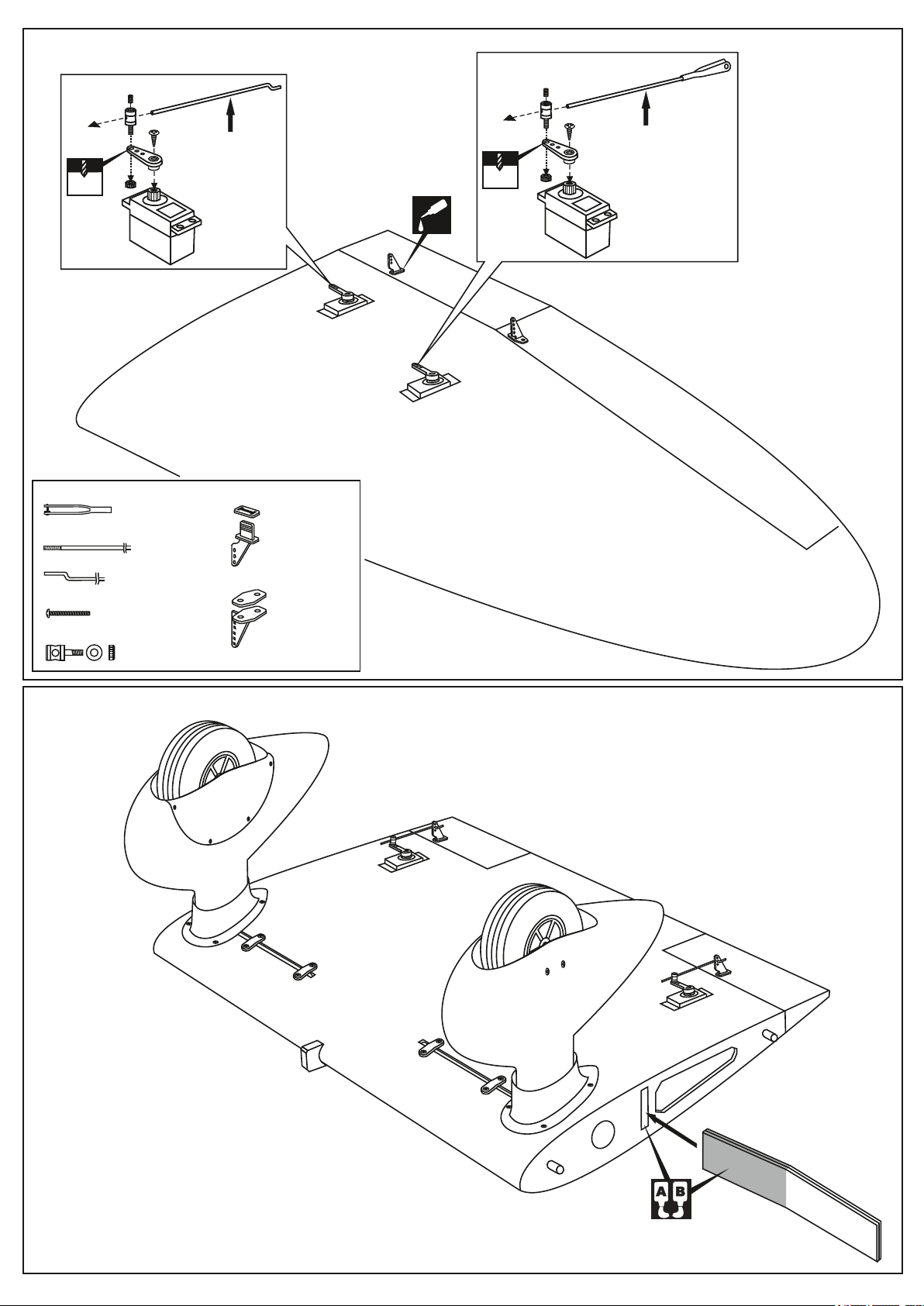

8- LINKAGES

Secure the plastic control horn

in place using the thin CA glue.

Push the wooden dowel to the hole on the rib as show

Ensure that the dowel is rectangular with the rib.

Secure it in place using the thin CA glue.

Flap push-rod

Flap push rod (1.2x120mm)

Connector

............2

2mm

............2

Thin CA

2 mm

Thin CA

Wooden dowel

Flap servo

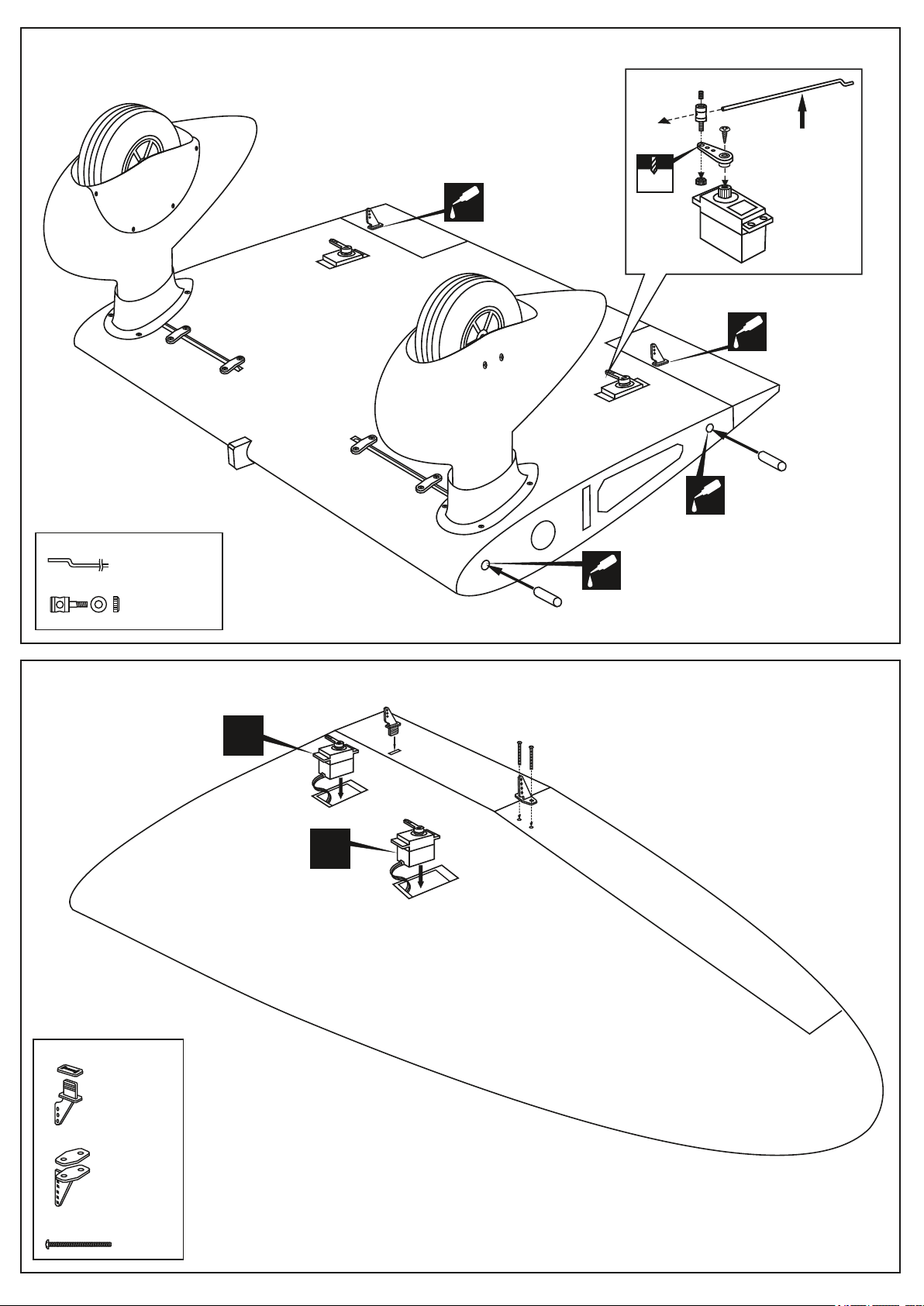

9- OUTER WING: SERVO & CONTROL HORN

Plastic control horn

............2 set

Plastic control horn

............2 set

2x30mm screw

......4

Page 10

10- OUTER WING: LINKAGES

Flap push-rod

1.2x120mm

2 mm

Steel clevis

Aileron push rod 2x175mm

Flap push rod 1.2x120mm

2x30mm screw

Connector

......2

.....2

............2

..............4

2mm

............4

Flap servo

Plastic control horn

............2 set

Plastic control horn

............2 set

Thin CA

Aileron push-rod

2X175mm

2 mm

Aileron servo

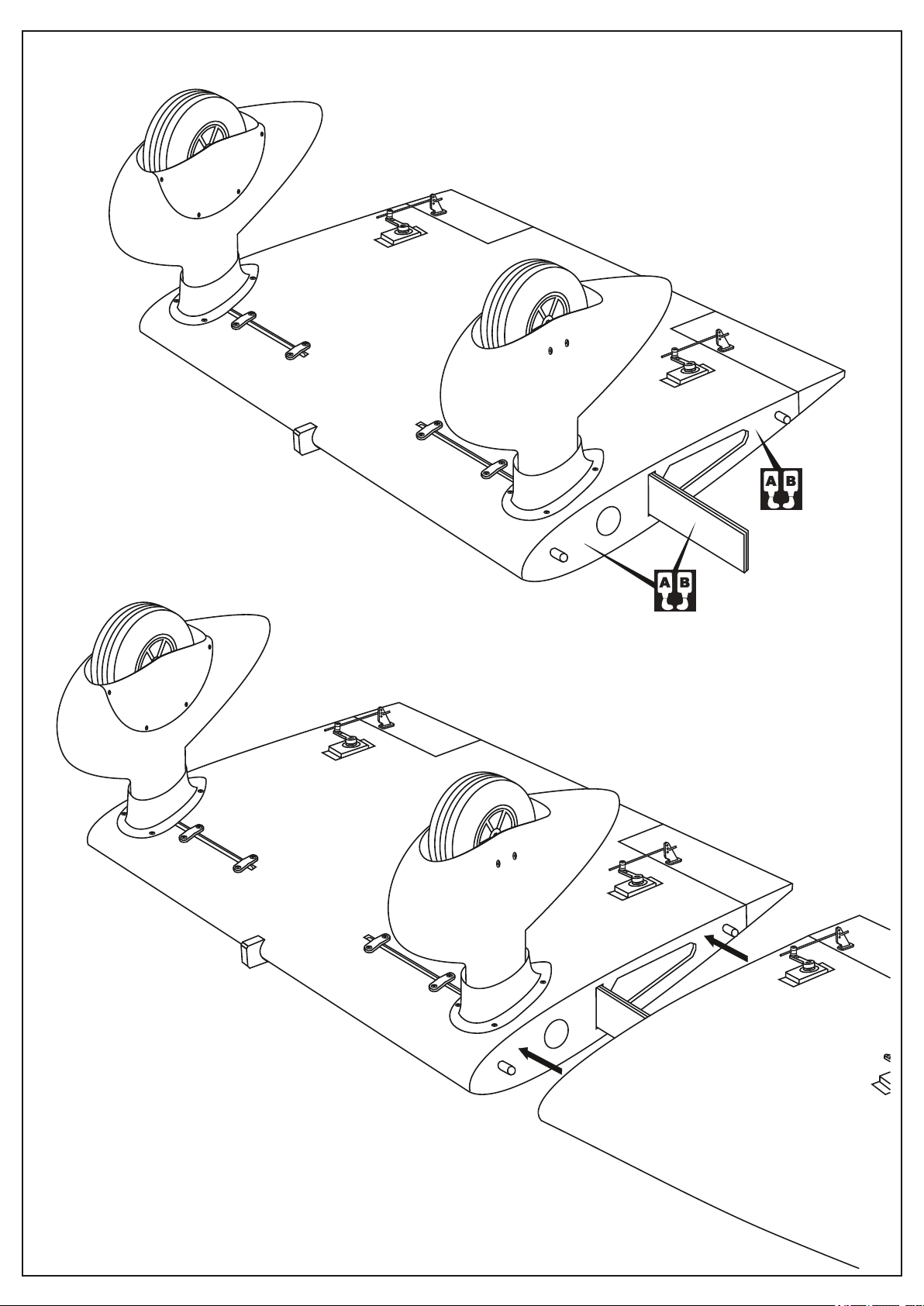

11- JOINING THE WING

Without using Epoxy yet, trial fit the wing joiner into one

of the wing panels.

Next, slide the other wing half onto the dihedral brace until the

wing panels meet. If the fit is overly tight, it may be necessary to lightly

sand the dihedral brace.

30 min.

Epoxy

Page 11

12- JOINING THE WING continued

12A

12B

30 min.

Epoxy

Carefully slide the wing halves together, ensuring that

they are accurately aligned.

Firmly press the two halves together, allowing the excess epoxy

to run out. Using a paper towel, clean off the excess epoxy.

NOTE:

Please do not clean off the excess epoxy on the wing with strong solvent or pure alcohol

to keep the colour of your model not fade.

Page 12

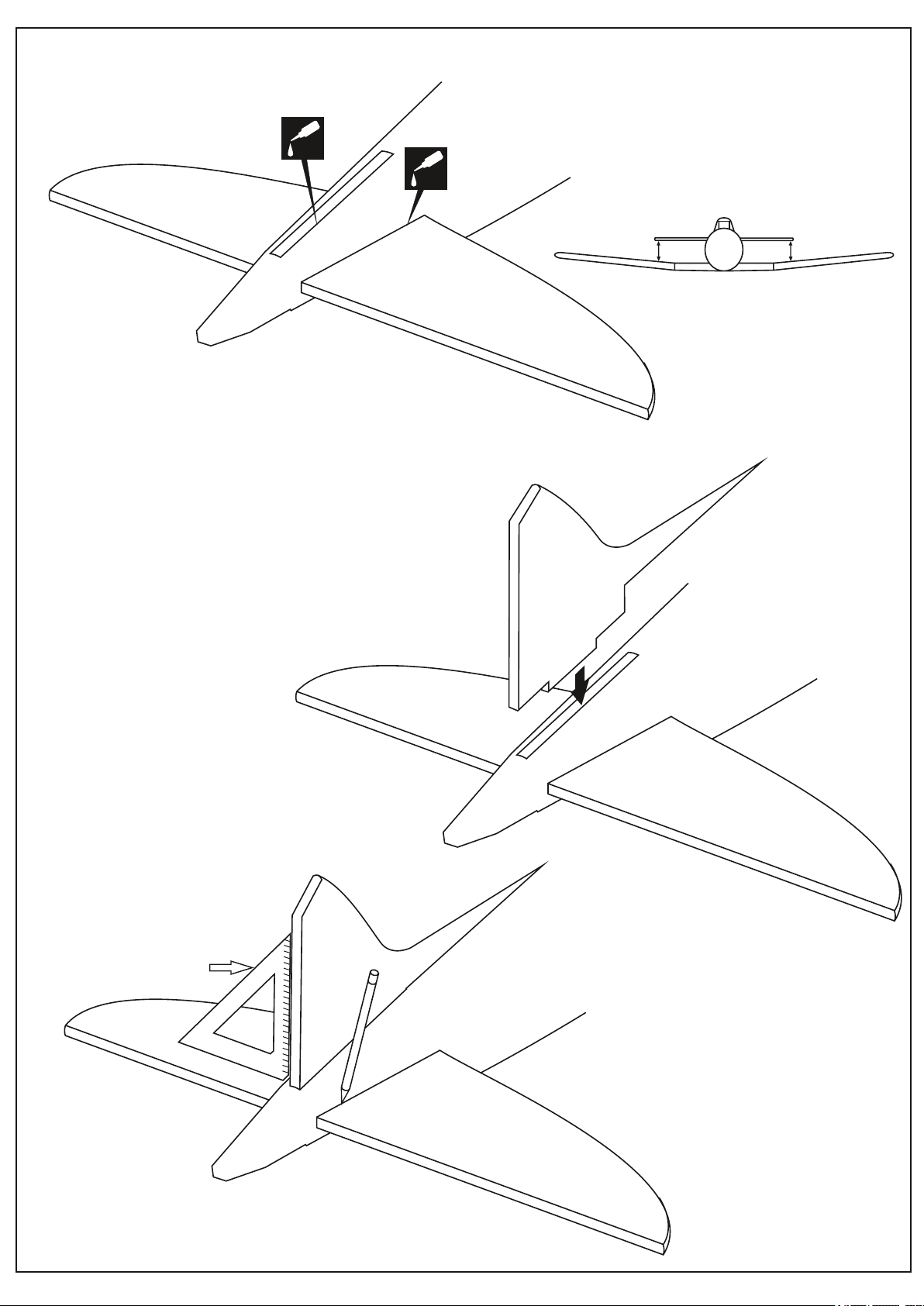

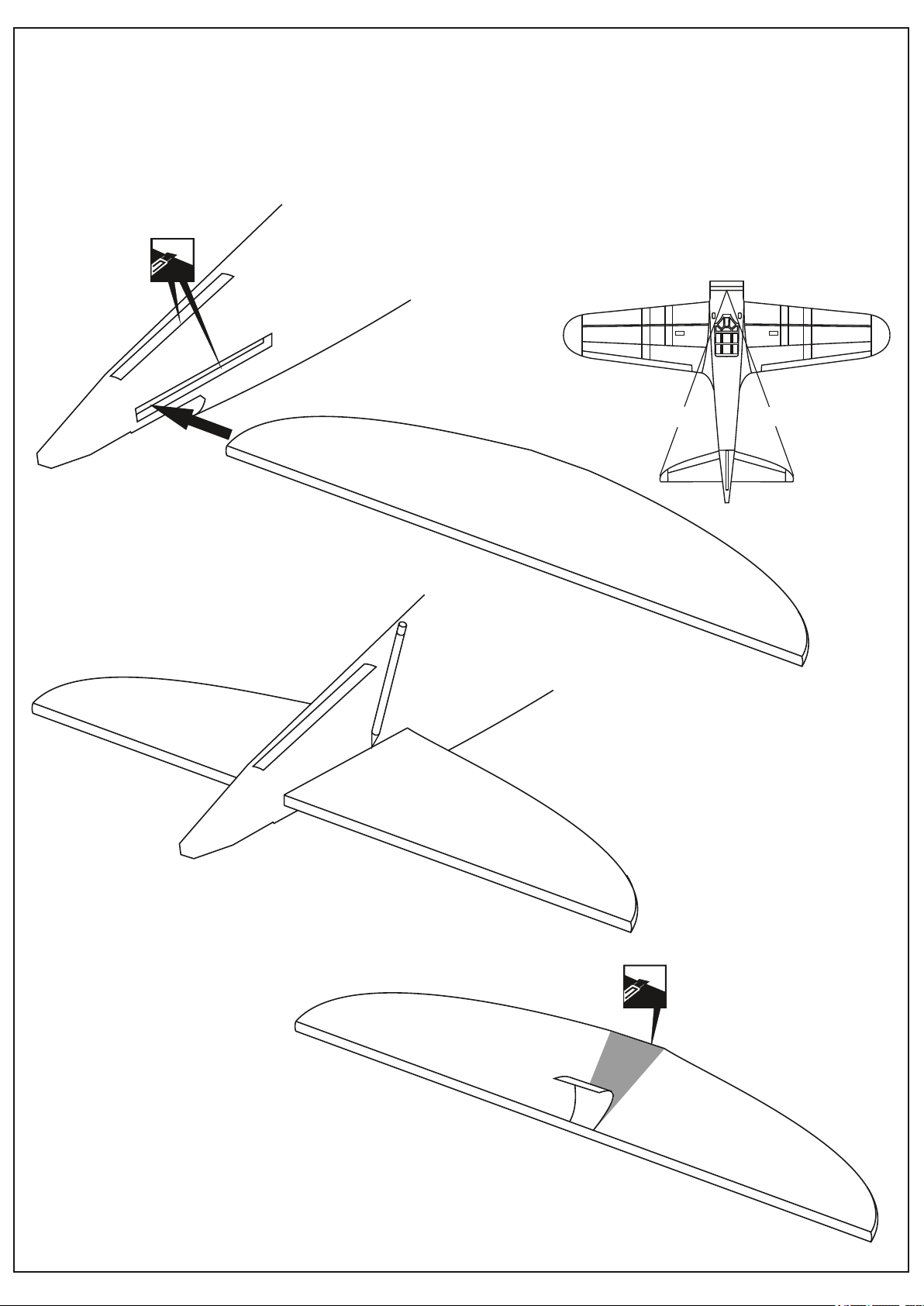

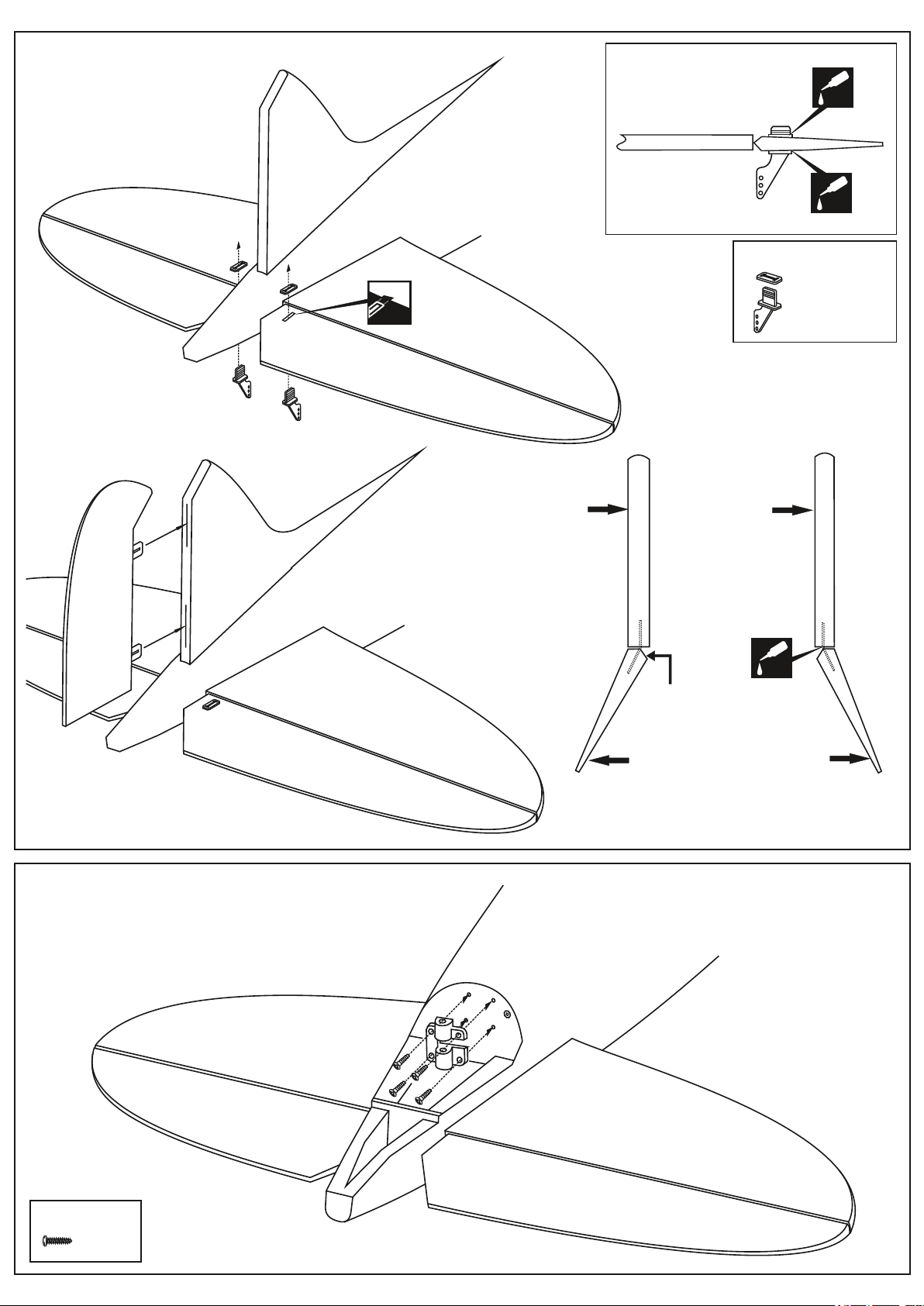

13- HORIZONTAL STABILIZER

13A

Cut away only

the covering

Using a sharp hobby knife, carefully cut away the covering

around of all slots for the horizontal stabilizer and vertical

fin installation.

Remove the left and right elevator out of the horizontal stabilizer.

Push the horizontal stabilizer into the slot on the fuselage

as show. Check the alignment of the horizontal stabilizer

by measuring from a fixed point along the center line of

the fuselage to the leading edge on each side of the

horizontal stabilizer. The distance must be equal on both

sides . If not, adjust the stabilizer until the measurements

are the same (see picture below: A=A’).

A = A’

When you are satisfied with the alignment, use

a pencil to trace around the top and bottom of

the stabilizer where it meets the fuselage (13B).

13B

A’

Remove the horizontal stabilizer

from the fuselage. Using a straight edge

and a sharp hobby knife, carefully cut away

the covering inside the lines which were marked

above. Be cautious not to cut into the wood-this

will weaken the structure (13C).

Cut away only

the covering

both side

13C

Page 13

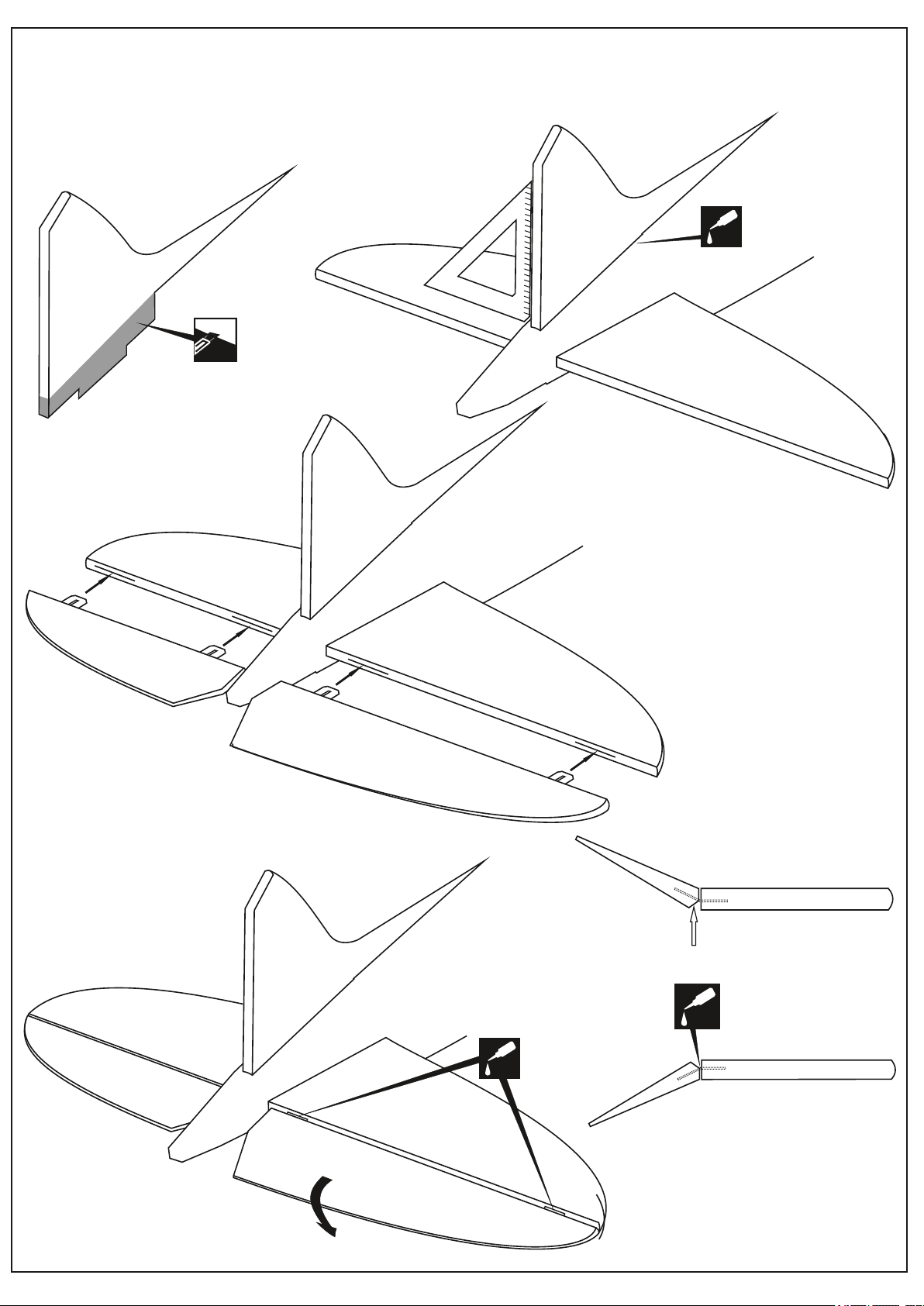

14- HORIZONTAL STABILIZER & VERTICAL STABILIZER

Apply thin CA glue into the slot where

the fuselage meet the horizontal stabilizer.

14A

Install the horizontal stabilizer onto the fuselage and adjust the alignment as

described in steep 13A.

Note: it is important to ensure that the horizontal stabilizer is also level in regards to the

fuselage.

Apply the thin CA along the area where the covering was removed in the previous step and to the

fuselage where the horizontal stabilizer mounts .

! Securely glue together. If coming off during fly,

you lose control of your air plane.

Carefully, push the vertical fin into the

slot on the fuselage as shown (14B).

Pull the rudder out of the vertical fin.

Apply CA glue

both sides.

(thin CA)

B=B’

B’

14B

90 degree

triangle

14C

Trial fit the vertical fin in position. Using

a 90 degree triangle, ensure that the

vertical stabilizer is perpendicular to the

horizontal stabilizer (14C).

Using a pencil, trace around the vertical

stabilizer where it meets the fuselage.

Remove the vertical stabilizer from the

fuselage.

Page 14

15- VERTICAL STABILIZER

Remove the vertical stabilizer from the fuselage.

Using s sharp hobby knife, carefully cut away the

covering below the lines which were drawn in the

previous steep. Do not cut into the woods as this

will affect the structural integrity of the stabilizer (15A).

Insert the vertical fin into the fuselage, precisely align the vertical stabilizer

as described in step 14C.

Apply the thin CA glue on the vertical stabilizer where it contacts the fuselage.

! Securely glue together. If coming off during fly, you lose control of your

air plane.

15B

15A

Cut away only

the covering

15C

Apply thin CA

glue both side

Without using glue yet, push the elevator and its

hinges into the hinge slots in trailing edge of the

horizontal stabilizer (15C).

15D

Apply thin CA

glue on the top

and bottom

of the hinge

TOP-SIDE

HORIZONTAL STABILIZER

Apply a thin layer of petroleum jelly

Apply thin CA

glue on the top

of the hinge

TOP-SIDE

HORIZONTAL STABILIZER

Do the same way with the bottom side

of elevator and with the second elevator.

! Securely glue together. If coming off

during fly, you lose control of your

air plane.

Page 15

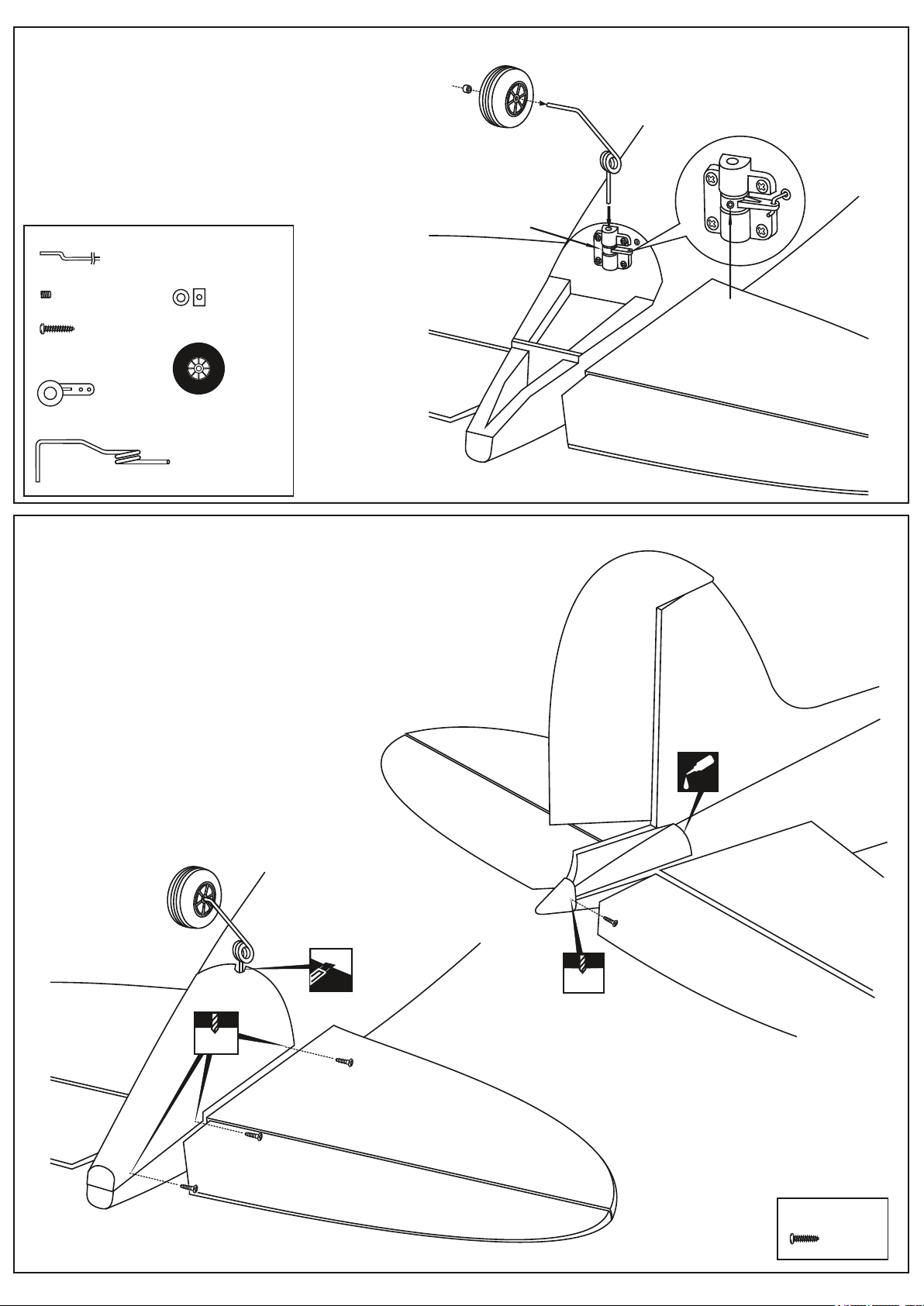

16- CONTROL HORN

STABILIZER

Plastic control horn

............2 set

Cut away only

the covering

17- TAIL WHEEL

FIN

Apply a thin layer

of petroleum jelly

FIN

Apply thin CA

glue on the left

and right

of the hinge

RUDDERRUDDER

! Securely glue together. If coming off during fly,

you lose control of your air plane.

3x10mm screw

.........4

Page 16

18- TAIL WHEEL continued

Insert the tail wheel push-rod into the hole on the

tail gear control horn as show (18A).

Insert the tail wheel push-rod with the tail gear control horn

connected into the fuselage (18B).

Install the tail wheel control horn in place (18C).

Instal the tail wheel gear in place (18D).

Secure the tail wheel control horn in place using a

2mm screw set (18E).

1.2x800mm rod

...................................1

3x3mm screw

............1

3x10mm screw

............4

Tail wheel control-

horn

.................1

Tail landing gear

..........1

2mm I.D collar

...............1

25mm wheel

..........1

18C

18D

18A-B

18E

19- PLASTIC SHIELD

19A

1mm

19B

1mm

2x8mm screw

.........6

Page 17

20- SERVO & LINKAGES

2 mm

In case of Glow engine using

Throttle push-rod

1.2x500mm

Throttle servo

Steel clevis

.......3

2x950mm rod

(2 x120mm) rod

(1.2 x500mm) throttle rod

Triple connector

.......3

............2

............1

................2

2mm

....................1

2x120mm rod

Tail gear push-rod 1.2x800mm

3mm set Screw

Rudder push-rod

2x950mm

Triple connector

2 mm

Cut the rudder push-rod excess length.

Cut the tail wheel push-rod excess length.

Insert all into the triple connector and tighten everything.

Do the same way with the elevator linkages.

Insert the rudder push-rod from the rear of the fuselage.

Screw the clevis mid-thread, then connect to the rudder

control horn.

Page 18

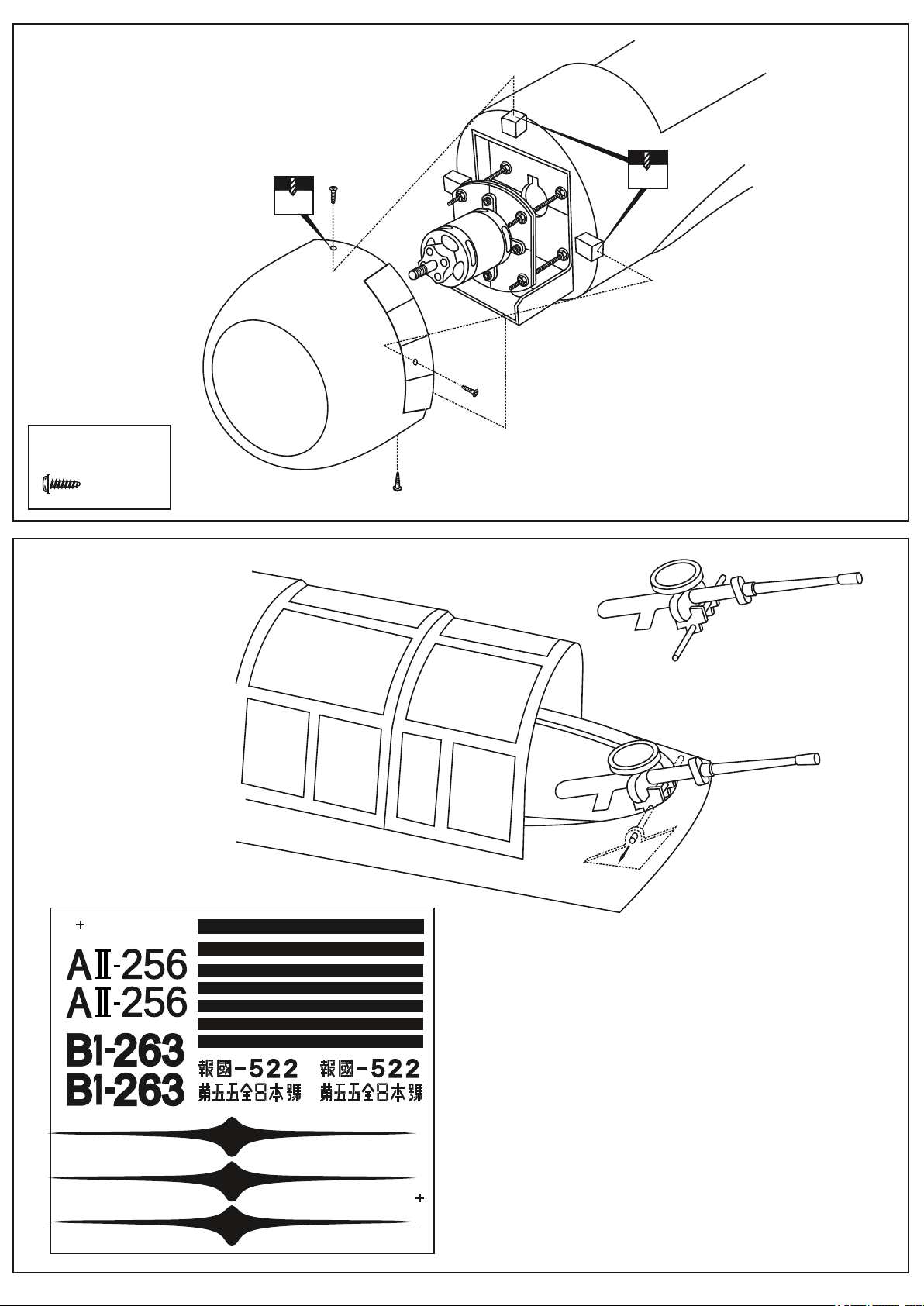

21- COWLING

2.5x10mm screw

.........4

2mm

22- GUN & DECAL

AICHI DECAL SHEET 40X36 VQ MODELS

Note: Cut out the stickers and apply them in the proper area. Do not

peel the backing paper off all at once.

Peel off one corner of the backing and cut off with scissors.

Arrange sticker on model and when satisfied adhere the corner without

backing.

Carefully peel back the rest of the backing while at the same time

adhering the rest of the sticker.

Try not to make air bubbles, if there are some, carefully puncture sticker

(center of bubble) but not model surface with

the tip of the knife or sharp pin and squeeze out the air.

At curves stretch sticker and apply a little heat so that no ceases occur.

Cut off the excess that is produced.

Page 19

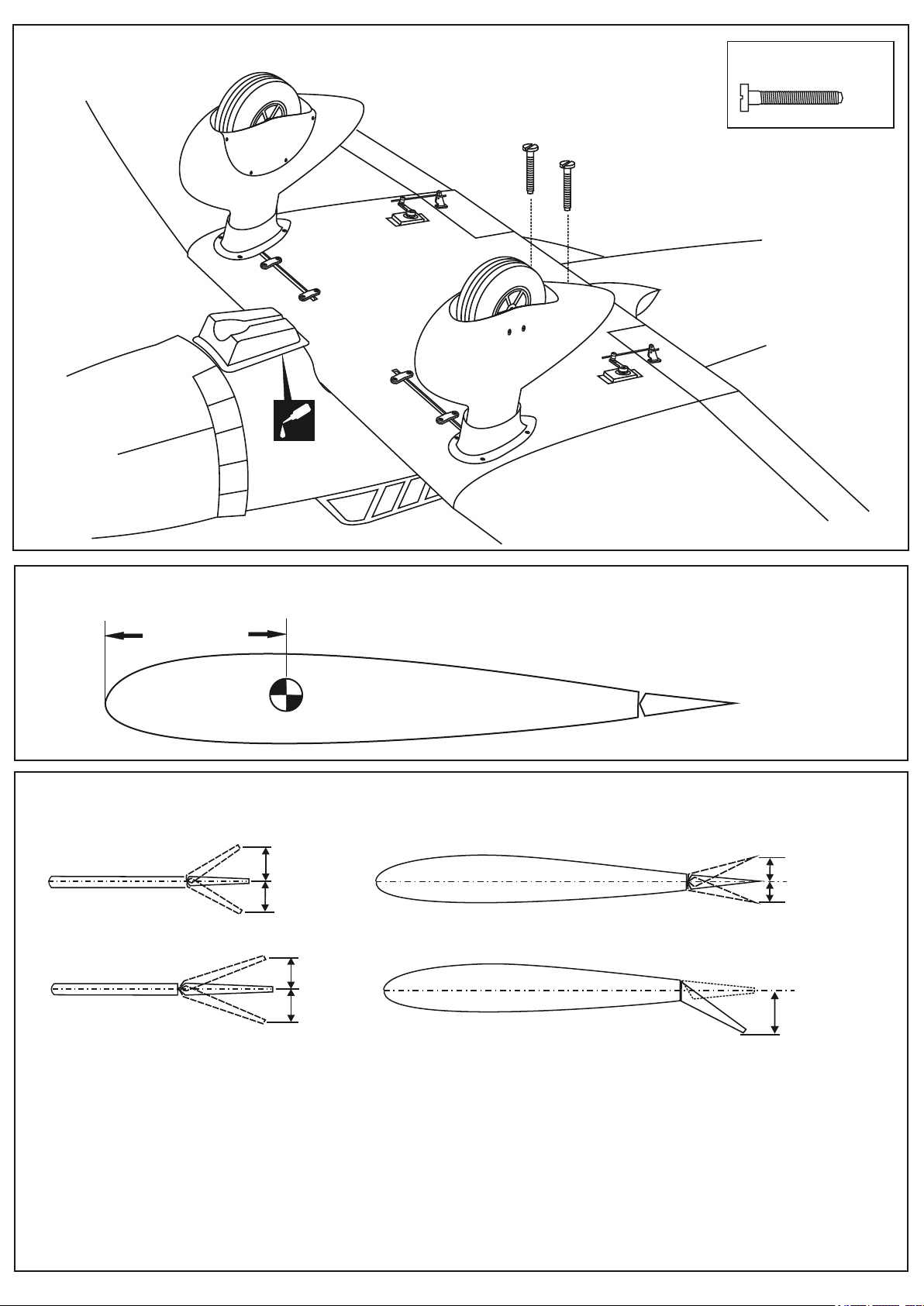

23- INSTALLATION THE WING

6x50mm nylon bolt

.....2

24-BALANCE

(97 ~ 102mm)

25-CONTROL SURFACE

ELEVATOR STROKE

RUDDER STROKE

(15mm)

(25mm)

Note: Adjust the location of the battery pack to achieve this C.G location.

DO NOT try to fly an out-of balance model!

Wing center section

(10mm)

AILERON STROKE

(25-30mm)

FLAPS STROKE

Adjust the travel of the control surfaces to achieve the values stated in the diagrams.

These value will be suitable for average flight requirements. Adjust the values to suit your particular needs.

IMPORTANT: Please do not clean your model with strong solvent or pure alcohol to keep the

colour of your model not fade.
