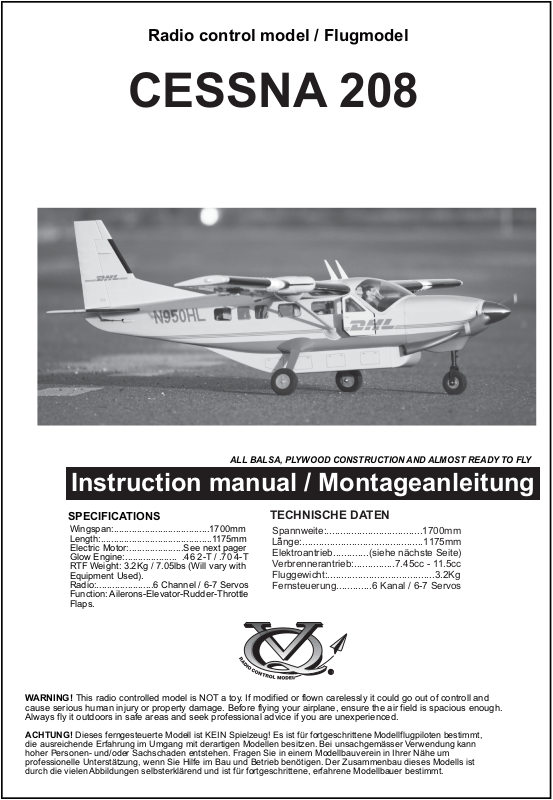

Page 1

Radio control model / Flugmodel

CESSNA 208

ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY

Instruction manual / Montageanleitung

SPECIFICATIONS

Wingspan:.....................................1700mm

Length:...........................................1175mm

Electric Motor:.....................See next pager

Glow Engine:.................... .46 2-T / .70 4-T

RTF Weight: 3.2Kg / 7.05lbs (Will vary with

Equipment Used).

Radio:......................6 Channel / 6-7 Servos

Function: Ailerons-Elevator-Rudder-Throttle

Flaps.

WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and

cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.

Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,

die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann

hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um

professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist

durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

TECHNISCHE DATEN

Spannweite:...................................1700mm

Lange:............................................1175mm

Elektroantrieb.............(siehe nächste Seite)

Verbrennerantrieb:...............7.45cc - 11.5cc

Fluggewicht:.......................................3.2Kg

Fernsteuerung.............6 Kanal / 6-7 Servos

Page 2

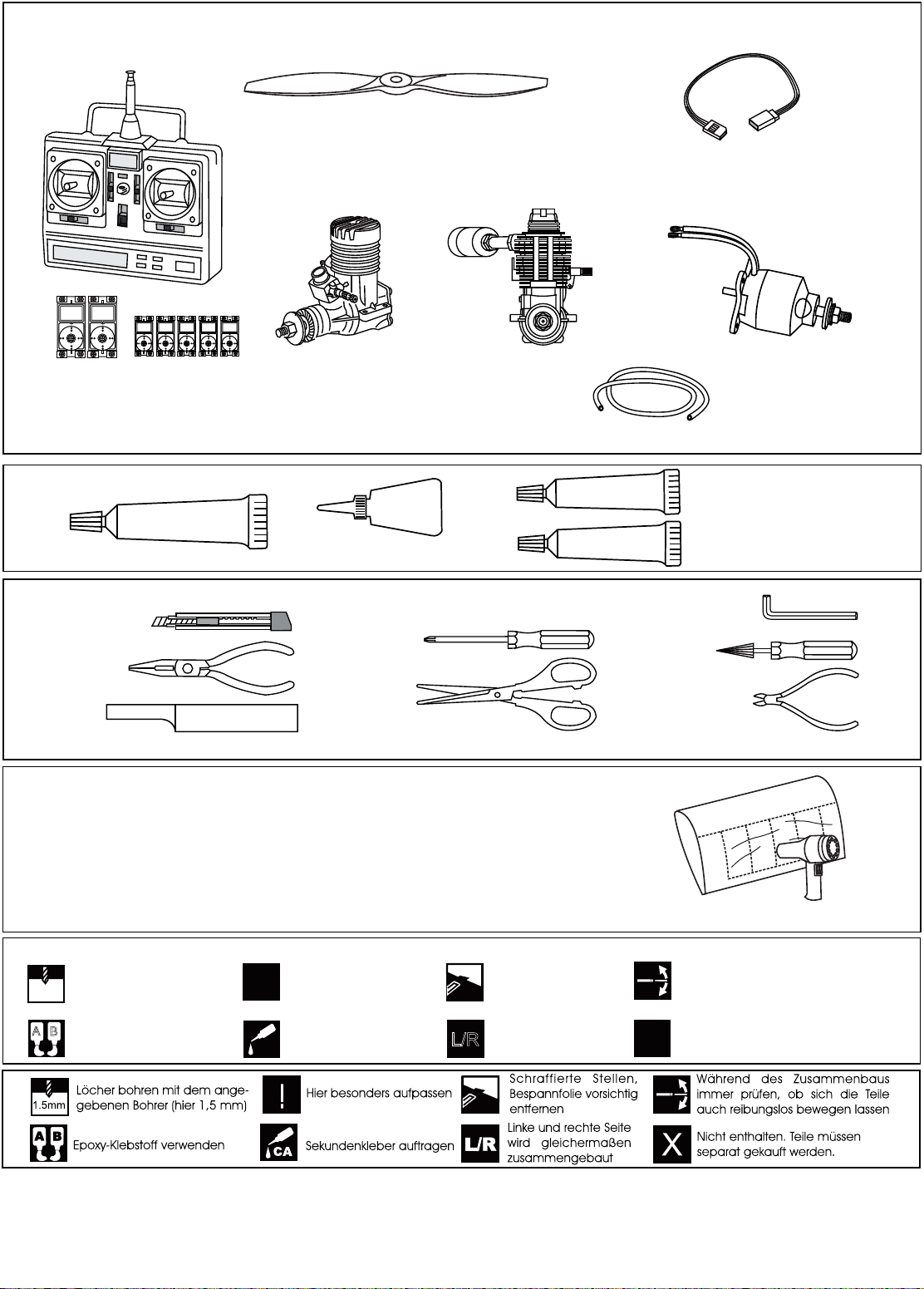

REQUIRED FOR OPERATION (Purchase separately)

11x6 for .46 - 2 cycle engine

12x6 for .60 - 4 cycle engine

12x7 for .70 - 4 cycle engine

13x7 for electric motor

More info: www.pichler-modellbau.de

Extension for aileron

servo, retract servo

and Rx battery pack.

.46 ~ .50 - 2 cycle

Minimum 6 channel radio

for airplane with 2 standard servos

and four servo mini. (five in case of GP)

.Motor control x1(for GP) .Elevator x1 . Rudder x1 (standard servo)

.Aileron and Flapx2 (mini servo)

GLUE

(Purchase separately)

Thread locker

.60 ~.70 - 4 cycle

Cyanoacrylate Glue

TOLLS REQUIRED

Hobby knife

(Purchase separately)

Phillip screw driver

Needle nose Pliers

Scissors

Sander

.........................................................

Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits

If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the

model in a cool place will let the wrinkles disappear. Otherwise, remove

wrinkles in covering film with a hair dryer, starting with

low temperature. You can fix the corners by using a hot iron.

Silicone tube

EPOXY A

EPOXY B

700Watt

Epoxy Glue ( 5 minute type)

Epoxy Glue (30 minute type)

Hex Wrench

Awl

Wire Cutters

Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten

entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie

zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !

Symbols used throughout this instruction manual, comprise:

Drill holes using the stated

1.5mm

size of drill

(in this case 1.5 mm ÿ)

Use epoxy glue

Take particular care here

Apply cyano glue

Hatched-in areas:

remove covering

film carefully

Assemble left and right

L/R

sides the same way.

Check during assembly that these

parts move freely, without binding

Not included.

These parts must be

purchased separately

Read through the manual before you begin, so you will have an overall idea of what to do.

CONVERSION TABLE

1.0mm = 3/64”

1.5mm = 1/16”

2.0mm = 5/64”

2.5mm = 3/32”

3.0mm = 1/8”

4.0mm = 5/32”

5.0mm = 13/64”

6.0mm = 15/64”

10mm = 13/32”

12mm = 15/32”

15mm = 19/32”

20mm = 51/64”

25mm = 1”

30mm = 1-3/16”

45mm = 1-51/64”

Low seting

Page 3

CESSNA 208

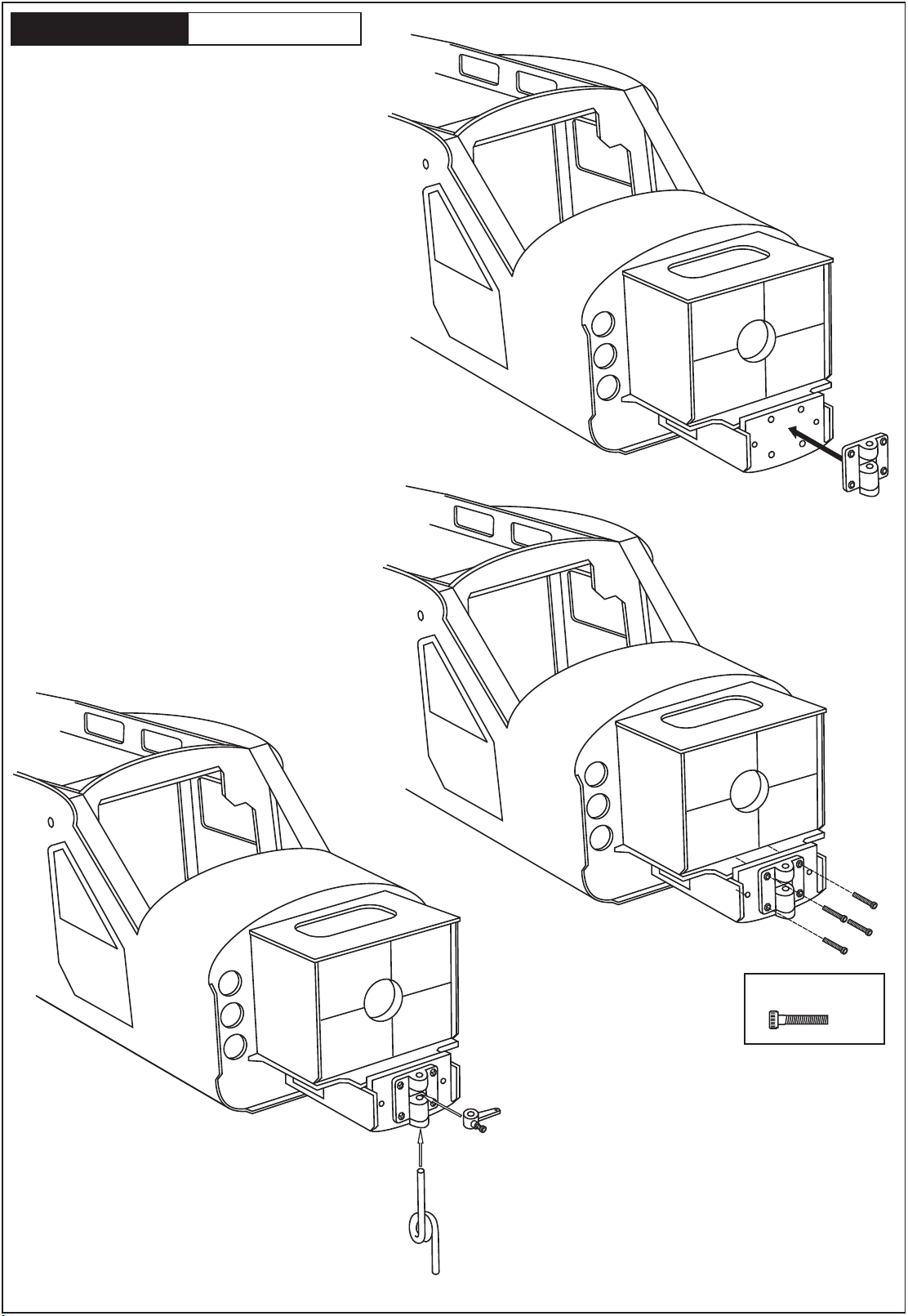

1-Nose gear

3x20mm screw

...4

Page 4

CESSNA 208

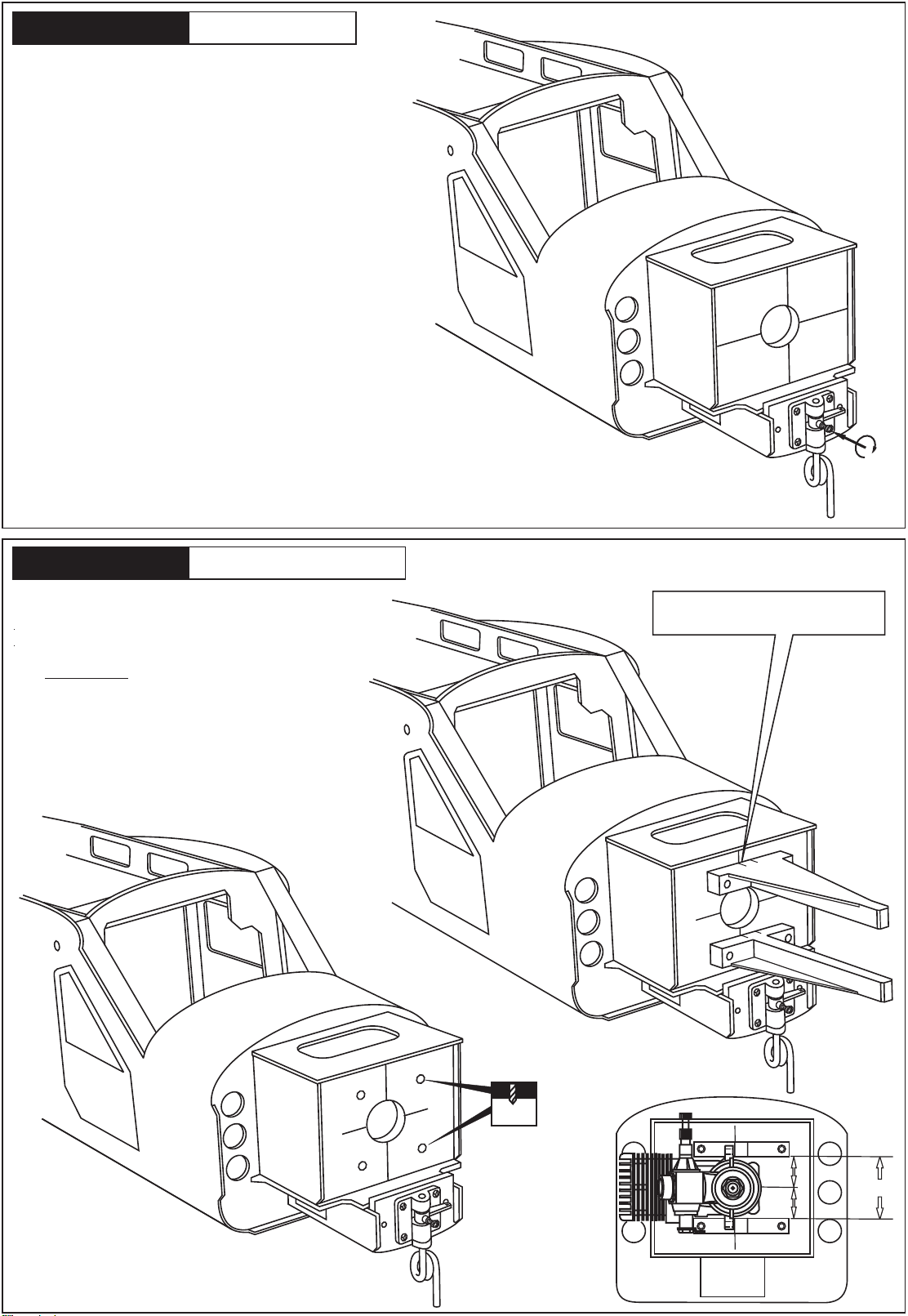

2-Nose gear

CESSNA 208

Attach the engine mount beams onto the fire-wall

so the distance between of two engine mount beams

is “A”,and B=B’ as show.

Secure the engine mount beams onto the fire-wall

with litter CA glue

Using a pencil or felt tipped pen, mark

the fire wall where the four holes are to

be drilled.

3-Engine mount

! Align the mark on both engine mount

beams with the mark on the fuselage

Carefully remove the engine mount beams

and drill a 6mm hole through the fire-wall

at each of the four marks made above.

6mm

B’

Page 5

CESSNA 208

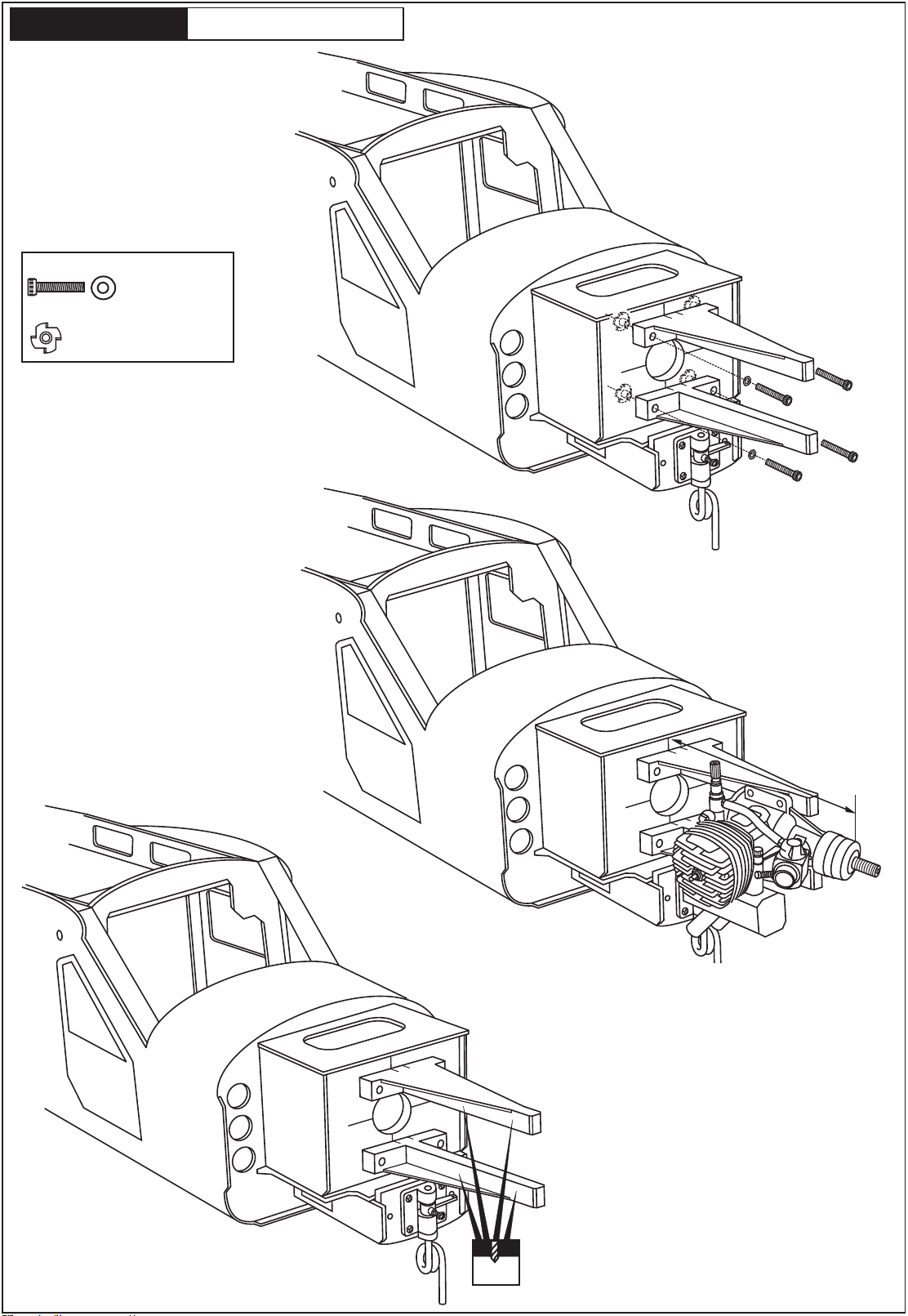

Insert the blind-nut onto each

of the four holes make above.

Reposition the engine mount beams

on to the fire-wall and secure them with

four 4x25mm screws.

4-Engine mount

4x25mm screw - washer

...................4

Blind-nut

....................4

Position the engine to the engine mounts

so the distance from the prop hub to the

fire-wall is 130mm.

Mark the engine mounting plate where the

four holes are to be drilled.

130mm

Remove the engine and drill a 3mm holes through the

beam at each of the four marks made above.

Marking sure that you drill the hole perpendicular to the

beam of the engine mount.

3mm

Page 6

CESSNA 208

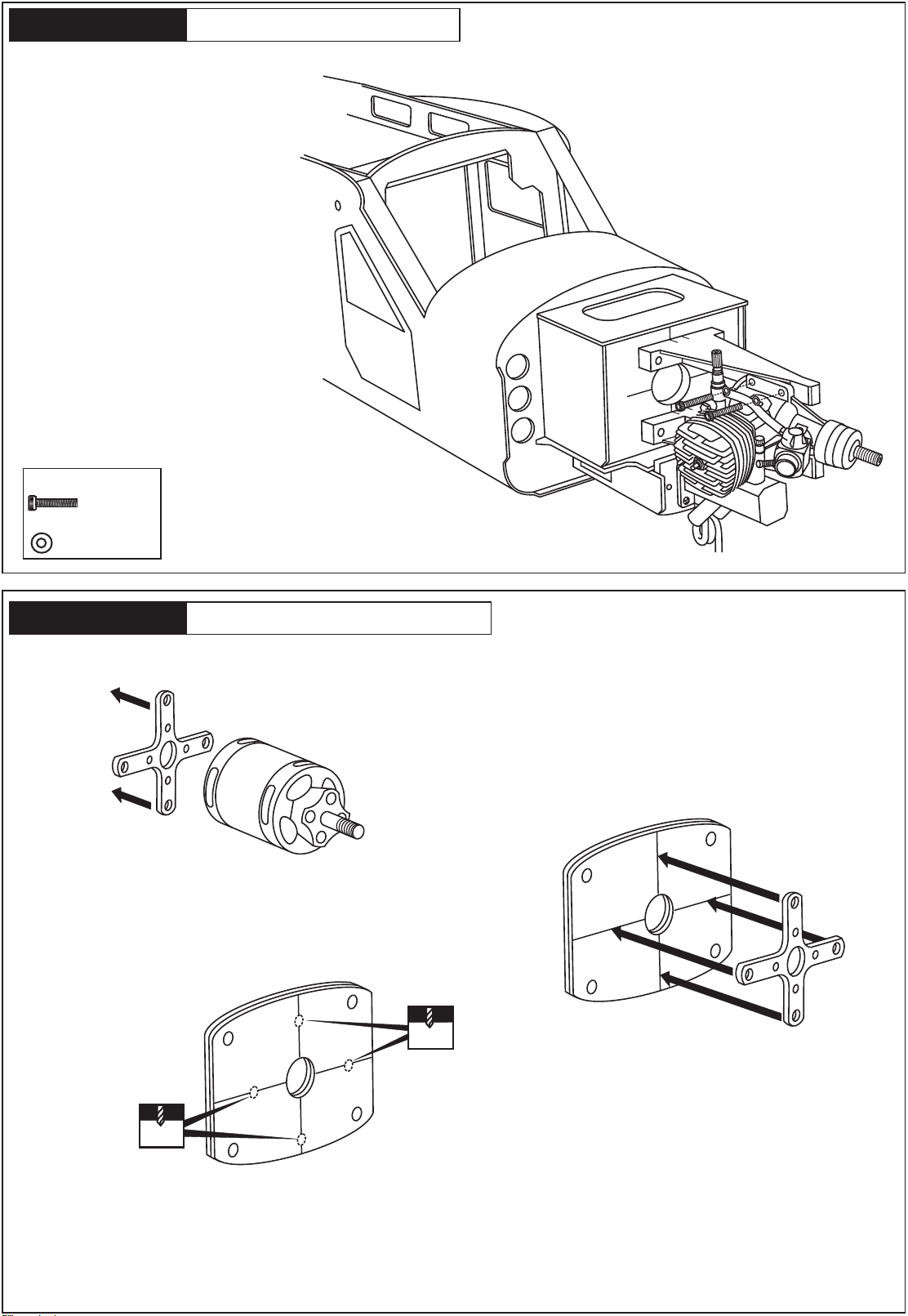

Reposition the engine on the engine mount

beams, aligning it with the holes. Secure the

engine to the engine mount using four

3x25mm screws.

Note: Apply Silicon sealer to each of the

3x25mm screw and nut.

4-Engine installation

3x25mm screw

.......4

Washer

.......4

CESSNA 208

5-Electric motor mount

Using a aluminum motor mounting plate

as a template, mark the plywood motor

mounting plate where the four holes are

to be drilled.

3mm

Remove the aluminum motor mounting

plate and drill a 3mm hole through the plywood

at each of the four marks marked .

Page 7

CESSNA 208

Using a wooden motor mounting plate as a template,

mark the fire-wall where the four holes are to be drilled.

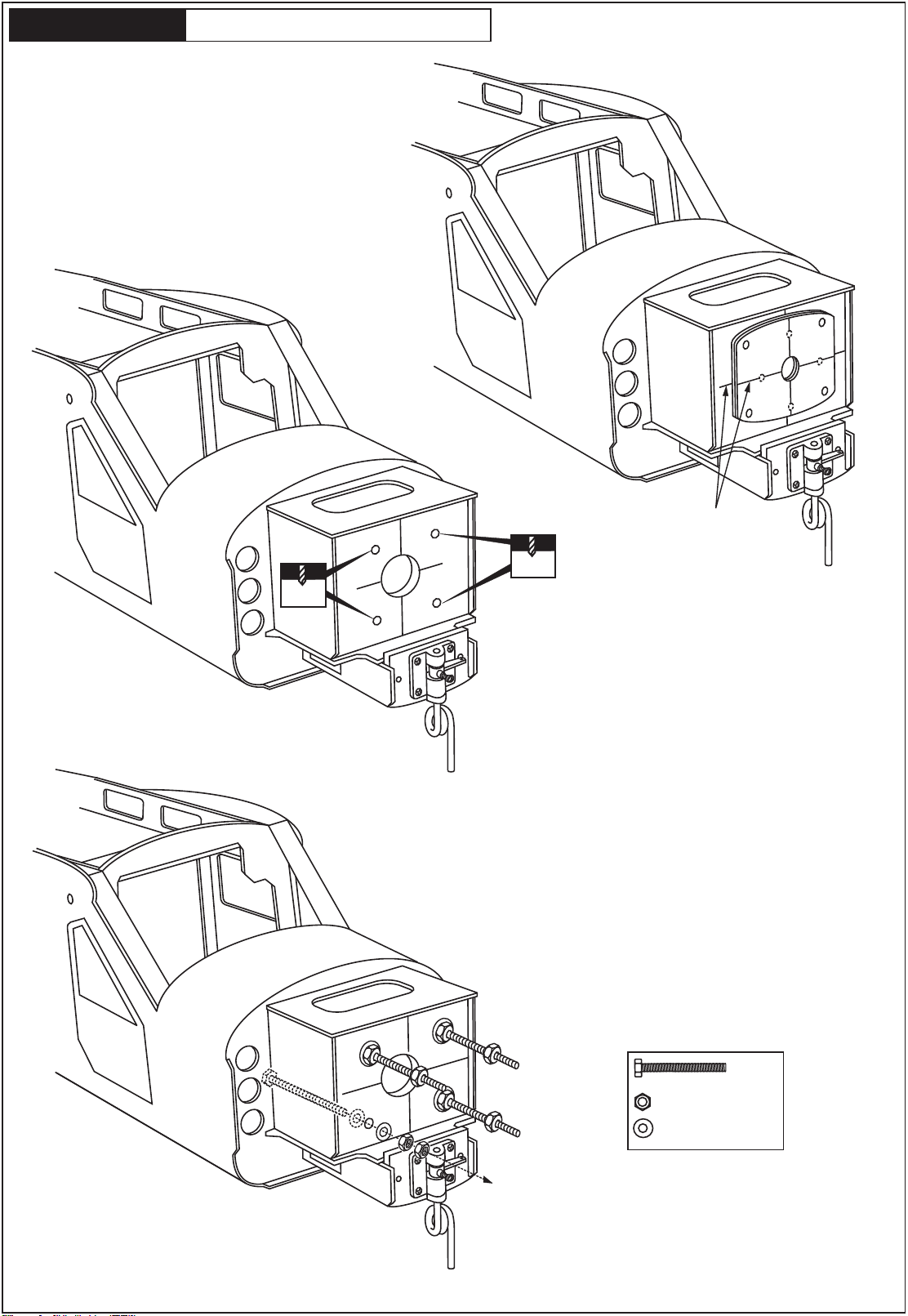

6-Electric motor mount

5mm

! Align the mark on wooden motor

mounting plate with the mark on

the fire-wall.

5mm

Remove the wooden motor mounting

plate and drill a 5mm hole through

the fire-wall at each of the four marks

marked .

5x80mm bolt.....4

5mm nut..........12

5mm washer...16

Attach the four 5x80mm bolts

and nuts to the fire-wall as shown.

Page 8

CESSNA 208

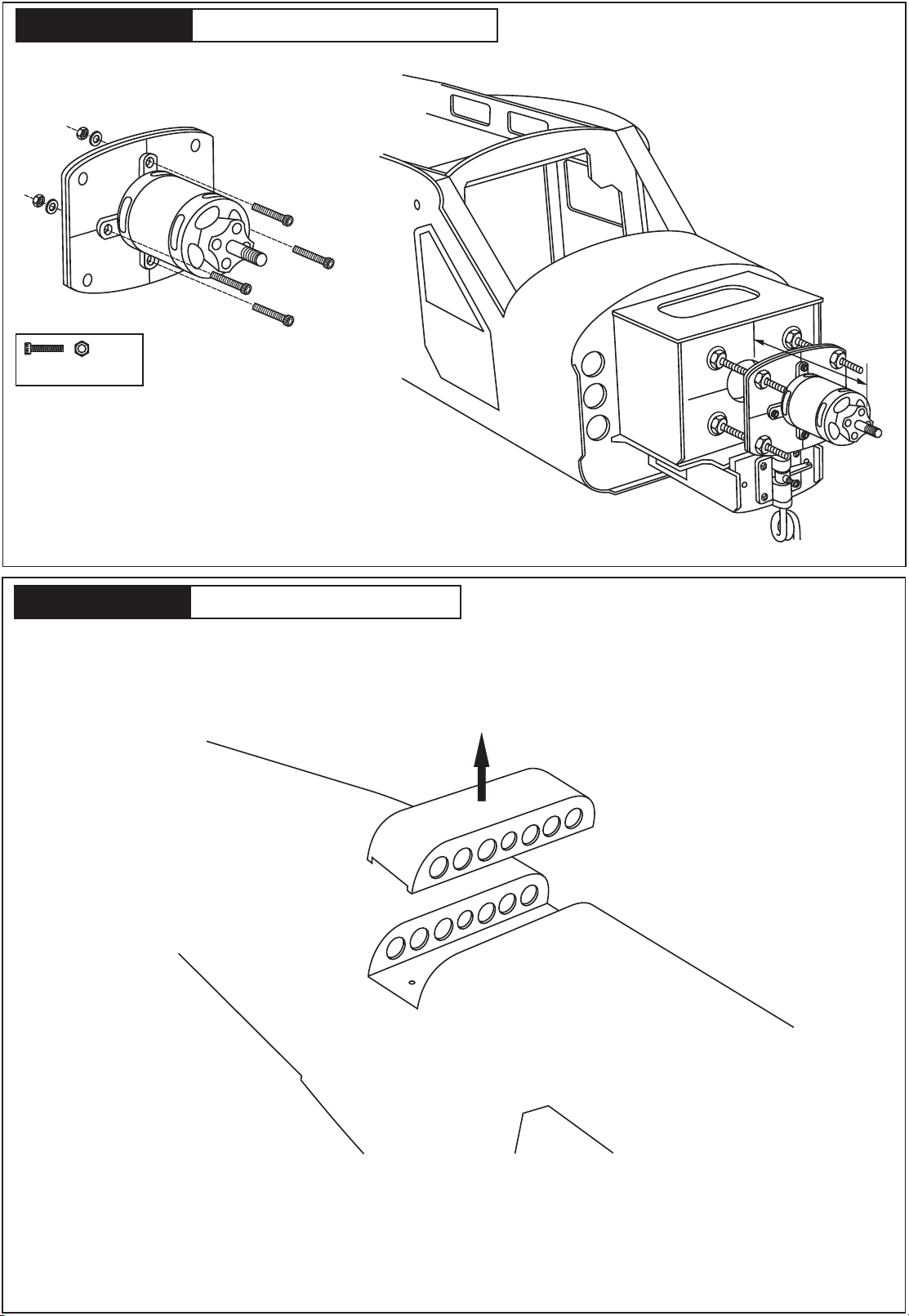

6-Electric motor mount

Adjust the wooden motor mount so the

distance from the prop hub to the fire-wall

is 130mm.

Secure the Motor to the wooden

3mm bolt / nut...4

motor mounting plate using the

four 3mm bolts.

CESSNA 208

130mm

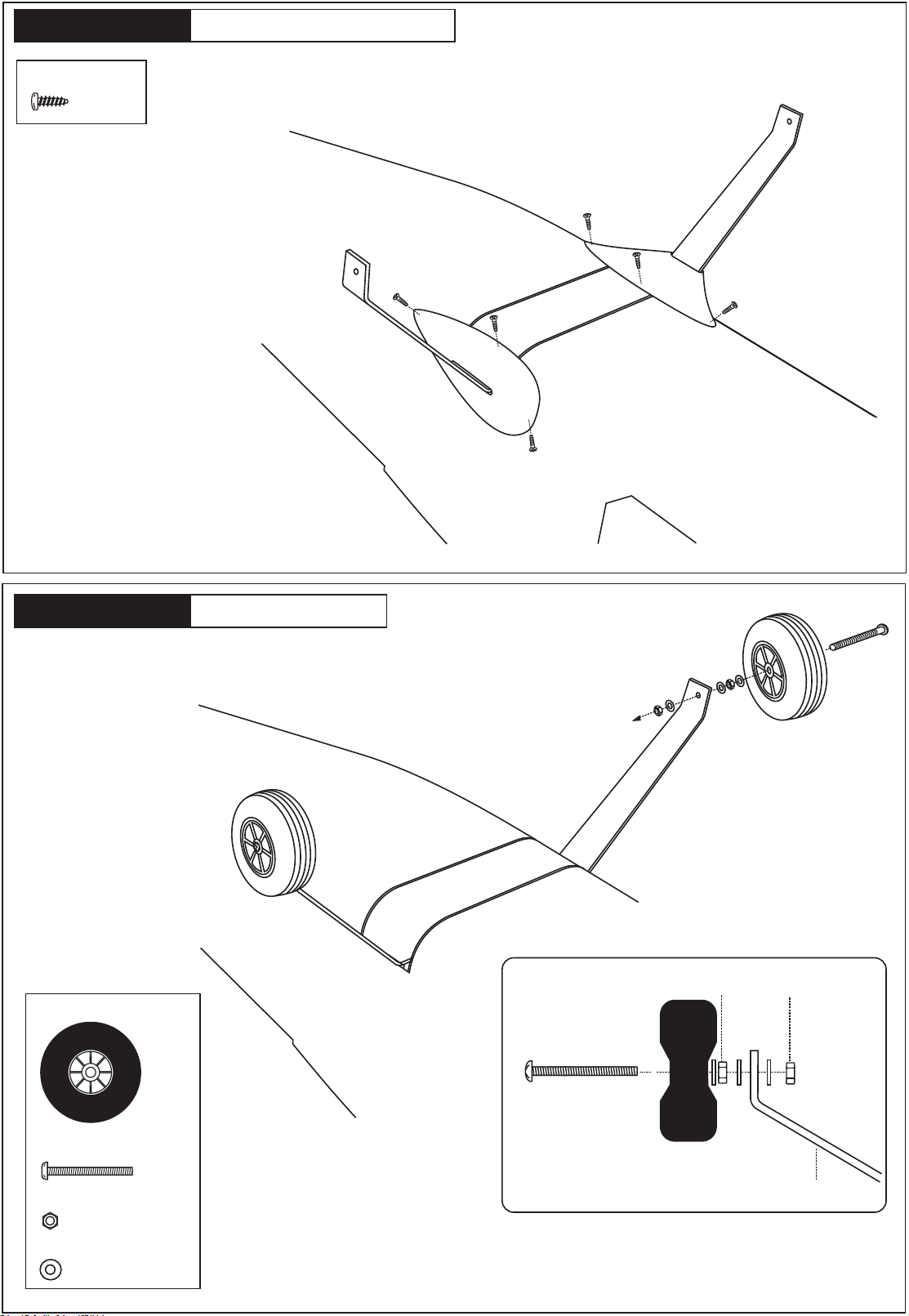

7-Main landing gear

Page 9

CESSNA 208

3x15mm screw

................4

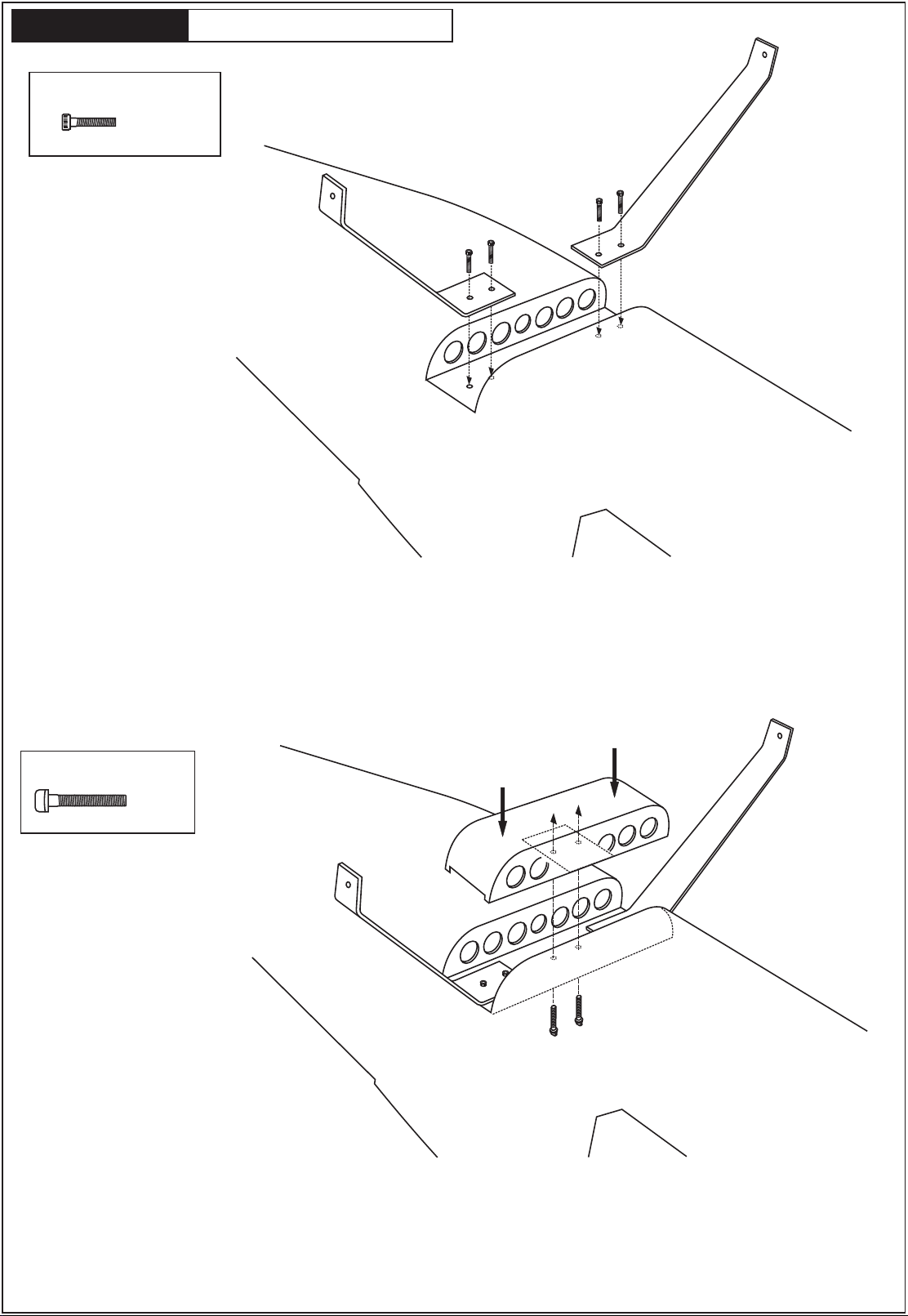

8-Main landing gear

4x20mm nylon bolt

....2

4x20mm nylon bolt

Page 10

CESSNA 208

2x8mm screw

9-Main landing gear

CESSNA 208

75mm wheel

...2

10-Main wheel

4x45mm screw

4mm nut

4X45mm screw

4mm nut

4mm washer

...2

Aluminum landing gear

............4

............6

Page 11

CESSNA 208

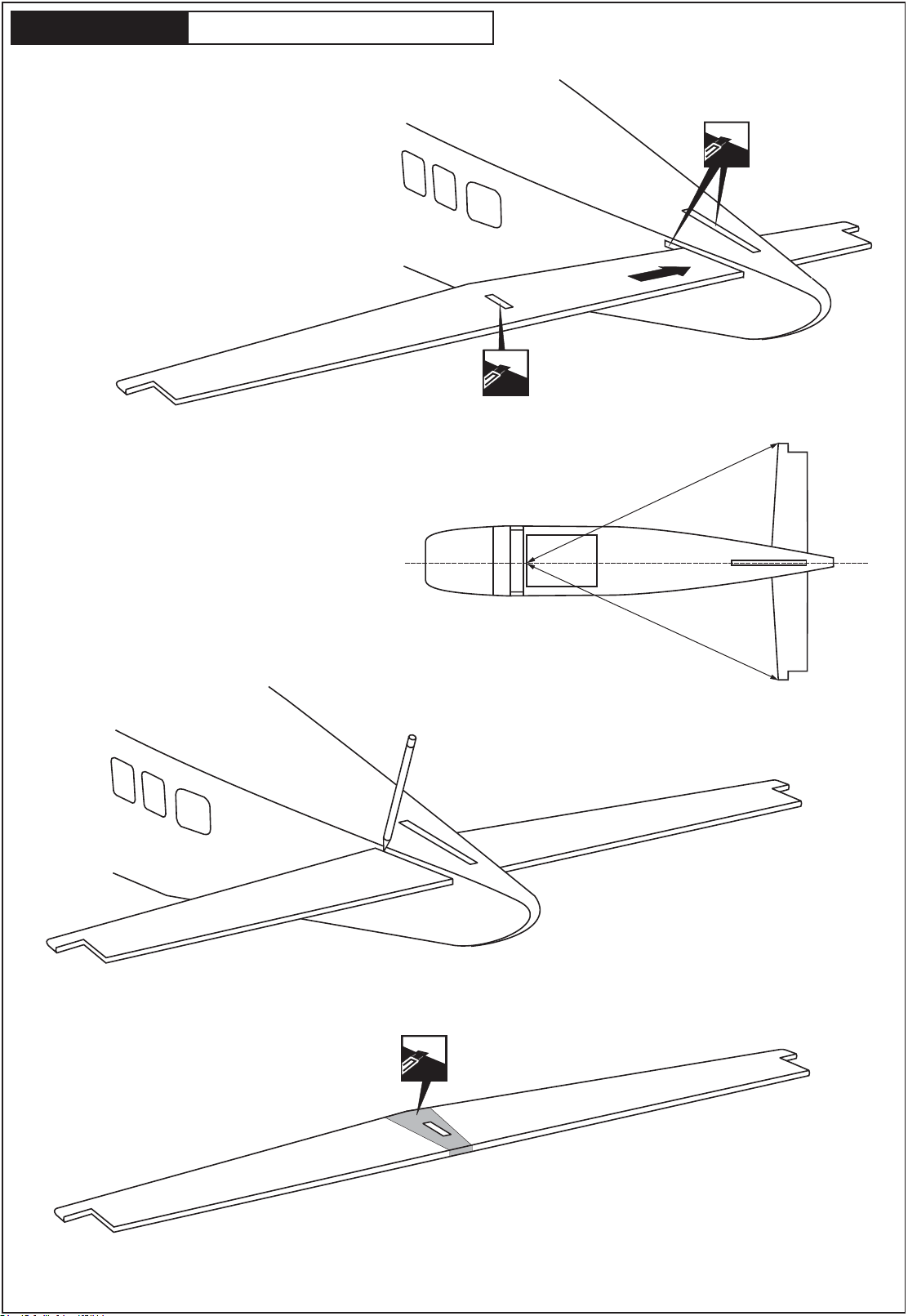

Using a sharp hobby knife, carefully cut away

the covering around of all slots for the horizontal

stabilizer and vertical fin installation.

Pull the left and right elevator out of the horizontal

stabilizer.

Push the horizontal stabilizer into the slot on the

fuselage as show. Check the alignment of the

horizontal stabilizer by measuring from a fixed

point along the center line of the fuselage to the

leading edge on each side of the horizontal stabilizer.

The distance must be equal on both sides .

If not, adjust the stabilizer until the measurements

are the same.

11-Horizontal stabilizer

Cut away only

the covering

Cut away only

the covering both sides.

When you are satisfied with the alignment, use

a pencil to trace around the top and bottom of

the stabilizer where it meets the fuselage.

A’

A=A’

Cut away only

the covering

both side

Remove the horizontal stabilizer

from the fuselage. Using a straight edge

and a sharp hobby knife, carefully cut away

the covering inside the lines which were marked

above. Be cautious not to cut into the wood-this

will weaken the structure.

Page 12

CESSNA 208

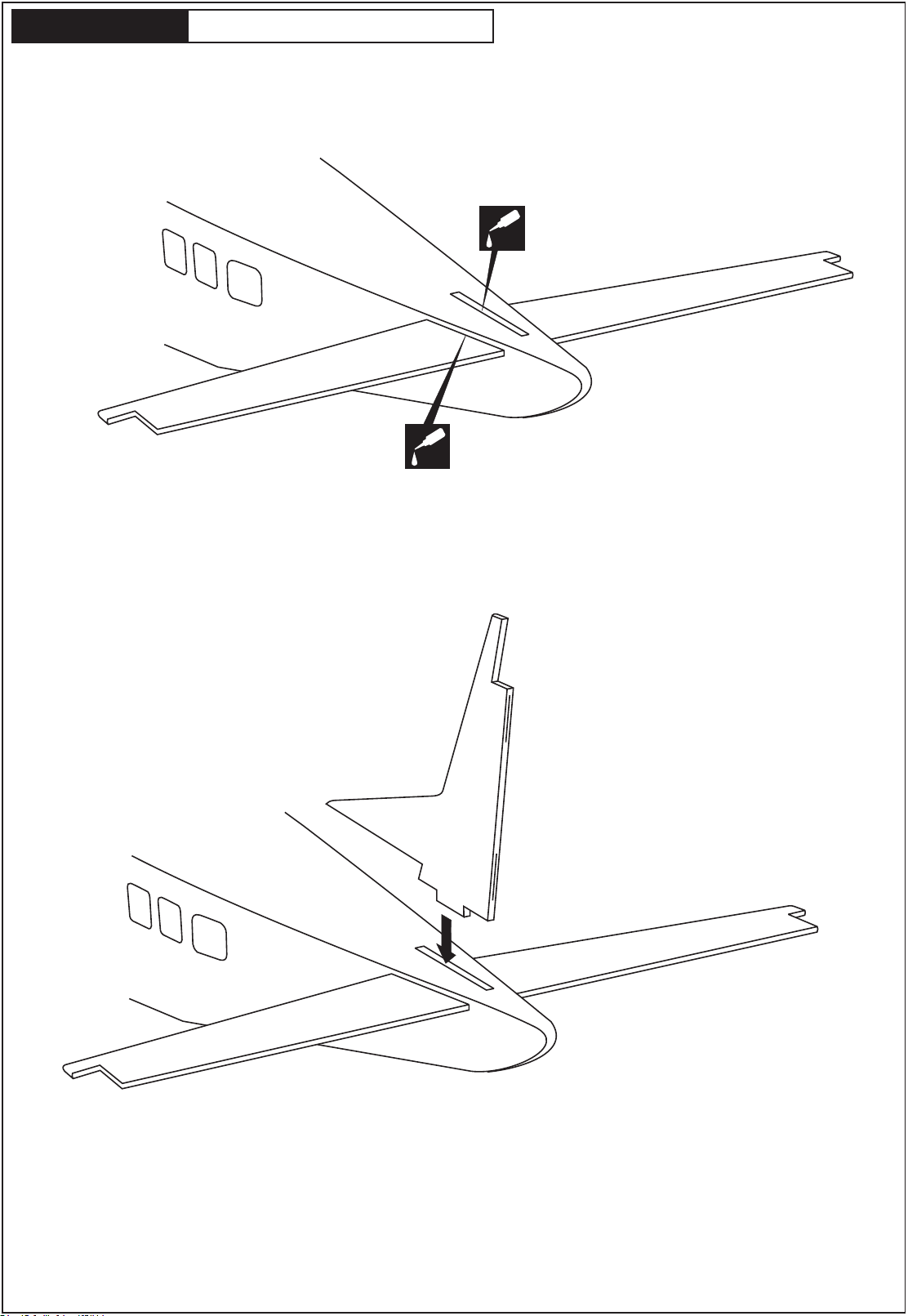

12-Horizontal stabilizer

Install the horizontal stabilizer onto the fuselage and adjust the alignment as described in section 11.

Note: it is important to ensure that the horizontal stabilizer is also level in regards to the fuselage.

Apply the thin CA along the area where the covering was removed in the previous step and to the

fuselage where the horizontal stabilizer mounts .

! Securely glue together. If coming off during fly,

you lose control of your air plane.

Apply CA glue

both sides.

(thin CA)

Apply thin CA glue into the slot where

the fuselage meet the horizontal stabilizer.

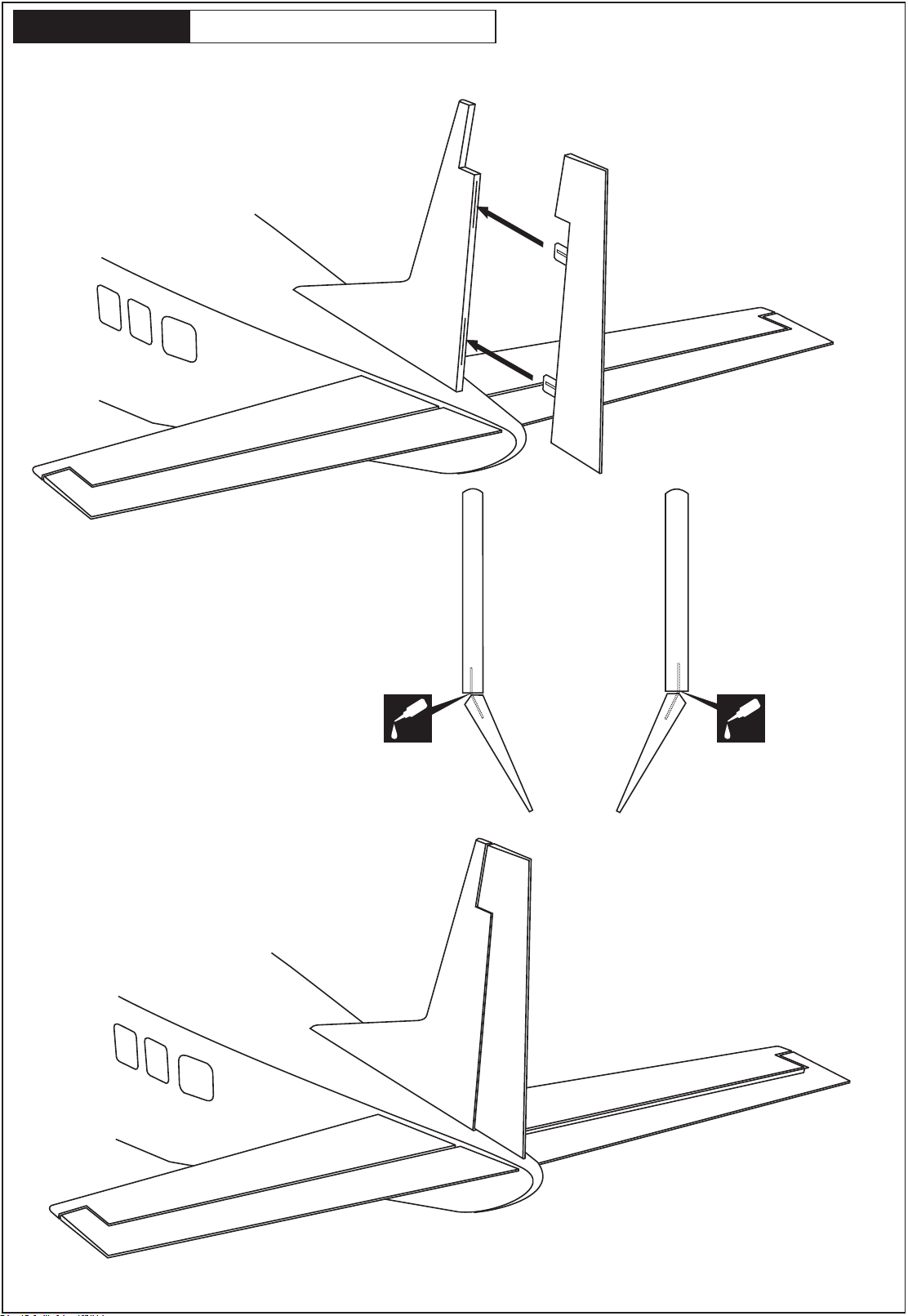

Carefully, push the vertical fin into the

slot on the fuselage as shown.

Page 13

CESSNA 208

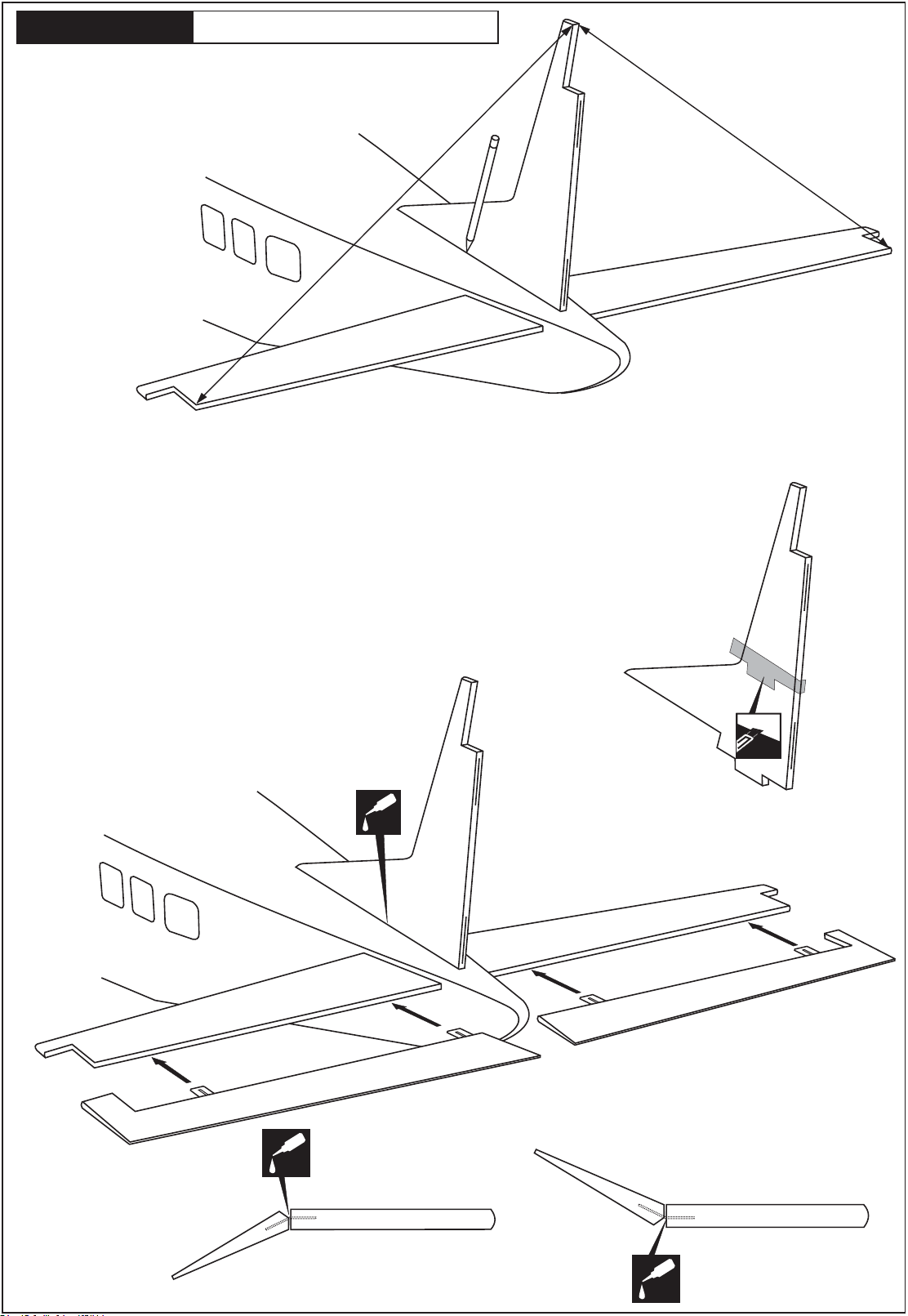

13-Horizontal stabilizer

B’

B=B’

STEP 13A

Trial fit the vertical fin in position. Using a 90 degree triangle or adjust the vertical stabilizer ensure

that the B=B’ as shown, the vertical stabilizer is perpendicular to the horizontal stabilizer.

Using a pencil, trace around the vertical stabilizer where it meets the fuselage. Remove the vertical

stabilizer from the fuselage.

Insert the vertical fin into the fuselage, precisely align

the vertical stabilizer as described in step 13A.

Apply the thin CA glue on the vertical stabilizer where it

contacts the fuselage.

Apply thin CA

glue both side

Using a straight edge and a sharp hobby knife,

carefully cut away the covering inside the lines

which were marked above. Be cautious not to

cut into the wood-this will weaken the structure.

Cut away only

the covering

both side

Apply thin CA

glue on the top

of the hinge

TOP-SIDE

HORIZONTAL STABILIZER

! Securely glue together. If coming off during fly,

you lose control of your air plane.

TOP-SIDE

HORIZONTAL STABILIZER

Apply thin CA

glue on the bottom

of the hinge

Page 14

CESSNA 208

14-Horizontal stabilizer

RIGHT-SIDE

Apply thin CA

glue on the right

of the hinge

! Securely glue together. If coming off during fly,

you lose control of your air plane.

VERTICAL STABILIZER

LEFT-SIDE

VERTICAL STABILIZER

Apply thin CA

glue on the LEFT

of the hinge

Apply thin CA

glue on the bottom

of the hinge

Page 15

CESSNA 208

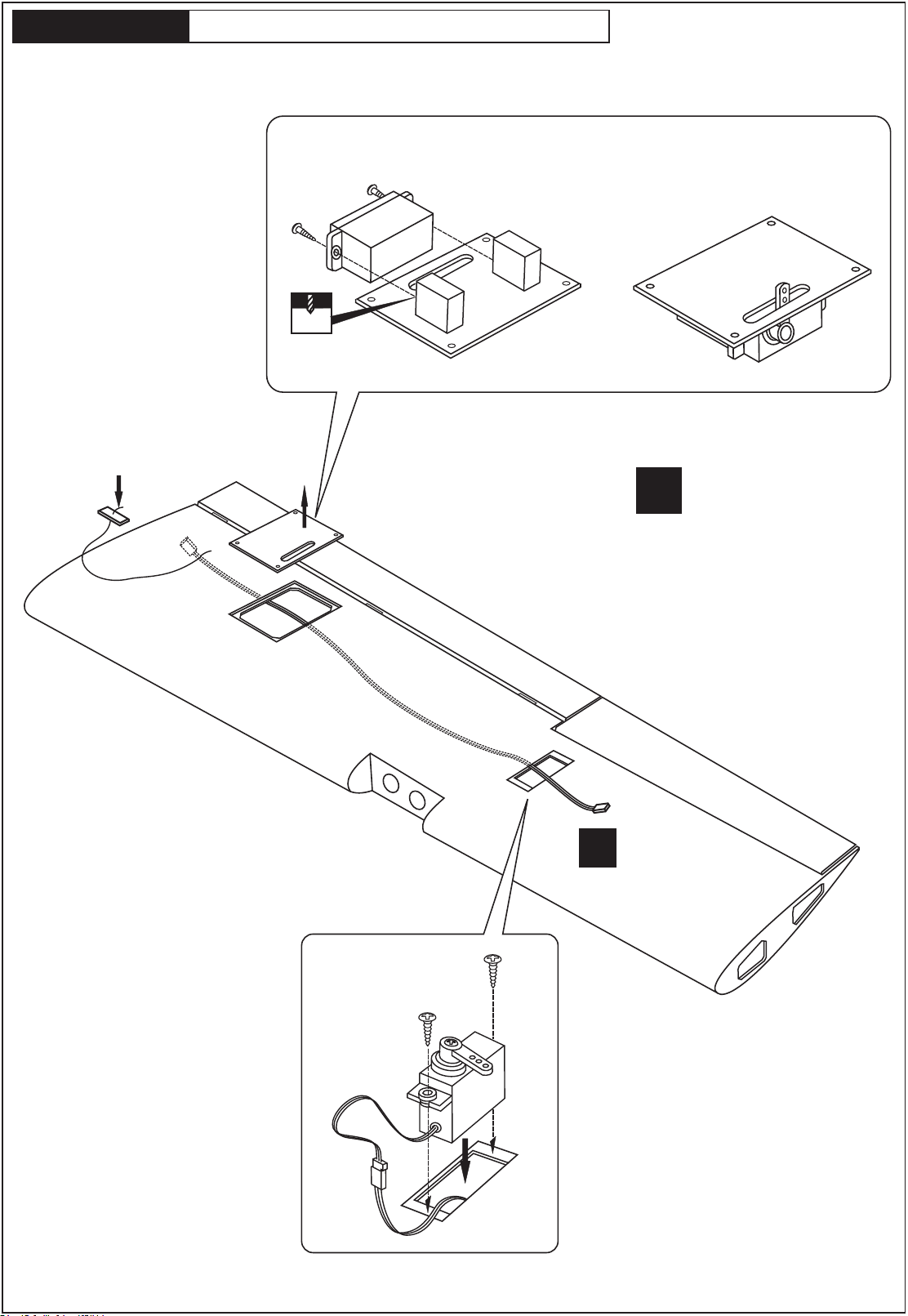

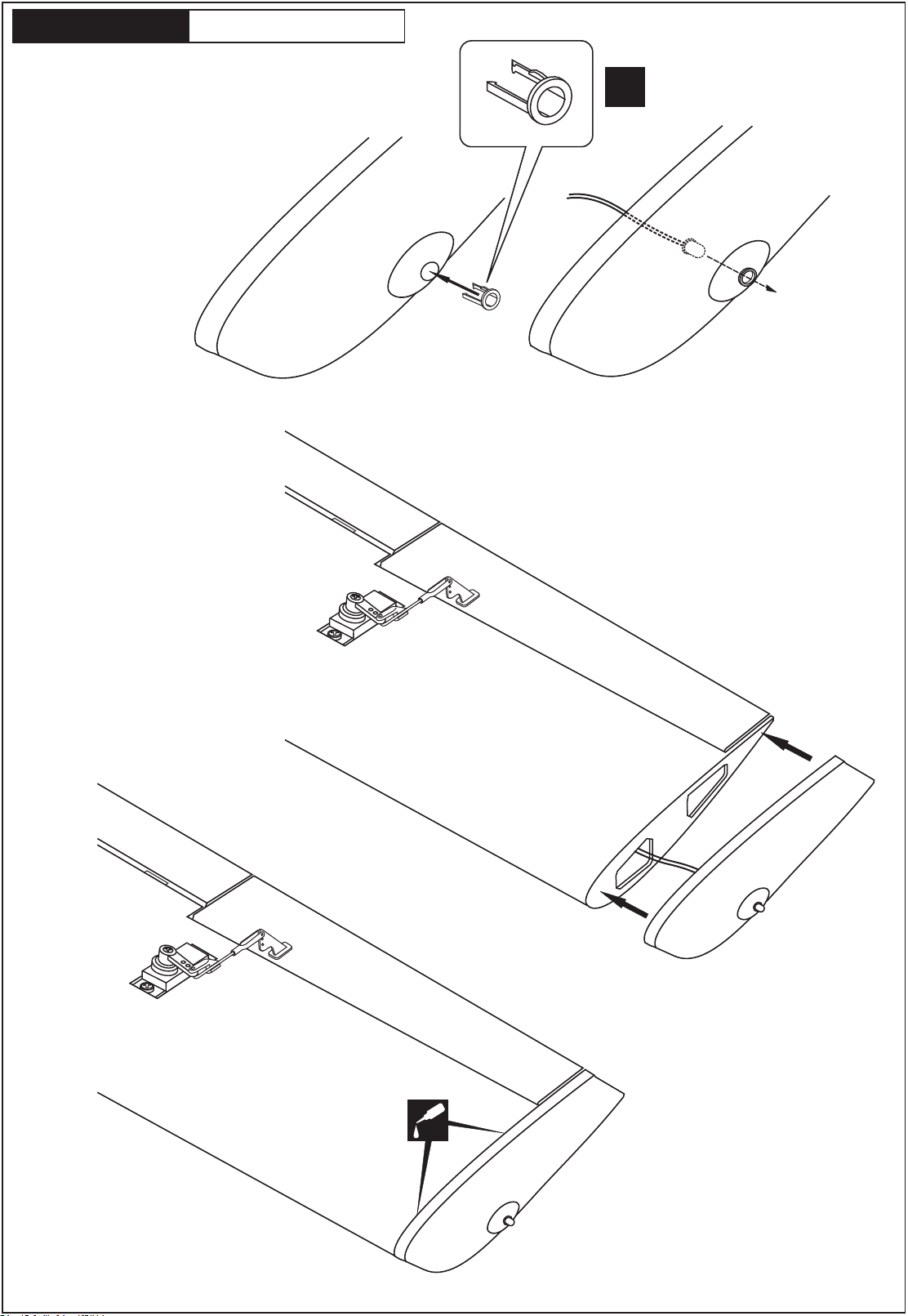

Using the thread (pre-installed at

factory) to slide the aileron extension

cord into the wing half.

15-Wing: Flap and Aileron servo

FLAP SERVO HATCH - BOTTOM VIEWFLAP SERVO HATCH - TOP VIEW

1.5mm

L/R

Flap servo hatch

30cm Extension cord

Page 16

CESSNA 208

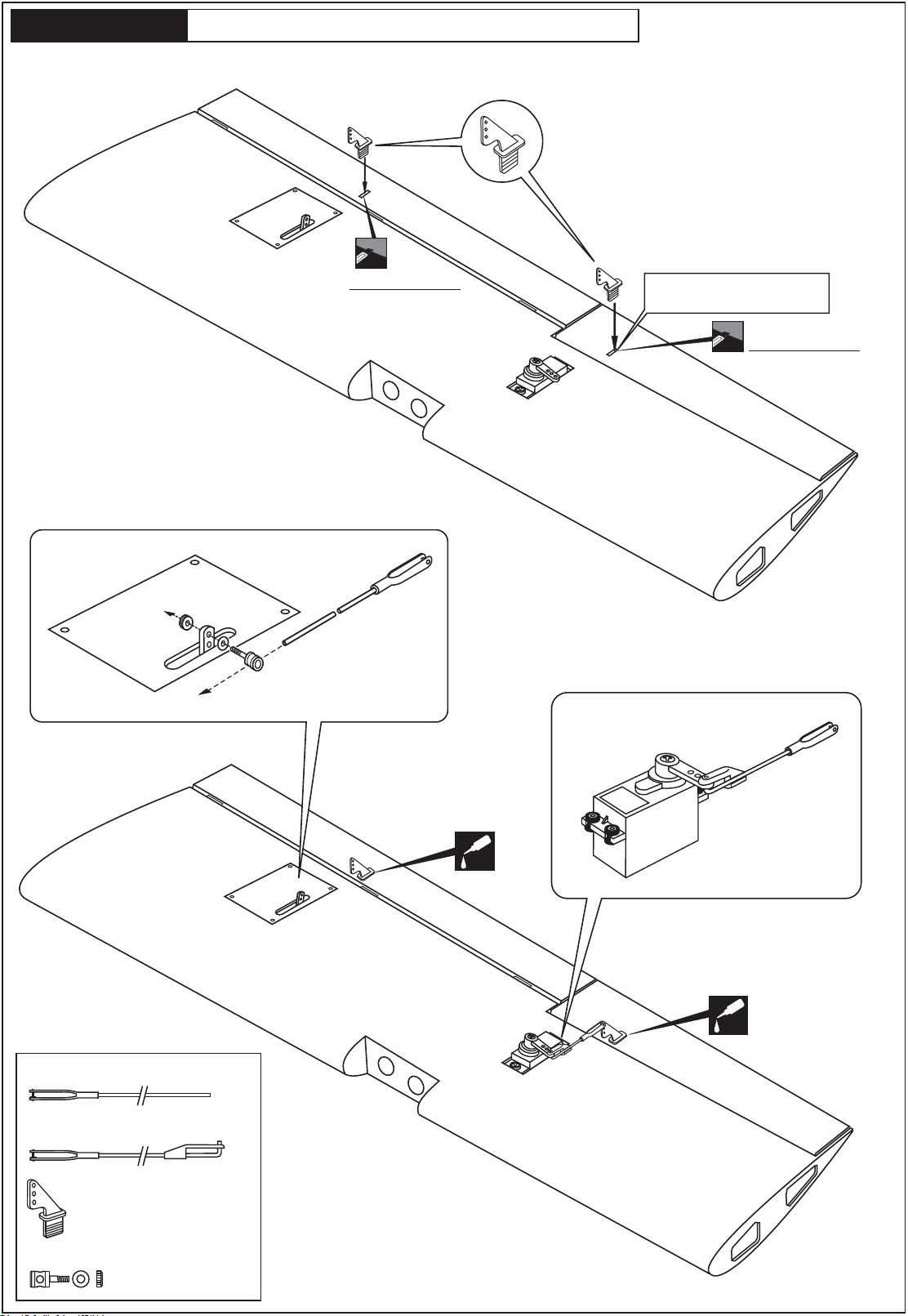

16-Wing: Flap and Aileron linkages

cut away only the covering

The rectangular holes were

cut out at the factory.

cut away

only the covering

2x175mm rod with clevis

2x175mm rod with clevis/EZ link

Control horn

.............................4

Connector 2mm

.............................2

...2

Thin CA

Securely glue together. If coming off during

flight, you lose control of your air plane.

Thin CA

Page 17

CESSNA 208

3X12mm screw

.......2

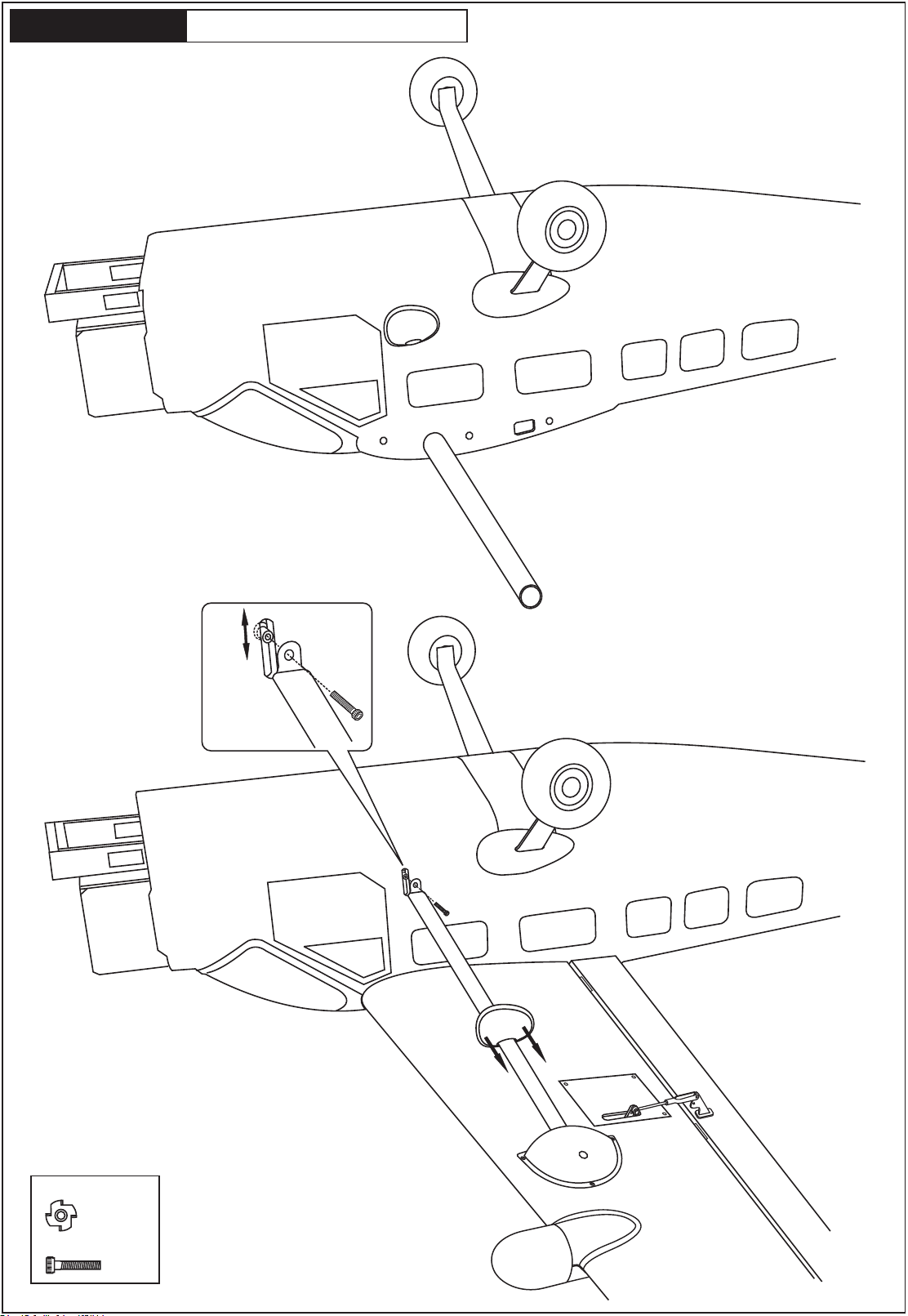

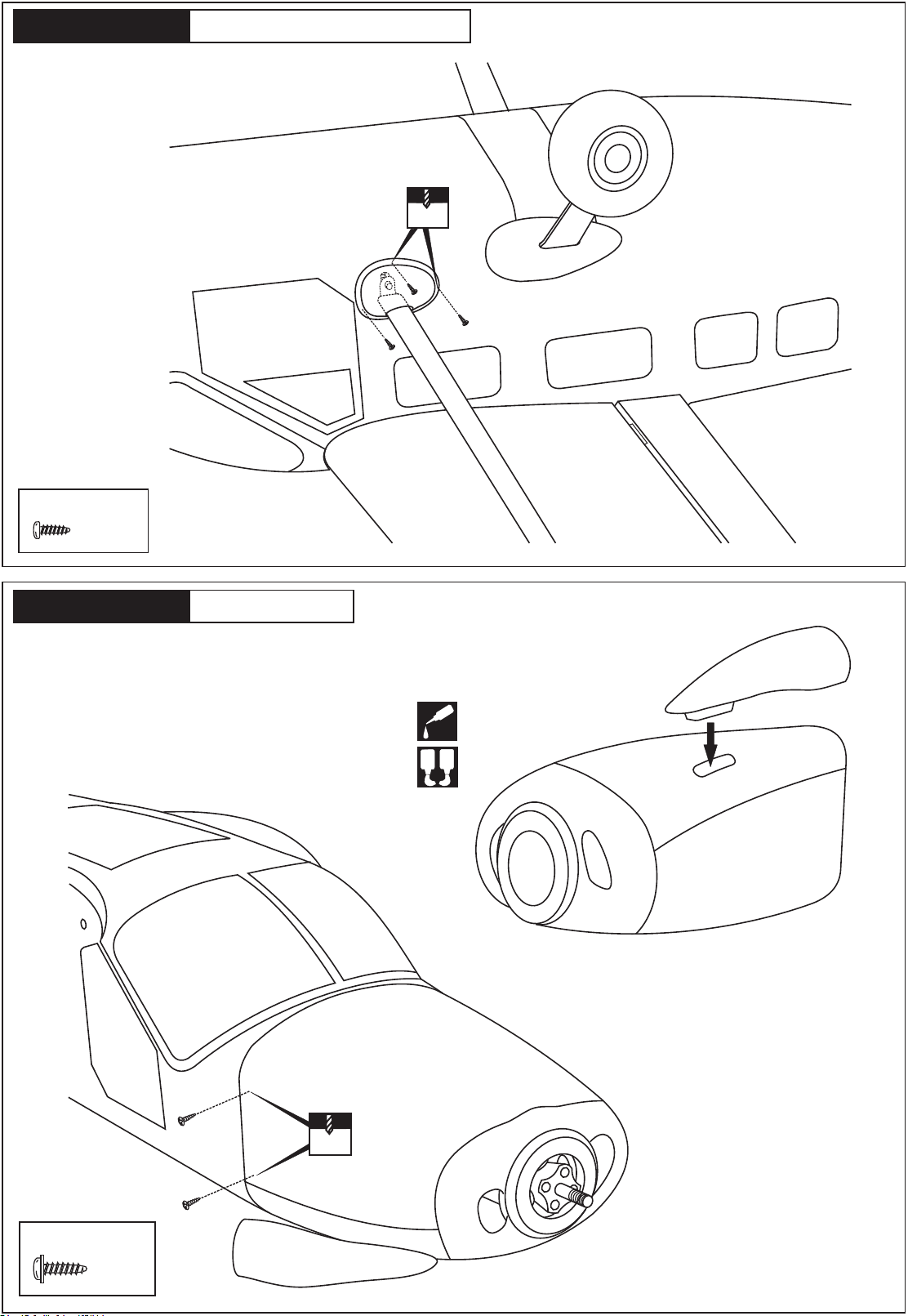

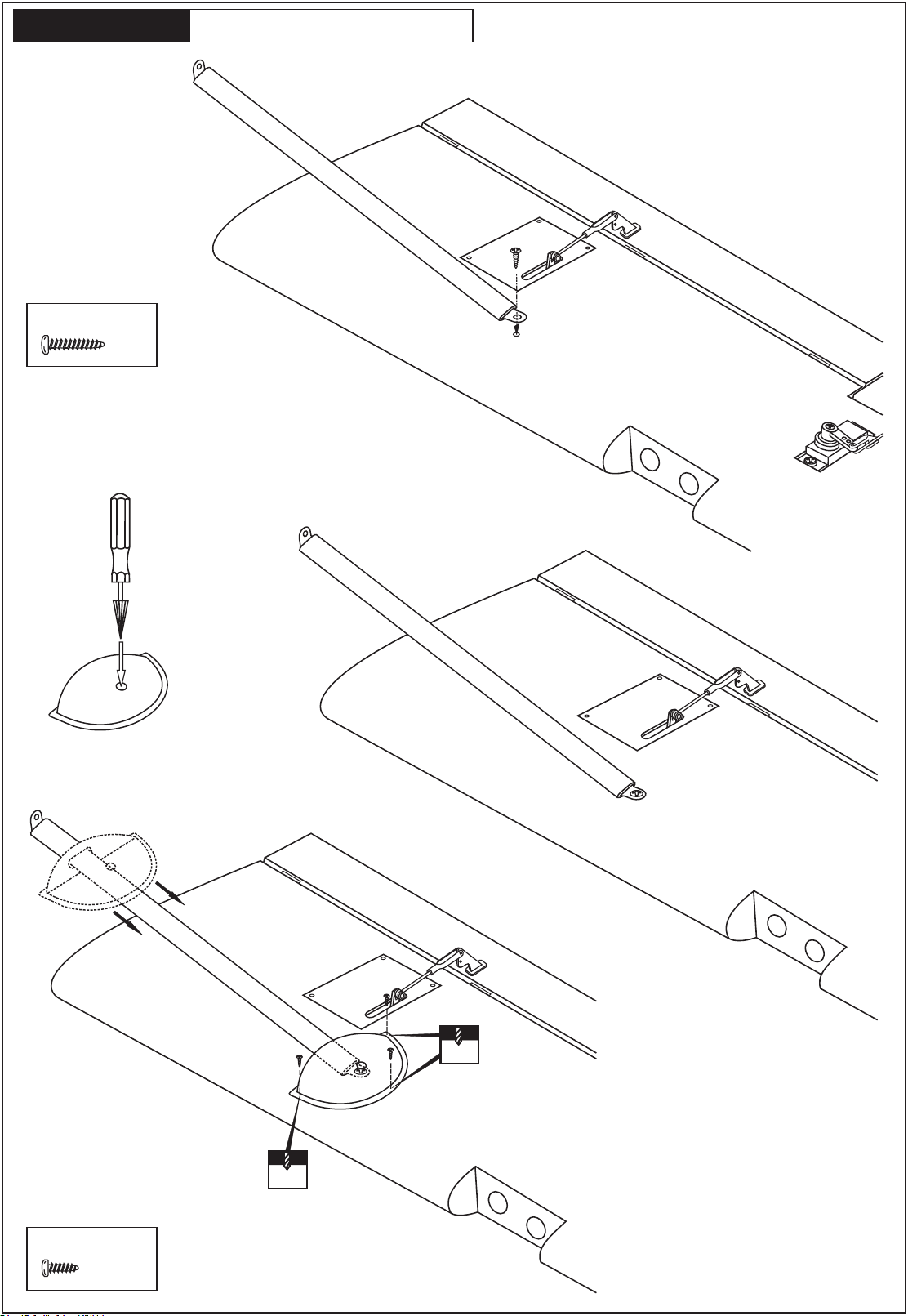

17-Wing: wing brace

2x8mm screw

.........6

1.mm

Page 18

CESSNA 208

Piece A for top of the wing.

Piece B for bottom of the wing.

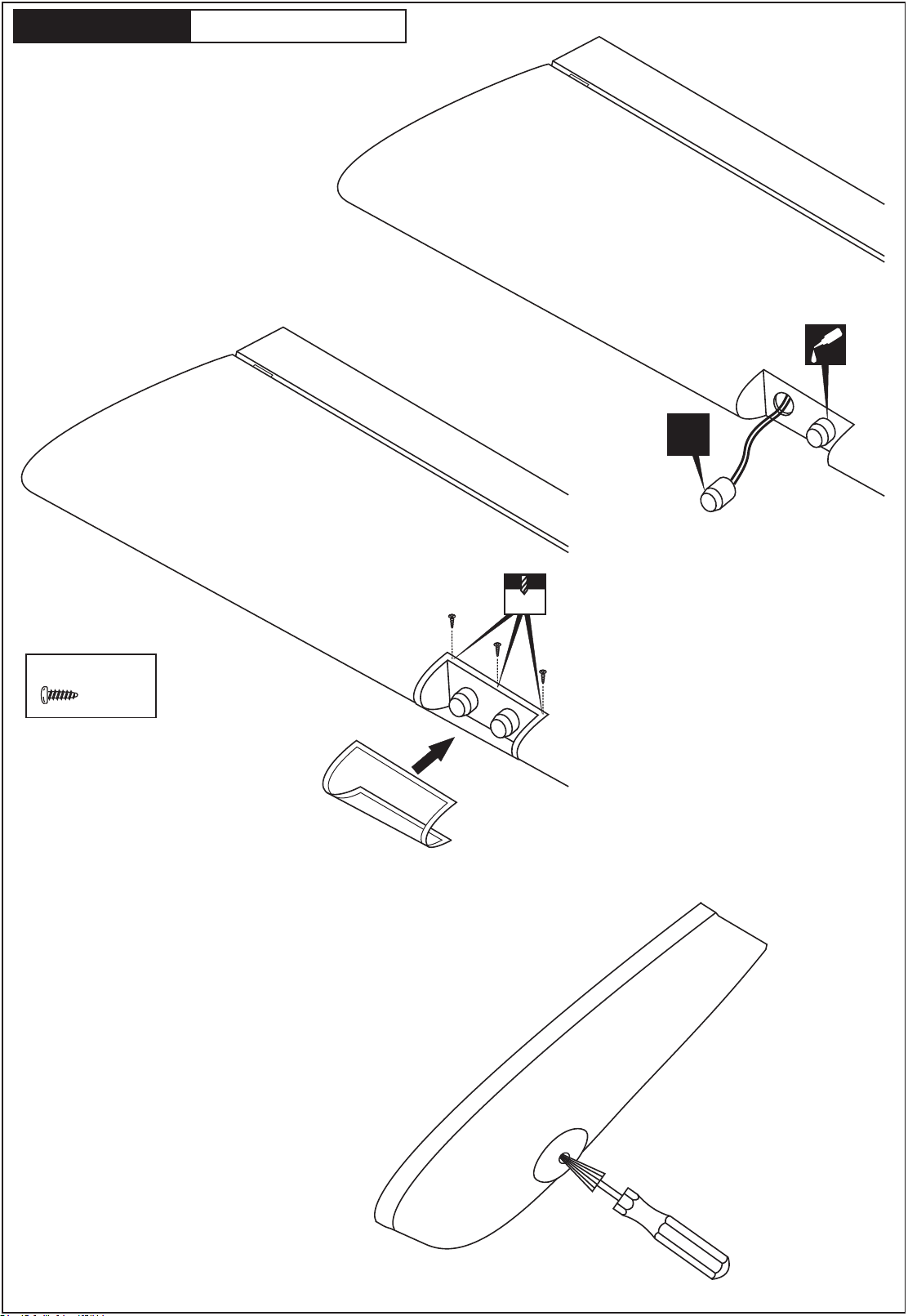

18-Wing:

Adhesive tape

2X8mm screw

2x8mm screw

.........6

1.mm

Page 19

CESSNA 208

19-Wing: Lights

Not included.

These parts must be

purchased separately

2x8mm screw

.........6

1.mm

Plastic wing tip

Page 20

CESSNA 208

20-Wing: Lights

Not included.

These parts must be

purchased separately

Page 21

CESSNA 208

Elevator linkages

2x950mm Elevator pushrod

Connector

2x100mm rod

Rudder&Nose gear linkages

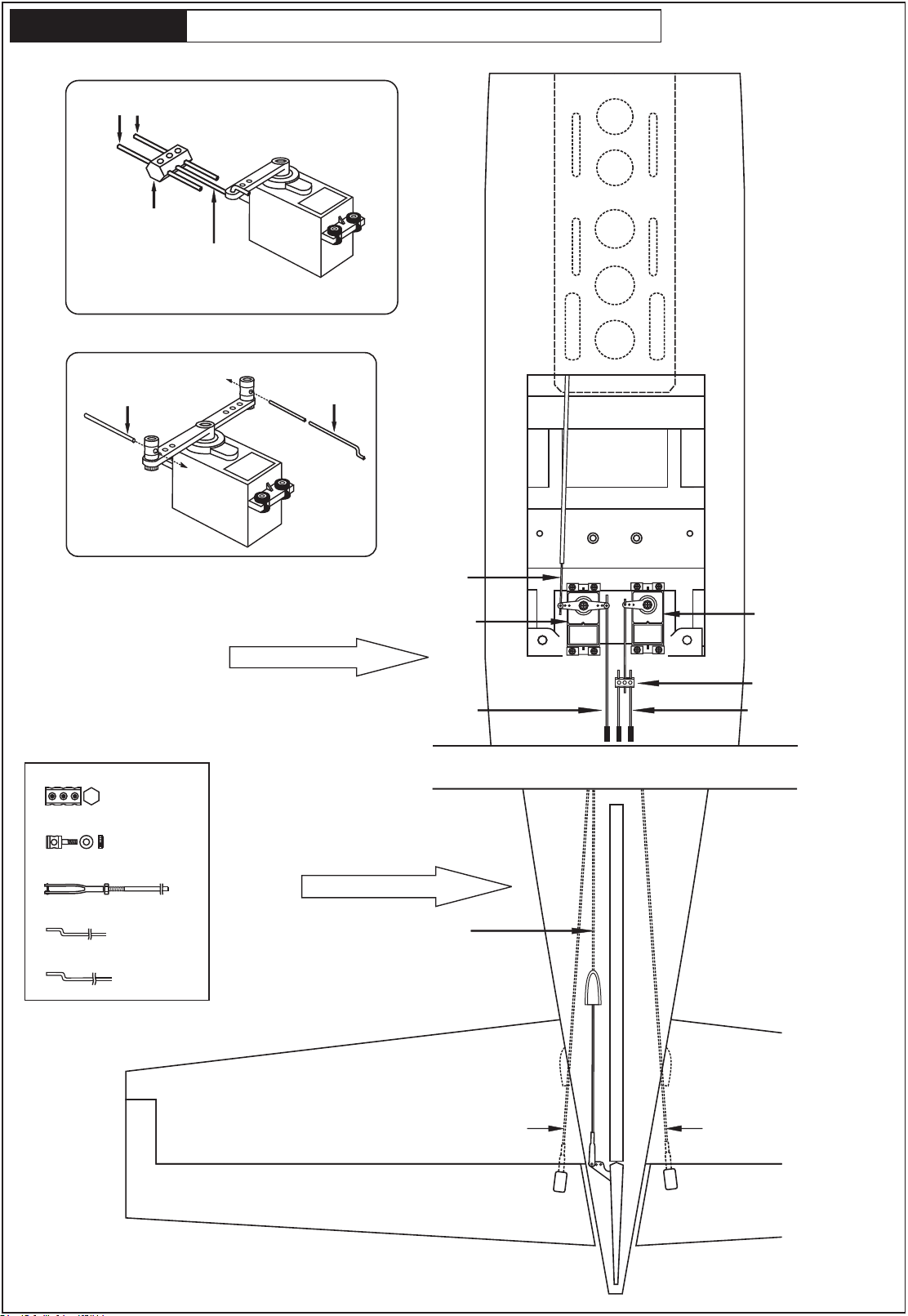

21-Elevator&Rudder servo - linkages

Elevator servo

Rudder pushrod

Connector

Rudder servo

..........1

..........2

Connector

FUSELAGE - FRONT - TOP VIEW

Nose gear

pushrod

Nose gear pushrod

Rudder servo

Rudder pushrod

Elevator servo

Connector

Elevator pushrod (x2)

2x950mm rod/clevis

1.2x550mm throttle rod

2x100mm rod

...3

..........1

FUSELAGE - REAR - TOP VIEW

Rudder pushrod

Elevator pushrod Elevator pushrod

Page 22

CESSNA 208

22-Joining the wings

The blind nut inside the fuselage

may be move up and down so

that the wing brace install easily.

3mm blind nut

..........2

3x15mm screw

......2

Page 23

CESSNA 208

23-Joining the wings

1.mm

2x8mm screw

.........6

CESSNA 208

24-Cowling

Secure the mufer to the cowl with thin CA glue.

Fix the mufer in place using 5 min. epoxy (inside the cowl).

Out side

In side

2.5x10mm screw

........5

1.5mm

Page 24

CESSNA 208

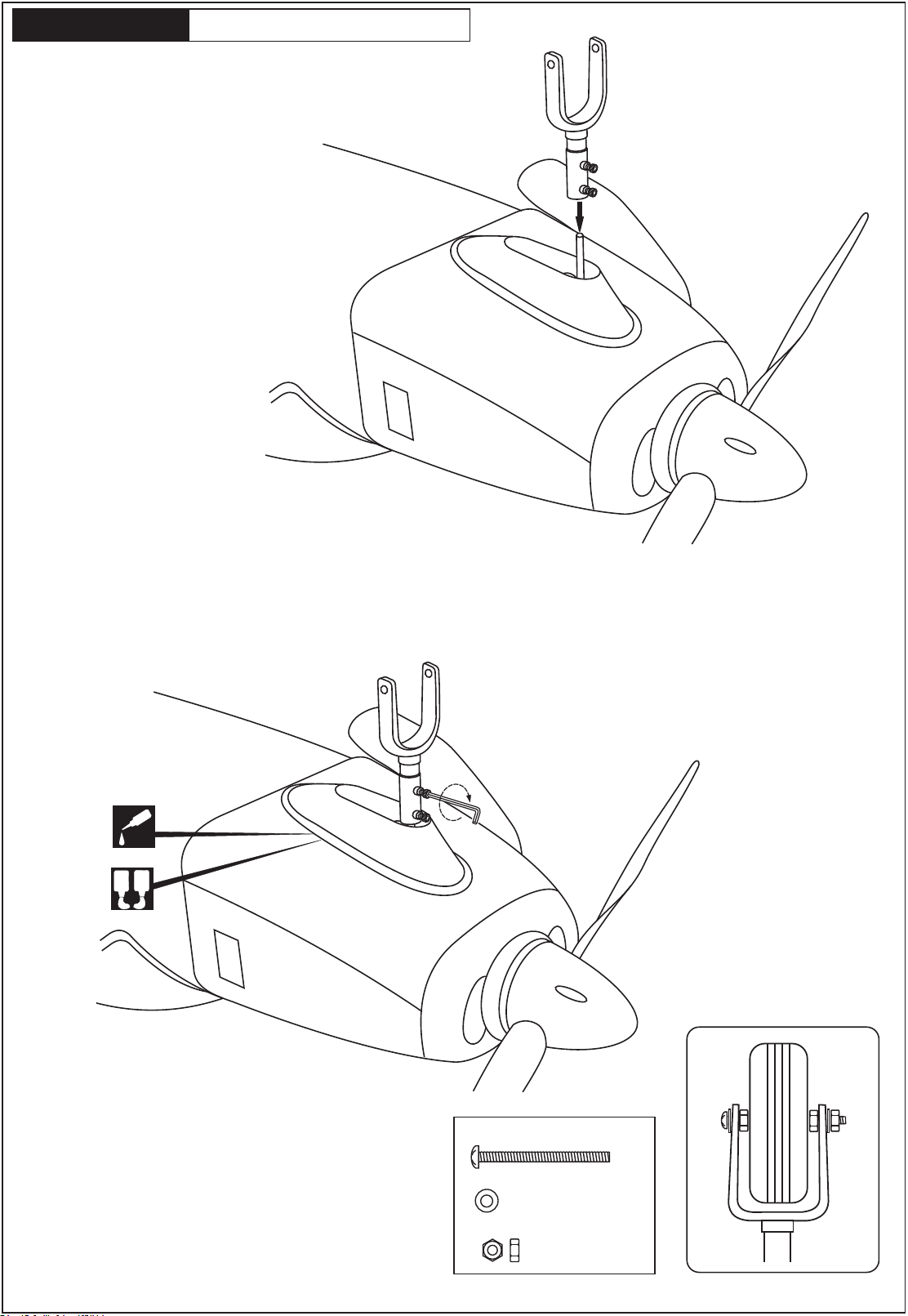

25-Strut&nose wheel

Clear epoxy

4x40mm screw

...1

4mm washer

...2

4mm nut

...3

Page 25

CESSNA 208

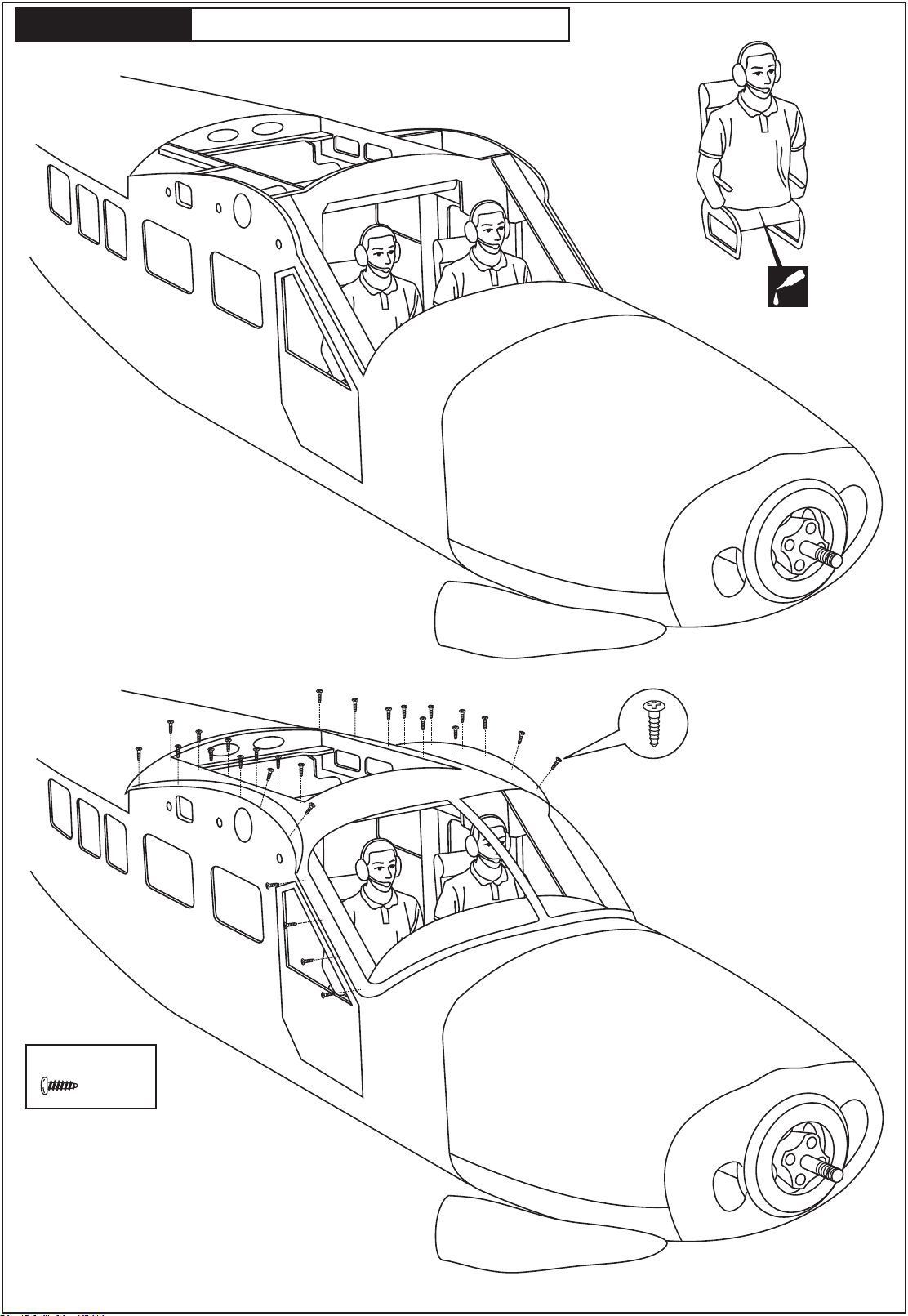

26-Pilot gure&Plastic cover

2x8mm screw

Page 26

CESSNA 208

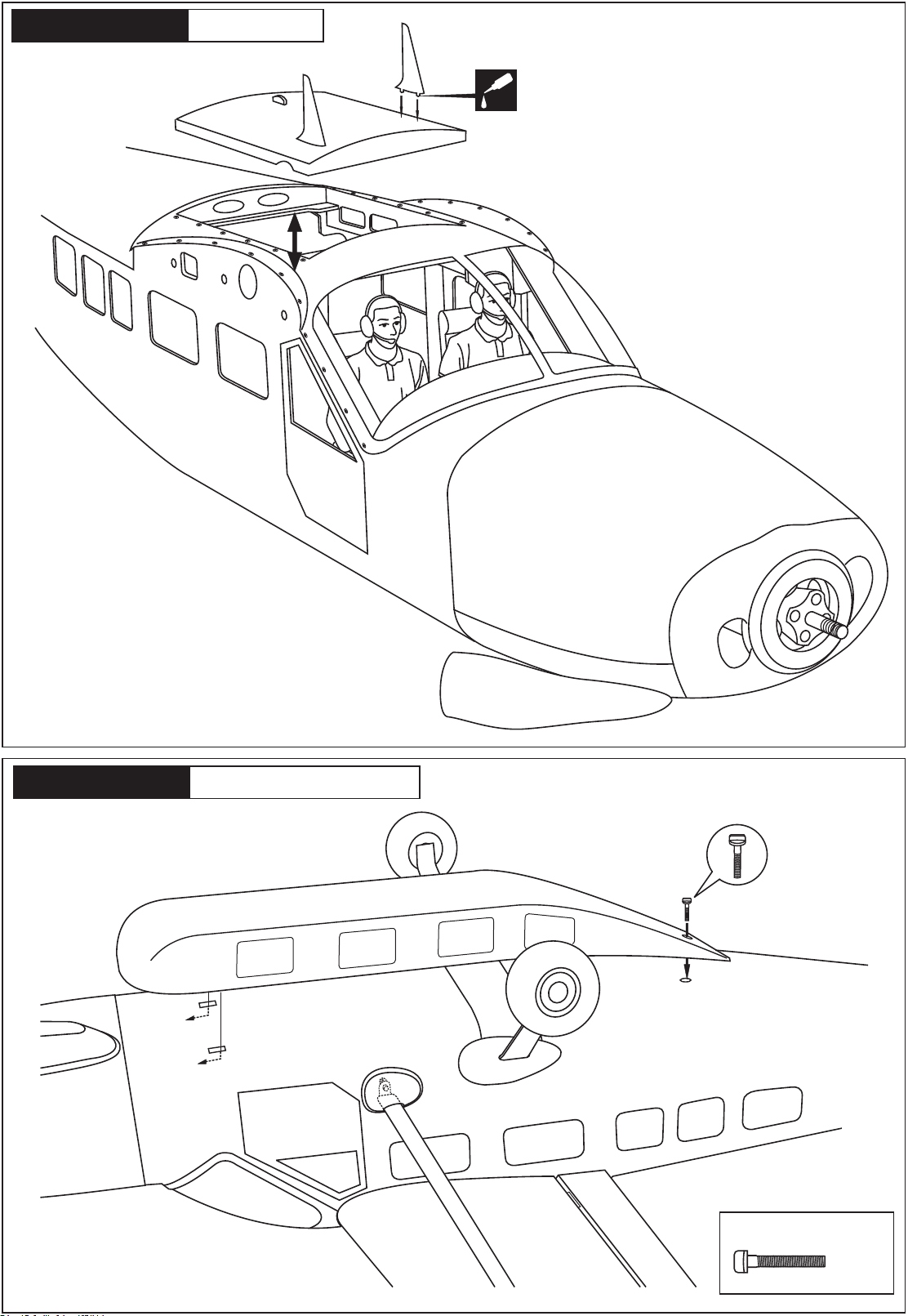

27-Hatch

Magnetic hatch

CESSNA 208

28-Cargo drilling

4x20mm nylon bolt

....1

Page 27

CESSNA 208

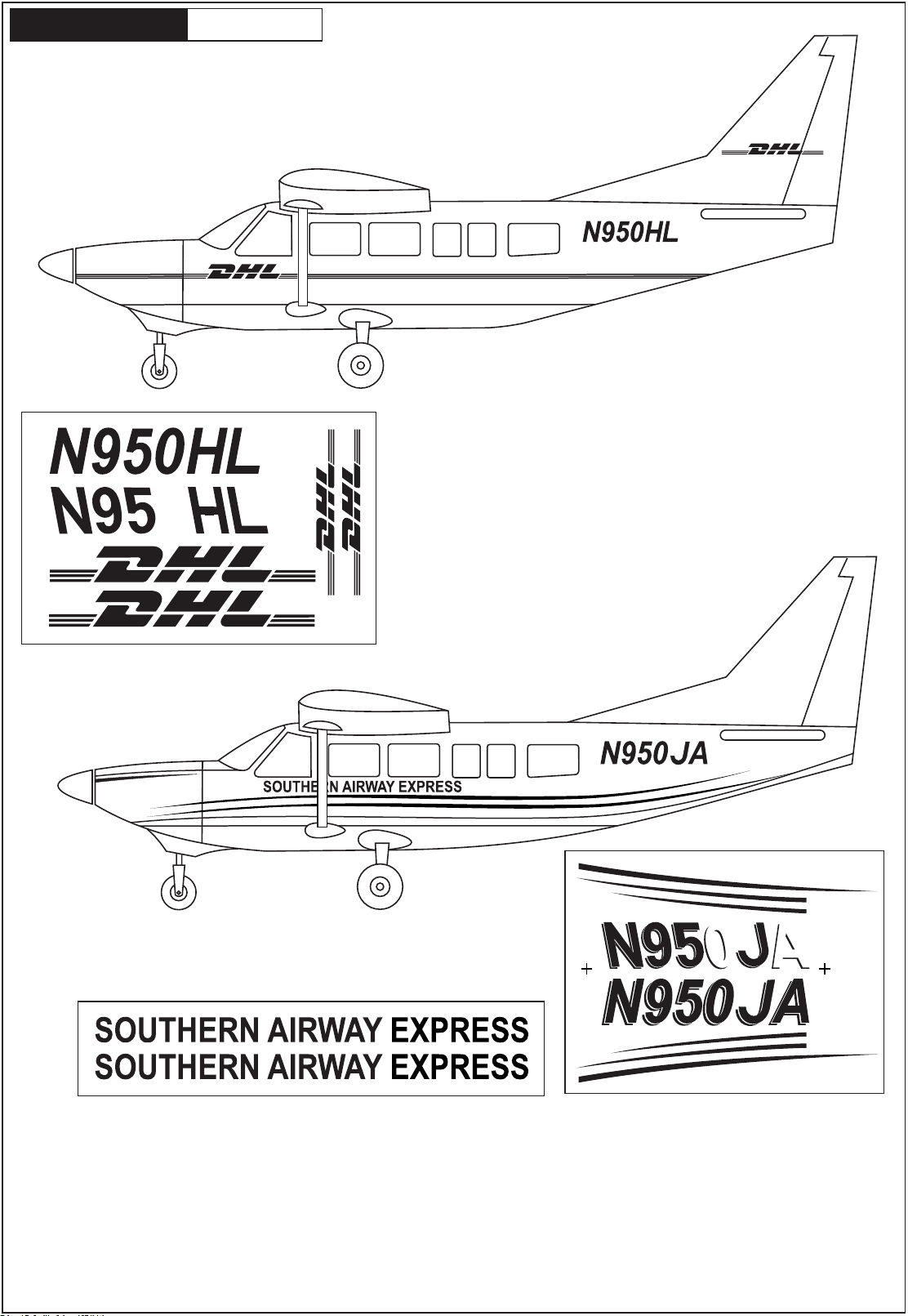

29-Decal

Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once.

Peel off one corner of the backing and cut off with scissors.

Arrange sticker on model and when satisfied adhere the corner without backing.

Carefully peel back the rest of the backing while at the same time adhering the rest of the sticker.

Try not to make air bubbles, if there are some, carefully puncture sticker (center of bubble) but not model surface with

the tip of the knife or sharp pin and squeeze out the air.

At curves stretch sticker and apply a little heat so that no ceases occur.

Cut off the excess that is produced.

IMPORTANT: Please do not clean your model with strong solvent or pure alcohol, only use kerosene to keep the

colour of your model not fade.

Page 28

CESSNA 208

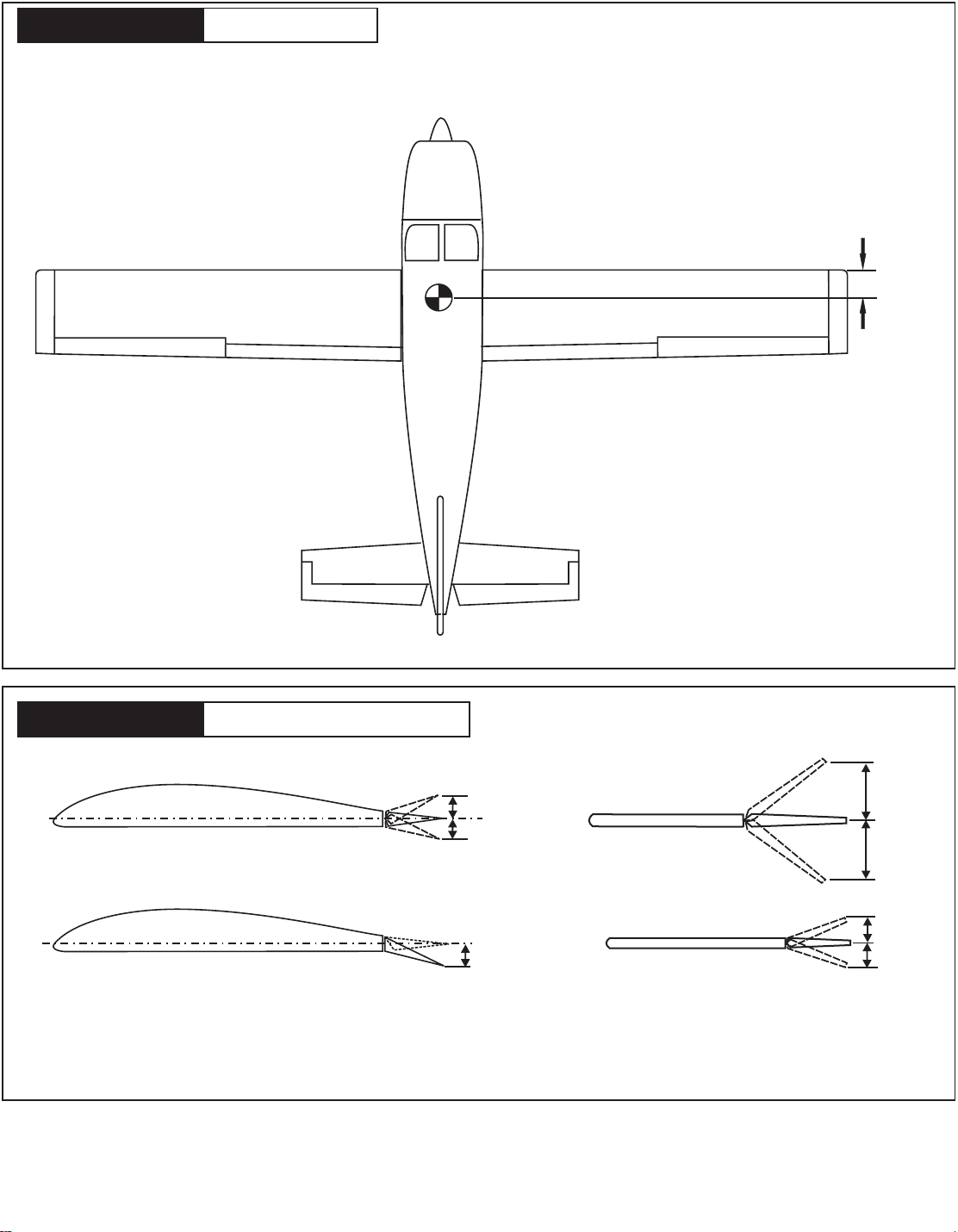

30-Balance

THE CENTER OF GRAVITY IS LOCATED 65 - 68mm BACK FROM THE

LEADING EDGE OF THE WING, AT THE FUSELAGE. BALANCE A PLANE

UPSIDE DOWN WITH THE FUEL TANK EMPTY.

DO NOT try to fly an out-of-balance model !

65-68mm

CESSNA 208

IMPORTANT: Flying your model at these throws will provide you with the greatest chance for successful first flights.

If, after you have become accustomed to the way the Cessna 208 flies, you would like to change the throws to suit your taste

that is fine. However, too much control throw could make the model difficult to control, so remember, “more is not always better”.

BEFORE FLYING CHECK EVERYTHING

Before each flight, inspect the airplane for any loose parts. Check the hinges, make sure the pushrods are still firmly

attached, and check the engine mounting bolts. In general, check everything on the plane that might possibly come

loose.

31-Control surface

AILERON

FLAP

12mm

RUDDER

15mm

ELEVATOR

25mm

10mm
