VQ Model Beechcraft Baron, VQA157USAR, VQA157US Instruction Manual

SPECIFICATIONS
Wingspan:.........................1760mm (69.2in)
Length:.............................1210mm (47.6 in)
Electric Motor:.....................See next pager
Glow Engine:.................... Twin 40 - 2T
RTF Weight: 4.3Kg / 9.5lbs (Will vary with Equipment Used).
Function: Ailerons-Elevator-Rudder-Throttle Flaps-Optional Retractable Landing Gear.
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough. Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt, die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model / Flugmodel
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
BEECHCRAFT
Instruction manual / Montageanleitung
TECHNISCHE DATEN
Spannweite:...................................1760mm
Lange:............................................1210mm
Elektroantrieb.............(siehe nächste Seite)
Verbrennerantrieb:........................7.45cc 2T
Fluggewicht:.......................................4.3Kg
Fernsteuerung.............6 Kanal / 7-8 Servos
VQ No: VQA157USAR - VQA157US
BARON
1.5mm
A
B
!
CA
L/R
Assemble left and right sides the same way.
X
Drill holes using the stated size of drill
(in this case 1.5 mm ÿ)
Use epoxy glue
Take particular care here
Hatched-in areas:
remove covering film carefully
Not included. These parts must be
purchased separately
Check during assembly that these
parts move freely, without binding
Apply cyano glue
SILICON
EPOXY A
EPOXY B
CA
GLUE
Epoxy Glue ( 5 minute type)
Silicon sealer
Cyanoacrylate Glue
Minimum 6 channel radio for airplane with 6 (7 for EP) servos.
.50 - 4 cycle
10.5x6 for .40 - 2 cycle engine 11x6 for .46 - 2 cycle engine
12x7 for electric motor
Silicone tube
Extension for aileron, Flap servo, retract servo and Rx battery pack.
.40 - 2 cycle
Epoxy Glue (30 minute type)
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Phillip screw driver
Awl
Scissors
Wire Cutters
(Purchase separately)
Hex Wrench
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Sander
Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual, comprise:
(Purchase separately)
.Motor control x1 mini servo(for GP) .Elevator x1 .Rudder x1. Aileron x2mini servo. Flapx2 mini servo
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
10mm = 13/32” 12mm = 15/32” 15mm = 19/32” 20mm = 51/64”
25mm = 1” 30mm = 1-3/16” 45mm = 1-51/64”
If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the model in a cool place will let the wrinkles disappear. Otherwise, remove wrinkles in covering film with a hair dryer, starting with low temperature. You can fix the corners by using a hot iron.
Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !
REQUIRED FOR OPERATION (Purchase separately)
Low seting
800 Watt Brushless Motor
Do the same way with second wing half.
Carefully, push the motor mount into the opening on the wing until the line on the base matches the wing surface.
the line on the mount
INSTRUCTION MANUAL
BEECHCRAFT BARON 1
1- Motor mount installation
CA
Note: Remove the cover before gluing.
WING - TOP VIEW
WING - TOP VIEW
CA
CA
6mm dowel
Using a wooden motor mounting plate as a template, mark the fire-wall where the four holes are to be drilled.
Remove the wooden motor mounting plate and drill a 5mm hole through the fire-wall at each of the four marks marked .
5x80mm bolt.....4
5mm nut..........12
5mm washer...16
Using a aluminum motor mounting plate as a template, mark the plywood motor mounting plate where the four holes are to be drilled.
Remove the aluminum motor mounting plate and drill a 1/8”(3mm) hole through the plywood at each of the four marks marked .
3mm
! Align the mark on wooden motor mounting plate with the mark on the fire-wall.
Triangles balsa
fill the Epoxy into the slit
BARON
UP
Do the same way with second wing half.
Do the same way with second wing half.
5mm
INSTRUCTION MANUAL
BEECHCRAFT BARON 2
A
B
A
B
2- Motor mount installation
3- Motor mount installation
Step 3A
Step 3B
Step 3C
Step 3D
Step 3E
1-Cut away the covering of the wing bottom where the aileron servo goes. 2-Connect the aileron servo cord to the aileron extension cord. 3-Install the aileron servo on the servo mount.
3mm bolt / nut...4
Secure the Motor to the wooden motor mounting plate using the four 3mm bolts.
B=B’
! Motor thrust on balk head is already adjust at factory
B
105-110mm
B’
Motor and Motor base - Side view
105-110mm
105-110mm
Note:Engine mount and fuel tank must be purchased separately
Adhesive tape
Do the same way with second wing half.
Do the same way with second wing half.
INSTRUCTION MANUAL
BEECHCRAFT BARON 3
4- Motor mount installation
5- Engine installation
6- Servo installation
1-Depending on the position of the linkage, determine the location of aileron control horn. The horn holes must be perfectly aligned with the axis of articulation.
2-Mark the position of the “foot” of the horn on the aileron. Then, with the drill, make the 2
holes.
3-Install the aileron control horn as shown.
Plastic control horn
..........4
2x30mm screw
Control horn Alignment
..........8
..........2
2x175mm rod
Connector
EZ link
..........2
Steel Clevis
........2
...2
-Switch on the radio (trims centered) then mount the ailerons servo horn in neutral position.
-The servo horn should be perpendicular to the servo
YES
NO
Do the same way with second wing half.
Do the same way with second wing half.
INSTRUCTION MANUAL
BEECHCRAFT BARON 4
7- Control horn installation
8- Linkages
9- Fixed gear assembly
Ply gear mount plate x 2
Gear mount x 2
Main landing gear
Gear mount
1
3x20mm
Nylon gear strap
2mm
2
3x20mm
Ply gear mount flat
Square plastic
2mm
3
3x20mm screw
..........8
3x12mm screw
......16
Nylon gear strap
.......4
Square plastic x 2
2mm
1.5mm
gear cover
Gear mount
gear strap
1/16
3x12mm screw
2x8mm screw
..........8
..........8
4mm collar
..........2
........2
..........2
10-Fixed gear installation
WING - BOTTOM VIEW
Do the same way with second wing half.
INSTRUCTION MANUAL
BEECHCRAFT BARON 5
RECEIVER
ELECTRIC RETRACT LANDING GEAR
ON
OFF
GEAR
EXTENDED POSITION
RETRACTED POSITION
11-Electric retract
Electric retract must be purchase separately
Do the same way with second wing half.
1mm
WING - BOTTOM VIEW
2x8mm screw
..........5
Do the same way with second wing half.
INSTRUCTION MANUAL
BEECHCRAFT BARON 6
12- Bottom shield
1mm
2x8mm screw
..........8
Do the same way with second wing half.
INSTRUCTION MANUAL
BEECHCRAFT BARON 7

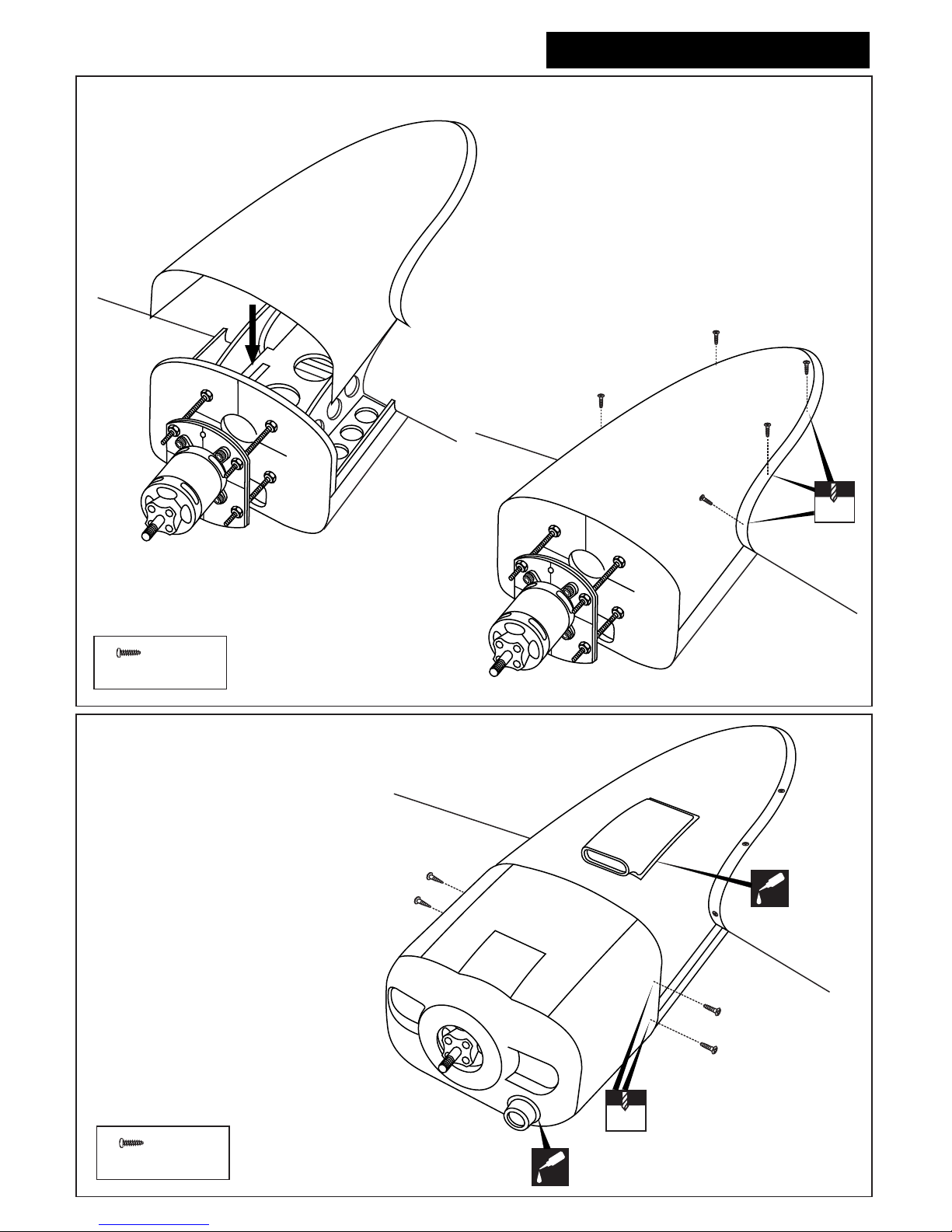

13- Top shield
2x8mm screw
..........12
1mm
14- Cowling installation
CA
Thin CA
CA
Thin CA
Cut away only the covering both the right and left side
Trial fit the horizontal stabilizer in place .
Check the alignment of the horizontal stabilizer. When you are satisfied with the alignment, use a pencil to trace around the top and bottom of the stabilizer where it meets the fuselage.
15-Horizontal Stabilizer
Remove the horizontal stabilizer from the vertical stabilizer. Using a straight edge and a sharp hobby knife, carefully cut away the covering inside the lines which were marked above. Be cautious not to cut into the wood-this will weaken the structure.
Again, slide the horizontal stabilizer into the slot on the fuselage. Check the alignment of the horizontal stabilizer. When you are satisfied with the alignment, glue the both sides of the horizontal stabilizer where it meets the fuselage.
A
A’
B
B’
A=A’ B=B’
! Securely glue together. If coming off during fly, you lose control of your air plane.
Cut away only the covering both sides.
CA
INSTRUCTION MANUAL
BEECHCRAFT BARON 8
CA
Thin CA
Trial fit the vertical stabilizer in place .
Check the alignment of the vertical stabilizer. When you are satisfied with the alignment, use a pencil to trace around the left and right of the vertical stabilizer where it meets the fuselage.
With the perpendicular, check the alignment of the vertical stabilizer and the horizontal stabilizer. When you are satisfied with the alignment, secure the vertical stabilizer in place using thin CA glue.
Remove the vertical stabilizer from the fuselage. Using a sharp hobby knife, carefully cut away the covering below the lines which were drawn in the previous steep. Do not cut into the woods as this will affect the structural integrity of the stabilizer.
Again, insert the vertical stabilizer into the fuselage.
CA
! Securely glue together. If coming off during fly, you lose control of your air plane.
90
90
CA
Cut away only the covering
Note: the rectangular hole for the control horn installation is pre-cut at factory.
Plastic control horn
.....................1
16- Vertical Stabilizer
Cut away only the covering both sides.
INSTRUCTION MANUAL
BEECHCRAFT BARON 9
Plastic control horn
.....................1
CA
Apply thin CA glue on the top of the hinge
Apply a thin layer of petroleum jelly
VERTIAL STABILIZER
VERTICAL STABILIZER
TOP-VIEW
! Securely glue together. If coming off during fly, you lose control of your air plane.
Cut away only the covering
Note: the rectangular hole for the control horn installation is pre-cut at factory.
CA
Thin CA
! Securely glue together. If coming off during fly, you lose control of your air plane.
CA
Thin CA
CA
Thin CA
Repeat the previous procedures to hinge the second
elevator to the other side of the horizontal stabilizer.
17- Rudder
INSTRUCTION MANUAL
BEECHCRAFT BARON 10
2- Insert “Z” bend of steering linkage inside the hole of front landing gear Steering arm.
3- Position the steering arm inside the front landing gear mount already Attached to the firewall.
5- Screw steering arm on the leg.
Nose gear mount
3x20mm screw...4
Steering arm...1
..............1
IN CASE OF ELECTRIC RETRACT LANDING GEAR USING
Nose gear pushrod
Steering horn
18-Nose gear
(Electric retract landing gear and Struts must purchase separately)
1
2
3
3mm nut, washer...4
1- Route the steering linkage into the fuselage and through the fire-wall.
4- Slide in the front gear leg with the flat to back through the bearing and steering arm.
Flat
Landing gear steering arm
Steering linkage
5
INSTRUCTION MANUAL
BEECHCRAFT BARON 11
Step 19A
Step 19B
Step 19C
Shift the location of the fuel tank, battery pack, or Li-po battery as needed to obtain the specified CG.
Rudder servo
FUSELAGE - TOP VIEW
20-Linkages
Elevator push rod
Elevator push rod
Rudder push rod
................1
....................3
2mm
Connector
X
3mm set Screw
Elevator pushrod
Elevator pushrod
FUSELAGE - TOP VIEW
Rudder push-rod
Elevator push-rod: 2x100mm with Z ben one end
Nose gear push-rod
19- Servo installation
Elevator servo
INSTRUCTION MANUAL
BEECHCRAFT BARON 12
Cut away only the covering
Cut away only the covering
Note: Glue the Right and Left gear door on to the fuselage only. Do not glue them to the cowl if you want to remove the cowl out of the fuselage.
Nose Gear door installation
Gear door (3mm plywood)
Do not glue here.
CA
CA
INSTRUCTION MANUAL
BEECHCRAFT BARON 13
21- Nose shield
1mm
Aluminum tube
WING
INSTRUCTION MANUAL
BEECHCRAFT BARON 14
22- Wing installation
5x25mm screw
5X25mm screw
......2
......2
Secure the wing in place using the 5x25mm screw.
24- Canopy
4x25mm plastic bolt
..........2
INSTRUCTION MANUAL
BEECHCRAFT BARON 15
23- Wing installation
Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once. Peel off one corner of the backing and cut off with scissors. Arrange sticker on model and when satisfied adhere the corner without backing. Carefully peel back the rest of the backing while at the same time adhering the rest of the sticker. Try not to make air bubbles, if there are some, carefully puncture sticker (center of bubble) but not model surface with the tip of the knife or sharp pin and squeeze out the air. At curves stretch sticker and apply a little heat so that no ceases occur. Cut off the excess that is produced.
INSTRUCTION MANUAL
BEECHCRAFT BARON 16
25- Decor
U.S. CIVIL VERSION
U.S. CIVIL VERSION
BARON US - COWLING DECAL
LED Light 4-6v
Step 26A
Step 26B
U.S. ARMY VERSION
U.S. CIVIL VERSION
U.S. CIVIL VERSION
CA
Glue the Thin CA both sides.
INSTRUCTION MANUAL
BEECHCRAFT BARON 17
Step 26C
Step 26D
26- Decor
Wing center section
DO NOT try to fly an out-of-balance model !
100-104mm (4’’)
Note: If necessary, move the battery pack or add weight to either the tail or nose until the correct balance is achieved.
RUDDER / SEITENRUDER
ELEVATOR / HOHENRUDER
Take off /Start 10mm (25/64”)
Landing /Landung 22mm (55/64”)
AILERON / QUERRUDER
FLAP / LANDEKLAPPEN
32mm (1.25”)
32mm (1.25”)
9mm (23/64”)
9mm (23/64”)
6mm (15/64”)
6mm (15/64”)
28- Balance
29- Control Surface
IMPORTANT:
Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner to clean on surface of your model to keep the colour not fade.
All details are subject to changewithout notice !
Technische Anderungen und Irrtumer vorbehalten !
INSTRUCTION MANUAL
BEECHCRAFT BARON 18
BEECH BARON U.S ARMY
DANGER
DANGER
N
E
T
A
C
O
0
0
1
0
0
L
O
1
W
L
E
A
D
AVGAS ONLY
15.8 GALS.
N
E
T
A
C
O
0
0
1
0
0
L
O
1
W
L
E
A
D
AVGAS ONLY
15.8 GALS.
O
C
T
A
0
0
N
1
E
0
0
L
O
1
W
L
E
A
D
AVGAS ONLY
15.8 GALS.
N
E
T
A
C
O
0
0
1
0
0
L
O
1
W
L
E
A
D
AVGAS ONLY
15.8 GALS.
NO STEP
NO STEP
BEECH BARON U.S ARMY
U.S. ARMY VERSION
You can view the Baron image on the VQ Models website to make it easier to past the decal for your model.
27- Decor
Loading...
