This manual will guide you through the features and functions of the VP580 Network Digital Video Recorder (DVR) system. Read this section to g et an overview of the product.

1.1 Introduction

The FORMOSA21 VP-580 Network DVR System is a high performance digital video recorder and web server all in one. Features include a real time video capture utility, and video compression that allows efficient transmission of moving images over a network. Video can also be displayed on a local VGA monitor. The VP- 580 can record and play back digital video simultaneously while continuing to display live video. Video footage is saved to a removable hard disk.

Up to 8 cameras can be connected to a single VP- 580 unit. Full motion video with audio over Internet or intranet is supported. Video output can be viewed using a standard PC and web browser with custom plug-in software. Camera pan, tilt, zoom, and focus functions can be controlled over the network, and the unit can be configured to react a particular way to when certain events occur. An IR remote control unit is included to make setup and operation as trouble free as possible.

1.2 System requirements

Cameras

Composite CCD, V8, or camcorder NTSC or PAL standard

1. Overview

Network equipment

RJ-45 Ethernet port and connection to Internet or intranet (network mode) Public or private IP address (Network mode and Internet access) VGA monitor for local display

PC for configuration for remote viewing

Pentium IV 1.7GHz CPU or better 256MB RAM or more AGP VGA card Microsoft Windows XP/2000/ME/98 operating system Standard Internet browser such as Internet Explorer

1.3 Features

Video and audio recording:

Up to 8 black and white, or color cameras Up to 30 fps for each camera (local monitoring) Record, playback and, display simultaneously Built-in QUAD/multiplexor functions (local monitoring) Local playback of recorded footage on VGA or TV monitor Remote playback in PC browser Query recorded data referenced by date, time, and event Support for popular PTZ cameras

High video quality and low data rate

Up to 200:1 video compression Multiple video compression engines including, H.263, JPEG, M-JPEG, and MPEG4

System repuirements

Network

Dynamic IP support for Internet access Direct dial-up support

Data storage and backup

Removable hard disk Optional CD writer

Easy to use

Plug and play, non Windows embedded real-time OS Easy configuration using either keyboard, mouse, IR remote control, home page, or RS-232 ter minal The only client application required is a standard web browser

Alar m functions

Motion detection, event trigger, schedule, pre alarm recording E-mail ,Voice Call and FTP alar m notification Optional GPI/O for alarm control

Customization

HTML file upload support for home pag e customization FTP server upload suppor t for customization

1.4 About the GUI

The VP- 580 can be configured and operated using either the local GUI, or over a network.

Features

1.4.1 The local GUI

1.4.2 The network GUI

About the GUI

2. Getting Star ted

Read this section to get your VP- 580 up and running. This section assumes that the VP- 580 is already connected and cameras are attached. For more information, see the user manual supplied with the unit.

Live footage can be viewed either on the local screen connected to the VP580 or over a network if a connection exists.

2.1 Running modes

Images can be viewed on the screen attached to the VP- 580. You can control the number of imag es displayed on the screen and configur e the VP580 using either mouse control, or IR remote controller.

Turn the VP- 580 on using the power switch on the r ear of the unit and the switch on the front panel.

The VP- 580 will boot up in either IR control or mouse control running mode.

Note: The default startup mode for the VP- 580 is IR control mode. This can be changed by setting the Running Mode option as described later in this section.

Depending on how the VP- 580 is configured, you will see images from the attached cameras on the screen.

If the VP- 580 is in mouse running mode, a g r aphical user interface (GUI) with clickable buttons will be displayed on screen as shown below. In this running mode, the IR remote control will not function. When the VP- 580 is in IR remote control running mode, no GUI is displayed, only feeds from the connected cameras.

Follow these instructions to switch from mouse running mode to IR remote control running mode.

1.Click the SET UP button on the GUI to display the setup menu.

2. From the list on the left of the screen, click the Running Mode

heading to display the running mode menu.

Running modes

3. From the Control dropdown box, choose IR Control.

4. From the Mode dropdown box, choose either ISP mode if you are connected using an ISP type connection, or Network Mode, if you are connected to a network.

5. Click OK.

The system will automatically reboot in IR remote contr ol mode.

Follow these instructions to switch from IR remote control running mode to mouse running mode.

1. Press the Menu button on the remote control to display the setup menu on screen.

Cancel

MenuTVRemote

Playback

Local

Key Pad

Page

button

Up and

Down

arrow

buttons

button

Running modes

2. Use the up and down arrow buttons to highlight the Running Mode option and press the OK button to confirm your choice.

The running mode menu will be displayed on screen.

3. Use the up and down arrow buttons to highlight the Control – IR Control field.

4. Use the left and right arrow buttons to toggle between Control – IR and Control – mouse.

5. Press the OK button when the control field is set to mouse.

Cancel

MenuTVRemote

Playback

Local

Key Pad

Page

The unit will reboot when the OK button is pressed. It will restar t in

mouse running mode.

Left and

Right

buttons

OK button

Running modes

2.2 Viewing live images on the VP- 580

Images from the VP- 580 can be viewed locally with the machine in either

mouse running mode, or in IR remote control running mode. See Running modes on page 5 for more information. Up to 16 cameras can be

connected to the VP- 580. All cameras can be displayed on the screen at the same time, or just a selection of your choice. A single camera image can also be displayed on the screen or images from all connected cameras can be displayed in sequence.

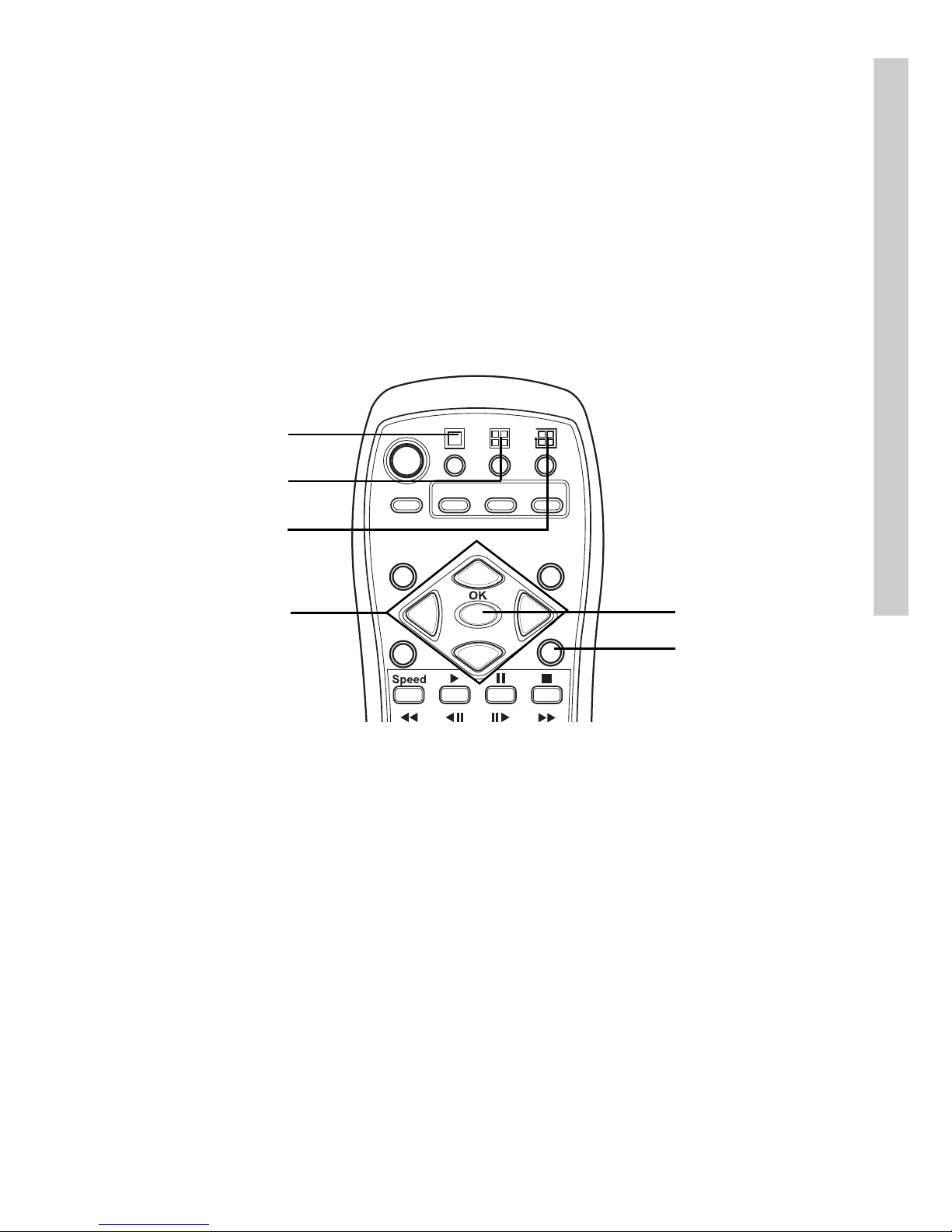

When in IR remote control running mode, use the buttons on the remote control to alter the display.

Cancel

MenuTVRemote

Playback

Local

Key Pad

Page

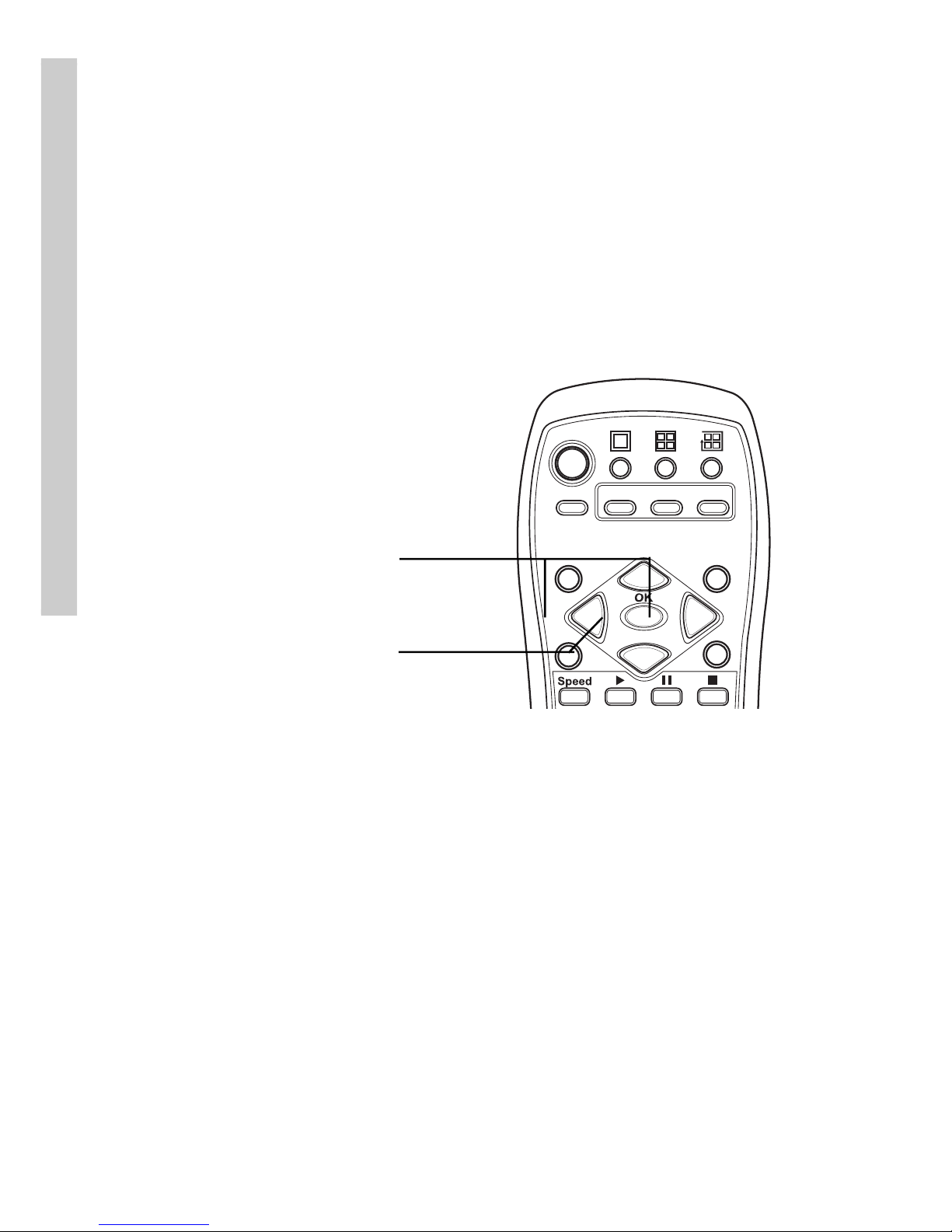

• Press button A to display a single imag e on screen and use the Up, Down, Left, or Right arrow buttons, D to cycle through video inputs from all the connected cameras. Alternatively, use the Prev Page and Next Page buttons, F, to cycle through all the connected cameras. You can also press a number button to view the corresponding camera.

• Press button B to select Single (1 image), Quad (4 images), 9 splits (9 images), 16 splits (16 images), or sequence (all or selected images automatically in sequence) from the Display setting menu on screen. Use the Up and Down arrow buttons, D to highlight a selection. Press the OK button, E to confirm. Use the Up, Down, Left, or Right arrow buttons, D to cycle through all the connected cameras.

• Press button C to cycle automatically through video inputs from all or selected cameras.

Viewing live ima ges on the VP-404/4048

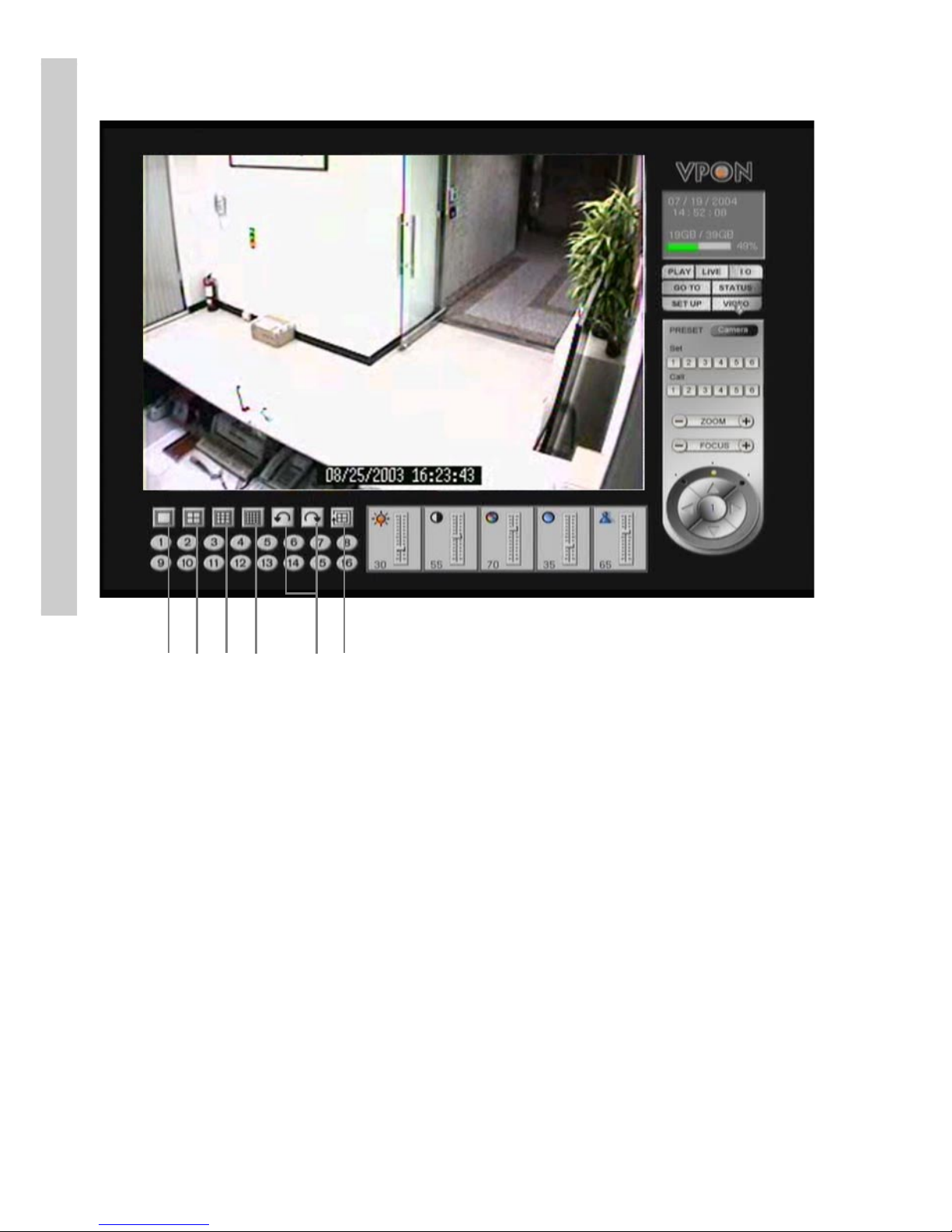

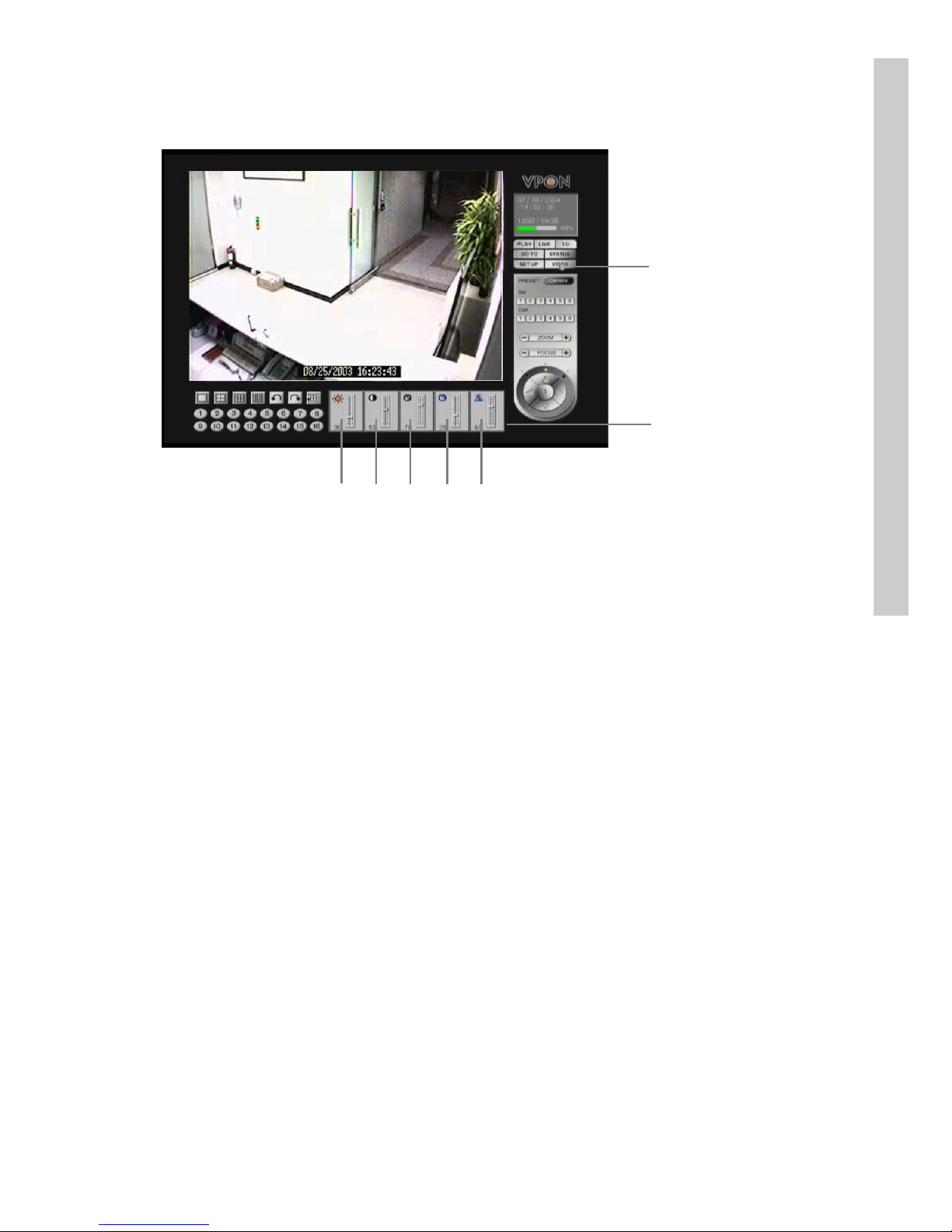

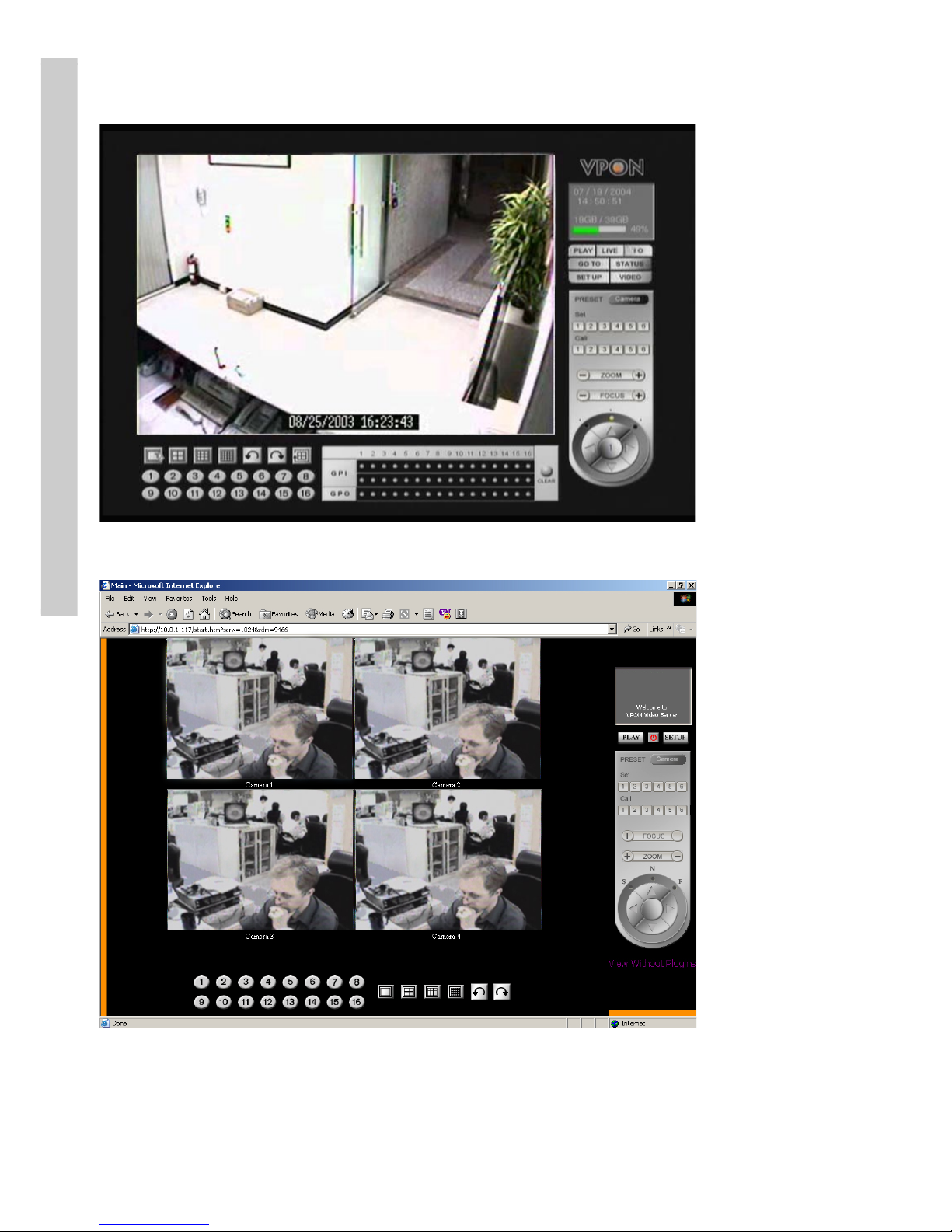

When in mouse r unning mode, equivalent buttons exist on the screen to select images.

• Use buttons A, B, C, or D to select 1, 4, 9, or 16 images on screen.

• Use the arrow buttons, E to cycle through all connected cameras.

• Use the sequence button, F to automatically cycle through all the connected cameras.

• Use the numbered buttons from 1 through 8 to select an individual camera.

CD EF

Viewing live images on the VP-5804/5808

3. IR remote contr ol operation

3.1 Intr oduction

The VP-580 can be used and configured with either the supplied remote control unit or with a keyboard and mouse. This chapter covers remote control operation. The VP-580 must be in IR remote control running mode for remote control operation to function.

3.2 Main menu

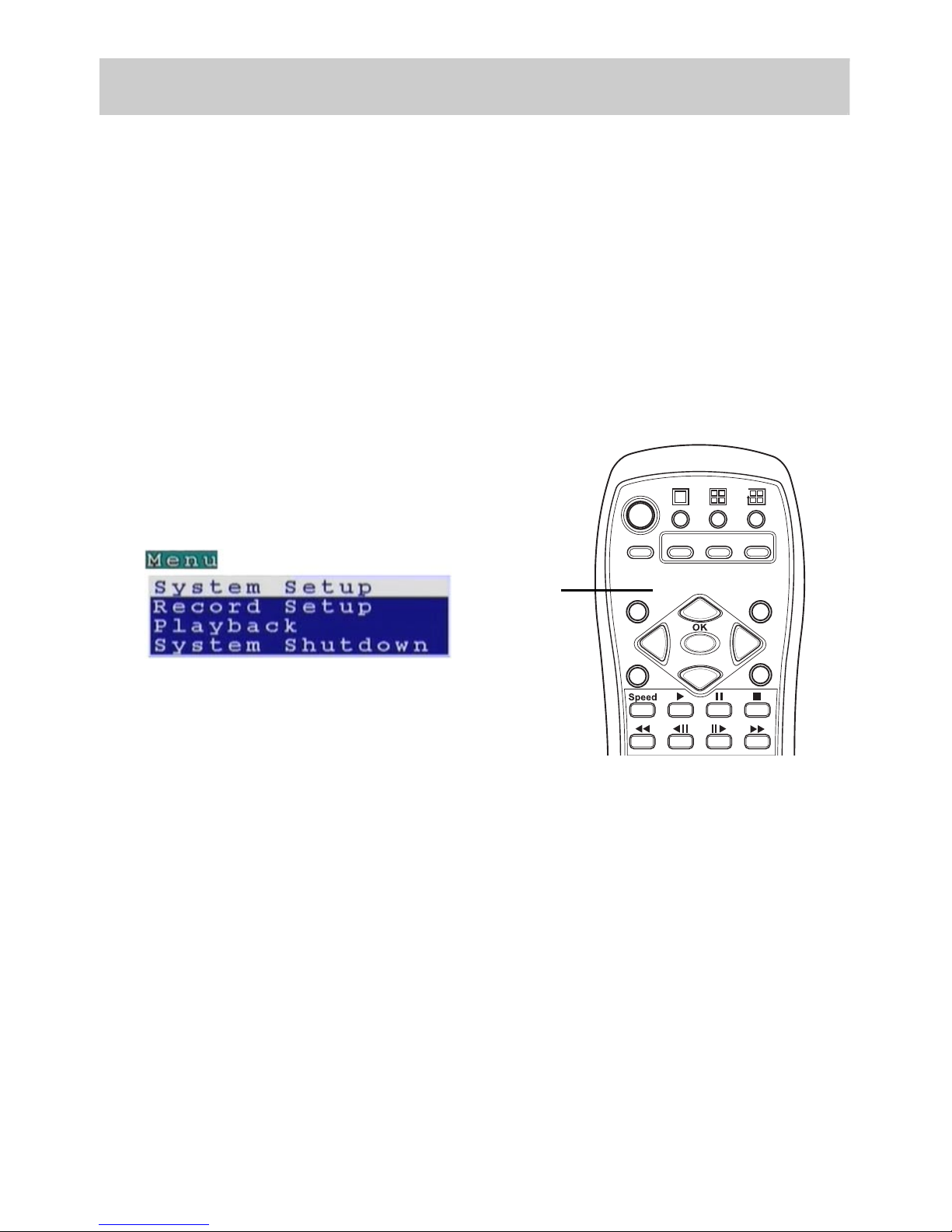

Press the Menu button on the remote control to display the main menu on screen.

Cancel

MenuTVRemote

Playback

Local

Key Pad

Page

Use the Up and Down arrow buttons to select one of the four options and press the OK button to confir m your choice.

button

3.3 System setup

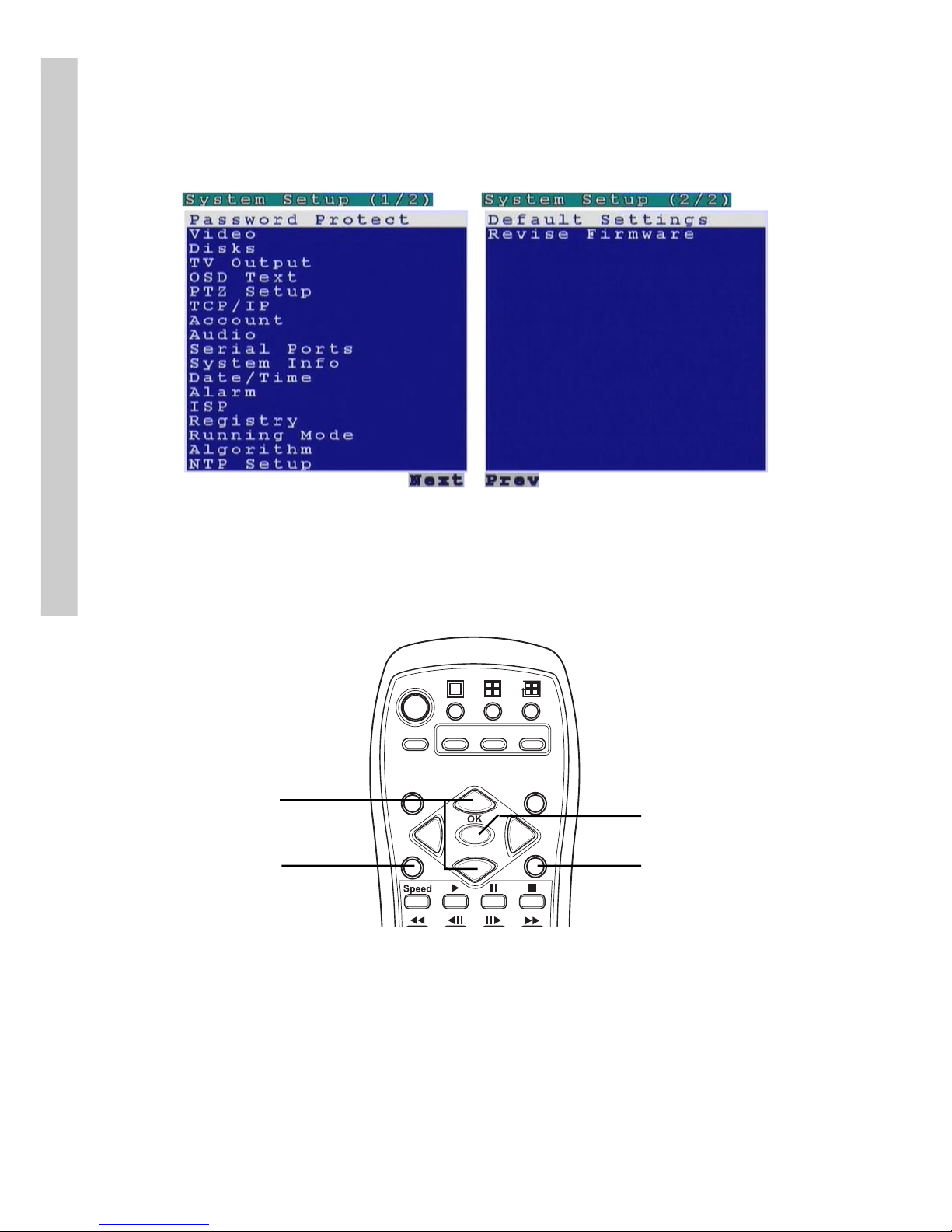

The System Setup menu enables you to change many different parameters of the VP- 580. This section describes each option in the System Setup menu.

Use the Up and Down arrow buttons to highlight an option, and use the

OK button to confir m your choice. You can move between pages using the Prev Page and Next Pa ge buttons on the remote control.

Cancel

MenuTVRemote

Playback

Local

Key Pad

Page

Up and

Down arrow

buttons

Page

OK button

System setup

3.3.1 Password protect

Use the Password Protect option to enable password protection, set administrator and user passwords, set the autolock period and lock the system immediately. Enabling password protection prevents unwanted users from accessing or configuring the VP- 580. The Password Protect menu has the following choices:

• Enable – enables password protection.

• Admin Pass – sets the admin password.

• User Pass – sets the user password.

• Autolock After – enables password protection after the specified

time interval.

• Lock Now! – enables pass word protection immediately.

To set the user or admin password:

1. Use the Up and Down arrow buttons on the remote control to highlight the Admin Pass option to set the administrator password or the User Pass option to set the user password.

2. Press the Right arrow button to display the password entry screen.

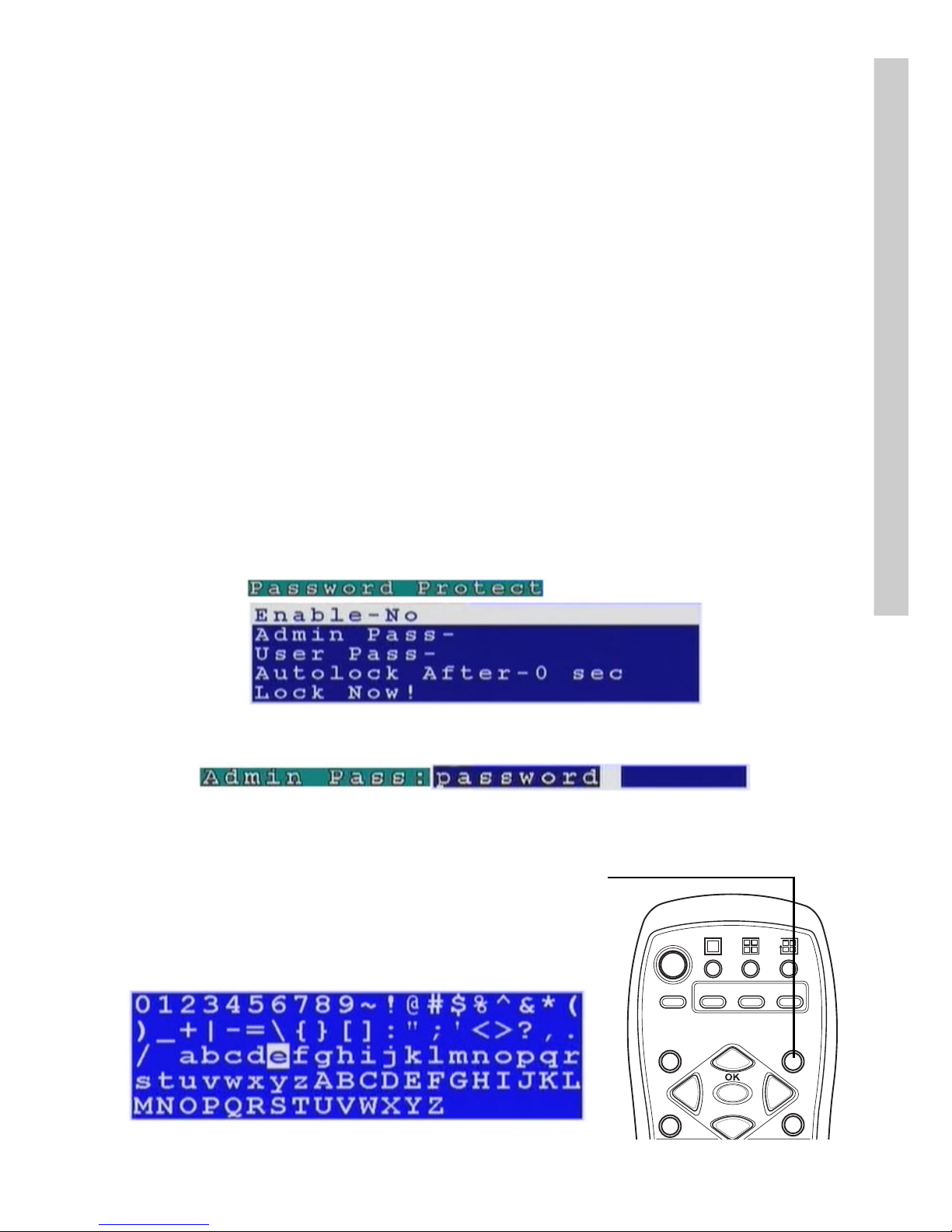

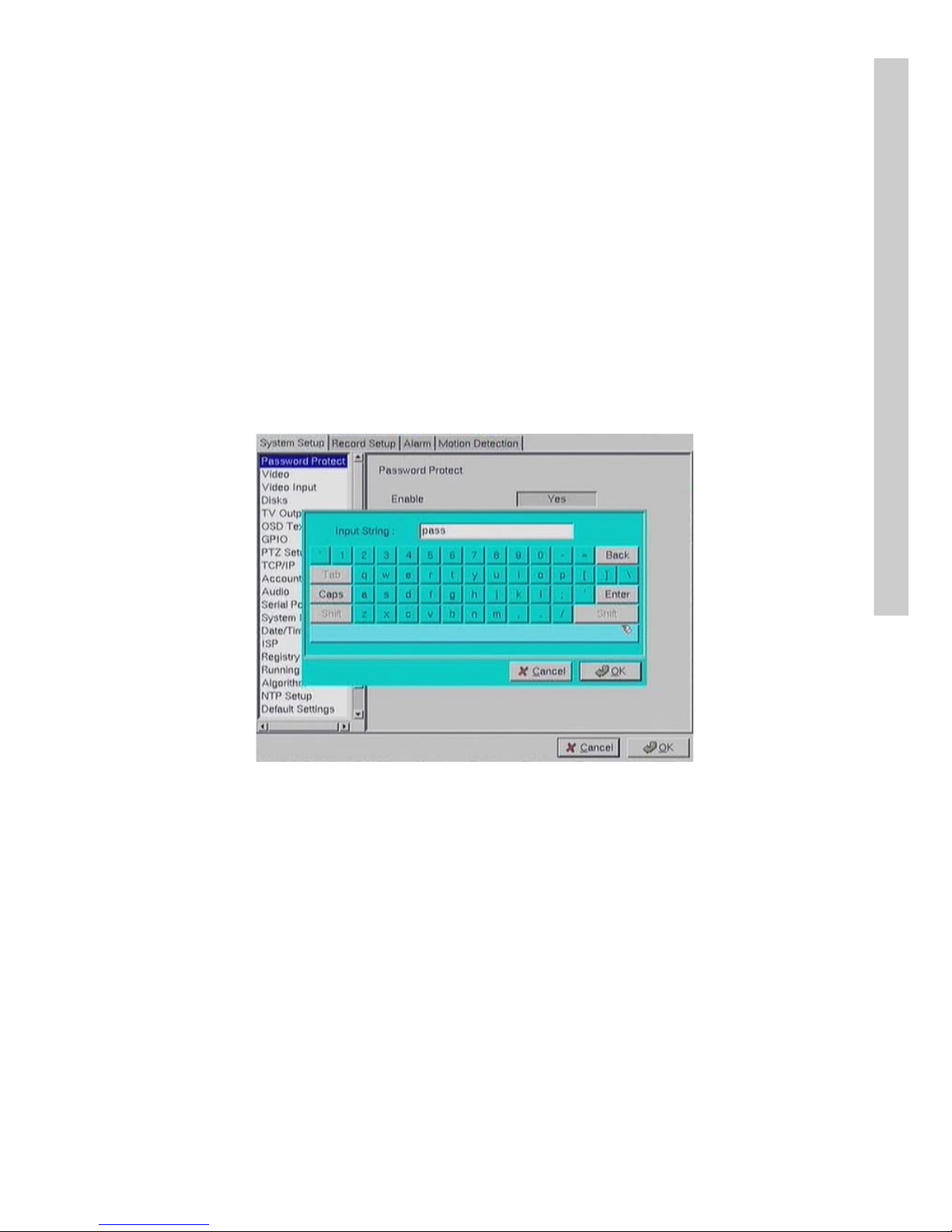

3. Press the keypad button on the remote control to display the onscreen keyboard.

Cancel

MenuTVRemote

Playback

Local

Key Pad

Page

Keypad

button

System setup

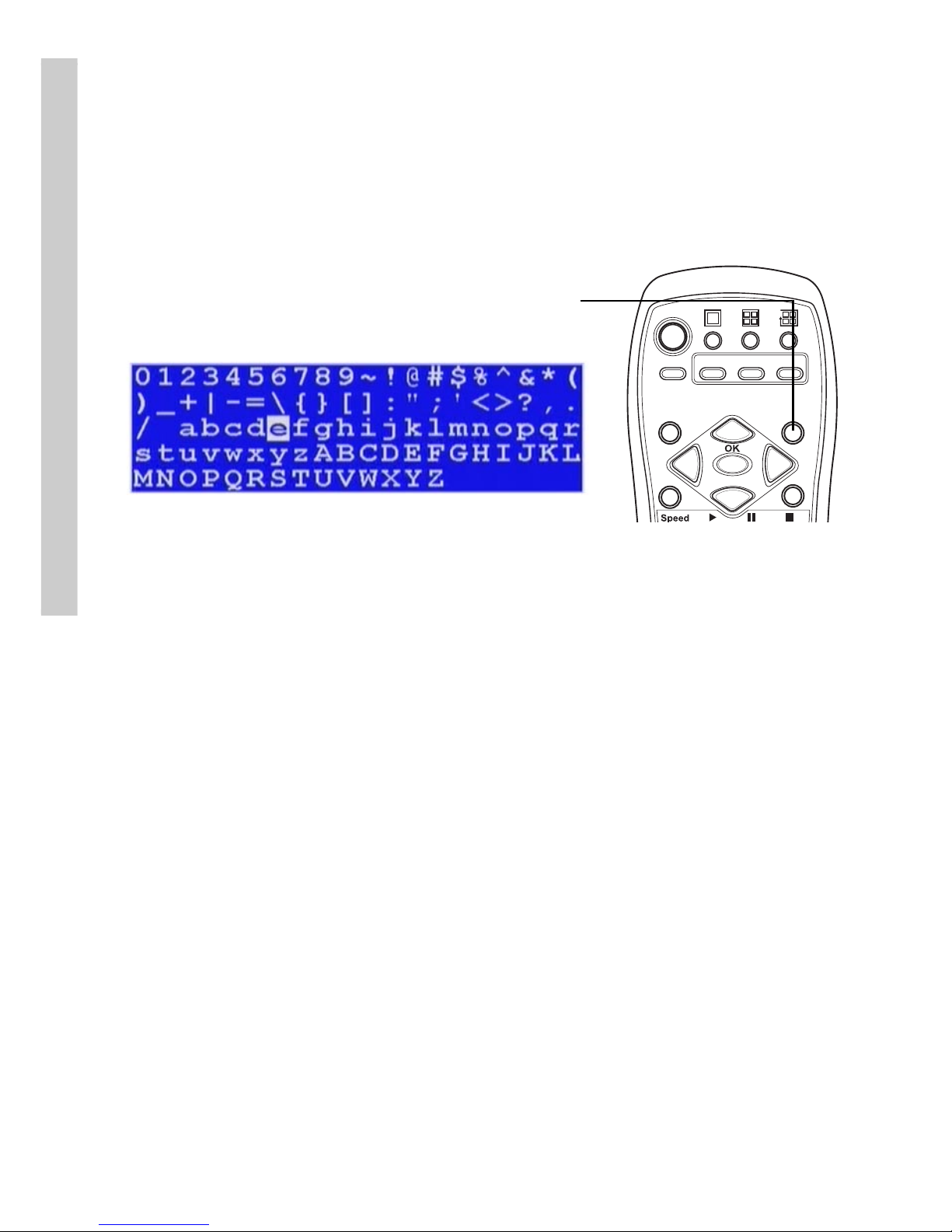

4. Use the Arrow buttons on the remote control to choose a letter and use the OK button to confir m you choice.

5 . When the new password has been entered correctly, press the

keypad button on the remote control to turn off the on-screen keyboard.

6. Press the OK button to confir m the new password.

When user or admin passwords are set and enabled, you will be prompted for a password when they attempt certain functions. Use the on-screen keyboard to set user or admin passwords as described.

To set the password protect function:

1. Select the Enable option from the Password Protect menu.

2. Use the Left and Right arrow buttons to tog gle between Yes and No.

3. Press the OK button to confirm your choice.

The autolock function in the Password Protect menu will lock the system after the specified period of inactivity.

To set the period of inactivity before the system is locked:

1. Highlight the autolock option in the Password Protect menu.

2. Use the Left and Right arrow buttons to increase or decrease the period of inactivity.

3. Press the OK button to confirm your choice.

To lock the system immediately:

1. Highlight the Lock Now! function in the Password Protect menu.

2. Use the Left or Right arrow buttons to confirm the operation.

System setup

3.3.2 Video

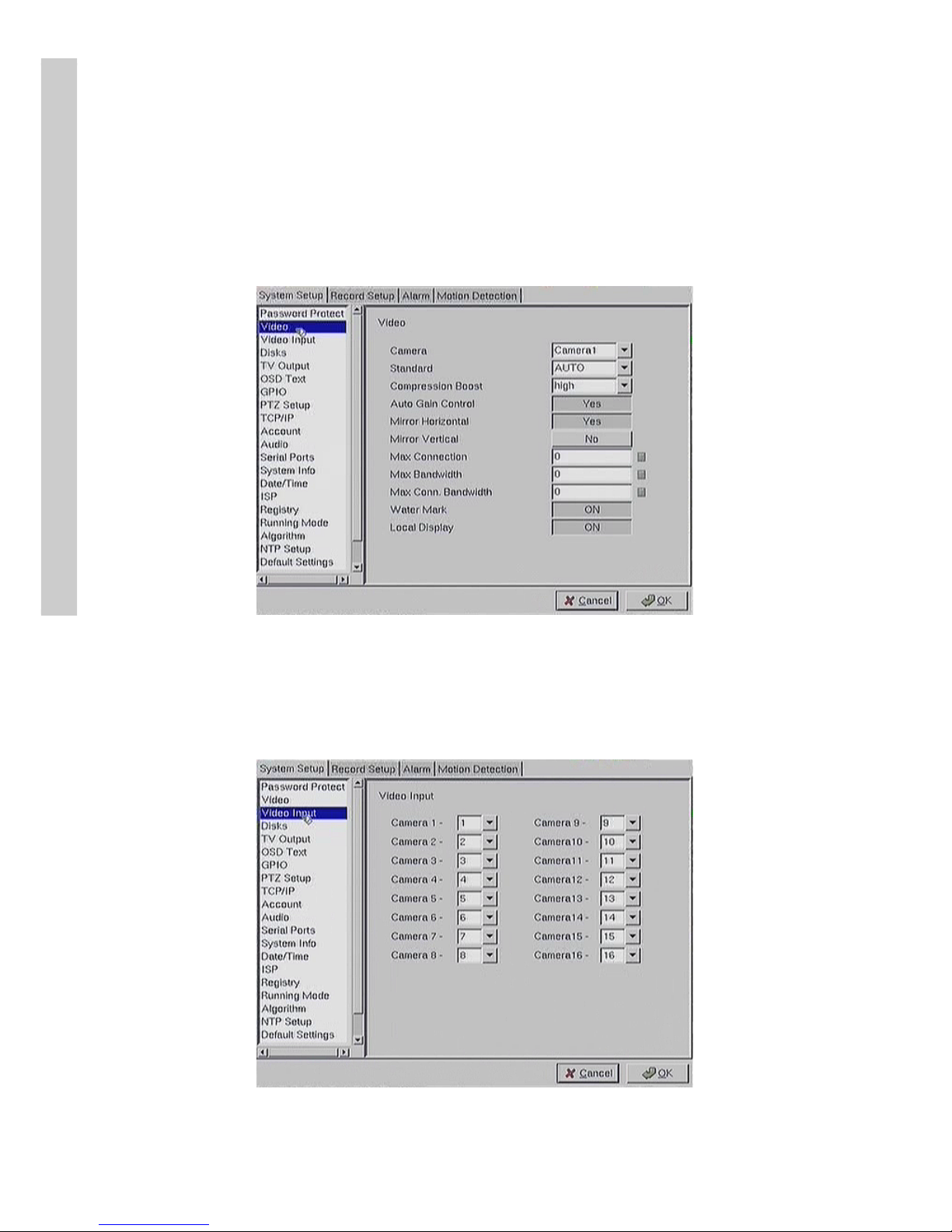

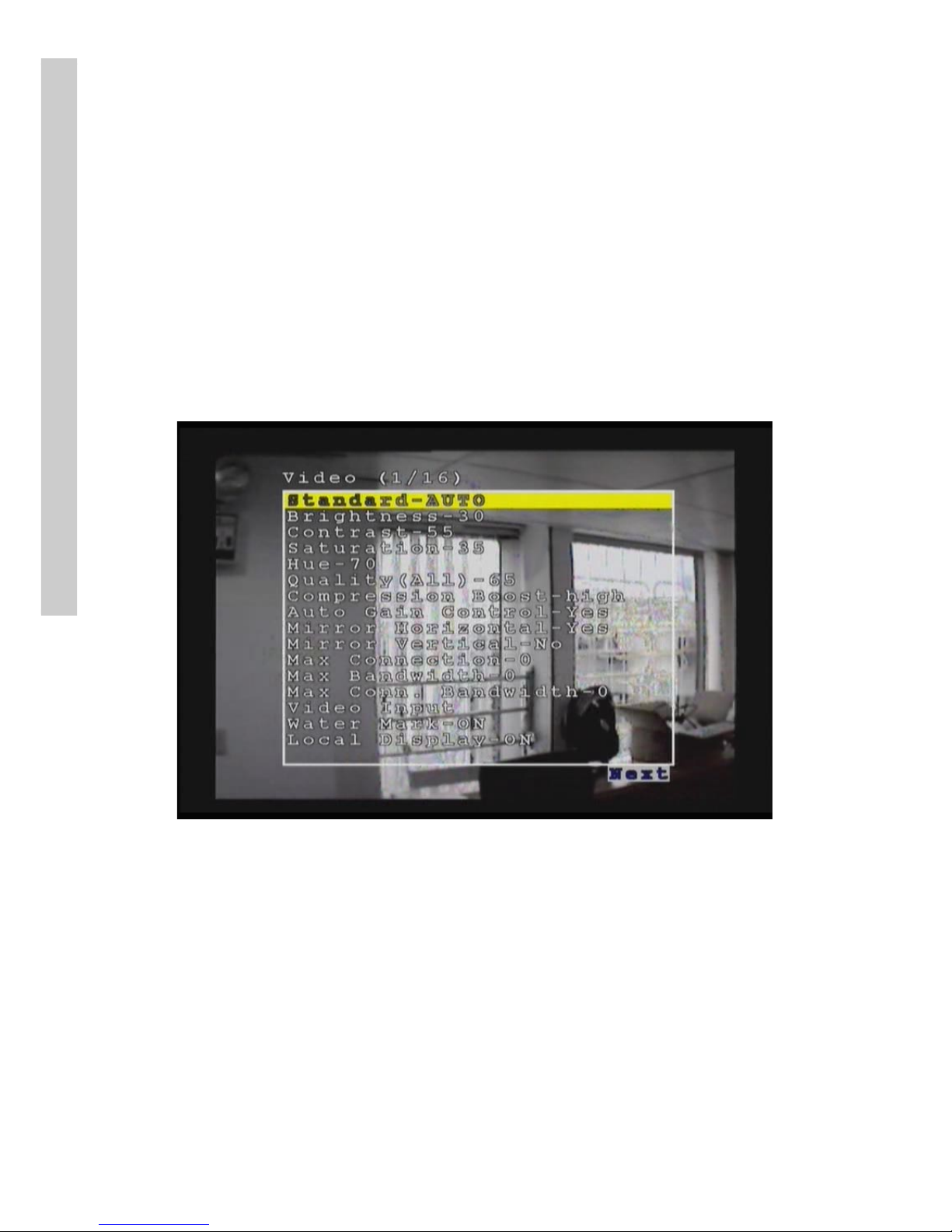

Use the Video menu to set all the video parameters for the cameras connected to the VP-580. There is one video screen for each camera with the following parameters:

• Standard – sets the video signal f ormat. Choose NTSC in the

US, or PAL in Europe and most Asian countries. If you are not sure about this option, select Auto. VP-580 will detect the video standard automatically.

• Brightness – adjusts the amount of light or brightness for the

selected camera according to your preference.

• Contrast – adjusts the difference between light and dark areas or

contrast for the selected camera according to your preference.

• Saturation – adjusts the amount of color for the selected camera.

• Hue – adjusts the dominant color for the selected camera.

• Quality (All) – adjusts the video quality for all cameras. The

default setting is 80. We recommend that you do not set this to 100 to avoid a slower rate of video transmission and using up a significant amount of hard disk space.

• Compression Boost – enables you to compress the video signal

to save disk space and thus extend recording time. It is recommended to keep this setting to None. The higher the compression boost, the lower the video data rate.For a significantly lower data rate, we recommend you use the H.263 algorithm (see Algorithm on page 35).

• Auto Gain Contr ol – enables automatic g ain control to adjust

the video signal strength.

• Mirror Horizontal – flips the video signal from the selected

camera along the horizontal axis.

• Mirror Ver tical – f lips the video signal from the selected camera

along the vertical axis.(Live video only)

• Max Connection – limits the maximum number of connections

allowed to access the VP- 580 over the Internet. Set to zero to allow the maximum number of connections.

• Max Bandwidth – sets the maximum bandwidth in bytes/second

that can be used by users connecting to the VP-580 over the internet.

System setup

• Max Conn. Band width – sets the maximum bandwidth allo-

cated for each connection to the VP-580. This is the maximum bandwidth divided by the maximum connections.

• Video Input – sets the position of the camera input displayed on

your local screen. Changes to this setting will take effect only after the system is rebooted.

• Water Mark – Sets a water mark on the video image. This option

is available only for JPEG and MJPEG algorithms (see Algo-

rithm on page 35).

• Local Display – enables viewing the selected camera video

signal on the local display. If this option is set to Off, the camera is still optional and its video can be recorded if needed.

To chang e the video parameters:

1. Use the Up and Down arrow buttons on the remote control to highlight the option.

2. Use the Left and Right arrow buttons to change the value assigned to the setting.

3. Press the OK button to confirm the new settings.

Each camera has its own video screen. To move between the screens for each camera, use the Prev Page and Next Pa ge buttons on the remote control.

System setup

3.3.3 Disks

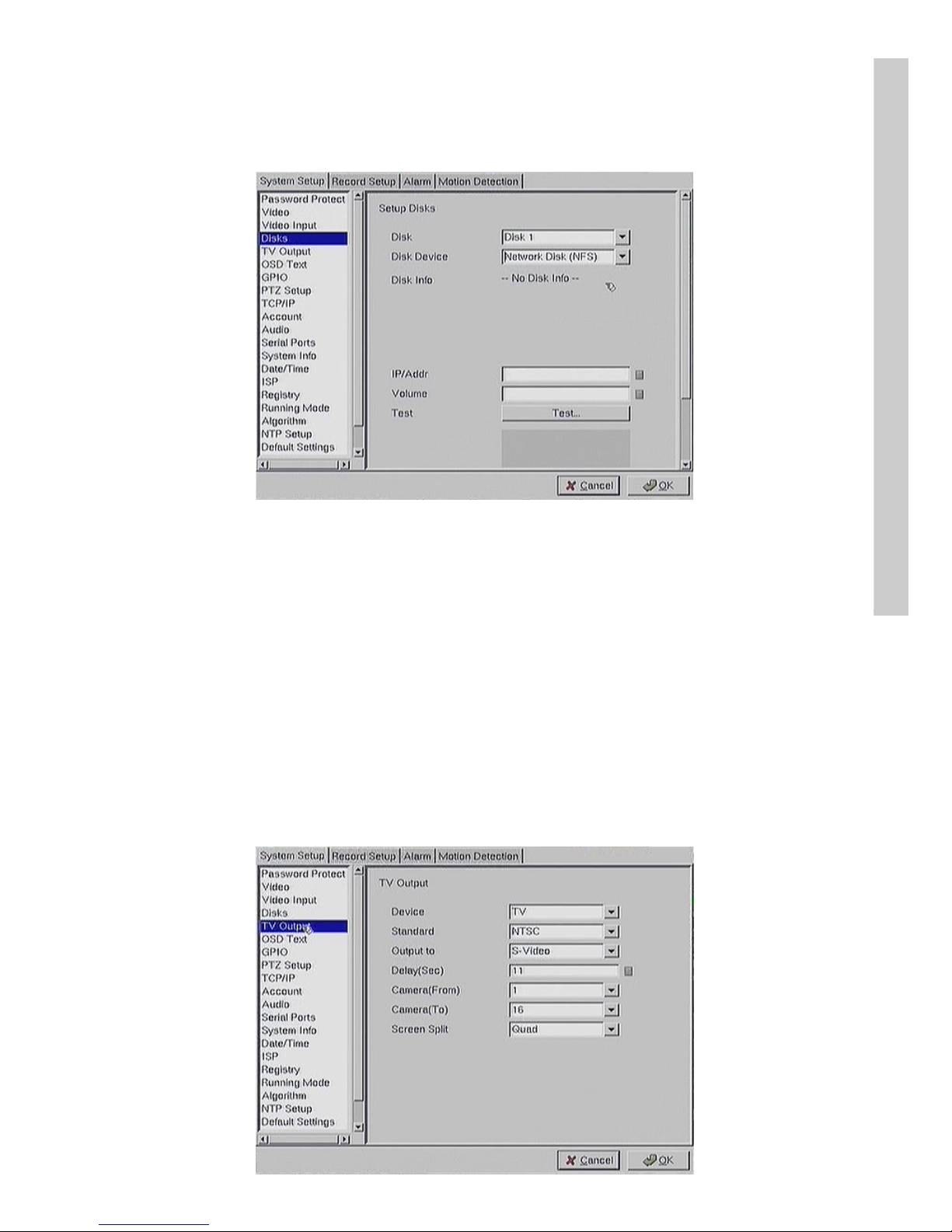

Use the Disks menu to add and remove network disks from the system. Network disks can be used to provide extra storage to extend recording time.

To add a network disk:

1. Highlight the disk you want to add and press the OK button.

2. When the Add Disk screen is displayed, press the OK button.

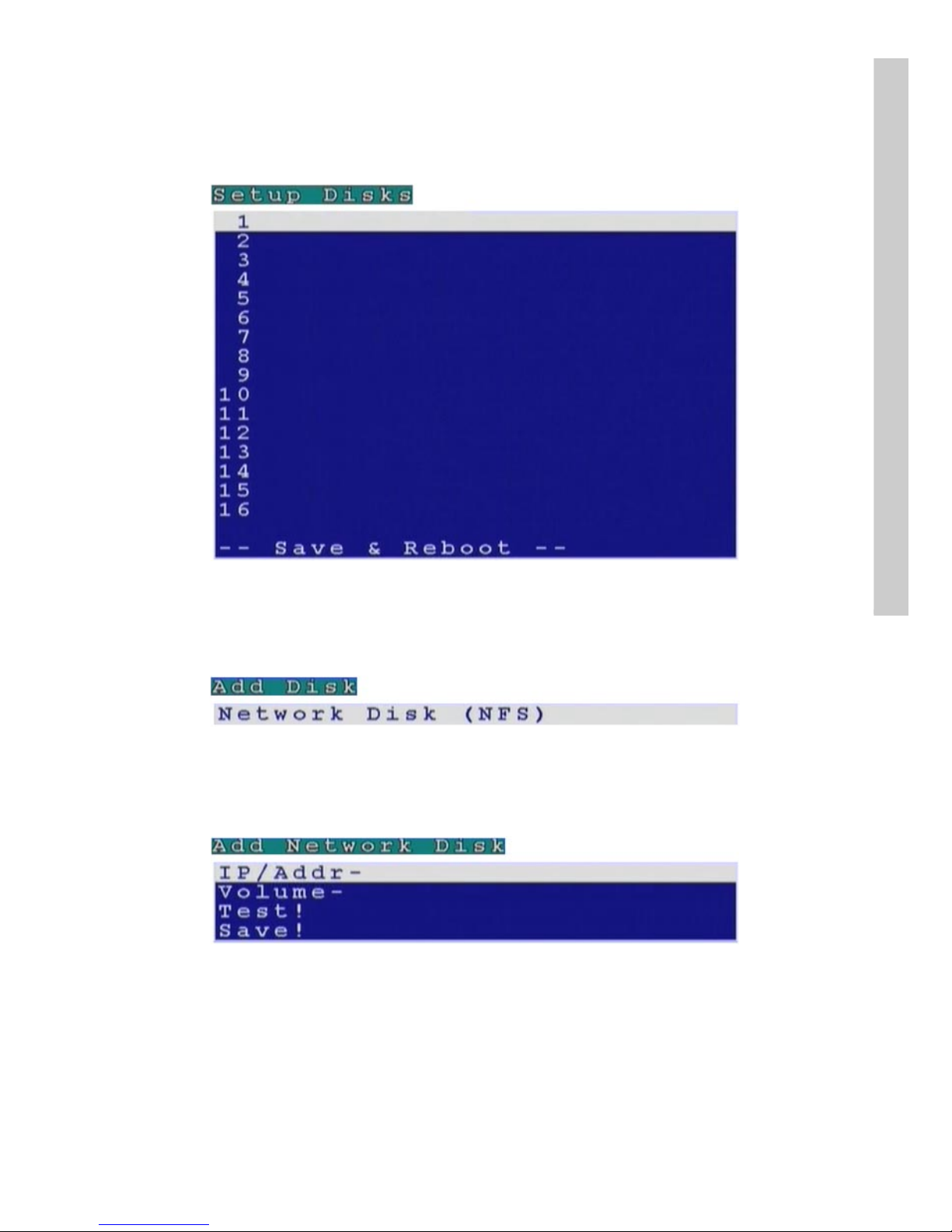

The Add Network Disk menu is displayed, enabling you to set the IP address and volume size of the disk, test its validity, and save the disk parameters.

To enter an IP address:

1. Use the Up and Down arrow buttons on the remote control to highlight the IP/Addr option and press the Right arrow button to confirm the choice.

2. Enter an IP address using the number buttons on the remote control.

System setup

Note:You cannot enter a period (dot) between the

fields in the IP address using the remote control keypad. Use the on-screen keypad to enter the dots. See Password protect on page 13 for more details about how to use the on-screen keypad.

3. Press the OK button to confirm the ne w address.

To enter a volume name for the new disk:

1. Use the Up and Down arrow buttons on the remote control to highlight the Volume option and press the Right arrow button to confirm the choice.

2. Use the on-screen keyboard to enter a volume label for the new disk. See Password protect on pag e 13 for more details.

To test a network disk:

1. Use the Up and Down arrow buttons on the remote control to highlight the Test! option.

2. Press the OK button to confir m the choice.

The test result will appear on the screen.

To save disk parameters:

1. Use the Up and Down arrow buttons on the remote control to highlight the Save! option.

2. Press the OK button to confir m the choice.

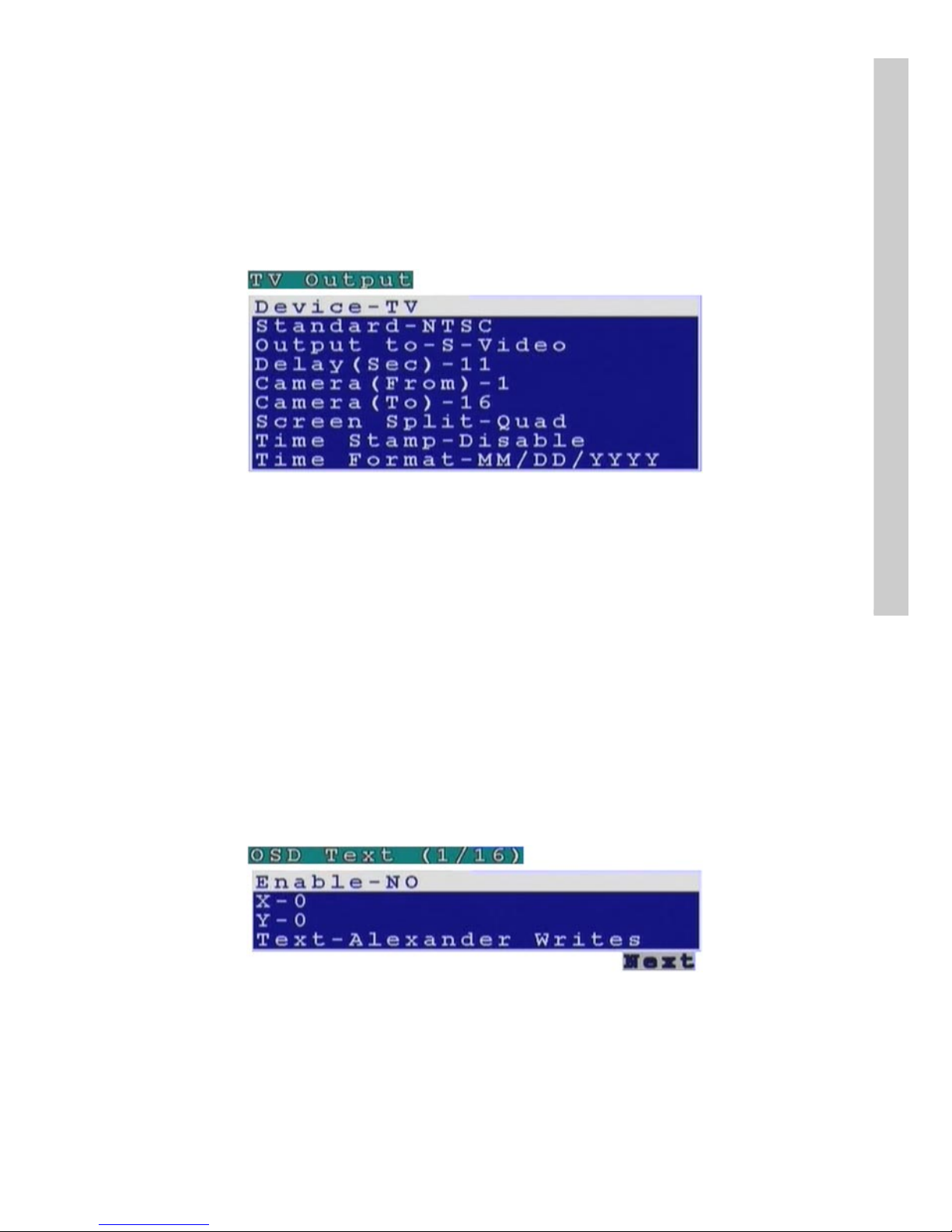

3.3.4 TV output

The VP-580 can be connected to a VGA monitor or a TV to view the camera video signal. Use the TV Output menu to set the following parameters for the video output port:

• Device – sets the output to VGA or TV.

• Standard – sets the signal form at for the output device. Select

from NTSC, PAL, SECAM, and so on.

• Output to – sets the video output to the composite or S-Video

signal.

• Delay – sets the delay between consecutive camera signals when

displaying all the camera signals automatically.

• Camera (From) – specifies the first camera signal displayed in

the automatic cyclic camera mode. (See page 9.)

System setup

• Camera (To) – specifies the last camera signal displayed in the

automatic cyclic camera mode. (See page 9.)

• Screen Split – sets the number (1, 4, 9, or 16) of cameras to be

shown on the local screen.

• Time Stamp – Enables and specifies the position of the time

stamp on the screen.

• Time Format – Specifies the for mat of the time stamp.

Use the Up and Down arrow buttons on the remote control to select any one of the displayed parameters and use the Left and Right buttons to cycle through the available options. Press the OK button when parameters are set correctly.

3.3.5 OSD text

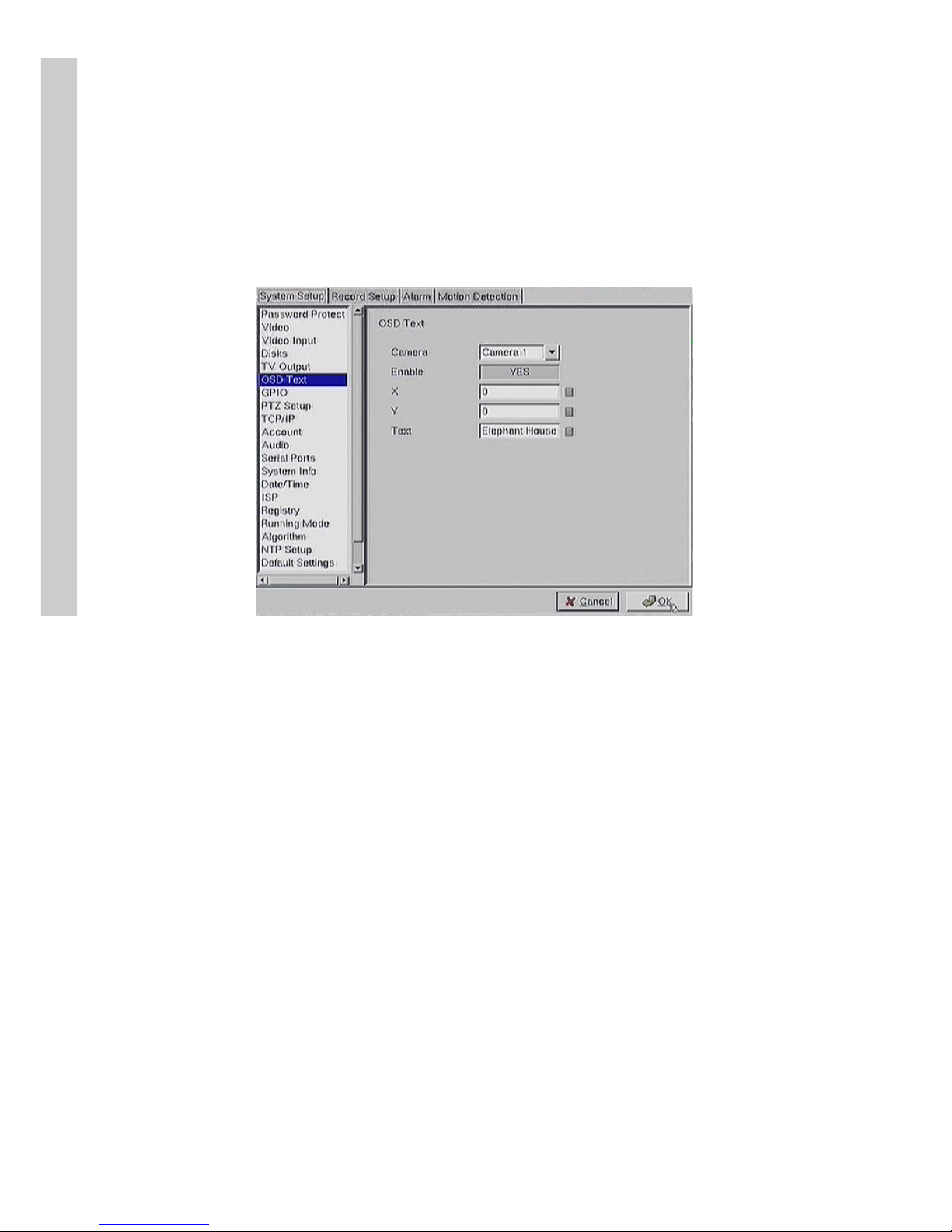

A line of text can be displayed with the video from each camera connected to the VP-580. Use the OSD Text menu to enable the text and alter it. You can also set the position of the text using the X and Y parameter values. Increasing the value of Y moves the text down the screen. Increasing the value of X moves the text to the right.

To alter the text position:

1. Use the Up and Down arrow buttons on the remote control to highlight X or Y.

2. Use the Right button to increase the value and the Left button to decrease the value.

3 . Press the OK button when the value is correct.

System setup

Use the on-screen keyboard to alter the OSD text as follows:

1. Use the Up and Down arrow buttons on the remote control to highlight the Text option.

2. Use the Right arrow button to confirm.

3. Press the keypad button on the remote control to display the onscreen keyboard.

Cancel

MenuTVRemote

Playback

Local

Key Pad

Page

4. Use the Arrow buttons to highlight the letters you need for your text and press the OK button to choose them.

5. When your text is complete, press the Keypad button to remove the on-screen keyboard.

6 . Press the OK button to save the new text.

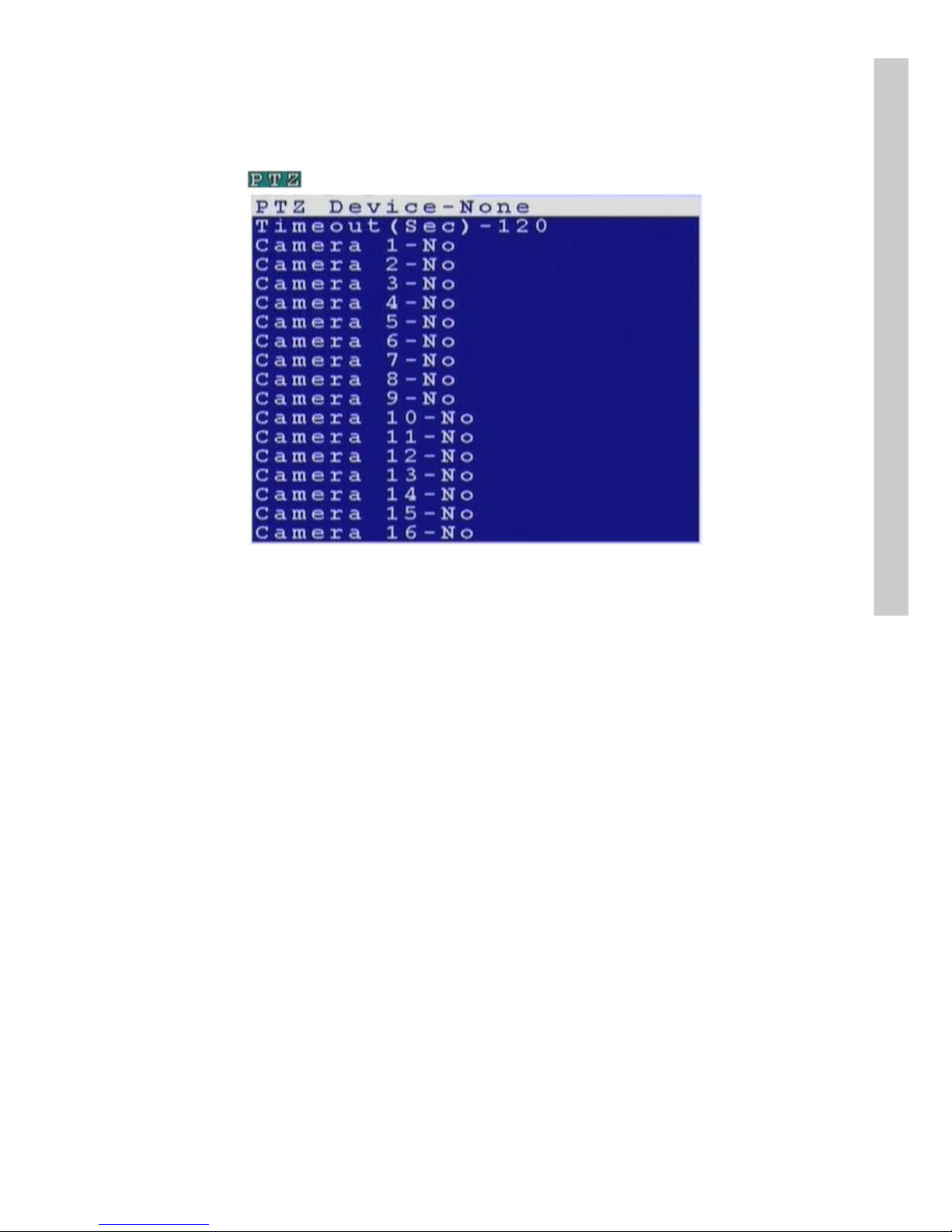

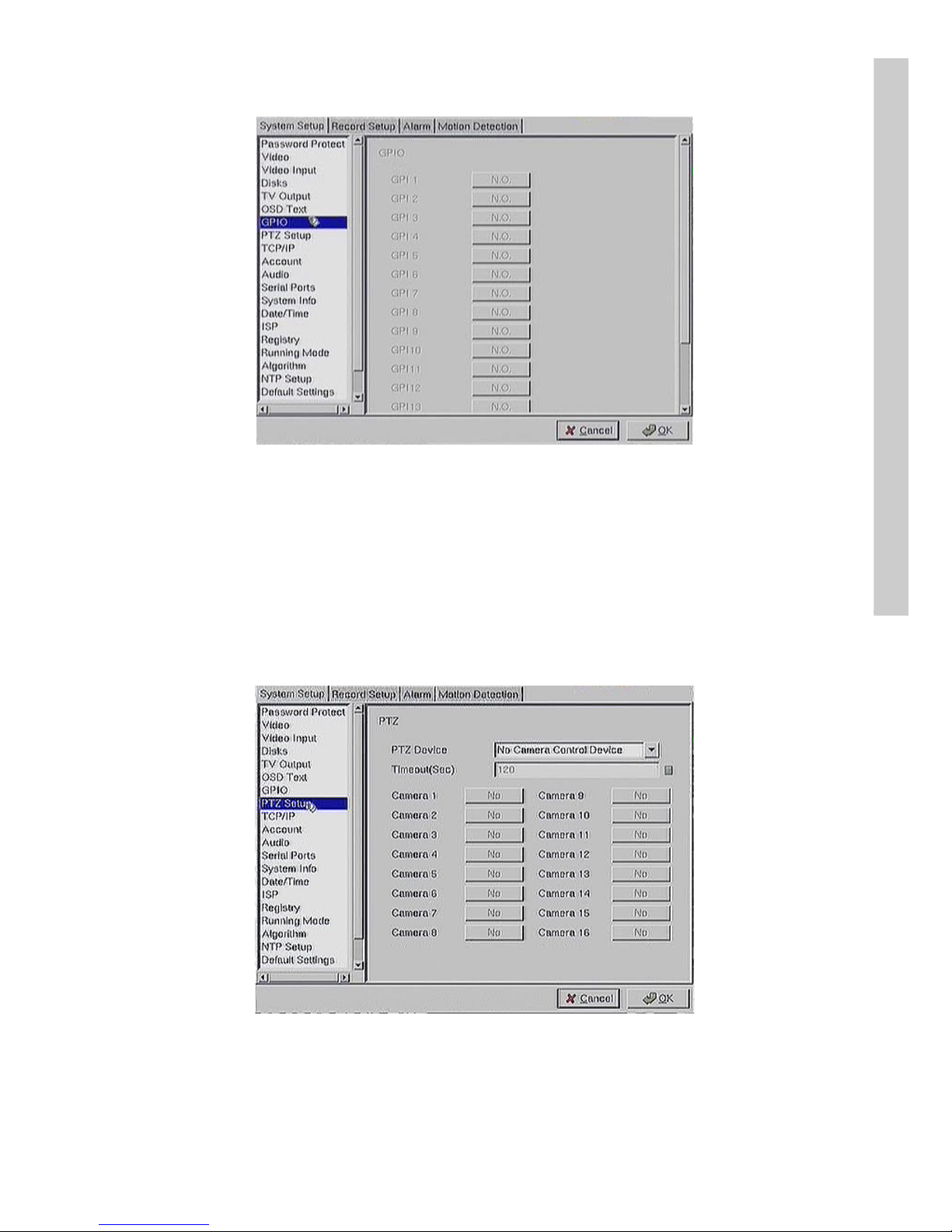

3.3.6 PTZ setup

Use the PTZ (Pan, Tilt, Zoom) Setup menu to set the type of PTZ cameras connected to your VP-580. Refer to the specific product documentation for further details and to see if additional hardware is required.

Also use this menu to set the timeout values for each PTZ camera connected to the VP-580. The timeout value represents the time given to the cameras to respond to a remote control command.

System setup

Keypad

button

To configure a camera connected to the VP- 580 as a particular PTZ device, follow these instructions:

1. Use the Up and Down arrow buttons to select the PTZ device field.

2. Use the Left and Right buttons to cycle through the available device types until the correct device type is displayed.

3. Use the Up and Down arrow buttons to select the camera to configure.

4. Press the Right arrow button to display Yes in the field to indicate that a camera of the device type displayed is connected.

5. Repeat the procedure for all PTZ cameras connected to the VP-

580.

To set the timeout value for PTZ cameras connected to the VP-580:

1. Use the Up and Down arrow buttons to highlight the Timeout field.

2. Use the Right arrow key to increase the value and the Left arrow key to decrease the value.

3. Press the OK button to confirm the new value.

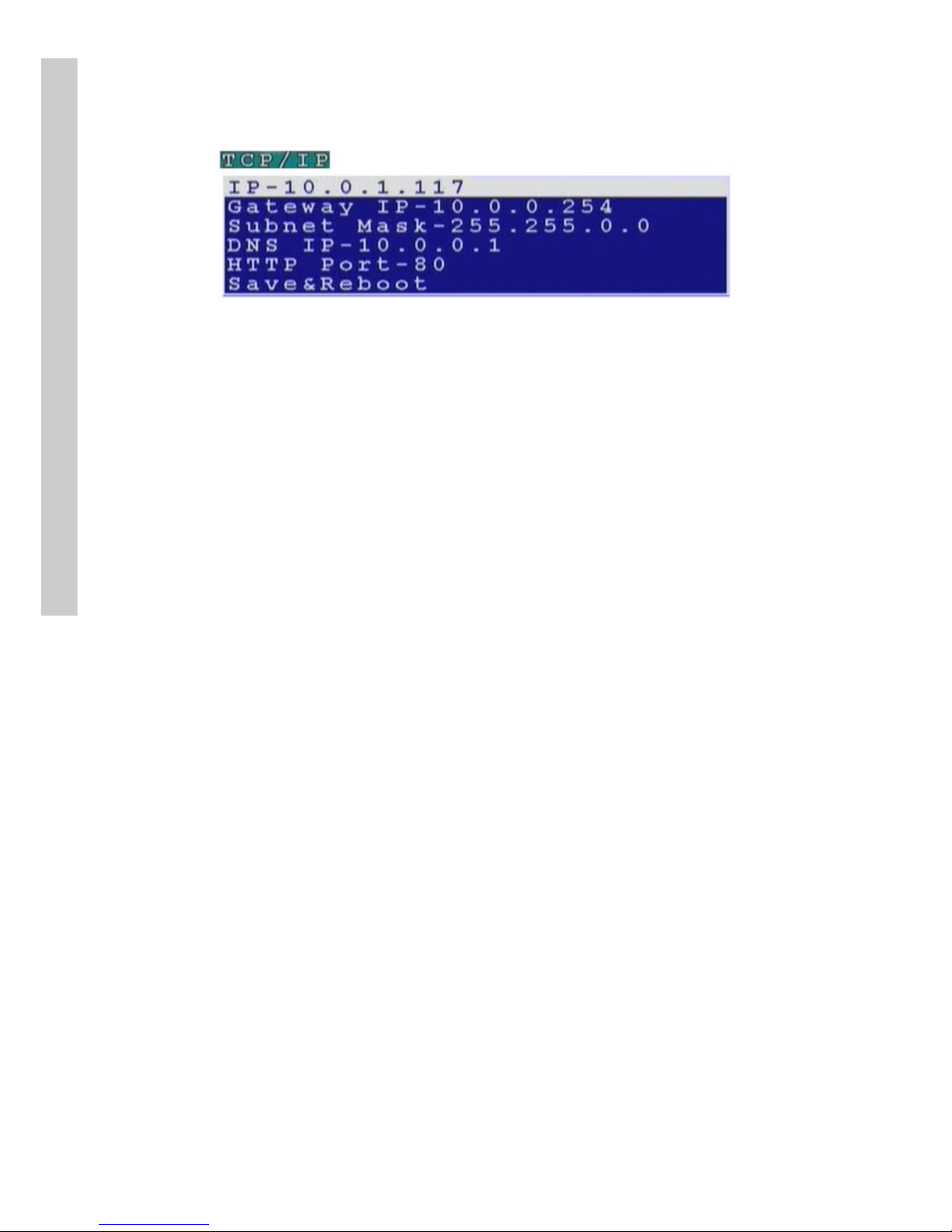

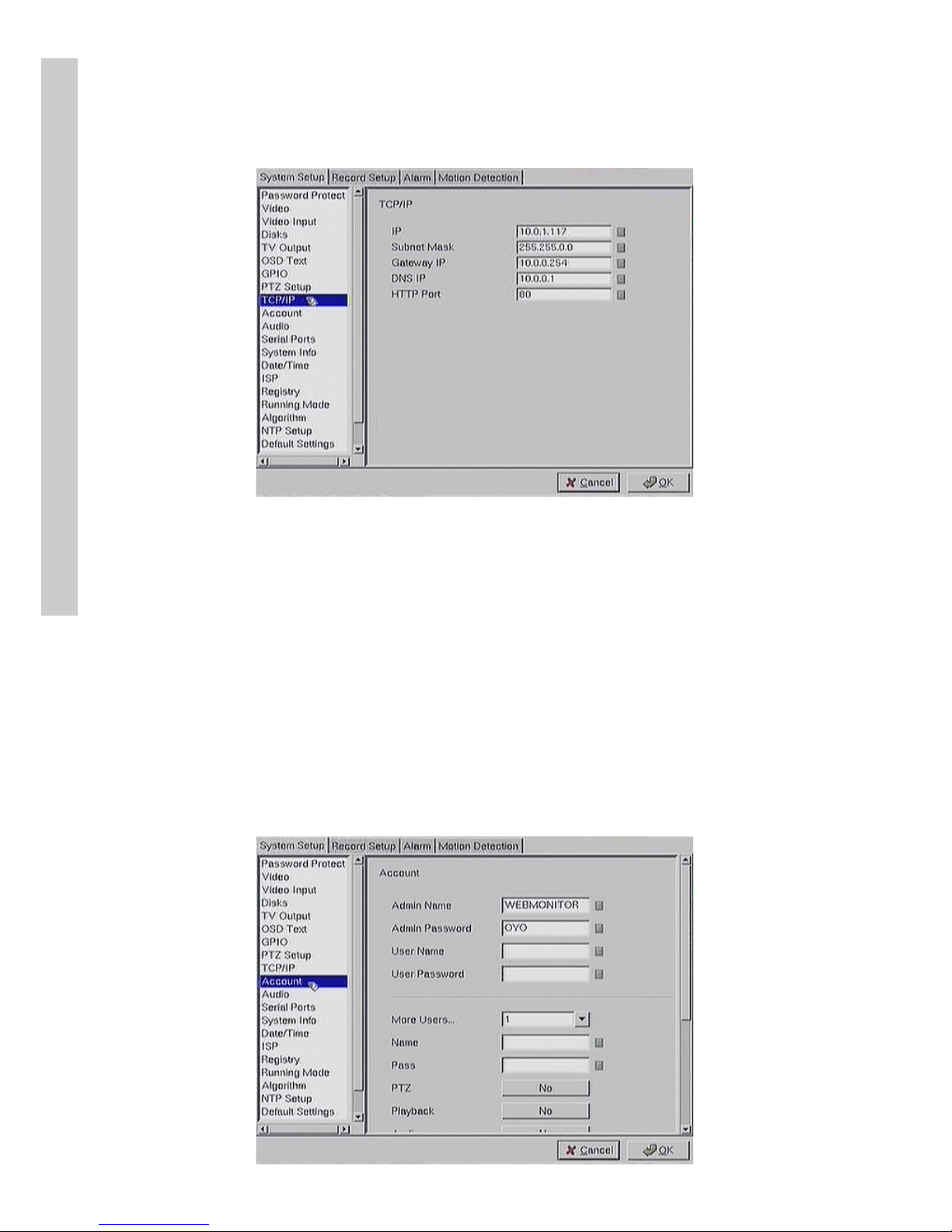

3.3.7 TCP/IP

Use the TCP/IP menu to set the IP address of the VP-580, the gateway, the subnet mask, the DNS ser ver IP address, and the HTTP port. If you want to use the VP-580 on your network, see your network

System setup

administrator to obtain a valid IP address for the VP- 580.

To change the TCP/IP parameters:

1. Select the field to change using the Up and Down arrow buttons.

2. Press the Right arrow button to confir m.

3. Use the number pad on the remote control to enter a new value

4. Press the OK button to confirm the new value.

5. Select the Save&Reboot option using the Up and Down arrow buttons and press the OK button to restart the system and bring the changes into effect.

Note:A more detailed description of how to change

TCP/IP parameters can be found in the hardware manual.

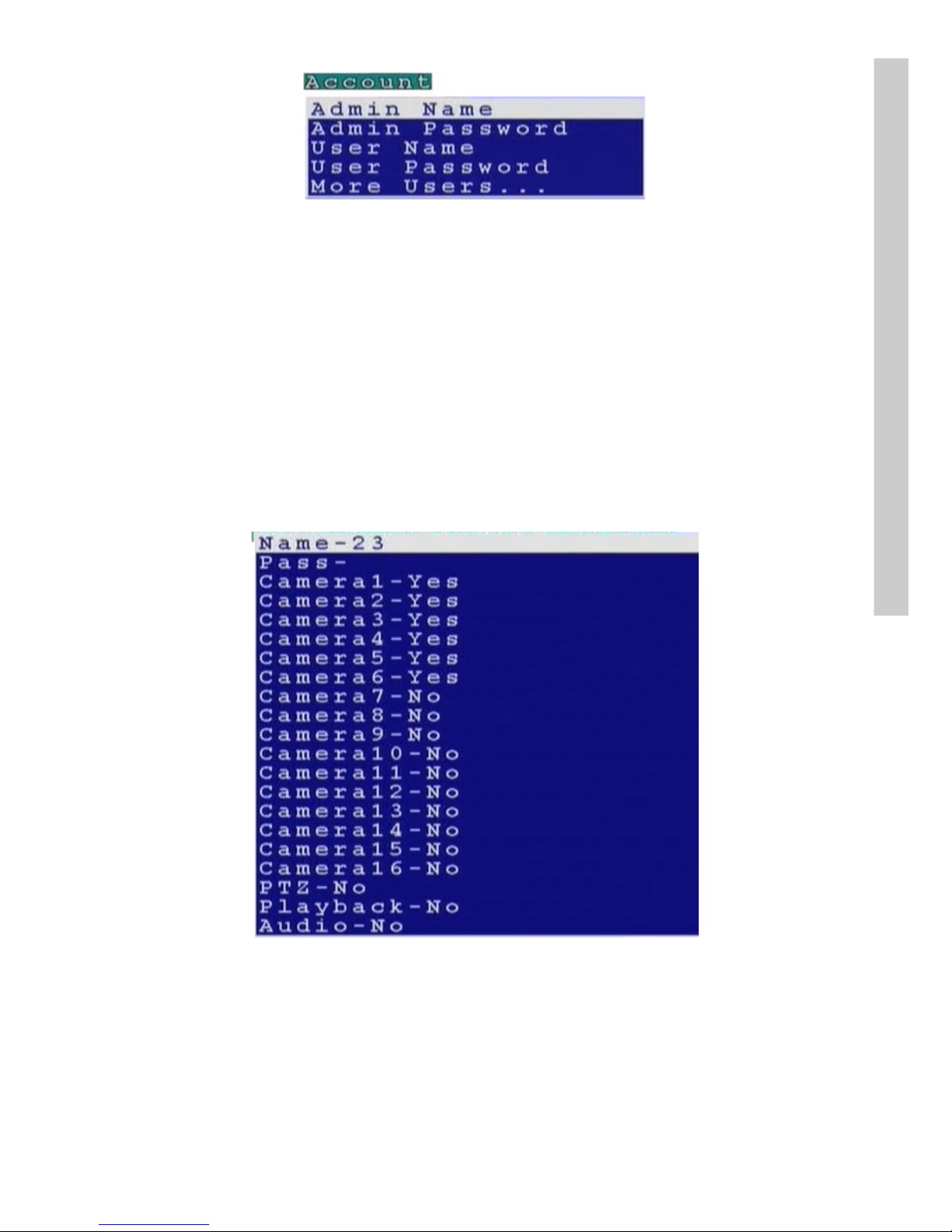

3.3.8 Account

Use the Account menu to set up an administrator name and password as well as user name and passwords. The default administrator name is Webmonitor and the default password is OYO. You can also use this menu to set up to 16 additional users, their passwords and their permissions on the system.

Note:It is important that you set up a user name and

password. The user is different from the administrator and has access to only the video. Use the More Users function to alter the authorities of users who access the VP- 580 from the Internet.

To set an Admin/User name or password:

1. Use the Up and Down arrow buttons to select the field to change.

System setup

2. Press the Right arrow button to confirm.

3. Press the Key Pad button on the remote control to display the on- screen keyboard.

4. Use the Arrow buttons to select the letters you require and the OK button to confirm.

5. When the field is correct, press the Key Pad button to turn off the on-screen keyboard.

6. Press the OK button to confir m .

To set up additional user s and their permission rights:

1 . Use the Up and Down arrow buttons to select the More Users

choice.

2. Press the Right arrow button to confir m.

3 . Use the Arrow buttons to select the Name and Pass options and

modify these fields in the same manner as in the previous procedure.

4. Use the Up and Down buttons to select any cameras from Cam- era1 through Camera8.

5. Press the Right arrow to select Yes to allow the user to access and control the selected camera.

System setup

6. Use the Up and Down buttons to select the PTZ option.

7. Press the Right arrow button to select Yes to enable PTZ control of the selected cameras for the user.

8. Use the Up and Down buttons to select the Playback option.

9. Press the Right arrow button to select Yes to enable the user to record and play back the signal from the selected cameras.

10.Use the Up and Down buttons to select the Audio option.

Note:Audio can be disabled for live viewing and

playback of recordings using the Audio Disable function.

11.Press the Right arrow button to select Yes to enable the user to hear the live audio from the selected cameras.

3.3.9 Audio

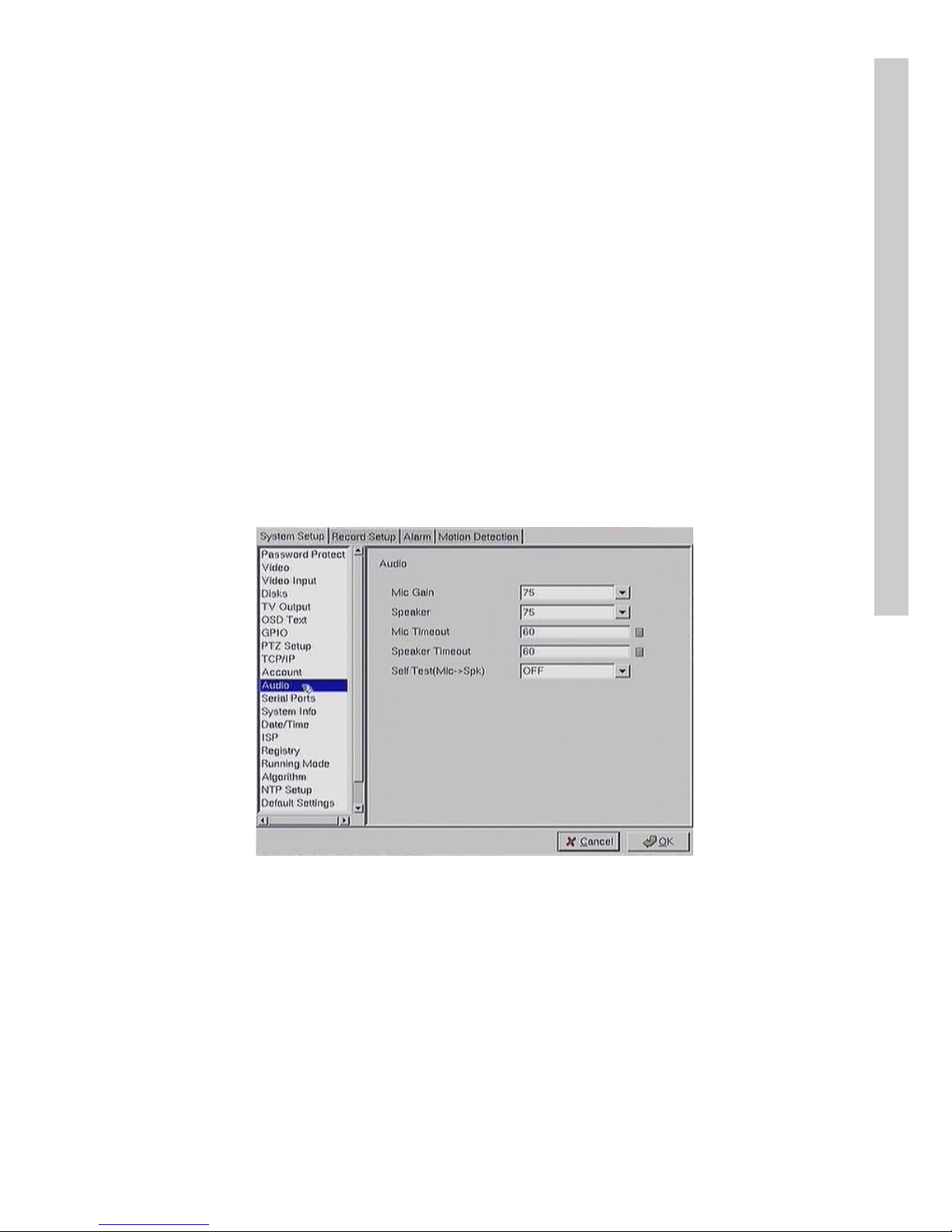

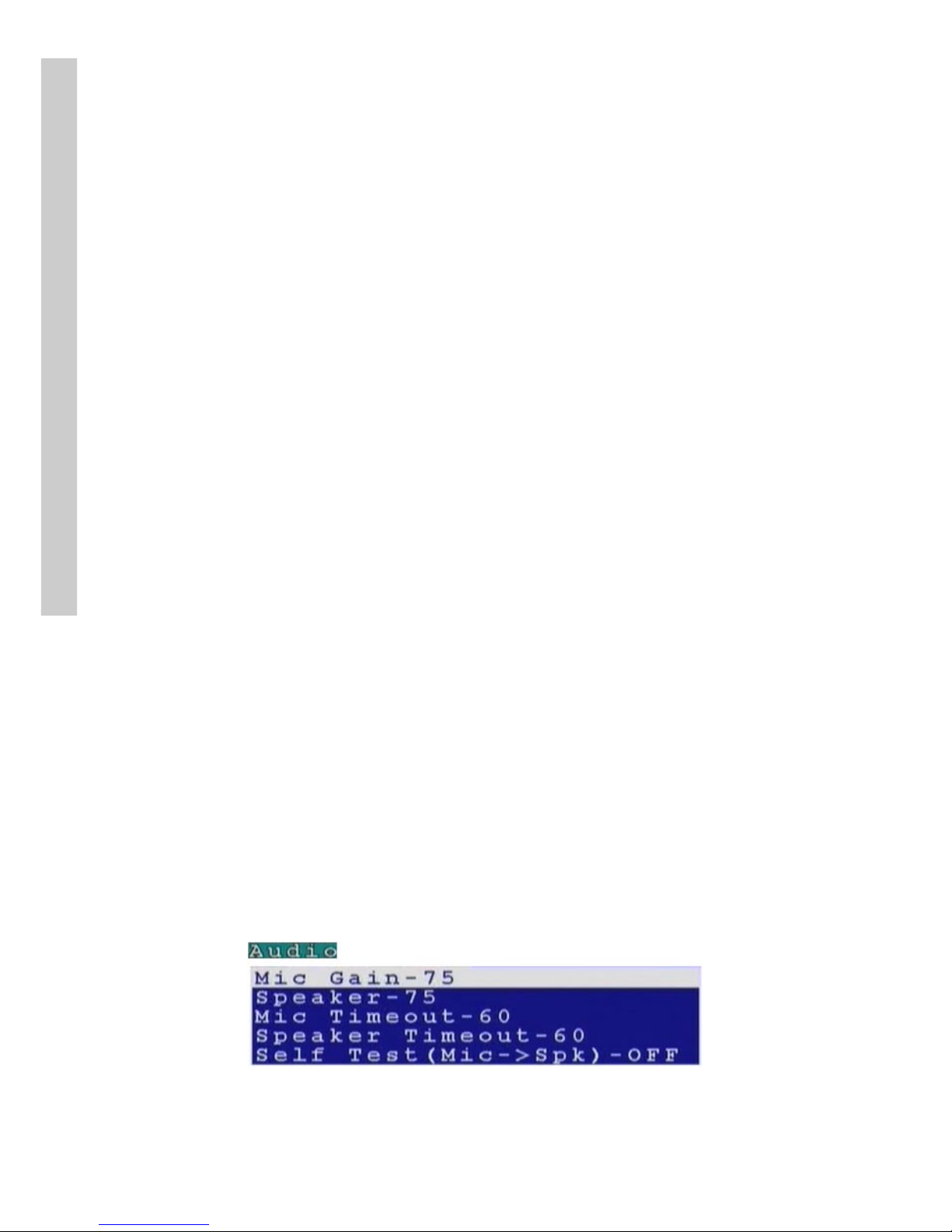

Use the Audio menu to set up the audio parameters for the VP- 580. The configurable parameters areas follows:

• Mic Gain – adjusts the gain of the microphone.

• Speaker – adjusts the speaker output level (volume).

• Mic Timeout – sets the timeout for the microphone.

• Speaker Timeout – sets the timeout for the speakers.

• Self Test (Mic -> Spk) – performs a self-test to ensure correct

operation of the microphone and speaker.

Note:Make sure that audio is enabled when recording

signals from the cameras attached to the VP-

580.

To set the audio parameter s:

1. Use the Up and Down arrow buttons to select a field to change.

2. Use the Right arrow button to increase the value and the Left

System setup

arrow button to decrease the value.

3. Press the OK button to confirm .

4. Use the Up and Down arrow buttons to select the Self Test (Mic -> Spk) option.

5. Press the Right arrow button to set the option to on to make sure that the microphone and speaker are working correctly.

3.3.10 Serial ports

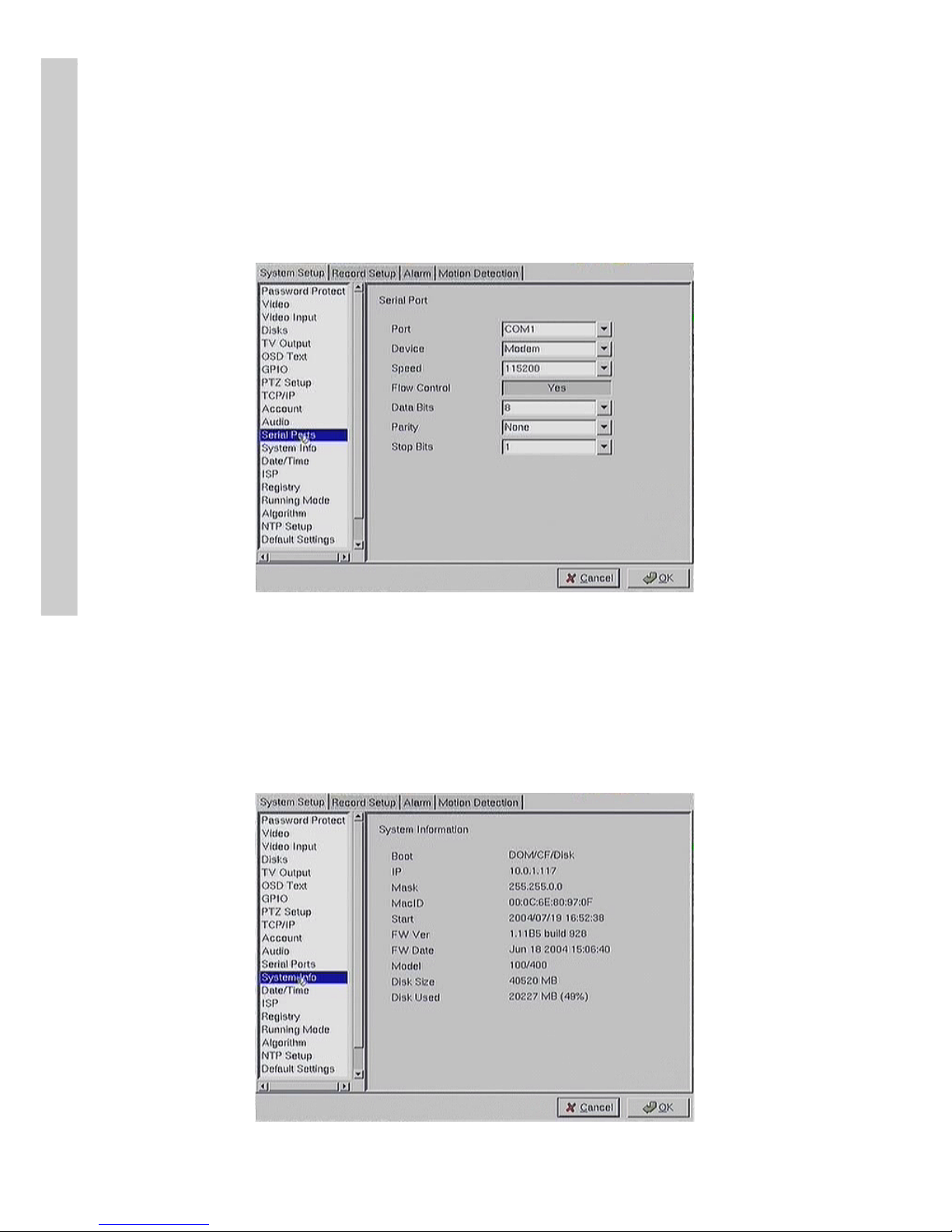

The VP-580 can be connected to other serial devices such as external modems, GPIO (General Purpose Inputs and Outputs), Voice Call devices, PTZ cameras, camera control devices, text input devices, or USB serial ports, using 4 serial ports – COM1,2,3 and COM4. T he RS232 standard is used Com1and Com2 ports. The RS485 standard is used for com3.The RS422 standard is used for com4.

Use the Serial Ports menu to set the following parameters:

• COM1 Device – selects the type the serial device. You can select

external modems, GPIO, voice call modems, etc.

• COM1 Speed – sets the speed (1200 to 115200 bps) for the

serial device.

• COM1 Flow Control – enables or disables the flow control for

the device.

• COM1 Data Bits – Sets the number of data bits (6, 7, or 8) for

the device.

• COM1 Parity – Sets odd or even parity.

• COM1 Stop Bits – Sets 1 or 2 stop bits for the device.

To change the serial port parameters:

1. Use the Up and Down buttons to select the field to change.

2. Use the Left and Right arrow buttons to cycle through the available options for that field.

3 . Press the OK button when the field is set correctly.

Note:

• You can use the Prev Page and Next Page

System setup

buttons on the remote control to toggle between the COM1 menu and COM4 menu.

• When an optional GPIO module is connected to the serial port, the VP- 580 detects it automatically and provides GPIO options in the system menu. (See GPIO on page 57 for more information.)

3.3.11System information

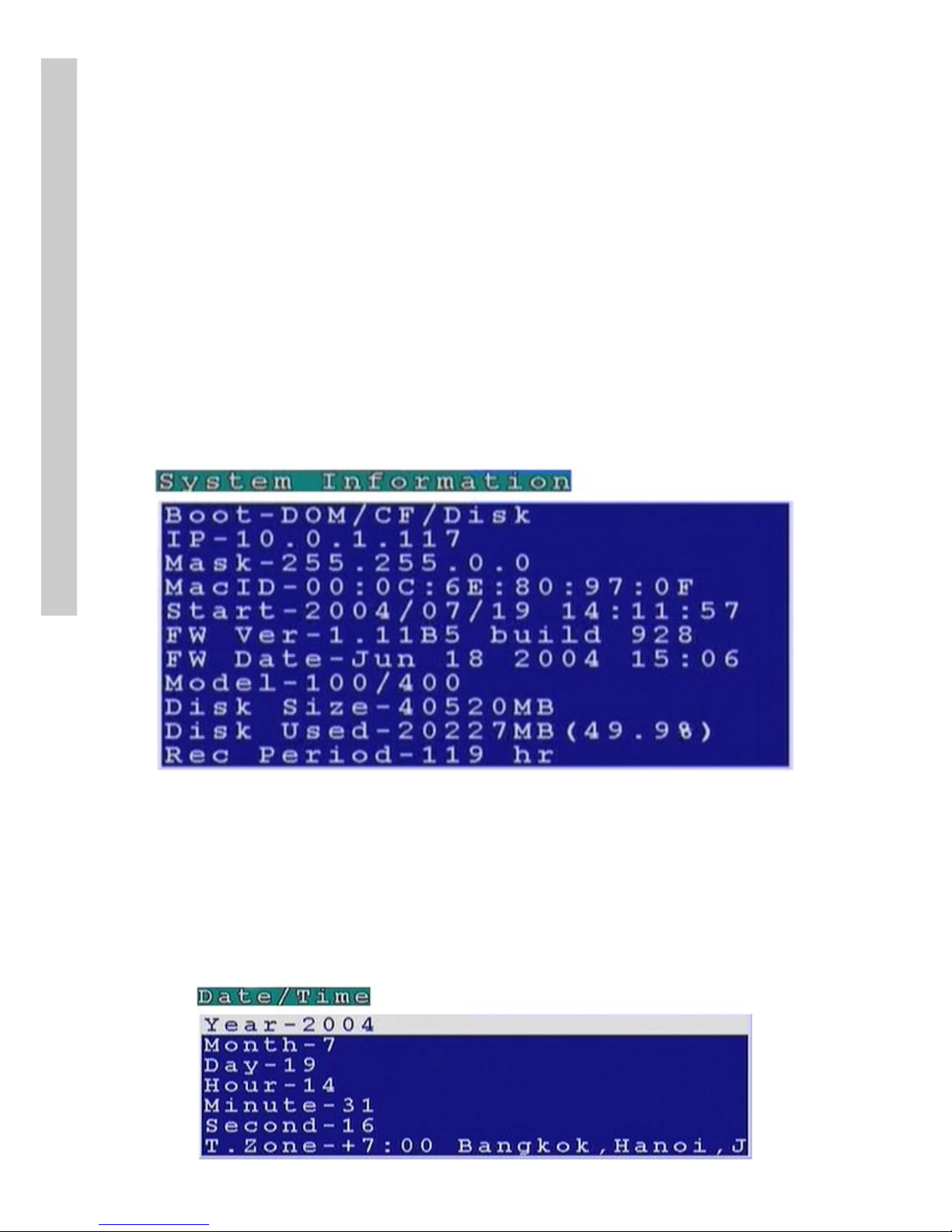

Use the System Infor mation option to display the System Information screen and view information about the boot disk, TCP/IP parameters, the MAC ID of the device, firmware version and date of installation, model number, and hard disk properties.

3.3.12 Date/Time

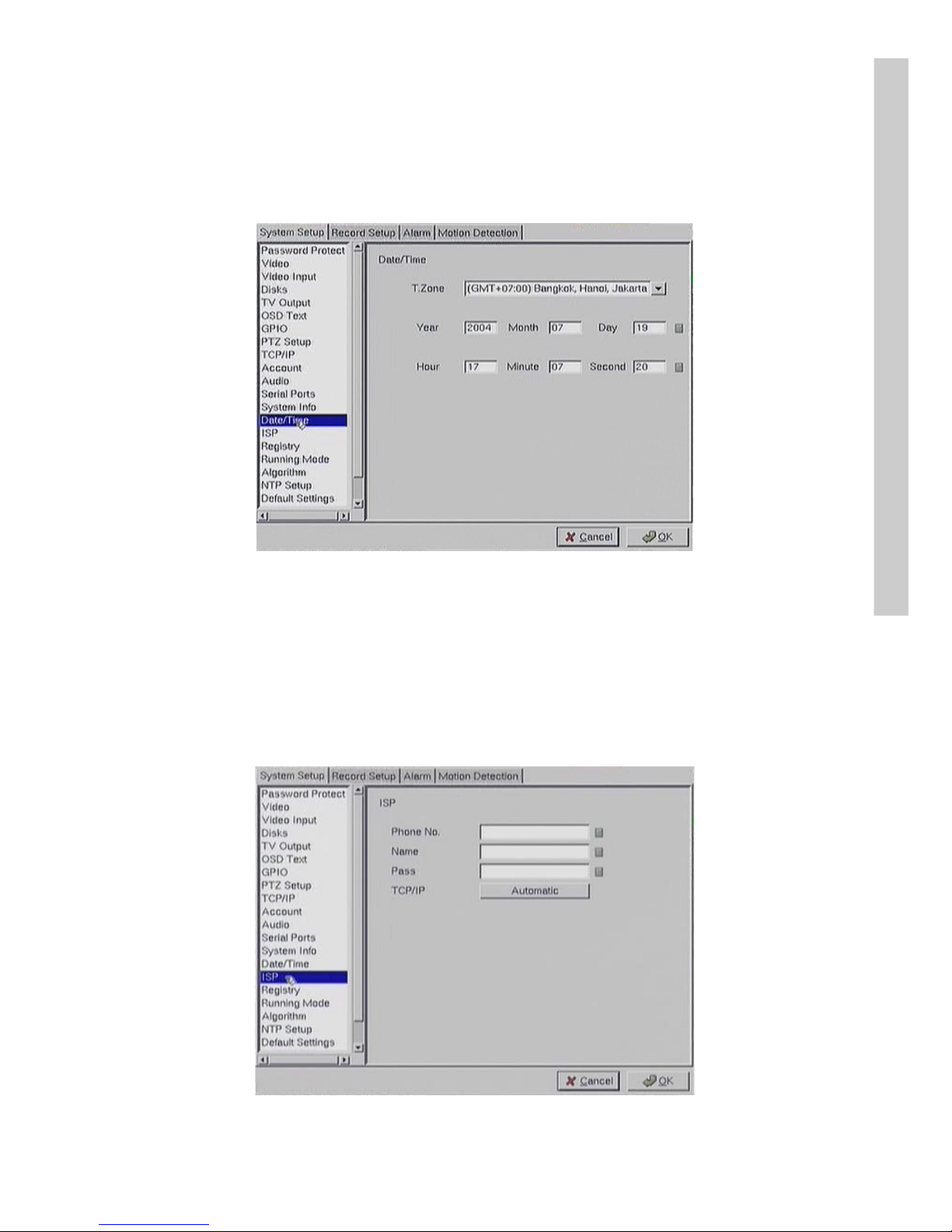

Use the Date/Time option to set the year, month, day, hour, minute, second, and time zone in which the VP- 580 is installed.

To set the time or time zone:

1. Use the Up and Down arrow buttons to select the field to change.

System setup

2. Use the Left arrow to decrease the value and the Right arrow to

increase the value for that field.

3 . Press the OK button when the values are set correctly.

Note:TheVP- 580 reboots to save the changes, if you modify

the time zone.

3.3.13 Alarm

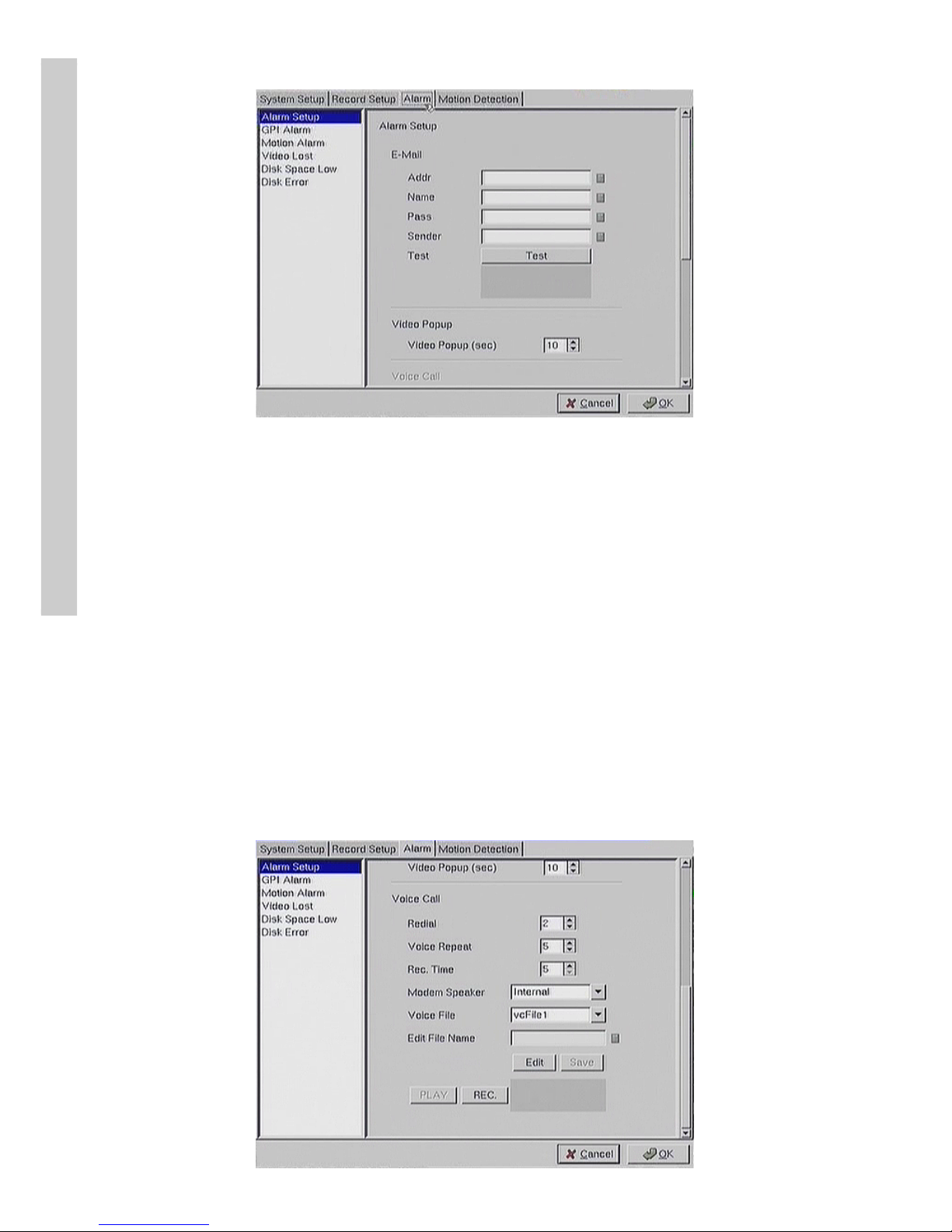

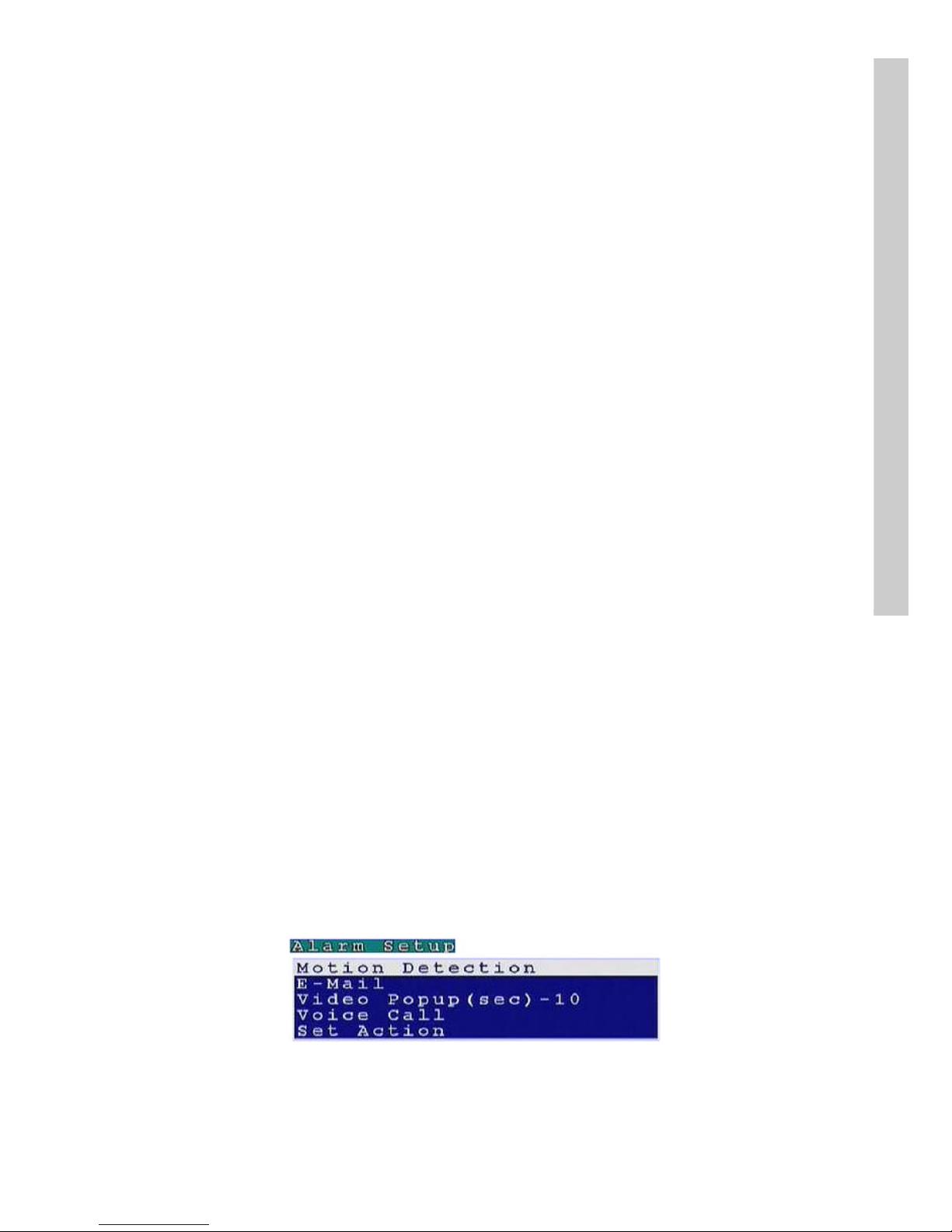

Use the Alar m menu to define what constitutes an alarm condition and how the VP- 580 reacts when such a condition occurs. You can configure an alar m condition to be generated when motion is detected by the camera, if the video signal is lost from a camera, if the disk space is too low, if VP580 case was opened ,or if there is a disk error. Once the alarm is generated, you can set the alar m notification through a beep, a message, a video popup, voice call, or E-mail.

The Alarm menu has the following submenus:

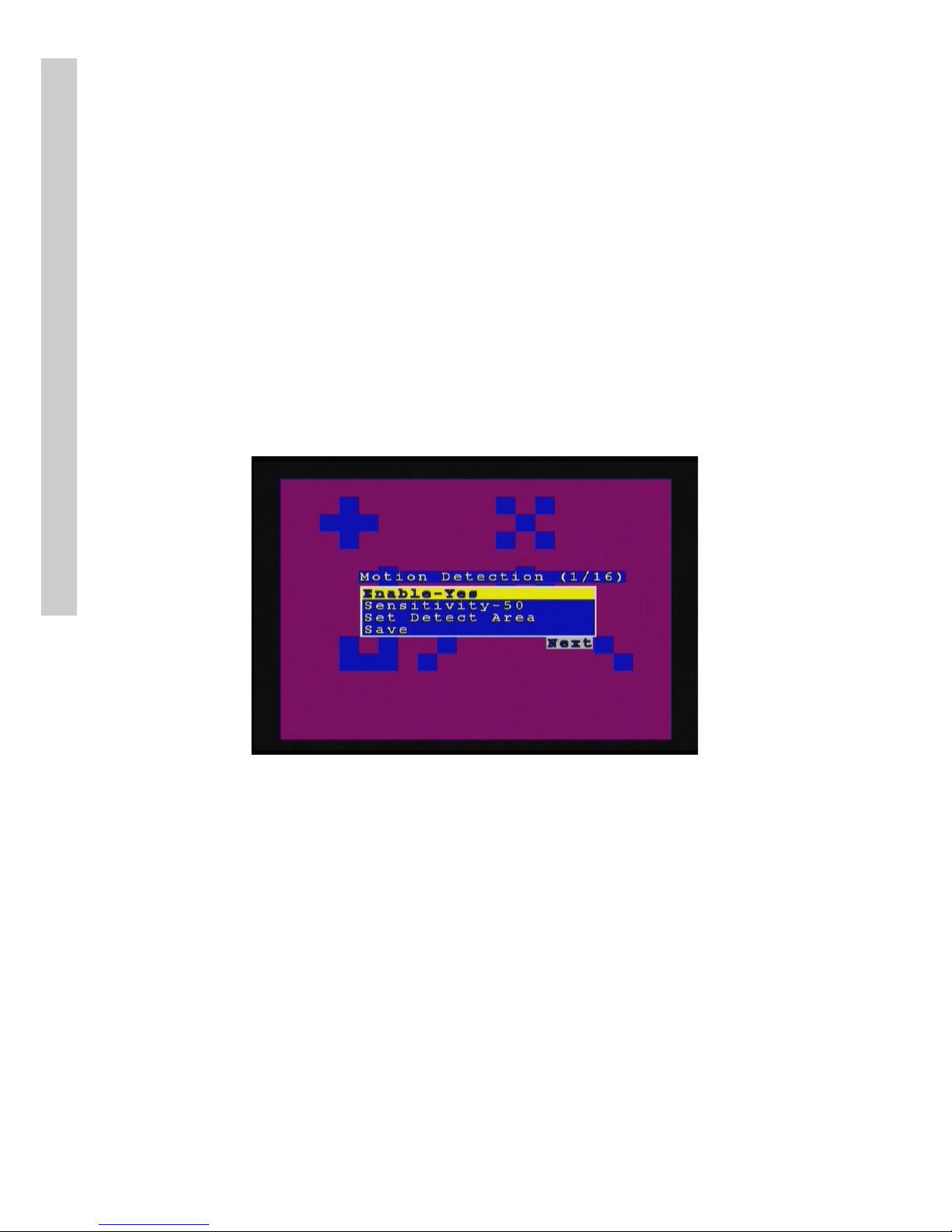

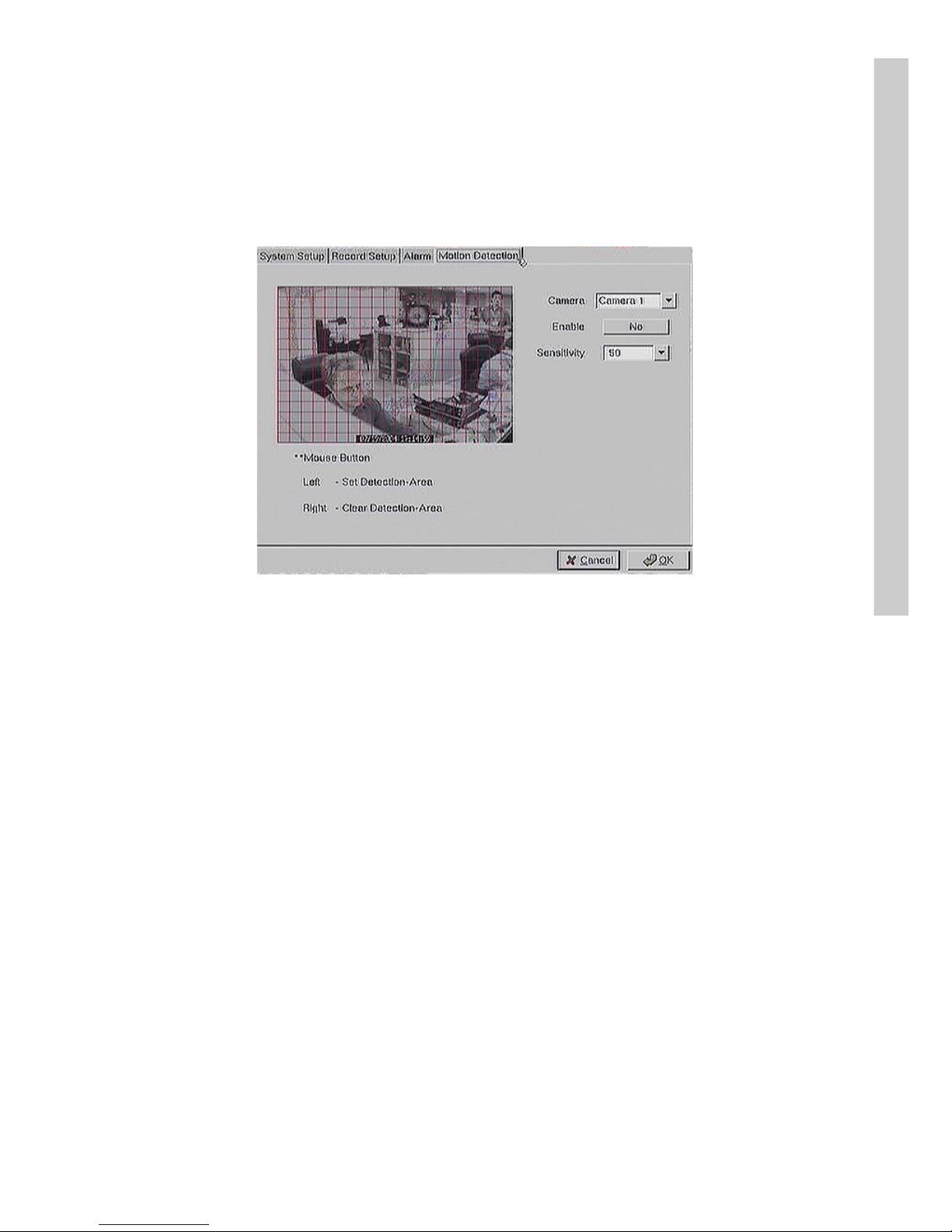

• Motion Detection – enab les you to configure the motion detec-

tion parameters for each camera.

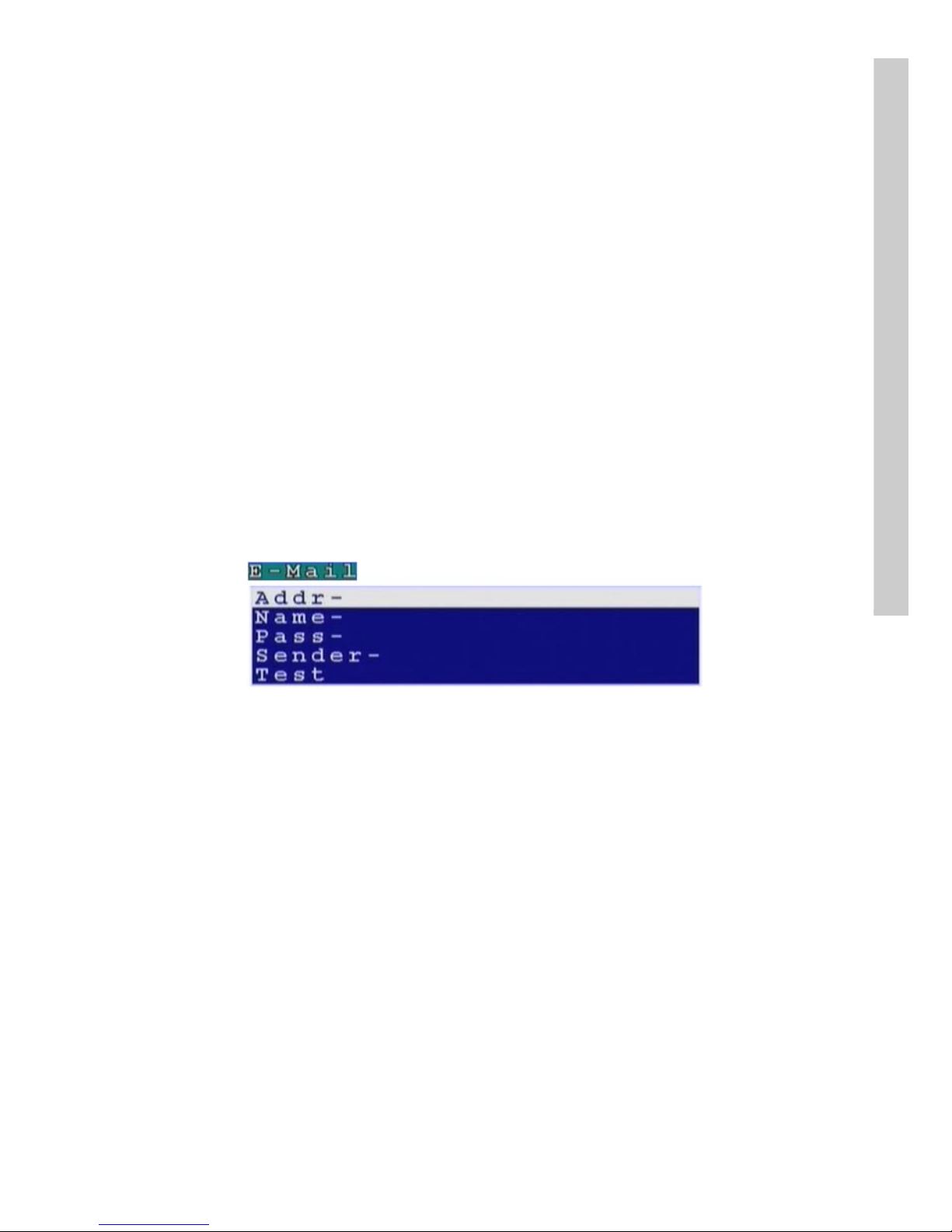

• E-Mail – enables you to set up an E-mail address and verify it is

working correctly.

• Video Popup (sec) – sets the time for which a camera is dis-

played on your monitor when an alarm is generated.

• Voice Call – enables you to set conditions that generate a voice

call when an alarm is triggered.

• Set Action – sets the action that will generate an alarm condition

for each camera.

Note:The Voice Call option will only be displayed in

System setup

the menu if the voice modem function is selected from the serial port menu.

To set motion detection conditions:

1. Use the Up and Down arrow buttons to select the Motion Detec- tion option from the Alarm menu and press the OK button.

2. When the motion detection menu appears, use the Up and Down Arrow buttons to select one of the following options:

• Enable –

configures the motion detection feature for each camera.

• Sensitivity – sets the sensitivity value for detecting motion.

• Set Detect Area – sets the area in the camera’s field of vision

over which motion is detected. This option is displayed only after you set the Enable option to Yes.

3. Select the Enable field and use the Left and Right arrow buttons to toggle between Yes, to enable the motion detection feature, and No, to disable it.

4. Select the Sensitivity choice and use the Left/Right arrow buttons to decrease/increase the sensitivity. We recommend that you keep the sensitivity level to its default setting. If the sensitivity level is adequate, an orange square is displayed in the upper left-hand corner of the screen when motion is detected.

5 . Select the Set Detect Area option and press the Right arrow

button to configure the area as follows: i The highlighted area in red is the area monitored by motion

detection. Use the Arrow buttons to move the cursor.

ii Press the OK button to cut off any areas where you want to

System setup

disable motion detection. If you want motion detection enabled in the entire field of vision of the camera, leave the screen completely red.

iii Press the Cancel button to return to the previous menu when

done.

6. Select the Save option and press the OK button to save all your changes.

7. Use the Prev Page and Next Page buttons to move to the motion detection menus for all connected cameras.

8. Press the OK button when settings are correct.

You need to provide E-mail details if you want an E-mail to be sent when an alarm occurs.

To enter E-mail details:

1. Select the E-Mail option from the Alarm menu.

2. Press the Right button to confirm. T he E-Mail submenu is displayed.

3. In the E-Mail menu, use the Up and Down buttons to select a field from the following:

• Addr – Type the name of your mail server. See your network

administrator for details about the address of your mail ser ver.

• Name – Type your user name.

• Pass – Type your password.

• Sender – Type the e-mail address of the sender.

• Test – Checks the validity of the provided E-mail address by

sending an E-mail.

4. Press the Right arrow button to confirm your selection.

5. Press the Key Pad button on the remote control to display the on- screen keyboard.

System setup

6 . Use the Arrow keys to select the letters you need to complete the

field and press the OK button to confirm.

7 . When the field is complete, press the Key Pad button to turn off

the on-screen keyboard.

8 . Press the OK button to save your chang es.

Use the Video Popup menu to set up the time period for w hich the video from the selected camera is displayed on your screen. The default screen is 10 seconds.

To set the video popup time:

1. Use the Up and Down arrow buttons to select the Video Popup option from the Alarm menu.

2. Use the Left arrow button to decrease the popup time and the Right arrow button to increase the time

3 . Press the OK button to save your settings.

The Voice Call options enable you to set up a voice modem that will make a call when the selected event (such as a GPI or motion alarm, or video lost from a camera) occurs.

You must install a voice/fax modem on one of VP- 580 COM ports, configure the COM port as a “Voice Call” device, and make its protocol the same

as that of the voice/fax modem for the voice call function to work.

Voice call features:

• A voice call messag e can be recorded using an inter nal or exter nal

microphone, and can be played back using an internal or exter nal speaker.

• Up to 60 voice messages can be recorded and stored on the VP-

580 and used for different alarm events.

• Messag es recorded for the voice call function must be between 5

and 10 seconds.

To set the Voice call function:

1. Use the Up and Down arrow buttons to select the Voice Call option from the Alarm menu.

2. Use the Up and Down arrow buttons to highlight the Redial option.

3. Use the Left and Right arrow buttons to set the number of Redial attempts (0-9).

System setup

4. Use the Up and Down arrow buttons to highlight the Voice Repeat option.

5. Use the Left and Right arrow buttons to set the number of times the message is repeated (0-9)

6. Use the Up and Down arrow buttons to highlight the Time for Rec. option.

7. Use the Left and Right arrow buttons to set the duration of the recording (5-10 seconds)

8. Use the Up and Down arrow buttons to highlight the Modem Speaker option.

9. Use the Left and Right arrow buttons to select either Internal or Exter nal speaker.

10.Use the Up and Down arrow buttons to highlight the Voice File option.

11.Use the Left and Right arrow buttons to select a voice file to use.

12.Use the Up and Down arrow buttons to highlight the Rename option.

13.Press the OK button to rename the current file to the file named in the Voice File field.

14.Use the Up and Down arrow buttons to highlight the Record option.

15.Press the OK button to make a recording.

Known issues with the voice call function

• T here will be three seconds silence between a voice call being

answered and the start of the message.

• If the voice call function calls a phone with an automatic answer-

ing machine, the VP- 580 will behave as if the call has been answered.

• The VP- 580 does not support non-standard ringing tones. If the

VP- 580 calls a phone and an unexpected tone is received, an error message will be g enera ted.

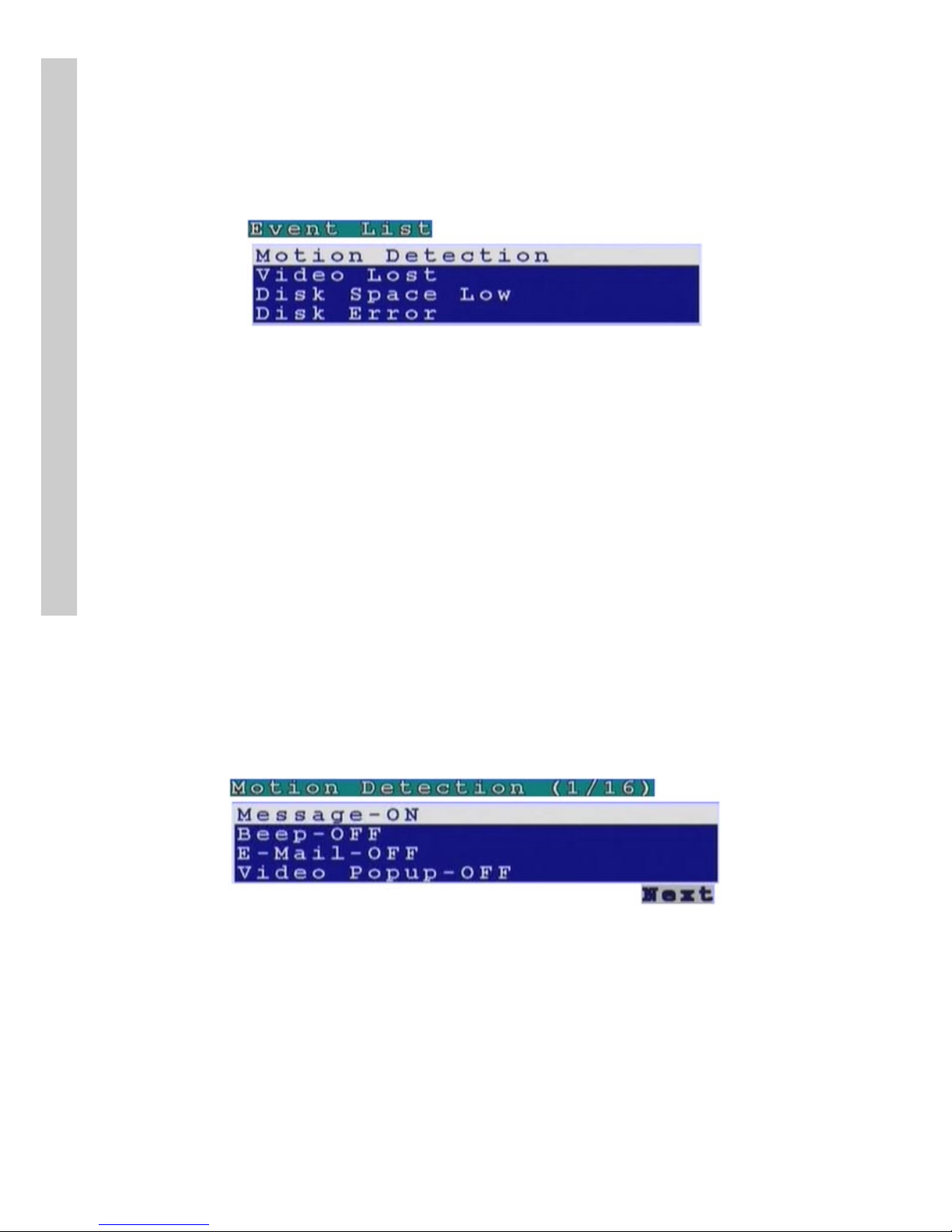

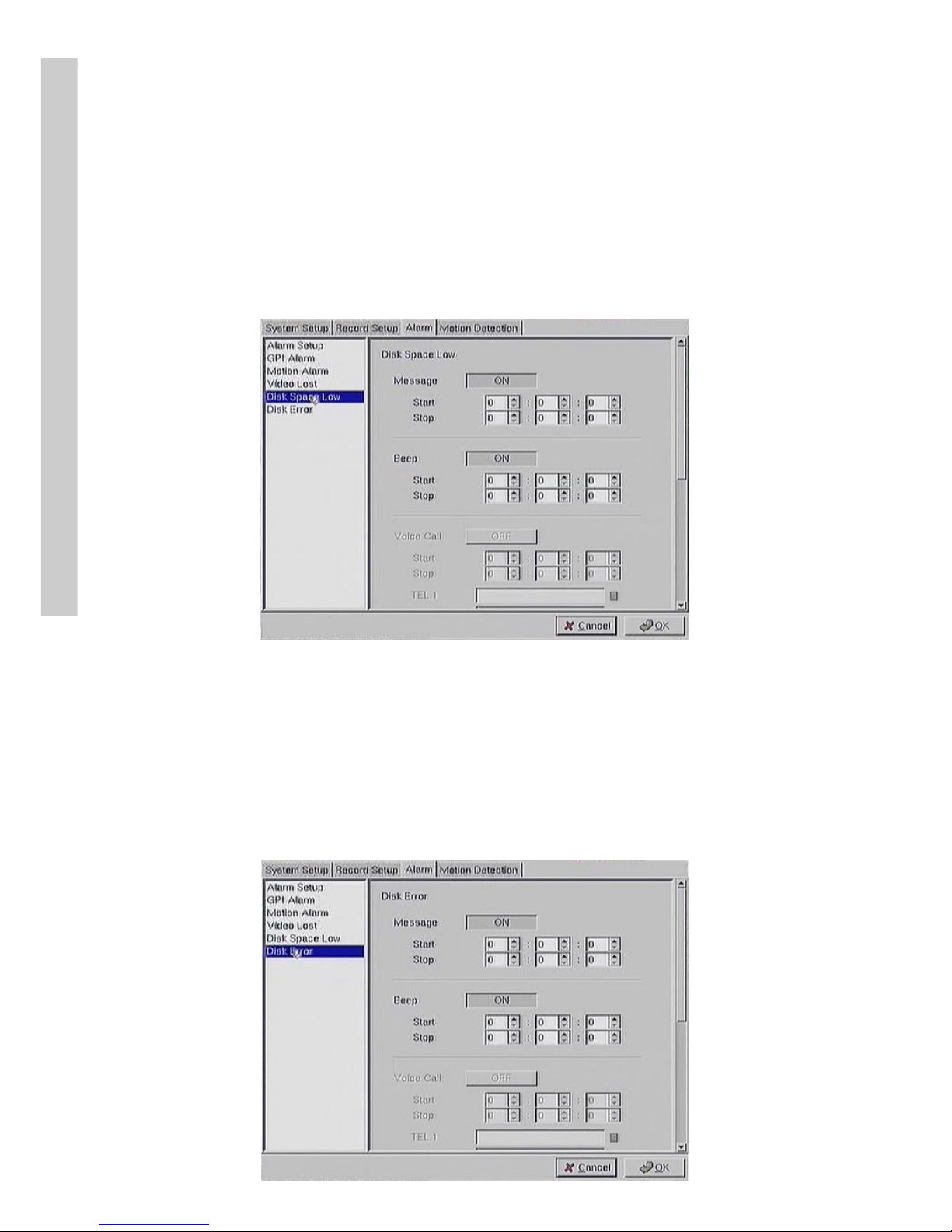

Use the Set Action option to define what action is taken by the VP- 580 when an event occurs. T he following options are available:

• Motion Detection – sets up the motion detection feature.

• Video Lost – g enerates an alarm when the video from the se-

System setup

lected camera is not available.

• Disk Space Low – g enerates an alarm when the disk space is

insufficient.

• Disk Error – generates an alar m if there is an er ror while access-

ing the disk.

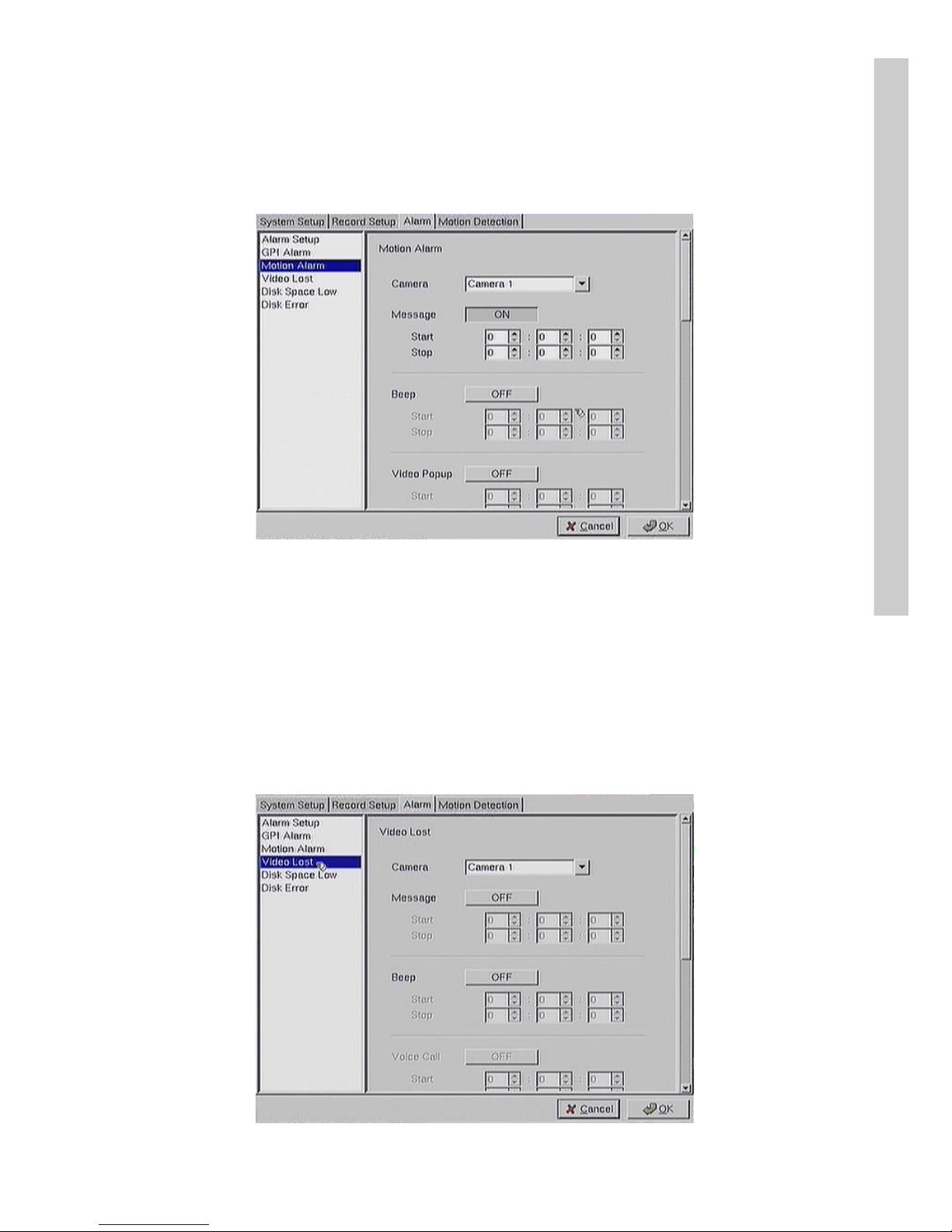

To configure events using the Set Action option:

1. Use the Up and Down arrow buttons to select an event from the list.

2. Press the Right arrow button to display the submenu for the event with the following options:

• Message – displays a message on your screen when the event

occurs.

• Beep – sounds a bee p when the event occurs.

• E-Mail – sends an E-mail to the specified address when the

event occurs.

• Voice Call – sends a voice call to a specified number when an

event occurs.

• Video Popup – displays the video from the selected camera on

your screen.

3. Use the Up and Down buttons to select the desired action from the following options:

4. Press the Right arrow button for the required action to view the submenu.

System setup

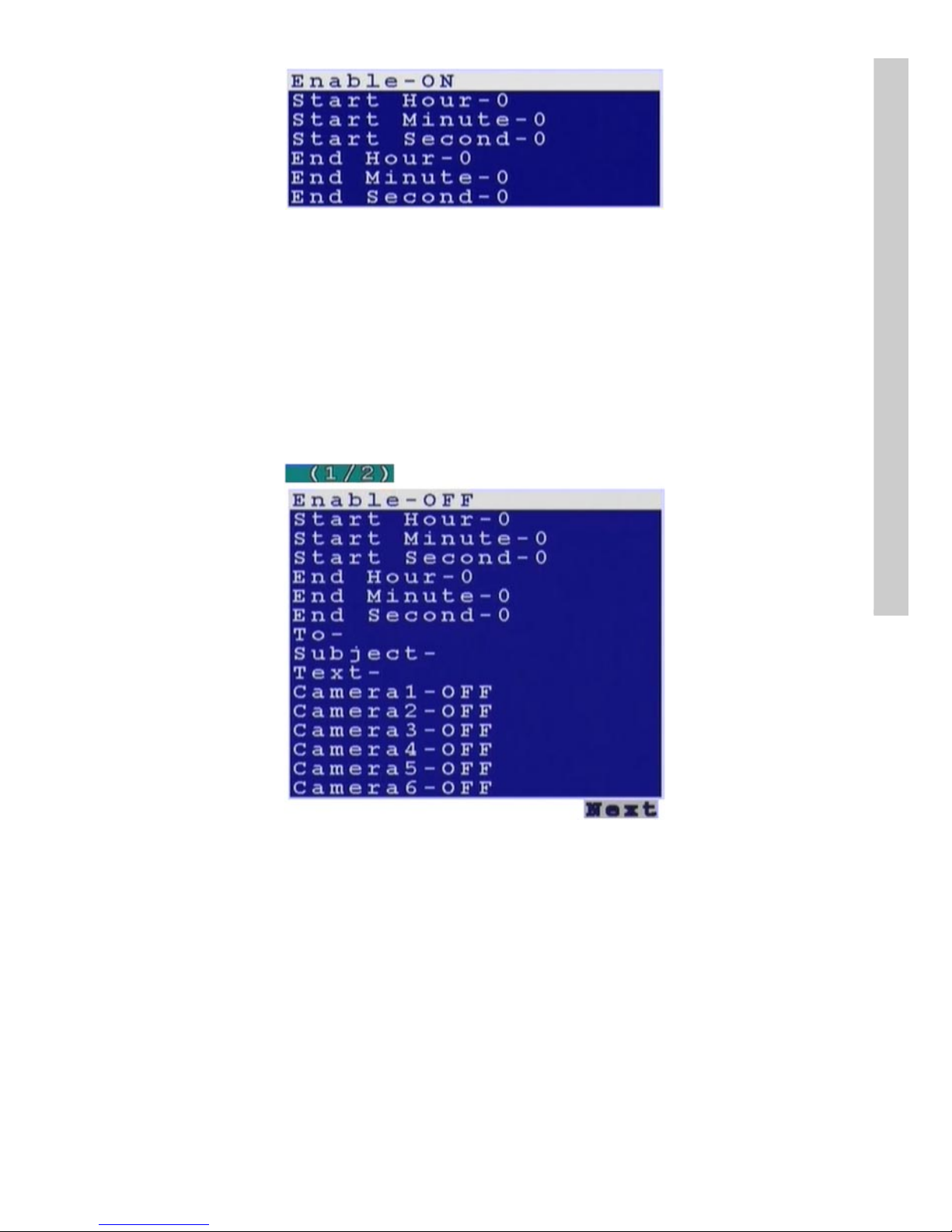

5. After enabling the action, set up the Start and End Hour, Minute, and Second to make the feature active during the specified time interval of the day. The default settings have the feature enabled throughout the whole day.

6. If you selected the E-Mail option as the desir ed action, you have to set up the recipient of the E-mail, the subject and the text matter of the E-mail. You can specify which of the 18camer as’ status is in the E-mail.

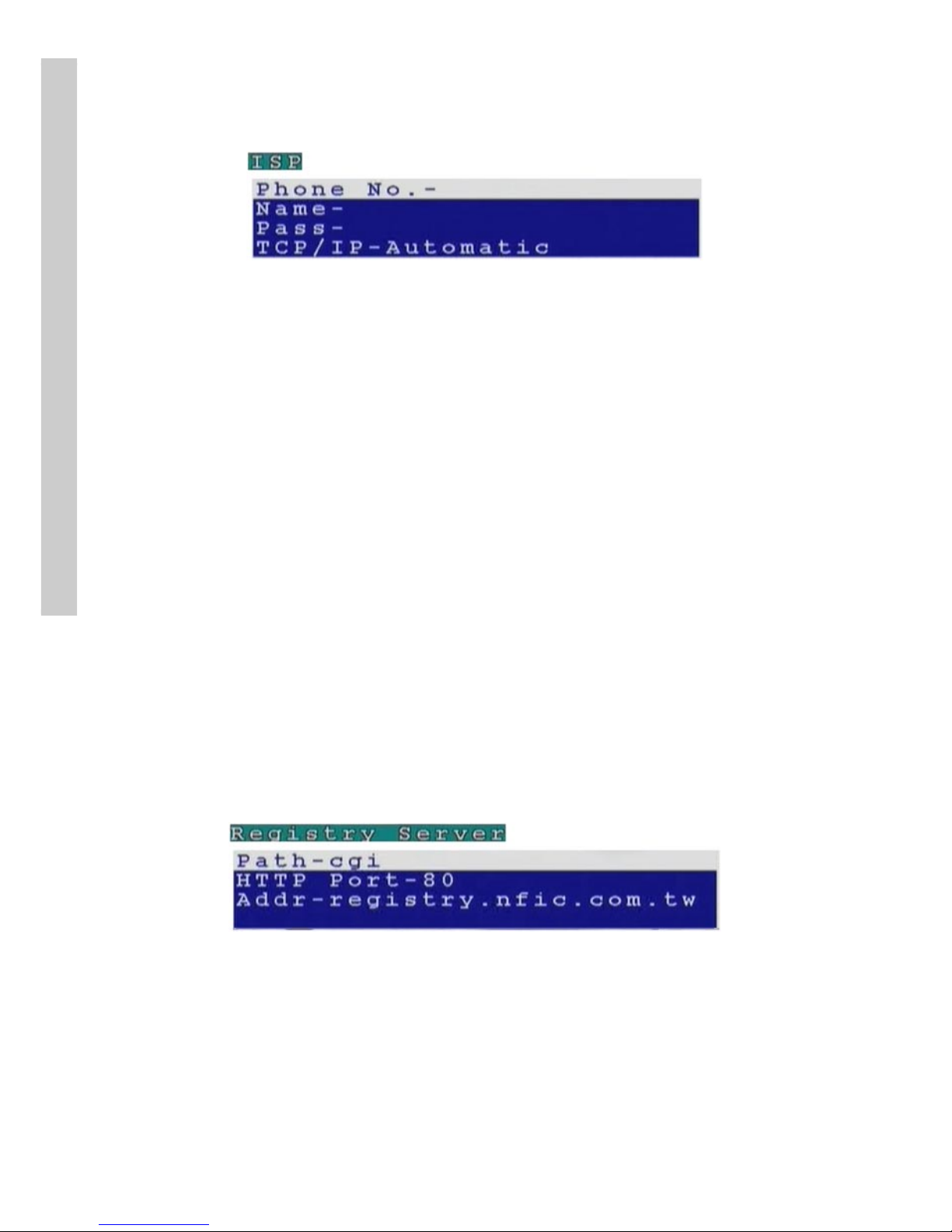

3.3.14 ISP

If you are connecting to the Internet using dial-up, enter your ISP details using the ISP option from the System Setup menu. Set up the following options:

• Phone No. – enter the telephone number that is dialed by the

dial-up modem.

• Name – enter the user name of your dial-up account.

• Pass – enter the password for your dial-up account.

• TCP/IP – set up automatic or manual TCP/IP. If the VP- 580 is

connecting through a DHCP server, an IP address is assigned to it automatically. If you want to set the IP address of the device

System setup

manually, select the Manual option.

To enter ISP details:

1. Use the Up and Down arrow buttons to select a field to change.

2. Press the Right arrow button to confirm.

3. Press the Key Pad button on the remote control to display the on- screen keyboard.

4. Use the Arrow buttons to select letters and numbers from the onscreen keyboard and use the OK button to confirm .

5. When the field is correct, press the Key Pad button to turn off the on-screen keyboard

6. Press the OK button to confirm the new field.

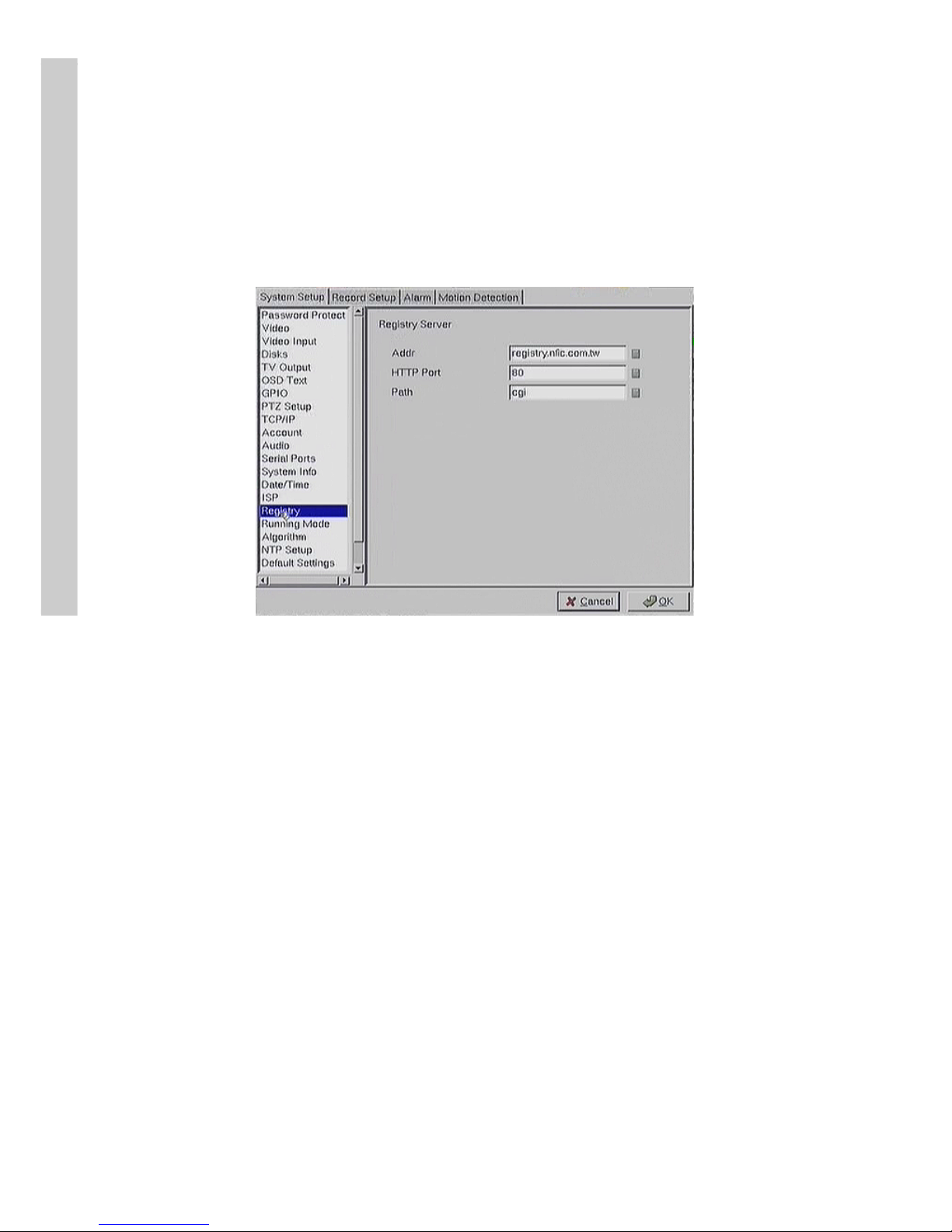

3.3.15 Registry ser ver

The Registr y Server menu enables you to set up the r egistry server for your device. If you are using a dynamic IP address for the VP- 580, you can set up the device to post its IP address to the VPON registry ser ver. You can then look up your IP from the MAC address or server name. You can also use the registry server to give a name to the VP- 580 as described in Set

names and on-screen display. To enter Registry Server details:

1. Use the Up and Down arrow buttons to select a field to change.

2. Press the Right arrow button to confir m.

System setup

3. Press the Key Pad button on the remote control to display the on- screen keyboard.

4. Use the Arrow buttons to select letters and numbers from the onscreen keyboard and use the OK button to confirm .

5. When the field is correct, press the Key Pad button to turn off the on-screen keyboard.

6. Press the OK button to confirm the new field.

3.3.16 Running mode See page5 for information on how to change the Running Mode.

3.3.17 Algorithm

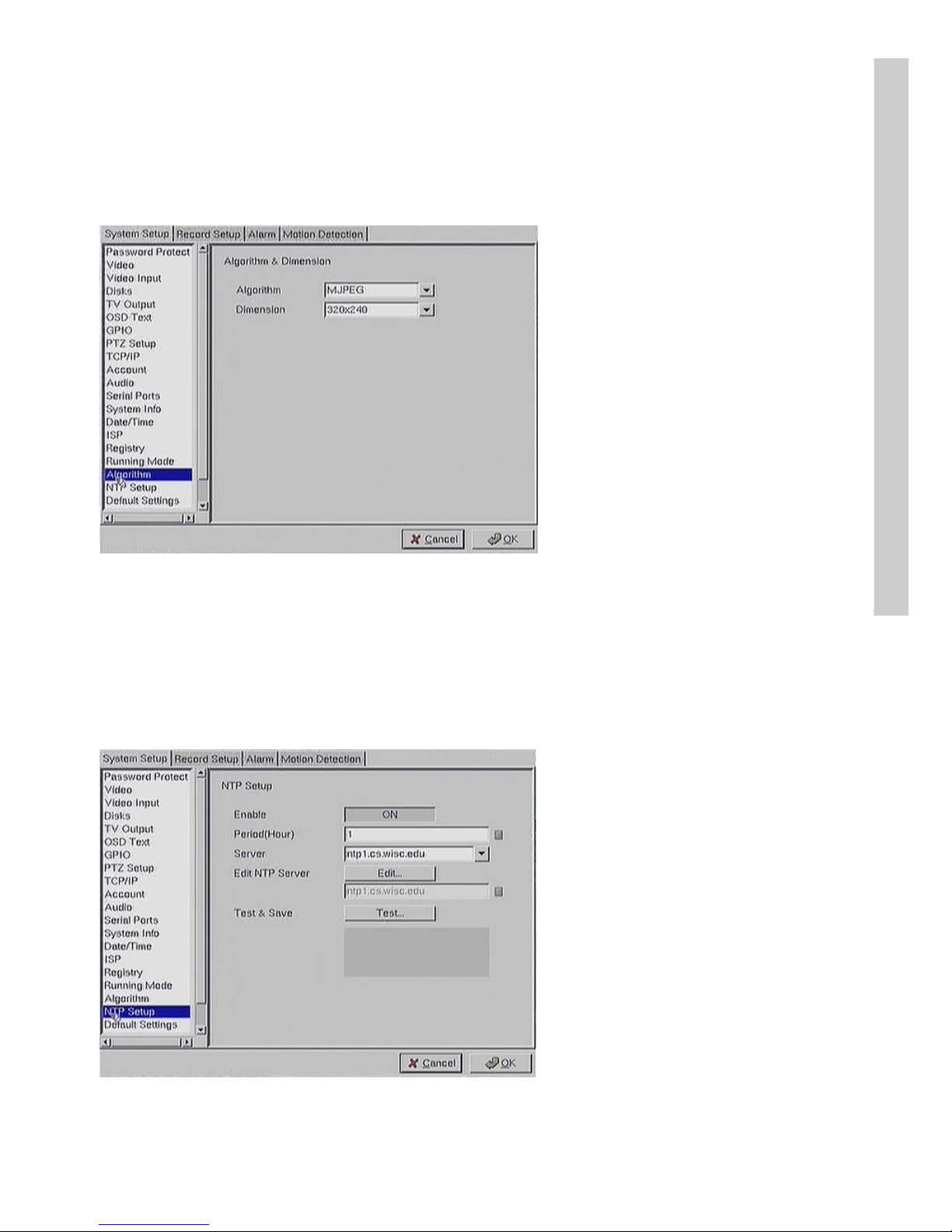

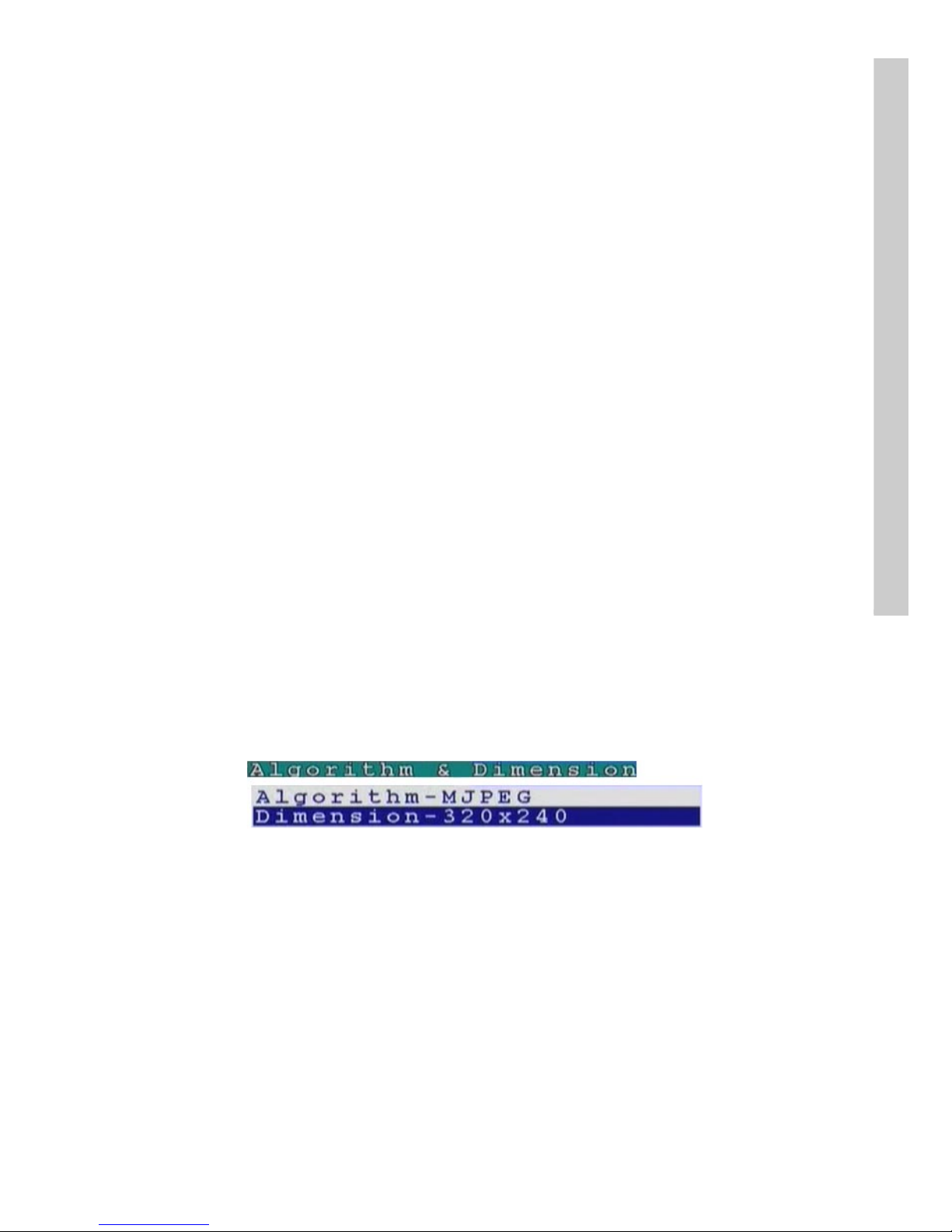

You can change the compression algorithm used by the VP- 580 to record video. The VP- 580 supports JPEG, MJPEG, and H.263 algorithms for compression. For the JPEG and MJPEG algorithms, the video quality is better but the data rate is also high. The H.263 alg orithm provides a lower video quality but the data rate is also quite low.

Set up the compression algorithm using the Algorithm option and the size of the video frame with the Dimension option.

To set up the algorithm:

1. Use the Up and Down arrow buttons to select a field to change from the Algorithm menu.

2. Use the Right and Left arrow buttons to toggle the available options.

3 . Press the OK button when the fields are set correctly.

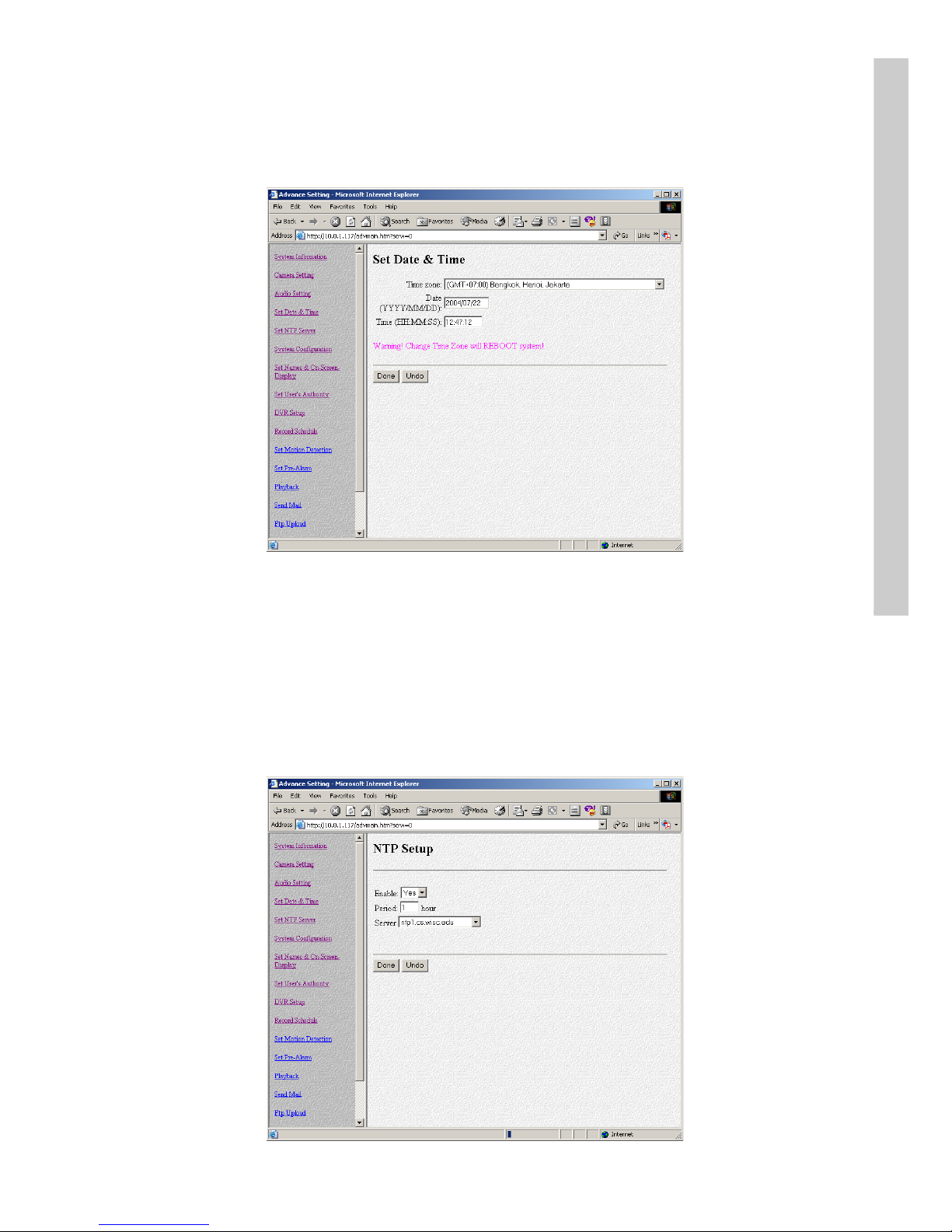

3.3.18 NTP setup

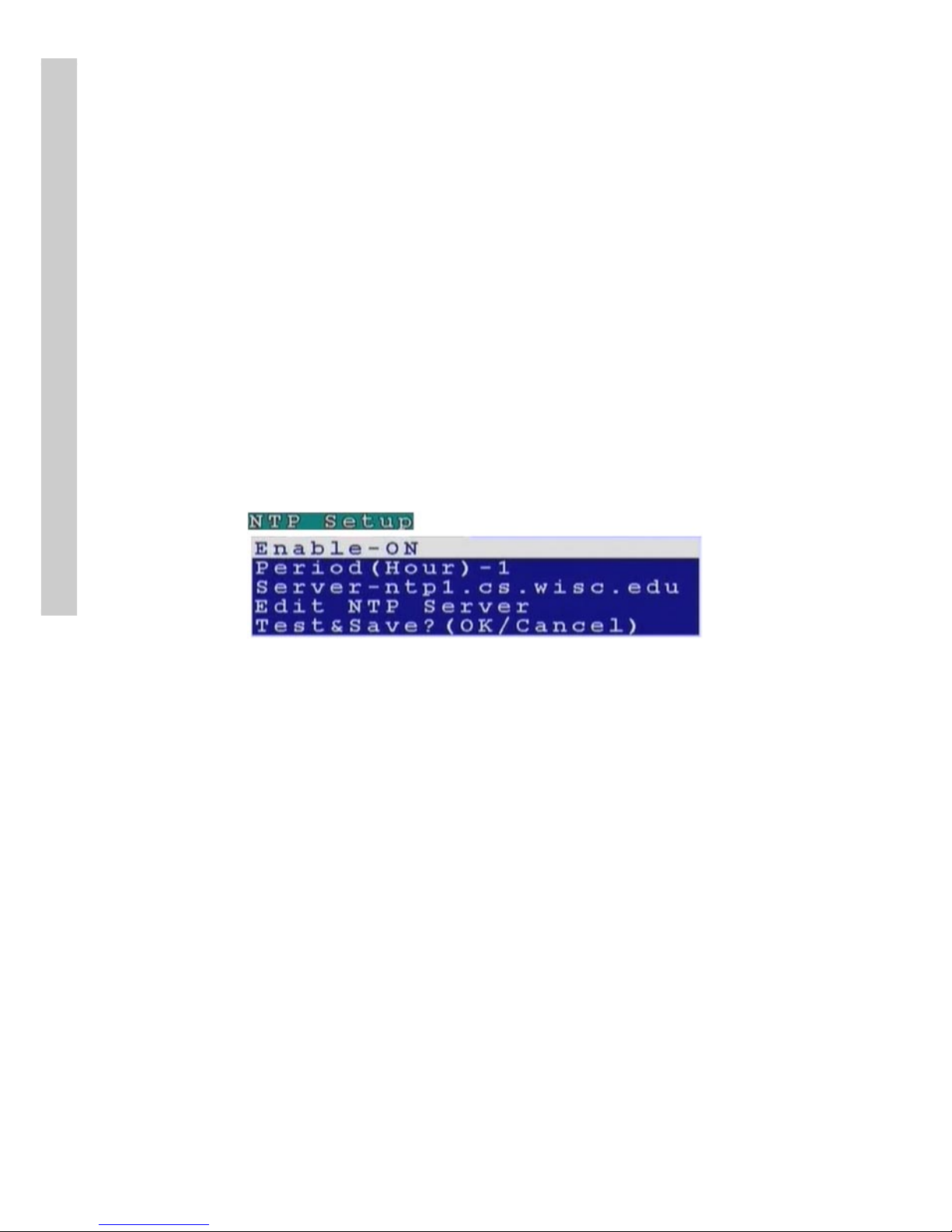

Use the NTP (Network Time Protocol) Setup function to synchronize the real-time clock on the VP- 580 with the atomic clock. Before using this

System setup

feature, make sure that the correct date, time and time zone have been set up. (See Date/Time on page 26.) Also make sure that the DNS IP number has been set up under the TCP/IP settings. (See TCP/IP on page 21.)

The following options are available in the submenu:

• Enable – enables the NTP function to synchronize the real-time

clock.

• Period (Hour) – sets up the time inter val after which the time is

re-synchronized.

• Server – selects the NTP server from several pre-defined choices.

• Edit NTP Server – enables you to choose your own NTP server.

• Test&Save? – tests the ser ver and saves the changes.

To change NTP settings:

1. Use the Up and Down arrow buttons to select a field to change from the NTP menu.

2. Press the Right button to confirm.

3. Press the Key Pad button on the remote control to display the on- screen keyboard.

4. Use the Arrow buttons to select letters from the on-screen keyboard and use the OK button to confirm .

5 . When the field is set correctly, press the Key Pad button on the

remote control to turn off the on-screen keyboard.

6 . Press the OK button to save changes.

3.3.19 Default settings

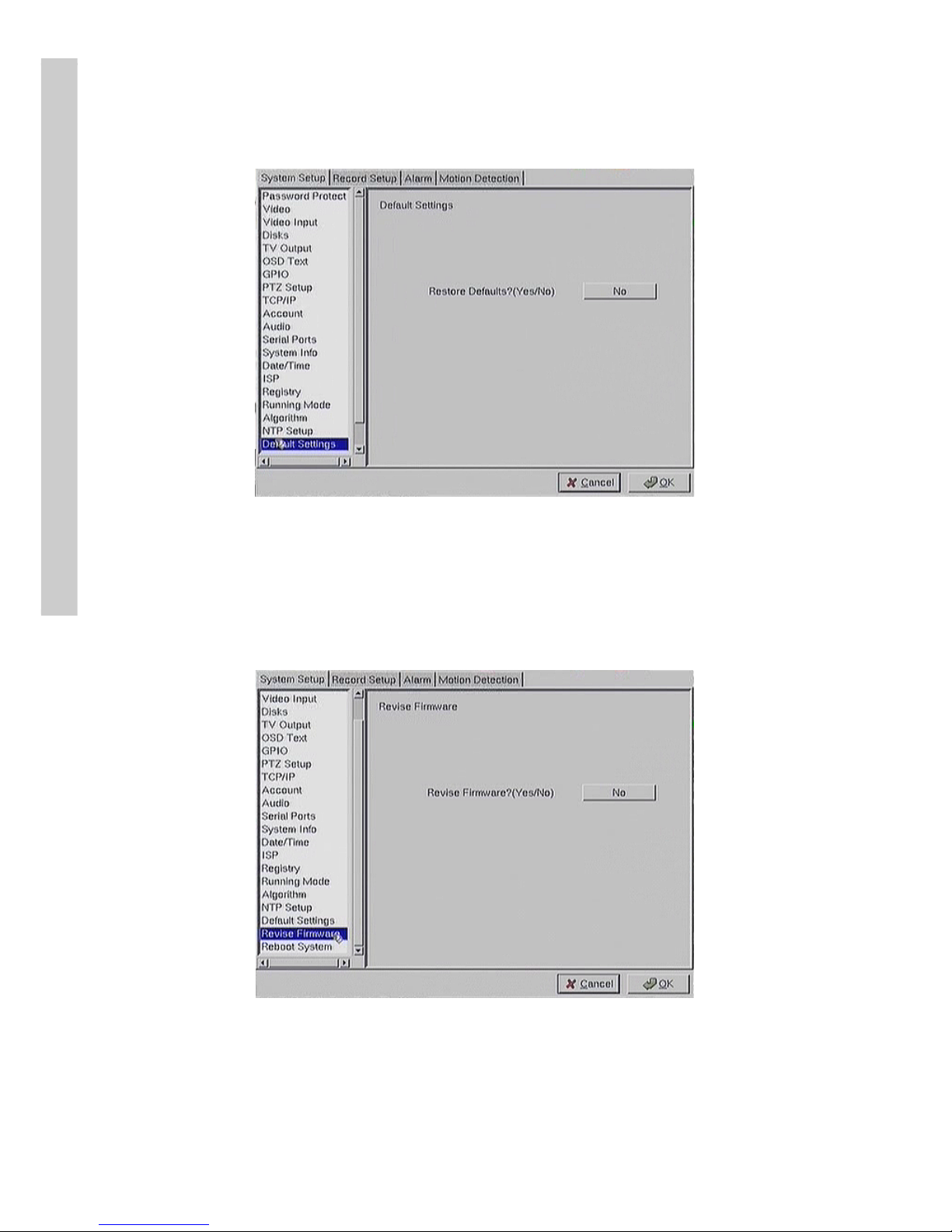

Use the Default Settings option to reset all configurable parameters to their factory default settings. When the Default Settings option is chosen from the System Setup menu, a message is displayed asking you to confirm. Press the OK button to confirm, or the Cancel button to cancel the operation.

Record setup

3.3.20 Revise firmware

Use the Revise Firmware option to upgrade the fir m ware in the VP- 580. The firmware can be revised through an external read-write CD drive, a USB flash drive, or a USB thumb drive. Connect the device to the VP- 580 and then use this option.

3.4 Record setup

Use the Record Setup menu to set all the record options for the VP- 580. There are four Record Setup submenus – DVR, Record Schedule, Mo-

tion Detection, and Pre-Alarm. This section covers each submenu in turn.

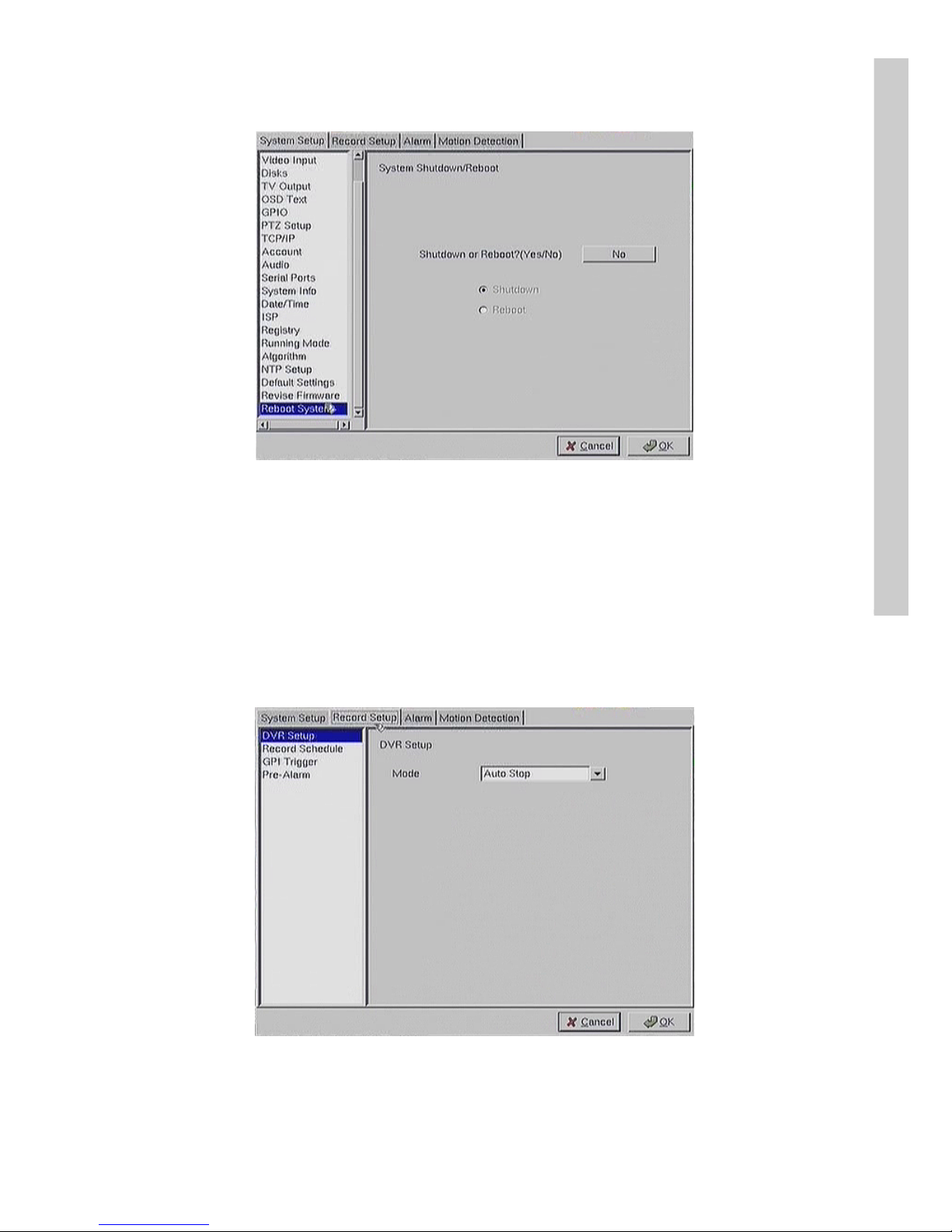

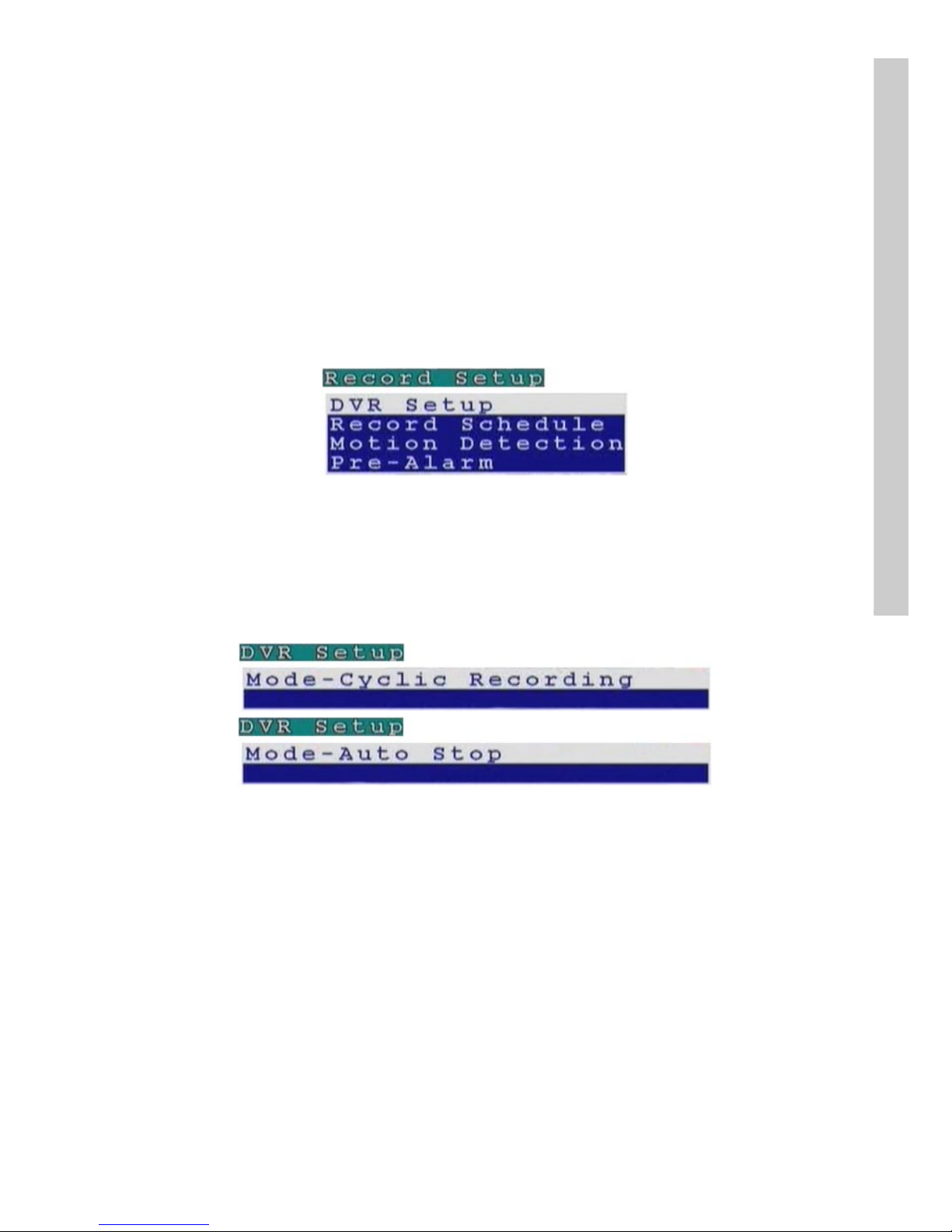

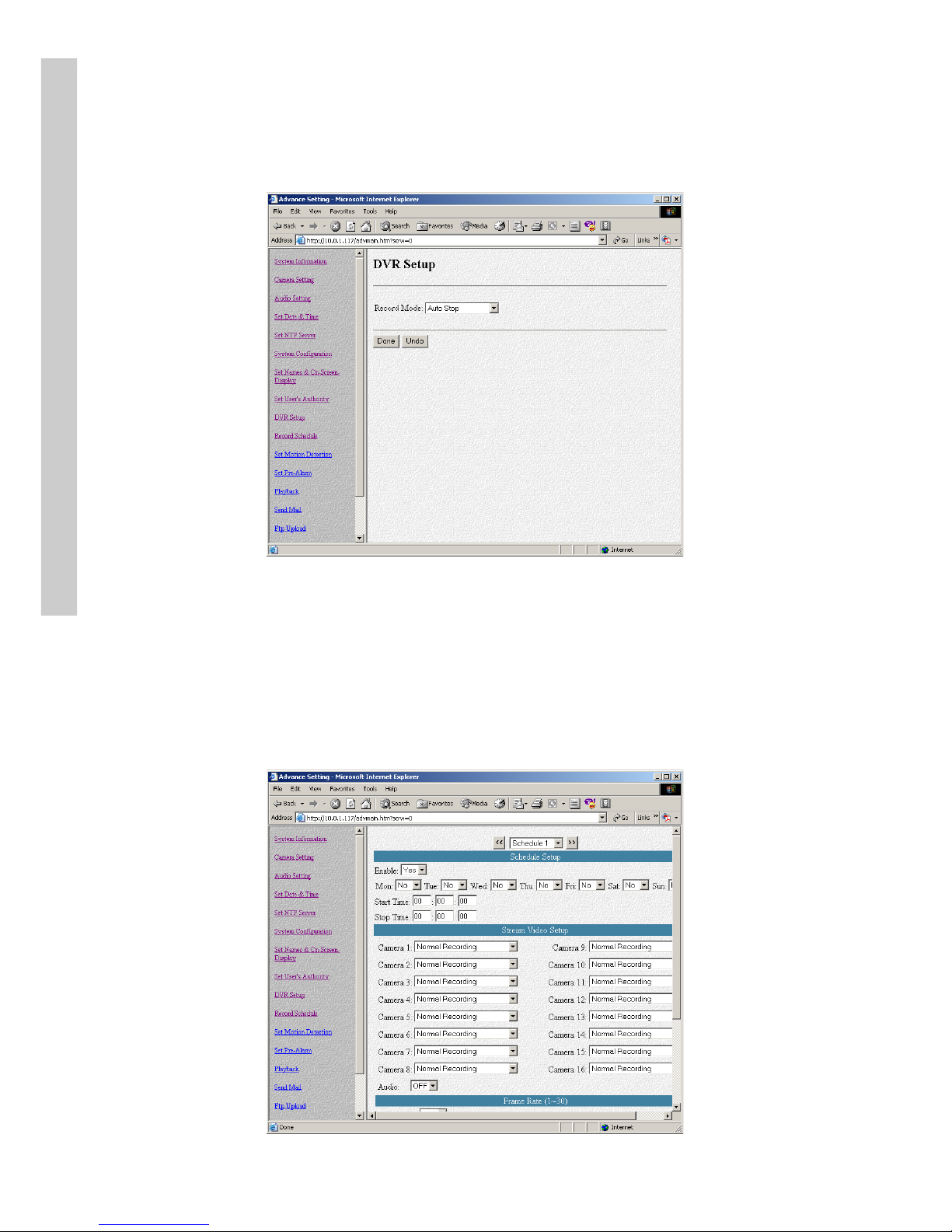

3.4.1 DVR Use the DVR menu to set the DVR (Digital Video Recorder) mode. Choose

Cyclic Recording to keep recording on the hard disk continuously. Choose Auto Stop to stop recording when the disk is full.

You can set an alarm to be generated when the hard disk is full and send notification through a beep, E-mail, or text messag e. See Alarm on pag e 27.

To change the DVR mode:

1. Select the Mode option from the DVR submenu using the Up and Down arrow buttons on the remote control.

2 . Use the Left and Right buttons to select either Cyclic Recording ,

or Auto Stop.

3 . Press the OK button to save changes.

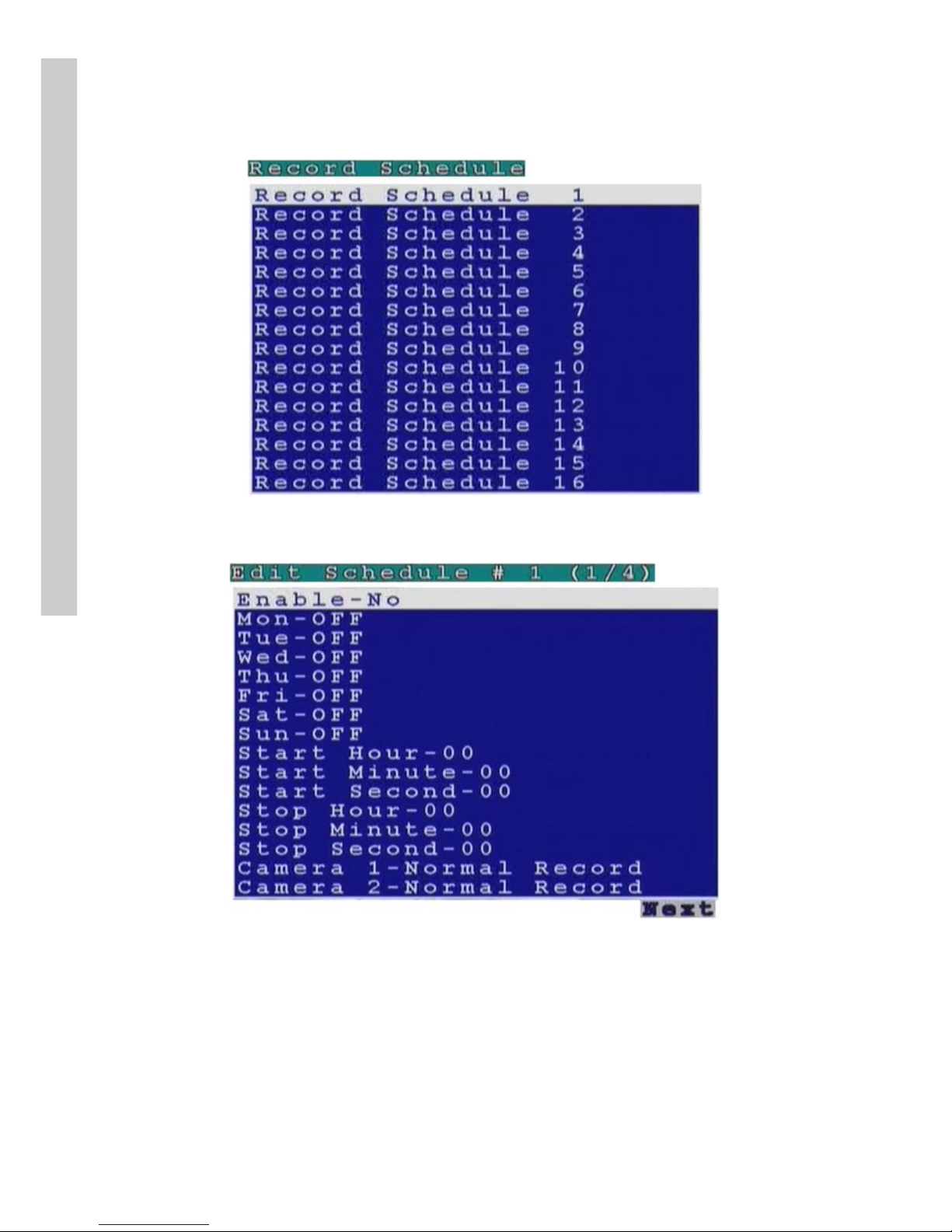

3.4.2 Record schedule

You can set up to 16 record schedules that automatically record at given times and days.

Record setup

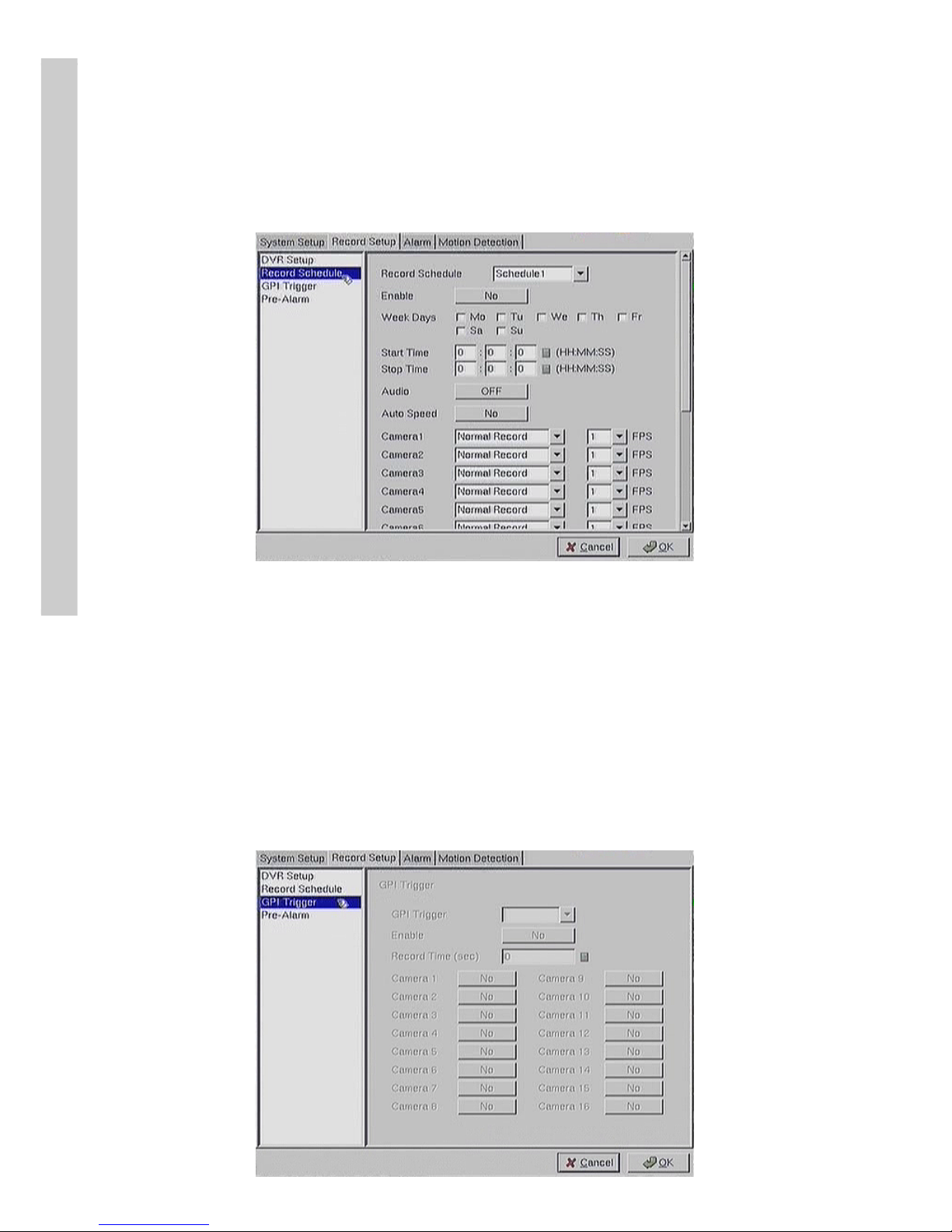

To configur e a r ecord schedule:

1. From the Record Schedule menu, pick a schedule to change from the displayed list, using the Up and Down arrow buttons.

2. Press the Right button to display the parameters for that schedule.

3. Use the Up and Down arrow buttons to select a field to change, from the following options:

• Enable – enables the recording schedule.

• Mon through Sun – enab les recording on the specified days of

week.

• Start Hour/Minute/Second – sets the exact time when the

recording starts.

• Stop Hour/Minute/Second – sets the exact time when the

Record setup

recording ends.

• Camera 1 thr ough 8 – sets the recording mode for the selected

camera. Select Nor mal Record to record continuously. Select

Motion Detect to record only when motion is detected. Select OFF to disable recording.

• Audio – enables recording of sound along with the video signal.

• Frame Rate Setup – sets the frame rate for recording. Set Auto

Speed to Yes and the device evenly divides the recording frame

rate amongst all cameras. If set to No, you can manually set up the individual frame rates for each camera.

4. Use the Right and Left arrow buttons to change the value of that parameter.

5. Use the Prev Page and Next Pa ge buttons to move to the previ- ous or next page.

6 . Press the OK button when all parameters are set.

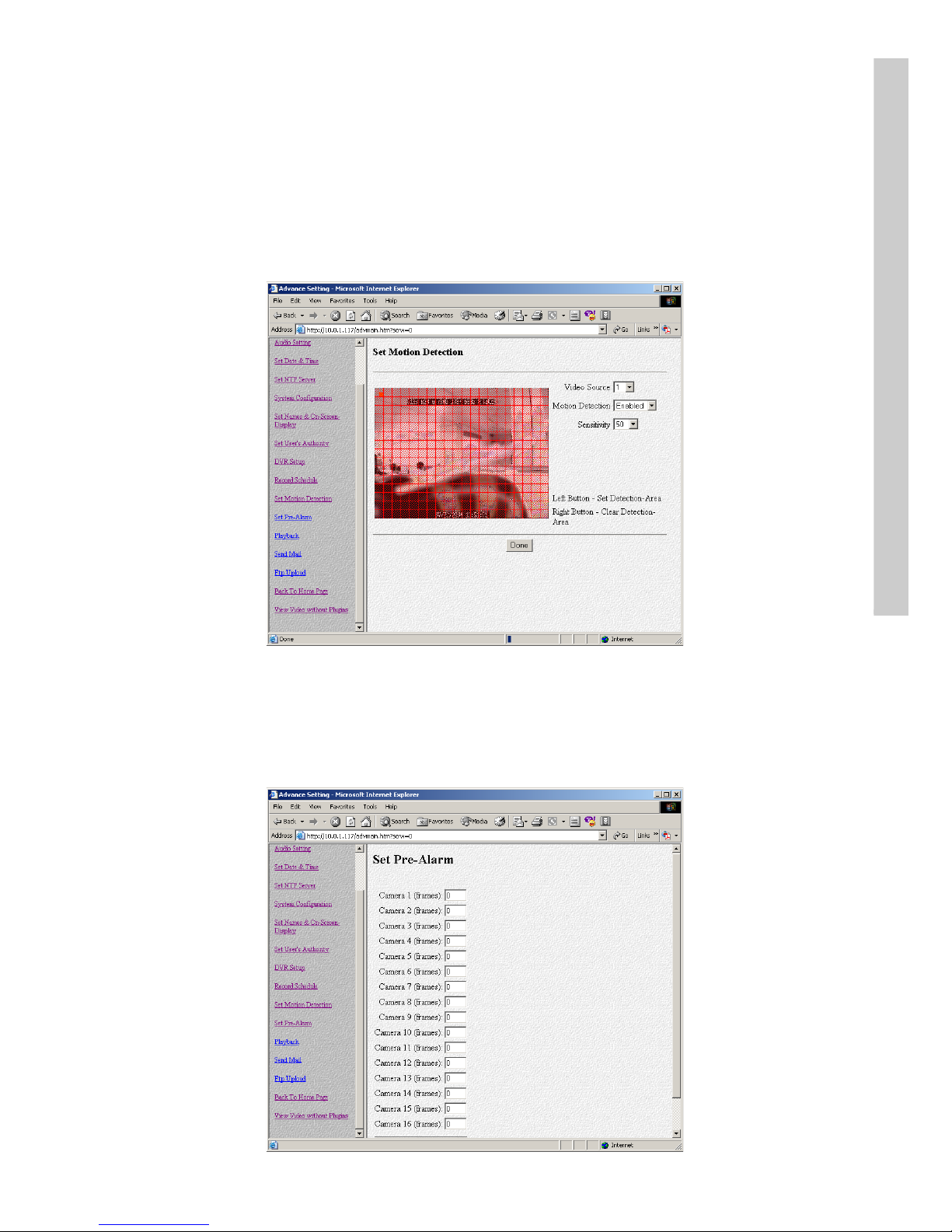

3.4.3 Motion detection

For more information about setting the Motion Detection feature, see on

Alar m page 27.

3.4.4 Pre-Alarm

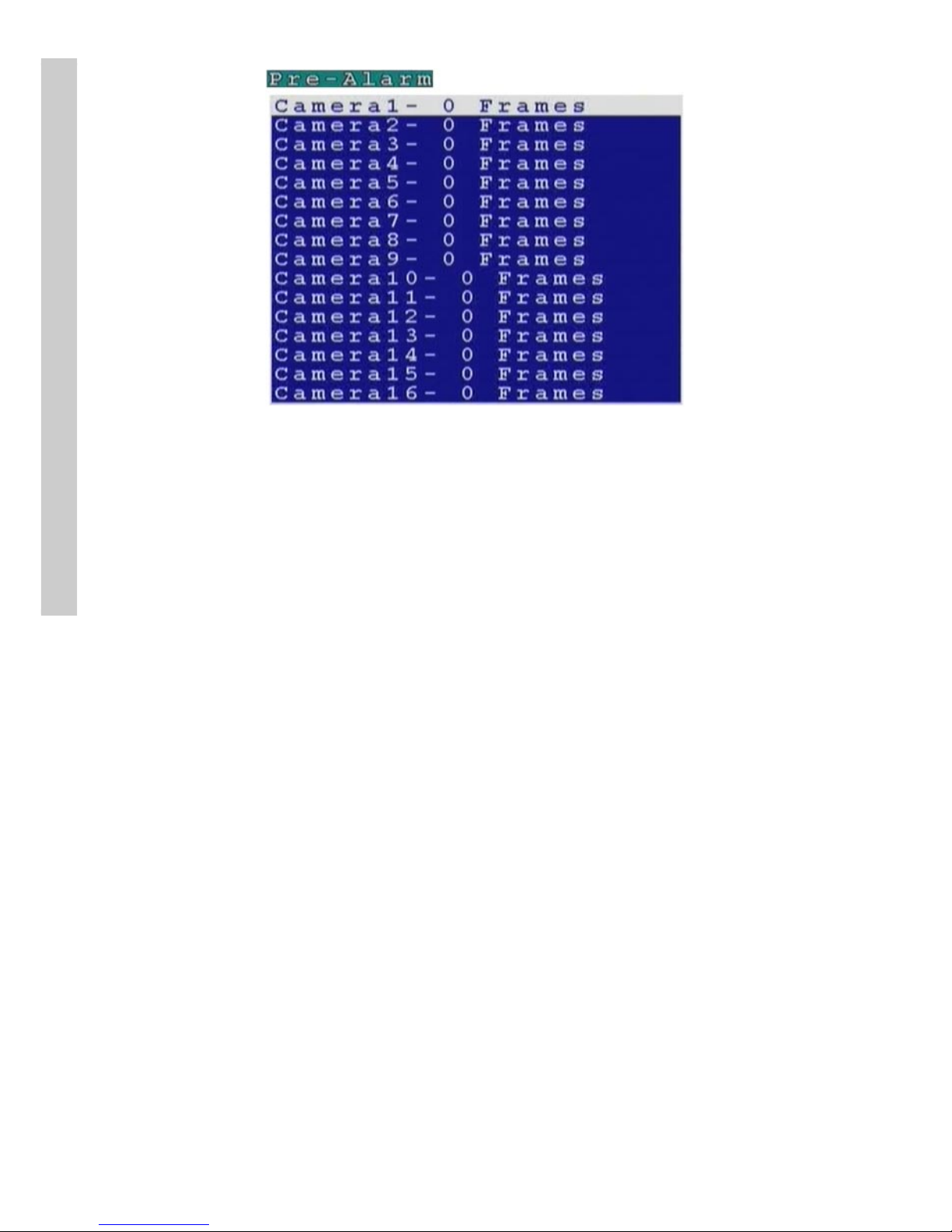

Use the Pre-Alarm function to determine how many frames are recorded before an alarm event occurs. Each camera can be set separately and you can record up to 300 frames.

To set the Pre-Alarm frame capture:

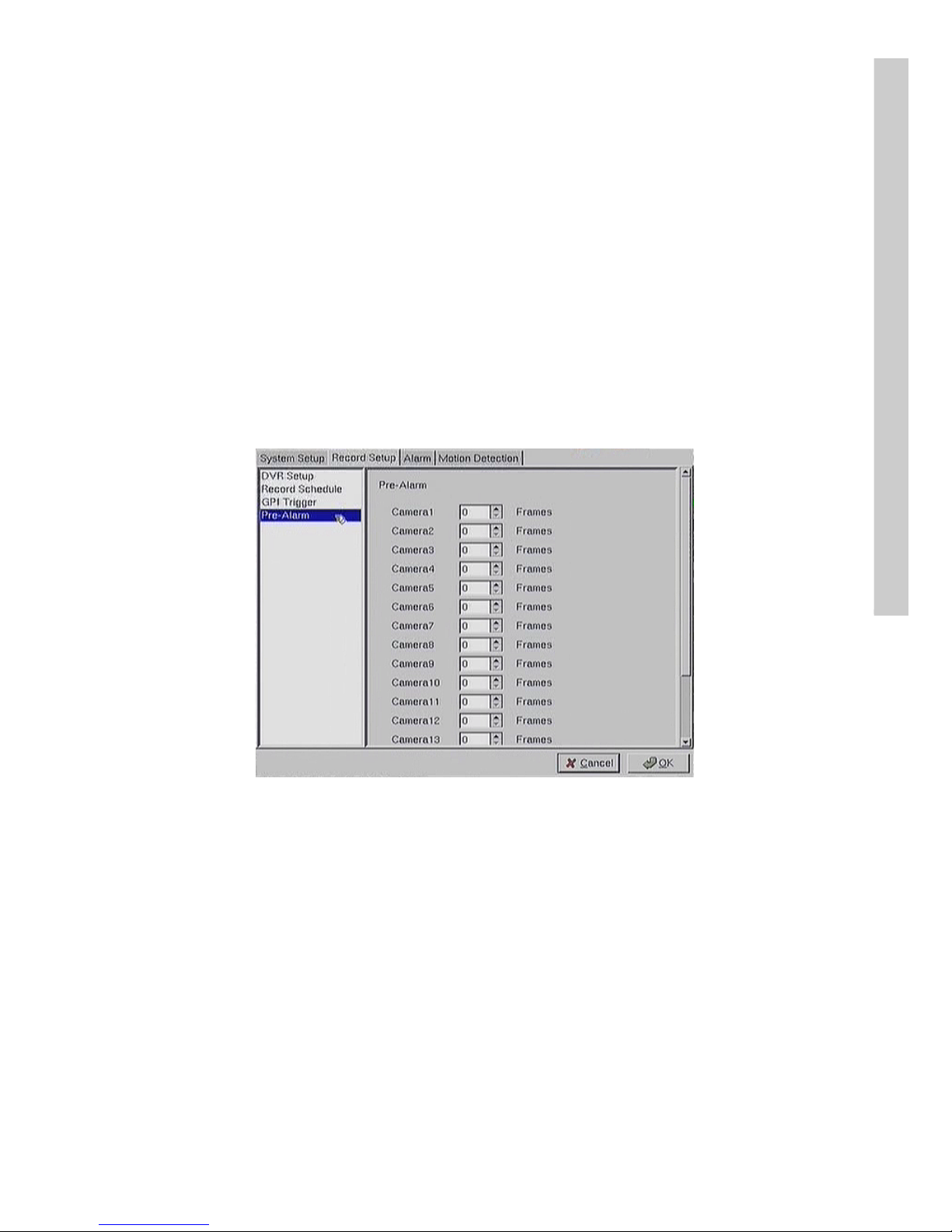

1. Use the Up and Down arrow buttons to select Pre-Alarm option from the Record Setup menu.

2. Press the OK button to display the Pre-Alar m menu.

Playback

3. Use the Up and Down arrow buttons to select the camera to change from the list.

4. Press the Right arrow button to confir m.

5. Use the number buttons on the remote control to enter a new value.

6 . Press the OK button when the value is set correctly.

3.5 Playback

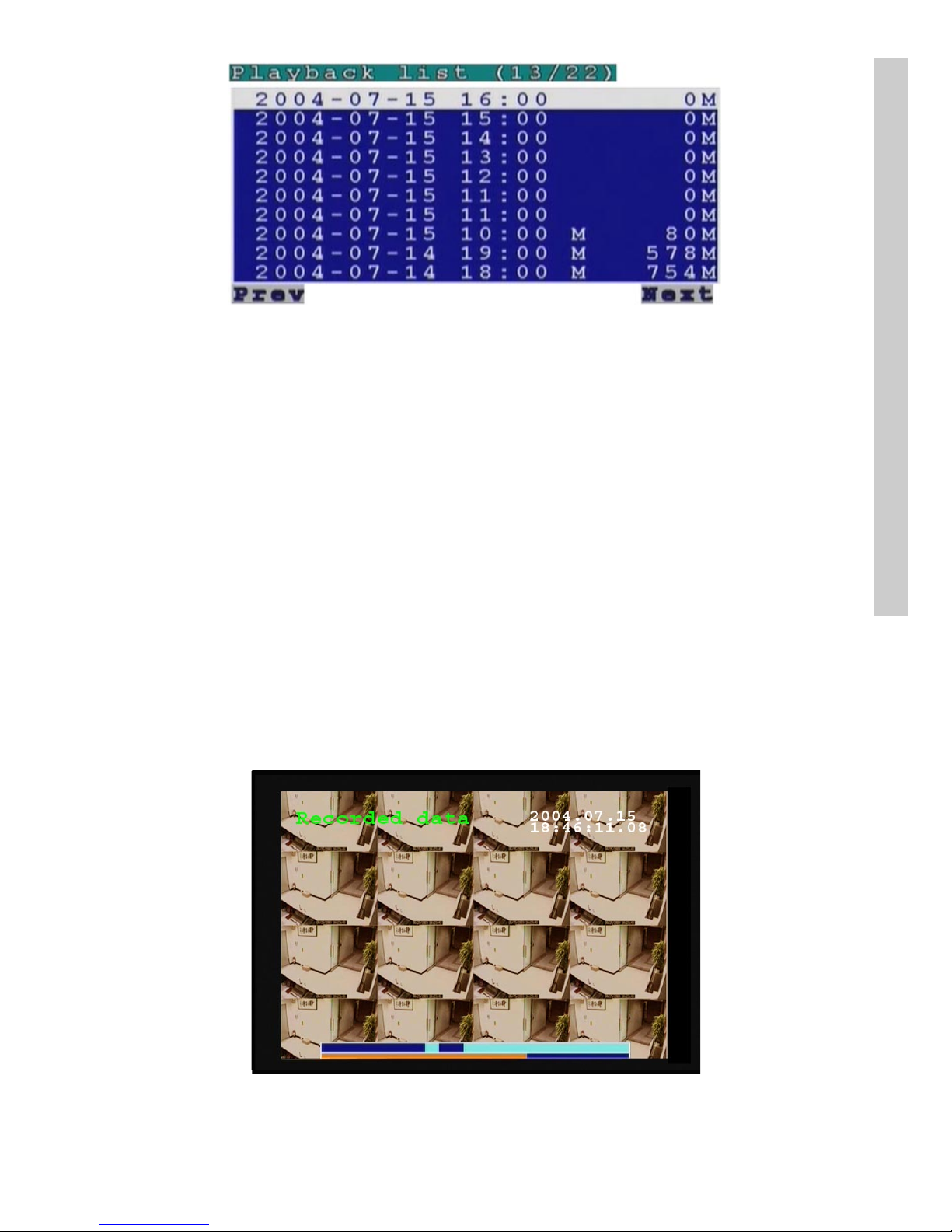

Use the Playback function to display a list of all recordings stored on the VP- 580. Use the Up and Down arrow buttons to select a recording to play back and press the OK button to confir m. T he chosen track is played. Use the Prev Page and Next Page buttons on the remote control to move between pages.

Playback list

Use the Playback list function to display a list of all recordings stored on the VP- 580 as follows.

Playback

1. Use the Up and Down arrow buttons to select a recording to play back. The alarm condition which caused the file to be recorded is indicated in the list. For instance, in the screen shot shown here, the letter M next to a file indicates that the file was recorded after motion was detected by the camera. “A” indicates that the file was recorded after a GPIO event. An asterisk (*) before the date indicates that the file is locked.

2. Press the OK button to confir m . The chosen recording is played back.

3. Press the Display button on the remote control to display various properties of the recorded file. The date and time of recording are displayed in the upper right corner.

• Pr ogress – A one hour time line is displayed at the bottom of

the screen with the moving orange line indicating the status of playback.

• Recorded Data – The aqua colored line re presents how much of

the one hour time interval was recorded. A full blue line means

Playback

that the whole hour inter val was recorded.

• GPI – The screen shows where alarm triggers were generated.

The red bar shows the trig gers. To move to the next motion detection or alarm trigger event, press the Right/Left arrow

buttons.

• Motion Detection – The yellow bars represent where motion

detection was set of

Searching for a file

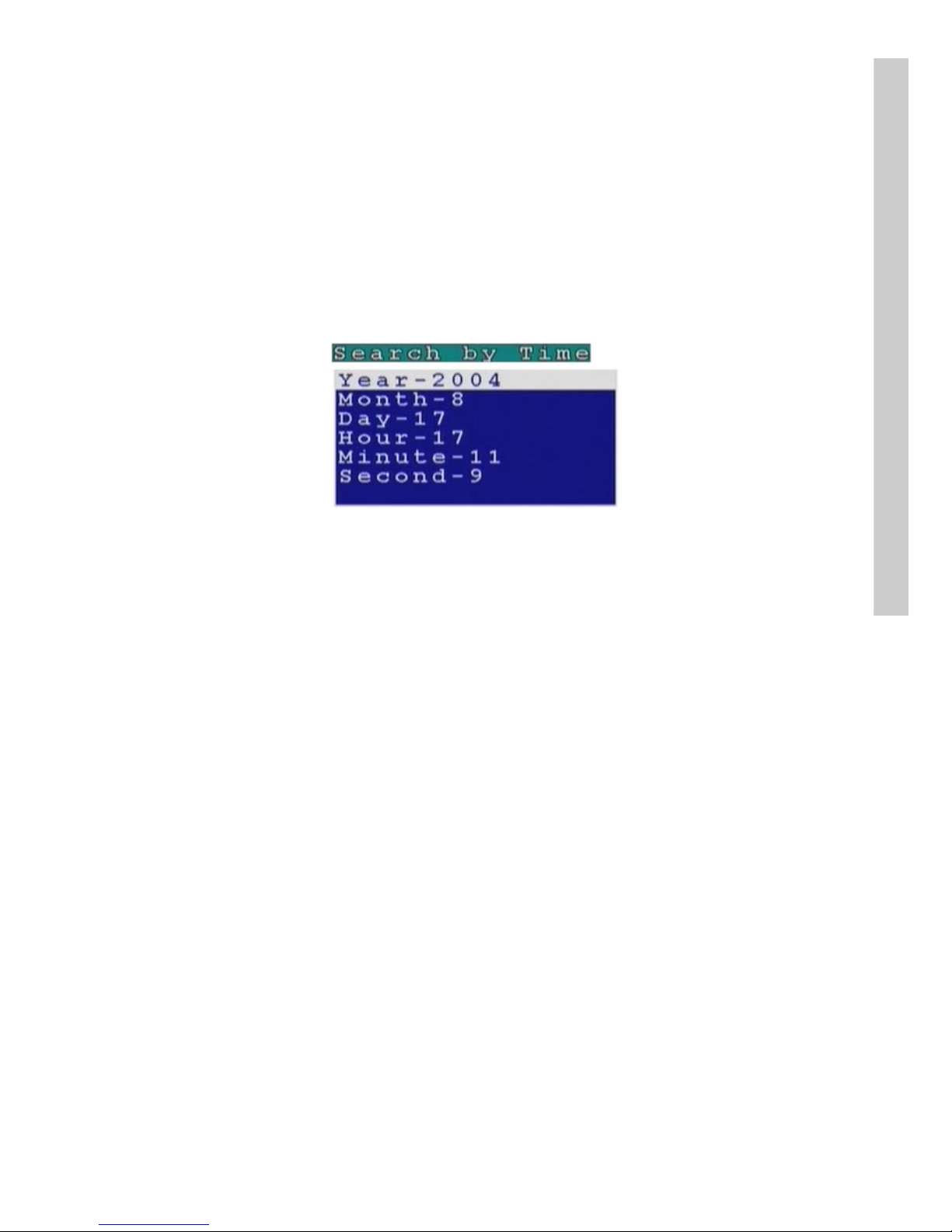

The VP- 580 playback list can be searched for a specific file. You can conduct the search based on time, event, or text.

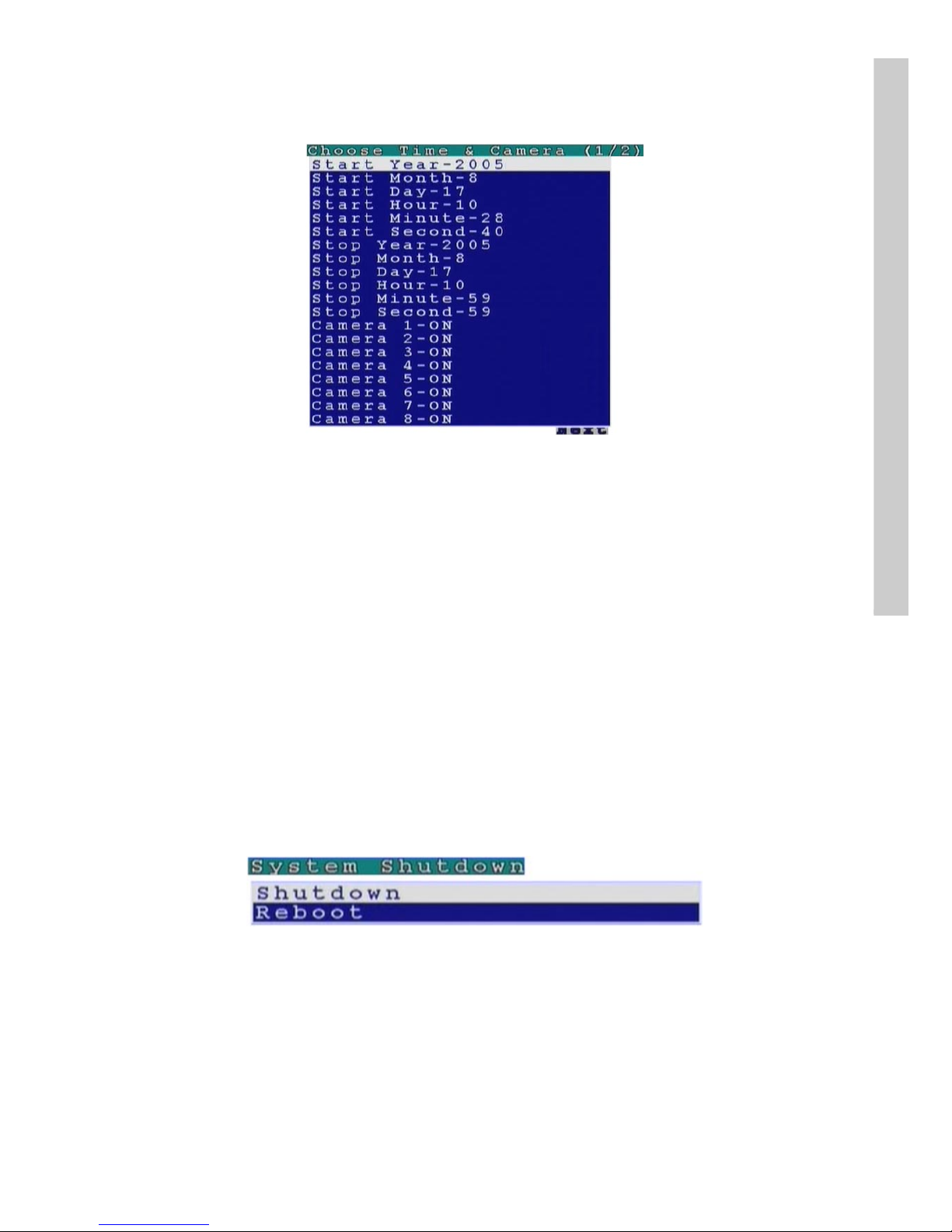

To search f or a recorded file:

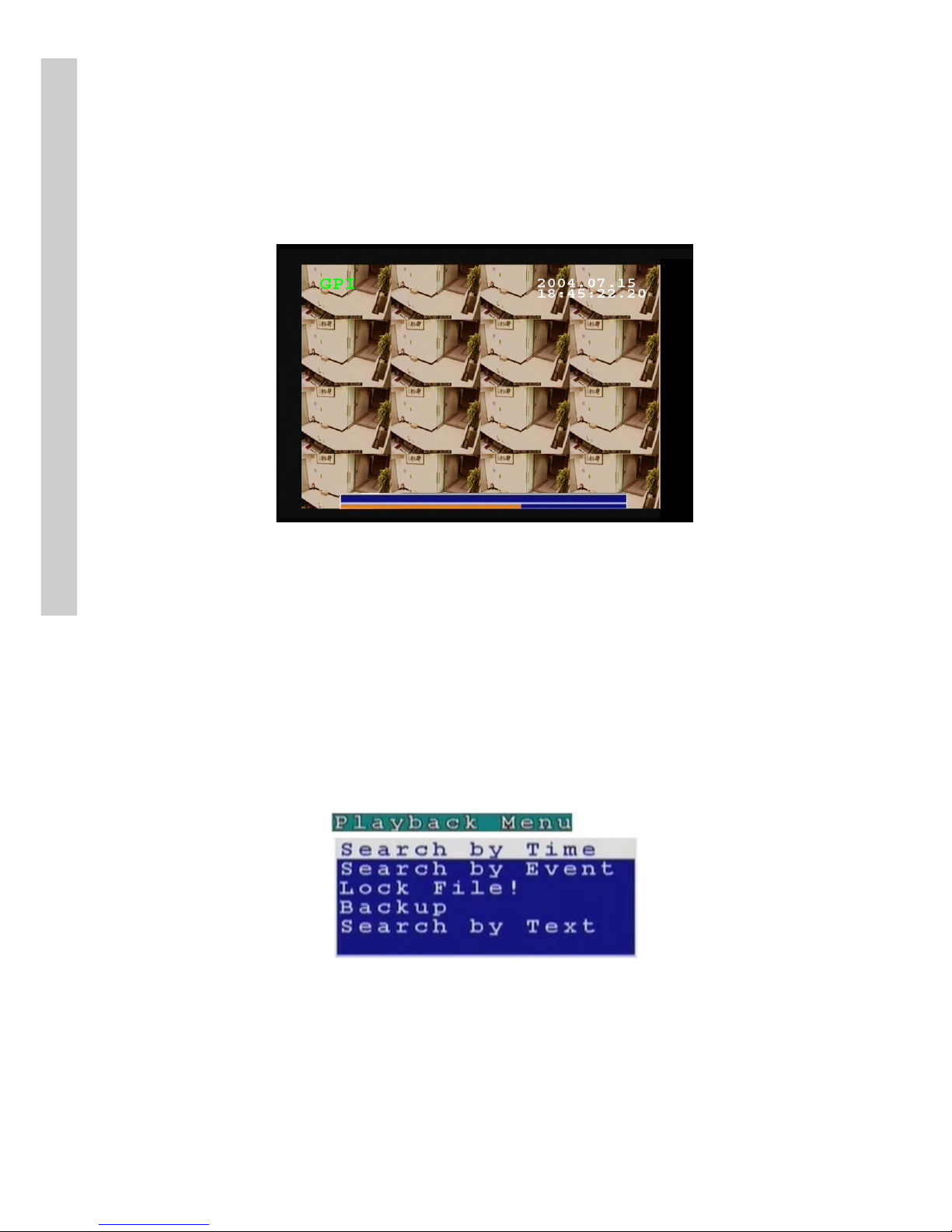

1 . While viewing the play list , press the Menu button to display the

menu.

2. Select one of the following options using the Up or Down arrow

buttons:

Playback

• Search b y Time – searches the list of recorded files for the

specified recording time.

• Search by Event – searches the list of recorded files for the

specified event such as a motion or a GPIO trigger that occurred within the specified time interval.

Search by Te xt – searches the list of files recorded with POS

information f or specified text that was recorded within the specified time interval.

3. Press the Right arrow button to view the submenu for the selected option.

4 . Select each of the options such as Year, Month, Day, and so on

using the Up or Down arrows.

5. Modify the settings as required using the Left and Right arrow buttons.

Note:If you select the Search by Event option,

choose an event from GPI 1~8 and Motion 1~8. If you choose the Select by Text option, enter the text using the Key Pad button.

6. Press OK when done to conduct the search.

3.5.3 Locking files

To prevent accidental deletion of recorded files, you can lock a file. This also prevents over-writing of the file when the recording mode is set to

Cyclic. (See DVR on pag e 37.)

Playback

To lock a file:

1. While viewing the play list

(see Playback list on page 40)

, use the

Up/Down arrow buttons to select the desired file.

2. Press the Menu button to display the menu .

3. Select the Lock File! option using the Up or Down arrow buttons:

4. Press the OK button to confirm .

The file is locked and cannot be deleted or over-written. T he locked file is represented by an asterisk (*) next to it. To unlock a file, follow the same procedure and select the Unlock File! option from the menu.

3.5.4 Backing up the data

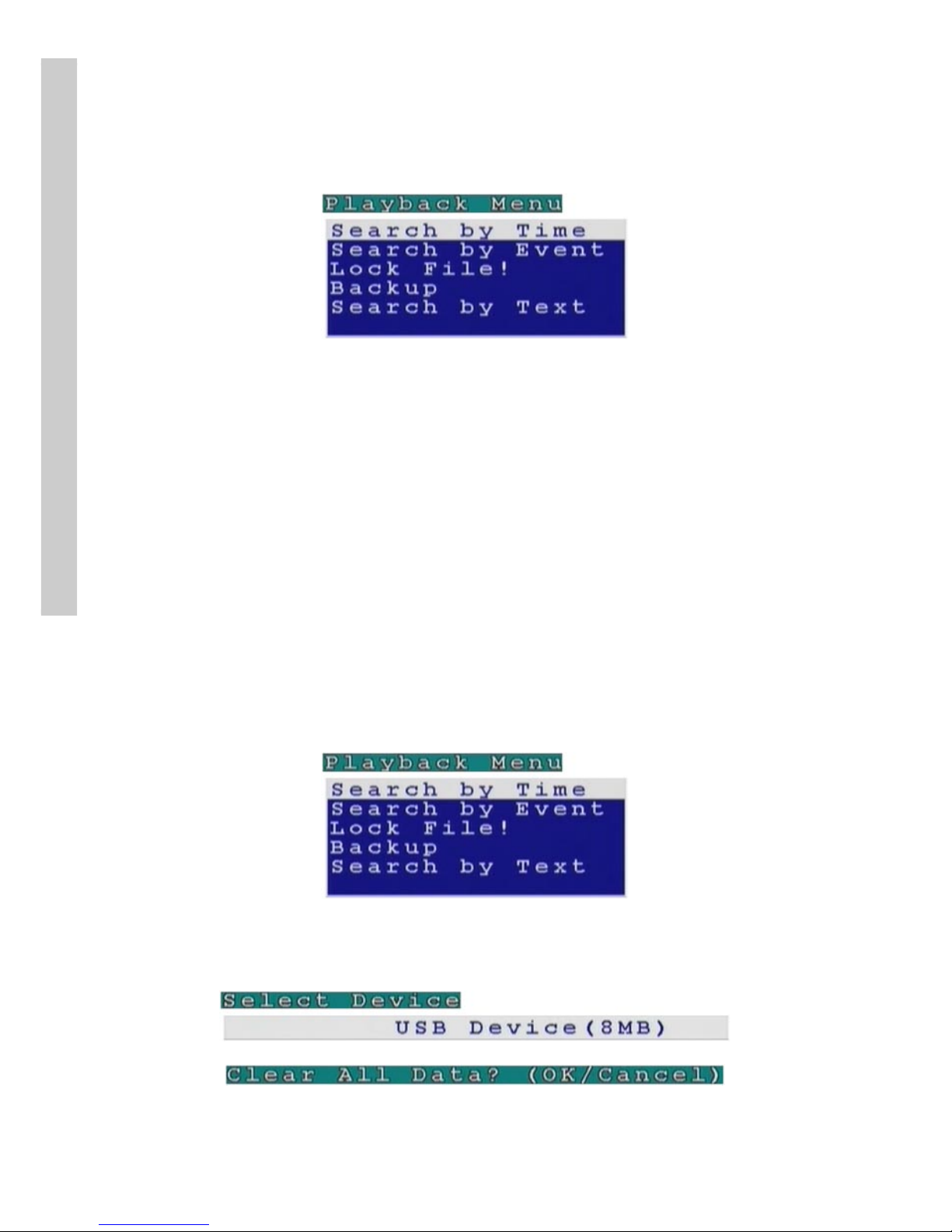

If the VP- 580 is equipped with CD/RW, DVD+RW drive, you can back up your recorded files to a CD, DVD, or USB hard drive.

To back up your data:

1 . While viewing the play list , press the Menu button to display the

menu.

2. Select the Backup option using the Up or Down arrow buttons.

3. Press the OK button to confirm .

Playback

The VP- 580 detects if there is a backup device connected to it and starts backing up data.

Note:The VP- 580 will begin to collect data

as soon as the above screens are displayed. When the required data has been collected, the backup can begin.

3.6 System Shutdown

Use the System Shutdown option to shut down or reboot the system. To shut down or reboot the system:

1. Use the Up and Down arrow buttons to select either Shutdown or Reboot.

2. Press the OK button to confirm .

3. Press the OK button to confirm the operation again, or press the

Cancel button to cancel the operation.

System Shutdown

4. The Local GUI

4.1 Intr oduction

The VP-5804/5808 can be used and configured using either the supplied remote control unit or with a keyboard and mouse. This chapter covers keyboard and mouse operation. The VP-5804/5808 must be in Mouse running mode for the keyboard and mouse to function. See Running

modes on page 5 to learn how to switch to Mouse control.

4.2 Surveillance screen panel

The Surveillance Screen Panel enables you to define which live images are displayed on screen.

For more information on using the buttons in the Surveillance Panel, see

Viewing live images on the VP-5804/5808 on pag e 9.

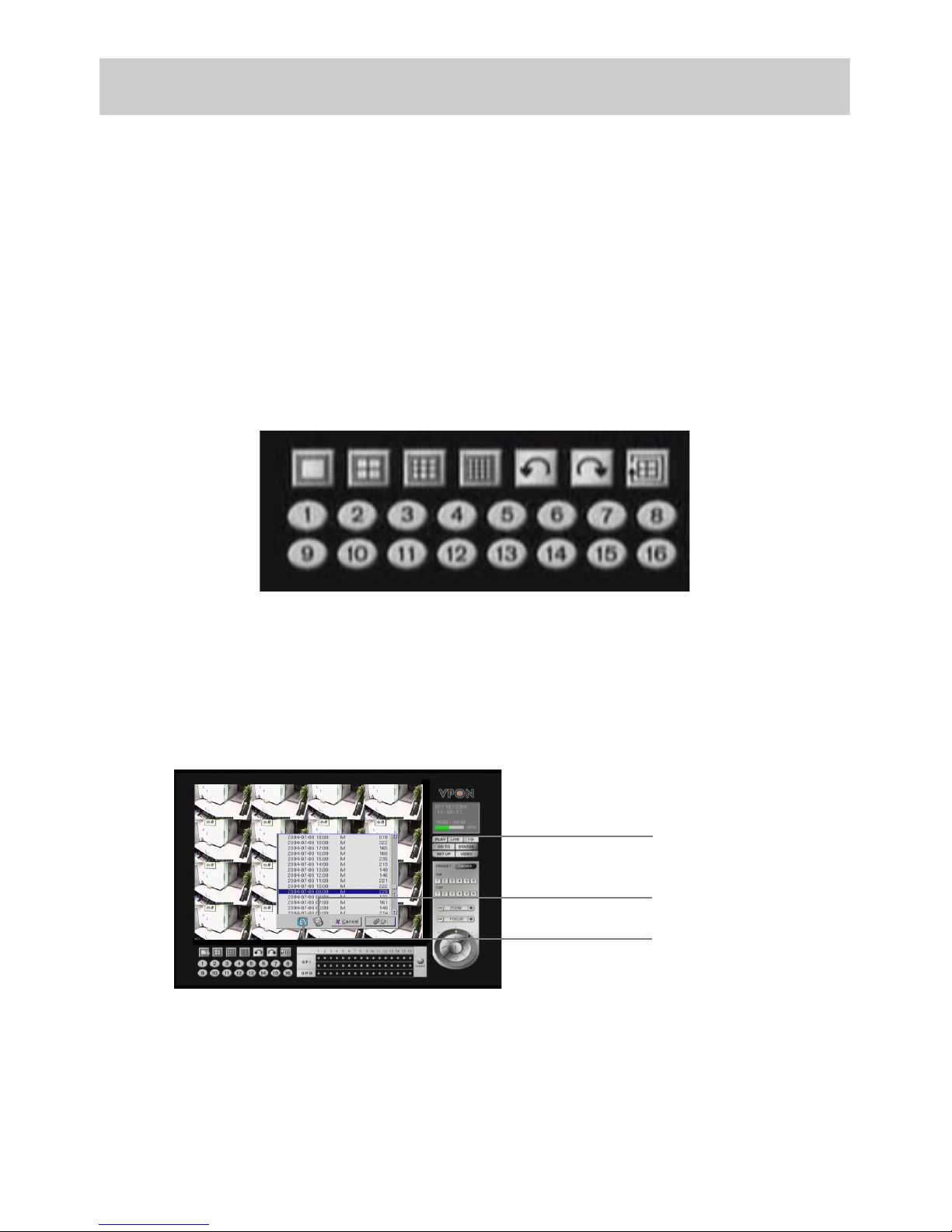

4.3 PLAY button

Click the PLAY button to display a list of all the recordings stored on the VP-5804/5808.

The alar m condition which caused the file to be recorded is indicated in the list. For instance, in the screen shot shown here, the letter M next to a file indicates that the file was recorded after motion was detected by the camera. Pick a recording from the displayed list and click OK to play. The recording will play on screen. Click the LIVE button to return to live images from the connected cameras.

PLAY button

Lock file

backup icon

4.4 LIVE button

Click the LIVE button to display live imag es on screen fr om the cameras connected to the VP-5804/5808.

Click the left mouse button twice to switch to full screen display.

4.5 I/O button

Click the I/O button to display the I/O panel.

When an alar m has been triggered, the GPI and GPO that are connected will show the status of the input or output device. GPI devices will show NC (normally closed) or NO (normally open) as the status of the switch while GPO devices will show On or Off as their status.

LIVE button

I/O button

Current triggers

Previous triggers

LIVE button

4.6 GO TO button

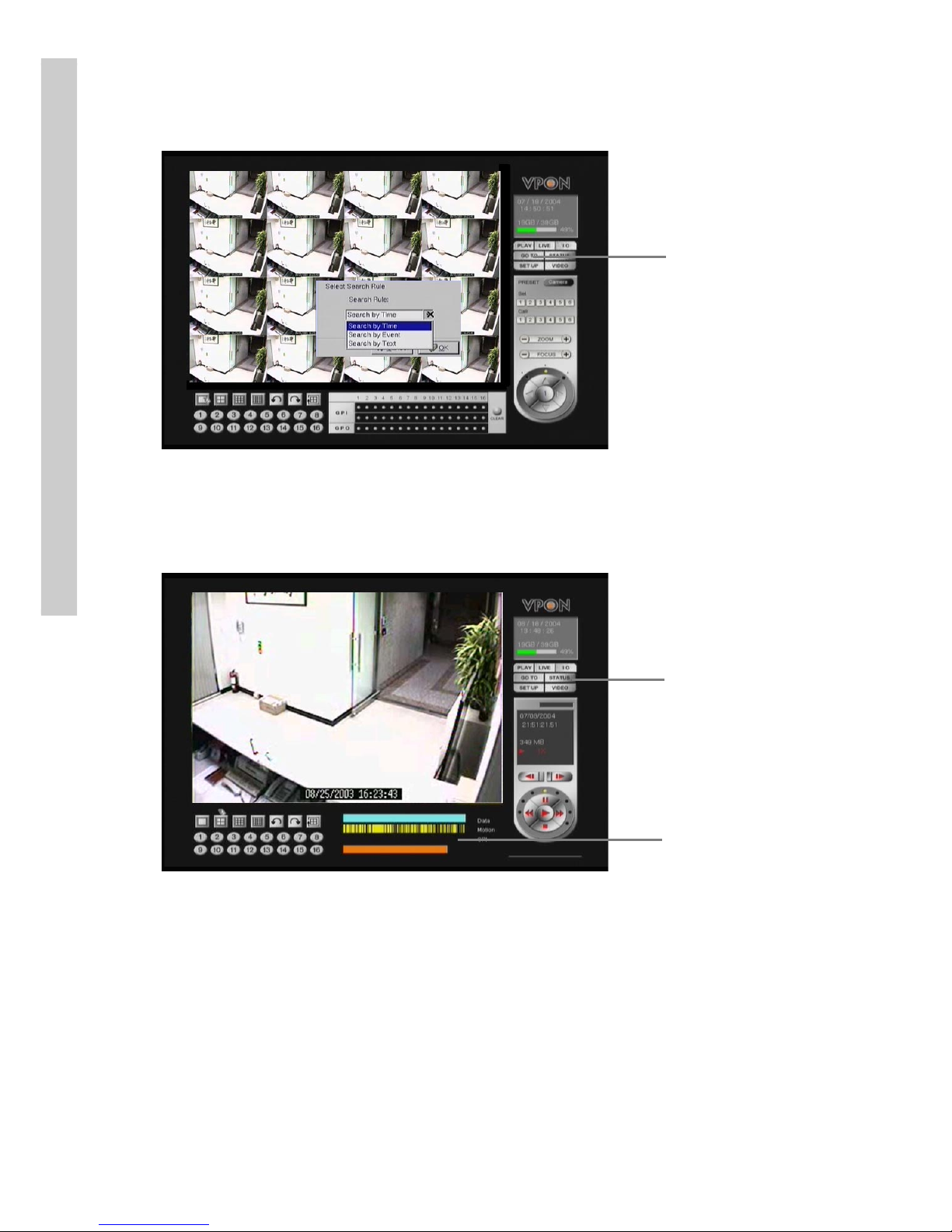

Click the GO TO button to search for stored files by Time, Event, or Text.

4.7 STATUS button

Use the STATUS button to display the status panel.

The status panel displays the playback status of the current recording. T he aqua line (Data) indicates recorded data over a one hour time interval. The yellow bars (Motion) indicate the instances when motion was detected. The (GPI) indicate when a GPI event was detected. The moving orange line indicates the current playback status. Click anywhere on the Data, Motion, or GPI lines to start playback from the required point.

GO TO button

ST ATUS button

STATUS information

4.8 VIDEO

Use the VIDEO button to display the video panel.

Use the sliders in the video panel to adjust the following parameters:

• Brightness (A)

• Contrast (B)

• Saturation (C)

• Hue (D)

• Quality (E)

VIDEO

VIDEO button

Video panel

DCBA

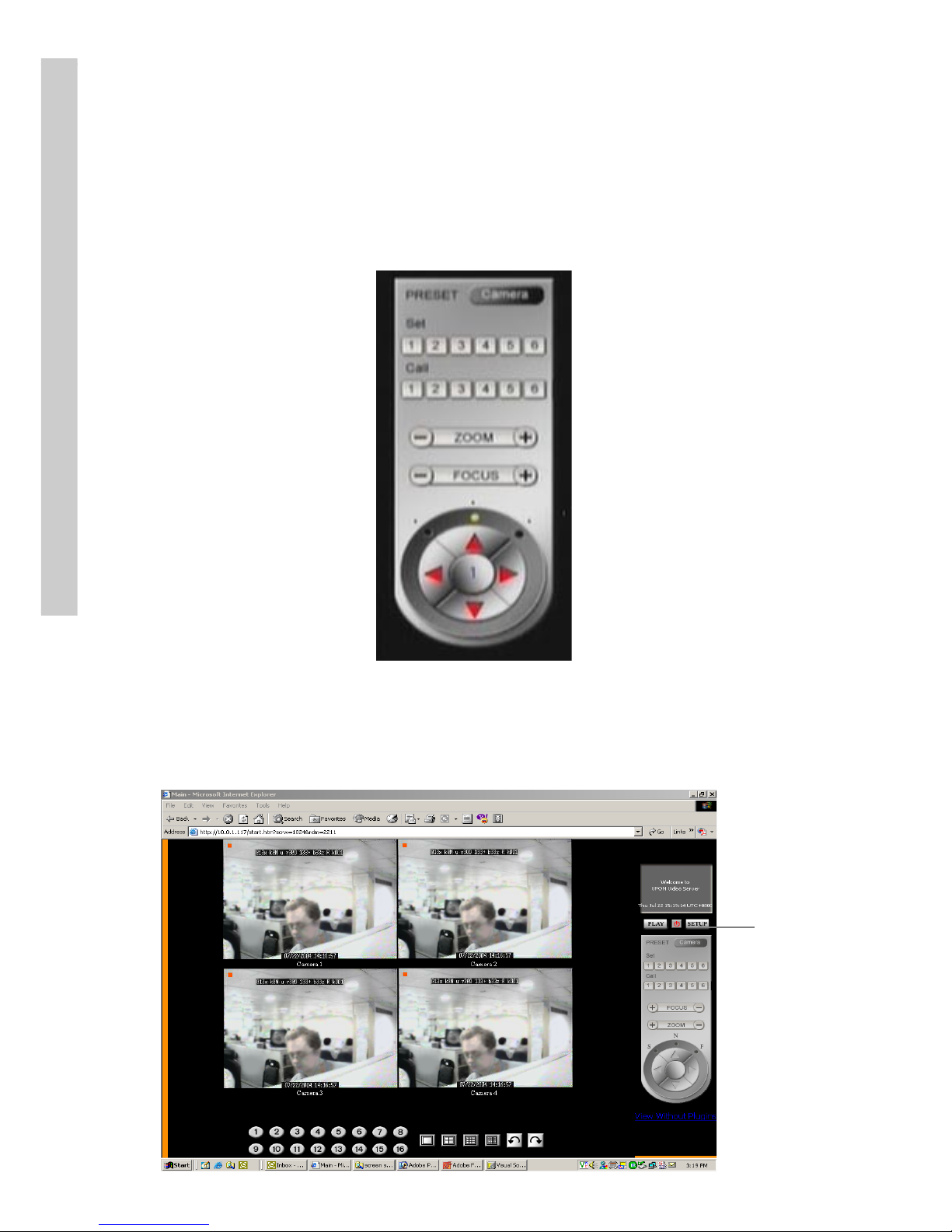

4.9 PTZ panel

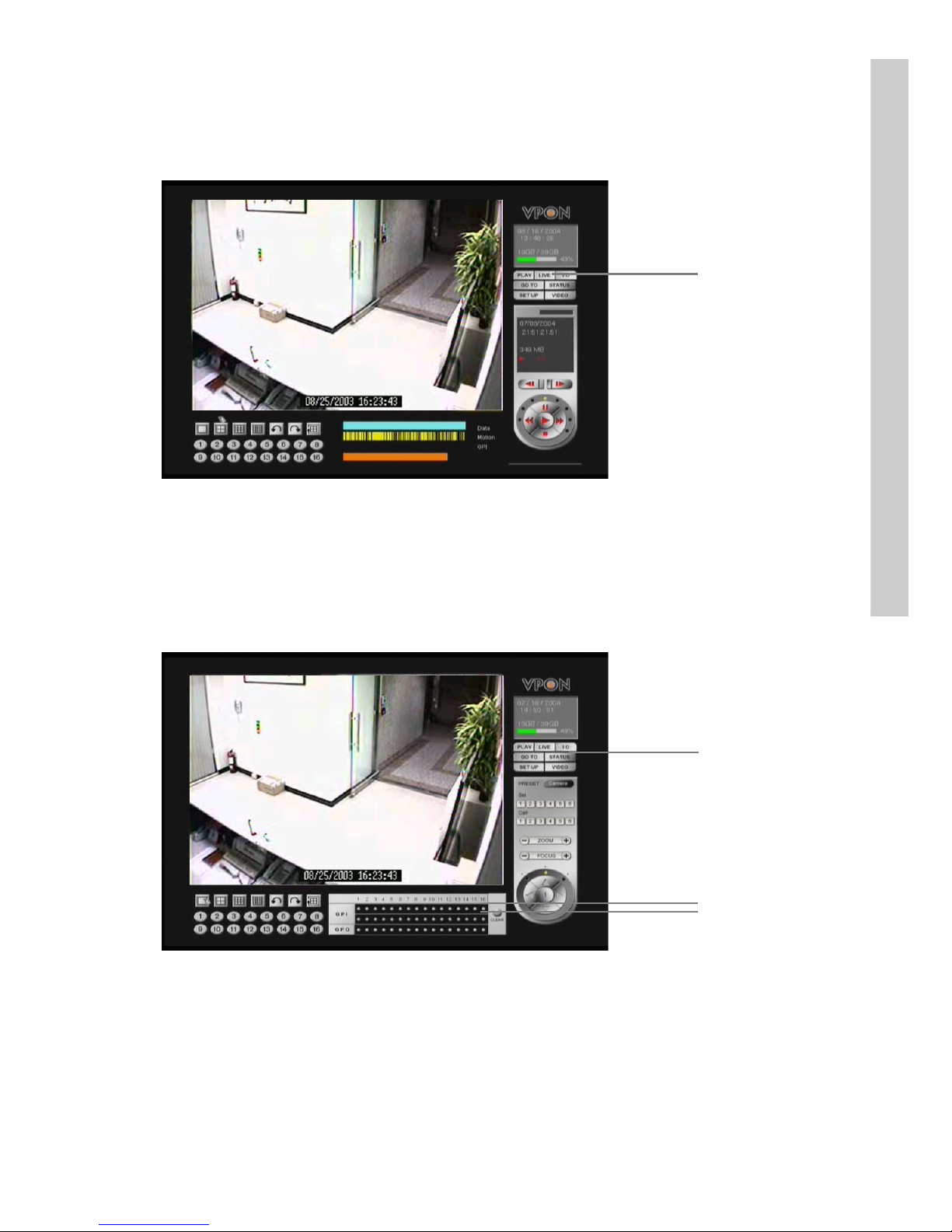

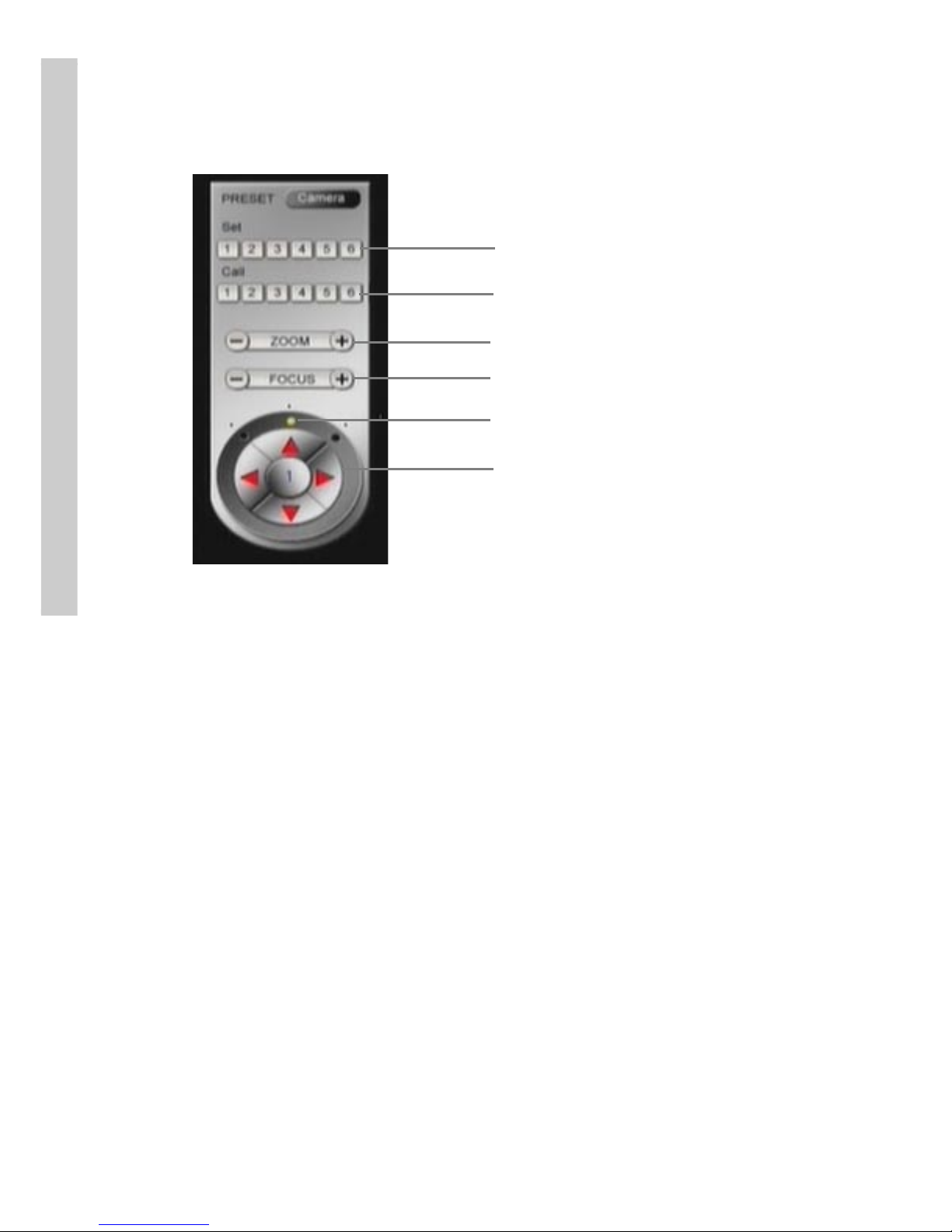

Use the PTZ panel to control PTZ (Pan, Tilt, Zoom) enabled cameras. This panel is displayed when the LIVE button is pressed.

The PTZ panel can only be used in the Surveillance Screen. You can set and recall up to 6 preset configurations for each camera using the following buttons:

• Set buttons– save the current pan, tilt, zoom, and focus settings

in one of 6 preset configurations.

• Call buttons– recall the selected preset configuration.

• ZOOM buttons – adjust the zoom to provide a more closer or

wider view of the subject.

• FOCUS buttons – adjust the focus of the camera.

• Speed buttons – Adjust the speed of the selected ptz camera.

• Pan and tilt buttons – Adjust the pan and tilt of the selected

camera.

To set a camera configuration:

1. Select a camera using the numbered buttons (1~8) on the Surveillance Panel.

2 . Adjust the Zoom, Focus, Speed, Pan and Tilt buttons until the

camera is configured correctly.

3. Press a Set button to save the configuration.

The configuration you have saved can now be recalled with the corresponding Call button.

Call buttons

FOCUS buttons

Pan and tilt buttons

Set buttons

ZOOM buttons

Speed buttons

PTZ panel

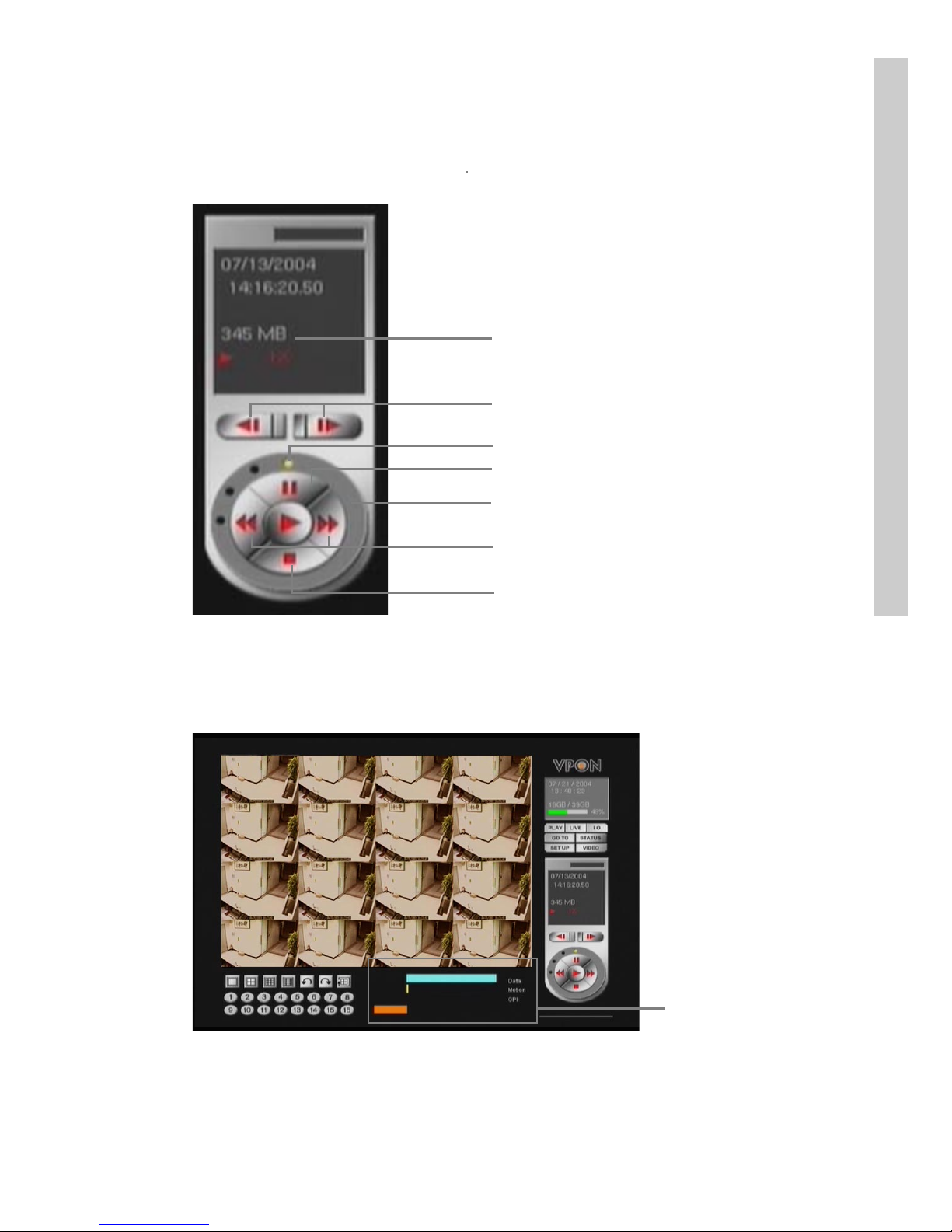

4.10 Play panel

Use the Play Panel to control playback of stored footage from the cameras. This panel is displayed when the PLAY buttons is pressed to play back a video recording.

The status of recorded data is displayed at the bottom of the screen.

The moving orange line indicates the cur rent playback status. Click anywhere on the Data, Motion, or GPI lines to start playback from the required point.

Play previous/next screen

Pause

Fast forw ard/rewind

File size

Speed indicator (1X, 1/2X, 1/4X, 1/8X)

Play

Stop

Recorded data status

Play panel

4.11 Setup

Click the Set Up button to display the set up menus used to configure the VP- 5804/5808. There are four parts to the Set Up menu – System Setup,

Record Setup, Alarm, and Motion Detection.

This section explains each of the menu pages in turn.

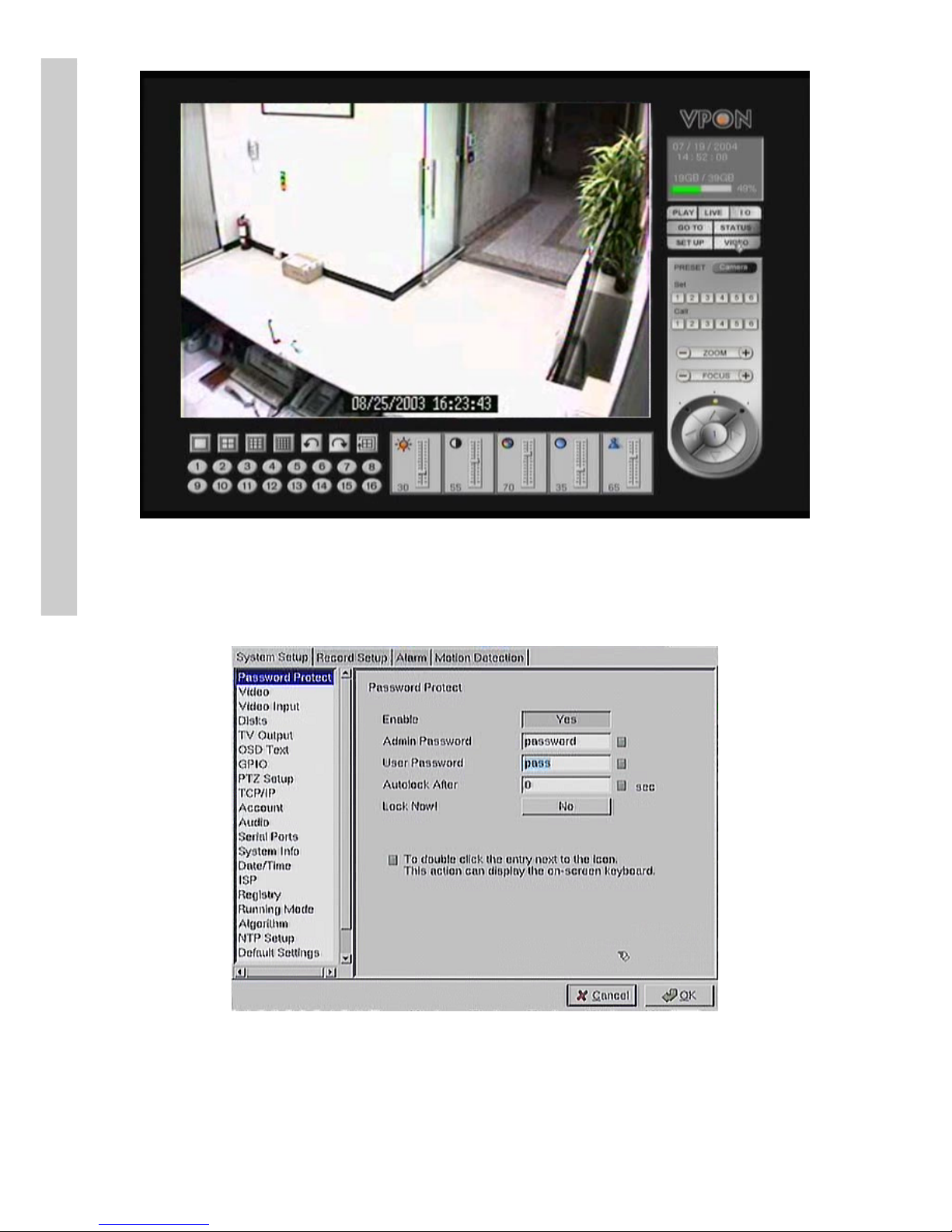

4.11.1 System setup Password protect

The Password Protect screen helps you to enable password protection, set administrator and user passwords, set the autolock period and lock the system immediately. Enabling password protection prevents unwanted users from accessing or configuring the VP- 5804/5808. For more information,

see Passeord protect on page 13.

Setup

System

Setup

Record

Setup Alar m

Motion Detection

On-screen keyboard icon

Enter new passwords for Admin and User in the corresponding fields. Set an autolock time if required in the Autolock After field. The autolock function locks the system after a given time and a password is required to unlock it. Click Lock Now! to lock the system immediately.

Note:If you do not have a keyboard connected to the

system, you can use the on-screen keyboard to enter your passwords. All the fields that can be edited using the on-screen keyboard are indicated by the on-screen keyboard icon. Doubleclick the field to display the on-screen keyboard. Use the mouse to enter characters for the required field.

Setup

Video

The Video menu enables you to set video parameters such as the video standard, the compression boost, and so on for each of the connected cameras. Refer to Video on page 15 for more information about the video parameters. Select the camera from the Camera drop-down box and fill in the details in each field as required using the mouse (recommended) or keyboard.

Video input

Use the Video Input menu to assign a number to each camer a connected to the VP- 5804/5808. Usually you will want to call the camera connected to port 1, “Camera 1” but you could assign it any number between 1 and 8.

Use the mouse or keyboard to set each camera number.

Setup

Disks

Use the Disks menu to configure network disks that the VP-5804/5808 uses to record data. If no disk is connected, (No Device) appears in the Disk Device field.

Use the keyboard or mouse to enter the IP address and Volume of any connected network disk. Click on the Test button to test if the drive is working correctly.

TV output

Use the TV Output menu to configure the video output for the VP-5804/

5808. The VP-5804/5808 can suppor t standard VGA computer monitors or

TV type screens. Set the device type, standard, outputs and other parameters. Set the Camera (From) and Camera (To) options to specify the range of cameras that are displayed in the cyclic display mode. Refer to

TV output on page 18 for more details about the various menu options.

Setup

Use the keyboard or mouse (recommended) to set each field. Ensure each field is set correctly before clicking OK. If parameters are set incorrectly it could result in the display becoming unreadable and very difficult to correct.

OSD text

Use the OSD Text menu to assign text for each of the connected cameras. For instance, you may like to have text saying “Warehouse” on the image

from a camera installed in the warehouse.

To displa y the OSD text:

1. Select the desired camera from the Camera drop-down box. 2 . Click the Enab le field to display the text.

3. Adjust the position of the te xt displayed on the image using the X and Y parameters. A value of X = 0 and Y= 0 would result in the text appearing at the top left corner of the camera image. Increas ing the value of Y moves the text down the screen. Increasing the value of X moves the test to the right. Enter the text to be dis played in the Text field.

4. Use the keyboard or mouse (recommended) to complete the fields and click OK to save chang es.

GPIO

The GPIO (general pur pose input output) menu enables you to view the status of the input and output devices such as switches, sensors, LEDs, and so on and view their status. These devices can be attached to the unit to turn exter nal alarms (outputs) on or off when the specified input changes. When an alar m has been triggered, the GPI and GPO that are connected will show the status of the input or output device. GPI devices will show

NC (nor mally closed) orNO (normally open) as the status of the switch.

Setup

Depending on the input, you can change the status of the GPO devices to On or Off as required.

Change the GPO status as needed. Make sure that the devices are working by checking the actual physical status of the inputs and outputs after mak-

ing changes in this menu.

PTZ setup

Use the PTZ (Pan, Tilt, Zoom) Setup menu to set the type of PTZ cameras connected to your VP- 5804/5808. Refer to PTZ setup on page 20 for

more information about PTZ camera setup.

Select the type of PTZ cameras used and set each camera that has one connected to Yes. The timeout value represents the time given to the cameras to respond to a command.

Use the keyboard or mouse (recommended) to complete each field and click

OK to save changes.

Setup

TCP/IP

Use the TCP/IP menu to enter TCP/IP address details for the VP-5804/

5808. See TCP/IP on page 21 for more details.

Use the keyboard or mouse (recommended) to complete each field and click

OK to save changes.

Account

Use the Account menu to set up an administrator name and password as well as the super user name and passwords. You can also use this menu to set up to 256 additional users, their passwords and their permissions on the system. Select the user number and assign a Name and password to it. Click the PTZ, Playback, and Audio fields to enable access to these properties for the selected user. Select the cameras that you want the user to have access to and set them to Yes.

Setup

Note:It is important that you set up the super user

name and password. The super user is different from the administrator and has access to only the video. Use the More Users field to change the authorities of Internet users.

Use the keyboard or mouse (recommended) to complete all the fields and click OK to save changes.

Audio

Use the Audio menu to set parameters such as Mic Gain, Speaker, Mic Timeout, and Speaker Timeout. You can also perform a self test to test if

the microphone and speaker are working correctly. Refer to Audio on page 24 for more information.

Use the keyboard or mouse (recommended) to set the audio properties. Click OK to save changes.

Setup

Serial ports

The RS232 serial ports (COM1,COM2,COM3 and COM4) are used to attach PTZ camera control cables, external modems, or GPIO modules to the VP- 5804/5808. Use the Serial Port menu to set parameters for the two serial ports. Refer to Serial ports on pag e 25 f or more information about the various fields.

Use the keyboard or mouse to set all parameters and click OK to save changes.

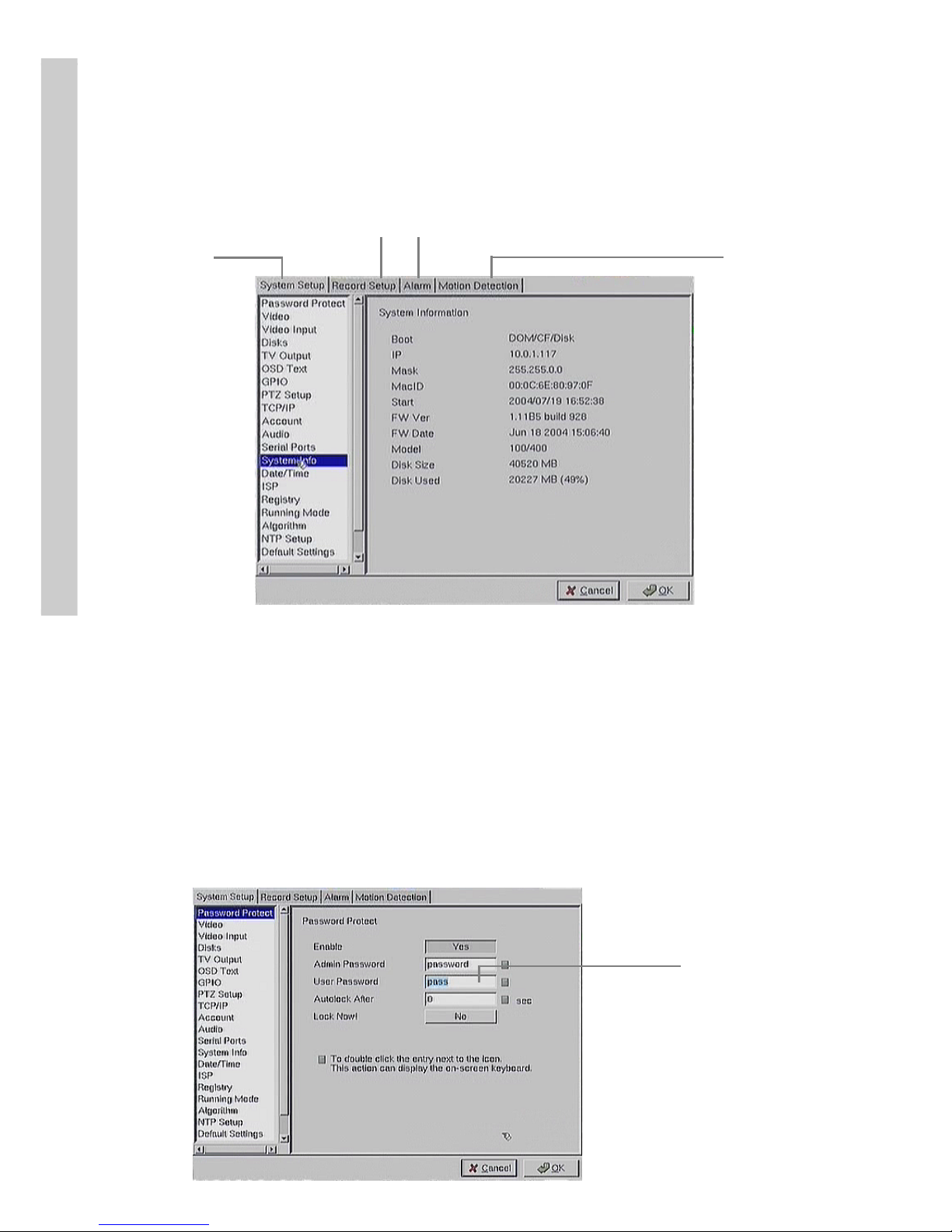

System info

Use the System Info menu to display the system information such as disk parameters, TCP/IP properties, firmware infor ma tion, and so on, on the screen.

There are no configurable fields on this page. Click OK or Cancel to leave

Setup

the screen.

Date/Time

Use the Date/Time menu to set the precise time and date on the system. You can also set the local time zone in the T.Zone field.

Use the keyboard or mouse to set all fields and click OK to save changes.

ISP

If you are using dial-up access to the Internet, use the ISP menu to enter details of your Internet Service Provider.

Use the keyboard or mouse (recommended) to complete all fields and click

OK to save changes.

Setup

Registry

The Registry menu enables you to set up the registry server for your device. If you are using a dynamic IP address for the VP- 5804/5808, you can set up the device to post its IP address to the VPON registry ser ver. You can then look up your IP from the MAC address or server name. You can also use the registry server to give a name to the VP-5804/5808 as described in Set names and on-screen dis-play on page 83.

Use the keyboard or mouse (recommended) to complete all fields and click

OK to save changes.

Running mode

Use the Running Mode menu to switch between Network Mode and ISP Mode, and between Mouse Mode and IR Control Mode. Refer to Running modes on page 5 for more details about changing the running mode.

Setup

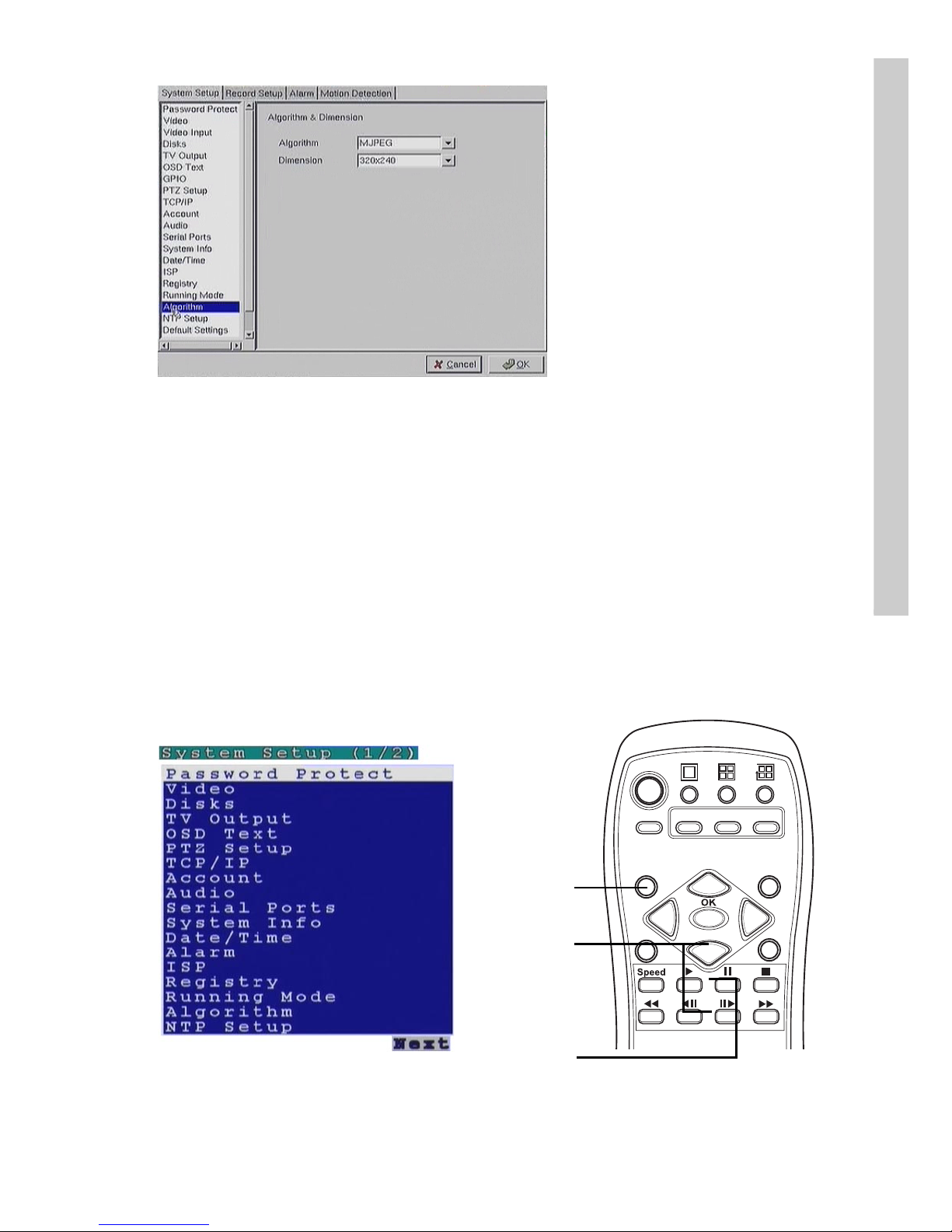

Algorithm

Use the Algorithm option in this menu to set the compression algorithm used while recording video. Use the Dimension option to set the resolution of the video. Refer to Algorithm on page 35 for more details about compression algorithms.

Use the keyboard or mouse (recommended) to complete each field and click

OK to save changes.

NTP setup

Use the NTP Setup menu to enter details of the Network Time Protocol (NTP) ser ver used to synchronize the time of the device with the network.

Use the keyboard or mouse (recommended) to complete all fields. After making the changes, click on the Test & Save button to verify that the server is operational. Click OK to save changes.

Setup

Default settings

Use the Default Settings menu to reset all configurable parameters to their factory default settings.

Click Restore Defaults?(Yes/No) to restore defaults. Click Cancel or No to retain the current settings.

Revise firmware

Use the Revise Firmware menu to upgrade the VP- 5804/5808 fir m ware.

Click Revise Firmware?(Yes/No) to start the firmware upgrade process. Click Cancel or No to abor t the attempt.

Setup

Reboot system

Use the Reboot System menu to reboot or shutdown the system.

Use the keyboard or mouse to select either Shutdown or Reboot. Click OK to perfor m the operation. Click Cancel or No to abandon.

4.11.2 Record Setup DVR setup

Use the DVR menu under the Record Setup tab to set the Digital Video Recorder parameters.

Select either Auto Stop or Cyclic Recording. Auto Stop recording stops when disk space r uns out. Cyclic Recording continues to record until disk space runs out and then overwrites the oldest records. Click OK to save

changes.

Setup

Record schedule

Use the Record Schedule menu under the Record Setup tab to set up automatic recording schedules for each camera. You can set up to 16 record schedules that automatically record at given times and days. Refer to Record schedule on page 37 for more infor mation a bout the various fields

in this menu.

Use the keyboard or mouse (recommended) to complete all fields and click

OK to save changes.

GPI trigger

Use the GPI Trigger menu under the Record Setup tab to enable record- ing video from specified cameras when trig gered by an external alar m (GPI) connected to the system. For instance, you may want to record video from a camera installed at your front door when the door lock is opened. In this case, connect an alarm module (not provided) to the door lock and set the

front door camera to start recording.

Setup

To set up the GPI trigger:

1. Select the required trigg er from the GPI Trigger option.

2. Click Enable to allow the triggered recording. 3 . Enter the recording time interval in the Record Time (sec) field.

4. Click the cameras whose video you want to record after the trigger

is generated and set them to Yes.

5. Use the keyboard or mouse (recommended) to complete all fields

and click OK to save chang es.

Pre-Alarm

Use the Pre-Alar m menu under the Record Setup tab to determine how many frames are recorded before an alarm event occurs. Each camera can be set separately and you can record up to 300 frames.

Use the keyboard or mouse (recommended) to enter the number of fr ames for each camera and click OK to save changes.

4.11.3 Alar m Alar m setup

Use the Alar m Setup menu under the Alarm tab to define what action is taken when an alarm is triggered. Through this menu, you can set up an Email address to which an E-mail is sent when the alarm is generated, or set up the device to display a video popup message on your monitor, or place a voice call.

Setup

Refer to Alarm on page 27 for more information about the various fields.

The Voice Call options enable you to set up a voice modem that will make a call when the selected event (such as a GPI or motion alarm, or video lost from a camera) occurs. Set the following options:

• Redial – sets the number of times the voice modem will redial

• Voice Repeat – sets the number of times the voice message is

repeated on the voice call

• Rec. Time – sets the time for which audio is recorded

• Modem Speaker –

sets the internal or external speaker to be used

• Voice File – selects the voice file to be sent

• Edit File Name – enables you to change the file name of the

voice file

Use the keyboard or mouse (recommended) to complete all fields and click OK to save changes. Refer to the following sections to see how to select the voice call as the action for specific events such as GPI alarm, motion

detection, and so on.

Setup

Note:The Voice Call options will be greyed out in the

menu system if the voice modem function is not selected in the serial port setup menu. Make sure that a voice modem is enabled in device field in the Serial Ports menu item in order to place voice calls. See Serial ports on page 60 for more details.

Voice call features

• A voice call message can be recorded using an inter nal or exter nal microphone, and can be played back using an internal or exter nal speaker.

• Up to 60 voice messages can be recorded and stor ed on the VP5804/5808 and used for different alarm events.

• Messag es recorded for the voice call function must be between 5 and 10 seconds.

Known issues with the voice call function

• T here will be three seconds silence between a voice call being answered and the start of the message.

• If the voice call function calls a phone with an automatic answering machine, the VP-5804/5808 will behave as if the phone has been answered.

• T he VP-5804/5808 does not support non standard ringing tones. If the VP-5804/5808 calls a phone and an unexpected tone is received, an error message will be generated.

Setup

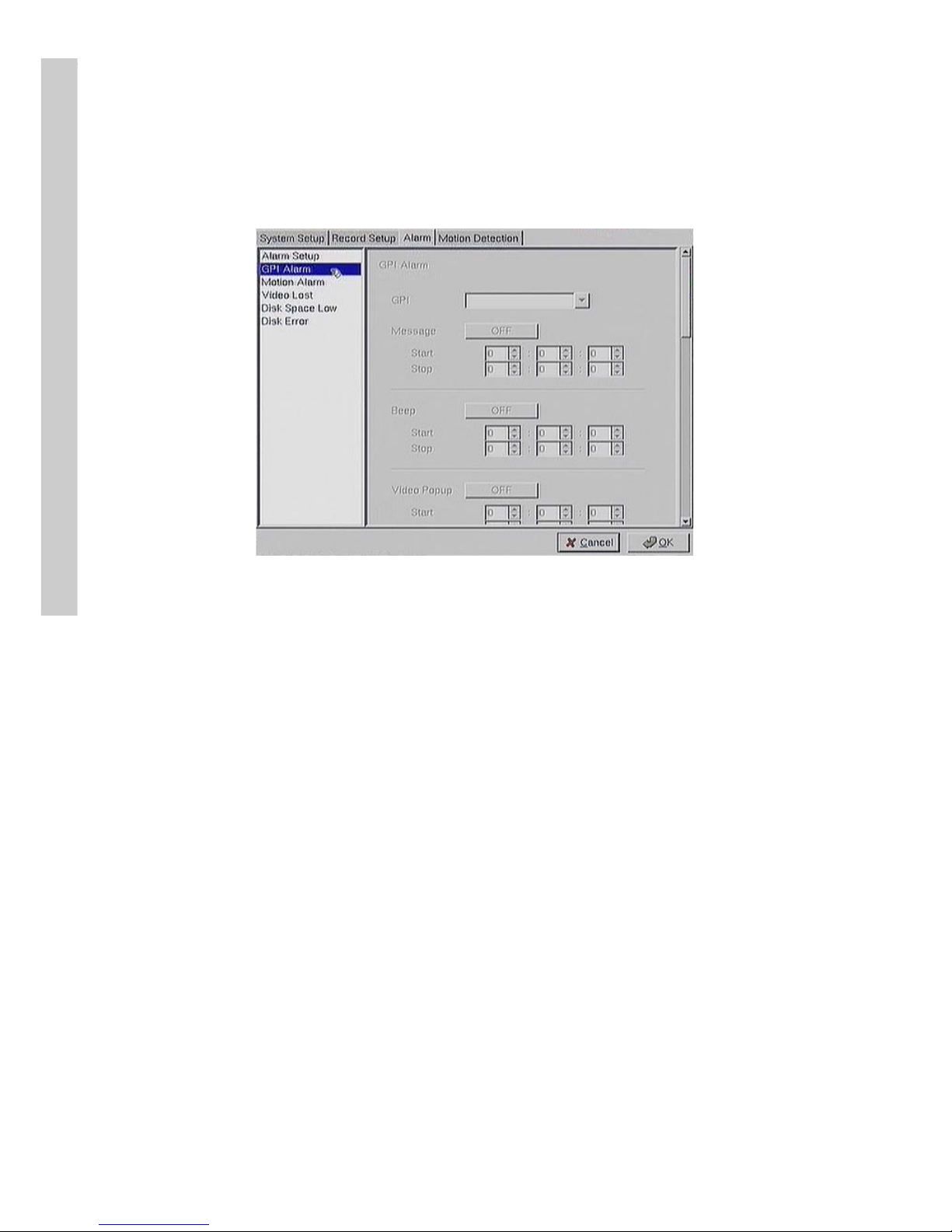

GPI alarm

Use the GPI Alar m menu under the Alarm tab to set what actions are taken when a GPI alarm is generated. You can set up the alarm through a message, a beep, a video popup, or E-mail. Refer to Alarm on page 27 for more details about the actions.

Use the keyboard or mouse (recommended) to select the required GPI from the GPI drop-down box and complete all fields. For each action, you can specify the time inter val over which the GPI is monitored for an alarm to be generated. For the Voice Call option, specify two telephone numbers where the call may be placed along with the voice file. For setting up the voice call . For the E-mail option, specify the recipient, subject, and text of the E-mail along with which of the cameras’ status is sent in the E-mail and the start and stop times. Click OK to save chang es.

Setup

Motion alar m

Use the Motion Alar m menu under the Alarm tab to set what actions are taken when a motion detection alarm is generated. You can set up the alarm through a message, a beep, a video popup, a voice call, or E-mail. Refer to

Alar m on page 27 for more details about the actions.

Use the keyboard or mouse (recommended) to select the required camera for motion detection from the Camera drop-down box and complete all fields as

described in GPI alarm on page 71. Click OK to save changes.

Video lost

Use the Video Lost menu under the Alarm tab to set what actions ar e taken when video signal from a camera is not available. You can set up the alarm through a message, a beep, a video popup, a voice call, or E-mail. Refer to

Alarm on page 27 for more details about the actions.

Use the keyboard or mouse (recommended) to select the required camera for video lost from the Camera drop-down box and complete all fields as

Setup

described in GPI alar m on page 70. Click OK to save changes.

Disk space low

Use the Disk Space Low menu under the Alarm tab to set what actions are taken when the disk space is insufficient to record data. This alarm is generated only when the DVR mode is set to Auto Stop. (See DVR setup on page 66.) You can set up the alarm through a message, beep, voice call, video popup, or E-mail. Refer to Alarm on page 27 for more details about

the actions.

Use the keyboard or mouse (recommended) to complete all fields as described in GPI alar m on page 71. Click OK to save changes.

Disk error

Use the Disk Err or menu under the Alarm tab to set what actions are taken when there is an error while accessing the disk. You can set up the alarm through a message, a bee p, a video popup, or E-mail. Refer to Alarm

on page 27 for more details about the actions.

Setup

Use the keyboard or mouse (recommended) to complete all fields as described in GPI alar m on page 71. Click OK to save changes.

4.11.4 Motion detection

Use the Motion Detection page to set motion detection parameters for each camera.

Each small square on the displayed grid can be set to detect motion. Use the left mouse button to make a square sensitive to motion. Use the Right mouse button to make it insensitive. Click OK to save changes.

Setup

5. network operation

5.1 Intr oduction

The VP- 580 can be used and configured using either the supplied remote control unit or with a keyboard and mouse. It can also be configured over a network using a terminal with a standard web browser. T his chapter covers network operation.

5.2 Connecting

The VP- 580 GUI can be viewed on a standard inter net browser when the device is connected on the same network as your PC or if it is connected through a cable or xDSL modem to the Internet. Refer to the hardware manual for more information about making connections using the RJ-45 Ethernet (LAN) port.

Make sure that the VP- 580 is configured for Network running mode. See

Running modes on page 5 for more information. To access the VP- 580 GUI:

1. Open a browser window on a terminal that has network access to the VP- 580.

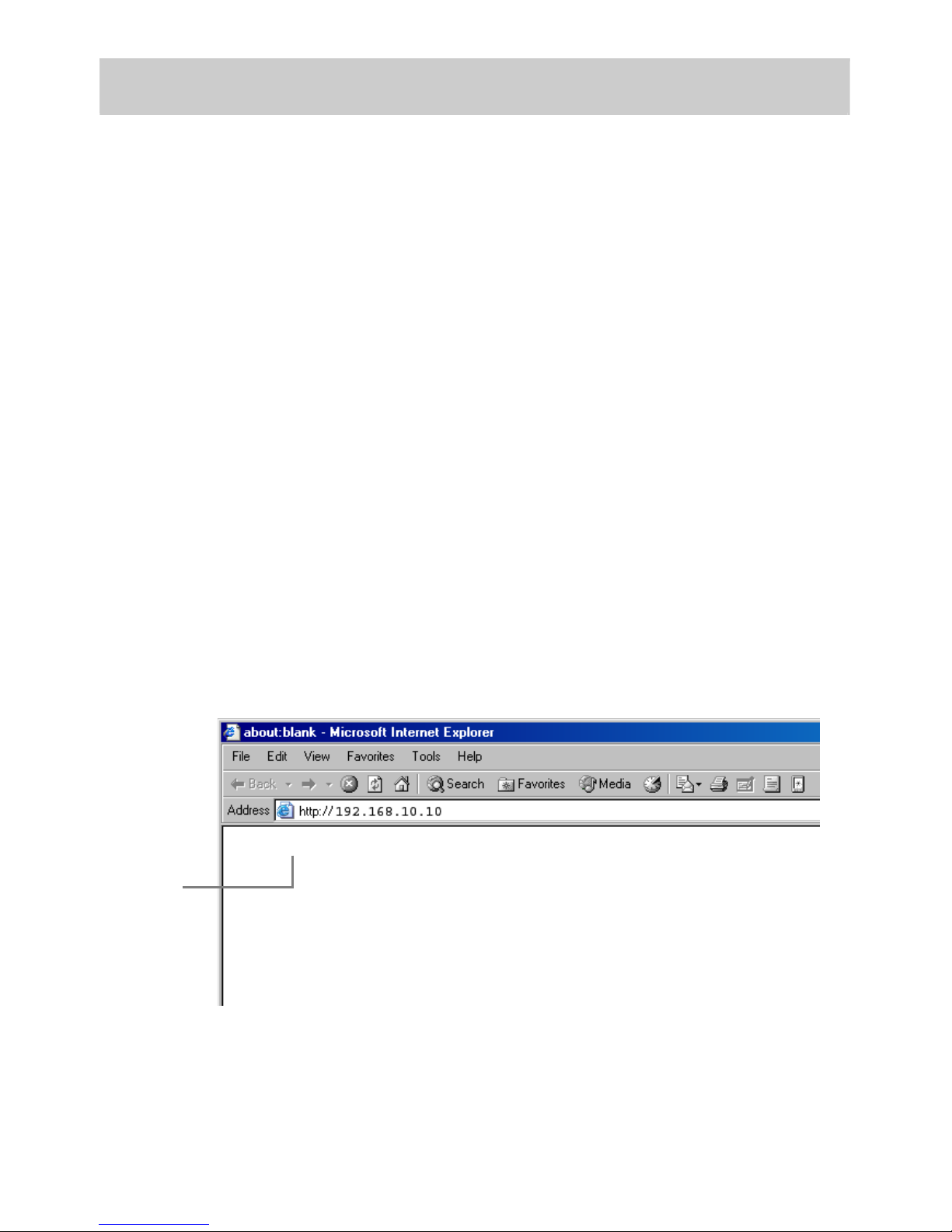

2. Type the IP address of the VP- 580 in the browser address bar.

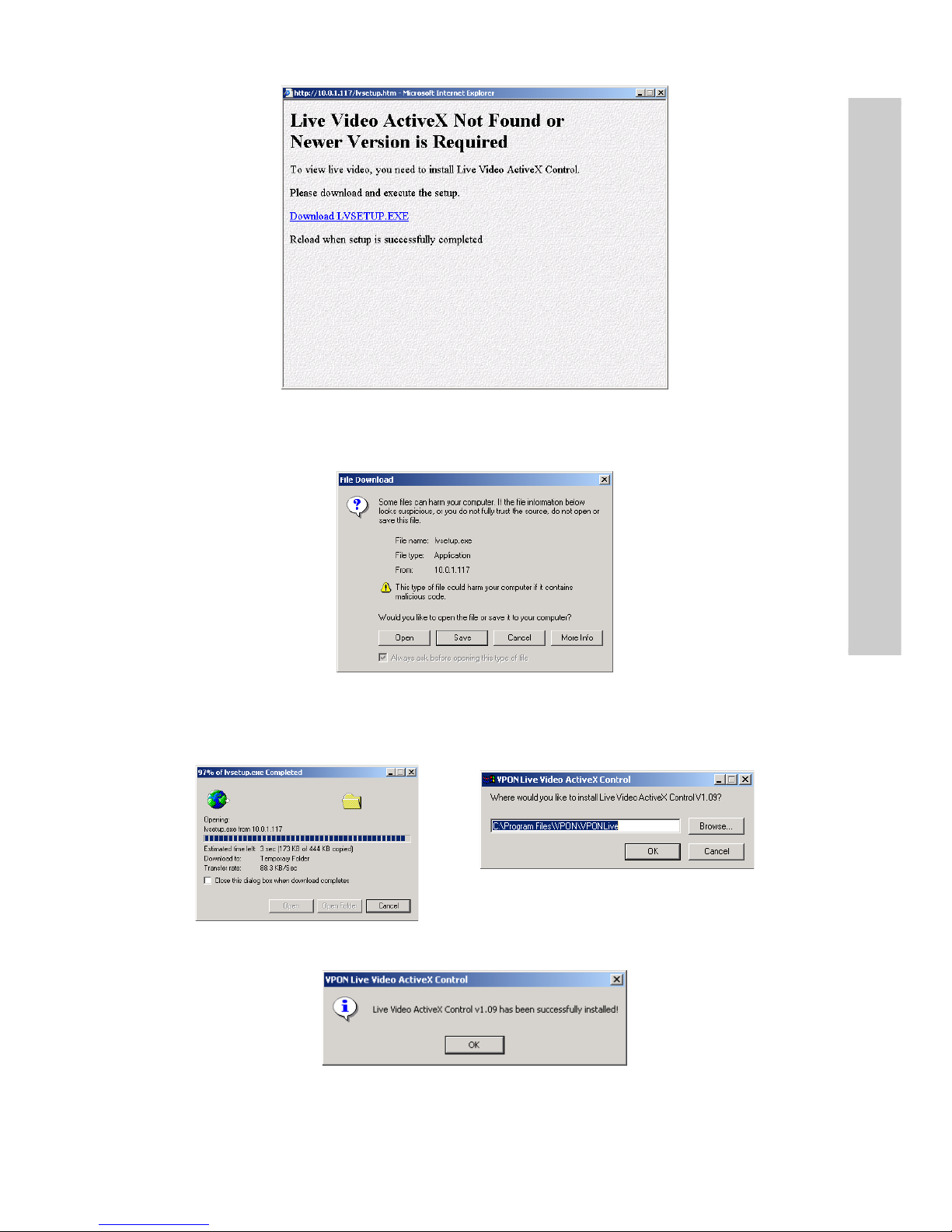

The first time you attempt to view the VP- 580 user interface using a web browser, an ActiveX installation procedure will begin automatically.

When the following window appears, click on the Download LVSETUP.

Browser

address bar

EXE link.

The download will begin and the following window will appear.

Click Open to download and install the new plug-in. The download status is displayed and you are prompted for an installation location.

Click OK to complete the installation. The following message will appear.

When installation is complete you will be able to view the VP- 580 Home Page.

Connecting

The ActiveX installation will only happen once.

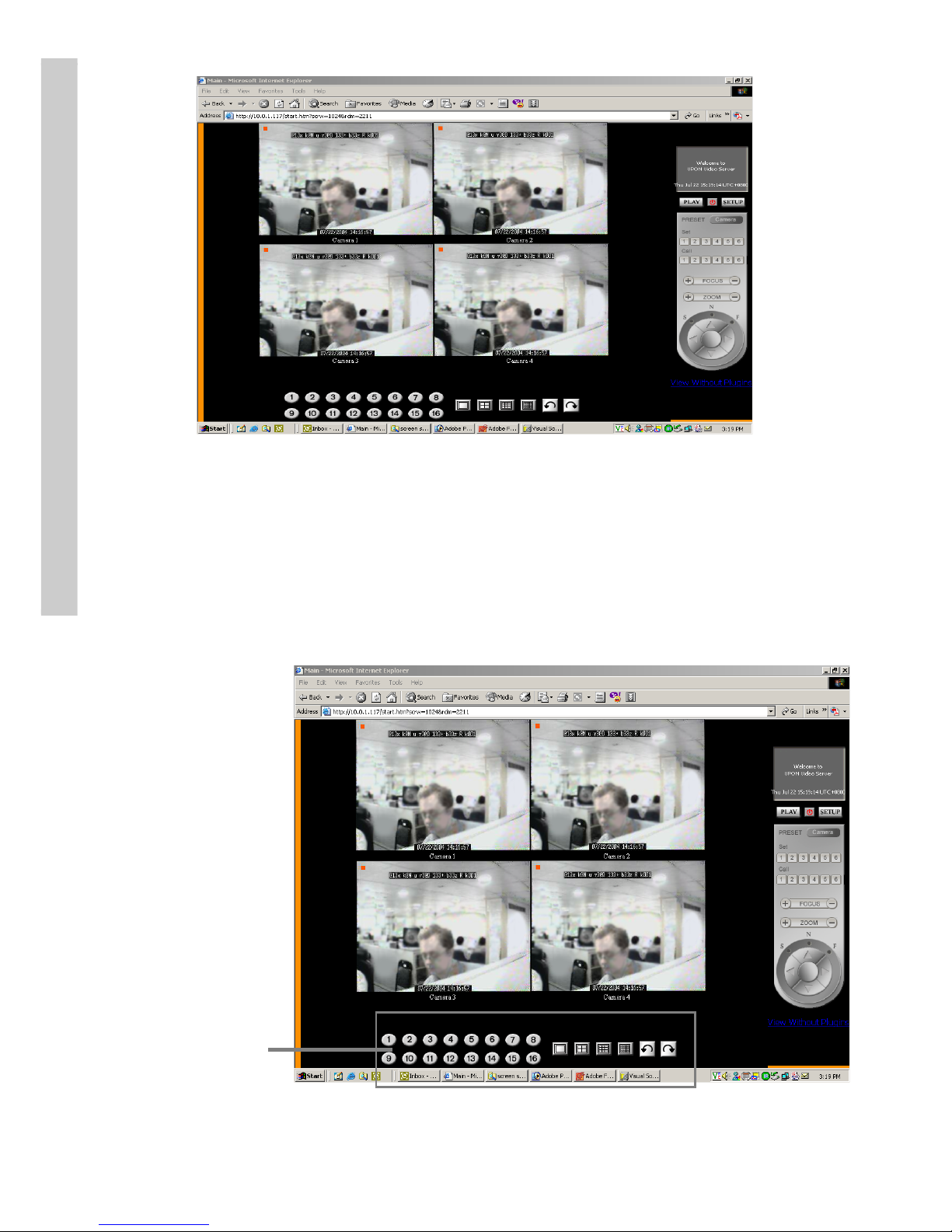

5.3 Sur veillance screen panel

The Surveillance Screen Panel is ver y similar to the one on the local GUI. See Sur veillance screen panel on page 47.

There is no Sequence button on the network GUI. This feature is only available on the local GUI.

Surveillance screen panel

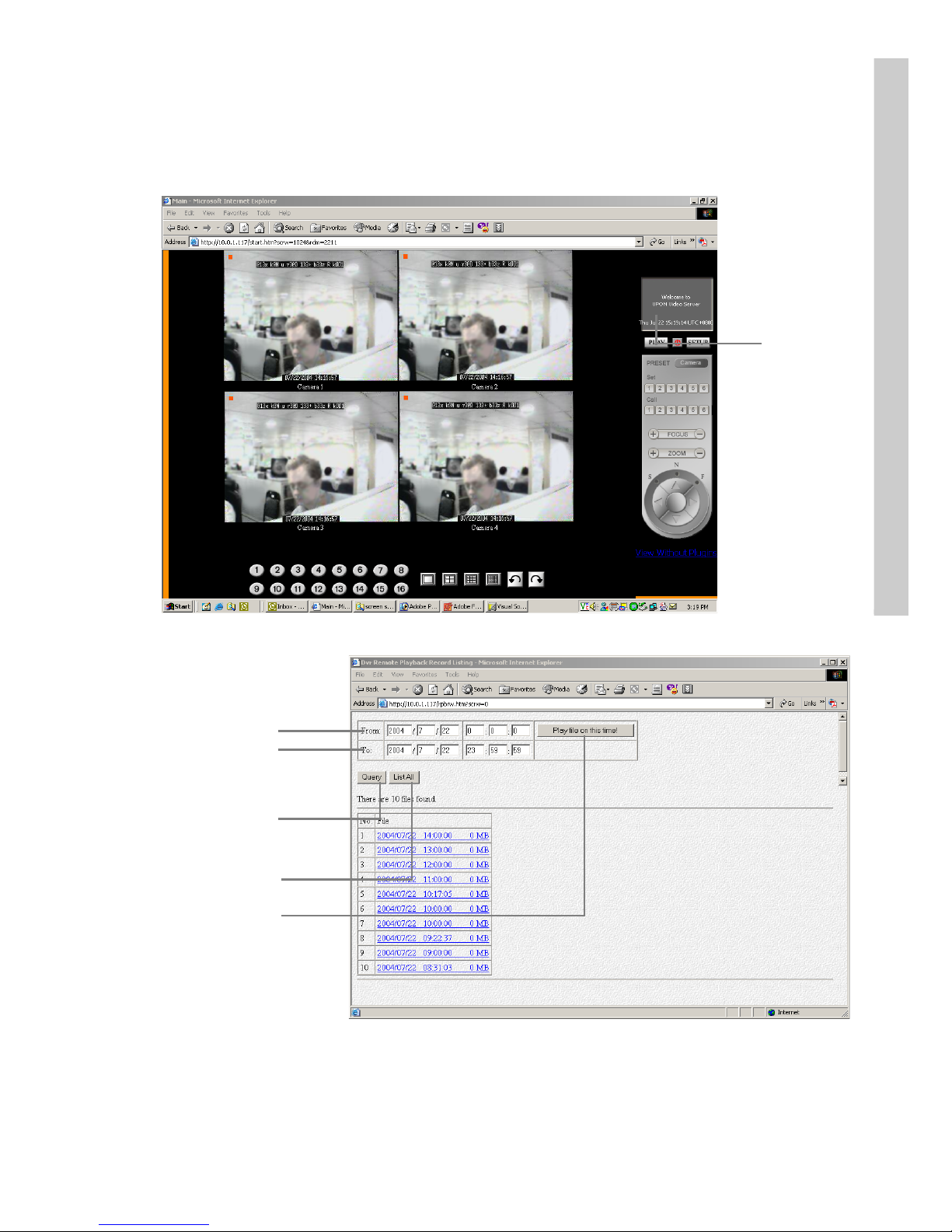

5.4 Play button

Click the Play button to display a list of all the available recordings stored on the VP- 580 in a new browser window.

Click List All to display the entire list.

Click on a video recording to play it in a separate browser window. Play a recorded video from a specific time and date by entering the time and

date in the From field and clicking Play file on this time.

Play button

Query button

List all button

Play file on

this time

button

From field

To field

Search for files between particular times and dates by entering the dates in the To and From fields and clicking Query.

5.5 PTZ panel

The network GUI PTZ panel is exactly the same as the local GUI PTZ panel. See PTZ panel on page 51.

5.6 System Setup

Click the SETUP button to display the setup screen.

Setup button

PTZ panel

Use the setup screen to change user definable parameters for the VP- 580.

Choose a submenu from the list on the left and click the link to display it.

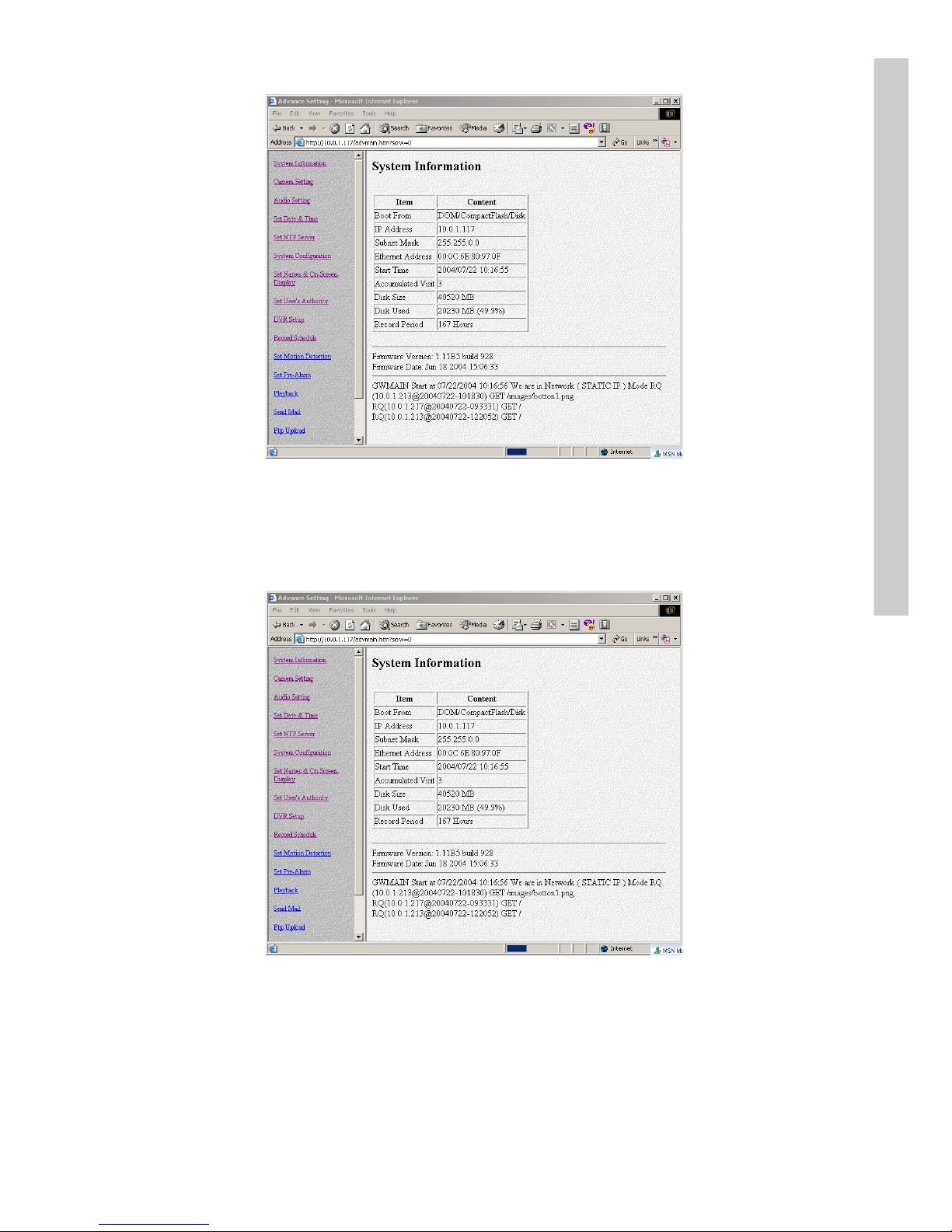

5.6.1 System infor mation

Click the System Information link to display the System Information page.

No information on this pa g e is changea ble.

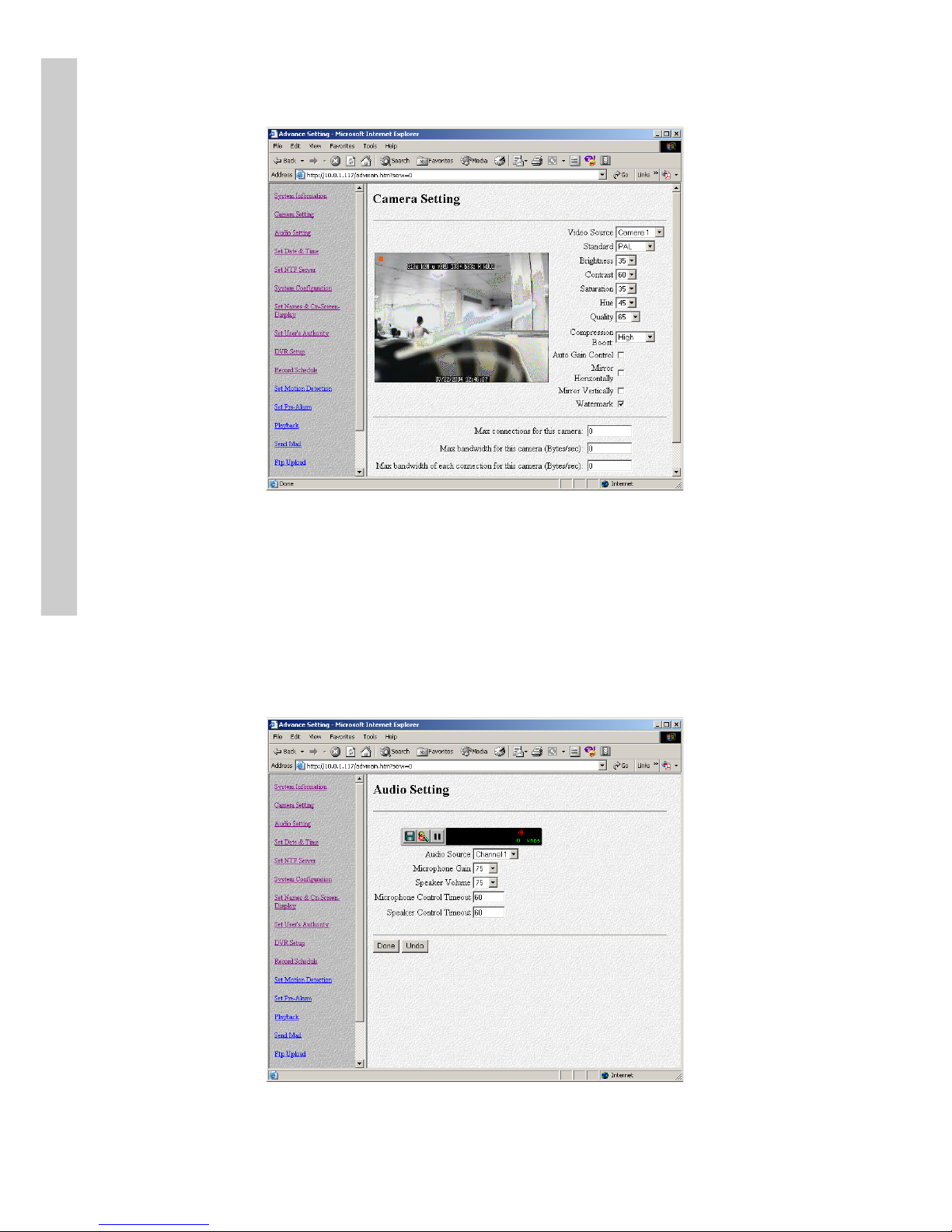

5.6.2 Camera setting

Use the Camera Setting page to change the video settings for each of the connected cameras. Refer to Video on page 15 f or more information about the parameters. Each setting can be changed using the drop down menus and check boxes.

System Setup

You can also enter a maximum number of connections allowed for each camera and maximum bandwidths.

5.6.3 Audio setting

Use the Audio Setting page to define all the audio settings for the VP- 580. Refer to Audio on page 24 for more information about the various parameters. The VP- 580 supports two-way audio transmission between the device and the PC. But audio can only be recorded from the VP- 580 on the PC and not vice versa. The microphone and speaker time-out intervals represent the time inter val of no signal after which the device is timed out.

5.6.4 Set time and date

System Setup

Use the Set Time and Date page to set the time and date. Select a time zone from the drop down menu and enter new local time and date using the keyboard. Click Done when all fields are updated. Click Undo to revert to original settings. If you change the time zone, the system will reboot.

5.6.5 Set NTP server

Use the Set NTP Ser ver page to set parameters for a NTP (Network Time Protocol) ser ver to synchronize the device time with the atomic clock. Select a ser ver and enable it using the drop down menus. Enter a time period using the keyboard to indicate the period after which the time is resynchronized. Click Done when all parameters are entered correctly. Click

Undo to revert to original settings.

System Setup

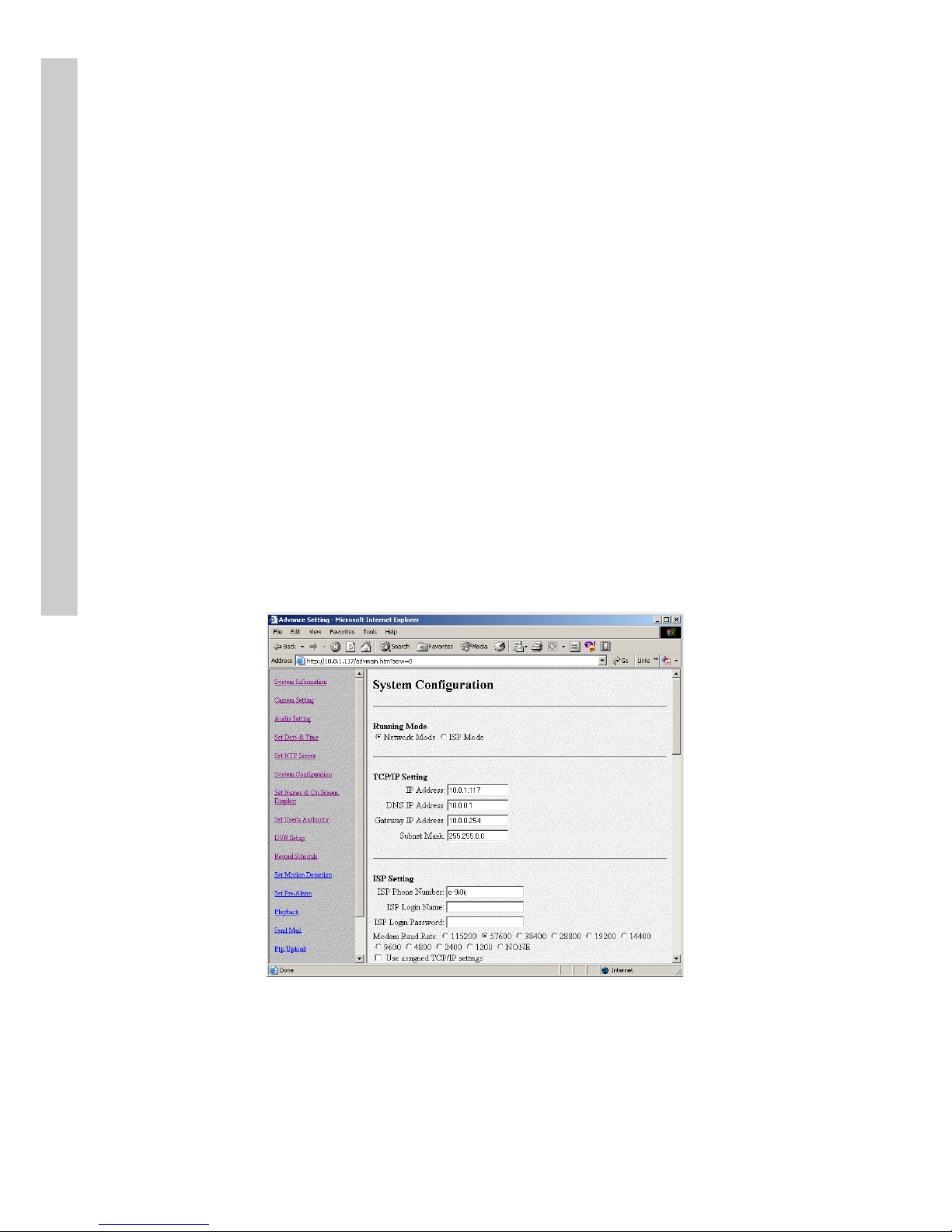

5.6.6 System configuration

Use the System Configuration page to set the following parameters for the VP- 580.

• Running mode – sets the operation and control mode. See

Running modes on page 5 for more details.

• TCP/IP setting – configures TCP/IP.

• ISP setting – sets up dial-up parameters for sending E-mails. See

ISP on page 33 for more information.

• Account Setting – sets up the administrator and user, and

theirpasswords.

• COM1/2 Por t Setting – sets up the serial por ts. See Serial por ts

on page 25 for more details.

• Set Video Compression Algorithm & Resolution – sets the

video compression algorithm. See Algorithm on pag e 35 for more information.

• Set Camera Control – sets PTZ control for the cameras. See

PTZ setup on page 20 for more details.

• Set IP Registry Host IP Address & Path – sets up the registry

server. See Registry server on page 34 for more information.

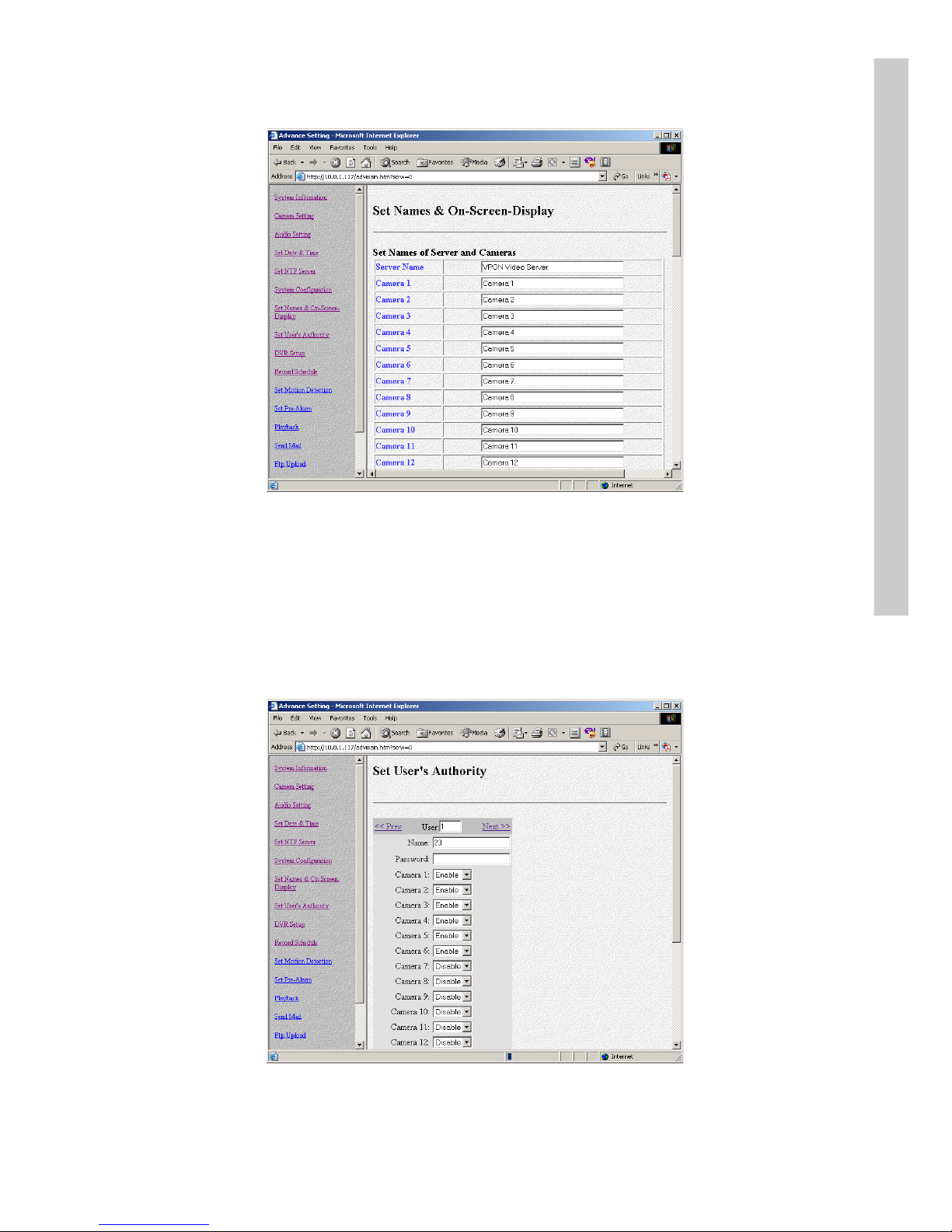

5.6.7 Set names and on-scr een display

Use the Set Names and On-Screen Display page to set names for the ser ver and all cameras. You can also use this page to enter the text to be displayed on screen with each camera under the Set Overlay Text option.

Use the x and y fields to define the position of the displayed text. Use the

System Setup

Set Time Stamp option to define the format of the time stamp and where it appears on the display for each camera.

5.6.8 Set user’s authority

Use the Set User’s Authority page to set the individual privileges of up to 256 users. Enter the user number in the User field. Assign a name and password in the respective fields. To restrict users from viewing particular cameras, select the required cameras from Camera 1~16. Enable Camera

Control, Audio and Playback of the video recording as needed.

System Setup

5.6.9 DVR setup

Use the DVR Setup page to set the recording mode to either Autostop (stops when disk space runs out) or Cyclic Recording (overwrites oldest recordings when disk space runs out).

5.6.10 Record schedule

Use the Record Schedule page to set up to 16 automatic recording schedules. For each record schedule, select the day, and start and stop times for recording. For each camera, select off, Nor mal Recording, or Motion

Detection Recording to record only when motion is detected. Enable Audio if you want to record audio also. Select a Frame Rate of recording

for each camera.

System Setup

5.6.11 Motion detection

The Motion Detection pag e enables you to set the motion detection feature for each camera. You can adjust the area in the camera’s field of vision that will checked for motion. Click on the grid to enable or disable motion detection. The red rectangle in the upper left cor ner indicates that motion is being detected. See Alar m on pag e 27 for more information about the motion detection feature.

5.6.12 Set pre-alar m

The Set Pre-Alarm page on the network GUI enables you to set the num- ber of frames that are recorded from each camera before a trigg er is generated. Up to 300 frames can be recorded.

System Setup

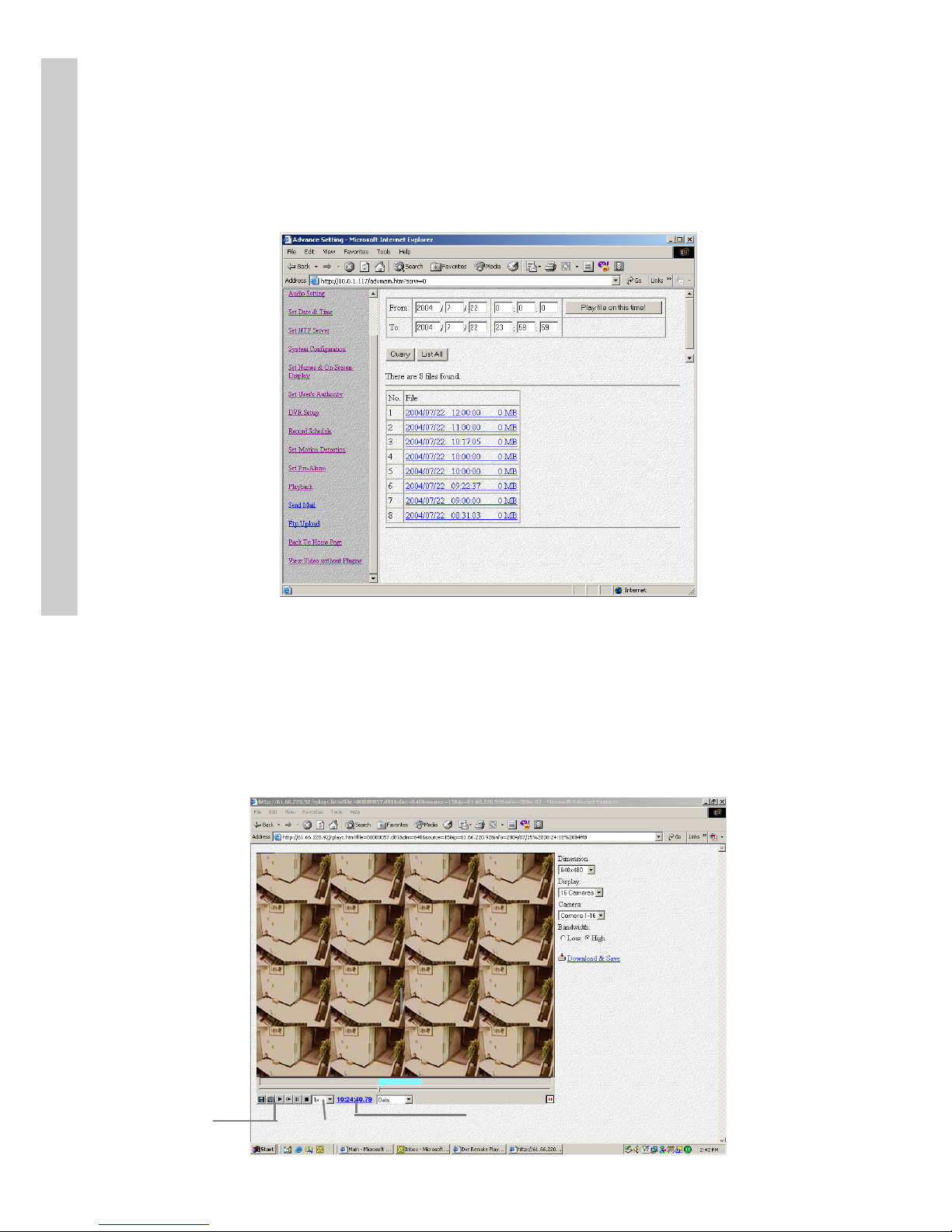

5.6.13 Playback

The Playback page enables you play back a video recording of your choice. Specify the day and time in the To and From fields and click the Play file

on this time! field to play back files in the specified time duration. Click List All to list all recorded files. Click Query to search for a particular file

based on Event or Text. Click a file to play it back .

The file plays back in the browser window with the status at the bottom. Specify the resolution in the Dimension field. Select the camera whose video you want to watch in the Camera field and select the number of cameras (1, 4, or 9) in the Display field.Specify a high or low Bandwidth and click Download&Save to save the video recording to your local disk. Select Data, Motion, or GPI to view the status of the recorded file and the in-

stances where the recording was trig g ered by motion detection or GPI.

Snapshot

Playback start

Playback speed

System Setup

Note:The playback start time can be changed to

jump to any time during the recording. Click on the playback start time and chang e the time using the keyboard.

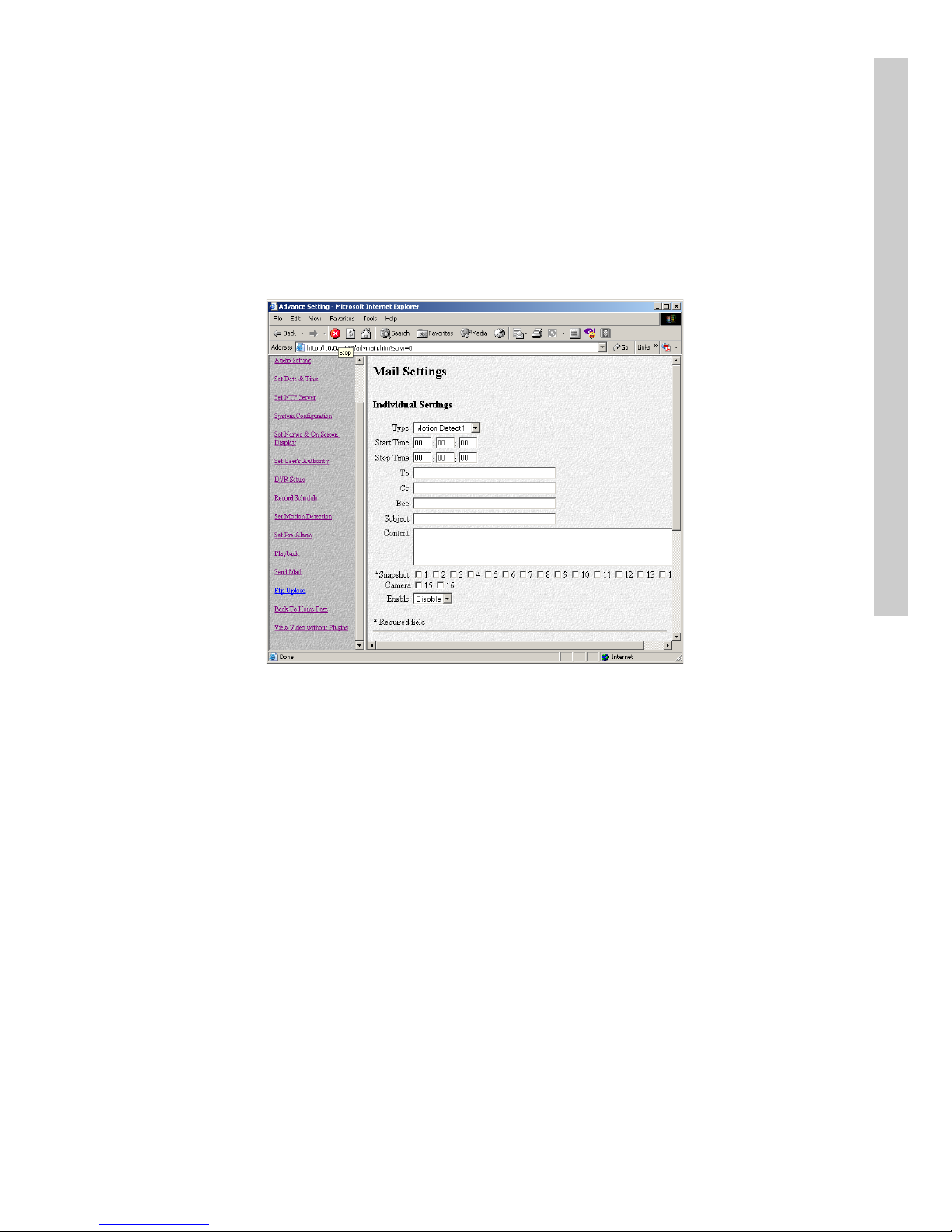

5.6.14 Send mail

The VP- 580 can send a snapshot by E-mail when trig g e red by an alarm. Use the Send Mail page to set E-mail details for each camera.

Under the Individual Settings, specify the type of event that causes the Email to be sent in the Type field by choosing Motion Detect or GPI. Fill in the start and stop times for monitoring the alar m , the recipients, subject and content of the E-mail. Enable a snapshot of the camera’s video to be attached to the E-mail by selecting cameras in the Snapshot option.

Under the Global Settings, fill in the mail server details. Fill in the details using mouse and keyboard and click Done when complete.

Note:If you set a domain name in the mail server

setting, provide the DNS IP address in the System Configuration (see System configura-

tion on page 83 ).

System Setup

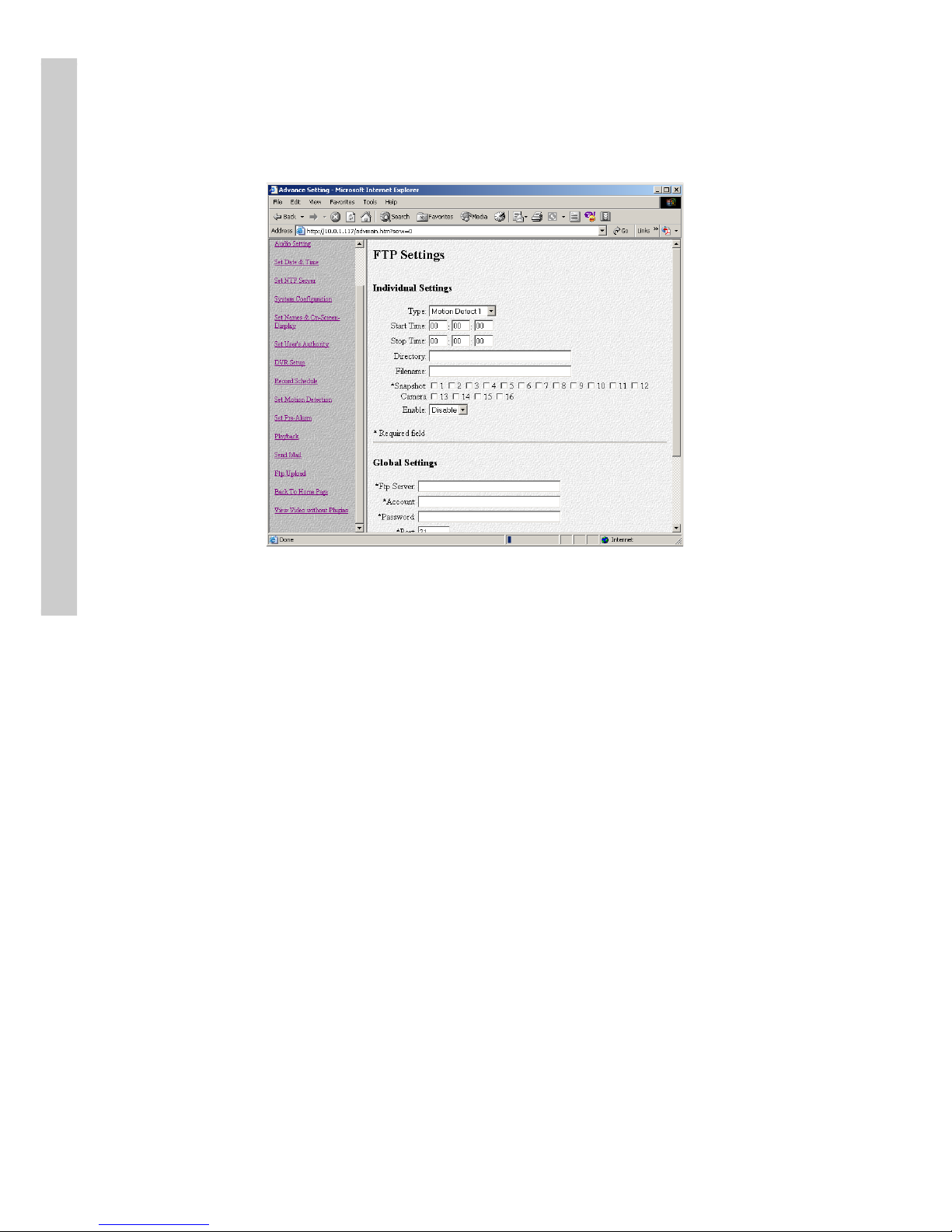

5.6.15 FTP upload

The VP- 580 can upload snapshots from the camera using FTP to a predefined location in the event of an alarm. Use the FTP Upload page to set FTP details.

Under the Individual Settings, specify the type of event that causes the Email to be sent in the Type field by choosing Motion Detect or Continu- ous. Fill in the start and stop times for monitoring the alarm, the file name and directory for FTP. Ena ble a snapshot of the camera’s video to be uploaded by selecting cameras in the Snapshot option.

Note:If you specify a file name, each time a file is

uploaded it will overwrite the previous file with another of the same name. If no file name is specified, a new file will be written each time with a new filename based on the time and date.

Under the Global Settings, fill in the FTP server, account, password, and port number. Fill in all the details using mouse and keyboard and click

Done when complete.

5.7 Back to home page

The Back To Home Page link will redirect you back to the VP- 580 home page.

Back to home page

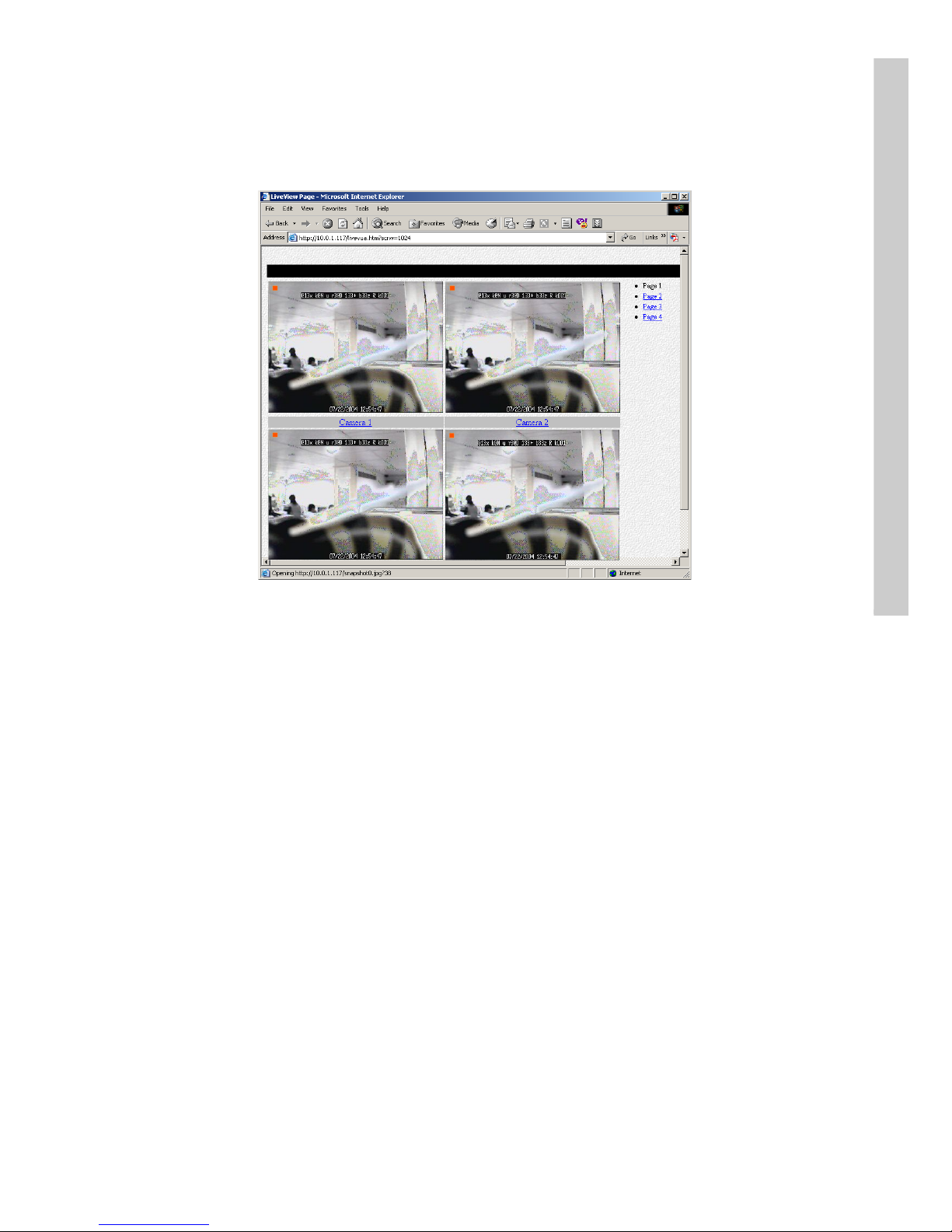

5.8 View video without plug-ins

You can view video even if the machine you are working on does not have the plug-ins necessary for full functions. Click the View Video Without Plug-ins link to view the video page without plugins.

You will need to enter an administrator user name and password to view without plug-ins.

Note:Your browser must be configured to support Java

applets to view without plug-ins.

View video without plug-ins

Appendix

Troubleshooting

Cannot control PTZ camera

• Check cable connection and camera power.

• COM port parameters are not correct, or the PTZ device is not

compatible.

• ID of the PTZ camera is not set correctly.

• Switch both VP- 580 and PTZ camera off and on a g ain.

• VP- 580 does not suppor t this type of PTZ camera.

Cannot access VPON from browser in network mode.

• Verify the network cable is well connected to the hub and the

network is good.

• Make sure you are using an appropriate IP address for the

network.

• Clear the ARP list.

• If you are running MS Proxy Client on your PC, and the IP

address assigned to the VP- 580 is not a valid local IP on the network, allocate a valid local IP address to the VP- 580 or disable MS Proxy Client from the Control Panel.

• If you can ping the IP address of the VP- 580, disconnect VPON

from network and ping this IP again. If there is a response, then you have a duplicated IP address on the network.

• Clear your browser cache and configure the browser to check for

newer versions of the web page on every visit.

• If you still cannot access the VP- 580, disable proxy settings in

your browser.

You can access the VP- 580 on the intranet, but not on the Internet.

• Verify your intr anet is connected to the Inter net.

• Verify if a valid public IP is assigned to the VP- 580 or a valid

public IP is mapped to a valid local IP assigned to VP- 580.

No video.

• Reload the page.

• Clear your browses cache and configure the browser to check for

newer versions of the web page on every visit.

You can access video on the intranet, but not across the Inter net:

• Check firewall and proxy server settings. The VP- 580 uses

standard HTTP protocol and port 80. It might be necessar y to enable video MIME types (video/x-nficwmh263 and video/xnficwmhjpeg) for the VP- 580 to be granted access by your firewall or proxy server. Also check if large data transmission is permitted.

• Disable proxy ser ver settings in your browser.

Browsers stops responding to mouse clicks

• Too many video strings are open.

• You are opening more than one video string from the same

camera.

• Your PC is too slow, upg r ade your system.

Vpon VP-580 Software User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
