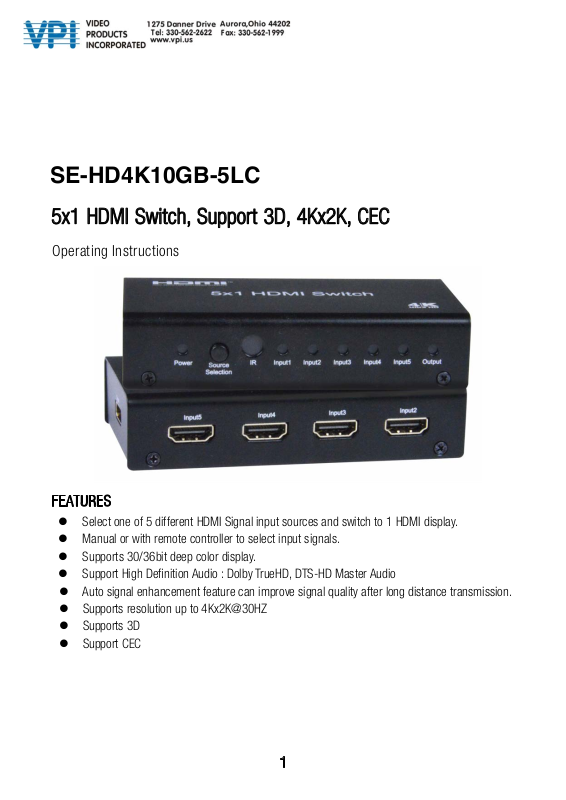

SE-HD4K10GB-5LC
5x1 HDMI Switch, Support 3D, 4Kx2K, CEC
Operating Instructions
EA
TURES
F
Select one of 5 different HDMI Signal input sources and switch to 1 HDMI display.
Manual or with remote controller to select input signals.
Supports 30/36bit deep color display.
Support High Denition Audio : Dolby TrueHD, DTS-HD Master Audio
Auto signal enhancement feature can improve signal quality after long distance transmission.
Supports resolution up to 4Kx2K@30HZ
Supports 3D
Support CEC
1
ABL
T
E OF
CONTENTS
Operating Instructions
peci
S
ackage Conte
P
P
anel Descriptions
o
C
M
aintenan
roduct
P
a
W
SPECIFICATION
atio
ct
s
nty
i
ng a
ervic
ns
nd Oper
e
c
nts
e
a
t
ing
S
DTV/HDTV: 4Kx2K@30HZ (1080i/720P/576P/576i/
480P/480i) ; 1080p 3D Video @24HZ
fic
nn
e
a
r
r
Operating Temperature Range -5 to +35 (+23 to +95 )℃ ℉
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Support Video format
Support Video Color Format xv-YCC/deep color 36bit
Support Audio Format DTS-HD Master Audio、Dolby true-HD etc.
Data transfer speed rate 10.2 Gbps (Maximum)
CEC Support CEC
Power consumption 1.5 watts (Maximum)
Support maximum distance from source to sink up to
Transmission Distance
Dimension (L×W×H) 115x62x25mm
Net Weight 212g
e:
Not
Sp
ecif
icat
ions a
r
e
sub
ject to ch
16meters at 1080P@60HZ, or 13meters at 4Kx2K@30HZ
via standard HDMI cable/26AWG
t
ange with
u
n
o
otic
e
.
Ma
ss an
d
ensi
i
d
m
ons
a
r
app
e
o
r
xima
te.
N
P
ACKI
1) Mini 5*1 HDMI switcher
2) 5VDC 1A Power Supply
3) Operating Instructions
G
CON
TEN
TS
4) Remote Controller
2
Operating Instructions
PAN
E
S
B
a
ck P
a
nel Righ
ESC
L D
F
ront Panel R
RI
TION
P
ig
h
anel
t
P
nel
t P
a
1）HDMI input ports 2）Power input 3）Indicator of Power input
4）Input Select Button 5）IR Receiver 6）Indicator of HDMI Input
7）Indicator of HDMI output. 8）HDMI output port
onnect
C
in
g a
n
d O
p
e
ratin
g
1) Connect the HDMI signal sources (Such as PS3, STB etc) to HDMI Input port of the Switch.
2) Connect the HDMI display device (such as: HD-LCD, HD-DLP) to HDMI Output port of the Switch.
3) Connect the Power adapter to Power input port
4) Power on.
Attention: Insert/Extract cable gently
Connection Diagram
PC
STB XBOX Blu-ray
HDMI In
Notebook
HDMI Out
4K TV
DVD or STB remote
3
Operating Instructions
ma
v
N
g
e
icing
r
A
NC
e
P
E
paint thinner of benzine to clean this unit.
VIC
E
q
g se
i
u
in
r
nnel: Do not attempt to service the unit beyond that described in these operating
erso
The unit should be serviced by qualied service personnel if:
rvice:
MAI
NTE
Clean this unit with a soft, dry cloth. Never use alcohol,
RODUCT SER
P
a
1) D
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
2) S
er
instructions. Refer all other servicing to authorized servicing personnel.
W
A
RRANTY
The warranty period on this product (parts and labor) is one (1) year from the date of purchase.
Please contact Video Products Inc at (800) 626-7801 or (330) 562-2622 or visit our website at
http://www.vpi.us for information regarding repairs and/or returns. A return authorization
number is required for all repairs/returns.
VPI MAN333 REV 5/15/19
