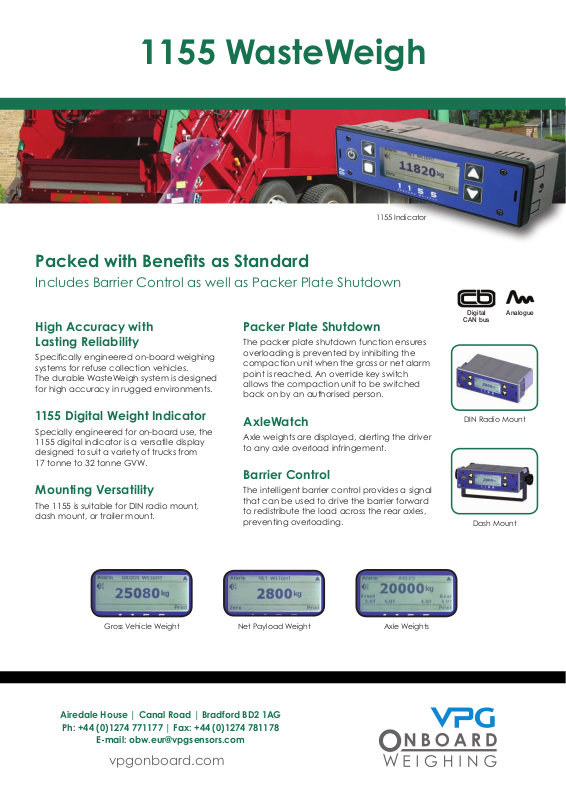

vpg onboard 1155 Specification

1155 WasteWeigh

1155 Indicator

Packed with Benefits as Standard

Includes Barrier Control as well as Packer Plate Shutdown

High Accuracy with
Lasting Reliability

Specifically engineered on-board weighing
systems for refuse collection vehicles.
The durable WasteWeigh system is designed
for high accuracy in rugged environments.

1155 Digital Weight Indicator

Specially engineered for on-board use, the
1155 digital indicator is a versatile display
designed to suit a variety of trucks from
17 tonne to 32 tonne GVW.

Mounting Versatility

The 1155 is suitable for DIN radio mount,
dash mount, or trailer mount.

Packer Plate Shutdown

The packer plate shutdown function ensures
overloading is prevented by inhibiting the
compaction unit when the gross or net alarm
point is reached. An override key switch
allows the compaction unit to be switched
back on by an authorised person.

AxleWatch

Axle weights are displayed, alerting the driver
to any axle overload infringement.

Barrier Control

The intelligent barrier control provides a signal
that can be used to drive the barrier forward
to redistribute the load across the rear axles,
preventing overloading.

Digital

CAN bus

DIN Radio Mount

Dash Mount

Analogue

Gross Vehicle Weight Net Payload Weight Axle Weights

Airedale House | Canal Road | Bradford BD2 1AG

Ph: [phone] | Fax: [phone]

E-mail: [e-mail]

vpgonboard.com

1155 WasteWeigh

The Latest Technology in Weighing and
Overload Protection for RCVs

Features and Benefits

High accuracy ±0.5% FSD or better

Overload alarm, audible or visual

Simple to operate

Rugged for o-road use

17–50 tonnes GVW

Packer plate shutdown

Barrier control

Key switch

Load Deliver or Collection

Alarm Set Points User Defined Display

Easy-to-set-up Menus

Retro-Compatibility

The 1155 automatically detects whether analogue
or digital CAN bus signals are being used. This means
complete compatibility for new and existing systems.

Packer plate shuts down

when maximum load is reached

Features Standard Option

Net payload/gross weight display

Gross vehicle weight display

AxleWatch – individual axle weights

Alarm sounder

CAN bus and analogue

RS232 output

Password protection

Packer plate shutdown – key switch

Barrier control

Printer – thermal

Printer – heavy duty

Custom printer headers

511 FreeWeigh – handheld unit

•

•

•

•

•

•

•

•

•

•

•

•

•
