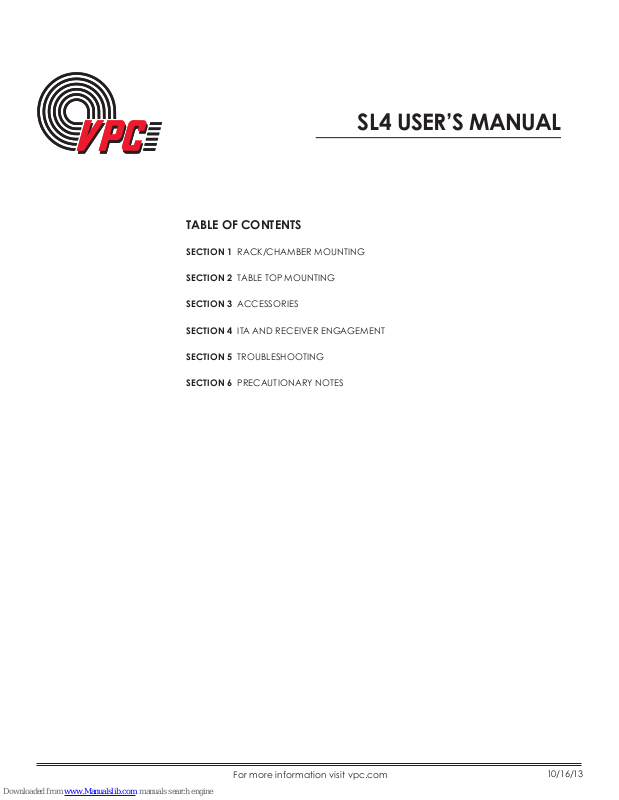

SL4 USER’S MANUAL

TABLE OF CONTENTS

SECTION 1 RACK/CHAMBER MOUNTING

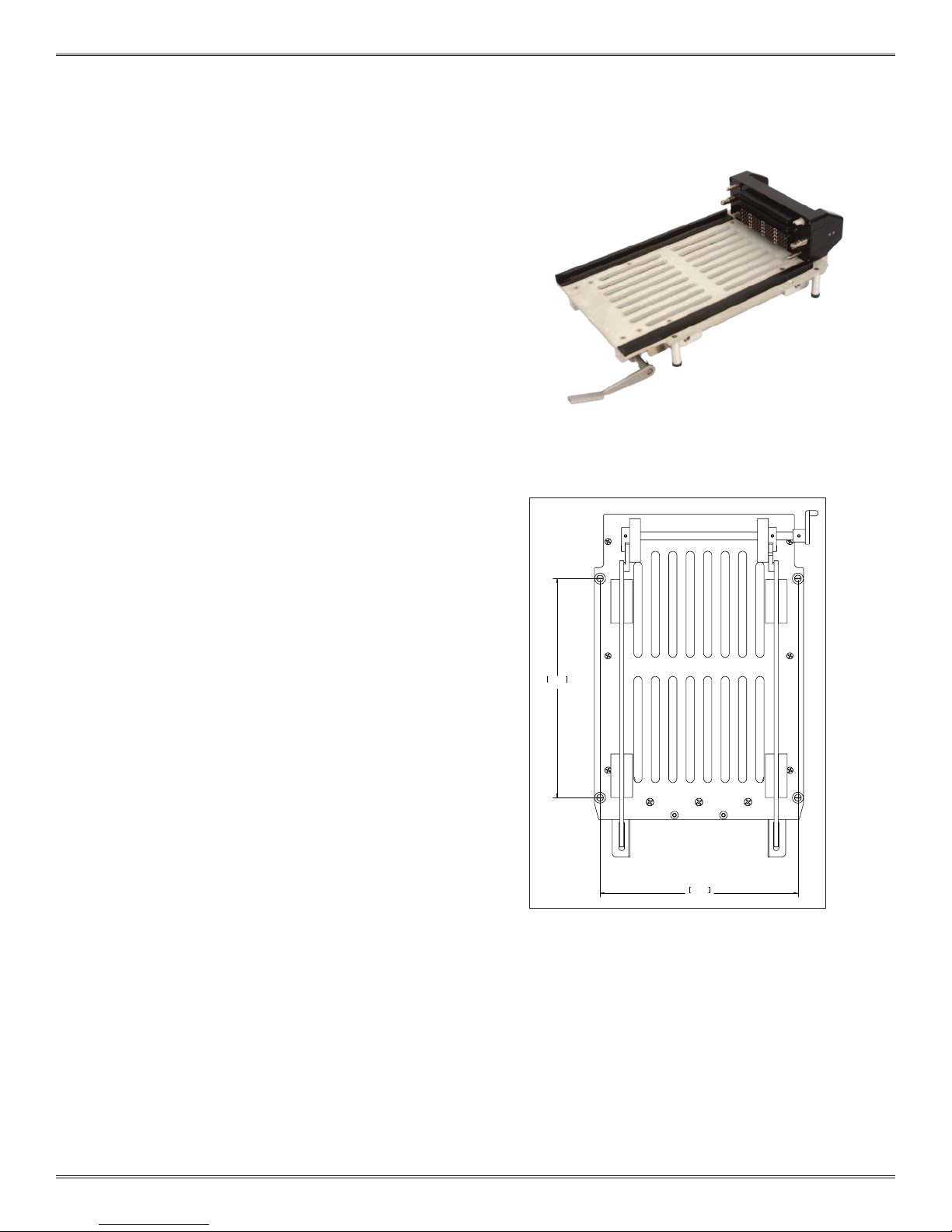

SECTION 2 TABLE TOP MOUNTING

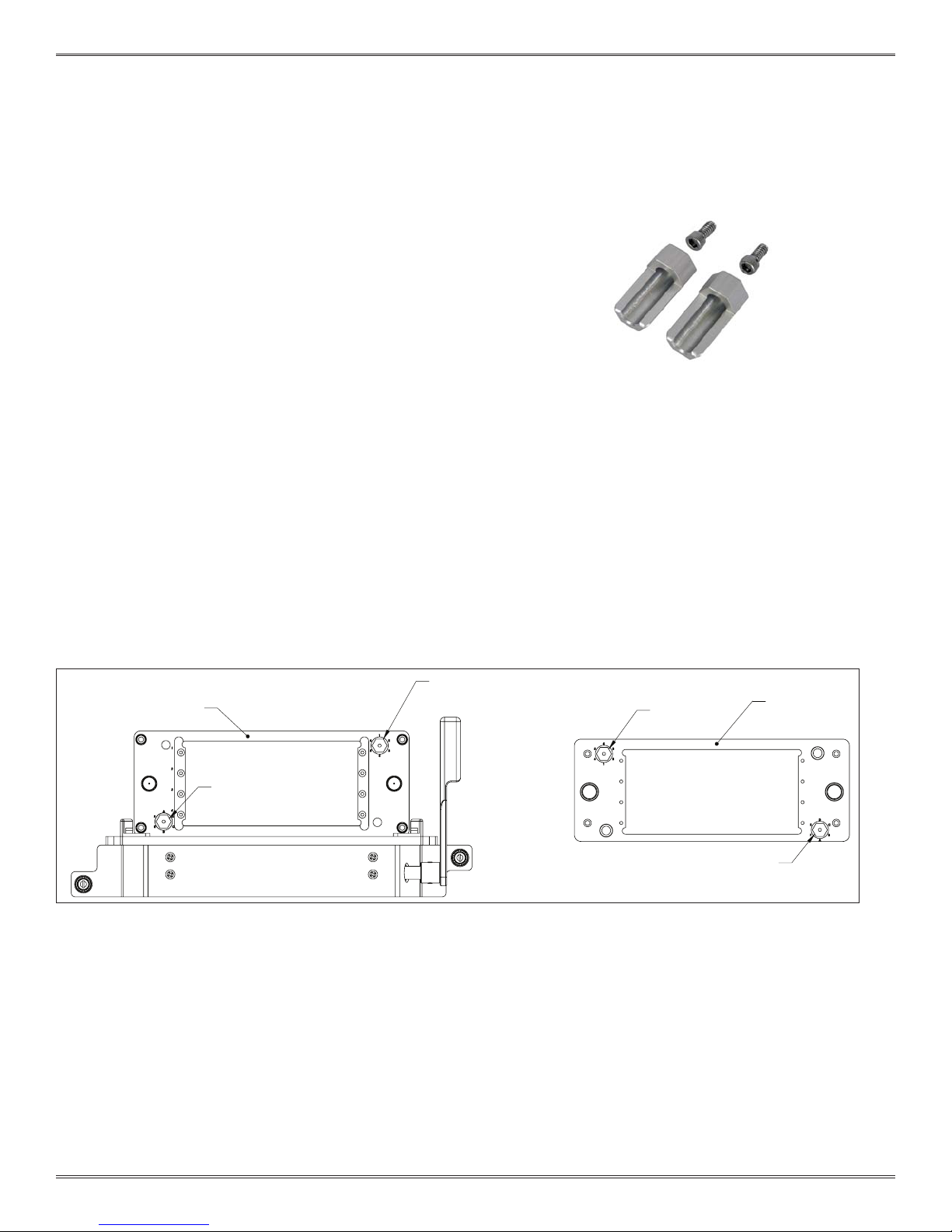

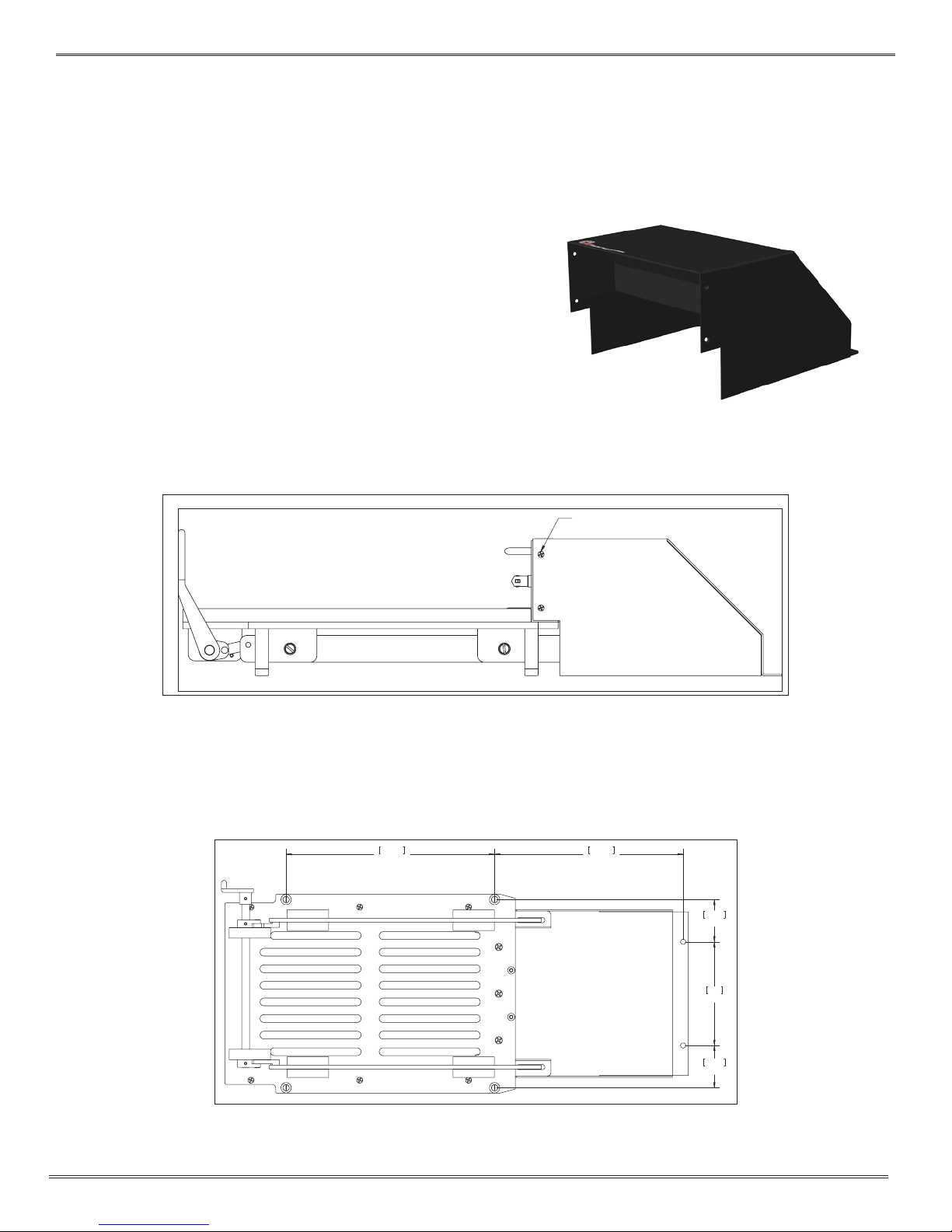

SECTION 3 ACCESSORIES

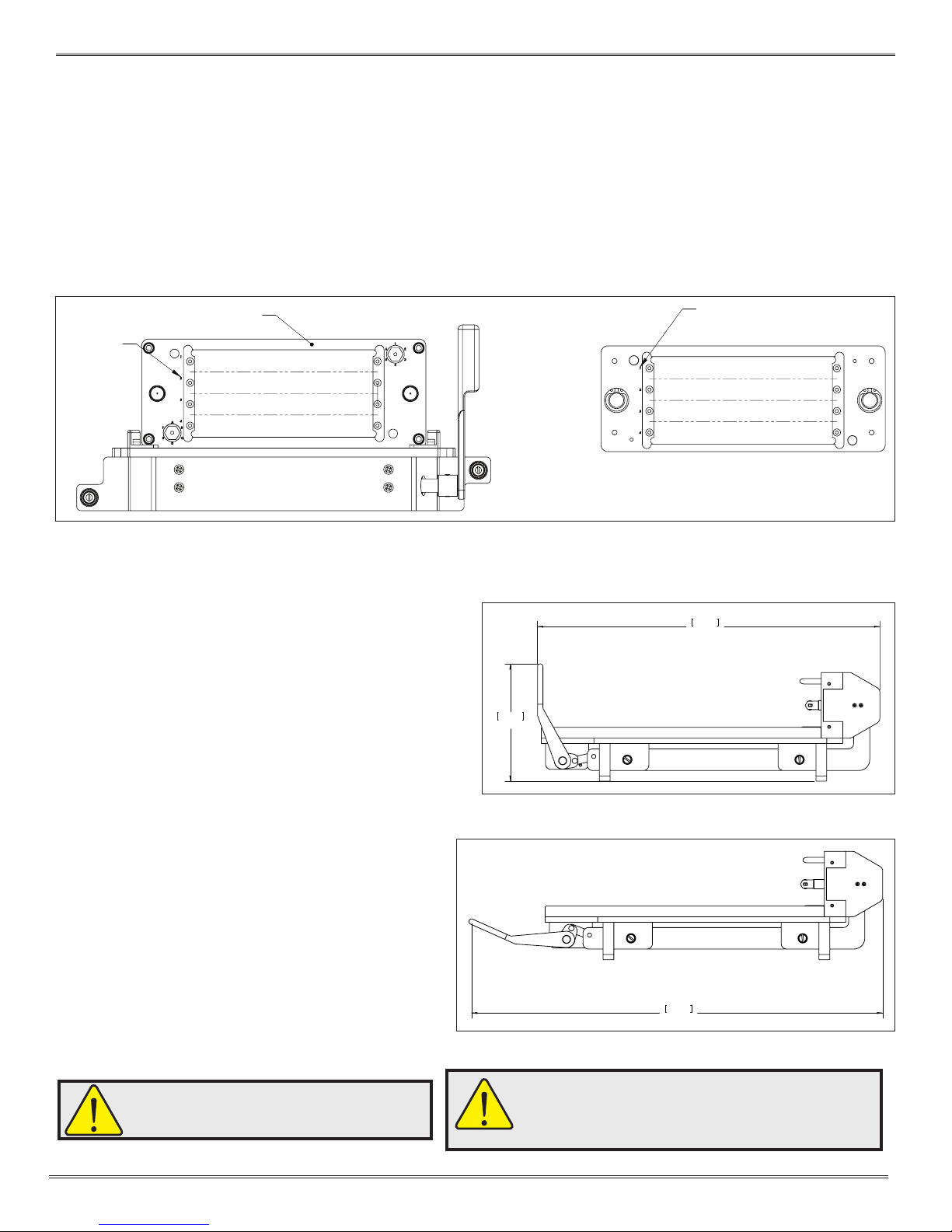

SECTION 4 ITA AND RECEIVER ENGAGEMENT

SECTION 5 TROUBLESHOOTING

SECTION 6 PRECAUTIONARY NOTES

For more information visit vpc.com

10/16/13

SL4 USER’S MANUAL: SECTION 1 VIRGINIA PANEL CORPORATION

RACK/CHAMBER MOUNTING

SL4 RECEIVER • PART # 310 125 101

The rack mountable SL4 incorporates a mounting bracket that

allows it to be stackable both horizontally and vertically.

TOOLS REQUIRED

Phillips head screwdriver

Flat head screwdriver

³/

Allen Wrench

32

Custom Rack Design

1. A custom rack is required for mounting the SL4 Receiver for a

rack/chamber application.

2. Determine the number of SL4 receivers that are needed.

3. Determine the vertical spacing of the SL4 receivers. The

height and recommended spacing is shown in Figure A. This

spacing may var y depending on the ITA xture height that

will be used. It must be possible for the ITA xture to clear

the bottom of the SL4 directly above.

4. Determine the number of SL4 receivers that will be placed

side by side. The SL4 mounting bracket allows receivers to

overlap and share a common center mounting bar (Figure

B).

5. The rack should include 10-32 mounting holes for each

receiver. It is recommended that these holes be placed at

.765” intervals, vertically, to allow for future expansion.

20.32
.80

132.08

5.20

68.91

2.71

335.03

13.19

36.70

1.45

Figure A. Recommended height and spacing of receivers.

87.63

3.45

132.08

5.20

19.43
.765

276.86

10.90

294.64

11.60

Figure B. SL4 mounting brackets.

Page 1 of 3

For more information visit vpc.com

10/16/13

SL4 USER’S MANUAL: SECTION 1 VIRGINIA PANEL CORPORATION

RACK/CHAMBER MOUNTING, CONTINUED

CUSTOM CARD GUIDE

CUSTOM CARD GUIDE

6.73

12.19

.27

.48

Figure C. Card guides are not included with the receiver.

6. Card Guides should be incorporated into the rack design (Figure C).

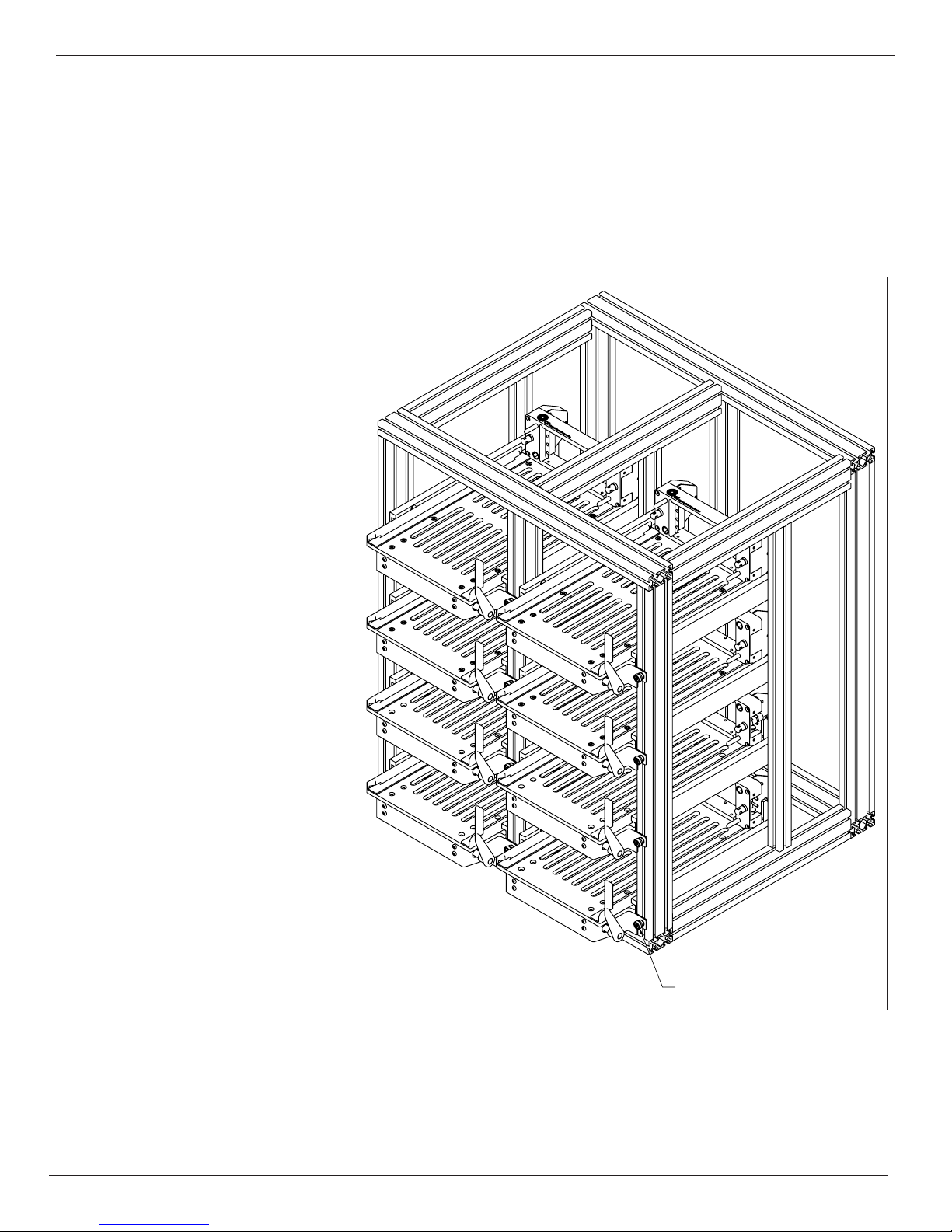

7. See Figure D for the recommended rack layout.

XXX

152.40

6.00

251.46

Figure D. Recommended rack layout.

Page 2 of 3

For more information visit vpc.com

9.90

528.32

20.80

431.80

17.00
