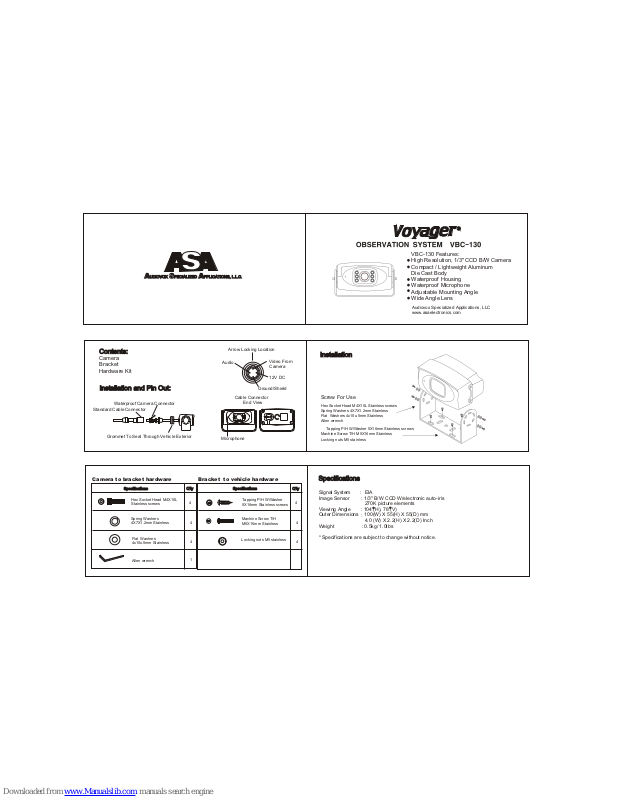

Voyager VBC-130 Specifications

InstallationInstallation

Contents:

Camera
Bracket
Hardware Kit

Contents:

Installation and Pin Out:Installation and Pin Out:

Standard Cable Connector

Waterproof Camera Connector

Grommet To Seal Through Vehicle Exterior

Arrow Locking Location

Audio

Video From
Camera

12V DC

Ground/Shield

Cable Connector

End View

Microphone

AUDIOVOX PECIALIZED APPLICATIONS, L.L.CSAUDIOVOX PECIALIZED APPLICATIONS, L.L.CS

Specifications

Signal System : EIA
Image Sensor : 1/3" B/W CCD W/electronic auto-iris
270K picture elements
Viewing Angle : 104 (H), 78 (V)
Outer Dimensions : 100(W) X 55(H) X 55(D) mm

4.0 (W) X 2.2(H) X 2.2(D) Inch
Weight : 0.5kg/ 1.0Ibs

* Specifications are subject to change without notice.

Specifications

VBC-130 Features:
High Resolution, 1/3" CCD B/W Camera
Compact / Lightweight Aluminum
Die Cast Body
Waterproof Housing
Waterproof Microphone
Adjustable Mounting Angle
Wide Angle Lens

Audiovox Specialized Applications, LLC
www.asaelectronics.com

Camera to bracket hardware

Bracket to vehicle hardware

Tapping P/H W/Washer
5X16mm Stainless screws

Locking nuts M5 stainless

Flat Washers
4x10x.5mm Stainless

4

4

4

4

4

4

1

Q'tyQ'ty

Q'tyQ'ty

SpecificationsSpecifications

SpecificationsSpecifications

Machine Screw T/H
M5X16mm Stainless

Spring Washers
4X7X1.2mm Stainless

Hex Socket Head M4X10L
Stainless screws

Allen wrench

Tapping P/H W/Washer 5X16mm Stainless screws

Locking nuts M5 stainless

Flat Washers 4x10x.5mm Stainless

Machine Screw T/H M5X16mm Stainless

Spring Washers 4X7X1.2mm Stainless

Hex Socket Head M4X10L Stainless screws

Allen wrench

Screw For Use
