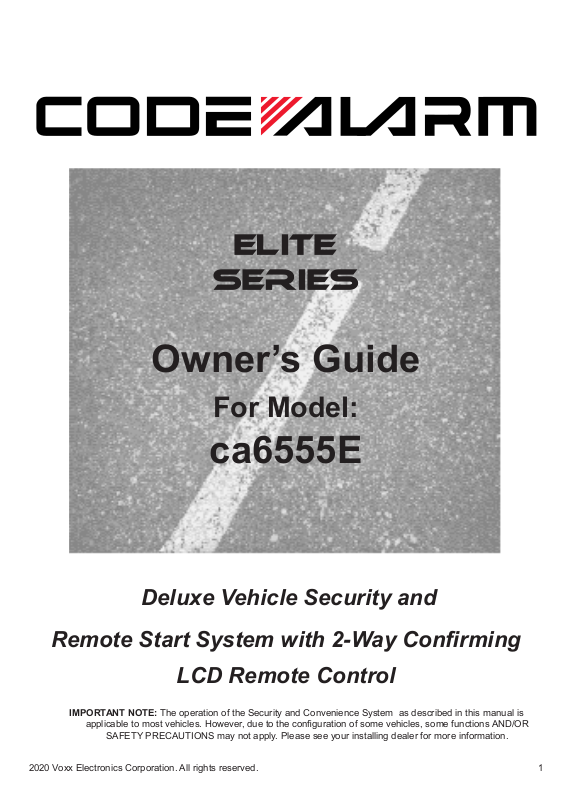

Voxx Electronics ca6555E Owner’s Guide
Elite
SERIES
Owner’s Guide
For Model:
ca6555E
Deluxe Vehicle Security and
Remote Start System with 2-Way Conrming
LCD Remote Control
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the conguration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
12020 Voxx Electronics Corporation. All rights reserved.
Table of Contents
Using Your Remote Control .................................................................... 3
Arming the Security System .............................................................. 3
Passive Arming Bypass .....................................................................3
Bypassing the Shock Sensor ............................................................ 3
Hidden Alarm Function ......................................................................3
Disarming the Security System ......................................................... 3
Two Stage Door Unlock (optional) .....................................................4
Activating Trunk Release (optional) ...................................................4
Activating AUX 1 (optional) ................................................................4
Entering AUX Mode and Activating Additional AUX Outputs ............. 4
Using the Progressive Car Finder Feature ........................................ 5
Using the Personal Protection Alarm .................................................5
Programmed Transmitter Notication ................................................5
Valet Mode ........................................................................................5
User Selectable Notication Chirps ................................................... 5
User Selectable LED ......................................................................... 6
Manually Overriding the Security System ......................................... 6
Carjack Mode .................................................................................... 6
Using Your Remote Vehicle Starter .......................................................7
Remote Start Ready Mode ................................................................ 7
Cancelling Remote Start Ready Mode .............................................. 7
Remote Starting Your Vehicle ............................................................8
Remote Start Shutdown .................................................................... 8
Entering Your Vehicle while it is Running via Remote Start ..............8
Enter & Exiting the Vehicle - Remote Start Ready Mode ..................8
Using the “Quick-Stop” Feature ......................................................... 9
Preheating or Precooling the Vehicle’s Interior ...............................10
User Programmable Run Time / Run Time Extension ..................... 10
Turbo Timer Mode (optional) ........................................................... 10
Operating the 2 / 3 Hour Start Up Timer Mode ................................ 11
Operating the Daily Start Timer .......................................................12
Temperature Start Mode .................................................................. 12
Remote Start Safety Features ......................................................... 12
Status LED, Light Flashes and Siren/Horn Indications ..................... 13
Additional 2-Way LCD Remote Control Functions ............................. 14
LCD Remote Control ICON’s ................................................................16
Remote Control Buttons & Functions ................................................. 17
Replacing Remote Control Batteries ................................................... 19
Programming Replacement Remote Controls .................................... 20
Warranty Information ............................................................................21
2 ca6555E Owners revB
Using Your Remote Control
Arming the Security System
To arm the system, exit the vehicle, close all doors, then press the button. The
parking lights will ash 2 times, indicating the system is armed, has locked the doors
(if equipped and connected) and activated the starter disable feature. The LED status
indicator will blink steadily, once per second.
NOTE: The system is equipped with a feature called Silent Choice. If enabled, the
system requires a second press of the button to activate an audible arming
response from the vehicle.
Passive Arming Bypass
If passive arming is enabled on your system, while the system is disarmed, press
+ , the system will respond with 1 chirp and the LED will turn on. The security
system will remain in this temporally bypassed state for as long as you wish. To exit
passive bypass, press the or button and the system will return to normal status.
Bypassing The Shock Sensor
To arm the system and ignore the shock sensor press button, then within 5
seconds press + , the system will respond with 1 long chirp.
NOTE: The system will only change the shock sensor setting for one arm cycle and
will be defaulted back to normal operation the next time the system is armed.
Hidden Alarm Function
Press the button rst, within 3 seconds press the button to activate the hidden
alarm function. The security system will arm with “Hidden Alarm Function” in which the
siren / horn will be silenced if the system is triggered.
Disarming the Security System
To disarm the system press the button. The parking lights will ash 1 time,
indicating the system is disarmed and has unlocked the doors (if equipped and
connected).
NOTE: The system is equipped with a feature called Silent Choice. If enabled, the
system requires a second press of the button to activate an audible disarming
response from the vehicle. If your system is set up for 2 step unlock, a third press of
unlock will activate the audible response.
*Throughout this manual, ‘press’ refers to pressing for less than 1 second; ‘press and hold’ refers to pressing for more
than 2 seconds.
32020 Voxx Electronics Corporation. All rights reserved.
Two Stage Door Unlock (Optional)
If this feature is enabled on your system, pressing the button one time will unlock
only the driver’s door. Press again within three seconds to unlock the remaining
doors.
Activating the Trunk Release Feature (Optional)
If this feature is enabled on your system, pressing and holding the button for 3
seconds will open the vehicle’s trunk or hatch.
Activating the AUX 1 Output (Optional)
If this feature is enabled on your system, pressing the and buttons
simultaneously will activate an optional feature. This feature can be programmed for a
wide range of functions like power window or sunroof automation, please consult your
installing dealer to determine the functionality of your system.
Entering AUX Mode and Activating the Additional AUX 2 - 5 Outputs (Optional)
To access the additional AUX outputs, AUX 2, AUX 3, AUX 4, and AUX 5, you must
rst enter the transmitters AUX Mode. This will “shift” the functions of the transmitter
buttons from their standard operation to control of the AUX outputs.
AUX Mode - 4 button transmitter: Press and Hold and for 2
seconds, the transmitter LED will ash 1 time. AUX Mode will remain active
for 15 seconds. AUX Mode will exit after 15 seconds of inactivity or by
pressing and again for 2 seconds, the transmitter LED will ash 2
times to conrm exit.
AUX Mode - LCD 5 Button transmitter: Press and Hold for 2 seconds, the
transmitter LCD screen will display “AU”. AUX Mode will remain active
for 15 seconds. AUX Mode will exit after 15 seconds of inactivity or by
pressing again for 2 seconds.
Activating outputs while in AUX Mode:
AUX 2: Press and Hold for 3 seconds.
AUX 3: Press and Hold for 3 seconds.
AUX 4: Press and Hold for 3 seconds.
AUX 5: Press and Hold for 3 seconds.
4 ca6555E Owners revB
Using the Progressive Car Finder Feature
Press the button to locate your vehicle. The system will ash the parking lights
and sound 5 times at low volume, increasing in volume each time the button is
pressed.
Using the Personal Protection Alarm (Panic)
Press and hold the button for 3 seconds to activate the personal protection alarm.
During panic mode, the normal function of the transmitter buttons will be suspended.
The transmitter’s and buttons can be used to lock and unlock the door (if the
option is installed). To stop the alarm, press and hold the button on the transmitter
again for 3 seconds. The system will automatically stop after 30 seconds.
Programmed Transmitter Notication
As a security precaution each time the vehicle’s ignition is turn on the status LED
light with ash the number of transmitters programmed into the system. This helps
to identify unauthorized transmitters from accessing your vehicle. If you believe an
unauthorized transmitter has been programmed to your system, contact your installing
dealer for assistance.
Valet Mode
When valet mode is activated the status LED will light solid, and all security and
remote start functions will be disabled. To enter or exit valet mode simply follow the
steps outlined below:
1. Turn the vehicle’s ignition ON.
2. Push and hold the programming/valet button, located on the antenna.
3. The LED will turn on solid when valet mode is active
4. Release the programming/valet button.
User Selectable Notication Chirps
System ARM/DISARM chirps can be toggled ON or OFF without entering the
programming feature banks.
1. Turn the ignition ON then OFF.
2. Press and release the valet/programming button 3 times. The system
will respond with 1 chirp for ON or 2 chirps for OFF.
52020 Voxx Electronics Corporation. All rights reserved.
User Selectable LED
This feature will control whether the LED is ON or OFF when the system is Armed/
Locked and can be toggled ON or OFF without entering the programming feature
banks.
1. Turn the ignition ON, OFF, ON, OFF.
2. Press and release the valet/programming button 3 times. The system
will respond with 1 chirp for ON or 2 chirps for OFF.
Manually Overriding the Security System
Your system can be disarmed without the use of the transmitter. This is necessary,
since you will need the ability to operate your vehicle if the transmitter is lost or its
battery fails. To by-pass the alarm system;
1. Open the vehicle door. The alarm will sound.
2. Turn the ignition key to the ON position.
3. Within 10 seconds, press and release the valet push button switch.
The alarm system will stop sounding. You can now start and operate the vehicle
normally.
Carjack Mode (Anti-Hijack Mode)
This feature must be turned on in system programming, please consult your installing
dealer.
Triggering Carjack mode: While the ignition is ON and press and hold + for 2
seconds, the parking lights will ash 1 time and the system will act as follows;
1. 50 seconds after being triggered the siren will chirp for 15 seconds,
during this 15 seconds you will be alerted to push the valet button to
turn o Carjack mode. If Carjack mode is not turned o at this time it
will advance to the next step.
2. Following the 15 second chirps (total time now 65 seconds) the siren
will go into full sound and the parking lights will start ashing.
3. 90 seconds after trigger in, addition to the siren and parking lights, the
system will activate the starter kill. THE SYSTEM WILL REMAIN IN THIS
STATE UNTIL THE BATTERY IS DEPLETED.
OVERRIDE THE SYSTEM TO TURN OFF CARJACK MODE: Turn the ignition OFF
then On and press the valet button within 10 seconds.
6 ca6555E Owners revB
Using Your Remote Starter
Remote Start Ready Mode must be enabled if your vehicle is equipped with a
manual transmission.
Remote Start Ready Mode - Manual Transmission Vehicles Only
To activate the remote start function, the system must rst be in Remote Start Ready
Mode. Follow the steps below to enter remote start ready mode.
1. While the engine is running by the ignition key;
a. Place the transmission in neutral.
b. Set the parking brake
2. With your foot o the brake pedal, press and release the button to
activate the remote start. The LED will ash 3 times and the parking
lights will turn on to conrm the system has remote started.
3. Remove the keys from the ignition, the vehicle will remain running.
4. Exit the vehicle and close all vehicle doors.
5. Within 1 minute of step 1, press the button to lock the vehicle’s
doors. The vehicle will shutdown and sound 2 short chirps then 1 long
chirp to conrm ready mode is set.
Cancelling Remote Start Ready Mode - Manual Transmission Vehicles Only
The system will exit remote start ready mode if any of the following occur:
Open any door
Open the hood or trunk (if connected)
Press the brake
Release the parking brake
Turn the ignition ON
72020 Voxx Electronics Corporation. All rights reserved.
Remote Starting Your Vehicle
To activate the remote start function, press and release the button 2 times within 2
seconds. The system will sound, the parking lights will ash 1 time and the system
will check the vehicle to ensure it is safe to start. If all safety parameters are correct,
the vehicle will start. The vehicle’s parking lights will turn on (or ash depending on
system settings) as a visual indication that the vehicle has started and is running.
If your vehicle stalls or does not start, the system will pause 5 seconds, then try
3 more times to start the vehicle (a total of 4 attempts). The system will pause 5
seconds between each start attempt.
Remote Start Shutdown
Press and hold the button for 3 seconds to turn the vehicle o.
Entering the Vehicle while it is Running via Remote Vehicle Start
1. Unlock the vehicle’s doors.
2. Enter the vehicle. DO NOT PRESS THE BRAKE PEDAL!
3. Insert the key into the ignition switch and turn to the ON or RUN
position.
4. Press the brake pedal. The remote vehicle starter will disengage and
the vehicle will operate normally.
To Enter & Exit the Vehicle while (Manual Transmission) Remote Start Ready
Mode is already active without cancelling Remote Start Ready Mode.
If ready mode has already been activated and you need to enter the vehicle, possibly
to retrieve an item, and will exit the vehicle without driving it, you can keep ready
mode active by following the steps below.
1. With Ready Mode already previously set, activate the remote start.
2. While under control of the remote start open vehicle door to retrieve
items.
3. Exit the vehicle and close all doors.
4. Press the button, the unit waits 3 seconds and then shuts down,
the system will verify all doors have been closed then will emit the 2
short/1 long tone and light ash pattern indicating Manual Transmission
Ready Mode is active.
Note: If the 2 short/1 long tone is not heard then Ready Mode has not been
set.
8 ca6555E Owners revB
Loading...
