Voxx Accessories SP430 User Manual
WIRELESS SPEAKER
Q U I C K
S T A R T
G U I D E
Instructions en français ............11
Instrucciones en español .........22
Getting to know Bluetooth
Bluetooth wireless is a quick and easy way to connect a
smartphone to a speaker or a headset. There are basically
two steps to making Bluetooth work.
“Hi. I’m a
PAIRING: The two devices
get to know each other.
phone.”
“Hi
phone.
I’m a
speaker.”
MODE COLOR
POWER/PAIR
CONNECTING: The two
devices do something
together (like play music).
POWER/PAIR
MODE COLOR
This guide takes you through the steps to get started.
Step 1: Unpack
Make sure the following
items came in this package.
2
Your speaker
POWER/PAIR
MODE COLOR
USB cable
Step 2: Charge the Canz GLO
Before you start using the Canz GLO speaker for the first
time, it’s a good idea to charge it completely.
To charge the speaker:
Plug the included USB cable
into the DC IN jack on the
back of the speaker.
Plug the other end of the
USB charging cable into
a power source, like a
computer or a USB charging
adapter.
The charging indicator on the back of the speaker is red
while the speaker is charging. It turns green when the
speaker is fully charged.
Note: You can use the speaker while it’s charging.
Speaker back
3
Step 3: Turn on
Bluetooth Settings
8:45PM
POWER/PAIR
POWER/PAIR
POWER/PAIR
POWER/PAIR
Press and hold the POWER/
PAIR button on the front of
the speaker. The power up tone
sounds and the POWER/PAIR
button starts blinking.
After a few seconds, the
speaker goes to Bluetooth
pairing mode to set up with
your smartphone.
Step 4: Pair + Connect
POWER/PAIR
MODE COLOR
Enable Bluetooth on your
smartphone or other device.
Make sure the POWER/PAIR
button on the front of the
speaker is blinking rapidly. (If it
isn’t, give a short double-press
on the POWER/PAIR button.
The speaker gives an audio
signal.)
4
Wi-Fi
Wi-Fi Settings
Bluetooth
POWER/PAIR
MODE COLOR
If you’ve previously paired your phone or other Bluetooth device with this
speaker, the speaker will automatically attempt to reconnect to that device
when you switch the speaker on. If you want to pair to a new device, give a
short double-press to the POWER/PAIR button. The speaker gives a signal
and the POWER/PAIR button starts blinking.
Choose Canz GLO from the pairing options on your
smartphone. (If it’s not in the list, choose “Scan” from your
phone’s Bluetooth menu.)
The speaker gives an audio signal when it’s finished pairing
and connecting to your smartphone. The POWER/PAIR
button turns solid blue.
Note: The process of enabling Bluetooth and connecting varies from device
to device. See your device’s owners manual for more information and specific
instructions.
Bluetooth Wireless Connection Tips
• Make sure the Bluetooth capability of your device is turned on.
• Make sure there’s nothing plugged into the speaker’s AUX IN jack when
you’re trying to use Bluetooth.
• The Bluetooth wireless connection works up to a range of roughly 33 feet (10
meters). This range may vary, however, based on other factors, such as room layout,
wall material, obstacles, your device’s Bluetooth performance, etc. If you’re having
problems connecting to this speaker, move closer to it.
• If your device asks you for a password to connect, use “0000”.
5
Step 5: Play music
Set your device’s volume for
music to 75%.
Note: This is to make sure the sound
from the speaker isn’t too loud when you
start streaming.
Start playing music or other
audio on your device. Within
Now playing
Media volume
8:45PM
8:45PM
seconds, the speaker starts
streaming the audio wirelessly
via Bluetooth.
To adjust the volume of your audio: Use the volume
controls on your phone.
6
Using the Multi-Mode Lighting
POWER/PAIR
COLOR
Press the MODE button on
the front of the speaker to
MODE
COLOR
activate multi-mode lighting.
Keep pressing the MODE
button to cycle through the
following light modes.
POWER/PAIR
MODE COLOR
Rave: The light pulses and changes color to the beat of
your music. This is the light mode when you first turn on
the speaker.
O: Multi-mode lighting is turned o.
Still: Press the COLOR button to change colors.
Pulse: The light pulses to the beat of your music (you might
need to turn your music up!). Press COLOR to change colors.
Chase: The light races in a circle. Press COLOR to change
colors.
Breath: The light gradually intensifies and diminishes.
Press COLOR to change colors.
Chill: The light slowly goes through all the colors.
Party: The light gives a rainbow eect around the speaker.
7

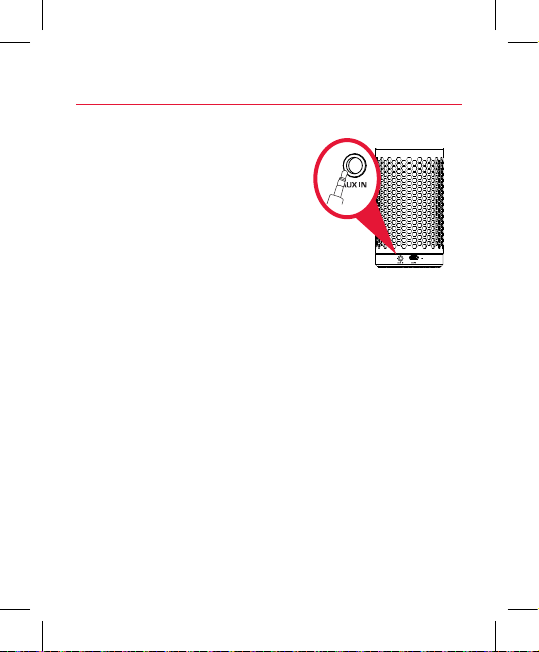

Using the AUX IN input
Use a 3.5mm audio cable (not
included) to connect the audio
output from your device to
the AUX IN audio input on the
speaker’s back panel.
The speaker automatically switches to the AUX IN audio,
and the POWER/PAIR button turns white.
To listen to Bluetooth audio again, unplug the cable from
the speaker’s AUX IN jack. The speaker will try to reconnect
to the last Bluetooth device.
Note: In Bluetooth mode, the speaker will turn o
automatically if it hasn’t been used for a while. In AUX IN
mode, the speaker does not automatically turn o. If you
leave a cable connected to the AUX IN jack, make sure you
turn the speaker o manually.
8
Speaker back
Tour of the speaker
POWER/PAIR
MODE COLOR
Front
POWER/PAIR button turns the speaker on/o (press
and hold) and puts the speaker into pairing mode (short
double-press when the speaker’s on). It also shows the
Bluetooth status of the speaker:
• fast blinking blue while pairing or reconnecting
• solid blue when paired
• solid white when the AUX IN jack is in use
• o when the speaker’s o.
MODE button cycles through the speaker’s eight light
modes: Rave, O, Still, Pulse, Chase, Breath, Chill, and
Party.
COLOR button changes the color of the light in Still, Pulse,
Chase, and Breath modes.
9
Back
Charging indicator
AUX IN jack lets you connect an audio device directly to the
speaker using a 3.5mm audio cable (not provided).
DC IN jack connects to the provided USB charging cable to
plug the speaker into a power source or adapter.
Charging indicator shows the charging status of the
speaker:
• solid red while charging
• solid green when charged
10
