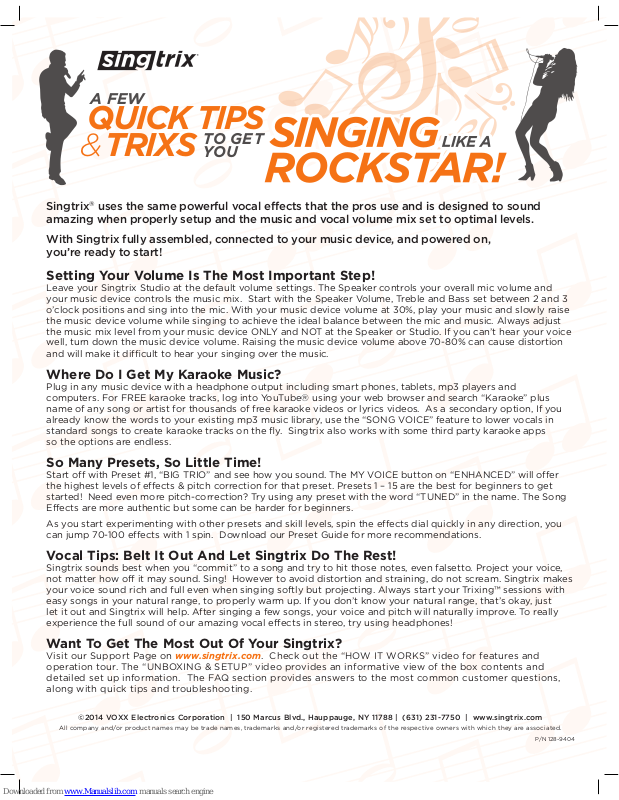

Voxx Singtrix User Manual

TIPS

A FEW

QUICK

&

TRIXS

TO GET
YOU

Singtrix® uses the same powerful vocal effects that the pros use and is designed to sound
amazing when properly setup and the music and vocal volume mix set to optimal levels.

With Singtrix fully assembled, connected to your music device, and powered on,
you’re ready to start!

Setting Your Volume Is The Most Important Step!

Leave your Singtrix Studio at the default volume settings. The Speaker controls your overall mic volume and
your music device controls the music mix. Start with the Speaker Volume, Treble and Bass set between 2 and 3
o’clock positions and sing into the mic. With your music device volume at 30%, play your music and slowly raise
the music device volume while singing to achieve the ideal balance between the mic and music. Always adjust
the music mix level from your music device ONLY and NOT at the Speaker or Studio. If you can’t hear your voice
well, turn down the music device volume. Raising the music device volume above 70-80% can cause distortion
and will make it difficult to hear your singing over the music.

Where Do I Get My Karaoke Music?

Plug in any music device with a headphone output including smart phones, tablets, mp3 players and
computers. For FREE karaoke tracks, log into YouTube® using your web browser and search “Karaoke” plus
name of any song or artist for thousands of free karaoke videos or lyrics videos. As a secondary option, If you
already know the words to your existing mp3 music library, use the “SONG VOICE” feature to lower vocals in
standard songs to create karaoke tracks on the fly. Singtrix also works with some third party karaoke apps
so the options are endless.

So Many Presets, So Little Time!

Start off with Preset #1, “BIG TRIO” and see how you sound. The MY VOICE button on “ENHANCED” will offer
the highest levels of effects & pitch correction for that preset. Presets 1 – 15 are the best for beginners to get
started! Need even more pitch-correction? Try using any preset with the word “TUNED” in the name. The Song
Effects are more authentic but some can be harder for beginners.

As you start experimenting with other presets and skill levels, spin the effects dial quickly in any direction, you
can jump 70-100 effects with 1 spin. Download our Preset Guide for more recommendations.

Vocal Tips: Belt It Out And Let Singtrix Do The Rest!

Singtrix sounds best when you “commit” to a song and try to hit those notes, even falsetto. Project your voice,
not matter how off it may sound. Sing! However to avoid distortion and straining, do not scream. Singtrix makes
your voice sound rich and full even when singing softly but projecting. Always start your Trixing™ sessions with
easy songs in your natural range, to properly warm up. If you don’t know your natural range, that’s okay, just
let it out and Singtrix will help. After singing a few songs, your voice and pitch will naturally improve. To really
experience the full sound of our amazing vocal effects in stereo, try using headphones!

Want To Get The Most Out Of Your Singtrix?

Visit our Support Page on www.singtrix.com. Check out the “HOW IT WORKS” video for features and
operation tour. The “UNBOXING & SETUP” video provides an informative view of the box contents and
detailed set up information. The FAQ section provides answers to the most common customer questions,
along with quick tips and troubleshooting.

©2014 VOXX Electronics Corporation | 150 Marcus Blvd., Hauppauge, NY 11788 | [phone] | www.singtrix.com

All company and/or product names may be trade names, trademarks and/or registered trademarks of the respective owners with which they are associated.

P/N 128-9404

PARTY BUNDLE

SETUP REFERENCE GUIDE

Simple Input/Output Signal Flow

1

BIG TRIO

UNIVERSAL

Music

input

Speaker
Outputs

1&2

INPUT►

►OUTPUT

Works with
headphones and
other PA speaker
system

Music source device
with volume control

Singtrix mic or other
mic system

(other mic
systems require preamp for
individual volume adjustment;
works with wireless system)

SINGTRIX

Mic

Inputs

1&2

Mic Inputs

1 & 2

Music Input

AC Power

Adapter

Speaker Output

1 & 2

Connections: Studio Effects Console

Connections: 2.1 Speaker System

AC Power Adapter

RCA Speaker Input
