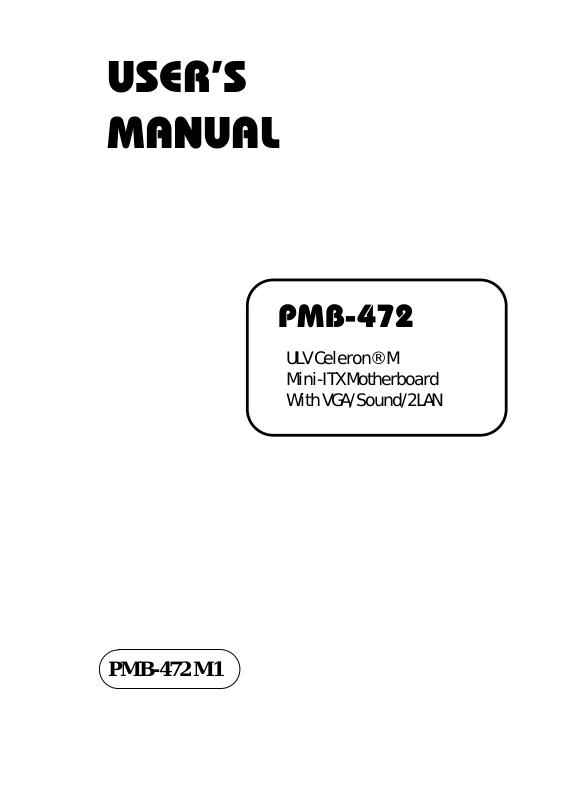

USER’S
MANUAL
PMB-472
ULV Celeron® M
Mini-ITX Motherboard
With VGA/Sound/2LAN
PMB-472 M1
PMB-472 Celeron® M
Mini-ITX Motherboard
With VGA /Sound/2LAN
OPERATION MANUAL
COPYRIGHT NOTICE
This operation manual is meant to assist both Embedded Computer
manufacturers and end users in installing and setting up the system. The
information contained in this document is subject to change without any
notice.
This manual is copyrighted in June, 2005. You may not reproduce or
transmit in any form or by any means, electronic, or mechanical, including
photocopying and recording.
ACKNOWLEDGEMENTS
All trademarks and registered trademarks mentioned herein are the
property of their respective owners.
CE NOTICE
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Copyright Notice
Copyright Notice
FCC NOTICE
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any change or modifications to the equipment not
expressly approve by the party responsible for compliance could void
your authority to operate such equipment.
Contents
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION
1-1 About This Manual ........................................................ 1-2
1-2 System Specification ...................................................... 1-3
1-3 Extra Industrial Application Features................................ 1-6
1-4 Safety Precautions ……………………………………. 1-6
CHAPTER 2 HARDWARE CONFIGURATION
2-1 Jumper & Connector Quick Reference Table ................ 2-2
2-2 Component Locations .................................................... 2-3
2-3 How to Set the Jumpers ................................................. 2-4
2-4 COM Port Connector ……..…………………………... 2-6
2-5 COM4 RI/ Voltage Selection ………………………… 2-8
2-6 RS232/422/485(COM2) Selection ................................ 2-9
2-7 RS232/422/485(COM3) Selection ……………………. 2-10
2-8 Keyboard or PS/2 Mouse Connector .....................….... 2-11
2-9 Reset Connector ............................................................ 2-11
2-10 Hard Disk Drive LED Connector .................................. 2-11
2-11 Power Button …............................................................ 2-12
2-12 External Speaker Connector .......................................... 2-12
2-13 Power LED Connector ……........................................... 2-12
2-14 External SMI Connector ………………………………. 2-13
2-15 Inverter Connector …………………………………….. 2-13
2-16 Clear CMOS Data Selection ………………………….. 2-14
2-17 CPU Fan Connector …………………………………… 2-14
2-18 VGA Connector ………………….…………………… 2-15
2-19 Hard Disk Drive Connector ........................................... 2-16
2-20 Floppy Disk Drive Connector ....................................... 2-18
2-21 Printer Connector .......................................................... 2-19
2-22 Universal Serial Bus Connector ……………………… 2-20
2-23 IRDA Connector ………………………………………. 2-21
2-24 LAN Connector ………………………………………. 2-21
2-25 USB & LAN Connector ……………………………… 2-22
2-26 Wake-On-LAN Connector ……………………………. 2-23
Contents
2-27 LVDS Connector ……………..……………………….. 2-24
2-28 LVDS Panel Voltage Selection ……………………….. 2-25
2-29 ATX Power Connector ………………………………… 2-26
2-30 Sound Connector ………………………………………. 2-27
2-31 CD Audio-In Connector ……………………………….. 2-28
2-32 Speaker Connector …………………………………….. 2-28
2-33 Memory Installation …………………………………… 2-28
2-34 PCI/Riser Card Selection ……………………………… 2-29
2-35 Reset / NMI Selection…………………………………… 2-30
2-36 CF Master/Slave Selection ……………………………. 2-31
2-37 PCI Slot Signal Explanation …………………………... 2-32
2-38 PCI Riser Board Information ………………………….. 2-33
2-39 Digital I/O Port ………………………………………… 2-33
CHAPTER 3 SOFTWARE UTILITIES
3-1 Introduction …………..........................................…....... 3-2
3-2 VGA Driver Utility ……………………………….…… 3-2
3-3 Flash BIOS Update ..............................................…....... 3-4
3-4 LAN Driver Utility …...........................................…...... 3-6
3-5 Sound Driver Utility …………………………………… 3-7
3-6 Intel Chipset Software Installation Utility …..……..….. 3-8
3-7 USB2.0 Software Installation Utility ………………….. 3-9
3-8 Watchdog Configuration ……………………………… 3-10
CHAPTER 4 AWARD BIOS SETUP
4-1 Introduction ................................................................... 4-2
4-2 Entering Setup ............................................................... 4-3
4-3 The Standard CMOS Features ………............................ 4-4
4-4 The Advanced BIOS Features ....................................... 4-7
4-5 Advanced Chipset Features ........................................... 4-9
4-6 Integrated Peripherals …............................................... 4-12
4-7 Power Management Setup ............................................. 4-17
4-8 PNP/PCI Configuration …............................................. 4-19
4-9 PC Health Status …….................................................... 4-21
4-10 Frequency Control ....................................…………...... 4-22
Contents
4-11 Load Fail-Safe Defaults ................................................. 4-23
4-12 Load Optimized Defaults .........................................…. 4-23
4-13 Set Supervisor Password ……………………………… 4-24
4-14 Save & Exit Setup ......................................................... 4-25
4-15 Exit Without Saving ………………………………… 4-26
APPENDIX A EXPANSION BUS
PCI Bus Pin Assignment ..............................................…......... A-2
Mini-PCI Bus Connector Pin Assignment ................................... A-3
Compact Flash Card Connector Pin Assignment ……………. A-4
APPENDIX B TECHNICAL SUMMARY
Block Diagram ........................................................................... B-2
Interrupt Map ............................................................................ B-3
RTC & CMOS RAM Map ........................................................ B-4
Timer & DMA Channels Map .................................................. B-5
I/O & Memory Map ...............................................…................ B-6
INTRODUCTION
This chapter gives you the information for PMB-472. It also
outlines the System specifications.
Section includes:
z About This Manual
z System Specifications
z Extra Industrial Application Features
z Safety Precautions
Experienced users can skip to chapter 2 on page 2-1
for a Quick Start.
CHAPTER
1
Page:1-1
Chapter 1 Introduction
1-1. ABOUT THIS MANUAL
Thank you for purchasing our PMB-472 ULV Celeron-M Mini-ITX
Mainboard enhanced with VGA/Sound/2LAN, which is fully PC / AT
compatible. The PMB-472 provides faster processing speed, greater
expandability and can handle more tasks than before. This manual is
designed to assist you how to install and set up the system. It contains four
chapters. The user can apply this manual for configuration according to the
following chapters:
Chapter 1 Introduction
This chapter introduces you to the background of this manual, and the
specifications for this system. The final page of this chapter will indicate
how to avoid damaging this board.
Chapter 2 Hardware Configuration
This chapter outlines the component locations and their functions. In the
end of this chapter, you will learn how to set jumper and how to configur e
this card to meet your own needs.
Chapter 3 Software Utilities
This chapter contains helpful information for proper installations of the
VGA utility, LAN utility, Sound utility, and Flash BIOS Update. It also
describes the Watchdog-timer configuration.
Chapter 4 Award BIOS Setup
This chapter indicates you how to set up the BIOS configurations.
Appendix A Expansion Bus
This Appendix introduces you the expansion bus for Mini-PCI BUS, and
PCI BUS.
Appendix B Technical Summary
This section gives you the information about the Technical maps.
Page: 1-2
PMB-472 USER
′
S MANUAL
1-2. SYSTEM SPECIFICATIONS
z CPU (mPGA479):
Intel® Celeron® M processor.
ULV 600MHz (non L2 cache).
Auto detect voltage regulator.
z MEMORY :
Supports up to 1GB DDR SDRAM.
One 200-pin DDR SO-DIMM sockets on board.
z CACHE :
Built-in CPU
z REAL-TIME CLOCK :
256-byte battery backed CMOS RAM.
Hardware implementation to indicate century rollover.
z BIOS :
Phoenix-AwardBIOS™ for plug & play function
4Mb with VGA BIOS.
Easy update 512KB flash EEPROM.
Support S/IO Setup.
z KEYBOARD CONNECTOR :
Mini DIN connector.
Supports for AT/PS2 keyboard.
z MOUSE CONNECTOR :
Mini DIN connector.
Supports for PS/2 Mouse.
z BUS SUPPORT :
One PCI- Slot
One Mini-PCI Slots
One Compact Flash Bus (for secondary IDE-based)
Chapter 1 Introduction
.
PMB-472 USER′S MANUAL
Page: 1-3
Chapter 1 Introduction
z DISPLAY :
Integrated Graphic in Intel® 852GM
Support D-Sub 15 pin VGA connector
Support 18/24bit LVDS connector
Support 3.3V/5V LVDS Panel Power selection
Support 12V Panel Backlight
*24bit hardware is ready but Intel does not recommend using.
z IDE INTERFACE :
Two IDE ports support up to four IED devices.
Supports Ultra DMA 33/66/100.
Compact Flash is connected at secondary IDE Bus.
Compact Flash Master/Slave Mode Selectable.
z FLOPPY DISK DRIVER INTERFACE :
Support Floppy Disk Drives 3.5".
z USB CONNECTOR :
Support up to six USB 2.0 ports.
z LAN ADAPTER :
Dual ports, Realtek RTL8100C (10/100 Mbps)
Support wake-on-LAN function.
z SERIAL PORT :
Four high speed 16550 Compatible UARTs with Send / Receive 16 Byte
FIFOs; COM1:RS-232; COM2/3: RS-232/422/485; COM4: RS-232 with
+12V/+5V
MIDI Compatible
Programmable Baud Rate Generator
z SOUND :
Realtek ALC655 (AC’97 Codec).
Fully Compliant AC’97 Analog I/O Component
16-Bit Stereo Full-Duplex Codec
Four Analog Line-level Stereo Inputs for Connection.
High Quality CD Input with Ground Sense
Stereo Line-Level Output
Interface: Line-In, Line-Out, Microphone, SPDIF, and CD Audio-In.
Page: 1-4
PMB-472 USER
′
S MANUAL
z PCI :
Expandable up to 3 PCI slot by install a PCI riser card.
z HARDWARE MONITORING FUNCTION :
Monitor Voltage, CPU temperature, & Cooling fan.
If CPU Temperature is over setting, the buzzer will send out a warming (only
under DOS system).
z IRDA PORT :
5-pin Infrared port, support IrDA v1.0 SIR protocol
z PARALLEL PORT :
SPP / ECP / EPP Function.
1 port, bi-directional parallel port.
z LED INDICATOR :
System power
Hard Disk access
LAN LED indicator
z OPERATING TEMPERATURE :
0 to 60°C.
z BOARD DIMENSIONS :
170mm x 170 mm, 6.7” x 6.7”
z BOARD NET WEIGHT :
460 gram.
Chapter 1 Introduction
PMB-472 USER′S MANUAL
Page: 1-5
Chapter 1 Introduction
1-3. EXTRA INDUSTRIAL APPLICATION FEATURES
z DIGITAL I/O PORT :
4 bit input and 4 bit output digital port availability.
Decoding Address at I/O 440H and 441H.
General purpose and Input/Output buffer embedded.
z WATCHDOG TIMER :
Watchdog Timer controllable by software, customer application 1~255 second
watchdog timer time-out value
Reset upon Mouse/Keyboard, SMI or System Reset.
1-4. SAFETY PRECAUTIONS
Follow the messages below to avoid your systems from damage:
1. Keep your system away from static electricity on all occasions.
2. Prevent electric shock. Don‘t touch any components of this card when the
card is power-on. Always disconnect power when the system is not in use.
3. Disconnect power when you change any hardware devices. For instance,
when you connect a jumper or install any cards, a surge of power may
damage the electronic components or the whole system.
Page: 1-6
PMB-472 USER
′
S MANUAL
HARDWARE
CONFIGURATION
** QUICK START **
Helpful information describes the jumper & connector settings, and
component locations.
Section includes:
z Jumper & Connector Quick Reference Table
z Component Locations
z Configuration and Jumper settings
z Connector’s Pin Assignments
CHAPTER
2
Page 2-1
Chapter 2 Hardware Configuration
2-1. JUMPER & CONNECTOR QUICK REFERENCE TABLE
COM Port Connector ....................…..................………
…………………………………..
COM4 Port RI/Voltage Selection ……………………..
RS232/422/485 (COM2) Selection .....................………
RS232/422/485 (COM3) Selection …………………….
Keyboard/Mouse Connector ..........….....………………
Reset Connector .........................…....................……….
Hard Disk Drive LED Connector .......................……….
Power Button …………………………………………..
External Speaker Connector ....…........................………
Power LED Connector …………….…...............………
External SMI Connector ………………………………..
Inverter Connector ……………………………………..
Clear CMOS Data Selection ……………………………
CPU Fan Connector ……………………………………
VGA Connector …................……..……………………
Hard Disk Drive Connector …..............…….........…….
Floppy Disk Drive Connector ….............…….......…….
Printer Connector …........................…...…….........……
Universal Serial Bus Connector …........................…..…
IrDA Connector ………………………………………..
USB&LAN Connector …....................................………
LAN Connector ………………………………………...
Wake-on-LAN Connector ……………………………...
LVDS Connector ………………………………………
LVDS Voltage Selection ………………………………
Power Connector ………………………………………
Sound Connector ………………………….……………
CD Audio-In Connector ………………………………..
Speaker Connector ……………………………………..
Memory Installation ..................................…......………
PCI/Riser Card Selection ………………………………
Reset/NMI Selection …………………………………...
CF Master/Slave Selection ……………………………..
PCI Slot Signal Explanation
PCI Riser Board Information
Digital I/O Port …………………………………………
COM1, COM2
COM3, COM4
JP1
JP10
JP8
JKBMS1
JPANEL1 (13,15)
JPANEL1 (9,11)
JPANEL1 (14,16)
JPANEL1 (1,3,5,7)
JPANEL1 (8,10,12)
JPANEL1 (2, 4)
INV1
JP7
JCFAN1
VGA1
IDE1, IDE2
FDD1
JPRNT1
JUSB1, JUSB2
IRDA1
J2
LAN2
JWOL1, JWOL2
LVDS1
JP5
CN1
JAUDIO1
JCDIN2
SPK1
SO-DIMM1
JP6
JP9
JP3
DIO1
Page: 2-2
′
PMB-472 USER
S MANUAL
Chapter 2 Hardware Configuration
2-2. COMPONENT LOCATIONS
PMB-472 Connector, Jumper and Component locations
PMB-472 USER′S MANUAL
Page: 2-3
Chapter 2 Hardware Configuration
2-3. HOW TO SET THE JUMPERS
You can configure your board by setting jumpers. Jumper is consists of
two or three metal pins with a plastic base mounted on the card, and by
using a small plastic "cap", Also known as the jumper cap (with a metal
contact inside), you are able to connect the pins. So you can set-up your
hardware configuration by "open" or "close" pins.
The jumper can be combined into sets that called jumper blocks. When
the jumpers are all in the block, you have to put them together to set up
the hardware configuration. The figure below shows how this looks like.
JUMPERS AND CAPS
If a jumper has three pins (for examples, labelled PIN1, PIN2, and PIN3),
You can connect PIN1 & PIN2 to create one setting and shorting. You
can either connect PIN2 & PIN3 to create another setting. The same
jumper diagrams are applied all through this manual. The figure below
shows what the manual diagrams look and what they represent.
Page: 2-4
PMB-472 USER
′
S MANUAL
JUMPER DIAGRAMS
JUMPER SETTINGS
Chapter 2 Hardware Configuration
Jumper Cap
looks like this
2 pin Jumper
looks like this
3 pin Jumper
looks like this
Jumper Bl ock
looks like this
2 pin Jumper close(enabled)
1
1
1
2
PMB-472 USER′S MANUAL
Looks like this
3 pin Jumper
2-3 pin close(ena bled )
Looks like this
Jumper Block
1-2 pin close(ena bled )
Looks like this
1
1
12
Page: 2-5
Chapter 2 Hardware Configuration
2-4. COM PORT CONNECTOR
COM1 : COM1 Connector
COM1 is fixed as RS-232.
The pin assignment is as follows :
PIN ASSIGNMENT
1 DCD1
2 RX1
3 TX1
4 DTR1
5 GND
6 DSR1
7 RTS1
8 CTS1
9 RI1
COM2 : COM2 Connector
COM2 is selectable as RS-232/422/485.
The pin assignment is as follows :
Page: 2-6
PIN
RS-232 RS-422 RS-485
ASSIGNMENT
1 DCD2 TX- TX2 RX2 TX+ TX+
3 TX2 RX+ RX+
4 DTR2 RX- RX5 GND GND GND
6 DSR2 RTS- NC
7 RTS2 RTS+ NC
8 CTS2 CTS+ NC
9 RI2 CTS- NC
PMB-472 USER
′
S MANUAL
Chapter 2 Hardware Configuration
COM3 : COM3 Connector
COM3 is selectable as RS-232/422/485.
The pin assignment is as follows :
PIN
RS-232 RS-422 RS-485
ASSIGNMENT
1 DCD3 TX- TX2 RX3 TX+ TX+
3 TX3 RX+ RX+
4 DTR3 RX- RX5 GND GND GND
6 DSR3 RTS- NC
7 RTS3 RTS+ NC
8 CTS3 CTS+ NC
9 RI3 CTS- NC
COM4 : COM4 Connector
COM4 is fixed as RS-232.
The pin assignment is as follows:
PIN ASSIGNMENT
1 DCD4
2 RX4
3 TX4
4 DTR4
5 GND
6 DSR4
7 RTS4
8 CTS4
9 RI4
10 NC
PMB-472 USER′S MANUAL
Page: 2-7
Chapter 2 Hardware Configuration
2-5. COM4 PIN 9 RI OR VOLTAGE SELECTION
JP1 : COM4 Pin 9 RI or Voltage Selection
The selections are as follows:
SELECTION
RI
JUMPER
SETTINGS
1-2
JUMPER
ILLUSTRATION
+12V 3-4
+5V 5-6
***Manufacturing Default – RI.
If COM4’s Pin 9 is selectable to voltage mode, only 0.5Amp power
consumption is allowed for connected to COM device.
Page: 2-8
′
PMB-472 USER
S MANUAL
Chapter 2 Hardware Configuration
2-6. RS232/422/485 (COM2) SELECTION
JP10 : RS-232/422/485 (COM2) Selection
This connector is used to set the COM2 function.
The jumper settings are as follows :
COM 2
Function
RS-232
RS-422 1-2, 3-4, 9-10
Jumper Settings
(pin closed)
Open
Jumper
Illustrations
RS-485 1-2, 5-6, 9-10
*** Manufactory default --- RS-232.
PMB-472 USER′S MANUAL
Page: 2-9
Chapter 2 Hardware Configuration
2-7. RS232/422/485 (COM3) SELECTION
JP8 : RS-232/422/485 (COM3) Selection
This connector is used to set the COM3 function.
The jumper settings are as follows :
COM 3
Function
RS-232
RS-422 1-2, 3-4, 9-10
Jumper Settings
(pin closed)
Open
Jumper
Illustrations
RS-485 1-2, 5-6, 9-10
*** Manufactory default --- RS-232.
Page: 2-10
′
PMB-472 USER
S MANUAL
Chapter 2 Hardware Configuration
2-8. KEYBOARD AND PS/2 MOUSE CONNECTOR
JKBMS1 : Keyboard and PS/2 Mouse Connector
DIN connector can support keyboard, and PS/2 Mouse. The pin
assignments are as follows :
PIN
ASSIGNMENT
Keyboard PS/2 Mouse
1 KBDATA MSDATA
2 NC NC
3 GND GND
4 5VSB 5VSB
5 KBCLK MSCLK
6 NC NC
2-9. RESET CONNECTOR
JPANEL1 (13,15) : Reset Connector.
The pin assignment is as follows :
PIN ASSIGNMENT
13 GND
15 RST_SW
2-10. HARD DISK DRIVE LED CONNECTOR
JPANEL1 (9,11) : Hard Disk Drive LED Connector
The pin assignment is as follows :
PIN ASSIGNMENT
9 HD_LED+
11 HD_LED-
PMB-472 USER′S MANUAL
Page: 2-11
Chapter 2 Hardware Configuration
2-11. POWER BUTTON
JPANEL1 (14,16) : Power Button
The pin assignment is as follows :
PIN ASSIGNMENT
14 PWR_BN1
16 PWR_BN2
2-12. EXTERNAL SPEAKER CONNECTOR
JPANEL1 (1,3,5,7) : External Speaker Connector
The pin assignment is as follows :
PIN ASSIGNMENT
1 SPK3 NC
5 NC
7 SPK+
2-13. POWER LED CONNECTOR
JPANEL1 (8,10,12) : Power LED Connector
The pin assignment is as follows:
PIN ASSIGNMENT
8 PW_LED+
10 PW_LED+
12 PW_LED-
Page: 2-12
′
PMB-472 USER
S MANUAL
Chapter 2 Hardware Configuration
2-14. EXTERNAL SMI CONNECTOR
JPANEL1 (2,4) : External SMI Connector
The pin assignment is as follows:
PIN ASSIGNMENT
2 GPIO12
4 GND
2-15. INVERTER CONNECTOR
INV1 : Inverter Connector
The pin assignment is as follows:
PIN ASSIGNMENT
1 +12V
2 GND
3 VCC
4 GND
5 ENABKL (Inverter backlight
ON/OFF control signal)
PMB-472 USER′S MANUAL
Page: 2-13
Chapter 2 Hardware Configuration
2-16. CLEAR CMOS DATA SELECTION
JP7 : Clear CMOS Data Selection
The selections are as follows :
FUNCTION
JUMPER SETTING
(pin closed)
Normal 1-2
Clear CMOS 2-3
*** Manufacturing Default is set as Normal.
Note: To clear CMOS data, user must power-off the computer and set the jumper
to “Clear CMOS” as illustrated above. After five to six seconds, set the
jumper back to “Normal” and power-on the computer.
2-17. CPU FAN CONNECTOR
JCFAN1 : CPU Fan connector
The pin assignment is as follows:
PIN ASSIGNMENT
1 GND
2 +12V
3 FAN1
JUMPER
ILLUSTRATION
Page: 2-14
′
PMB-472 USER
S MANUAL
2-18. VGA CONNECTOR
VGA1 : VGA CRT Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 RED
2 GREEN
3 BLUE
4 NC
5 GND
6 GND
7 GND
8 GND
9 VCC
10 GND
11 NC
12 VGA IIC DATA
13 HSYNC
14 VSYNC
15 VGA IIC CLK
Chapter 2 Hardware Configuration
PMB-472 USER′S MANUAL
Page: 2-15
Chapter 2 Hardware Configuration
2-19. HARD DISK DRIVE CONNECTOR
IDE1: Hard Disk Drive Connector
The PMB-472 possesses two HDD connectors, IDE1 and IDE2. The pin
assignments are as follows:
PIN ASSIGNMENT PIN ASSIGNMENT
1 IDERST 2 GND
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10
9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 GND 20 NC
21 PDREQ 22 GND
23 PDIOW# 24 GND
25 PDIOR# 26 GND
27 PIORDY 28 PULL LOW
29 PDDACK# 30 GND
31 IRQ14 32 NC
33 PDA1 34 P66 DETECT
35 PDA0 36 PDA2
37 PDCS#1 38 PDCS#3
39 IDEACTP# 40 GND
41 VCC 42 VCC
43 GND 44 GND
Page: 2-16
′
PMB-472 USER
S MANUAL
IDE2: Hard Disk Drive Connector
The pin assignments are as follows:
Chapter 2 Hardware Configuration
PIN ASSIGNMENT PIN ASSIGNMENT
1 IDERST 2 GND
3 SDD7 4 SDD8
5 SDD6 6 SDD9
7 SDD5 8 SDD10
9 SDD4 10 SDD11
11 SDD3 12 SDD12
13 SDD2 14 SDD13
15 SDD1 16 SDD14
17 SDD0 18 SDD15
19 GND 20 NC
21 SDREQ 22 GND
23 SDIOW# 24 GND
25 SDIOR# 26 GND
27 SIORDY 28 PULL LOW
29 SDDACK# 30 GND
31 IRQ15 32 NC
33 SDA1 34 S66 DETECT
35 SDA0 36 SDA2
37 SDCS#1 38 SDCS#3
39 IDEACTS# 40 GND
PMB-472 USER′S MANUAL
Page: 2-17
Chapter 2 Hardware Configuration
2-20. FLOPPY DISK DRIVE CONNECTOR
FDD1 : Floppy Disk Drive Connector
The pin assignments are as follows :
PIN ASSIGNMENT PIN ASSIGNMENT
1 VCC 2 INDEXJ
3 VCC 4 DSAJ
5 VCC 6 DSKCHGJ
7 NC 8 NC
9 NC 10 MOAJ
11 NC 12 DIRJ
13 DRVDEN0 14 STEPJ
15 GND 16 WDATAJ
17 GND 18 WGATEJ
19 GND 20 TRACK0J
21 GND 22 WPTJ
23 GND 24 RDATAJ
25 GND 26 HEADJ
Page: 2-18
′
PMB-472 USER
S MANUAL
2-21. PRINTER CONNECTOR
JPRNT1 : Printer Connector
As to link the Printer to the card, you need a cable to connect both
DB25 connector and parallel port.
The pin assignments are as follows :
Chapter 2 Hardware Configuration
PIN ASSIGNMENT PIN ASSIGNMENT
1 STB 14 AFD#
2 PDR0 15 ERROR#
3 PDR1 16 PAR_INIT#
4 PDR2 17 SLIN#
5 PDR3 18 GND
6 PDR4 19 GND
7 PDR5 20 GND
8 PDR6 21 GND
9 PDR7 22 GND
10 ACK# 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT
PMB-472 USER′S MANUAL
Page: 2-19
Chapter 2 Hardware Configuration
2-22. UNIVERSAL SERIAL BUS CONNECTOR
JUSB1: Universal Serial Bus Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCCUSB2
2 VCCUSB2
3 USB2N_R
4 USB3N_R
5 USB2P_R
6 USB3P_R
7 GND
8 GND
9 GND
10 GND
JUSB2: Universal Serial Bus Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCCUSB3
2 VCCUSB3
3 USB4N_R
4 USB5N_R
5 USB4P_R
6 USB5P_R
7 GND
8 GND
9 GND
10 GND
Page: 2-20
′
PMB-472 USER
S MANUAL
2-23. IRDA CONNECTOR
IRDA1: IrDA (Infrared) Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 +5V
2 NC
3 IRRX
4 GND
5 IRTX
2-24. LAN CONNECTOR
LAN2: LAN Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 LAN2_TXP_R
2 2VDD33
3 LAN2_TXN_R
4 LAN2_ACT_R
5 GND
6 LAN2_LINK100_R
7 LAN2_RXP_R
8 LAN2_LINK10_R
9 LAN2_RXN_R
10 NC
Chapter 2 Hardware Configuration
PMB-472 USER′S MANUAL
Page: 2-21
Chapter 2 Hardware Configuration
2-25. USB&LAN CONNECTOR
J2: USB & LAN Connector (10/100 LAN)
The pin assignments are as follows:
LAN:
PIN ASSIGNMENT
1 MDI_0P
2 MDI_0N
3 MDI_1P
4 MDI_1N
5 MDI_2P
6 MDI_2N
7 MDI_3P
8 MDI_3N
LAN LED Indicator:
Left side LED:
Green Color on 10/100 LAN Speed Indicator
Orange Color on Giga LAN Speed Indicator
off No LAN switch/hub connected
Right side LED:
Yellow Color Blinking LAN Message Active
off No LAN Message Active
USB:
PIN ASSIGNMENT
A1 VCCUSB1
A2 USB1N_R
A3 USB1P_R
A4 GND
B1 VCCUSB0
B2 USB0N_R
B3 USB0P_R
B4 GND
Page: 2-22
PMB-472 USER
′
S MANUAL
Chapter 2 Hardware Configuration
2-26. WAKE-ON-LAN CONNECTOR
JWOL1: Wake-On-LAN Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 5VSB
2 GND
3 LWAKE
JWOL2: Wake-On-LAN Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 5VSB
2 GND
3 PMEJ
PMB-472 USER′S MANUAL
Page: 2-23
Chapter 2 Hardware Configuration
2-27. LVDS CONNECTOR
LVDS1 : LVDS Connector.
The pin assignments are as follows:
PIN ASSIGNMENT PIN ASSIGNMENT
1 LCD_VCC 2 GND
3 ZCM 4 ZCP
5 GND 6 Z2M
7 Z2P 8 GND
9 Z1M 10 Z1P
11 Z3P 12 Z3M
13 Z0P 14 Z0M
15 GND 16 YCP
17 YCM 18 GND
19 Y2P 20 Y2M
21 GND 22 Y1P
23 Y1M 24 GND
25 Y0P 26 Y0M
27 Y3P 28 Y3M
29 LCD_VCC 30 LCD_VCC
Page: 2-24
′
PMB-472 USER
S MANUAL
Chapter 2 Hardware Configuration
2-28. LVDS PANEL VOLTAGE SELECTION
JP5 : LVDS Panel Voltage Selection.
The selections are as follows:
SELECTION
JUMPER SETTING
1-3
LVDS_VCC3
2-4
3-5
LVDS_VCC5
4-6
** Manufacturing Default: LVDS_VCC3**
JUMPER
ILLUSTRATION
PMB-472 USER′S MANUAL
Page: 2-25
Chapter 2 Hardware Configuration
2-29. ATX POWER CONNECTOR
CN1 : ATX Power Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCC
2 VCC
3 GND
4 GND
5 +12V
6 5VSB
7 VCC
8 GND
9 PS-ON
10 -12V
Page: 2-26
′
PMB-472 USER
S MANUAL
2-30. SOUND CONNECTOR
JAUDIO1 : Sound Connector, including Line-In, Line-Out & Mic.
Also can support only MIC connector. The pin assignments are as
follows :
SPDIF (inside the Line-In hole)
PIN ASSIGNMENT
# Photo type
Line-In: light blue color
PIN ASSIGNMENT
1 GND
2 LINE_L
3 LINE_R
SPK-Out: light green color
PIN ASSIGNMENT
1 GND
2 SPK_L
3 SPK_R
Mic-In: pink color
PIN ASSIGNMENT
1 GND
2 MIC_IN1
3 MIC_IN2
Chapter 2 Hardware Configuration
PMB-472 USER′S MANUAL
Page: 2-27
Chapter 2 Hardware Configuration
2-31. CD AUDIO-IN CONNECTOR
JCDIN2 : CD Audio-In Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 CD L
2 CDGND
3 CDGND
4 CD R
2-32. SPEAKER CONNECTOR
SPK1 : Speaker Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 SPK_L
2 GND
3 SPK_R
2-33. MEMORY INSTALLATION
PMB-472 CPU Card can support up to 1GB in one SODIMM sockets.
DRAM BANK CONFIGURATION
SO-DIMM TOTAL MEMORY
128MB 128MB
256MB 256MB
512MB 512MB
1GB 1GB
Page: 2-28
′
PMB-472 USER
S MANUAL
Chapter 2 Hardware Configuration
2-34. PCI SLOT PIN 26 SELECTION
JP6 : PCI/Riser Card Selection.
The selections are as follows:
SELECTION
JUMPER SETTING
PCI
1-2
(IDSEL)
Riser Card
2-3
(P_GNT#5)
** Manufacturing Default: Riser Card**
JUMPER
ILLUSTRATION
PMB-472 USER′S MANUAL
Page: 2-29
Chapter 2 Hardware Configuration
2-35. RESET/ NMI SELECTION
JP9 : Reset/NMI Selection.
The selections are as follows:
SELECTION
JUMPER SETTING
Reset 1-2
NMI 3-4
** Manufacturing Default: Reset**
JUMPER
ILLUSTRATION
Page: 2-30
′
PMB-472 USER
S MANUAL
Chapter 2 Hardware Configuration
2-36. CF MASTER/ SLAVE SELECTION
JP3 : CF Master/ Slave Selection.
The selections are as follows:
SELECTION
JUMPER SETTING
Master 1-2
Slave Open
** Manufacturing Default: Master**
JUMPER
ILLUSTRATION
PMB-472 USER′S MANUAL
Page: 2-31
Chapter 2 Hardware Configuration
2-37. PCI SLOT SIGNAL EXPLANATION
In order to support standard PCI and PCI riser board for up to 3 PCI
devices, the PCI slot signals in this mainboard are listed below:
PIN Standard Riser
A1 TRST# SERIRQ
A9 RSVD CLKC
A11 RSVD CLKD
A14 RSV->3VSB GNT1#
A19 PME# REQ2#
A26 IDSEL GNT2#
A40 SMBCLK REQA#
A41 SMBDATA GNTA#
B2 TCK ISA_CLK
B9 PRSNT1# REQ3#
B10 RSVD REQ1#
B11 PRSNT2# GNT3#
B14 RSVD CLKA
B16 CLK CLKB
Page: 2-32
′
PMB-472 USER
S MANUAL
Chapter 2 Hardware Configuration
2-38. PCI RISER BOARD INFORMATION
For correctly operation for 3 PCI devices on the PCI slot of PMB-472,
the particular PCI riser card must be followed to the following
recommendation. Professional technical consultant may need for
designing the right riser board or purchasing from the same
manufactories’ riser board.
PCI Routing Table
IDSEL INTJ0 INTJ1 INTJ2 INTJ3 REQ# GNT# CLK
AD28 A B C D P_REQJ3 P_GNTJ3 PCI_CLK3
AD29 B C D A P_REQJ4 P_GNTJ4 PCI_CLK4
AD30 C D A B P_REQJ5 P_GNTJ5 PCI_CLK5
2-39. DIGITAL I/O PORT
DIO1 : Digital Input/Output Port
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCC
2 GND
3 Input bit 0
4 Output bit 0
5 Input bit 1
6 Output bit 1
7 Input bit 2
8 Output bit 2
9 Input bit 3
10 Output bit 3
Input Port: Read I/O 440H
Output Port: Write I/O 441H
PMB-472 USER′S MANUAL
Page: 2-33
SOFTWARE
CHAPTER
UTILITIES
This chapter comprises the detailed information of VGA driver, LAN
driver, and Flash BIOS update. It also describes how to install the
watchdog timer configuration.
Section includes:
z VGA Driver Utility
z Flash BIOS Update
z LAN Driver Utility
z Sound Driver Utility
z Intel® Chipset Software Installation Utility
z USB2.0 Chipset Software Installation Utility
z Watchdog Configuration
3
Page: 3-1
Chapter 3 Software Configuration
3-1. INTRODUCTION
Enclosed with our PMB-472 package is our driver utility, which may comes
in a form of a CD ROM disc or floppy diskettes. For CD ROM disc user,
you will only need some of the files contained in the CD ROM disc, please
kindly refer to the following chart:
Filename
(Assume that CD ROM drive is D:)
D:\Driver\VGA
D:\Driver\FLASH For BIOS update utility
D:\Driver\LAN For LAN Driver installation
D:\Driver\Sound Realtel ALC655 AC97
D:\Driver\UTILITY Intel® Chipset Software
D:\Driver\USB 2.0 USB 2.0 Software Installation
User should remember to install the Utility right after the OS fully installed.
3-2. VGA DRIVER UTILITY
The VGA interface embedded with our PMB-472 can support a wide range
of display. You can display CRT, LVDS simultaneously with the same
mode.
Purpose
Intel 852GM
For VGA driver installation
For Sound driver installation
Installation Utility
For Win 98SE, 2000, XP
Utility
For Win 98SE, 2000, ME, XP
Page:3-2
′
PMB-472 USER
S MANUAL
Chapter 3 Software Configuration
1. Win 9X program
2. Win NT4.0 program
3. Win 2000 program
4. Win XP program
3-2-1. Installation of VGA Driver:
To install the VGA Driver, simply follow the following steps:
1. Place insert the Utility Disk into Floppy Disk Drive A/B or CD
ROM drive.
2. Under Windows 9X/NT4.0/2000/XP system, go to the directory
where VGA driver is located.
3. Click Setup.exe file for VGA driver installation.
4. Follow the instructions on the screen to complete the installation.
5. Once installation is completed, shu t down the system and restart in
order for the changes to take effect.
Under the Windows 98 system, after rebut computer, there will have two
error messages appear, “Can’t find ikch8xx.cat and isb8xx.cat”, just skip the
messages, they will not cause any effects.
PMB-472 USER′S MANUAL
Page:3-3
Chapter 3 Software Configuration
3-3. FLASH BIOS UPDATE
3-3-1. System BIOS Update:
Users of PMB-472 can use the program “Awdflash.exe” contained in the
Utility Disk for system BIOS and VGA BIOS update.
3-3-2. To update VGA BIOS for LCD Flat Panel Display:
As PMB-472 user, you have to update the VGA BIOS for your specific
LCD flat panel you are going to use. For doing this, you need two files.
One is the “Awdflash.exe” file and the other is the VGA BIOS for ATI
Rage Mobility M6 file for LCD panel display. Both file must be
provided by the vendor or manufacturer. When you get these two files
ready, follow the following steps for updating your VGA BIOS:
1. Install “Awdflash.exe” from Utility Disk to Drive C.
2. Insert the VGA BIOS file you have obtained from the vendor.
Type the path to Awdflash.exe and execute the VGA BIOS update
with file B472xxxx.bin
3. C:\UTIL\AWDFLASH>AWDFLASH B472xxxx.bin
4. The screen will display as the table fount on the next page:
FLASH MEMORY WRITER v8.XX
(C) Award Software 2001 All Rights Reserved
Flash Type – SST 49LF004A /3.3V
File Name to Program: B472xxxx.bin
Checksum: XXXXX
Page:3-4
Error Message: Do You Want To Save BIOS (Y/N)
If you want to save up the original BIOS, enter "Y" and press < Enter >.
If you choose "N", the following table will appear on screen.
′
PMB-472 USER
S MANUAL
Chapter 3 Software Configuration
FLASH MEMORY WRITER v8.XX
(C) Award Software 2001 All Rights Reserved
Flash Type – SST 49LF004A /3.3V
File Name to Program: B472xxxx.bin
Checksum: XXXXX
Error Message : Are You Sure To Program (Y/N)
Select "Y", and the BIOS will be renewed. When you are refreshing th e
BIOS, do not turn off or reset the system, or you will damage the BIOS.
After you have completed all the programming, the screen displays the
table below:
FLASH MEMORY WRITER v8.XX
(C) Award Software 2001 All Rights Reserved
Flash Type – SST 49LF004A /3.3V
File Name to Program: B472xxxx.bin
Checksum: XXXXX
F1: Reset F10: Exit
Please reset or power off the system, and then the Flash BIOS is fully
implemented.
PMB-472 USER′S MANUAL
Reset System or Power off to
accomplish update process!
Page:3-5
Chapter 3 Software Configuration
3-4. LAN DRIVER UTILITY
3-4-1. Introduction
PMB-472 is enhanced with LAN function that can support various
network adapters. Installation programs for LAN drivers are listed as
follows:
For more details on Installation procedure, please refer to Readme.txt
file found on LAN DRIVER UTILITY.
1.
Win 98/2000/XP program
2.
Linux program
Page:3-6
′
PMB-472 USER
S MANUAL
Chapter 3 Software Configuration
3-5. SOUND DRIVER UTILITY
3-5-1. Introduction
The Realtek ALC655 sound function enhanced in this system is fully
compatible with Windows 98, Windows NT 4.0, Windows 2000, and
Windows XP. Below, you will find the content of the Sound driver :
1. Win 98SE program
2. Win NT 4.0 program
3. Win 2000 program
4. Win XP program
3-5-2. Installation Procedure for Windows 9x/NT/2000/XP
1. From the task bar, click on Start, and then Run.
2. In the Run dialog box, type D:\Sound\path\setup, where
“D:\Sound\pathname” refers to the full path to the source files.
3. Click on the OK button or press the ENTER key.
4. Click on the “Next” and OK prompts as they appear.
5. Reboot the system to complete the driver installation.
PMB-472 USER′S MANUAL
Page:3-7
Chapter 3 Software Configuration
3-6. INTEL® C HIPSET SOFTWARE INSTALLATION UTILITY
3-6-1. Introduction
The Intel® Chipset Software Installation Utility installs to the target
system the Windows* INF files that outline to the operating system how
the chipset components will be configured. This is needed for the
proper functioning of the following features:
- Core PCI and ISAPNP Services
- AGP Support
- IDE/ATA33/ATA66/ATA100 Storage Support
- USB Support
- Identification of Intel® Chipset Components in Device Manager
3-6-2. Installation of Utility for Windows 98SE/2000/XP
The Utility Pack is to be installed only for Windows 98SE, Windows
2000 and XP program.
It should be installed right after the OS installation, kindly follow the
following steps:
1. Place insert the Utility Disk into Floppy Disk Drive A/B or CD
ROM drive.
2. Under Windows 98SE/2000/XP system, go to the directory where
Utility Disc is located.
3. Click Setup.exe file for utility installation.
4. Follow the instructions on the screen to complete the installation.
5. Once installation is completed, shu t down the system and restart in
order for the changes to take effect.
Page:3-8
′
PMB-472 USER
S MANUAL
Chapter 3 Software Configuration
3-7. USB2.0 SOFTWARE INSTALLATION UTILITY
3-7-1. Installation of Utility for Windows 98SE/ 2000/XP
Intel USB 2.0 Enhanced Host Controller driver can only be used on
Windows 98SE, Windows 2000 and Windows XP on Intel Desktop
boards. It should be installed right after the OS installation, kindly
follow the following steps:
1. Place insert the Utility Disk into Floppy Disk Drive A/B or CD
ROM drive.
2. Under Windows 98SE, 2000, and XP system, go to the directory
where Utility Disc is located.
3. Start the “System” wizard in control panel. (Click
Start/Settings/Control Panel).
4. Select “Hardware” and click “Device Manager ” button.
5. Double Click “USB Root Hub”.
6. Select “Driver”.
7. Click “Install” to install the dr iver.
8. Follow the instructions on the screen to complete the installation.
9. Click “Finish” after the driver installation is complete.
PMB-472 USER′S MANUAL
Page:3-9
Chapter 3 Software Configuration
3-8. WATCHDOG TIMER CONFIGURATION
The I/O port address of the watchdog timer is 2E(hex) and 2F(hex). 2E (hex) is the
address port. 2F(hex) is the data port. User must first assign the address of register by
writing address value into address port 2E(hex), then write/read data to/from the
assigned register through data port 2F (hex).
Configuration Sequence
To program W83627HF configuration registers, the following configuration sequence
must be followed:
(1) Enter the extended function mode
(2) Configure the configuration registers
(3) Exit the extended function mode
(1) Enter the extended function mode
To place the chip into the extended function mode, two successive writes of 0x87
must be applied to Extended Function Enable Registers (EFERs, i.e. 2Eh).
(2) Configurate the configuration registers
The chip selects the logical device and activates the desired logical devices through
Extended Function Index Register (EFIR) and Extended Function Data Register
(EFDR). EFIR is located at the same address as EFER, and EFDR is located at
address (EFIR+1).
First, write the Logical Device Number (i.e.,0x07) to the EFIR and then write the
number of the desired logical device to the EFDR. Secondly, write the address of the
desired configuration register within the logical device to the EFIR and then write (or
read) the desired configuration register through EFDR.
(3) Exit the extended function mode
To exit the extended function mode, one write of 0xAA to EFER is required. Once
the chip exits the extended function mode.
Example Program
1. Enable watchdog timer and set 30 sec. as timeout interval
;----------------------------------------------------------Mov dx, 2eh ; Enter to extended function mode
Mov al, 87h
Out dx, al
Out dx, al
;-----------------------------------------------------------
Page:3-10
PMB-472 USER
′
S MANUAL
Chapter 3 Software Configuration
Mov al, 07h ; Select Logical Device 8 of watchdog timer
Out dx,al
Inc dx
Mov al, 08h
Out dx,al
;----------------------------------------------------------Dec dx ; Set second as counting unit
Mov al, 0f5h
Out dx,al
Inc dx
In al,dx
And al,not 08h
Out dx,al
;----------------------------------------------------------Dec dx ; Set timeout interval as 30seconds and start counting
Mov al, 0f6h
Out dx,al
Inc dx
Mov al, 30
Out dx,al
;----------------------------------------------------------Dec dx ; Exit the extended function mode
Mov al, 0aah
Out dx,al
PMB-472 USER′S MANUAL
Page:3-11
CHAPTER
AWARD
BIOS SETUP
This chapter shows how to set up the Award BIOS.
Section includes:
z Introduction
z Entering Setup
z The Standard CMOS Features
z The Advanced BIOS Features
z The Advanced Chipset Features
z Integrated Peripherals
z Power Management Setup
z PNP/PCI Configuration
z PC Health Status
z Frequency Control
z Load Fail-Safe Defaults
z Load Optimized Defaults
z Set Supervisor Password
z Set User Password
z Save and Exit Setup
z Exit Without Saving
4
Page: 4-1
Chapter 4 Award BIOS Setup
4-1. INTRODUCTION
This chapter will show you the function of the BIOS in managing the
features of your system. The PMB-472 Intel® Celeron® M Half Size Card is
equipped with the BIOS for system chipset from Award Software Inc. This
page briefly explains the function of the BIOS in managing the special
features of your system. The following pages describe how to use the BIOS
for system chipset Setup menu.
Your application programs (such as word processing, spreadsheets, and
games) rely on an operating system such as DOS or OS/2 to manage such
things as keyboard, monitor, disk drives, and memory.
The operating system relies on the BIOS (Basic Input and Output system), a
program stored on a ROM (Read-only Memory) chip, to initialize and
configure your computer's hardware. As the interface between the hardware
and the operating system, the BIOS enables you to make basic changes to
your system's hardware without having to write a new operating system.
The following diagram illustrates the interlocking relationships between the
system hardware, BIOS, operating system, and application program:
Page: 4-2
′
PMB-472 USER
S MANUAL
Chapter 4 Award BIOS Setup
4-2. ENTERING SETUP
When the system is powered on, the BIOS will enter the Power-On Self
Test (POST) routines and the following message will appear on the lower
screen:
PRESS <DEL> TO ENTER SETUP, ESC TO SKIP MEMORY TEST
As long as this message is present on the screen you may press the <Del>
key (the one that shares the decimal point at the bottom of the number
keypad) to access the Setup program. In a moment, the main menu of the
Award SETUP program will appear on the screen:
Phoenix - AwardBIOS CMOS Setup Utility
►Standard CMOS Features
►Advanced BIOS Features
►Advanced Chipset Features
►Integrated Peripherals
►Power Management Setup
►PnP/PCI Configurations
►PC Health Status
Esc : Quit ↑↓→← : Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type .…
Setup program initial screen
You may use the cursor the up/down keys to highlight the individual menu
items. As you highlight each item, a brief description of the highlighted
selection will appear at the bottom of the screen.
►Frequency Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
PMB-472 USER′S MANUAL
Page: 4-3
Chapter 4 Award BIOS Setup
4-3. THE STANDARD CMOS FEATURES
Highlight the〝STANDARD CMOS FEATURES〞and press the <ENTER>
key and the screen will display the following table:
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
▶ IDE Primary Master
▶ IDE Primary Slave
▶ IDE Secondary Master
▶ IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
Tue, Jun
21 2005
17 : 13 : 13
[QSI CD-ROM SCR-242]
[None]
[ST340014A]
[None]
[1.44M, 3.5 in.]
[None]
[EGA/VGA]
[All, But Keyboard]
640K
1013760K
1014784K
Item Help
Menu Level ►
Change the internal
clock.
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
CMOS Setup screen
In the above Setup Menu, use the arrow keys to highlight the item and then use
the <PgUp> or <PgDn> keys to select the value you want in each item.
Date:
< Month >, < Date > and <Year >. Ranges for each value are in the CMOS
Setup Screen, and the week-day will skip automatically.
Time:
< Hour >, < Minute >, and < Second >. Use 24 hour clock format, i.e., for PM
numbers, add 12 to the hour. For example: 4: 30 P.M. You should enter the
time as 16:30:00.
Page: 4-4
′
PMB-472 USER
S MANUAL
IDE Primary Master / Slave:
IDE Secondary Master / Slave:
The BIOS can automatically detect the specifications and optimal operating
mode of almost all IDE hard drives. When you select type AUTO for a hard
drive, the BIOS detect its specifications during POST, every time system
boots.
If you do not want to select drive type AUTO, other methods of selecting
drive type are available:
1. Match the specifications of your installed IDE hard drive(s) with the
preprogrammed values for hard drive types 1 through 45.
2. Select USER and enter values into each drive parameter field.
3. Use the IDE HDD AUTO DETECTION function in Setup.
Here is a brief explanation of drive specifications:
Type: The BIOS contains a table of pre-defined drive types. Each
defined drive type has a specified number of cylinders, number of heads,
write precompensation factor, landing zone, and number of sectors.
Drives whose specifications do not accommodate any predefine type are
classified as type USER.
Chapter 4 Award BIOS Setup
• Size: Disk drive capacity (approximate). Note that this size is usually
greater than the size of a formatted disk given by a disk-checking
program.
• Cyls: number of cylinders.
• Head: number of heads.
• Precomp: write precompensation cylinders.
• Landz: landing zone.
• Sector: number of sectors.
• Mode: Auto, Normal, Large or LBA.
Auto: The BIOS automatically determines the optimal mode.
Normal: Maximum number of cylinders, heads, sectors
supported are 1024, 16 and 63.
Large: For drives that do not support LBA and have more
than 1024 cylinders.
PMB-472 USER′S MANUAL
Page: 4-5
Chapter 4 Award BIOS Setup
LBA (Logical Block Addressing): During drive accesses, the
IDE controller transforms the data address described by
sector, head and cylinder number into a physical block
address, significantly improving data transfer rates. For
drives greater than 1024 cylinders.
DRIVE A AND DRIVE B:
Select the type of floppy disk drive installed in your system. The available
options are 360KB 5.25in, 1.2KB 5.25in, 720KB 3.5in, 1.44MB 3.5in,
2.88MB 3.5in and None.
VIDEO:
This category selects the type of video adapter used for the primary system
monitor. Although secondary monitors are supported, you do not have to
select the type in Setup. Available Options are as follows:
EGA/VGA Enhanced Graphics Adapter/Video Graphics Array.
For EGA, VGA, SEGA, SVGA or PGA monitor
adapters.
CGA 40 Color Graphics Adapter, power up in 40 column mode.
CGA 80 Color Graphics Adapter, power up in 80 column mode.
MONO Monochrome adapter, includes high resolution
monochrome adapters.
HALT ON:
This category allows user to choose whether the computer will stop if an error
is detected during power up. Available options are “All errors”, “No errors”,
“All, But keyboard”, “All, But Diskette”, and “All But Disk/Key”.
BASE MEMORY:
Displays the amount of conventional memory detected during boot up.
EXTENDED MEMORY:
Displays the amount of extended memory detected during boot up.
TOTAL MEMORY:
Displays the total memory available in the system.
Page: 4-6
′
PMB-472 USER
S MANUAL
Chapter 4 Award BIOS Setup
4-4. THE ADVANCED BIOS FEATURES
Choose the〝ADVANCED BIOS FEATURES〞in the main menu, the screen
shown as below.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
CPU L1 & L2 Cache
Quick Power On Self Test
First Boot Device
Second Boot Device
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
x Typematic Rate (Chars/Sec)
x Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
BIOS Features Setup Screen
The “BIOS FEATURES SETUP” allow you to configure your system for
basic operation. The user can select the system’s default speed, boot-up
sequence, keyboard operation, shadowing and security.
A brief introduction of each setting is given below.
CPU L1 & L2 CACHE :
This item allows you to enable L1 & L2 cache.
QUICK POWER ON SELF-TEST:
This item allows you to speed up Power On Self Test (POST) after power-up
the computer. When enabled, the BIOS will shorten or skip some check items
during POST.
FIRST/SECOND/ BOOT DEVICE:
The BIOS attempt to load the operating system from the devices in the
sequence selected in these items.
PMB-472 USER′S MANUAL
[Enabled]
[Enabled]
[USB-CDROM]
[HDD-0]
[Enabled]
[On]
[Disabled]
6
250
[Setup]
[Non-OS2]
Item Help
Menu Level ►
Page: 4-7
Chapter 4 Award BIOS Setup
BOOT UP FLOPPY SEEK:
You may enable / disable this item to define whether the system will look for
a floppy disk drive to boot at power-on, or proceed directly to the hard disk
drive.
BOOT UP NUMLOCK STATUS:
Select power on state for NumLock.
TYPEMATIC RATE SETTING:
Enable this item if you wish to be able to configure the characteristics of
your keyboard. Typematic refers to the way in which characters are entered
repeatedly if a key is held down. For example, if you press and hold down
the "A" key, the letter "a" will repeatedly appear on your screen on your
screen until you release the key. When enabled, the typematic rate and
typematic delay can be selected.
TYPEMATIC RATE (CHARS/SEC):
This item sets the number of times a second to repeat a key stroke when you
hold the key down.
TYPEMATIC DELAY (MSEC):
The item sets the delay time after the key is held down before it begins to
repeat the keystroke.
SECURITY OPTION:
This category allows you to limit access to the system and Setup, or just to
Setup.
System The system will not boot and access to Setup will be
denied if the correct password is not entered at the
prompt.
Setup The system will boot, but access to Setup will be
denied if the correct password is not entered at the
prompt.
To disable security, select PASSWORD SETTING at Main Menu and
then you will be asked to enter password. Do not type anything and just
press <Enter>, it will disable security. Once the security is disabled, the
system will boot and you can enter Setup freely.
OS SELECT FOR DRAM >64MB :
Select the operating system that is running with greater than 64MB or RAM
on the system. You may choose OS2 or Non-OS2.
Page: 4-8
′
PMB-472 USER
S MANUAL
Chapter 4 Award BIOS Setup
4-5. ADVANCED CHIPSET FEATURES
Choose the〝ADVANCED CHIPSET FEATURES〞from the main menu,
the screen shown as below.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
DRAM Timing Selectable
X CAS Latency Time
X Active to Precharge Delay
X DRAM RAS# to CAS# Delay
X DRAM RAS# Precharge
System BIOS Cacheable
Video BIOS Cacheable
Memory Hole At 15M-16M
Delayed Transaction
AGP Aperture Size (MB)
** On-Chip VGA Setting **
On-Chip VGA
On-Chip Frame Buffer Size
Boot Display
Panel Type
PCI SERR# NMI
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Chipset Features Setup Screen
This parameter allows you to configure the system based on the specific
features of the installed chipset. The chipset manages bus speed and
access to system memory resources, such as DRAM and the external cache.
It also coordinates communications between conventional ISA bus and the
PCI bus. It must be stated that these items should never need to be altered.
The default settings have been chosen because they provide the best operating conditions for the system. The only time you might consider making
any changes would be if you discovered that data was being lost while
using your system.
[By SPD]
2
6
3
3
[Enabled]
[Disabled]
[Disabled]
[Enabled]
[64]
[Enabled]
[32MB]
[CRT]
[640x480 18-bits]
[Disabled]
Item Help
Menu Level ►
PMB-472 USER′S MANUAL
Page: 4-9
Chapter 4 Award BIOS Setup
DRAM TIMING BY SELECTABLE:
This allows you to select the DRAM timing.
CAS LATENCY TIME:
When synchronous DRAM is installed, the number of clock cycles of CAS
latency depends on the DRAM timing.
ACTIVE TO PRECHARGE DELAY:
This item controls the number of DRAM clocks for TRAS.
DRAM RAS# TO CAS# DELAY:
This field let’s you insert a timing delay between the CAS and RAS strobe
signals, used when DRAM is written to, read from, or refreshed. Fast gives
faster performance; and Slow gives more stable performance. This field
applies only when synchronous DRAM is installed in the system.
DRAM RAS# PRECHARGE:
If an insufficient number of cycles is allowed for the RAS to accumulate its
charge before DRAM refresh, the refresh may be incomplete and the DRAM
may fail to retain data. Fast gives faster performance; and Slow gives more
stable performance. This field applies only when synchronous DRAM is
installed in the system.
DRAM DATA INTEGRITY MODE:
Select Parity or ECC (error-correcting code), according to the type of installed
DRAM.
SYSTEM BIOS CACHEABLE:
Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any program
writes to this memory area, a system error may result.
VIDEO BIOS CACHEABLE:
Select Enabled allows caching of the video BIOS, resulting in better system
performance. However, if any program writes to this memory area, a system
error may result.
Page: 4-10
′
PMB-472 USER
S MANUAL
Chapter 4 Award BIOS Setup
MEMORY HOLE AT 15M-16M:
You can reserve this area of system memory for ISA adapter ROM. When
this area is reserved, it cannot be cached. The user information of
peripherals that need to use this area of system memory usually discusses their
memory requirements.
DELAYED TRANSACTION:
The chipset has an embedded 32-bit posted write buffer to support delay
transactions cycles. Select Enabled to support compliance with PCI
specification version 2.1.
AGP APERTURE SIZE:
This field determines the effective size of the Graphic Aperture used for a
particular GMCH configuration. It can be updated by the GMCH-specific
BIOS configuration sequence before the PCI standard bus enumeration
sequence takes place. If it is not updated then a default value will select an
aperture of maximum size.
ON-CHIP VGA :
By default, the On-Chip VGA or chipset-integrated VGA is “Enabled”.
ON-CHIP FRAME BUFFER SIZE: (depend on chipset)
The On-Chip Frame Buffer Size can be set as 1MB or 8MB. This memory is
shared with the system memory.
BOOT DISPLAY: (depend on chipset)
Boot Display determines the display output device where the system boots.
The options are CRT and LVDS.
PANEL TYPE: (depend on chipset)
This field allows user to decide the LVDS panel resolution. The available
choices are: 640x480 18bits, 800x600 18bits, 1024x768 18bits, 1280x1024
36bits, 1400x1050 36bits, 1600x1200 36bits, and 1024x768 24bits.
PMB-472 USER′S MANUAL
Page: 4-11
Chapter 4 Award BIOS Setup
4-6. INTEGRATED PERIPHERALS
Choose〝INTEGRATED PERIPHERALS〞from the main setup menu, a
display will be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
►OnChip IDE Device
►Onboard Device
►SuperIO Device
Watch Dog Timer Select
Onboard Serial Port 3
Serial Port 3 Use IRQ
Onboard Serial Port 4
Serial Port 4 Use IRQ
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Integrated Peripherals Setup Screen
By moving the cursor to the desired selection and by pressing the <F1> key,
the all options for the desired selection will be displayed for choice.
If bios setup menu item supports USB device boot, it will cause Win9x detects
the same storages twice when the system is rebooted, and USB HDD will fail.
Note: this cause just happen under Win9x, the phenomenon is a limitation.
[Press Enter]
[Press Enter]
[Press Enter]
[Disabled]
[3E8]
[IRQ10]
[2E8]
[IRQ11]
Item Help
Menu Level
►
Page: 4-12
′
PMB-472 USER
S MANUAL
ONCHIP IDE DEVICE:
The options for these items are found in its sub menu. By pressing the
<ENTER> key, you are prompt to enter the sub menu of the detailed options
as shown below:
Chapter 4 Award BIOS Setup
Phoenix – Award CMOS Setup Utility
OnChip IDE Device
OnChip Primary PCI IDE
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
OnChip Secondary PCI IDE
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
IDE HDD Block Mode
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Descriptions on each item above are as follows:
1. OnChip Primary PCI IDE
The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.
2. Primary Master/Slave PIO
Secondary Master/Slave PIO
The four IDE PIO fields allow you to set a PIO mode (0-4) for each of
the four IDE devices that the onboard IDE interface supports. Modes
0 through 4 provide successively increased performance. In Auto
mode, the system automatically determines the best mode for each
device.
3. Primary Master/Slave UDMA
Secondary Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If you
hard drive and your system software both support Ultra DMA/33,
select Auto to enable BIOS support.
PMB-472 USER′S MANUAL
[Enabled]
[Auto]
[Auto]
[Auto]
[Auto]
[Enabled]
[Auto]
[Auto]
[Auto]
[Auto]
[Enabled]
Item Help
Menu Level ►
Page: 4-13
Chapter 4 Award BIOS Setup
4. OnChip Secondary PCI IDE
Enable the secondary IDE channel.
5. IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or
multiple sector read/write. If your IDE hard drive supports block mode
(most new drives do), select Enabled for automatic detection of the
optimal number of block read/writes per sector the drive can support.
ONBOARD DEVICE:
The options for these items are found in its sub menu. By pressing the
<ENTER> key, you are prompt to enter the sub menu of the detailed options
as shown below:
Phoenix – Award CMOS Setup Utility
USB Controller
USB 2.0 Support
USB Keyboard Support
USB Mouse Support
AC97 Audio
Onboard LAN
Init Display First
Onboard Lan2
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Descriptions on each item above are as follows:
1. USB Controller
This should be enabled if your system has a USB installed on the
system board and you want to use it. Even when so equipped, if you
add a higher performance controller, you will need to disable this
feature.
2. USB 2.0 Support
Enable the USB 2.0 controller.
3. USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.
4. USB Mouse Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB Mouse.
Page: 4-14
Onboard Device
[Enabled]
[Enabled]
[Disabled]
[Disabled]
[Auto]
[Enabled]
[Onboard]
[Enabled]
Item Help
Menu Level ►
PMB-472 USER
′
S MANUAL
5. AC97 Audio
This item allows you to enable/disable to support AC97 Audio.
6. Onboard LAN
Enable onboard LAN chip.
7. Init Display First
This item allows you to decide to active whether PCI Slot or on-chip
VGA first.
SUPER IO DEVICE:
The options for these items are found in its sub menu. By pressing the
<ENTER> key, you are prompt to enter the sub menu of the detailed options
as shown below:
Chapter 4 Award BIOS Setup
Phoenix – Award CMOS Setup Utility
SuperIO Device
Onboard FDC Controller
Onboard Serial Port 1
Onboard Serial Port 2
UART Mode Select
X RxD, TxD Active
X IR Transmission Delay
X UR2 Duplex Mode
X Use IR Pins
Onboard Parallel Port
Parallel Port Mode
X EPP Mode Select
X ECP Mode Use DMA
PWRON After PWR-Fail
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Descriptions on each item above are as follows:
1. Onboard FDC Controller
Select Enabled if the system has a floppy disk controller (FDC) installed
on the system board and you wish to use it. If you install and-in FDC or
the system has no floppy drive, select Disabled.
2. Onboard Serial Port 1/2
Select an address and corresponding interrupt for the first and second
serial ports.
3. UART Mode Select
This item allows you to select UART mode.
PMB-472 USER′S MANUAL
[Enabled]
[3F8/IRQ4]
[2F8/IRQ3]
[Normal]
Hi, Lo
Enabled
Half
IR-Rx2Tx2
[378/IRQ7]
[SPP]
EPP1.7
3
[Off]
Item Help
Menu Level ►
Page: 4-15
Chapter 4 Award BIOS Setup
4. RxD, TxD Active
This item allows you to determine the active of RxD, TxD.
5. IR Transmission Delay
This item allows you to enable/disable IR transmission delay.
6. UR2 Duplex Mode
This item allows you to select the IR half/full duplex function.
7. Use IR Pins
This item allows you to select IR transmission routes, one is RxD2m,
TxD2 (COM Port) and the other is IR-Rx2Tx2
8. Onboard Parallel Port
This item allows you to determine access onboard parallel port
controller with which I/O address.
9. Parallel Port Mode
Select an operating mode for the onboard parallel (printer) port.
Select Normal, Compatible, or SPP unless you are certain your
hardware and software both support one of the other available modes.
10. EPP Mode Select
Select EPP port type 1.7 or 1.9.
11. ECP Mode Use DMA
Select a DMA channel for the parallel port for use during ECP mode.
12. PWRON After PWR-Fail
This item allows you to select if you want to power on the system after
power failure. The choice: Off, On, Former-Sts.
ONBOARD SERIAL PORT 3:
ONBOARD SERIAL PORT 4:
Select a logical COM port name and matching address for the third and
forth serial ports. Select an address and corresponding interrupt for third
and forth serial port.
SERIAL PORT 3 USE IRQ:
SERIAL PORT 4 USE IRQ:
The items set the IRQ address of the serial ports.
Page: 4-16
′
PMB-472 USER
S MANUAL
4-7. POWER MANAGEMENT SETUP
Choose〝POWER MANAGEMENT SETUP〞option on the main menu, a
display will be shown on screen as below :
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
Chapter 4 Award BIOS Setup
ACPI Function
Power Management
Video Off Method
Video Off In Suspend
MODEM Use IRQ
Suspend Mode
Soft-Off by PWR-BTTN
Wake-Up by PCI card
Resume by Alarm
x Date (of Month) Alarm
x Time (hh:mm:ss) Alarm
** Reload Global Timer Events **
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM, LPT Port
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
[Enabled]
[User Define]
[DPMS]
[Yes]
[3]
[Disabled]
[Instant-Off]
[Enabled]
[Disabled]
0
0 : 0 : 0
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
Item Help
Menu Level ►
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Power Management Setup Screen
The “Power Management Setup” allows the user to configure the system to
the most effectively save energy while operating in a manner consistent with
your own style of computer use.
ACPI FUNCTION:
This item allows the user to set the ACPI suspend type to be used.
POWER MANAGEMENT:
This item allows you to select the Power Management mode.
PMB-472 USER′S MANUAL
Page: 4-17
Chapter 4 Award BIOS Setup
VIDEO OFF METHOD:
This determines the manner in which the monitor is blanked.
V/H SYNC+Blank This selection will cause the system to turn off the vertical
and horizontal synchronization ports and write blanks to the
video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Select this option if your monitor supports the Display
Power Management Signalling (DPMS) standard of the
Video Electronics Standards to select video power
management values.
MODEM USE IRQ:
This item enable you to name the interrupt request (IRQ) line assigned to
the modem (if any) on your system. Activity of the selected IRQ always
awakens the system.
SUSPEND MODE:
When enabled and after the set time of system inactivity, all devices except
the CPU will be shut off.
SOFT-OFF BY PWR-BTTN:
Pressing the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has “hung”. The choices are
Delay 4 Sec and Instant-Off.
WAKE-UP BY PCI CARD:
An input signal from PME on the PCI card awakens the system from a soft
off state.
RESUME BY ALARM:
When Enabled, your can set the date and time at which the RTC (real-time
clock) alarm awakens the system from Suspend mode.
RELOAD GLOBAL TIMER EVENTS:
PM events are I/O events whose occurrence can prevent the system from
entering a power saving mode or can awaken the system from such a mode.
In effect, the system remains alert for anything, which occurs to a device
which is configured as Enabled, even when the system is in a power down
mode. (1) Primary IDE 0 (2) Primary IDE 1 (3) Secondary IDE 0 (4)
Secondary IDE 1 (5) FDD, COM, LPT Port
Page: 4-18
′
PMB-472 USER
S MANUAL
4-8. PNP/PCI CONFIGURATION
Choose 〝PNP/PCI CONFIGURATION〞 from the main menu, a display
will be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Reset Configuration Data
Resources Controlled By
x IRQ Resources
PCI/VGA Palette Snoop
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
PNP/PCI Configuration Setup Screen
The PNP/PCI Configuration Setup describes how to configure PCI bus system.
PCI, also known as Personal Computer Interconnect, is a system, which
allows I/O devices to operate at speeds nearing the speed of the CPU itself
uses when communicating with its own special components.
This section covers technical items, which is strongly recommended for
experienced users only.
RESET CONFIGURATION DATA:
Normally, you leave this field Disabled. Select Enabled to reset Extended
System Configuration Data (ESCD) when you exit Setup if you have
installed a new add-on and the system configuration has caused such a
serious conflict that the operating system cannot boot.
[Disabled]
[Auto (ESCD)]
[Disabled]
Chapter 4 Award BIOS Setup
Press Enter
Item Help
Menu Level ►
Select Yes if you are
using a Plug and Play
capable operating
system Select No if
you need the BIOS to
configure non-boot
devices
PMB-472 USER′S MANUAL
Page: 4-19
Chapter 4 Award BIOS Setup
RESOURCE CONTROLLED BY:
The Award Plug and Play Bios can automatically configure all of the booth
and Plug and Play-compatible devices. However, this capability means
absolutely nothing unless you are using a Plug and Play operating system
such as Windows 95. By choosing “manual”, you are allowed to
configure the IRQ Resources and DMA Resources.
IRQ RESOURCES:
The options for these items are found in its sub menu. By pressing the
<ENTER> key, you are prompt to enter the sub menu of the detailed options
as shown below:
Phoenix – Award CMOS Setup Utility
IRQ-3 assigned to
IRQ-4 assigned to
IRQ-5 assigned to
IRQ-7 assigned to
IRQ-9 assigned to
IRQ-10 assigned to
IRQ-11 assigned to
IRQ-12 assigned to
IRQ-14 assigned to
IRQ-15 assigned to
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Descriptions on each item above are as follows:
13. IRQ-n Assigned to:
You may assign each system interrupt a type, depending on the type of
device using the interrupt.
PCI/VGA PALETTE SNOOP:
Leave this field at Disabled.
IRQ Resources
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
Item Help
Menu Level ►
Legacy ISA for devices
compliant with the
original PC AT bus
specification, PCI/ISA
PnP for devices
compliant with the Plug
and Play standard
whether designed for
PCI or ISA bus
architecture
Page: 4-20
′
PMB-472 USER
S MANUAL
4-9. PC HEALTH STATUS
Choose 〝PC HEALTH STATUS〞 from the main menu, a display will
be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
Chapter 4 Award BIOS Setup
PC Health Status
[Disabled]
Current CPU Temperature
Current SYSTEM Fan Speed
Vcore
Vccp
3.3
V
+ 5 V
+12
V
-12
V
-5V
VBAT (V)
5VSB (V)
Shutdown Temperature
48℃/118℉
0 RPM
1.00V
1.04V
3.28V
4.73V
11.43V
-11.78V
-4.79V
3.34V
5.09V
[Disabled]
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
PC Health Status Setup Screen
The PC Health Status Setup allows you to select whether to choose between
monitoring or to ignore the hardware monitoring function of your system.
CURRENT WARNING TEMPERATURE:
Select the combination of lower and upper limits for the CPU temperature.
If the CPU temperature extends beyond either limit, any warning
mechanism programmed into your system will be activated.
CURRENT CPU TEMPERATURE:
This item shows you the current CPU temperature.
CURRENT SYSTEM FAN SPEED:
This item shows you the current System FAN speed.
VCORE:
This item shows you the current system voltage.
PMB-472 USER′S MANUAL
Item Help Current Warning Temperature
Menu Level ►
Page: 4-21
Chapter 4 Award BIOS Setup
3.3V / +5V / +12V / -12V/ -5V/ VBAT/ 5VSB:
Show you the voltage of 3.3V/+5V/+12V/-12V/-5V/ VBAT/5VSB.
SHUTDOWN TEMPERATURE:
This item allows you to set up the CPU shutdown Temperature. This
function is only effective under Windows 98 ACPI mode.
4-10. FREQUENCY CONTROL
Choose 〝FREQUENCY CONTROL〞 from the main menu, a display
will be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
Frequency Control
Auto Detect PCI Clk
Spread Spectrum
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Frequency Control Setup Screen
This setup menu allows you to specify your settings for frequency control.
AUTO DETECT PCI CLK:
This item allows you to enable or disable auto detect PCI Clock.
SPREAD SPECTRUM:
When the system clock generator pulses, the extreme values of the pulse
generate excess EMI. Enabling pulse spectrum spread modulation
changes the extreme values from spikes to flat curves, thus reducing EMI.
This benefit may in some cases be outweighed by problems with timingcritical devices such as a clock-sensitive SCSI device.
[Enabled]
[Enabled]
Item Help
Menu Level ►
Page: 4-22
′
PMB-472 USER
S MANUAL
4-11. LOAD FAIL-SAFE DEFAULTS
By pressing the <ENTER> key on this item, you get a confirmation dialog
box with a message similar to the following:
Load Fail-Safe Defaults ( Y/N ) ? N
To use the BIOS default values, change the prompt to "Y" and press the
<Enter > key. CMOS is loaded automatically when you power up the
system.
4-12. LOAD OPTIMIZED DEFAULTS
When you press <Enter> on this category, you get a confirmation dialog
box with a message similar to the following:
Load Optimized Defaults ( Y/N ) ? N
Pressing "Y" loads the default values that are factory setting for optimal
performance system operations.
Chapter 4 Award BIOS Setup
PMB-472 USER′S MANUAL
Page: 4-23
Chapter 4 Award BIOS Setup
4-13. SET SUPERVISOR PASSWORD
User is allowed to set either supervisor or user password, or both of them.
The difference is that the supervisor password can enter and change the
options of the setup menus while the user password can enter only but do not
have the authority to change the options of the setup menus.
TO SET A PASSWORD
When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.
Enter Password:
Type the password up to eight characters in length, and press < Enter >.
The password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press the < Enter > key. You may also press < Esc >
to abort the selection and not enter a password.
User should bear in mind that when a password is set, you will be
asked to enter the password everything you enter CMOS setup Menu.
TO DISABLE THE PASSWORD
To disable the password, select this function (do not enter any key when
you are prompt to enter a password), and press the <Enter> key and a
message will appear at the center of the screen:
Press the < Enter > key again and the password will be disabled. Once the
password is disabled, you can enter Setup freely.
Page: 4-24
PASSWORD DISABLED!!!
Press any key to continue...
PMB-472 USER
′
S MANUAL
4-14. SAVE & EXIT SETUP
After you have completed adjusting all the settings as required, you must
remember to save these setting into the CMOS RAM. To save the settings,
select “SAVE & EXIT SETUP” and press <Enter>, a display will be shown
as follows:
Phoenix - AwardBIOS CMOS Setup Utility
►Standard CMOS Features
►Advanced BIOS Features
►Advanced Chipset Features
►Integrated Peripherals
►Power Management
►PnP/PCI Configura
►PC Health Status
Esc : Quit ↑↓→← : Select Item
F10 : Save & Exit Setup
When you confirm that you wish to save the settings, your system will be
automatically restarted and the changes you have made will be implemented.
You may always call up the setup program at any time to adjust any of the
individual items by pressing the <Del> key during boot up.
Save to CMOS and EXIT Y/N)? Y
Chapter 4 Award BIOS Setup
►Frequency Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
word
etup
Saving
Save Data to CMOS
PMB-472 USER′S MANUAL
Page: 4-25
Chapter 4 Award BIOS Setup
4-15. EXIT WITHOUT SAVING
If you wish to cancel any changes you have made, you may select the
“EXIT WITHOUT SAVING” and the original setting stored in the CMOS
will be retained. The screen will be shown as below:
Phoenix - AwardBIOS CMOS Setup Utility
►Standard CMOS Features
►Advanced BIOS Features
►Advanced Chipset Features
►Integrated Peripherals
►Power Management
►PnP/PCI Configura
►PC Health Status
Esc : Quit ↑↓→← : Select Item
F10 : Save & Exit Setup
Quit Without Saving (Y/N)? N
Abandon all Datas
►Frequency Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
word
etup
Saving
Page: 4-26
′
PMB-472 USER
S MANUAL
APPENDIX
EXPANSION BUS
This appendix indicates the pin assignments.
Section includes:
z PCI BUS Pin Assignment
z Mini-PCI BUS Pin Assignment
z Compact Flash Card Connector Pin Assignment
A
Page: A-1
Appendix A Expansion Bus
A
PCI BUS PIN ASSIGNMENT
Like ISA-BUS connector, the PCI-BUS edge connector is also divided into two
B49
A49
B52
A52
B62
62
sets: one consists of 98-pin; the other consists of 22-pin.
The pin assignments are as follows :
B1
A1
B A B A
PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT
B1 -12V A1 TRST# B31 +3.3V A31 AD18
B2 TCK A2 +12V B32 AD17 A32 AD16
B3 GND A3 TMS B33 C/BE2# A33 +3.3V
B4 TDO A4 TDI B34 GND A34 FRAME#
B5 +5V A5 +5V B35 IRDY# A35 GND
B6 +5V A6 INTA# B36 +3.3V A36 TRDY#
B7 INTB# A7 INTC# B37 DEVSEL# A37 GND
B8 INTD# A8 +5V B38 GND A38 STOP#
B9 REQ3# A9 CLKC B39 LOCK# A39 +3.3V
B10 REQ1# A10 +5V(I/O) B40 PERR# A40 SDONE
B11 GNT3# A11 CLKD B41 +3.3V A41 SB0#
B12 GND A12 GND B42 SERR# A42 GND
B13 GND A13 GND B43 +3.3V A43 PAR
B14 CLKA A14 GNT1# B44 C/BE1# A44 AD15
B15 GND A15 RST# B45 AD14 A45 +3.3V
B16 CLKB A16 +5V(I/O) B46 GND A46 AD13
B17 GND A17 GNT0# B47 AD12 A47 AD11
B18 REQ0# A18 GND B48 AD10 A48 GND
B19 +5V(I/O) A19 REQ2# B49 GND A49 AD09
B20 AD31 A20 AD30 B52 AD08 A52 C/BE0#
B21 AD29 A21 +3.3V B53 AD07 A53 +3.3V
B22 GND A22 AD28 B54 +3.3V A54 AD06
B23 AD27 A23 AD26 B55 AD05 A55 AD04
B24 AD25 A24 GND B56 AD03 A56 GND
B25 +3.3V A25 AD24 B57 GND A57 AD02
B26 C/BE3# A26 GNT2# B58 AD01 A58 AD00
B27 AD23 A27 +3.3V B59 +5V(I/O) A59 +5V(I/O)
B28 GND A28 AD22 B60 ACK64# A60 REQ64#
B29 AD21 A29 AD20 B61 +5V A61 +5V
B30 AD19 A30 GND B62 +5V A62 +5V
Page: A-2
PMB-472USER
′
S MANUAL
Appendix A Expansion Bus
MINI-PCI BUS CONNECTOR PIN ASSIGNMENT
You will find a Mini-PCI connector in our PMB-472.
The pin assignments are as follows:
PIN ASSIGNMENT PIN ASSIGNMENT
1 NC 2 NC
3 NC 4 NC
5 NC 6 NC
7 NC 8 NC
9 NC 10 NC
11 NC 12 NC
13 NC 14 NC
15 NC 16 NC
17 PIRQJF 18 VCC
19 VCC3_3 20 PIRQJE
21 NC 22 NC
23 GND 24 NC
25 PPCLK 26 PCI_RSTJ
27 GND 28 VCC3_3
29 PREQJ3 30 PGNTJ3
31 VCC3_3 32 GND
33 AD31 34 NC
35 AD29 36 NC
37 GND 38 AD30
39 AD27 40 VCC3_3
41 AD25 42 AD28
43 NC 44 AD26
45 C_BEJ3 46 AD24
47 AD23 48 IDSEL
49 GND 50 GND
51 AD21 52 AD22
53 AD19 54 AD20
55 GND 56 PAR
57 AD17 58 AD18
59 C_BEJ2 60 AD16
61 IRDYJ 62 GND
63 VCC3_3 64 FRAMEJ
65 NC 66 TRDYJ
67 SERRJ 68 STOPJ
69 GND 70 VCC3_3
PMB-472 USER′S MANUAL
Page: A-3
Appendix A Expansion Bus
71 PERRJ 72 DEVSELJ
73 C_BEJ1 74 GND
75 AD14 76 AD15
77 GND 78 AD13
79 AD12 80 AD11
81 AD10 82 GND
83 GND 84 AD9
85 AD8 86 C_BEJ0
87 AD7 88 VCC3_3
89 VCC3_3 90 AD6
91 AD5 92 AD4
93 NC 94 AD2
95 AD3 96 AD0
97 VCC 98 NC
99 AD1 100 NC
101 GND 102 GND
103 NC 104 NC
105 NC 106 NC
107 NC 108 NC
109 NC 110 NC
111 NC 112 NC
113 NC 114 GND
115 NC 116 NC
117 NC 118 NC
119 NC 120 NC
121 NC 122 NC
123 NC 124 NC
Page: A-4
′
PMB-472USER
S MANUAL
Appendix A Expansion Bus
COMPACT FLASH CARD CONNECTOR PIN ASSIGNMENT
The pin assignments of Compact Flash Card connector are stated below.
PIN ASSIGNMENT PIN Assignment
1 GND 26 -CD1
2 D03 27 D111
3 D04 28 D121
4 D05 29 D131
5 D06 30 D141
6 D07 31 D151
7 -CS0 32 -CS11
8 A102 33 -VS1
9 -ATASEL 34 -IORD
10 A092 35 -IOWR
11 A082 36 -WE3
12 A072 37 INTRQ
13 VCC 38 VCC
14 A062 39 -CSEL
15 A052 40 -VS2
16 A042 41 -RESET
17 A032 42 IORDY
18 A02 43 -INPACK
19 A01 44 -REG3
20 A00 45 -DASP
21 D00 46 -PDIAG
22 D01 47 D081
23 D02 48 D091
24 -IOCS16 49 D101
25 -CD2 50 GND
PMB-472 USER′S MANUAL
Page: A-5
TECHNICAL
SUMMARY
This section introduce you the maps concisely.
Section includes:
z Block Diagram
z Interrupt Map
z RTC & CMOS RAM Map
z Timer & DMA Channels Map
z I / O & Memory Map
APPENDIX
B
Page: B-1
Appendix B Technical Summary
BLOCK DIAGRAM
Page: B-2
′
PMB-472 USER
S MANUAL
INTERRUPT MAP
IRQ ASSIGNMENT
0 System TIMER
1 Keyboard
2 Cascade
3 Serial port 2
4 Serial port 1
5 Available
6 Floppy
7 Parallel port 1
8 RTC clock
9 Available
10 Available
11 Available
12 PS/2 Mouse
13 Math coprocessor
14 IDE1
15 IDE2
Appendix B Technical Summary
PMB-472 USER′S MANUAL
Page: B-3
Appendix B Technical Summary
RTC & CMOS RAM MAP
CODE ASSIGNMENT
00 Seconds
01 Second alarm
02 Minutes
03 Minutes alarm
04 Hours
05 Hours alarm
06 Day of week
07 Day of month
08 Month
09 Year
0A Status register A
0B Status register B
0C Status register C
0D Status register D
0E Diagnostic status byte
0F Shutdown byte
10 Floppy Disk drive type byte
11 Reserve
12 Hard Disk type byte
13 Reserve
14 Equipment byte
15 Base memory low byte
16 Base memory high byte
17 Extension memory low byte
18 Extension memory high byte
30 Reserved for extension memory low byte
31 Reserved for extension memory high byte
32 Date Century byte
33 Information Flag
34-3F Reserve
40-7f Reserved for Chipset Setting Data
Page: B-4
′
PMB-472 USER
S MANUAL
TIMER & DMA CHANNELS MAP
Timer Channel Map
Timer Channel Assignment
0 System timer interrupt
1 DRAM Refresh request
2 Speaker tone generator
DMA Channel Map
DMA Channel Assignment
0 Available
1 Available
2 Floppy
3 Available
4 Cascade
5 Available
6 Available
7 Available
:
:
Appendix B Technical Summary
PMB-472 USER′S MANUAL
Page: B-5
Appendix B Technical Summary
I/O & MEMORY MAP
Memory Map :
MEMORY MAP ASSIGNMENT
0000000-009FFFF System memory used by DOS and
application
00A0000-00BFFFF Display buffer memory for VGA/ EGA /
CGA / MONOCHROME adapter
00C0000-00DFFFF Reserved for I/O device BIOS ROM or
RAM buffer.
00E0000-00EFFFF Reserved for PCI device ROM
00F0000-00FFFFF System BIOS ROM
0100000-FFFFFFF System extension memory
I/O Map :
I/O MAP ASSIGNMENT
000-01F DMA controller (Master)
020-021 Interrupt controller (Master)
022-023 Chipset controller registers I/O ports.
040-05F Timer control regsiters.
060-06F Keyboard interface controller (8042)
070-07F RTC ports & CMOS I/O ports
080-09F DMA register
0A0-0BF Interrupt controller (Slave)
0C0-0DF DMA controller (Slave)
0F0-0FF Math coprocessor
1F0-1F8 Hard Disk controller
278-27F Parallel port-2
2B0-2DF Graphics adapter controller
2F8-2FF Serial port-2
360-36F Net work ports
378-37F Parallel port-1
3B0-3BF Monochrome & Printer adapter
3C0-3CF EGA adapter
3D0-3DF CGA adapter
3F0-3F7 Floppy disk controller
3F8-3FF Serial port-1
Page: B-6
′
PMB-472 USER
S MANUAL
Loading...
