Installing LAN Drivers for Windows 98
Follow these steps to install the Intel 82559 LAN/Ethernet driver for
Windows 95:
1. From the Control Panel, double-click the System icon.
2. Click the Device Manager tab.
3. Double-click Other Devices or Network Adapters in the list area.
4. Double-click a PCI Ethernet Controller.
5. Click the Driver tab, then click Update Driver.
6. Click Next at the Update Device Driver Wizard.
7. Select "Display a list of all the drivers..." and click Next.
8. Insert the Intel adapter disk and click Have Disk.
9. Enter the appropriate drive for your disk media (A:) and click OK.
10. Click OK at the Select Device dialog box.
11. The Update Wizard displays the message that it has found the driver.
Click Next.
12. Click Finish.
13. Restart your computer when prompted.
Page 12
IBD69 / IBD693
IBD99 / IBD993
MicroPCI VGA/LAN Card
User’s Guide
LAN DRIVERS INSTALLATION
Making Floppy Disks for NetWare and Windows Installation
You need to use a floppy disk to install the LAN drivers. Use the MAKEDISK.BAT
utility located in the \LAN\I8255X\MAKEDISK directory on the CD.
MAKEDISK [operating system] [destination]
where [operating system] is the OS for which you are creating the
diskette, and [destination] is the drive letter and path (such
as A:). If no destination is specified, the A: drive will be used.
The possible [operating system] options are:
NT = Microsoft Windows NT
W2K = Microsoft Windows* 2000
W9X = Microsoft Windows* 95 and Windows 98
NW = Novel l NetWare servers and clients
DOS = Microsoft DOS and IBM OS2
Make sure you have a 1.44 MB formatted, non-bootable diskette in the floppy
drive when using this utility.
NOTE: The utility MUST be run from the \LAN\I8255X \MAKEDISK directory.
Alternately, you can use the following .BAT files (located
in the root directory on this CD) to simplify this process:
MAKEW9X.BAT -- Creates a drivers disk for Windows 95 and
Windows 98.
Page 10
VGA Features
• IBD69/99 supports C&T 69000 (2MB
embedded)/IBD693/993 supports 69030 (4MB
embedded) VGA controller
• TFT LCD/DSTN LCD/CRT support
• Resolution / Colors / Refresh Rate
1280 x 1024 / 24bits (true color) / 60Hz
(supported by C&T 69030 only)
1280 x 1024 / 256 / 60Hz
1024 x 768 / 16bits (high color) / 85, 75, 60Hz
800 x 600 / 24bits (true color) / 85, 75, 60Hz
• Support drivers for Windows 95/98/NT4.0
Ethernet Features (IBD99/993)
• Intel 82559 Single-chip Ethernet controller
• 10 BaseT/100 BaseTX support, full duplex
• IEEE802.3, IEEE802.3U compliant
• Backward Compatible with Intel 82558
Page 3
Installing the VGA Drivers for Windows 95/98
The following section describes the normal display driver installation
procedures for Windows 95/98. Use the following procedures when
installing the display drivers for Windows 95/98.
1. Click Start, then Settings, then Control Panel .
2. Double click Display.
3. Select the Settings tab, click the Change Display Type button.
4. Click the Change button under Adapter Type.
5. Click the Have Disk button and press OK.
6. Specify the path to the new driver and press <ENTER>:
Example 1: Insert the driver CD in the CD -ROM drive, and enter
d:\vga\ct69000\win95 (assuming D: is the CD -ROM drive.)
Example 2: If you're not sure exactly where the drivers are, click the
Browse button to find them.
7. The Select Device dialog box will appear. Select the hardware that
corresponds to the one you installed in your machine and click OK.
8. Windows 95/98 will copy the display drivers to the proper
directories on your system.
9. Continue by choosing Close. You will be asked to restart your
machine. Do so accordingly.
10. After the system has restarted, you can go back into the Display
applet and select alternate screen resolutions and color depths.
Installing the VGA Drivers for Windows NT 4.0
Once you are in the Windows NT 4.0 environment, follow the procedures
below to install the VGA drivers that come with your board.
Page 8

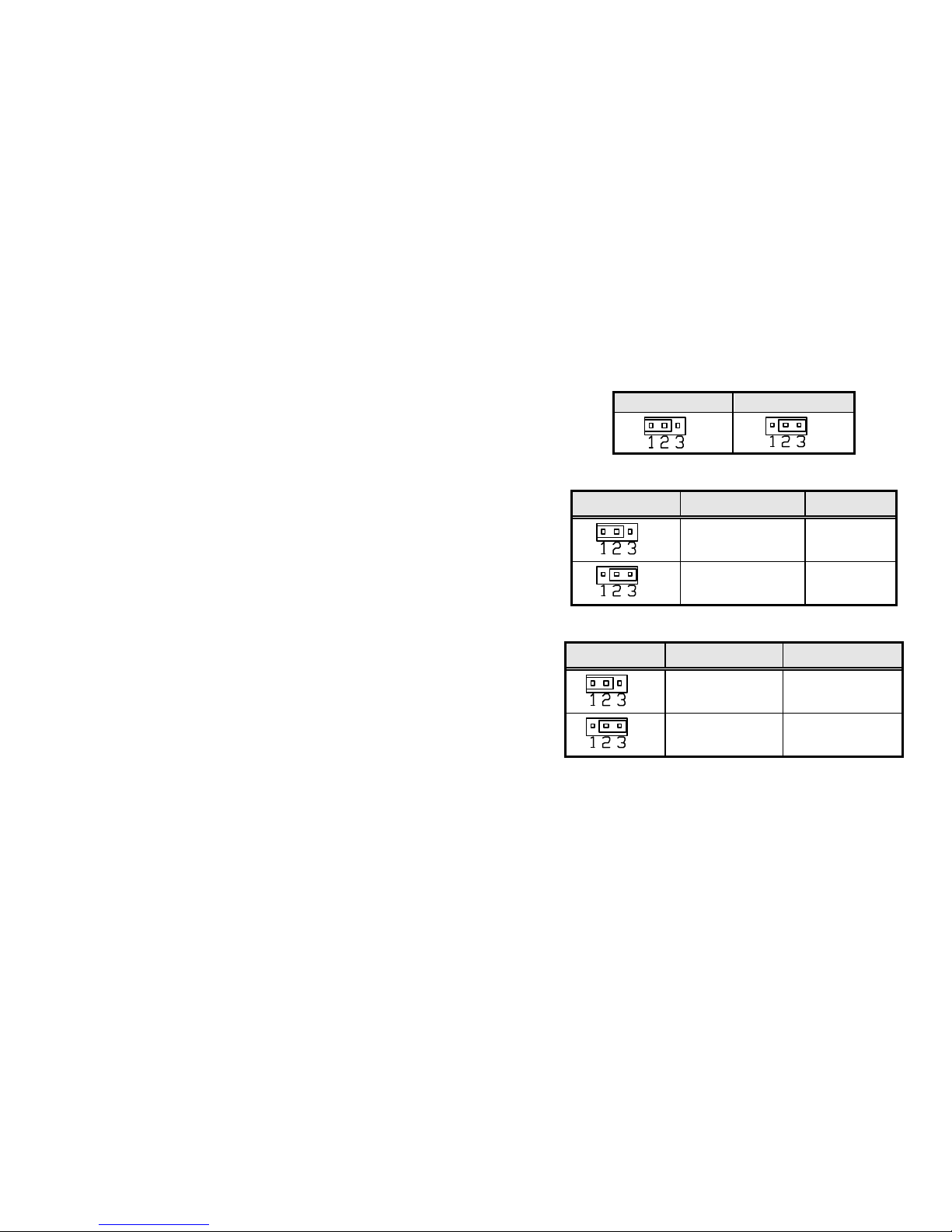

Jumpers and Connectors
JP2: LCD Power Setting
3.3V Setting 5V Setting
JP3: Onboard LAN Enable/Disable
JP3 Setting LAN
Pin 1-2
Short/Closed
Enabled
Pin 2-3
Short/Closed
Disabled
JP4: Onboard C&T VGA Enable/Disable
JP4 Setting VGA Function
Pin 1-2
Short/Closed
Enabled
Pin 2-3
Short/Closed
Disabled
* The SW1 DIP Switch is for manufacturing test only.
Page 5
IBD99 / IBD993
* IBD69/IBD693 does not have the 82559
Ethernet Controller integrated
Page 2
MAKENT.BAT -- Creates a drivers disk for Windows NT.
MAKEW2K.BAT -- Creates a drivers disk for Windows 2000.
MAKENW.BAT -- Creates a drivers disk for Novell NetWare
servers and clients.
Installing LAN Drivers for Windows 95
Follow these steps to install the Intel 82559 LAN/Ethernet driver for
Windows 95:
1. From the Control Panel, double-click the System icon.
2. Click the Device Manager tab.
3. Double-click Other Devices (question mark icon) in the list area.
4. Double-click a PCI Ethernet Controller.
5. Click the Driver tab, then click Update Driver.
6. Insert the Configuration and Drivers disk or CD in the appropriate
drive, and at the Update Device Driver Wizard, select "No" and
click Next.
7. Click Have Disk, insert the Configuration and Drivers disk
in the appropriate drive, and click OK.
8. At the Select Device dialog box, click OK again.
9. Follow any prompts for Windows 95 installation disks and restart
when prompted.
Page 11
MicroPCI Card Installation
To insert the MicroPCI daughter cards, position it at
30° to the PCB and gently push it into the MicroPCI
connector (Figure 1). The car d will not fit when inserted
at an angle of 45° or 15°. Once inserted, slowly press
the card towards the PCB until it locks on both sides to
the clips of the connector. Screw the card to the PCB to
secure the installation. To remove the MicroPCI card,
pull the ‘clips’ sideways as shown in Figure 2.
Figure 2.
Figure 1.
Page 4
1. Click the Start button, then go to Settings and click on Control
Panel.
2. Click on the Display icon to start the Display Properties window.
3. Click on the Settings tab, and then click on Display Type.
4. In the Change Display Type window, click on Change Adapter
Type. This will bring up the Select Device window.
5. In the Change Display window, click on Have Disk. Enter the
directory where the Windows NT driver files are located as
d:\vga\ct69000\winnt40 (assuming D: is the CD-ROM drive.)
Then select OK, or press ENTER.
6. Select Chips Video Accelerator from the display list provided,
then click OK or press ENTER.
7. You will then see a warning panel about Third Party Drivers. Click
on Yes to finish the installation.
8. Once the installation is complete, the system must be shut down
and restarted for the new drivers to take effect.
9. When the system has restarted, the default graphics mode
(usually 640x480x256color) has been automatically selected.
Click the Start button, and then go to Settings and click on
Control Panel . Click on the Display icon to start the Display
Properties window. Click on the Settings tab. A new screen
setting can be selected using either of the following methods:
A. Use the slide-bar in the Desktop Area to select new setting.
B. Click on List All Modes. From the list provided, select a
new setting, then click OK or press ENTER.
C. Click on Test to test the newly selected graphics mode.
Follow the instructions given on screen. A test screen
should appear, followed by the Testing Mode window. Click
on Yes to continue. Click on Apply to switch to the new
graphics mode. Graphics modes are changed dynamically
on NT 4.0, so you do not need to shut down and restart for
the new screen settings to work.
Page 9
J1: LCD Panel Connector
Signal Name Pin # Pin # Signal Name
GND 1 2 P33
P34 3 4 P31
P35 5 6 P32
P30 7 8 P28
P29 9 10 P27
P25 11 12 P26
P24 13 14 P21
P23 15 16 P22
P16 17 18 P20
P17 19 20 P18
P19 21 22 P14
P13 23 24 P12
P15 25 26 P11
P7 27 28 P10
5V or 3.3V 29 30 5V or 3.3V
P9 31 32 P8
P4 33 34 P6
P3 35 36 P5
P2 37 38 P1
M 39 40 P0
SHFCLK 41 42 ENABKL
FPVDD 43 44 FLM(V SYNC)
FPVEE 45 46 LP(H SYNC)
GND 47 48 GND
+12V 49 50 +12V
JP1: WakeOnLAN Connector
Pin # Signal Name
1 +5VSB
2 Ground
1 2 3
3 Wake on LAN
Page 6
Flat Panel Display Interface Pin Descriptions
Mono Mono Mono Color Color Color Color Color Color Color Color Color
SS DD DD TFT TFT TFT TFT TFT+HR STN-SS STN-SS STN-DD STN-DD
Pin Name 8-bit 8-bit 16-bit
9/12/16
bit
18/24
bit
36-bit 18/24
bit
8-bit
(4bP)
16-bit
(4bP)
8-bit
(4bP)
16-bit
(4bP)
24-bit
P0 D0 UD3 UD7 B0 B0 FB0 FB0 R1 R1 UR1 UR0 UR0
P1 D1 UD2 UD6 B1 B1 FB1 FB1 B1 G1 UG1 UG0 UG0
P2 D2 UD1 UD5 B2 B2 FB2 FB2 G2 B1 UB1 UB0 UB0
P3 D3 UD0 UD4 B3 B3 FB3 FB3 B3 R2 UB2 UR1 LR0
P4 D4 LD3 UD3 B4 B4 FB4 SB0 G4 G3 LR1 LR0 LG0
P5 D5 LD2 UD2 G0 B5 FB5 SB1 R5 B2 LG1 LG0 LB0
P6 D6 LD1 UD1 G1 B6 SB0 SB2 B5 R3 LB1 LB0 UR1
P7 D7 LD0 UD0 G2 B7 SB1 B3 G3 LR2 LR1 UG1
P8 LD7 G3 G0 SB2 FG0 B3 UG1 UB1
P9 LD6 G4 G1 SB3 FG1 R4 UB1 LR1
P10 LD5 G5 G2 SB4 FG2 G4 UR2 LG1
P11 LD4 R0 G3 SB5 FG3 B4 UG2 LB1
P12 LD3 R1 G4 FG0 SG0 R5 LG1 UR2
P13 LD2 R2 G5 FG1 SG1 G5 LB1 UG2
P14 LD1 R3 G6 FG2 SG2 B5 LR2 UB2
P15 LD0 R4 G7 FG3 SG3 G6 LG2 LR2
P16 R0 FG4 FR0 LG2
P17 R1 FG5 FR1 LB2
P18 R2 SG0 FR2 UR3
P19 R3 SG1 FR3 UG3
P20 R4 SG2 SR0 LR3
P21 R5 SG3 SR1 LG3
P22 R6 SG4 SR2 LB3
P23 R7 SG5 SR3
P24 FR0
P25 FR1
P26 FR2
P27 FR3
P28 FR4
P29 FR5
P30 SR0
P31 SR1
P32 SR2
P33 SR3
P34 SR4
P35 SR5
SHFCLK
SHFCLK SHFCLK SHFCLK SHFCLK SHFCLK SHFCLK SHFCLK SHFCLK SHFCLK SHFCLK SHFCLK SHFCLK
Pixels/Clk: 8 8 16 1 1 2 2 2-2/3 5-1/3 2-2/3 5-1/3 8
Page 7
