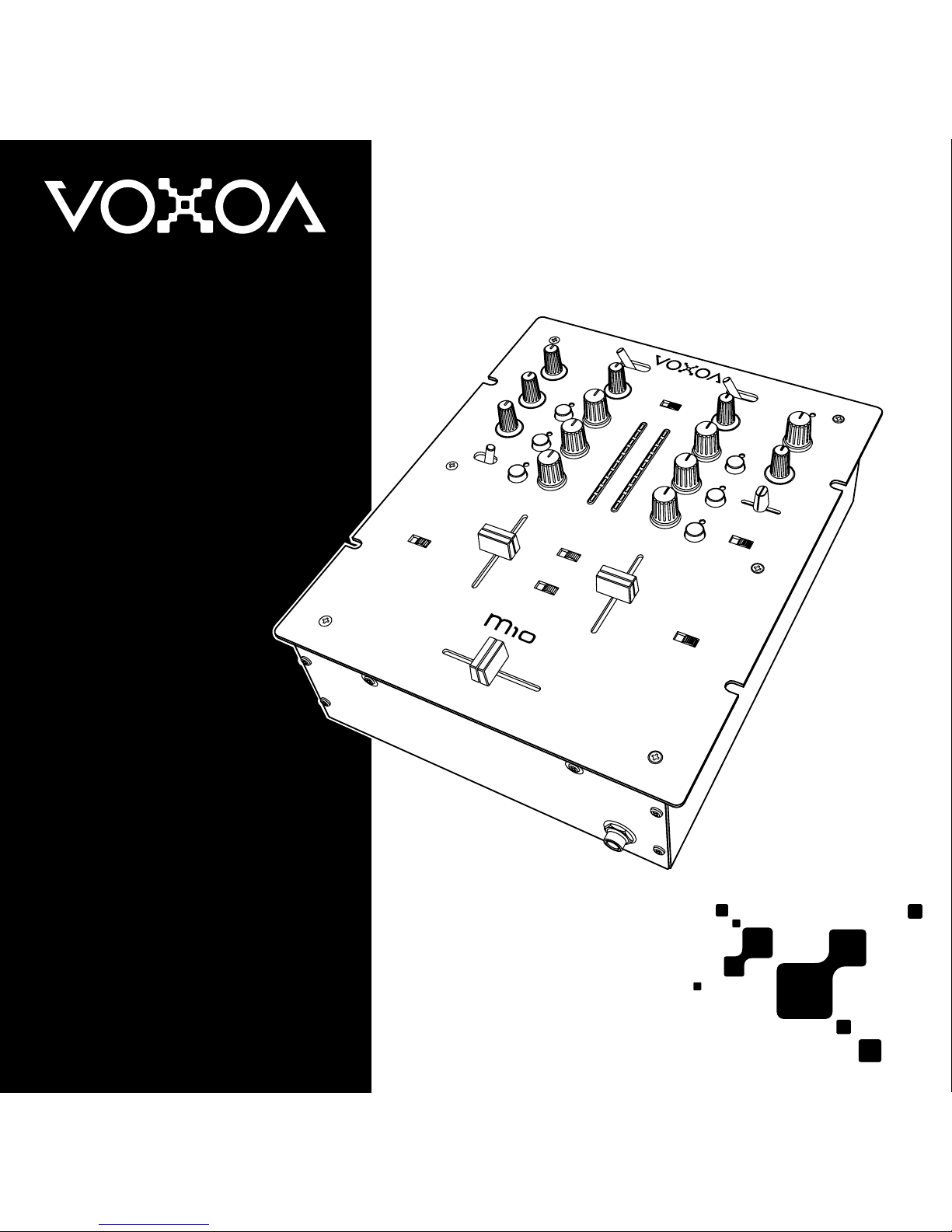

M10
2 channel mixer
User Manual
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
ENGLISH
they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. When the mains plug or appliance coupler used as the disconnect device, it shall remain readily operable.
16. Please keep the unit in a good ventilation environment.
16
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be
exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION : To reduce the risk of electric shock, do not remove any cover. No userserviceable parts inside. Refer servicing to qualified service personnel only.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use to the presence
of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in the literature accompanying this appliance.
CAUTION
To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
IMPORTANT SAFETY INSTRUCTIONS
17. All warnings on the appliance and in the operating instructions should be adhered to.
18. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
19 .Power Sources - This product should be operated only from the type of power source indicated on the rating label. If you are
not sure of the type of power supply to your home, consult your product dealer or local power company. For products
intended to operate from battery power, or other sources, refer the operating instructions.
20. Grounding or Polarization - This product may be equipped with a polarized alternation-current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
21. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the cord in correspondence of plugs, convenience receptacles,
and the point where they exit from the appliance.
22. For AC line powered units - Before returning repaired unit to user, use an ohm-meter to measure from both AC plug blades to
all exposed metallic parts. The resistance should be more than 100,000 ohms.
23. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period
of time.
24. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through
openings.
25. Damage Requiring Service - The appliance should be serviced by qualified service personnel when: A. The power-supply cord
or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance
has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in
performance; or E. The appliance has been dropped, or the enclosure damaged.
26. Servicing - The user should not attempt any service to the appliance beyond that that described in the operating instructions.
All other servicing should be referred to qualified service personnel.
27. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
28. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.
29. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks
to determine that the product is in proper operating condition.
ENGLISH
M10
17
PRODUCT FEATURES
2-Channel Tabletop Mixer
•
Input: Line x 4 (RCA), Phono x 2(RCA), MIC x 1 (6.3mm x1)
•
Output: Unbalanced (RCA) x1, Record (RCA) x1, Fader Start Control Out x 2 (3.5mm)
•
Three-band EQ with Full output kill for each channel
•
2-band equalizer for microphone
•
Talk over for microphone
•
Long life replaceable crossfader with 2 curve Setting
•
Crossfader Start compatible with VOXOA CD/MP3 Player
•
High quality channel fader with reversible function
•
ENGLISH
Crossfader style cueing control
•
Dual 10 LED monitor display (selectable PGM 1/2 or Master output)
•
18
PART NAMES AND FUNCTIONS

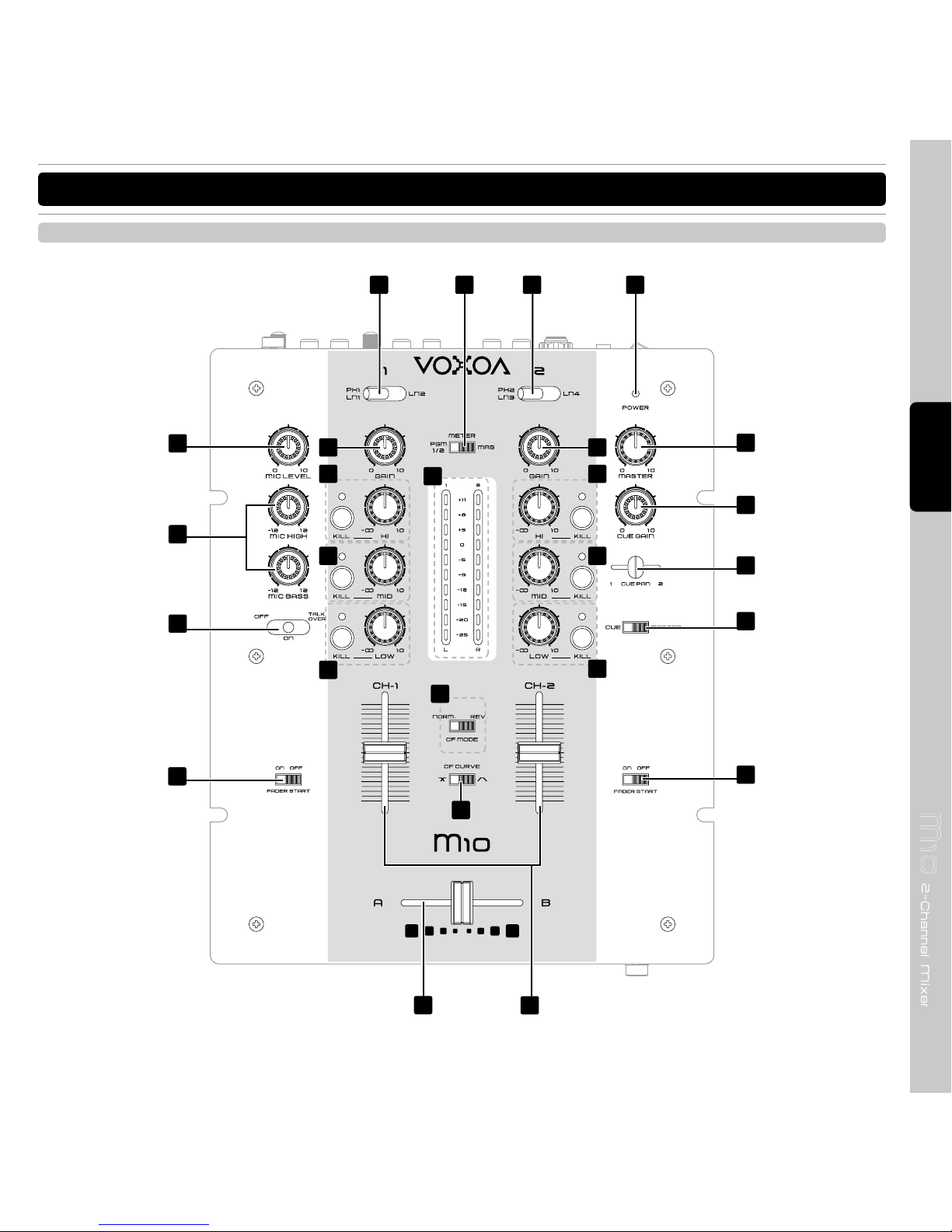

OPERATION PANEL
1 1 32
ENGLISH
15
14
13
8
16
17
18
19
20
11
12
16
17
18
19
4
5
6
7
8
M10
10
9
19
PART NAMES AND FUNCTIONS
1. Source input selector switch
These switches are used to select the input source assigned to each channel. Each channel may only be
assigned one input source at a time.
2. PGM/Master switch
The position of this switch will determine the level meter mode. In the “Master” position, the meter will detail the
out level of the left and right channels. In the “PGM” position, the left side of the meter will indicate monaural
level of the PGM.
3. Power indicator
To indicate the power is on.
4. Master volume control
This rotary knob is used to control the master output level (main volume).
ENGLISH
CAUTION
5. Cue level
This knob is used to adjust the headphone output level.
6. Cue pan fader
Used to preview channel audio to your headphones. This mini fader used to mix between Channel 1 and 2 in
the headphones. When all the way to the left, only Channel 1 will be heard. When all the way right, only Channel
2 will be heard.
: To avoid speaker damage that may be caused by excessive volume, be sure this adjustment
is always set to zero before turning the unit on.
20
7. Cue mode switch
Selects the audio that is sent to the headphones. Switch it to “MASTER” to hear the Program mix. Switch it to
6
“CUE” to hear Channels 1 and 2 in the Cue channel. Cue channel is controed by Cue Pan fader
.
8. Fader strat switch
This function works in conjunction with a compatible player. When used with a compatible player, you can use
the crossfader to start and stop a player with the mixer’s crossfader. The switch switches the FADER START
feature on and off. If this function is activated, the FADER START automatically returns the player to the preset
cue point.
9. Channel fader
Adjusts the volume for Channel 1 and Channel 2.
10. Crosserfader
This fader is used to blend the output signals of channels A and B together. When the fader is in the full left
position (channel A), the output signal of channel A will be controlled by the master volume level. The same
fundamentals will apply for channel B. Sliding the fader from one position to another will vary the output signals
of channels A and B respectively. When the crossfader is set in the center position, the output signals of both
the channels A and channels B will be even.
PART NAMES AND FUNCTIONS
11. Channel fader (CF) mode switch
Reverses the direction of Channels fader.
12. Crossfader curve switch
Used to select the 2 different rising curve patterns for the crossfader function.
13. MIC ON/OFF/TALKOVER switch
To set mic on and off, when switch at the talkover position, the mic on, the sound level for everything other than
mic will decrease to around 14 dB.
14. MIC HIGH / BASS EQ
These knobs are used to adjust the high (or bass) levels of the microphone with a maximum signal gain of
12dB or maximum signal decrease of -12dB. Turning the knob in a counterclockwise direction will decrease the
amount of high (or bass) applied to the microphone signal, turning the knob in a clockwise direction will increase
the amount of high (or bass) applied to microphone signal.
15. Mic Ievel
Adjusts microphone level.
16. Input gain control knob
These knobs are used to adjust the audio source signal input gain for a channel. Never use the gain control to
adjust a channels output volume. Setting the gain level properly will ensure a clean output signal.
ENGLISH
17. Channel equalizer high-range (HI) adjust knob
Use to adjust the high-range frequence sound for each channel (includes kill function). Adjustable range: -∞ to
+10dB.
18. Channel equalizer mid-range (MID) adjust knob
Use to adjust the mid-range frequence sound for each channel (includes kill function). Adjustable range: -∞ to
+10dB.
19. Channel equalizer low-range (LOW) adjust knob
Use to adjust the low-range frequence sound for each channel (includes kill function). Adjustable range: -∞ to
+10dB.
20. Level meter
The dual LED's indicators are used to detail either the master output level, a combination of the master output
level or the PGM 1/2 monaural level.
M10
21
PART NAMES AND FUNCTIONS
REAR PANEL
ENGLISH
21. Power switch
22. Power cord fastener
23. Fader start sontrol jack
24. Mic input jack
25. GND (GROUND TERMINAL)
26. LINE/PH (Phono) selector switches
22
24
25
26
31 30 29
2321 22
28 27 26 28 27
25
Turn this unit power ON/OFF.
CAUTION
: Before you turn the power on be sure you have made all connections to the mixer. Also be
sure you amplifiers are turned off.
CAUTION
: Remember to avoid damaging pops to the speakers, the mixer is turned on first and turned
off last.
To fasten the power cord to avoide unpluging the cord by accident.
This jack is used to control the “FADER START” function between the mixer and a compatible Player. Using
the mini plug included with your player, connect from the player controller out jack to this jack. CH-A “FADER
START” functionality will be controlled by the left side (A) of the CROSSFADER. CH-B “FADER START”
functionality will be controlled by the right side (B) of the CROSSFADER. For more information on “FADER
START” functionality refer to the user manual included with your player. Be sure to only use the mono tip mini
plug included with your player to avoid damage to the mixer and/or the player.
This jack will accept a standard 1/4” (6.3mm) male plug.
Be sure to connect turntable ground leads to either or both of the two available ground terminals. This will
reduce the humming and popping noises associated with magnetic phono cartridges.
These switches are used to change the mode of phono input jacks
27
. When connecting turntable to these
jacks be sure the switch is in the PH (phono) position, and when using line level input devices select LINE.
PART NAMES AND FUNCTIONS
27. Ph/Line input jacks
The type of input must directly reflect the selected mode of the SOURCE SELECT SWITCH
equipped with MM pickup cartridge (All DJ turntable use MM pickup cartridges) may be connected to these
jacks as long as the SOURCE SELECT SWITCH(1) is in the left side “PH/LN” position and the LINE/PH selector
26
switches
connected to these jacks as long as the LINE/PH selector switches
will be controlled by the Input gain control knob
28. Line input jacks
These Jacks are used for line level inputs. Connect CD players or Tape Decks to line level inputs. Input volume
will be controlled by the input gain control knob
"LN (Line)" position, to monitor any source connected to these jacks.
29. Rec output
This is a low current unbalanced output source designed for various tape and CD recorders. The Record Out (REC
OUT) level is dictated by the Channel fader
30. Master output
The RCA jacks send a low current unbalanced output signal. These jacks should only be used for shorter cable
runs to signal processors or looping to another mixer.
31. Dc in
Use the included power adapter to connect the mixer to a power outlet. While the power is switched off, plug
the power adapter into the mixer first, then plug the power adapter into a power outlet.
NOTE
is in the “PH” position. CD players, Tape Decks and other line level instruments may only be
26
is in the “LINE” position. Input volume
16
.
16
. The channel Source input selector switch 1 must be in the
9
, it is not influenced by the MASTER VOLUME CONTROL 4 .
: The mixer is designed to work with the included power adapter only. Using an incompatible
power adapter could result in damage to the unit.
1
. Turntables
ENGLISH
FRONT PANEL

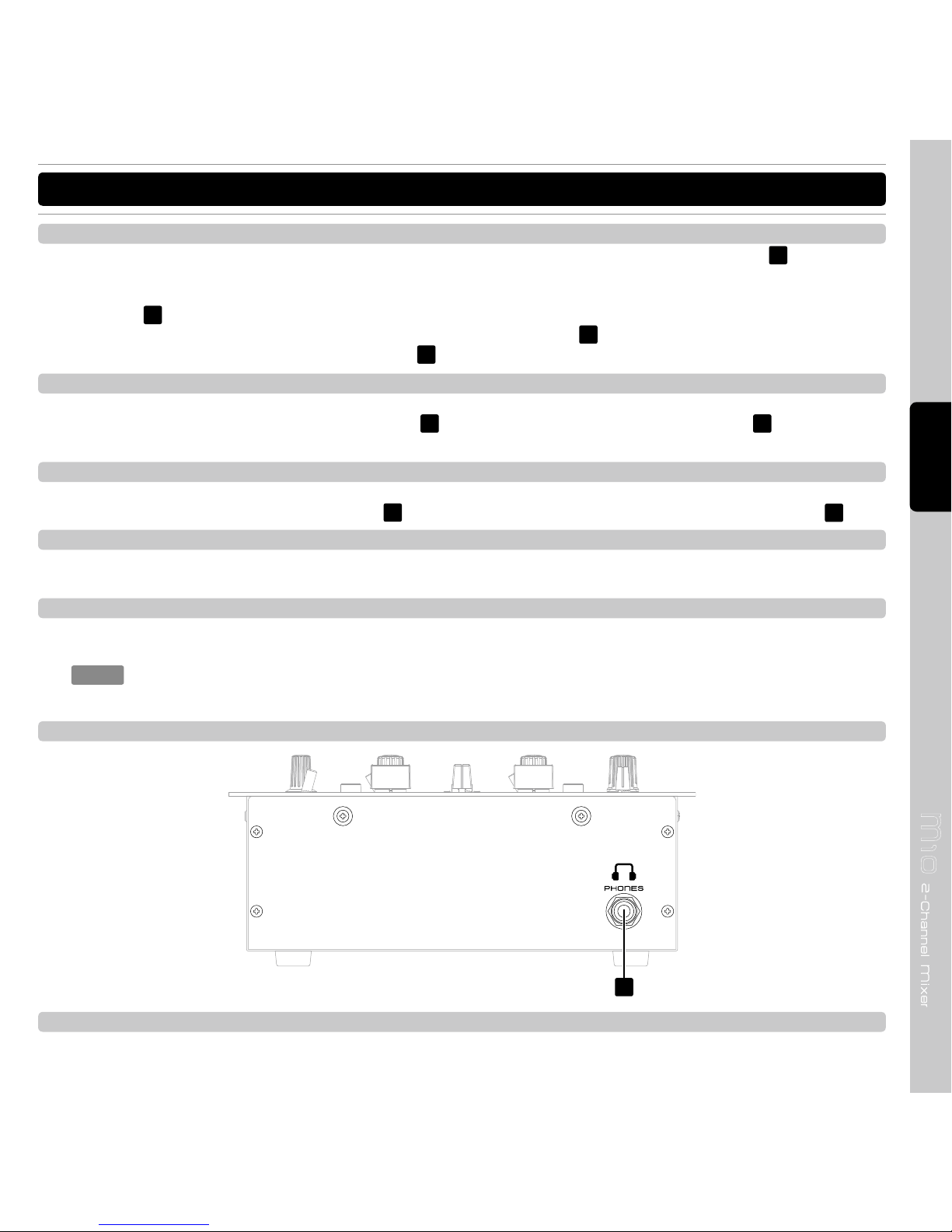

32. Headphones jack
Used to connect your headphones to the mixer.
M10
32
23

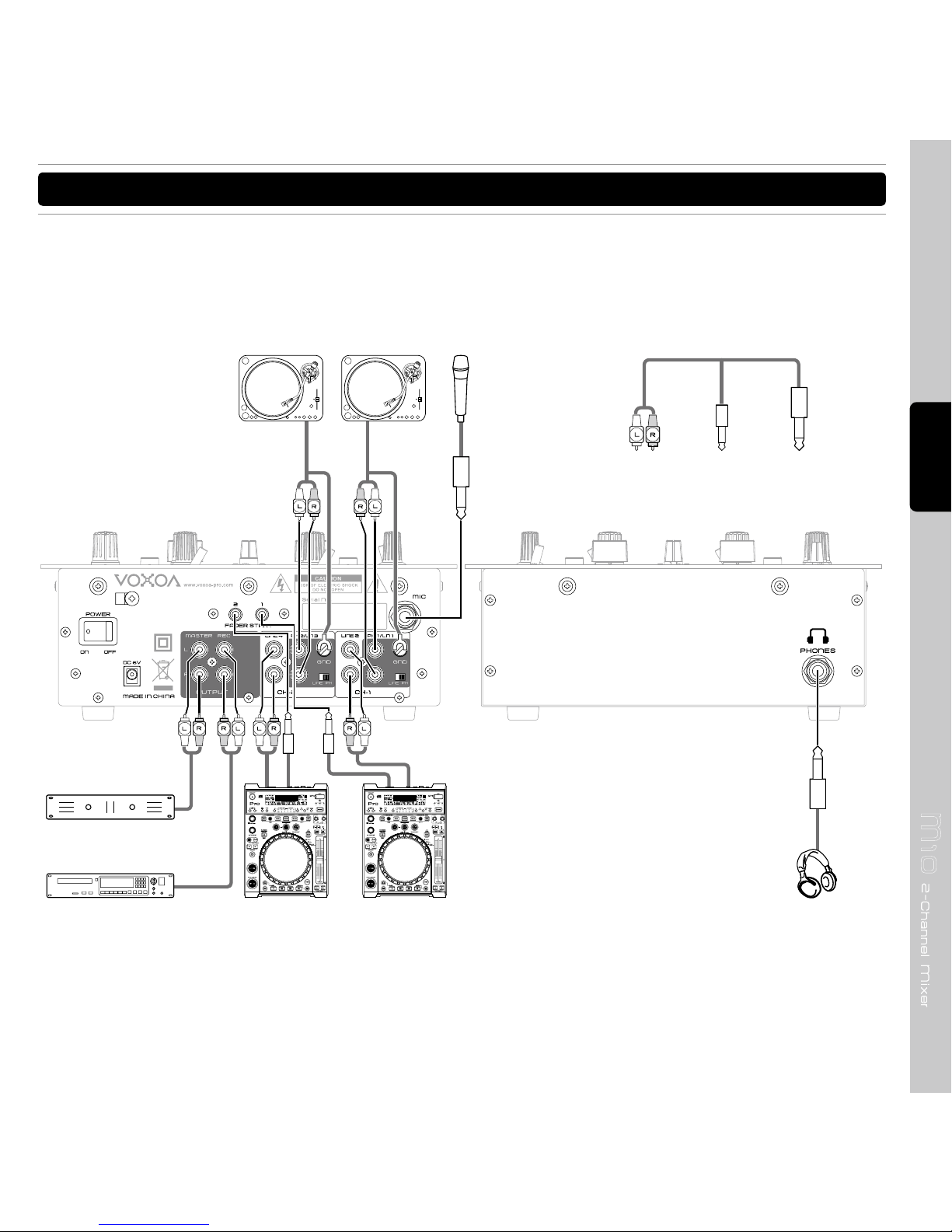

CONNECTIONS
1. Make certain power is off while making connections.
2. Quality cables make a big difference in fidelity and punch. Use high-quality, audio cables.
3. Do not use excessively long cables. Be sure plugs and jacks are securely fastened. Loose connections cause
hum, noise, or intermittence that could damage your speakers.
4. Connect all stereo input sources. Then connect any effects into the stereo Effect, if used. Connect your
Microphone(s) and monitor headphones. Make sure all faders are at “zero” and the unit is off. Take care to
connect only one cable at a time. Pay attention to L and R position of jacks, on both the VOXOA M10 and
outboard gear.
5. Connect the stereo outputs to the power amplifier(s) and/or tape deck(s) and/or MD recorder(s) and/or CD
ENGLISH
recorder(s).
CAUTION
: Always switch on your audio input sources such as CD players first, then your mixer, and finally
any amplifiers. When turning off, always reverse this operation by turning off amplifiers, then
your mixer, and then input units.
24
CONNECTIONS
Turntable Turntable Microphone
ENGLISH
Power Amplifier
RCA
CD/MP3 PlayerRecorder CD/MP3 Player Headphones
3.5mm
6.3mm
M10
25
SPECIFICATIONS
1.GENERAL SECTION
POWER SOURCE :
DC 6V, 2000mA
POWER CONSUMPTION :
12 Watts
DIMENSIONS :
300 mm
235 (W) x287 (D) x 106.4 (H)mm
287 mm
Weight :
1.65 kg
ENGLISH
2. INPUT/OUTPUT IMPEDANCE & SENSITIVITY :
(MASTER 0dBV OUTPUT, LOAD=100KOHM, MAX. GAIN, EQ FLAT)
LINE :
PHONO :
MIC :
MASTER :
PHONES (load=32 ohm)
10K OHM /-14dBV (200mV) +/-2dB
47K OHM /-50dBV (3.16mV) +/-2dB
1.5K OHM /-54dBV (2mV) +/-2dB
1K OHM
33 OHM /0dBV (1V) +/-2dB
3. FREQUENCY RESPONSE : (MASTER OUTPUT, EQ FLAT)
LINE :
PHONO :
MIC :
20 - 20KHz +/- 2dB.
20 - 20KHz +2/-3dB (RIAA)
20 - 20KHz +2/-3dB
4. THD + N : (MASTER 0dBV OUTPUT, MAXIMUM GAIN, w/ 20kHz LPF)
LINE :
PHONO :
MIC :
PHONES :
LESS THAN 0.05% 20 - 20KHz
LESS THAN 0.1% 20 - 20KHz (IEC-A WTD)
LESS THAN 0.2% 20 - 20KHz (IEC-A WTD)
LESS THAN 0.1% 20 - 20KHz (FROM LINE INPUT)
235 mm
87.6 mm
106.4 mm
5. MAXIMUM INPUT : (1KHz, MASTER OUTPUT, THD=1%, EQ FLAT, MAXIMUM GAIN)
LINE :
PHONO :
MIC :
26
MORE THAN +4dBV
MORE THAN -32dBV
MORE THAN -42dBV
SPECIFICATIONS
6. MAXIMUM OUTPUT : (THD=1%, MAXIMUM GAIN, EQ FLAT)
MASTER :
PHONES :
REC :
7. SN RATIO : (MAXIMUM GAIN, MASTER 0dBV OUTPUT, EQ FLAT, W/ 20KHz LPF, A-WEIGHTED)
LINE :
PHONO :
MIC :
8. CROSSTALK : (FROM MASTER OUTPUT, A-WEIGHTED)
LINE,PHONO :
MORE THAN +18dBV (8.0V) at load=100K OHM
MORE THAN +4dBV (1.6V) at load=32 OHM
MASTER MAX OUTPUT -10+/- 2dB. at load=100K OHM
LESS THAN -80dBV
LESS THAN -70dBV
LESS THAN -60dBV
MORE THAN 65dB AT 1K Hz BETWEEN L AND R.
MORE THAN 65dB AT 1KHz BETWEEN CHANNELS.
ENGLISH
9. MIC TALKOVER :
10. EQ :
MIC :
HI:
LOW:
CHANNEL :
HI:
MID:
LOW:
11. FADER MAXIMUM ATTENUATION :
CHANNEL FADER :
CROSSFADER :
12 +/- 2dB AT 10KHz
-12 +/- 2dB AT 10KHz
12 +/- 2dB AT 100Hz
-12 +/- 2dB AT 100Hz
10 +/- 2dB AT 16KHz
-21 +/- 3dB AT 16KHz
10 +/- 2dB AT 1KHz
-22 +/- 3dB AT 1KHz
10 +/- 2dB AT 60Hz
-22 +/- 3dB AT 60Hz
-14dB+/- 2dB.
KILL :
HI: -21 +/- 3dB AT 16KHz
MID: -22 +/- 3dB AT 1KHz
LOW: -22 +/- 3dB AT 60Hz
LESS THAN -70dB at 1KHz
LESS THAN -75dB at 1KHz
M10
12. CHANNEL BALANCE :
Within 3dB
NOTES : Specifications and improvements in the design of this unit and this manual are subject to change
without any prior written notice.
27
Printed in ChinaVERSION 1.0
Loading...
