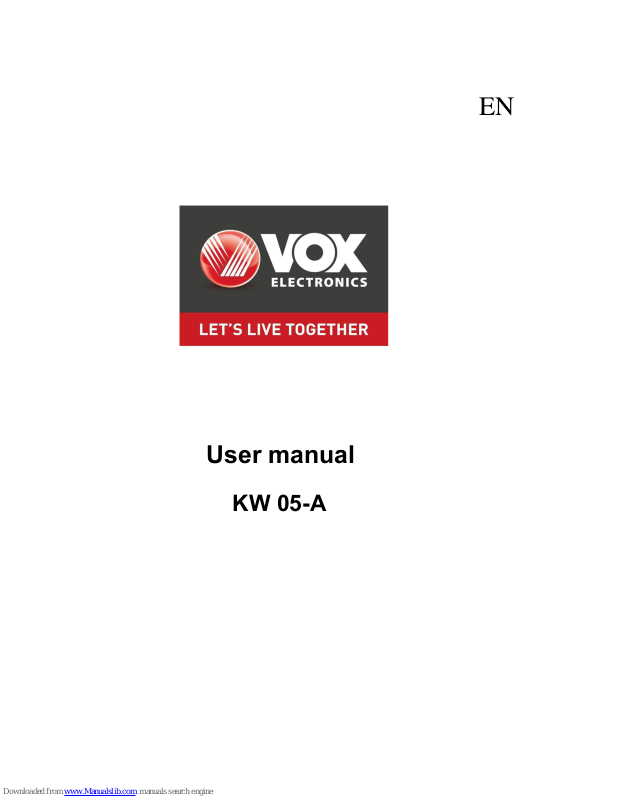

VOX electronics KW 05-A User Manual

EN

User manual

KW 05-A

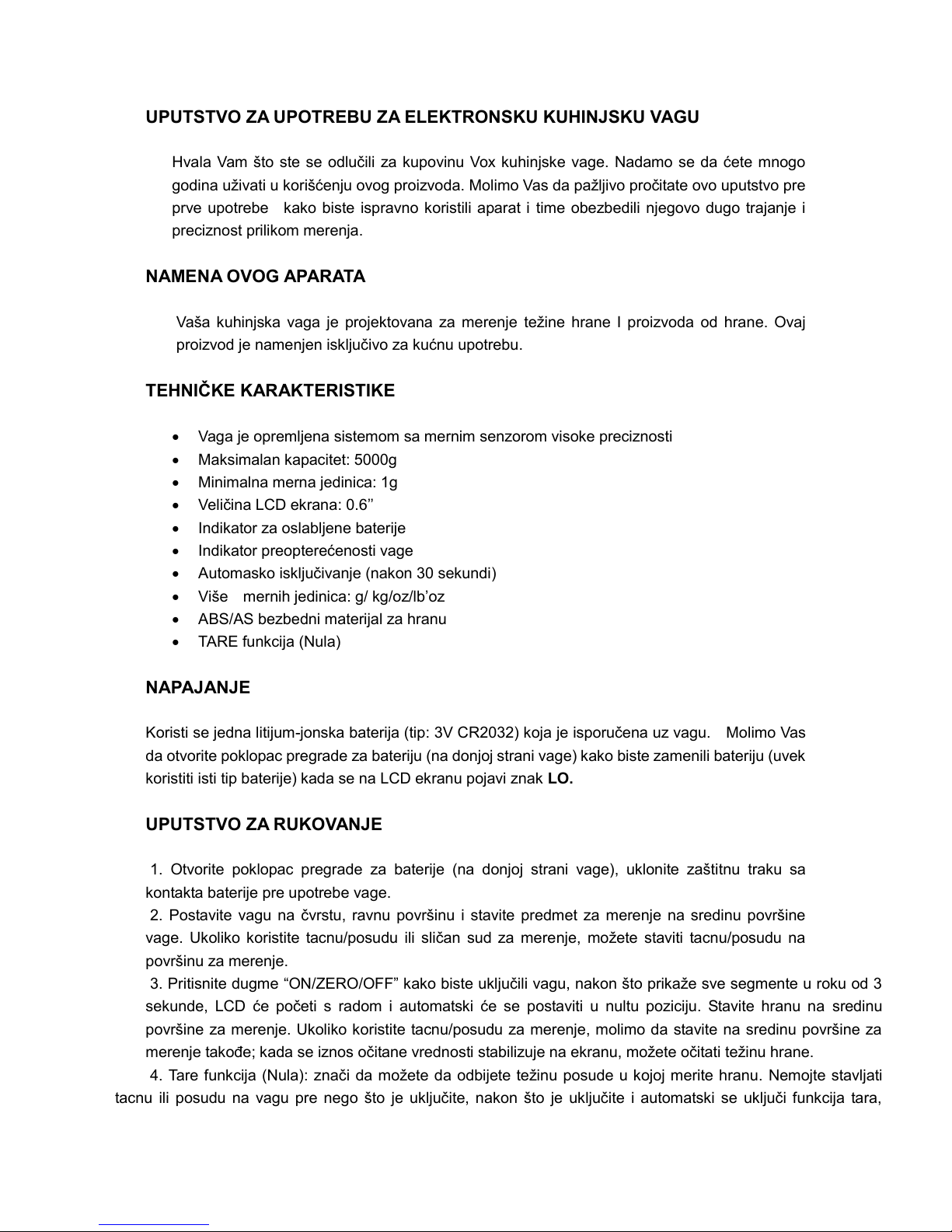

INSTRUCTION MANUAL FOR ELECTRONIC KITCHEN SCALE

Please read this instruction manual carefully before using the product for the first time in order to

make sure that you can use it correctly and to ensure its accuracy & durability.

MAIN FEATURES

 Equipped with a high precise strain gauge sensor system

 Max. capacity:5000g
 LCD display (height): 0.6’’

 Low battery indicator

 Auto-off function (in 30 seconds)
 Two weighing units: g/ kg/oz/lb’oz

 ABS/AS safety material for food

 Division:1g

 Auto-zero function

 Over load indicator

 Tare function

POWER SUPPLY

With one piece of free lithium battery (type: 3V CR2032) included when out of factory, please open the battery box

cover (in the back side of the scale) to replace a new piece of unused battery (same type as the original one) when
LCD shows“LO”。

OPERATING INSTRUCTIONS

1, Open the battery box cover (in the back side of the scale), remove the insulation sheet from the battery contact

before using.

2, Place the scale on a hard & flat surface and put the weighing tray on it correctly. If use some other container to weigh

(such as some similar container in its bottom size and shape), you can put this container directly on the weighing flat of

the scale.
3, Press the “ON/TARE/OFF” button to switch on the scale, after shows all segments for 3 seconds, the LCD will be

waken up to work and auto-zero. Place the food in the center of the weighing tray.

If use some other weighing container to weigh, please try to put it in the center of the scale surface weighing flat, when

the weighing data is stable you can read the data.

4, Tare function: it means to deduct the container’s weight (tare). Don’t put any tray or container on scale weighing flat

before switch on it, after switched on the scale and auto zero function worked, then put the container on the scale

weighing flat, press the “ON/TARE/OFF” button when the data (tare) is stable, after a moment when the LCD auto-zero
and shows tare mark of “tare”, at this time put the food into the container, the final stable data is the food’s actual net

weight. You can take this food out and go on to weigh other food. Should you want to use other container to weigh,

please accord strictly by the above operating instruction.

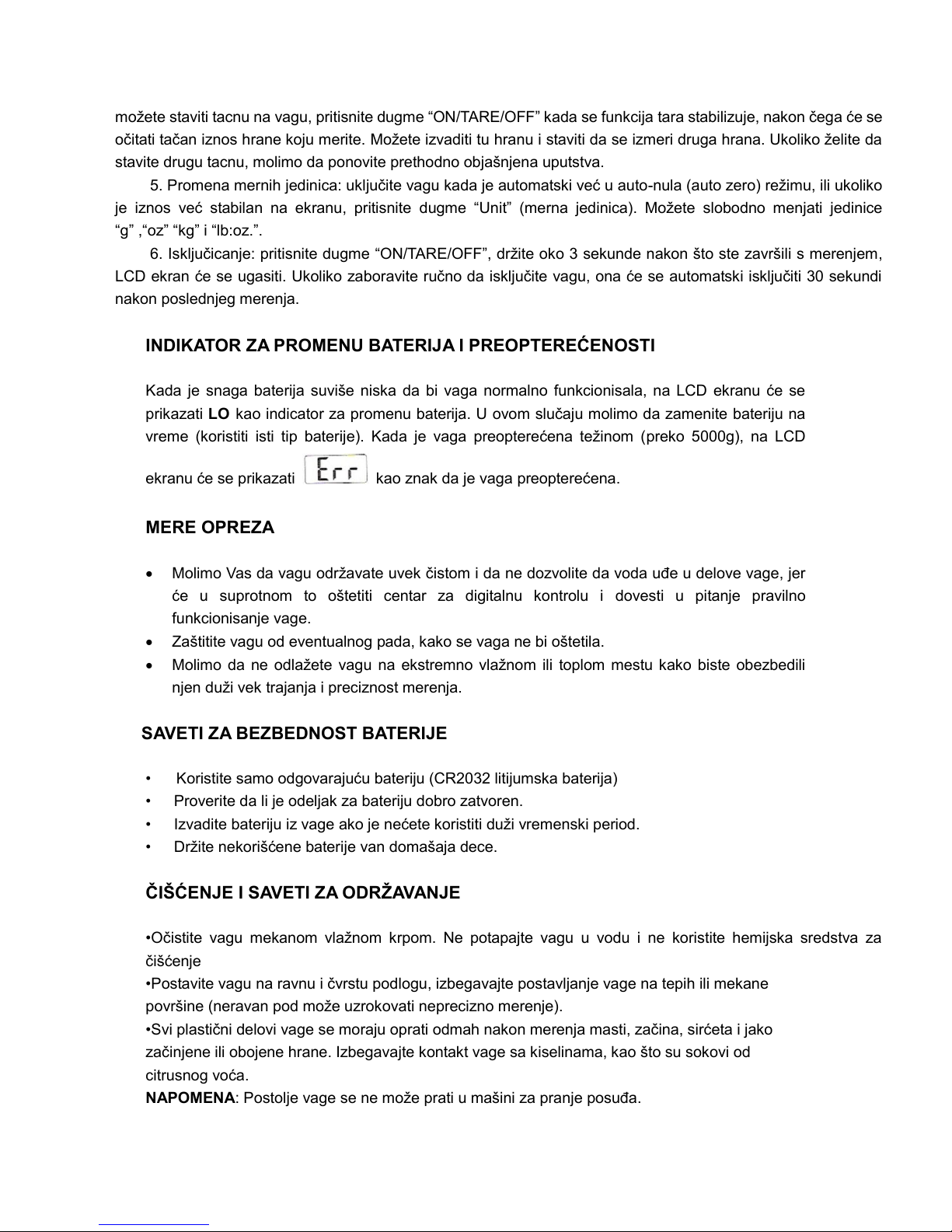

5, Unit transition: switch on the scale and when it’s already auto-zero, or if the data is stable when weighing, press the
“Unit” button, you can transfer the unit freely between “g” ,“oz” “kg” and “lb:oz.”.

6, Switch off: press the “ON/TARE/OFF” button for about three seconds after you finished weighing, the LCD will be

switched off. Should you forget to switch off by manual operation, scale will automatically switch off after about 30
seconds’ non-weighing action.

LOW BATTERY AND OVER LOAD INDICATOR

When the battery power is too low to work normally, the LCD will show “LO” mark as low battery indicator, under this

condition please replace the battery (same type) in time. When the scale is over loaded (over 5000g), the LCD will
show “Err” mark

as over load indicator.

CAUTION

 Please always keep it clean, and don’t let any water immerse into the scale otherwise it will damage its electronic

control center and its function accordingly.

 Keep it away from any heavy knock or drop, otherwise it will result in damage to the scale, and another side, the

broken glass will bring danger to yourself.

 Please don’t keep it in extremely wet or hot condition in order to ensure its accuracy & durability.
 This product only suitable for family food weighing usage, it isn’t suitable for commercial or any other weighing

usage.
