Vortice MICRO 80, MICRO 100, MICRO 100 ES Installation Instructions

Libretto d’istruzioni Instruction booklet Notice d’emploi et d’entretien Betriebsanleitung Manual de instrucciones Manual de instruções Gebruiksaanwijzing Instruktionshäfte

Instrukcja obsługi

MICRO 80 - MICRO 100 - MEDIO - SUPER

Használati utasítás

Uživatelská příručka Manual de instrucţiuni Upute za uporabu

Kullanım kılavuzu

ΕΕγγχχεειιρρίίδδιιοο οοδδηηγγιιώών

Инструкции по эксплуатации

VORT QUADRO

MICRO 100 ES

COD. 5.371.084.536 02/09/2008

VORTICE LIMITED Beeches House - Eastern Avenue Burton on Trent DE13 0BB Tel. (+44) 1283-492949 Fax (+44) 1283-544121 UNITED KINGDOM

VORTICE FRANCE 72 Rue Baratte-Cholet 94106 Saint Maur Cedex Tel. (+33) 1- 55.12.50.00 Fax (+33) 1- 55.12.50.01 FRANCE

VORTICE ELETTROSOCIALI S.p.A. Strada Cerca, 2 - frazione di Zoate 20067 TRIBIANO (MI) Tel. (+39) 02-90.69.91 Fax (+39) 02-90.64.625 ITALIA

rima di installare e collegare il prodotto,

leggere attentamente queste istruzioni.

Vortice non potrà essere considerata

esponsabile per eventuali danni a persone

o cose causate dal mancato rispetto delle

prescrizioni di seguito elencate, la cui

applicazione garantirà invece

'affidabile e sicuro

dell'apparecchio. Conservare sempre questo

instructions given in this instruction booklet.

Following these instructions will ensure a long

mechanical reliability. Keep this instruction

booklet in a safe place for reference purposes.

Vortice ne pourra être tenue pour responsable

personnes ou aux choses par suite du non

respect du contenu de cette notice. Le respect

de toutes les instructions reportées dans ce

livret garantira une longue durée de vie ainsi

que la fiabilité électrique et mécanique de cet

funzionamento nel tempo

libretto istruzioni.

Read these instructions carefully before

installing and connecting this appliance. Vortice cannot assume any responsibility for damage to property or personal injury

resulting from failure to abide by the

working life and overall electrical and

Avant d’installer et de brancher le produit,

lire attentivement ces instructions.

des dommages éventuels provoqués aux

appareil. Toujours conserver cette notice

d’instructions à portée de main.

Indice IT

Applicazioni tipiche. . . . . . . . . . . . . . . . . . . . 7

Descrizione ed impiego . . . . . . . . . . . . . . . . 8

Modelli . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Attenzione - Avvertenza . . . . . . . . . . . . . . . . 18

Installazione . . . . . . . . . . . . . . . . . . . . . . . . 37

Collegamenti elettrici. . . . . . . . . . . . . . . . 42-44

Regolazione Timer . . . . . . . . . . . . . . . . . . . . 47

Manutenzione / Pulizia . . . . . . . . . . . . . . . . 48

Informazione importante per l’utente . . . . . . 50

Table of contents EN

Typical applications. . . . . . . . . . . . . . . . . . . . 7

Description and operation . . . . . . . . . . . . . . 8

Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Warning - Caution . . . . . . . . . . . . . . . . . . . . . 19

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Electrical connections . . . . . . . . . . . . . . . 42-44

Regulating the Timer . . . . . . . . . . . . . . . . . 47

Maintenance / Cleaning. . . . . . . . . . . . . . . . . 48

Important user information . . . . . . . . . . . . . . 50

Index FR

Applications typiques . . . . . . . . . . . . . . . . . . 7

Description et mode d’emploi. . . . . . . . . . . . 8

Modèles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Attention - Avertissement . . . . . . . . . . . . . . . 20

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Branchements électriques. . . . . . . . . . . . 42-44

Réglage Minuterie . . . . . . . . . . . . . . . . . . . . 47

Entretien / Nettoyage . . . . . . . . . . . . . . . . . . 48

Information importante pour l'utilisateur . . . . 51

Vor Installation und Anschluss dieses Produkts

müssen die vorliegenden Anleitungen

aufmerksam durchgelesen werden. Vortice

kann nicht für Personen- oder Sachschäden

zur Verantwortung gezogen werden, die auf

eine Nichtbeachtung der Hinweise in dieser

Betriebsanleitung zurückzuführen sind.

Befolgen Sie alle Anweisungen, um eine lange

Lebensdauer sowie die elektrische und

mechanische Zuverlässigkeit des Geräts zu

gewährleisten. Diese Betriebsanleitung ist gut

aufzubewahren.

Inhaltsverzeichnis DE

Typische Anwendungsarten . . . . . . . . . . . . . 7

Beschreibung und Gebrauch . . . . . . . . . . . . 8

Modelle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Achtung - Wichtiger Hinweis . . . . . . . . . . . . 21

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Elektrische Anschlüsse . . . . . . . . . . . . . . 42-44

Einstellung der Zeitschaltuhr . . . . . . . . . . . . 47

Wartung / Reinigung . . . . . . . . . . . . . . . . . . . 48

Wichtige Information für den Benutzer. . . . . 51

7 10 16 35 37

-44

42 47 48

7 10 17 36 37

42-

44 47 48

Questo simbolo significa che l’operazione deve essere eseguita da personale professionalmente qualificato.

This symbol indicates that the operation must be carried out by a suitably qualified person.

Ce symbole signifie que l'opération doit être exécutée par du personnel professionnellement qualifié.

Dieses Symbol zeigt an, dass dieser Vorgang nur durch qualifiziertes Fachpersonal ausgeführt werden darf.

Este símbolo indica que las operaciones han de ser realizadas por personal profesional cualificado

Este símbolo significa que a operação deve ser efectuada por pessoal profissionalmente qualificado.

Dit symbool geeft aan dat deze handeling verricht moet worden door vakkundig gekwalificeerd personeel.

Denna symbol anger att momentet ska utföras av professionellt kvalificerad personal.

Symbol ten oznacza, że czynność powinna być wykonana przez osobę posiadającą odpowiednie kwalifikacje.

Ez a szimbólum azt jelenti, hogy a műveletet szakember kell, hogy elvégezze.

Tento symbol znamená, že činnost smí provádět pouze odborně kvalifikovaný pracovník.

Acest simbol indicã faptul cã operaþia trebuie sã fie efectuatã de cãtre personal calificat din punct de vedere profesiona.

Ovaj simbol oznacava radnju koju smije obaviti samo strucno osoblje.

Bu sembolun anlamı, yapılacak işlemlerin mesleki açıdan kalifiye bir kişi tarafından uygulanmasının ön görüldüğüdür.

Το σύµβολο αυτό σηµαίνει ότι η ενέργεια πρέπει να γίνει από εξειδικευµένο προσωπικό.

Этот символ указывает на то, что данная операция должна выполняться квалифицированным специалистом.

AR ZH

APPLICAZIONI TIPICHE

TYPICAL APPLICATIONS APPLICATIONS TYPIQUES TYPISCHE ANWENDUNGSARTEN APLICACIONES TÍPICAS APLICAÇÕES TÍPICAS KARAKTERISTIEKE TOEPASSINGEN TYPISKA TILLÄMPNINGAR

TYPOWE ZASTOSOWANIA JELLEMZŐ ALKALMAZÁSOK

1 2

PŘÍKLAD POUŽITÍ APLICAŢII TIPICE UOBICAJENA PRIMJENA

GENEL UYGULAMALAR

ΣΥΝΗΘΕΙΣ ΕΦΑΡΜΟΓΕΣ

ОБЫЧНЫЕ ВИДЫ ПРИМЕНЕНИЯ

DESCRIZIONE ED IMPIEGO ITALIANODESCRIZIONE ED IMPIEGO

DESCRIPTION AND OPERATION DESCRIPTION ET MODE D’EMPLOI BESCHREIBUNG UND GEBRAUCH DESCRIPCIÓN Y EMPLEO DESCRIÇÃO E UTILIZAÇÃO BESCHRIJVING EN GEBRUIK BESKRIVNING OCH ANVÄNDNING

OPIS I ZASTOSOWANIE A TERMÉK LEÍRÁSA ÉS ALKALMAZÁSA

Il prodotto da lei acquistato è un aspiratore

centrifugo professionale, da parete/soffitto, destinato all’aerazione di locali con scarico in canalizzazione singola. Il motore è dotato di:

• doppia velocità (minima e massima)

• protezione da sovraccarichi termici

• bronzine o cuscinetti a sfera (questi ultimi solo per modelli Long Life LL e a basso consumo ES, che garantiscono almeno

30.000 ore di funzionamento meccanico continuo ed una silenziosità costante nel tempo). Il prodotto è ideale per applicazioni in ambienti molto umidi, poiché è protetto contro gli spruzzi d’acqua.

The product you have purchased is a

professional centrifugal extractor fan for wall or ceiling installation, for ventilation of rooms and extraction into a single duct. The motor has:

• two speeds (minimum and maximum)

• thermal overload protection

• bushings or ball bearings (only for Long Life LL models ES low consumption models to guarantee at least 30,000 hours of continuous running).

Splash protection makes the product ideal for applications in high-humidity environments.

Le produit que vous venez d'acheter est un

aérateur centrifuge professionnel, mural/de plafond, destiné à aérer les pièces avec évacuation en canalisation simple. Le moteur est équipé de :

• double vitesse (grande et petite)

• protection contre les surcharges thermiques

• coussinets en bronze ou roulements à billes (seulement pour modèles Long Life LL et à faible consommation ES qui garantissent plus de 30.000 heures de fonctionnement mécanique continu et un fonctionnement silencieux constant dans le temps).

Cet appareil est idéal pour les applications dans les milieux très humides car il est protégé contre les projections d'eau.

POPIS A POUŽITÍ DESCRIERE ȘI UTILIZARE OPIS I UPORABA

TANIMLAMA VE KULLANIM

ΠΠΕΕΡΡΙΙΓΓΡΡΑΑΦΦΗΗ ΚΚΑΑΙΙ ΧΧΡΡΗΗΣΣΗΗ

ОПИСАНИЕ ИЗДЕЛИЯ И СПОСОБ ЕГО ПРИМЕНЕНИЯ

Das von Ihnen erworbene Produkt ist ein

Zentrifugalexhaustor zur Wand- bzw. Deckenmontage für die Belüftung von Räumen mit Einzelkanalisierung. Der Motor verfügt über:

• zwei verschiedene Drehzahlen (langsam und schnell)

• Überhitzungsschutz

• Lagerbuchsen oder Kugellager (nur für

Modell Long Life LL und mit niedrigem ESStromverbrauch, die mehr als 30.000 Stunden störungsfreien und dauerhaft

geräuschlosen Betrieb gewährleisten).

Das Gerät ist gegen Spritzwasser geschützt und kann daher in sehr feuchten Räumen eingesetzt werden.

El producto que Ud. ha comprado es un

extractor centrífugo profesional de pared o techo destinado a la ventilación de locales con descarga en conducto individual. El motor posee:

• doble velocidad (mínima y máxima)

• protección contra sobrecargas térmicas

• bujes o cojinetes de bolas (sólo los

modelos Long Life LL y de bajo consumo ES que garantizan prestaciones superiores a 30.000 horas de funcionamiento mecánico continuo y sin

ruidos a lo largo del tiempo). Es el producto ideal para ambientes muy húmedos, gracias a su protección contra las salpicaduras de agua.

O produto que adquiriu é um aspirador

centrífugo profissional de instalação na parede/tecto, destinado ao arejamento de locais com descarga para canalizações simples. O motor é dotado de:

• dupla velocidade (mínima e máxima)

• protecção contra picos de tensão térmicos

• bronzes ou rolamentos de esferas (apenas

para os modelos Long Life LL e de baixo

consumo ES que garantem pelo menos

30.000 horas de funcionamento mecânico

contínuo e silêncio permanente). O produto é ideal para aplicações em ambientes muito húmidos, dado que se encontra protegido contra salpicos de água.

MODELLI

MODELS MODÈLES MODELLE MODELOS MODELOS MODELLEN MODELLER

MODELE MODELLEK

A. Modello BASE

Il prodotto è azionato dandogli tensione attraverso l’interruttore di comando esterno non in dotazione.

B. Modello TIMER

Il prodotto è dotato di timer tarato per un tempo minimo di 3 minuti. È possibile variare detta entità nell’arco di tempo da 3 a 20 minuti circa, agendo sul trimmer (fig. 31). L’apparecchio si avvia automaticamente alla velocità collegata alcuni secondi dopo l’accensione della luce e continua a funzionare per il tempo prefissato dopo lo spegnimento della luce stessa. Il timer può essere collegato alle due velocità del prodotto tramite commutatore esterno non in dotazione (fig. 24).

C. Modello T HCS (Sistema di Controllo Umidità)

Il prodotto è dotato di un circuito rilevatore d’umidità preimpostato che attiva il funzionamento dell’apparecchio quando la percentuale d’umidità supera il 65%. Il circuito è inoltre dotato di timer regolabile da 3 a 20 min. circa agendo sul trimmer (fig.

32). L’apparecchio si avvia automaticamente alla velocità collegata alcuni secondi dopo l’accensione della luce e continua a funzionare per il tempo prefissato dopo lo spegnimento della luce stessa. Il T HCS può essere collegato alle due velocità del prodotto tramite commutatore esterno non in dotazione (fig. 24).

D. Modello ES

Differisce dal modello base per la presenza di un motore Brushless a controllo elettronico che garantisce una elevata efficienza energetica.

E. Modello TIMER ES

Differisce dal modello timer per la presenza di un motore Brushless a controllo elettronico che garantisce una elevata efficienza energetica.

A. BASIC model

The product is operated on by means of an external switch (not provided).

MODELY MODELE MODELI

MODELLER

ΜΟΝΤΕΛΑ

МОДЕЛИ

B. TIMER model

This model is equipped with a timer which is factory-set for a minimum operating time of 3 minutes. The timer may be set at between 3 and approximately 20 minutes by adjusting the trimmer (see fig. 31). The appliance switches on automatically a few seconds after the light is switched on and continues to run for the set time after the light is switched off. The timer function can be used irrespective of the appliance's speed using the external switch. The switch is not supplied (fig. 24).

C. T HCS model (Humidity Control System)

This model has a preset humidity sensing device which switches the fan on when the relative humidity exceeds 65%. The circuit is also equipped with a timer that can be set at between 3 and approximately 20 minutes by adjusting the trimmer (fig. 32). The appliance starts up automatically at the selected speed a few seconds after the light comes on and continues to function for the set time even after the light is switched off. The timer function can be used irrespective of the appliance's speed using the external switch. The switch is not supplied (fig. 24).

D. ES model

Differs from the basic model for the presence of an electronically controlled brushless motor guaranteeing excellent energy efficiency.

E. TIMER ES model

Differs from the timer model for the presence of an electronically controlled brushless motor guaranteeing excellent energy efficiency.

A. Modèle de BASE

L'appareil se met en fonction grâce à un interrupteur de commande externe non fourni.

B. Modèle MINUTERIE

Le produit est muni d’une minuterie calibrée pour un temps minimum de 3 minutes. Il est possible de changer cette valeur de 3 à 20 minutes environ en agissant sur le trimmer

WARNING - CAUTION ENGLISH

Warning:t

Do not use this appliance for purposes other than

• hose described in this booklet.

• After removing the appliance from its packaging,

ensure that it is complete and undamaged. If in doubt, contact a professionally qualified electrician or Vortice*. Do not leave packaging within the reach of children or infirm persons.

• Certain fundamental rules must be observed when

using any electrical appliance, including: a) do not touch it with wet or damp hands; b) do not touch it while barefoot.

• This appliance is not suitable for use by children or

by individuals with reduced physical, sensorial or mental capacities, or by inexperienced or untrained individuals, unless they are supervised or

Caution:

• Do not make modifications of any kind to the appliance.

• Do not expose the appliance to the weather (rain,

sun, etc.).

• Periodically inspect the appliance for damage.

If any faults are found, do not operate the appliance; contact Vortice* immediately.

• In the event that the appliance malfunctions or

develops a fault, contact Vortice* immediately. Ensure that only genuine original Vortice spares are used for repairs.

• In the event that the appliance is dropped or suffers a

heavy blow, have it checked immediately by Vortice*.

• The appliance must be installed by a professionally

qualified electrician only.

• Ensure that the electrical system to which the

appliance is connected complies with applicable standards.

• The appliance is double insulated and therefore

does not need to be earthed.

• Check that the electrical power supply/socket provides

the maximum electrical power required by the appliance. If this is not the case, arrange for a qualified electrician to make the necessary modifications.

• Use a multi-polar switch with minimum contact

gaps of 3 mm to install the appliance.

• The timers on the TIMER and T HCS models

must be configured by qualified professional personnel.

• Switch off the appliance at the main switch:

a) if the appliance does not function correctly; b) before cleaning the outside of the appliance, c) if the appliance is not to be used for any length of time.

his symbol indicates precautions that must be taken to avoid injury

this symbol indicates precautions that must be taken to avoid damaging the appliance.

nstructed in its use by a person responsible for

heir safety. Children must always be supervised to

t ensure that they do not play with the appliance.

• Store the appliance out of reach of children and infirm persons after disconnecting it from the power supply.

• Do not operate the appliance where inflammable vapours or substances are present (alcohol, insecticides, petrol, etc.)

• Take all necessary precautions to ensure that there are no back flows of gas into the room from openflued combustion appliances.

• If the product is installed at a height less than 2.3 metres, fit a protection grille over the air outlet to prevent access to the fan impeller.

• With the adjuster ring in place (fig. 7-A), the appliance's outlet vent must be fitted to standard ventilation hoses (nominal Ø 100 mm). If the adjuster ring is not used (fig. 7-B), the vent can be fitted to rigid red PVC piping (nominal Ø 100 mm).

• Ensure that the room has an adequate source of fresh air to ensure correct appliance operation. In the event that other non-sealed combustion-based appliances (such as water heater or gas stove) are installed in the same room, check that air replacement is sufficient for all appliances to work effectively together.

• Do not use the appliance to control activation of water heaters, room heaters, etc., nor should it discharge into the hot air flues of such appliances.

• Ensure that the appliance discharges into a single duct (dedicated to this product) or directly to the outside.

• The air to be extracted from the room must be clean (i.e. free of grease, soot, chemical and corrosive agents, explosive or flammable mixtures).

• Keep the appliance's intake and outlet grilles free to ensure an optimum flow of air.

• The appliance is fitted with a PUR (polyurethan) mesh filter. This can be cleaned by shaking, blowing, or washing in water. Check the condition of the filter and wash or replace it at least every 6 months of operation (fig. 34-35).

N.B. If the appliance is mounted on a wall which has been tiled, a spacer is needed to eliminate any misalignment and ensure correct functioning.

*or an authorized Vortice dealer if you are outside the UK-Ireland territory

INSTALLAZIONE

INSTALLATION INSTALLATION INSTALLATION INSTALACIÓN INSTALAÇÃO INSTALLATIE INSTALLATION

INSTALACJA INSTALLÁLÁS

INSTALACE INSTALARE POSTAVLJANJE

KURULUM

ΕΓΚΑΤΑΣΤΑΣΗ МОНТАЖ

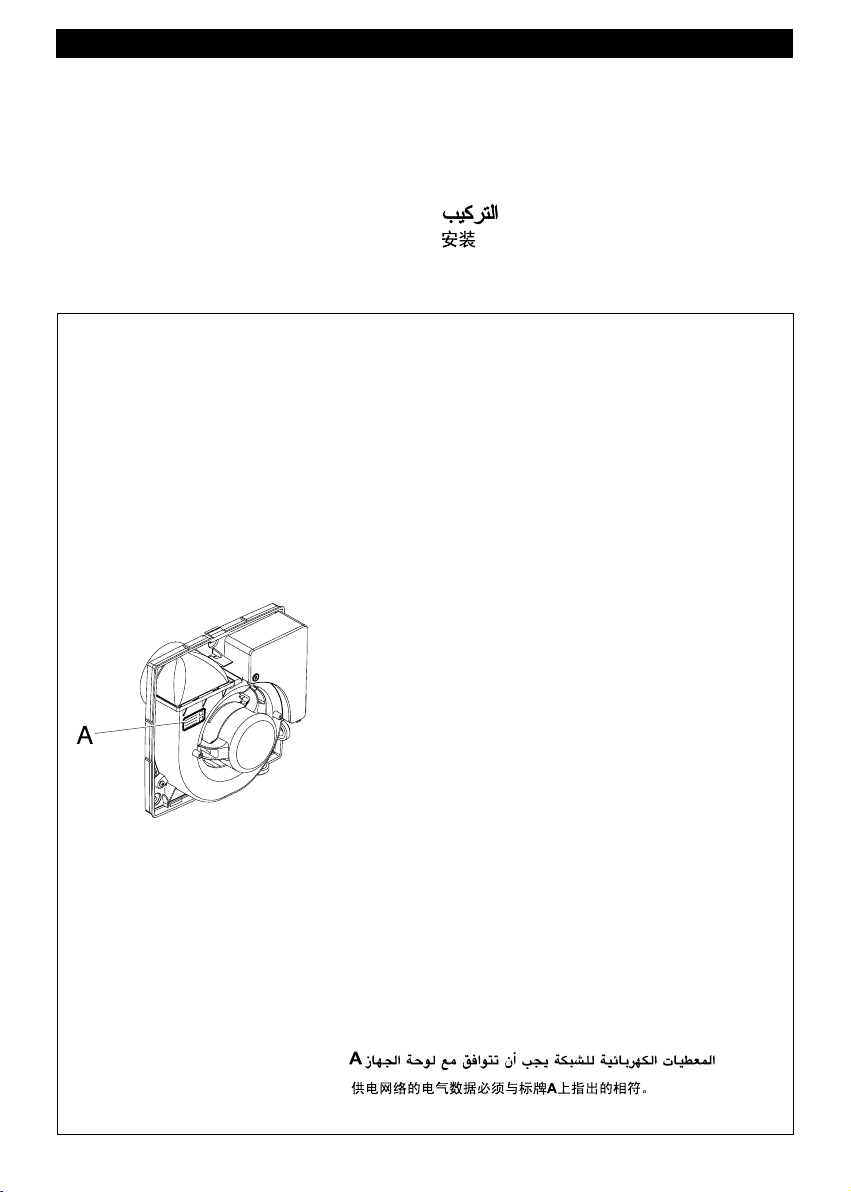

• I dati elettrici della rete devono corrispondere a quelli riportati in targa A.

• Check that the power supply specifications comply with the electrical data on data plate A.

• Les données électriques du réseau doivent correspondre à celles inscrites sur la plaque A.

• Die elektrischen Daten der Netzversorgung müssen den auf Schild A angegebenen Daten entsprechen.

• Los datos eléctricos de la red deben coincidir con los de la placa de características A.

• Os dados eléctricos da rede devem corresponder aos mencionados na placa A.

• De elektrische gegevens van het lichtnet moeten overeenkomen met die van het merkplaatje A.

• Elnätets data måste överensstämma med de data som finns på skylten A.

Dane elektryczne sieci powinny odpowiadać danym podanym na

•

tabliczce znamionowej A.

•

Az elektromos hálózat adatai meg kell feleljenek az A. adattáblán megadott adatoknak.

•

Parametry elektrické sítě musí odpovídat údajům uvedeným na typovém štítku A.

•

Parametrii electrici ai reţelei trebuie să corespundă cu cei de pe plăcuţa A.

• Elektricni podaci mreže moraju odgovarati onima na plocici A.

• Şebekenin elektrik verileri ile A plakasında belirtilenler uyumlu olmalıd.

• Τα ηλεκτρικά χαρακτηριστικά του δικτύου πρέπει να αντιστοιχούν µε εκείνα της πινακίδας A.

Параметры электрической сети должны соответствовать

• приведенным на табличке номинальных данных А.

•

I disegni raffiguranti la sequenza di

ﺮﻴﺸﺗ ﺐﻴﻛﺮﺘﻟ ﺎﻴﻠﻤﻋ ﻊﺑﺎﺘﺗ ﻦﻴﺒﺗ ﻲﺘﻟ ﻮﺳﺮﻟ

ﺬﻫ ﻖﺑﺎﻄﺘﺗ .ﻒﺜﻜﻤﺑ 

ﺮﺤﻤﺑ 

ﺰﻤﻟ ﺎﻬﺠﻟ ﻰﻟ



ﺮﺤﻤﺑ ﺰﻤﻟ ES ﻼﻳﻮﻤﻠﻟ ءﺮﺟﻹ

.Brushless

installazione si riferiscono ad un

pparecchio equipaggiato di un motore a

ondensatore. La procedura è analoga per

e versioni ES con motore Brushless.

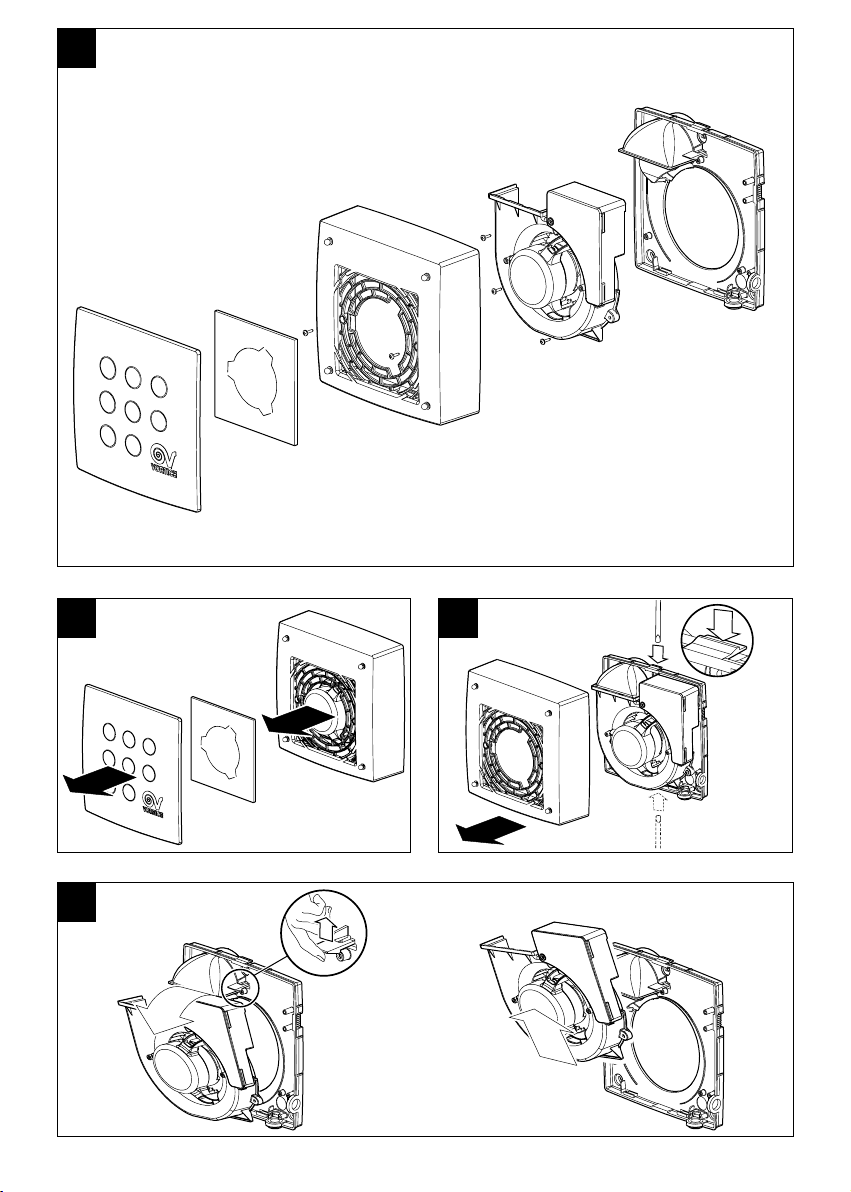

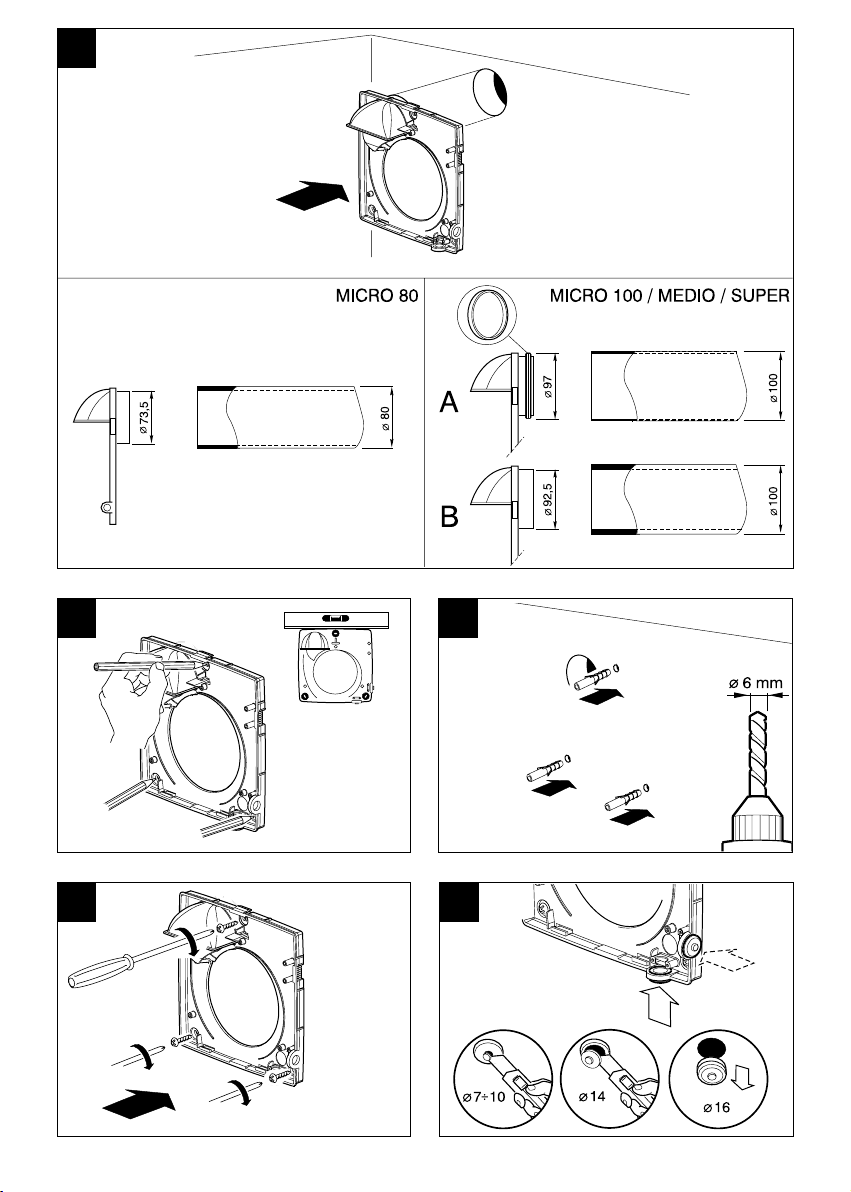

The drawings showing the installation

procedure refer to an appliance equipped with a capacitor motor. The procedure is identical for ES brushless motor versions.

es dessins illustrant la séquence

d'installation se réfèrent à un appareil équipé d'un moteur à condenseur. La procédure est analogue pour les versions ES avec moteur Brushless.

Die Zeichnungen mit den einzelnen

Installationsschritten beziehen sich auf ein Gerät mit Kondensatormotor. Der Installationsvorgang ist für die Versionen ES mit bürstenlosem Motor analog.

Las imágenes ilustran la secuencia de

instalación de un aparato con motor de condensador. El procedimiento de instalación de las versiones ES con motor Brushless es análogo.

Os desenhos que representam a sequência

de instalação referem-se a um aparelho equipado com um motor com condensador. O procedimento é idêntico para as versões ES com motor Brushless.

De tekeningen die de installatievolgorde

afbeelden hebben betrekking op een apparaat dat voorzien is van een condensatormotor. De procedure is hetzelfde voor de ESuitvoeringen met Brushless motor.

Ritningarna som visar installationsföljden

hänvisar till en apparat utrustad med en motor med kondensator. Tillvägagångssättet är analogt för versionerna ES med Brushlessmotor.

Rysunki przedstawiające kolejność instalacji

dotyczą urządzenia wyposażonego w silnik z kondensatorem. Procedura jest analogiczna w przypadku wersji ES z silnikiem Brushless.

A beszerelés sorrendjét mutató rajzok

kondenzátoros motorral fölszerelt berendezésre vonatkoznak.

Az eljárás megegyezik a kefe nélküli motorral ellátott ES változatok esetén is.

otor cu condensator.

m Procedura e analogă pentru versiunile ES cu motor Brushless.

Crteži koji prikazuju slijed postavljanja

odnose se na uređaj opremljen motorom s

ondenzatorom.

ostupak je isti za verzije ES s motorom

P Brushless.

Kurulum aşamalarını gösteren şekillerde, bir

motor ve bir yoğunlaştırıcıya sahip bir cihaz referans alınmıştır. Prosedür, Fırçasız motorlu ES versiyonları için de aynıdır.

Τα σχέδια που απεικονίζουν τη σειρά

εγκατάστασης αναφέρονται σε µια συσκευή που διαθέτει ένα µοτέρ µε πυκνωτή. Η διαδικασία είναι ανάλογη για τα µοντέλα ES µε µοτέρ Brushless.

Рисунки, иллюстрирующие процесс

монтажа, относятся к изделию, оснащенному двигателем с пусковым конденсатором. Для моделей ES с бесщеточным двигателем процедура является аналогичной.

Zobrazení s postupem instalace se týkají

přístroje vybaveného motorem s kondenzátorem. Stejný postup platí i pro modely ES s bezkartáčovým motorem Brushless.

Desenele care reprezintă secvenţa de

instalare se referă la un aparat echipat cu

8 9

ES -

COLLEGAMENTI ELETTRICI MODELLO BASE - ES ELECTRICAL CONNECTIONS BASIC MODEL - ES BRANCHEMENTS ÉLECTRIQUES MODÈLE DE BASE - ES ELEKTRISCHE ANSCHLÜSSE BASISMODELL - ES CONEXIONES ELÉCTRICAS MODELO BÁSICO - ES LIGAÇÕES ELÉCTRICAS MODELO BASE - ES ELEKTRISCHE AANSLUITINGEN BASISMODEL - ES ELEKTRISKA ANSLUTNINGAR BASMODELL - ES

PODŁĄCZENIE ELEKTRYCZNE MODEL BASE - ES ELEKTROMOS BEKÖTÉSEK - BASE - ES MODELLEK ELEKTRICKÁ PŘIPOJENÍ ZÁKLADNÍ MODEL - ES CONEXIUNILE ELECTRICE MODELELE BAZĂ - ES ELEKTRICNI PRIKLJUCCI MODEL BASE - ES

ELEKTRİK BAĞLANTILARI ANA MODEL - ES

ΗΛΕΚΤΡΙΚΕΣ ΣΥΝ∆ΕΣΕΙΣ ΜΟΝΤΕΛΩΝ BASE - ES

ЭЛЕКТРИЧЕСКИЕ СОЕДИНЕНИЯ - БАЗОВАЯ МОДЕЛЬ И МОДЕЛЬ - ES

MICRO 100 ES

COLLEGAMENTI ELETTRICI MODELLO TIMER - TIMER ES - T HCS

INSERT LINK

4L2N1

INSERT LINK

4L2N1

T HCS - TIMER ES - TIMER

TIMER - TIMER ES - T HCS

ELECTRICAL CONNECTIONS FOR T HCS - TIMER ES -TIMER MODEL BRANCHEMENTS ÉLECTRIQUES MODÈLE MINUTERIE - TIMER ES - T HCS ELEKTRISCHE ANSCHLÜSSE MODELL MIT ZEITSCHALTUHR - TIMER ES - T HCS CONEXIONES ELÉCTRICAS DEL MODELO CON TEMPORIZADOR - TIMER ES - T HCS LIGAÇÕES ELÉCTRICAS MODELO TIMER - TIMER ES - T HCS ELEKTRISCHE AANSLUITINGEN TIMERMODEL - TIMER ES - T HCS ELEKTRISKA ANSLUTNINGAR FÖR TIMERMODELL - TIMER ES - T HCS

PODŁĄCZENIE ELEKTRYCZNE MODEL TIMER - TIMER ES - T HCS ELEKTROMOS BEKÖTÉSEK - TIMER - TIMER ES - T HCS MODELLEK ELEKTRICKÉ PŘIPOJENÍ MODEL TIMER S ČASOVÝM SPÍNAČEM -

TIMER ES -

T HCS CONEXIUNILE ELECTRICE MODELELE TIMER - TIMER ES - T HCS ELEKTRICNI PRIKLJUCCI MODEL TIMER - TIMER ES - T HCS

ELEKTRİK BAĞLANTILARI MODEL TIMER - TIMER ES - T HCS

ΗΛΕΚΤΡΙΚΕΣ ΣΥΝ∆ΕΣΕΙΣ ΜΟΝΤΕΛΩΝ TIMER - TIMER ES - T HCS

ЭЛЕКТРИЧЕСКИЕ СОЕДИНЕНИЯ - МОДЕЛИ С ТАЙМЕРОМ- ES С ТАЙМЕРОМ - T HCS

MICRO 100 TIMER ES

22A-23A

4L2N1

MICRO 100 TIMER ES

REGOLAZIONE TIMER

REGULATING THE TIMER RÉGLAGE MINUTERIE EINSTELLUNG DER ZEITSCHALTUHR REGULACIÓN DEL TEMPORIZADOR REGULAÇÃO DO TEMPORIZADOR INSTELLING TIMER INSTÄLLNING AV TIMERN

REGULACJA TIMERA A TIMER BEÁLLÍTÁSA

MICRO/MEDIO/SUPER T

SEŘÍZENÍ ČASOVÉHO SPÍNAČE REGLARE TIMER PODEŠAVANJE TIMERA

ZAMANLAYICI (TIMER) AYARLAMA

ΡΥΘΜΙΣΗ ΧΡΟΝΟ∆ΙΑΚΟΠΤΗ

РЕГУЛИРОВКА ТАЙМЕРА

MICRO/MEDIO/SUPER T HCS

MANUTENZIONE / PULIZIA

MAINTENANCE / CLEANING ENTRETIEN / NETTOYAGE WARTUNG / REINIGUNG MANTENIMIENTO / LIMPIEZA MANUTENÇÃO / LIMPEZA ONDERHOUD / REINIGING UNDERHÅLL / RENGÖRING

KONSERWACJA / CZYSZCZENIE KARBANTARTÁS / TISZTÍTÁS

ČIŠTĚNÍ/ÚDRŽBA ÎNTREŢINEREA / CURĂŢAREA ODRŽAVANJE / ČIŠĆENJE

BAKIM/TEMİZLİK

ΣΥΝΤΗΡΗΣΗ/ΚΑΘΑΡΙΣΜΟΣ

ТЕХОБСЛУЖИВАНИЕ / ЧИСТКА

Non immergere l’apparecchio in acqua o in

altri liquidi.

Do not immerse the appliance in water or

other liquids.

Ne pas immerger l’appareil dans de l'eau ou

d'autres liquides.

Tauchen Sie das Gerät oder Teile des Geräts

nicht in Wasser oder andere Flüssigkeiten.

No sumergir el aparato en agua ni en otros

líquidos.

Não mergulhe oaparelho em água ou outros

líquidos.

Dompel hetapparaat niet onder in water of

andere vloeistoffen.

Doppa inte ned apparaten i vatten eller andra

vätskor.

Nie zanurzać urządzenia w wodzie i innych

płynach.

A berendezést ne merítse vízbe vagy más

folyadékba.

Ventilátor neponořujte do vody nebo do

jiných tekutin.

Nu introduceţi aparatul în apă sau în alte

lichide.

Nemojte uranjavati uredaj u vodu ili u druge

tekucine.

Cihazı asla suya veya bir başka sıvıya

daldırmayınız.

Μη βυθίζετε τη συσκευή σε νερό ή άλλα

υγρά.

Не допускайте погружения изделия в

воду или другие жидкости.

INFORMAZIONE IMPORTANTE PER L’UTENTE

IMPORTANT USER INFORMATION INFORMATION IMPORTANTE POUR L'UTILISATEUR WICHTIGE INFORMATION FÜR DEN BENUTZER INFORMACIÓN IMPORTANTE PARA EL USUARIO INFORMAÇÕES IMPORTANTES PARA O UTILIZADOR BELANGRIJKE INFORMATIE VOOR DE GEBRUIKER VIKTIG INFORMATION FÖR ANVÄNDAREN

WAŻNE INFORMACJE DLA UŻYTKOWNIKA

FONTOS INFORMÁCIÓK A FELHASZNÁLÓ RÉSZÉRE

IN ALCUNI PAESI DELL'UNIONE EUROPEA QUESTO PRODOTTO NON RICADE NEL CAMPO DI APPLICAZIONE DELLA LEGGE NAZIONALE DI RECEPIMENTO DELLA DIRETTIVA RAEE E QUINDI NON È IN ESSI VIGENTE ALCUN OBBLIGO DI RACCOLTA DIFFERENZIATA A FINE VITA.

Attenzione

Questo prodotto è conforme alla Direttiva EU 2002/96/EC.

Il simbolo del cestino barrato riportato sull’apparecchio indica che il prodotto, alla fine della propria vita utile, dovendo essere trattato separatamente dai rifiuti domestici, deve essere conferito in un centro di raccolta differenziata per apparecchiature elettriche ed elettroniche oppure riconsegnato al rivenditore al momento dell’acquisto di una nuova apparecchiatura equivalente.

L’utente è responsabile del conferimento dell’apparecchio a fine vita alle appropriate strutture di raccolta, pena le sanzioni previste dalla vigente legislazione sui rifiuti.

L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchio dismesso al riciclaggio, al trattamento e allo smaltimento ambientalmente compatibile contribuisce ad evitare possibili effetti negativi sull’ambiente e sulla salute e favorisce il riciclo dei materiali di cui è composto il prodotto.

Per informazioni più dettagliate inerenti i sistemi di raccolta disponibili, rivolgersi al servizio locale di smaltimento rifiuti, o al negozio in cui è stato effettuato l’acquisto.

I produttori e gli importatori ottemperano alla loro responsabilità per il riciclaggio, il trattamento e lo smaltimento ambientalmente compatibile sia direttamente sia partecipando ad un sistema collettivo.

DŮLEŽITÉ INFORMACE PRO UŽIVATELE INFORMAŢII IMPORTANTE PENTRU UTILIZATOR

ΣΗΜΑΝΤΙΚΕΣ ΠΛΗΡΟΦΟΡΙΕΣ ΓΙΑ ΤΟ ΧΡΗΣΤΗ

IN CERTAIN EUROPEAN UNION COUNTRIES THIS PRODUCT DOES NOT FALL WITHIN THE REQUIREMENTS OF THE NATIONAL LAWS IMPLEMENTING THE WEEE DIRECTIVE, AND IN THESE COUNTRIES THE PRODUCT IS NOT SUBJECT TO SEPARATE DISPOSAL OPERATIONS AT THE END OF ITS WORKING LIFE.

Important

This product conforms to EU Directive 2002/96/EC. This appliance bears the symbol of the

barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement.

It is the user's responsibility to dispose of this appliance through the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal.

Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials used in the appliance.

For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance.

Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.

Vortice㙵ӑ᳝䰤݀ৌֱ⬭೼ѻક䫔ଂᳳ䯈䖯㸠ѻકᬍ㡃ⱘᴗ߽Ǆ

ΣΕ ΟΡΙΣΜΕΝΕΣ ΧΩΡΕΣ ΤΗΣ ΕΥΡΩΠΑΪΚΗΣ

ΝΩΣΗΣ ΤΟ ΠΑΡΟΝ ΠΡΟΪΟΝ ∆ΕΝ ΕΜΠΙΠΤΕΙ

Ε ΣΤΟ ΠΕ∆ΙΟ ΕΦΑΡΜΟΓΗΣ ΤΗΣ ΕΘΝΙΚΗΣ ΝΟΜΟΘΕΣΙΑΣ ΓΙΑ ΤΗ ΜΕΤΑΦΟΡΑ ΤΗΣ

ΥΡΩΠΑΪΚΗΣ Ο∆ΗΓΙΑΣ ΑΗΗΕ ΚΑΙ ΚΑΤΑ

Ε ΣΥΝΕΠΕΙΑ ΣΤΙΣ ΧΩΡΕΣ ΑΥΤΕΣ ∆ΕΝ ΙΣΧΥΕΙ

ΑΜΙΑ ΥΠΟΧΡΕΩΣΗ ∆ΙΑΦΟΡΟΠΟΙΗΜΕΝΗΣ

Κ ΣΥΓΚΕΝΤΡΩΣΗΣ ΣΤΟ ΤΕΛΟΣ ΤΗΣ ΖΩΗΣ ΤΟΥ.

ροσοχή

Το προϊόν συµµορφούται µε την Οδηγία της ΕΕ 2002/96/ΕΚ.

Το σύµβολο του διαγραµµένου κάδου απορριµµάτων επί της συσκευής υποδηλώνει ότι στη λήξη της ωφέλιµης ζωής του το προϊόν πρέπει να διατίθεται χωριστά από τα οικιακά απορρίµµατα και κατά συνέπεια πρέπει να παραδίδεται σε ειδικό κέντρο διαφοροποιηµένης συλλογής για ηλεκτρικές και ηλεκτρονικές συσκευές ή στην αντιπροσωπεία τη στιγµή της αγοράς µιας νέας παρόµοιας συσκευής.

χρήστης είναι υπεύθυνος για την παράδοση της

υσκευής στο τέλος της ωφέλιµης ζωής της σε ειδικά

έντρα συλλογής, επί ποινή των κυρώσεων που ορίζει

ισχύουσα νοµοθεσία σχετικά µε τα απορρίµµατα.

Η διαφοροποιηµένη συλλογή και η παράδοση της συσκευής εκτός χρήσης για επεξεργασία και ανακύκλωση σύµφωνα µε τους κανόνες προστασίας του περιβάλλοντος συµβάλλει στην αποφυγή πιθανών αρνητικών επιπτώσεων για το περιβάλλον και για την υγεία και ευνοεί την ανακύκλωση των υλικών από τα οποία αποτελείται η συσκευή.

Για περισσότερες πληροφορίες σχετικά µε το διαθέσιµο σύστηµα συλλογής, απευθυνθείτε στην τοπική υπηρεσία αποκοµιδής των απορριµµάτων ή στο κατάστηµα αγοράς της συσκευής.

Οι κατασκευαστές και οι εισαγωγείς πληρούν τις ευθύνες τους όσον αφορά την ανακύκλωση, την επεξεργασία και τη διάθεση σύµφωνα µε τους κανόνες προστασίας του περιβάλλοντος είτε άµεσα, είτε έµµεσα συµµετέχοντας σε συλλογικό σύστηµα.

La Vortice S.p.A. si riserva di apportare tutte le varianti migliorative ai prodotti in corso di vendita. Vortice S.p.A. reserves the right to make improvements to products at any time and without prior notice. La société Vortice S.p.A. se réserve le droit d'apporter toute modification utile à l'amélioration de ses produits en cours de commercialisation. Die Firma Vortice S.p.A. behält sich vor, alle eventuellen Verbesserungsänderungen an den Produkten des Verkaufsangebots vorzunehmen. Vortice S.p.A. se reserva el derecho de incorporar todas las mejoras necesarias a los productos en fase de venta. A Vortice S.p.A. reserva-se o direito de efectuar melhoramentos aos produtos durante a venda. Vortice S.p.A. behoudt zich het recht voor elke gewenste verbetering aan te brengen in reeds op de markt gebrachte producten. Vortice S.p.A. förbehåller sig rätten att under försäljning tillföra alla ändringar som förbättrar produkterna

Firma Vortice S.p.A. zastrzega sobie prawo do wprowadzania ulepszeń do sprzedawanych produktów. A Vortice S.p.A. fenntartja a jogot, hogy az értékesítés alatt álló termékeknél bármilyen javító változtatást bevezessen. Podnik Vortice S.p.A. si vyhrazuje právo na zlepšovací úpravy svých výrobků v průběhu prodeje. Firma Vortice S.p.A. își rezervă dreptul de a aduce toate îmbunătăţirile produselor în curs de vânzare. Tvrtka ‘’Vortice S.p.A.’’ zadržava pravo unošenja promjena u svrhu poboljšanja proizvoda u prodaji.

Vortice S.p.A. şirketi, satışa sunulan ürünlerinde tüm düzeltici değişiklikleri yapma hakkını saklı tutar.

Η Vortice S.p.A διατηρεί το δικαίωµα να πραγµατοποιεί βελτιωτικές τροποποιήσεις στα προϊόντα της που βρίσκονται στην αγορά.

Фирма Vortice S.p.A. оставляет за собой право вносить все возможные улучшения в конструкцию находящихся в данный момент в продаже изделий.

Vortice MICRO 80, MICRO 100, MICRO 100 ES Installation Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
