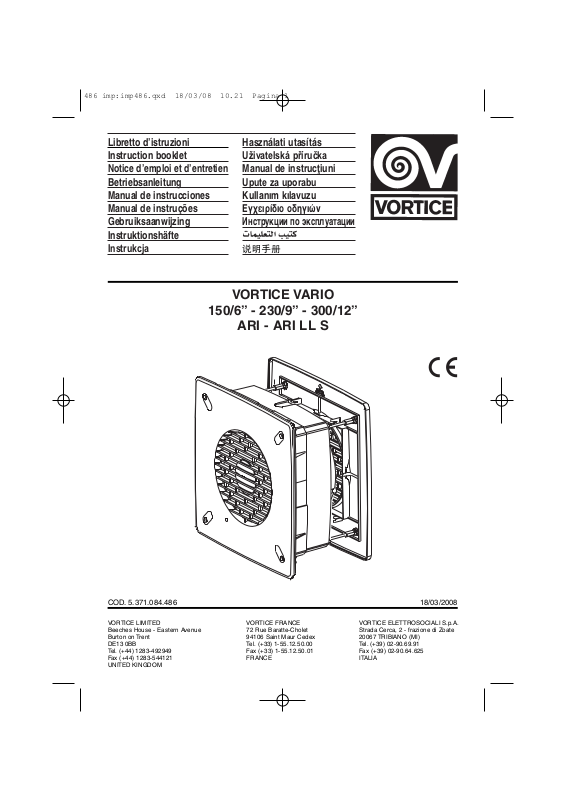

Vortice ARI LL S Installation Instructions

VORTICE VARIO

150/6” - 230/9” - 300/12”

ARI - ARI LL S

Libretto d’istruzioni
Instruction booklet
Notice d’emploi et d’entretien
Betriebsanleitung
Manual de instrucciones
Manual de instruções
Gebruiksaanwijzing
Instruktionshäfte

Instrukcja

Használati utasítás

Uživatelská příručka

Manual de instrucţiuni

Upute za uporabu

Kullanım kılavuzu

∂Б¯ВИЪ›‰ИФ Ф‰ЛБИТУ

аМТЪЫНˆЛЛ ФУ ˝НТФОЫ‡Ъ‡ˆЛЛ

COD. 5.371.084.486 18/03/2008

VORTICE LIMITED
Beeches House - Eastern Avenue
Burton on Trent
DE13 0BB
Tel. [phone]
Fax [phone]
UNITED KINGDOM

VORTICE ELETTROSOCIALI S.p.A.
Strada Cerca, 2 - frazione di Zoate
20067 TRIBIANO (MI)
Tel. [phone]
Fax [phone]
ITALIA

VORTICE FRANCE
72 Rue Baratte-Cholet
94106 Saint Maur Cedex
Tel. [phone]
Fax [phone]
FRANCE

486 imp:imp486.qxd 18/03/08 10.21 Pagina 1

3

Indice IT

Descrizione ed impiego. . . . . . . . . . . . . . 7

Attenzione - Avvertenza. . . . . . . . . . . . . . 7

Installazione . . . . . . . . . . . . . . . . . . . . 25

Manutenzione / Pulizia. . . . . . . . . . . . . . 32

Accessori optional. . . . . . . . . . . . . . . . . 33

Problemi / Soluzioni. . . . . . . . . . . . . . . . 36

Table of Contents EN

Description and use . . . . . . . . . . . . . . . . 8

Warning - Caution . . . . . . . . . . . . . . . . . . 8

Installation . . . . . . . . . . . . . . . . . . . . . . 25

Maintenance / Cleaning . . . . . . . . . . . . . 32

Optional accessories. . . . . . . . . . . . . . . 33

Troubleshooting . . . . . . . . . . . . . . . . . . 36

Index FR

Description et mode d’emploi . . . . . . . . . 9

Attention - Avertissement . . . . . . . . . . . . 9

Installation . . . . . . . . . . . . . . . . . . . . . . 25

Entretien / Nettoyage. . . . . . . . . . . . . . . 32

Accessoires en option. . . . . . . . . . . . . . 33

Problèmes / Solutions . . . . . . . . . . . . . . 36

Inhaltsverzeichnis DE

Beschreibung und Gebrauch. . . . . . . . . 10

Achtung - Wichtiger Hinweis . . . . . . . . . 10

Installation . . . . . . . . . . . . . . . . . . . . . . 25

Wartung / Reinigung . . . . . . . . . . . . . . . 32

Sonderzubehör . . . . . . . . . . . . . . . . . . . 33

Probleme / Lösungen. . . . . . . . . . . . . . . 37

Avant d’installer et de brancher cet appareil, lire

attentivement ces instructions. Vortice ne pourra pas

être tenu pour responsable des dommages éventuels

causés aux personnes ou aux choses, en cas d’une

application incorrecte des consignes mentionnées

dans ce livret. Le respect de toutes les instructions
reportées dans ce livret garantira une longue durée de
vie ainsi que la fiabilité électrique et mécanique de cet

appareil. Conserver toujours ce livret d’instructions.

Vor Installation und Anschluss dieses Gerätes ist diese

Anleitung aufmerksam durchzulesen. Vortice kann

nicht für Personen- oder Sachschäden zur

Verantwortung gezogen werden, die auf eine

Nichtbeachtung der Hinweise in dieser

Betriebsanleitung zurückzuführen sind. Befolgen Sie
alle Anweisungen, um eine lange Lebensdauer sowie
die elektrische und mechanische Zuverlässigkeit des

Geräts zu gewährleisten. Diese Betriebsanleitung ist

gut aufzubewahren.

Read these instructions carefully before installing and

connecting this appliance. Vortice cannot assume any

responsibility for damage to property or personal

injury resulting from failure to abide by the instructions

given in this booklet. Following these instructions will

ensure a long service life and overall electrical and

mechanical reliability. Keep this instruction booklet in a

safe place.

Prima di installare e collegare il prodotto, leggere

attentamente queste istruzioni.

Vortice non può essere considerata responsabile per

eventuali danni a persone o cose causate dalla non
applicazione di quanto contenuto nel libretto. Seguire
tutte le istruzioni per assicurare la sua durata e la sua

affidabilità elettrica e meccanica. Conservare perciò

sempre questo libretto istruzioni.

Índice ES

Descripción y uso . . . . . . . . . . . . . . . . . 11

Atención - Advertencia. . . . . . . . . . . . . . 11

Instalación . . . . . . . . . . . . . . . . . . . . . . 25

Mantenimiento / Limpieza . . . . . . . . . . . 32

Accesorios opcionales . . . . . . . . . . . . . 33

Problemas / Soluciones . . . . . . . . . . . . . 37

Antes de instalar y conectar el aparato, leer

atentamente estas instrucciones. Vortice no se hace

responsable de los eventuales daños ocasionados a

personas o cosas como resultado del incumplimiento

de las indicaciones de este manual. Seguir estas

instrucciones para asegurar la duración y fiabilidad

eléctrica y mecánica del aparato. Conservar este

manual de instrucciones.

Informazione importante per l’utente . . . 34

Important user information . . . . . . . . . . . 34

Information importante pour l'utilisateur . 35

Wichtige Information für den Benutzer. . 35

Información importante para el usuario . 36

486 imp:imp486.qxd 18/03/08 10.21 Pagina 3

8

• Do not use this appliance for functions other than
those described in this instruction booklet.

• After removing the appliance from its packaging,
ensure that it is complete and undamaged. If in
doubt a professionally qualified electrician or
contact Vortice*. Do not leave packaging within the
reach of children or infirm persons.

• Certain fundamental rules must be observed when
using any electrical appliance, including: a) never
touch appliances with wet or damp hands; b) never
touch appliances with wet or damp hands; c) never
allow children or infirm persons to operate

appliances unattended.

• Store the appliance out of reach of children and
infirm persons if you decide to disconnect it from
the power supply and no longer use it.

• Do not operate the appliance in the presence of
inflammable vapours (alcohol, insecticides, petrol,
etc.)

• Do not allow young children or infirm persons to
use the appliance without supervision.

• Supervise young children to ensure that they do
not play with the appliance.

• Do not make modifications of any kind to this
appliance.

• Do not expose this appliance to the weather (rain,
sun, etc.)

• Regularly inspect the appliance for visible defects. If
any are found, do not operate the appliance and
contact Vortice* immediately.

• If the appliance does not function correctly or
develops a fault, contact Vortice* immediately and
ensure that only genuine original Vortice spares are
used for any repairs.

• Should the appliance be dropped or suffer a heavy
blow, have it checked immediately by Vortice*.

• The appliance must be installed by a professionally
qualified electrician.

• The electrical system to which the appliance is
connected must conform to applicable standards.

• The appliance is double insulated and therefore
does not need to be earthed.

• The electrical power supply/socket to which the
appliance is to be connected must be able to
provide the maximum electrical power required by
the appliance. If it cannot do this, contact an
electrician to make the necessary modifications.

• A multi-polar switch must be used to install the
appliance. The gap between the switch contacts
must be no less than 3 mm.

• Switch off the appliance at the installation's main

switch: a) if the appliance does not function correctly;
b) before cleaning the outside of the appliance, c) if
the appliance is not to be used for any length of time.

• The room must have an adequate source of
replacement air for this appliance to function
effectively. Moreover, if there is any non-sealed
combustion based appliance such as a water
heater, gas stove, etc. in the same room, air
replacement must be sufficient for all appliances to
work effectively together.

• The appliance must either exhaust or supply air
directly to the outside/inside or into a short duct (in
length to ensure certified performance). Efficiency
losses will occur if the appliance is installed in
ducting subject to any appreciable back pressure.

• The air to be extracted from the room must be clean
(i.e. free of grease, soot, chemical and corrosive
agents, and explosive or flammable mixtures) and
must not exceed a temperature of 50°C (122°F),
(model 300/12” - 60 Hz - 40°C - 104°F).

• Keep the appliance’s inlet and outlet grilles free to
ensure an optimum flow of air.

Vortice 150/6”- 230/9” - 300/12” ARI-LL-S
automatic /reversible

The appliance is operated by switching it on by
means of the power switch.The closure vanes under
the grille will open a few seconds after the unit is
switched on.

Warning: this symbol indicates precautions that must be taken to avoid injury

!

DESCRIPTION AND USE ENGLISH

WARNING - CAUTION

The product you have purchased is a high-tech
Vortice appliance consisting of an axial extractor fan
designed to expel air from small, medium-size and
large rooms. The "LL" models have ball bearings
guarantee at least 30,000 hours of silent, trouble-free
mechanical operation. All the models have splash
protection IPX4 and are thus ideal for installing in
high-humidity environment. Maximum performance

and long life are ensured if the appliance is used
correctly in compliance with the following instructions.

A = AUTOMATIC Automatic shutters
R = REVERSIBLE
LL = LONG LIFE with ball bearings
S = SUPER Boosted performance
I = BUILT-IN

Caution:

this symbol indicates precautions that must be taken to avoid damaging the appliance.

!

*(or an authorised Service Centre if you are outside the UK-Ireland territory)

25

INSTALLAZIONE

INSTALLATION
INSTALLATION
INSTALLATION
INSTALACIÓN
INSTALAÇÃO
INSTALLATIE
INSTALLATION

INSTALACJA

INSTALLÁLÁS

INSTALACE

INSTALARE

POSTAVLJANJE

KURULUM

∂°∫∞∆∞™∆∞™∏

ейзнДЬ

• I dati elettrici della rete devono corrispondere a quelli riportati in
targa A.

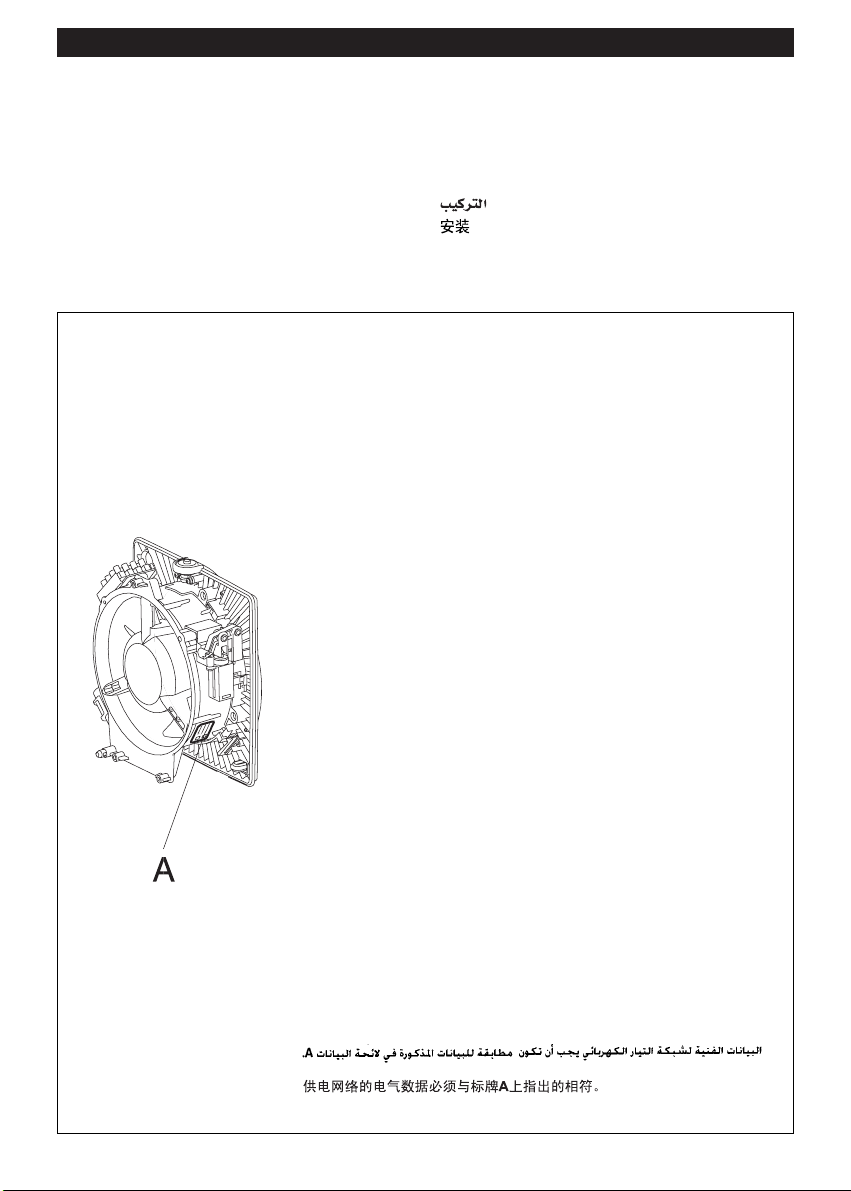

• Specifications for the power supply must correspond to the
electrical data on data plate A.

• Les données électriques du réseau doivent correspondre à celles
inscrites sur la plaque A.

• Die elektrischen Daten der Netzversorgung müssen den auf
Schild A angegebenen Daten entsprechen.

• Los datos eléctricos de la red deben coincidir con los de la placa
de características A.

• Os dados eléctricos da rede devem corresponder aos
mencionados na placa A.

• De elektrische gegevens van het lichtnet moeten overeenkomen
met die van het merkplaatje A.

• Elnätets data måste överensstämma med de data som finns på
skylten A.

• Dane elektryczne sieci powinny odpowiadać danym podanym na
tabliczce znamionowej A.

• Az elektromos hálózat adatai meg kell feleljenek az A adattáblán
megadott adatoknak.

• Údaje o elektrické síti musí odpovídat údajům uvedeným na
štítku A.

• Parametrii electrici ai reţelei trebuie să corespundă cu cei de pe
plăcuţa A.

• Električni podaci mreže moraju odgovarati onima na pločici A.

• Şebekenin elektrik verileri ile A plakasında belirtilenler uyumlu
olmalıdır.

• ∆· ЛПВОЩЪИО¿ ¯·Ъ·ОЩЛЪИЫЩИО¿ ЩФ˘ ‰ИОЩ‡Ф˘ Ъ¤ВИ У· ·УЩИЫЩФИ¯Ф‡У
МВ ВОВ›У· ЩЛ˜ ИУ·О›‰·˜ A.

• и‡‡ПВЪ˚ ˝ОВНЪЛ˜ВТНУИ ТВЪЛ ‰УОКМ˚ ТУУЪ‚ВЪТЪ‚У‚‡Ъ¸
ФЛ‚В‰ВММ˚П М‡ Ъ‡·ОЛ˜НВ МУПЛМ‡О¸М˚ı ‰‡ММ˚ı Д.

•

•

26

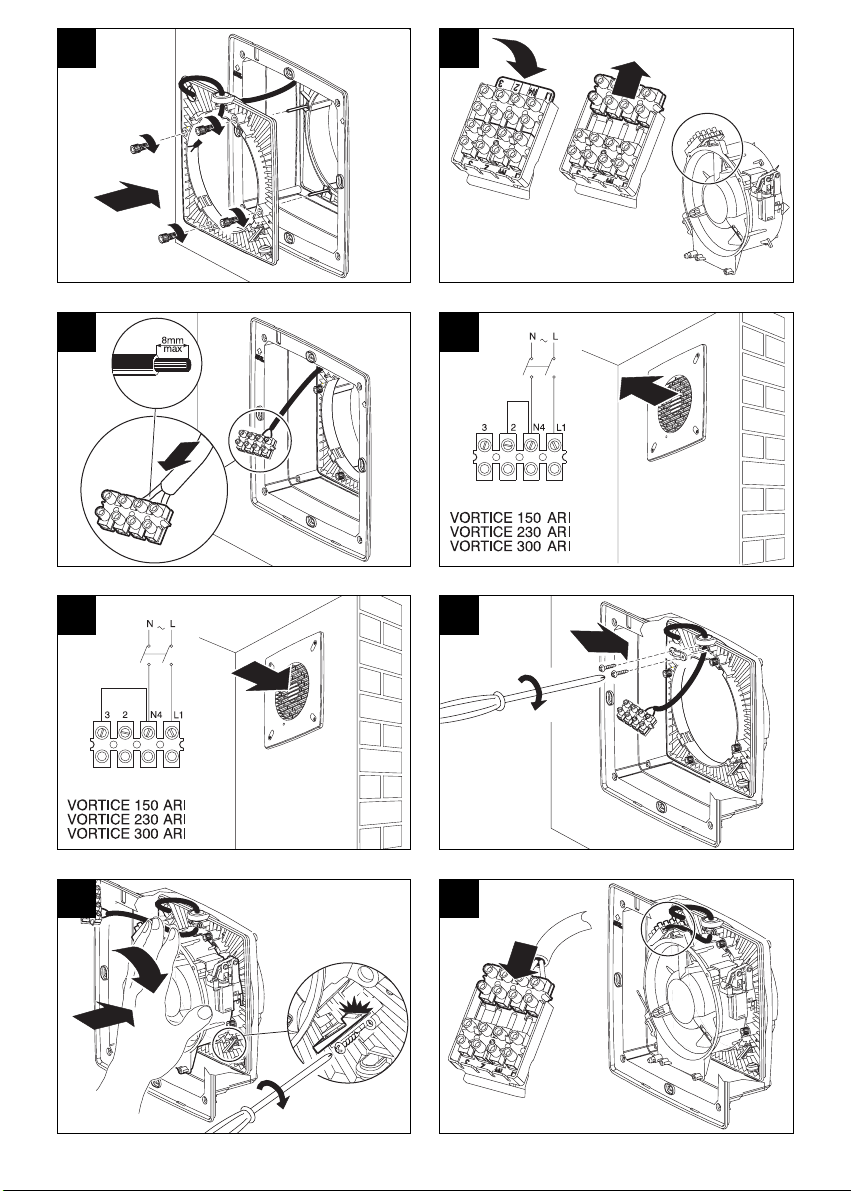

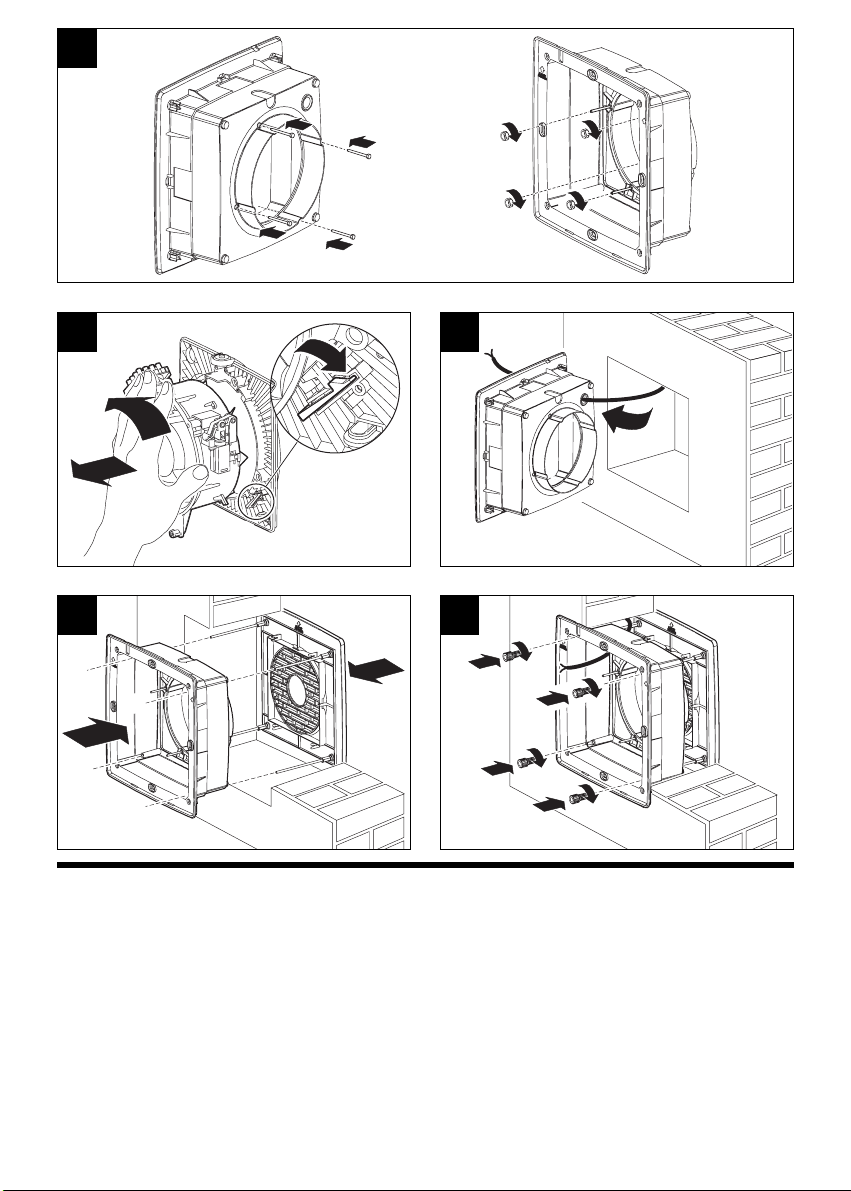

3

4

1

2

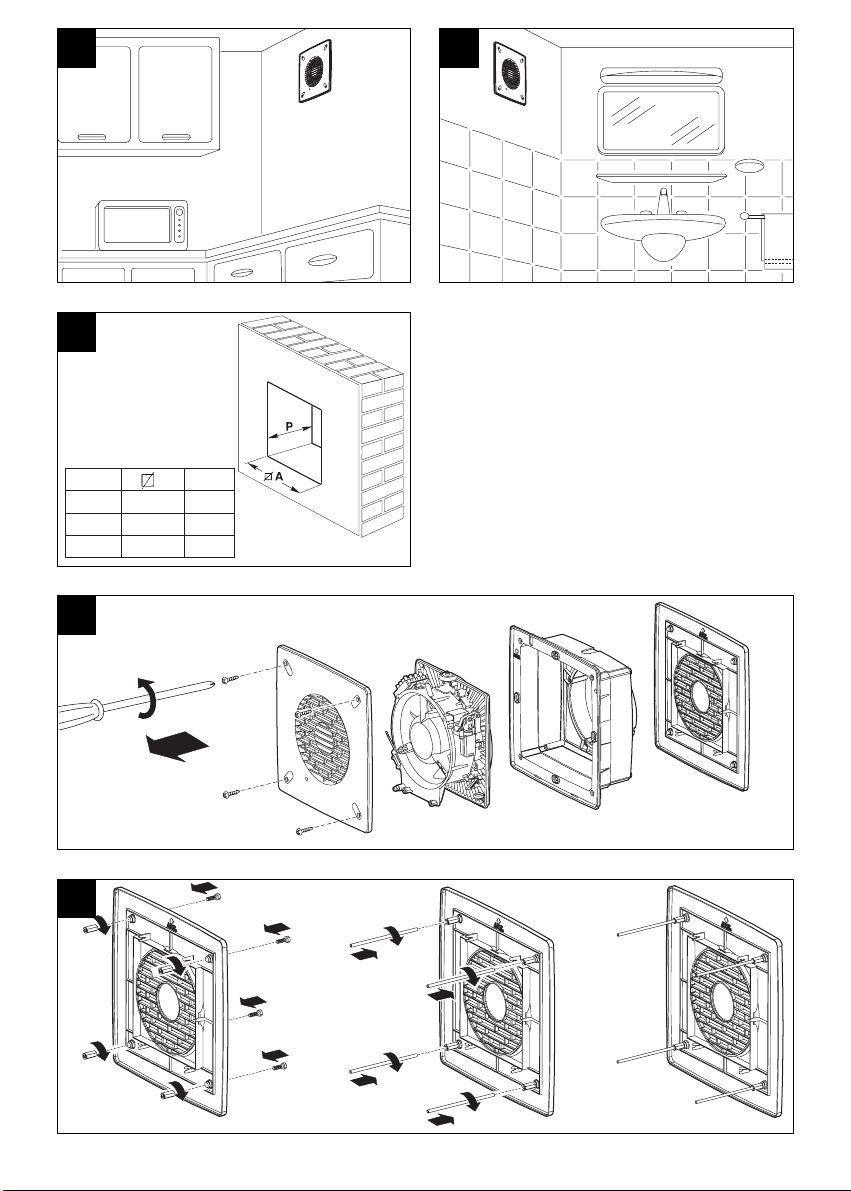

4A

MOD. A P (min)
150/6” 260x260 135
230/9” 345x345 180

300/12” 435x435 210

27

6

7

8

5

4B

28

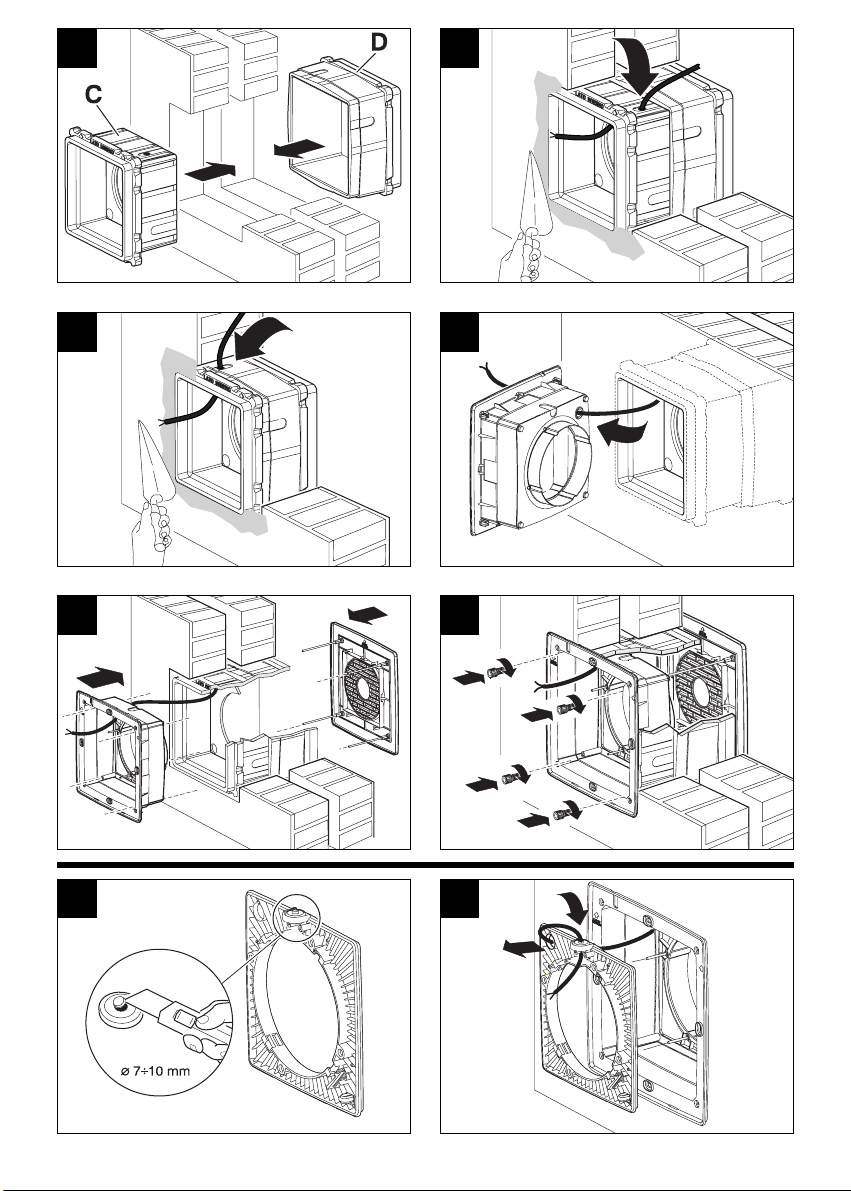

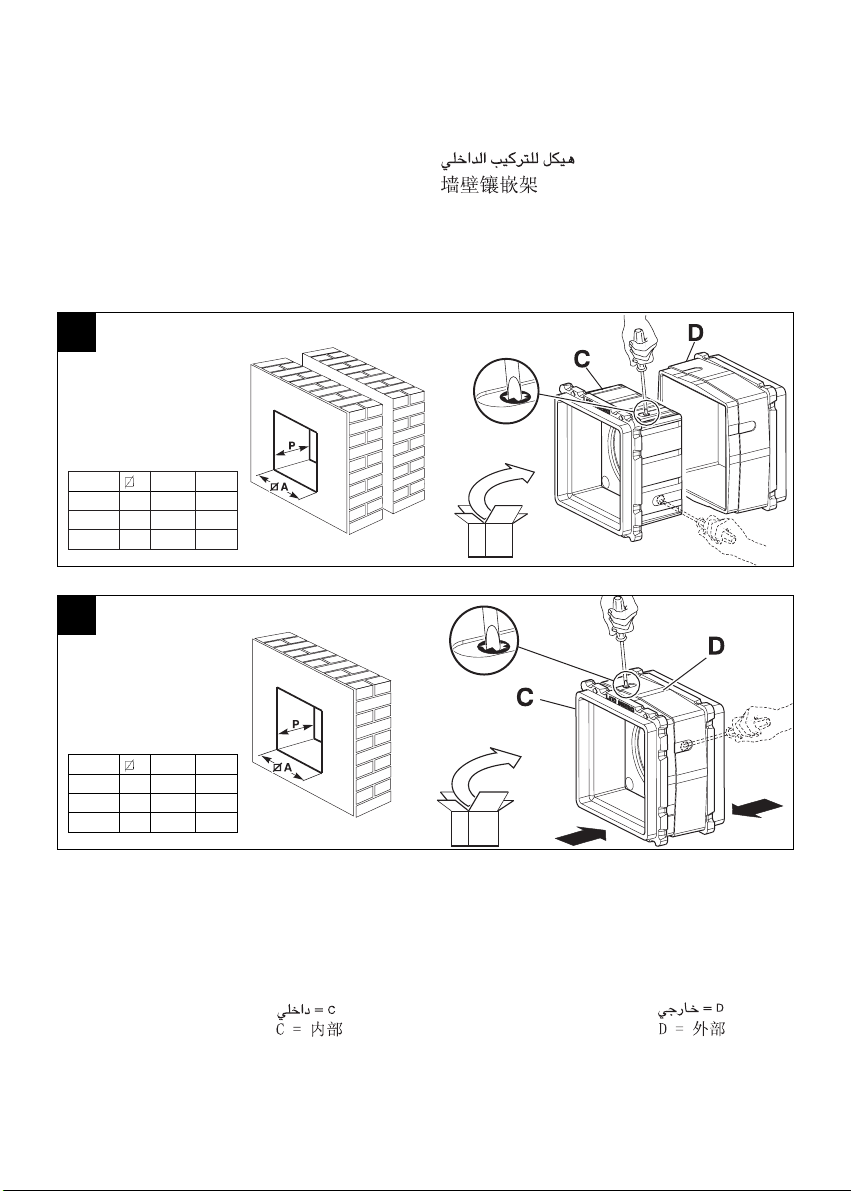

Telaio per incasso a muro
Flush wall mounting box
Châssis pour encastrement mural
Rahmen für den Wandeinbau
Bastidor para empotrar
Armação para encaixe na parede
Frame voor inbouwen in muur
Infattning för inbyggnad i vägg

Rama do zabudowy w ścianie
Váz a falba építéshez

Rám k zabudování do zdi

Cadru pentru ¶ncastrare ¶n perete
Okvir za zidno ugra√ivanje

Duvara montaj için plaka/şasi

¶П·›ЫИФ БИ· ВУЩФИ¯ИЫМfi

äaÍaÒ ‰Îfl ‚ÒÚaË‚aÌËfl ‚ ÒÚeÌÛ

3A

3B

MOD. A P(min) P(max)
150/6” 325 220 330
230/9” 400 220 330

300/12” 500 220 330

MOD. A P(min) P(max)
150/6” 325 220 330
230/9” 400 220 330

300/12” 500 220 330

IT C = Interno
GB C = Indoor
F C = Intérieur
D C = Innen
ES C = Interior
PT C = Interno
NL C = Intern
SV C = Invändig
PL C = Belső

HU C = Wewnątrz
CS C = Vnitřní
RO C = Interior
HR C = Iznutra
TR C = Dahili
GR C = ∂ЫˆЩВЪИОfi
RU C = ÇÌÛÚeÌÌËÈ
AR
ZH

IT D = Esterno
GB D = Outdoor
F D = Extérieur
D D = Außen
ES D = Exterior
PT D = Externo
NL D = Extern
SV D = Utvändig
PL D = Zewnątrz

HU D = Külső
CS D = Vnější
RO D = Exterior
HR D = Izvana
TR D = Harici
GR D = ∂НˆЩВЪИОfi
RU D = ÇÌe¯ÌËÈ
AR
ZH

29

9

10

4A 5A

5B

6A

7A

8A

30

11

12

14

15

16

17

13

18

31

19

32

2120

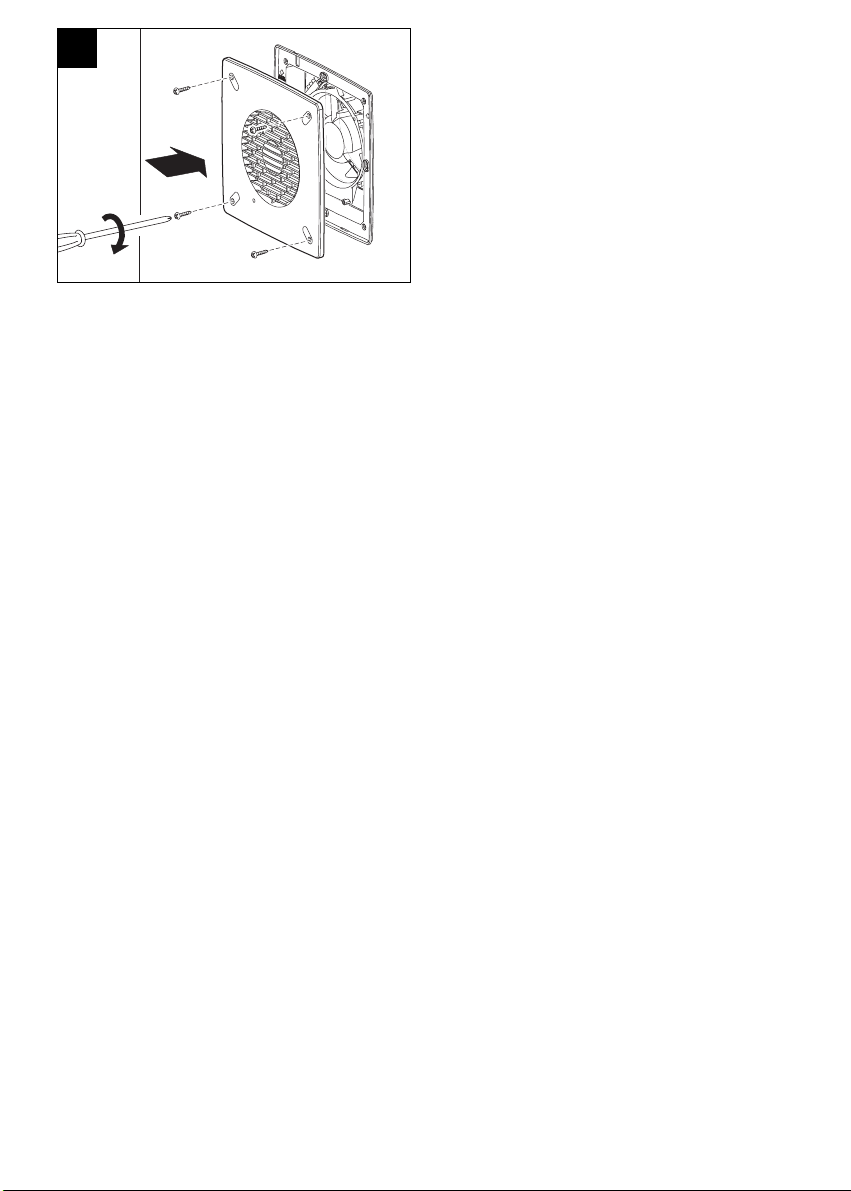

22

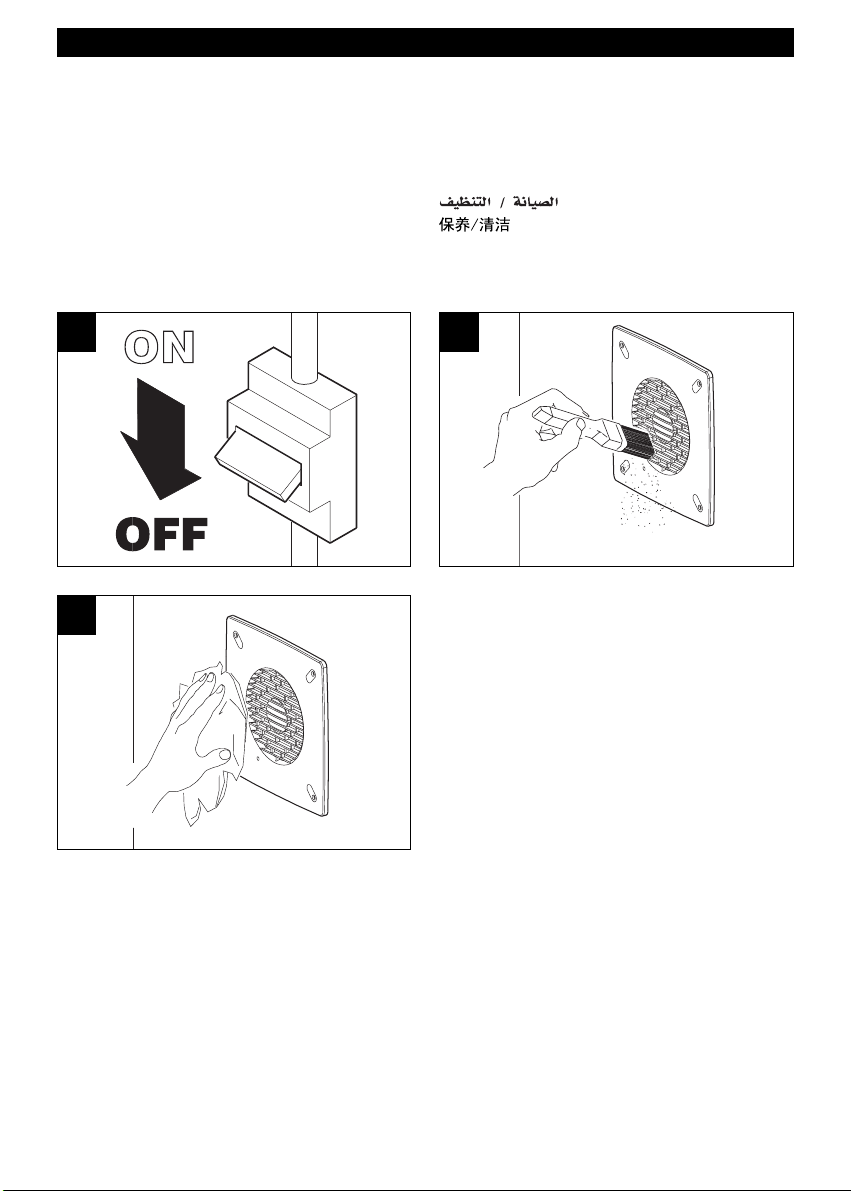

MANUTENZIONE / PULIZIA

MAINTENANCE / CLEANING
ENTRETIEN / NETTOYAGE
WARTUNG / REINIGUNG
MANTENIMIENTO / LIMPIEZA
MANUTENÇÃO / LIMPEZA
ONDERHOUD EN REINIGING
UNDERHÅLL / RENGÖRING

KONSERWACJA / CZYSZCZENIE

KARBANTARTÁS / TISZTÍTÁS

ČIŠTĚNÍ / ÚDRŽBA

ÎNTREŢINERE / CURĂŢARE

ODRŽAVANJE / ČIŠĆENJE

BAKIM / TEMİZLİK

™À¡∆∏ƒ∏™∏ / ∫∞£∞ƒπ™ª√™

нЦпйЕлгмЬаЗДзаЦ / уалндД

34

INFORMAZIONE IMPORTANTE PER L’UTENTE

IMPORTANT USER INFORMATION
INFORMATION IMPORTANTE POUR L'UTILISATEUR
WICHTIGE INFORMATION FÜR DEN BENUTZER
INFORMACIÓN IMPORTANTE PARA EL USUARIO
INFORMAÇÕES IMPORTANTES PARA O UTILIZADOR
BELANGRIJKE INFORMATIE VOOR DE GEBRUIKER
VIKTIG INFORMATION FÖR ANVÄNDAREN

WAŻNE INFORMACJE DLA UŻYTKOWNIKA

FONTOS INFORMÁCIÓK A FELHASZNÁLÓ RÉSZÉRE

DŮLEŽITÉ INFORMACE PRO UŽIVATELE
INFORMAŢII IMPORTANTE PENTRU UTILIZATOR

ΣΗΜΑΝΤΙΚΕΣ ΠΛΗΡΟΦΟΡΙΕΣ ΓΙΑ ΤΟ ΧΡΗΣΤΗ

IN ALCUNI PAESI DELL'UNIONE EUROPEA
QUESTO PRODOTTO NON RICADE NEL CAMPO
DI APPLICAZIONE DELLA LEGGE NAZIONALE DI
RECEPIMENTO DELLA DIRETTIVA RAEE E
QUINDI NON È IN ESSI VIGENTE ALCUN
OBBLIGO DI RACCOLTA DIFFERENZIATA A FINE
VITA.

Attenzione

Questo prodotto è conforme alla Direttiva EU
2002/96/EC.

Il simbolo del cestino barrato riportato
sull’apparecchio indica che il prodotto, alla
fine della propria vita utile, dovendo essere
trattato separatamente dai rifiuti domestici,
deve essere conferito in un centro di
raccolta differenziata per apparecchiature elettriche ed
elettroniche oppure riconsegnato al rivenditore al
momento dell’acquisto di una nuova apparecchiatura
equivalente.

L’utente è responsabile del conferimento
dell’apparecchio a fine vita alle appropriate strutture di
raccolta, pena le sanzioni previste dalla vigente
legislazione sui rifiuti.

L’adeguata raccolta differenziata per l’avvio
successivo dell’apparecchio dismesso al riciclaggio, al
trattamento e allo smaltimento ambientalmente
compatibile contribuisce ad evitare possibili effetti
negativi sull’ambiente e sulla salute e favorisce il
riciclo dei materiali di cui è composto il prodotto.

Per informazioni più dettagliate inerenti i sistemi di
raccolta disponibili, rivolgersi al servizio locale di
smaltimento rifiuti, o al negozio in cui è stato
effettuato l’acquisto.

I produttori e gli importatori ottemperano alla loro
responsabilità per il riciclaggio, il trattamento e lo
smaltimento ambientalmente compatibile sia
direttamente sia partecipando ad un sistema
collettivo.

IT

IN CERTAIN EUROPEAN UNION COUNTRIES THIS
PRODUCT DOES NOT FALL WITHIN THE
REQUIREMENTS OF THE NATIONAL LAWS
IMPLEMENTING THE WEEE DIRECTIVE, AND IN
THESE COUNTRIES THE PRODUCT IS NOT
SUBJECT TO SEPARATE DISPOSAL OPERATIONS
AT THE END OF ITS WORKING LIFE.

Important

This product conforms to EU Directive 2002/96/EC.

This appliance bears the symbol of the
barred waste bin. This indicates that, at the
end of its useful life, it must not be
disposed of as domestic waste, but must
be taken to a collection centre for waste
electrical and electronic equipment, or
returned to a retailer on purchase of a replacement.

It is the user's responsibility to dispose of this
appliance through the appropriate channels at the end
of its useful life. Failure to do so may incur the
penalties established by laws governing waste
disposal.

Proper differential collection, and the subsequent
recycling, processing and environmentally compatible
disposal of waste equipment avoids unnecessary
damage to the environment and possible related
health risks, and also promotes recycling of the
materials used in the appliance.

For further information on waste collection and
disposal, contact your local waste disposal service, or
the shop from which you purchased the appliance.

Manufacturers and importers fulfil their responsibilities
for recycling, processing and environmentally
compatible disposal either directly or by participating
in collective systems.

EN

486 imp:imp486.qxd 18/03/08 10.21 Pagina 34
