Vortex V105RT-HD User manual

BINOCULA R

50 mm Tactical Binocular Manual

HD R/T

HD R/T

BINOCULAR

The Viper TacTical Bi nocular

Built on a tough, durable roof prism design, the 50 mm Viper® HD R/T

binocular has brilliant optics that can be relied upon in demanding conditions.

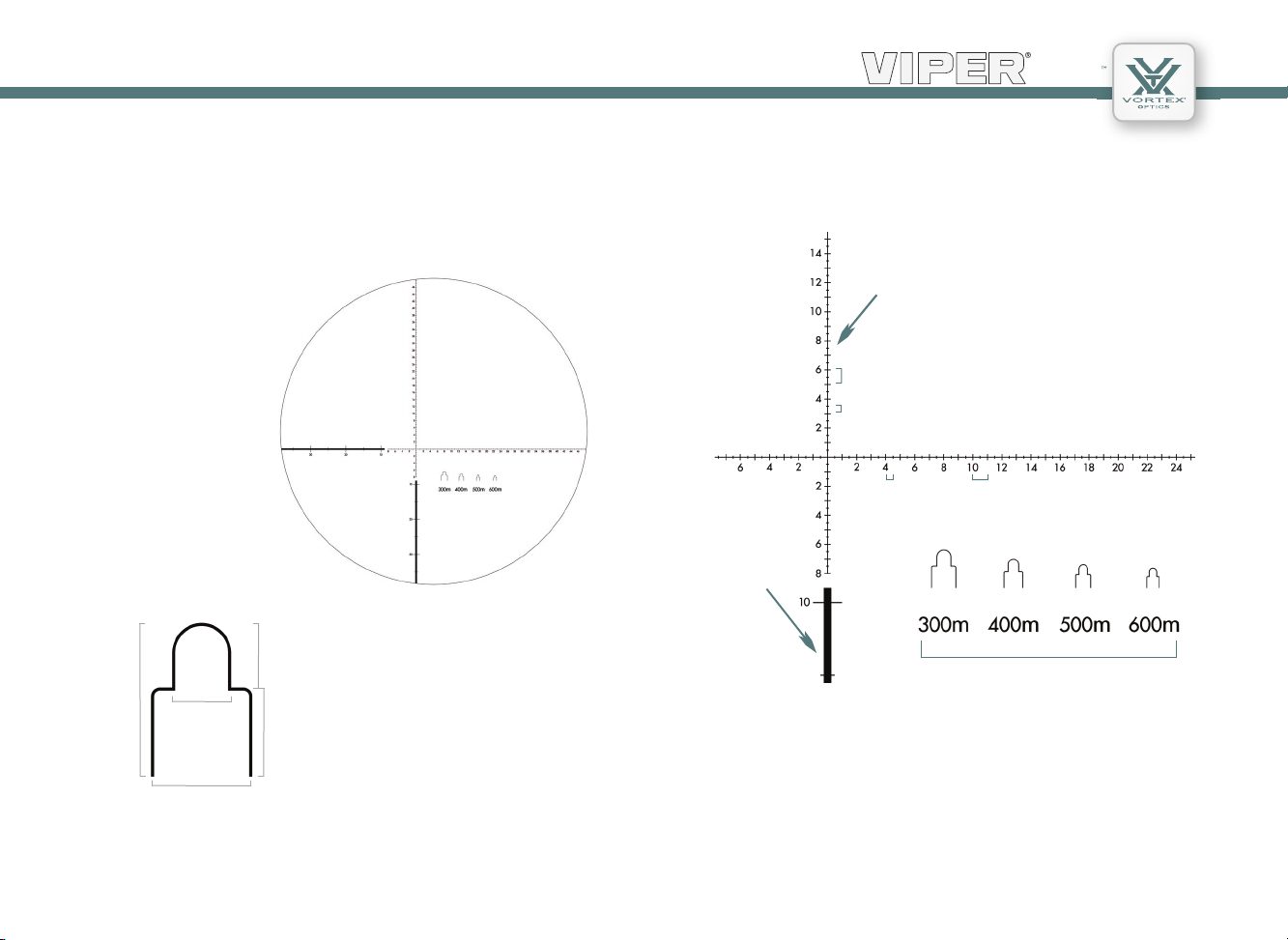

This tactical binocular features the Vortex R/T Ranging reticle—designed to

assist the user in calculating distances.

Viper HD Binocular with
R/T Ranging Reticle

Caution: Binoculars are not intended for looking at the sun, or any other

intense light source. Such viewing could damage the retina and cornea of your
eyes—even to the point of causing blindness.

3 2

HD R/T

BINOCULAR

Adjustable Winged
Eyecup

Diopter
Focus

Ocular Lens

Center Focus

Reticle
Focus

Strap
Attachment

Basic oper aTion

Adjust the eyecups

The eyecups on a Viper® HD R/T binocular feature winged design

that blocks out stray light and rotates for a custom fit. The eyecups

fold up and down so any viewer can see the full field and enjoy

comfortable viewing—with or without eyeglasses.

When not using eyeglasses or
sunglasses, keep the eyecups fully
extended. For the best viewing
when viewing through eyeglasses,
fold the eyecups down.

Adjust the interpupillary distance

The interpupillary distance (IPD) is the distance between the centers

of the left and right eye pupils. Match the IPD of your eyes to that of

the binocular so that you see a single image that is free of shading.

Tripod Adapter Socket

Objective Lens

IPD

Distance between the centers
of the ocular lenses.

Rotate the binocular barrels
inward or outward to line your
eyes up with ocular lenses.

5 4
