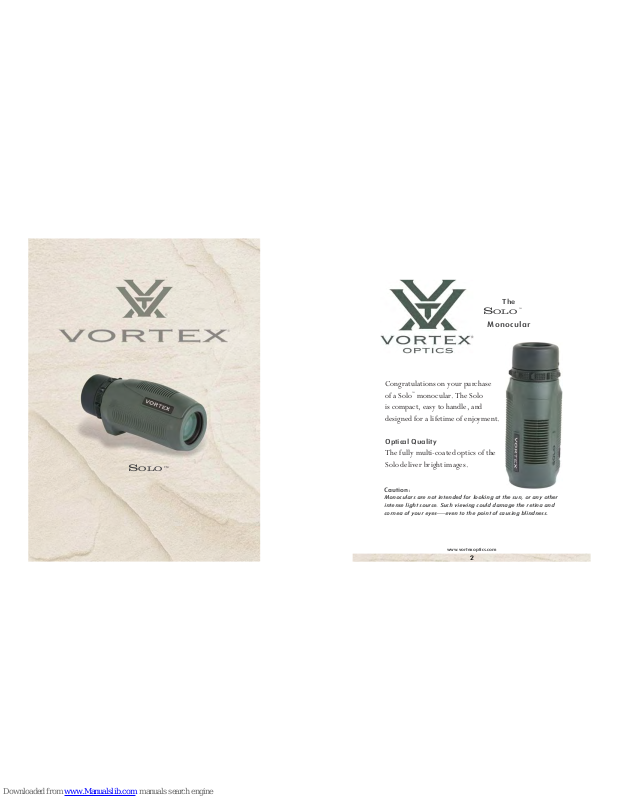

Vortex Solo User Manual

2
S
OLO
TM
Monoculars are not intended for looking at the sun, or any other intense light source. Such viewing could damage the retina and cornea of your eyes—even to the point of causing blindness.
Caution:
Monocular
S
OLO
TM
Congratulations on your purchase of a Solo monocular. The Solo is compact, easy to handle, and designed for a lifetime of enjoyment.
TM
The fully multi-coated optics of the Solo deliver bright images.
Optical Quality
www.vortexoptics.com
Focus Wheel
Objective Lens
Twist-up Eyecup
Eyepiece
The Solo is rubber armored and built to withstand use in just about any field condition. O-ring seals and nitrogen purging make the Solo a fully waterproof, internally fogproof monocular.
Rugged Design
Rubber Armor
Diamond Checker Pattern
Preparing the Solo for use
The Neckstrap
Attach the neckstrap to the Solo monocular in three simple steps:
1. Push the loop end of the strap through the neckstrap attachment point on the monocular.
2. Take the opposite end of the neckstrap and put it through the loop.
3. Cinch the loop tight.
3
www.vortexoptics.com
4
www.vortexoptics.com
Focusing the Solo
The focus wheel is found on the eyepiece of the Solo monocular. Simply turn the wheel until your subject comes crisply into view. Turn clockwise to focus on more distance objects, counter-clockwise to focus on objects that are nearer.
The soft case of the Solo comes with a belt loop attachment for an easy carry in the field and provides protection for the monocular when not in use.
The Case
Slip the belt loop of the Solo over a belt for an easy carry.
Maintain the optical brilliance of the Solo monocular by keeping the lens surfaces free of dirt, dust, and oils.
Protect Lenses While Out in the Field.
Caring for the Lenses
Store the Solo in its custom carry case.
Keep Lenses Clean.
Along with normal use comes the need to clean the monocular lenses. Follow these guidelines for cleaning:
1. Remove any dust or grit from lenses before wiping.
Use a can of pressurized air or soft camel hair brush (acrylic optical brushes also work well).
2. Clear lens of smudges, fingerprints, or eyelash oil.
Fog the lenses with your own breath and wipe with the non-abrasive lens cloth included with the Solo monocular.
Cleaning fluid and optical paper can also be used. However, you should never use facial tissue, heavy cotton, or flannel clothing on lenses—these materials can scratch the lens surfaces.
Other cleaning options:
5
www.vortexoptics.com
6
www.vortexoptics.com
The VIP Warranty
We build optics based on our commitment to your absolute satisfaction.
That’s why Vortex products are
unconditionally guaranteed.
Vortex Optics 2120 West Greenview Drive Middleton, WI 53562 service@vortexoptics.com
Vortex pledges this Very Important Promise to you—a Very Important Person. That’s why we call it the VIP warranty. In the event that a Solo requires service, no matter the cause, Vortex Optics will repair or replace the monocular at no charge to you.
Call Vortex Optics at 800-426-0048 for prompt, professional, and friendly service.
The Vortex VIP warranty is completely transferable and has no warranty
card to fill out. The VIP warranty does not include occurrences of loss,
theft, deliberate damage, nor damage as a result of unauthorized repair,
modification, or disassembly. Vortex Optics reserves the right to replace
warranted products with a product of similar value and/or specifications
in the event that the original product is no longer manufactured or has
been discontinued.
7
www.vortexoptics.com
