FOREWORD

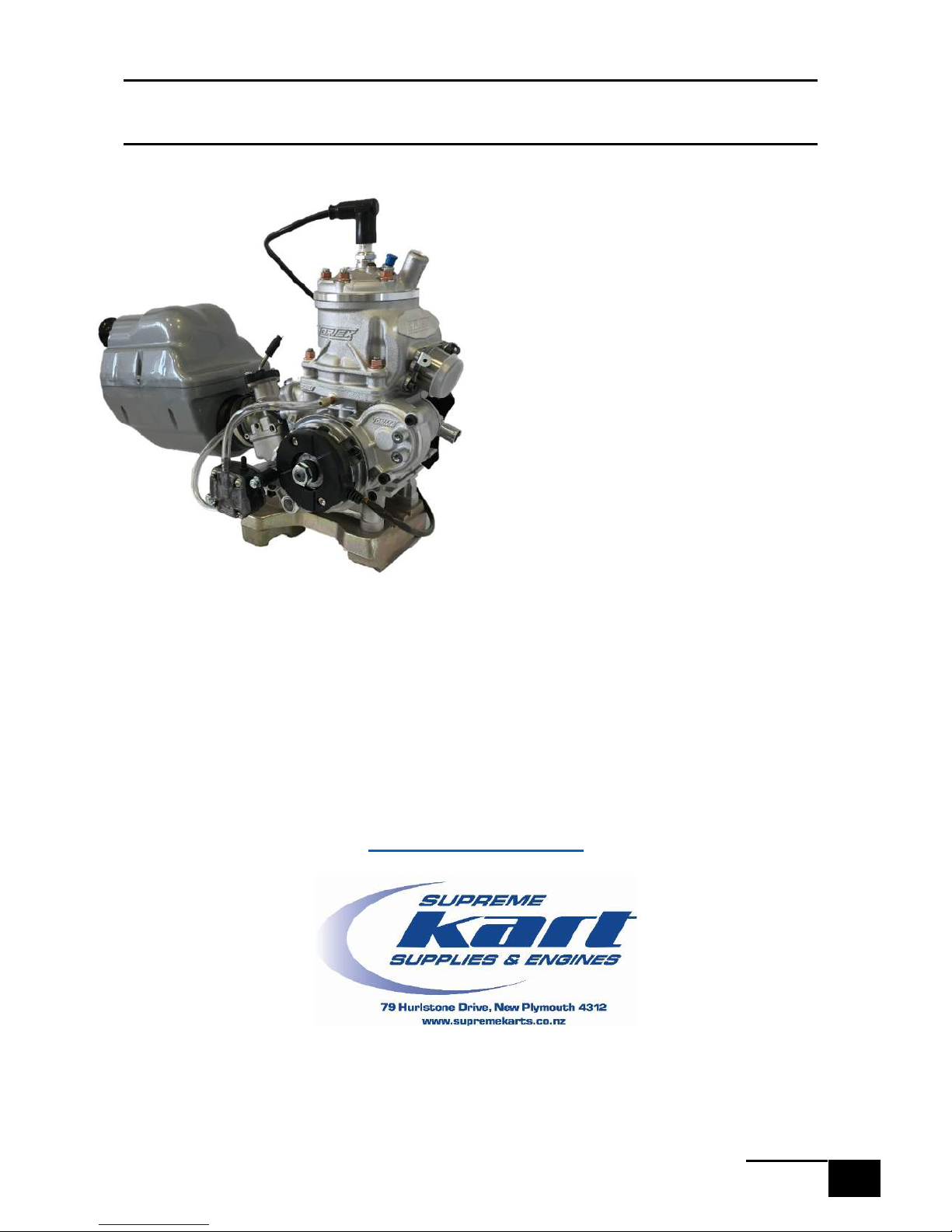

DVS-Junior
1
Thank you for purchasing Vortex engines. This manual contains information on how to help you with getting the best results from your new engine. Furthermore, it will explain to you how to operate your Vortex engine safely and in a proper manner. All the information in this manual is based on the latest experience and product information available at the time of writing. Vortex reserves the right to make any kind of changes to this manual at any time without notice and without incurring in any obligation.
This manual shall be considered part of the Vortex engine.
Supreme Kart Supplies
79 Hurlstone Drive
New Plymouth
06 7588891
supremekarts@xtra.co.nz
Page 3
DVS-Junior
2
INDEX
1. GENERAL INFORMATION
1.1. Symbols
3
1.2. Safety information
3
1.3. Technical Specifications
4
1.4. Special Technical Specifications for Homologated Engine
5
1.5. Packaging
5
2. ENGINE ASSEMBLING
2.1. Tools
6
2.2. Engine Assembling Procedure
7
3. STARTING AND BRAKE-IN
17
4. SERVICING YOUR ENGINE
4.1 Maintenance Schedule and Adjustments 18
4.2 Torque Chart 18
4.3 Maintenance 18
4.4 General Tolerances 19
4.5 Piston and Piston Rings 19
4.6 Maintenance Detail 20
4.6.1 Carburettor Cleaning 20
4.6.2 Changing Jets 21
4.6.3 Spark Plug Cleaning and Replacement 22
4.6.4 Exhaust Cleaning 22
4.6.5 Cylinder Head Cleaning 23
4.6.6 Cylinder Check and Maintenance 24
4.6.7 Piston Check and Maintenance 25
5. ENGINE EXPLODED VIEW AND PARTS LIST
26
Page 4
DVS-Junior
3
GENERAL INFORMATION
1.1. SYMBOLS
Pay attention to the symbols of this manual. They alert you of dangerous situations for you or for your engine.
Personal Injury Mechanical Danger Caution
Special tools needed to perfom operation.
1.2. SAFETY INFORMATION
- Do not start the engine indoors eg, garages, trailers, etc. Start the engine in a well-ventilated area only. Exhaust emissions are hazardous to your health.
- Always wear gloves and proper clothing when working on your engine.
- Use caution when handling fuel. Gasoline is flammable and explosive. Avoid any skin contact and inhaling fuel vapors.
- During operation both engine and muffler, become very hot. Do not touch them and do not place
anything on them after operation.
- Do not touch the spark plug or cable. It may provoke electrical shocks.
- Understand the operation of all controls and learn how to stop the engine quickly in case of
emergency.
- Do not use the engine without chain protection.
Page 5
DVS-Junior
4
GENERAL INFORMATION
1.3 TECHNICAL SPECIFICATIONS
Engine
Original
Max
Min
Displacement
124.130cc
124.957cc
Stroke
54.00mm +0.2mm
-0.2mm
Connecting Rod
102.00mm +0.2mm
-0.2mm
Bore 54.10mm 54.28mm
Squish
0.8mm
Combustion Chamber
11cc
Intake
Intake Reed Valve Carburettor Dell’orto 24mm Type: WHST 24 BS Gas Valve 50 Conic Needle D55 Spray Needle AQ270 Minimum Jet U43 Maximum Jet 100
Ignition
PVL Digital Timing 3mm Spark Plug Gap 0.7/0.8 mm
General Specifications
Fuel Mixture
Crank Case Oil
Engine Weight
5%
30gr W80/90
10.2Kg
API GL5
All sizes and measurements in this manual are expressed in metrics and may change at any time. For Racing purposes, ONLY the National Homologation File is to be considered the official
document. Always use original Vortex parts and proper tools when working on your engine. Proper fuel mix is necessary for optimum engine life and performance.
Page 6
DVS-Junior
5
GENERAL INFORMATION
1.4 SPECIAL TECHNICAL SPECIFICATIONS FOR HOMOLOGATED ENGINE
Refer to your country homologation file for eventual specific rules and/or sizes.
1.5 PACKAGING
Your engine will be packed in a sealed box with the Vortex logo printed on and a sticker with model and serial number attached. There will be a second box complete with accessories, carburetor, muffler, fuel pump, air box, etc.
Page 7
DVS-Junior
6
ENGINE ASSEMBLING
2.1. TOOLS
In order to perform assembling or maintenance jobs, you will need the following tools:
Tipo Misura
Allen Wrench 2.5 mm. Allen Wrench 5 mm. Allen Wrench 6 mm. Fixed Wrench 10 mm. Dynamometric Wrench Phillips Screwdriver Flat Screwdriver Spark Plug Wrench Compressed Air Heater
Page 8
DVS-Junior
7
ENGINE ASSEMBLING
2.2. ENGINE ASSEMBLING PROCEDURE
Compressed Air
Unpack the engine and remove any packaging material on it. Use compressed air to eliminate any further packaging material. Remove all plastic covers AFTER cleaning the engine.
Allen Wrench 6mm

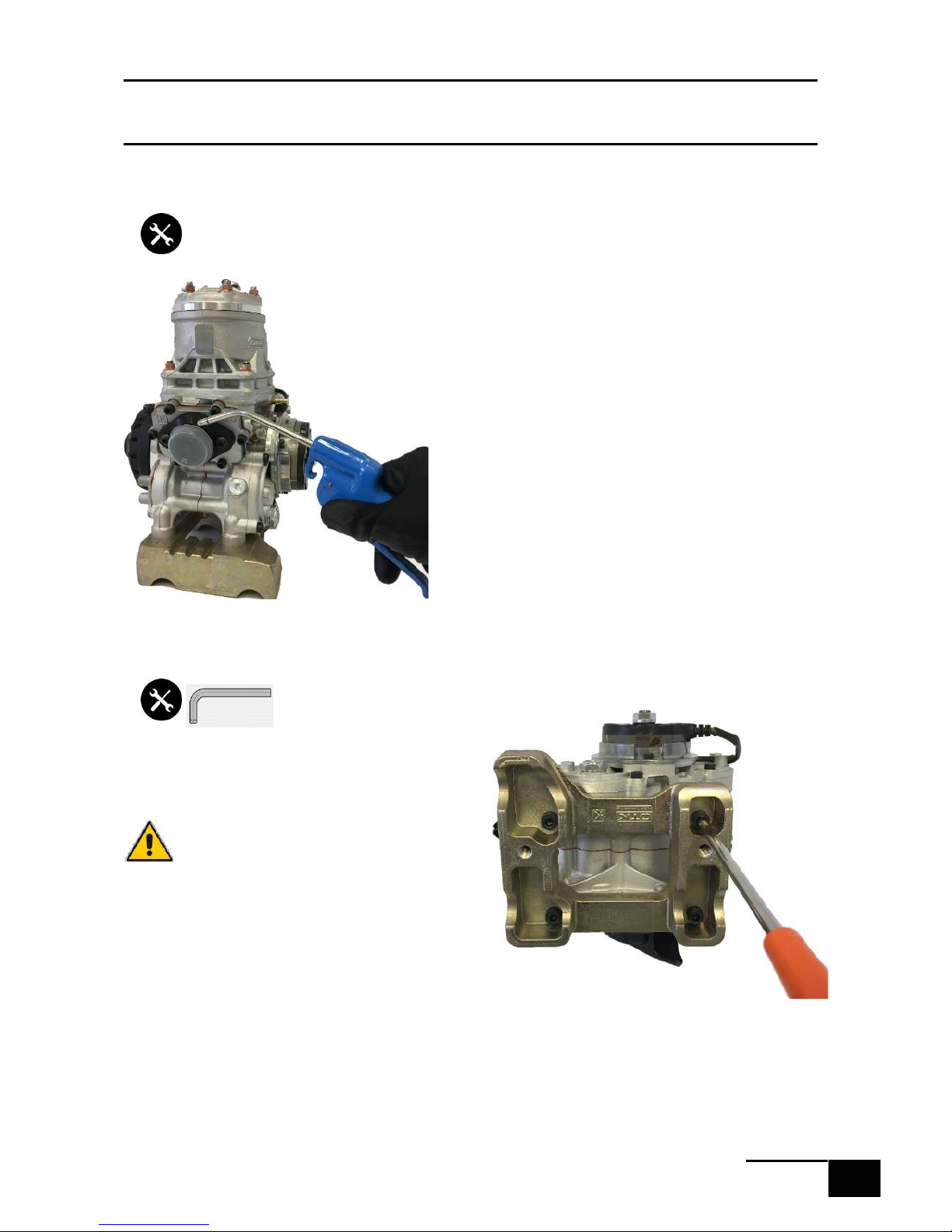

Lay the engine on its side and attach the engine mount to the engine base with four 8x35 mm. Allen screws.
Attention: Engine Mount and screws are not with the engine. May vary according to chassis.
Page 9
DVS-Junior
8
ENGINE ASSEMBLING
added.
6mm Allen Wrench
Caution: Engine is supplied WITHOUT oil. DO NOT start engine before oil have been
Remove the oil filler cap with a 6 mm. Allen Wrench. Fill the engine with 30gr of W80/90 viscosity oil (International Specification: API GL 5). Re fit the oil filler cap.
10mm Allen Wrench

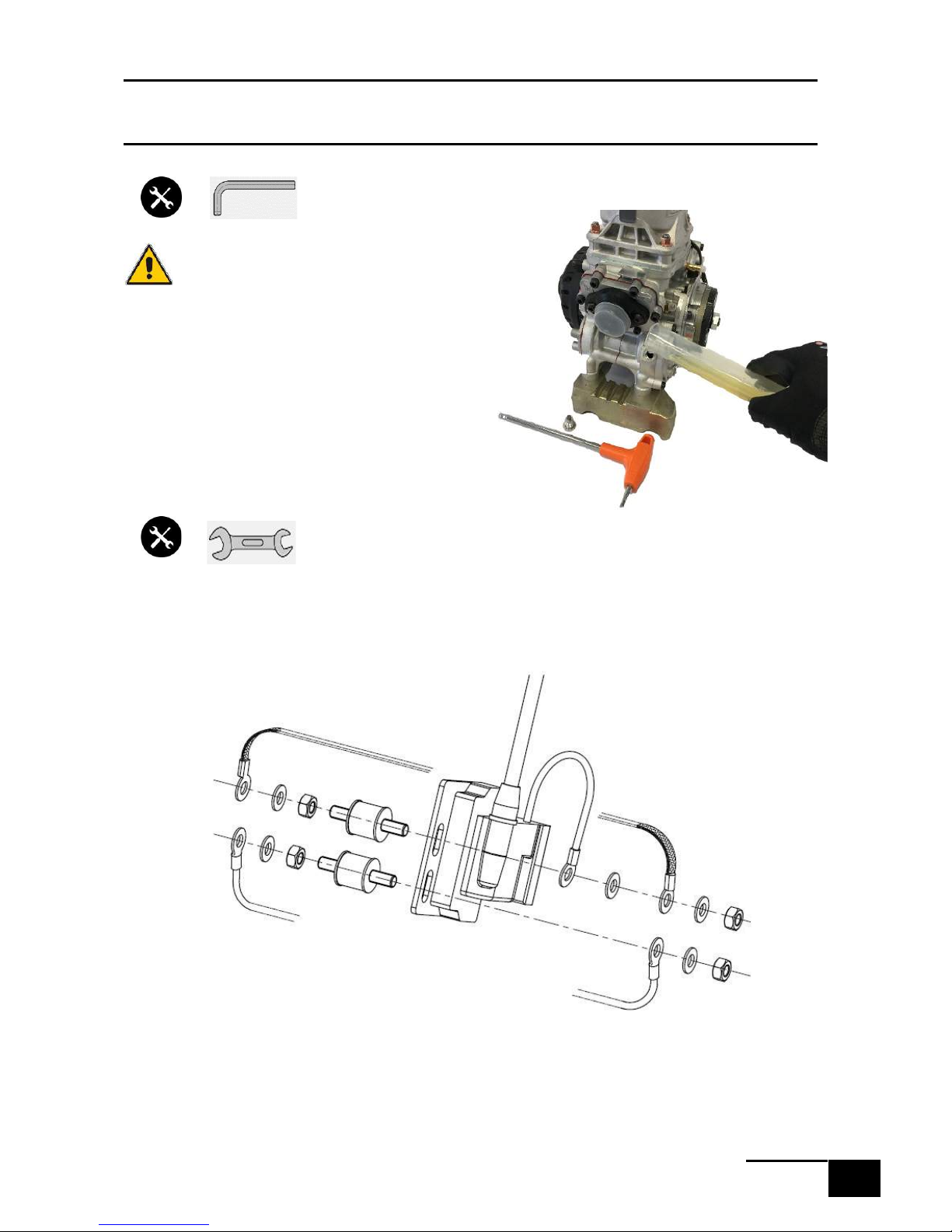

Assemble coil as per diagram. All material needed to perform this task is provided with the engine.
Page 10
DVS-Junior
9
ENGINE ASSEMBLING

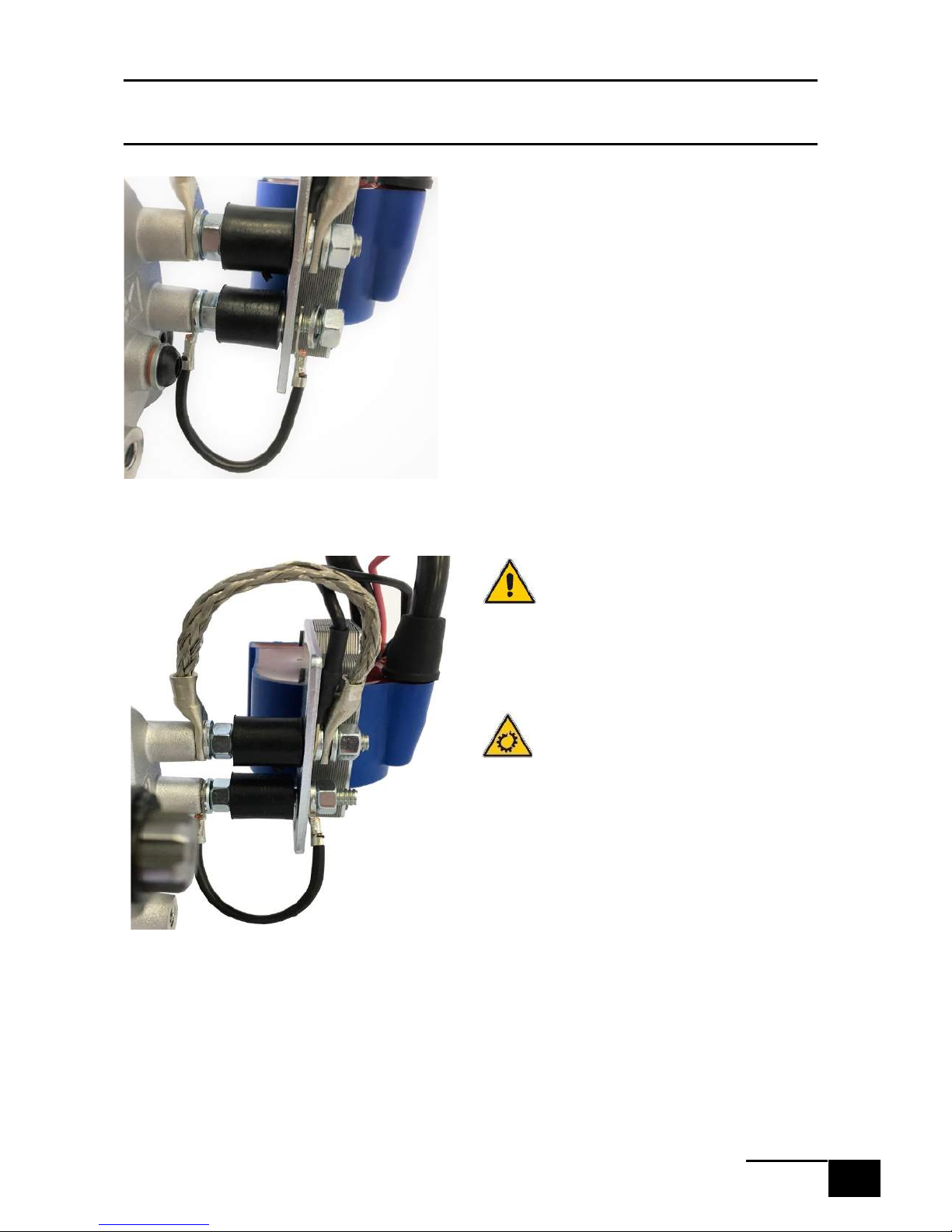

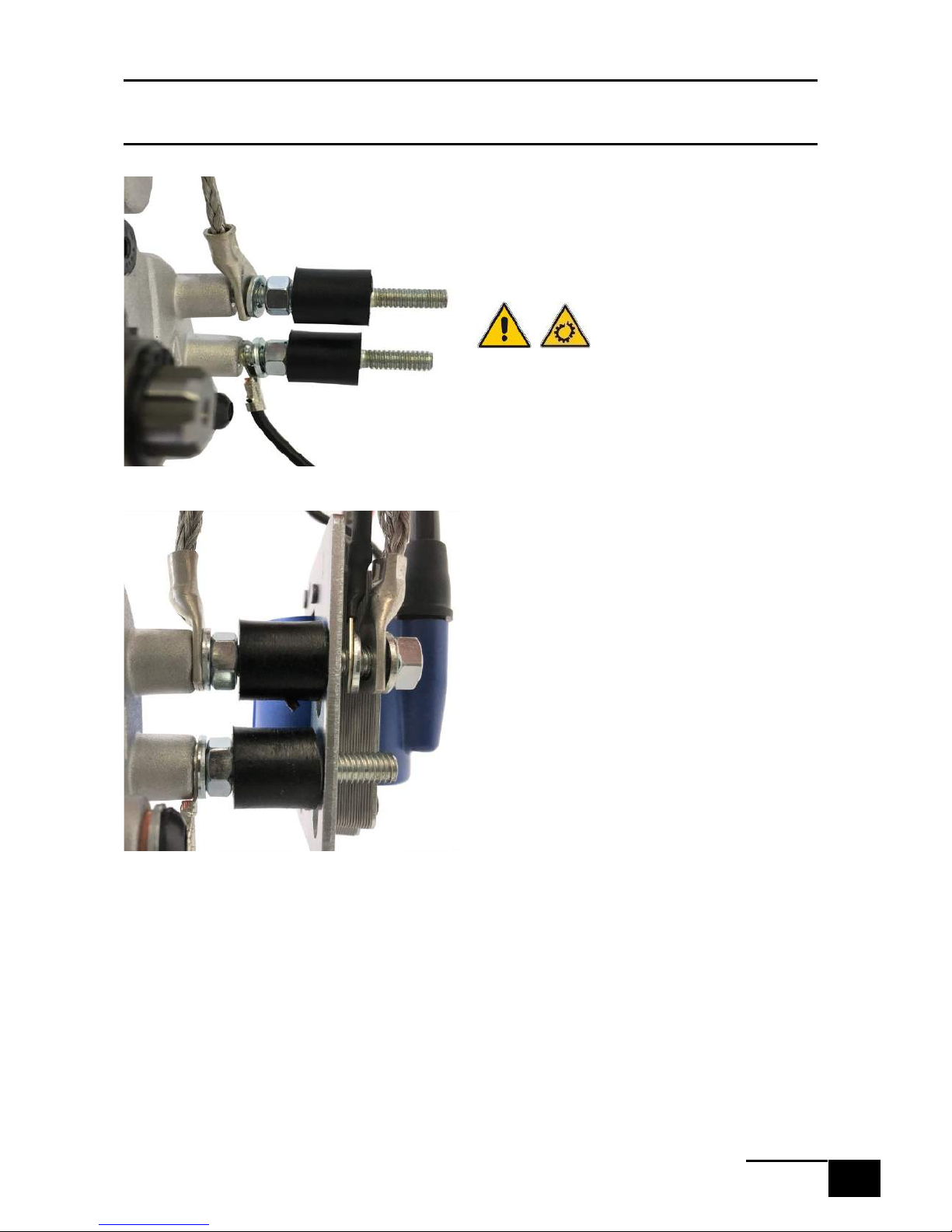

Fix ground cables to the engine by assembling the two silent blocks in the crankcase as per photo. Tighten both silent blocks to the crankcase.
Caution: Wrong assembling will cause coil failure.
Insert now the coil in the two silent blocks.
Insert the ground cable from the coil into the upper silent block as per photo. Insert a washer.
Insert now the ground cable previously attached to the crank case with the upper silent block and tighten with washer and nut provided as per photo.
Page 11
DVS-Junior
10
ENGINE ASSEMBLING
Insert now the ground cable previously attached to the crank case in the bottom silent block as per photo. Tighten with washer and nut.
Caution: One side of the ground
cables may touch the crank case. The other ends may touch coil support. Please check photo to correct coil assembling.
Wrongly ground cables assembling will result in failure and coil irreversible damage.
Page 12
ENGINE ASSEMBLING
DVS-Junior
11
Spark Plug Wrench
Remove the plastic cap from the head of the cylinder. Manually tighten the spark plug into the cylinder head. Lock it with the spark plug wrench. Loosen it then retighten 2/3 consecutive times; so as to allow the spark plug washer to seat properly. Now you can tighten the spark plug properly. Insert the high tension lead into the spark plug cap and tighten it. For safety, we recommend you secure the high tension lead to the spark plug cap with a cable tie. Place the spark plug cap on the spark plug and press the cap down fully.
10mm Fixed Wrench
5mm Allen Wrenc
h

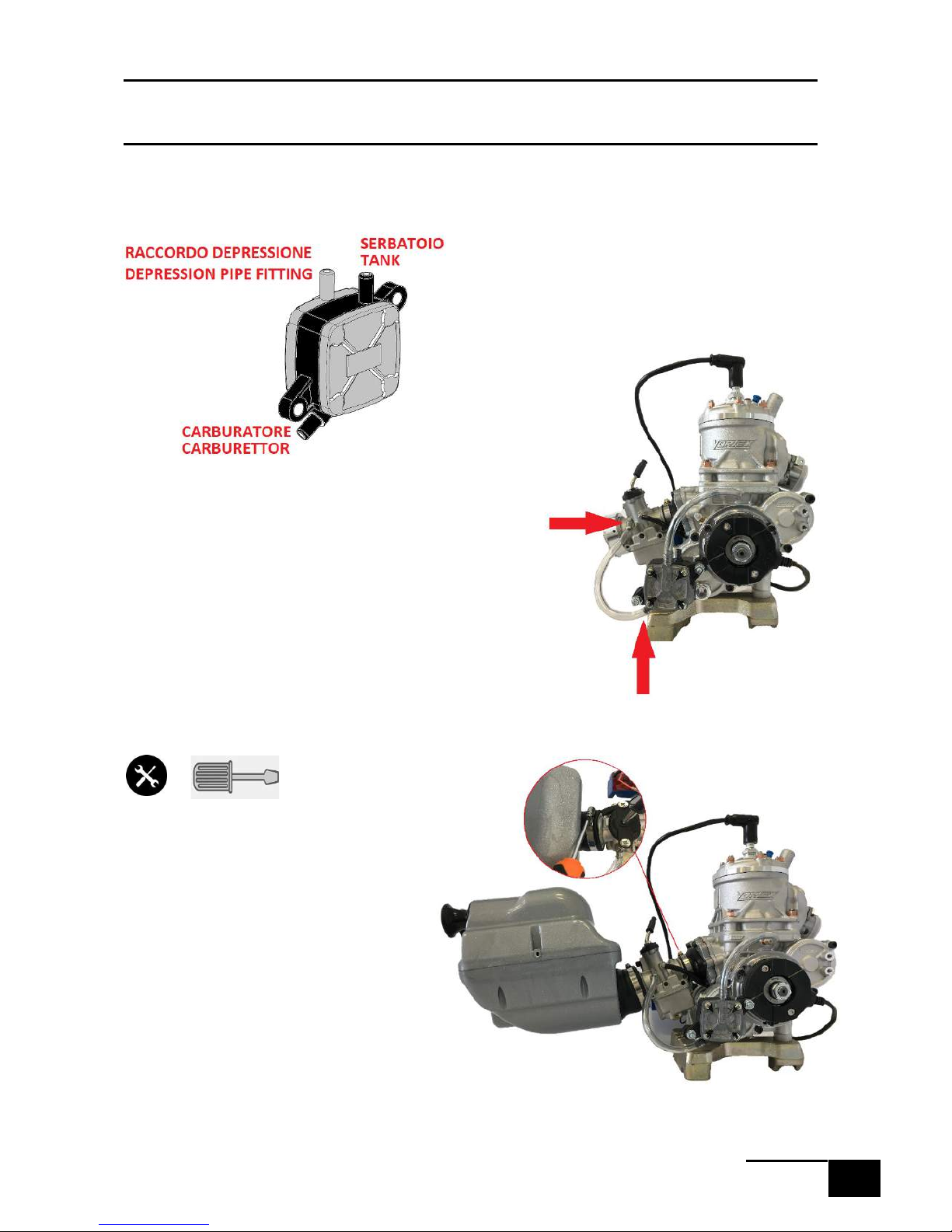

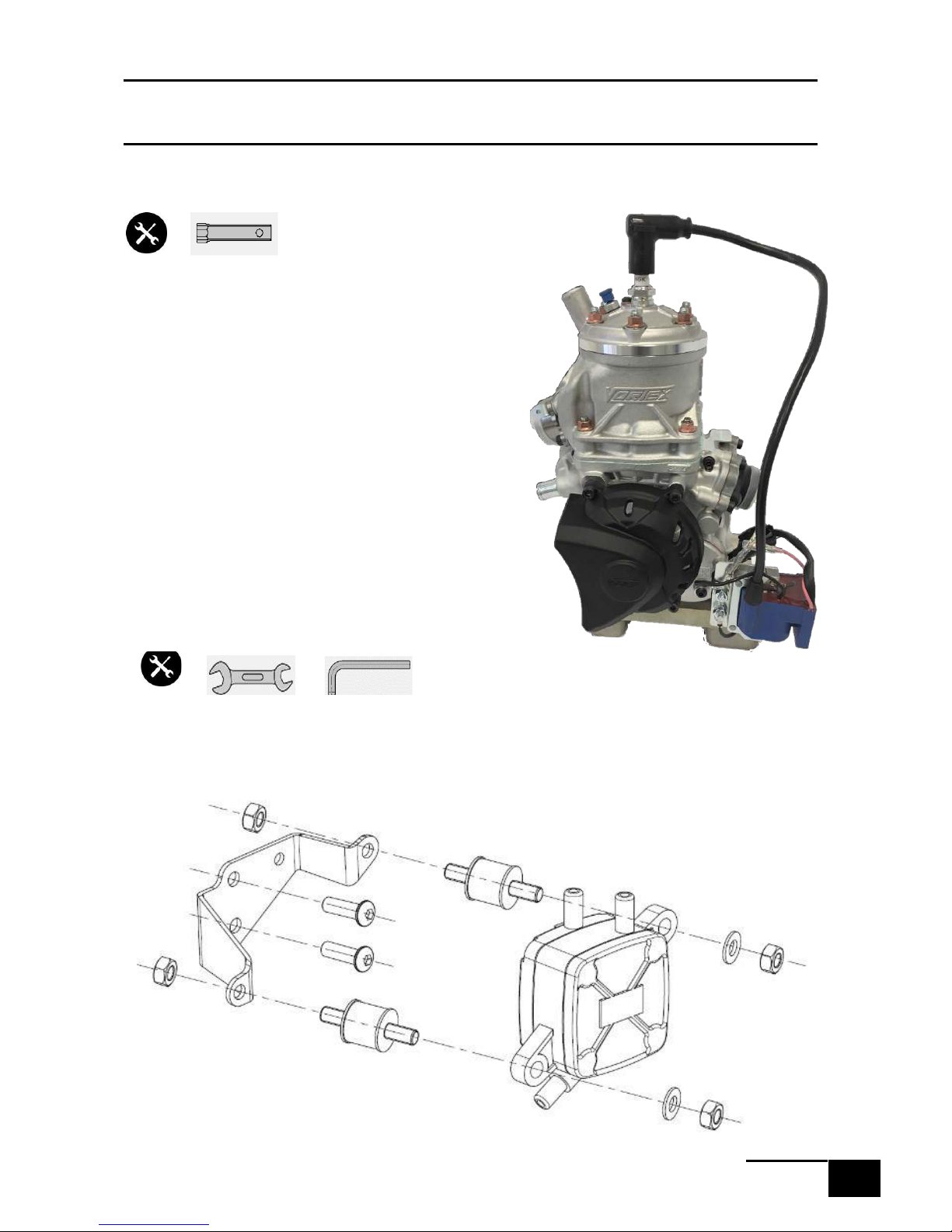

Diagram to assemble fuel pump and bracket option 1. Proceed as explained in next page. All material needed to perform this task is provided with the engine.
Page 13
ENGINE ASSEMBLING
DVS-Junior
12
Fuel Pump Bracket Option 1

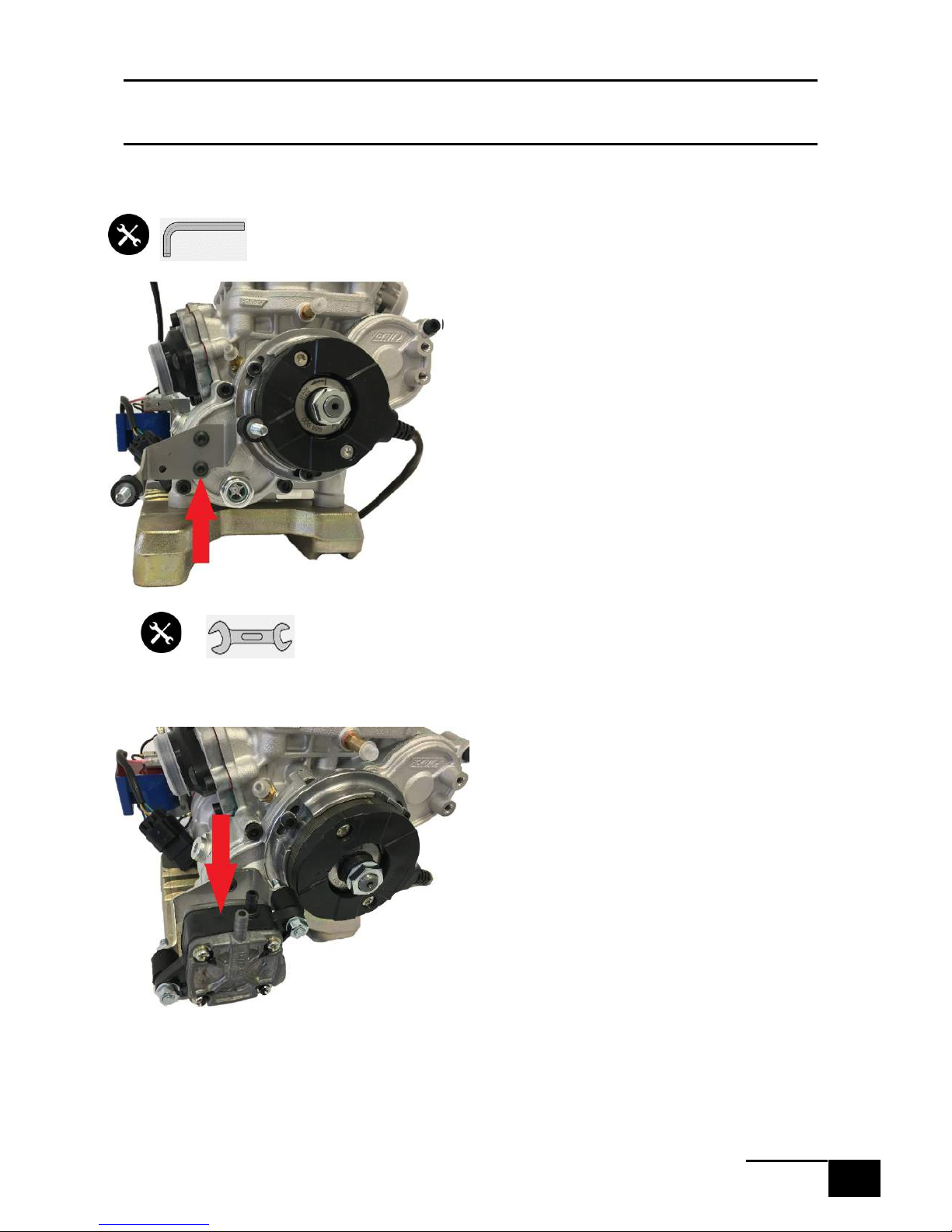

5 mm. Allen Wrench Part I
Insert and tighten the silent blocks in the designed bracket. Attach
the bracket to the engine with 6 mm screws
provided. (Red arrow)
Part II
10mm Fixed Wrench
Insert the fuel pump into the silent blocks and tighten it.
Page 14
ENGINE ASSEMBLING
DVS-Junior
13
Part III Insert now the vacuum tube into both, engine and fuel pump as per red arrows. Later we will insert the other 2 tubes in the fuel pump. (Page.15)
Page 15
ENGINE ASSEMBLING
DVS-Junior
14

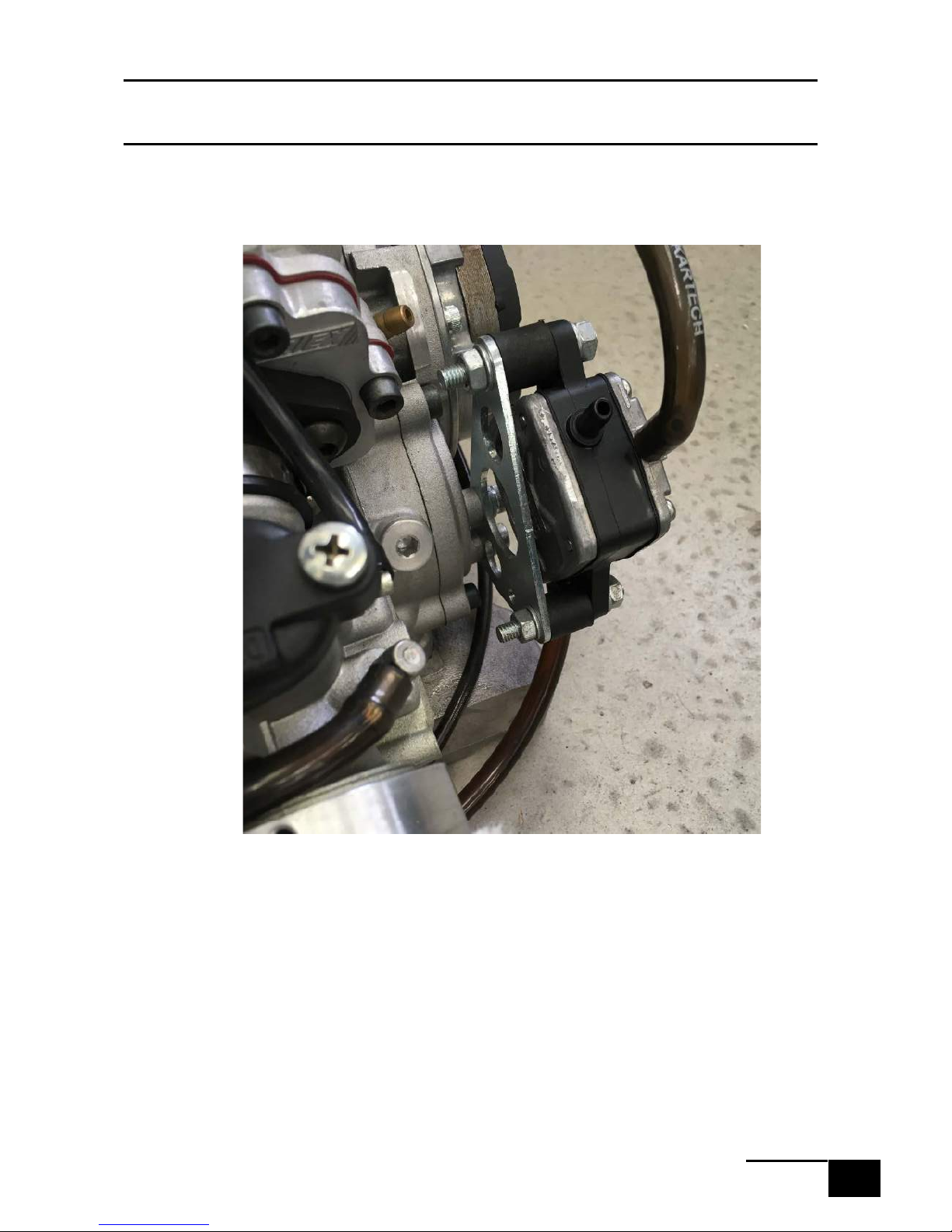

Fuel Pump Bracket Option 2
Page 16
ENGINE ASSEMBLING
DVS-Junior
15
2.5mm Allen Wrench
Flat Screwdriver

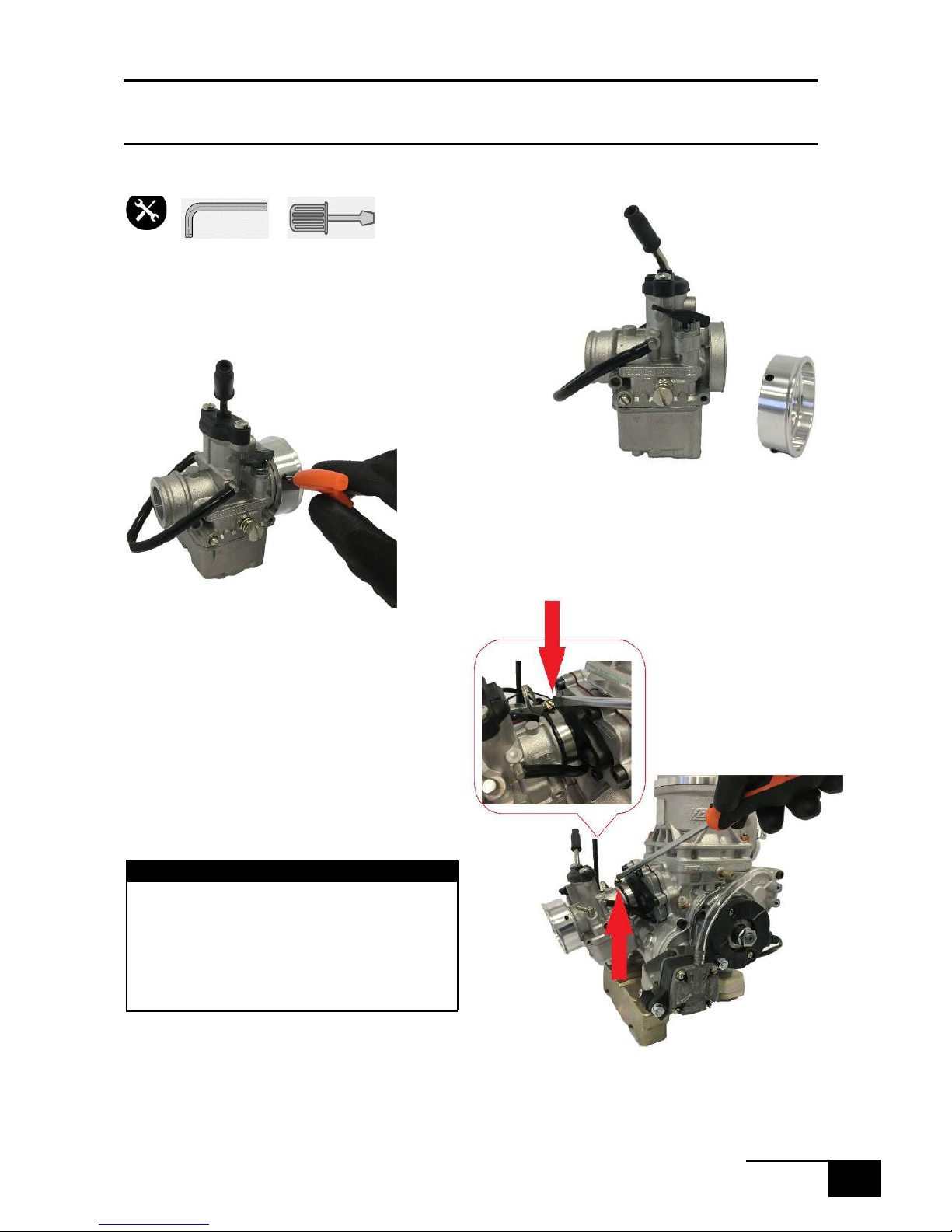

Now assemble the carburettor. All parts needed are in the accessory box. The standard set up in the carburettor is already to run your engine.
Assemble aluminium air box adapter to the carburettor.
Fit the hose clip to the rubber manifold. Insert the carburettor in the rubber manifold and tighten the hose clamp tight with the flat screwdriver.
Standard Carburettor Set Up
Type specifics
Carburettor Dell’orto 24mm WHST 24BS Gas Valve 50 Conic Needle D55 Spray AQ270 Minimum Jet U43 Maximum Jet 110
Page 17
ENGINE ASSEMBLING
DVS-Junior
16
Phillips
Screwdriver

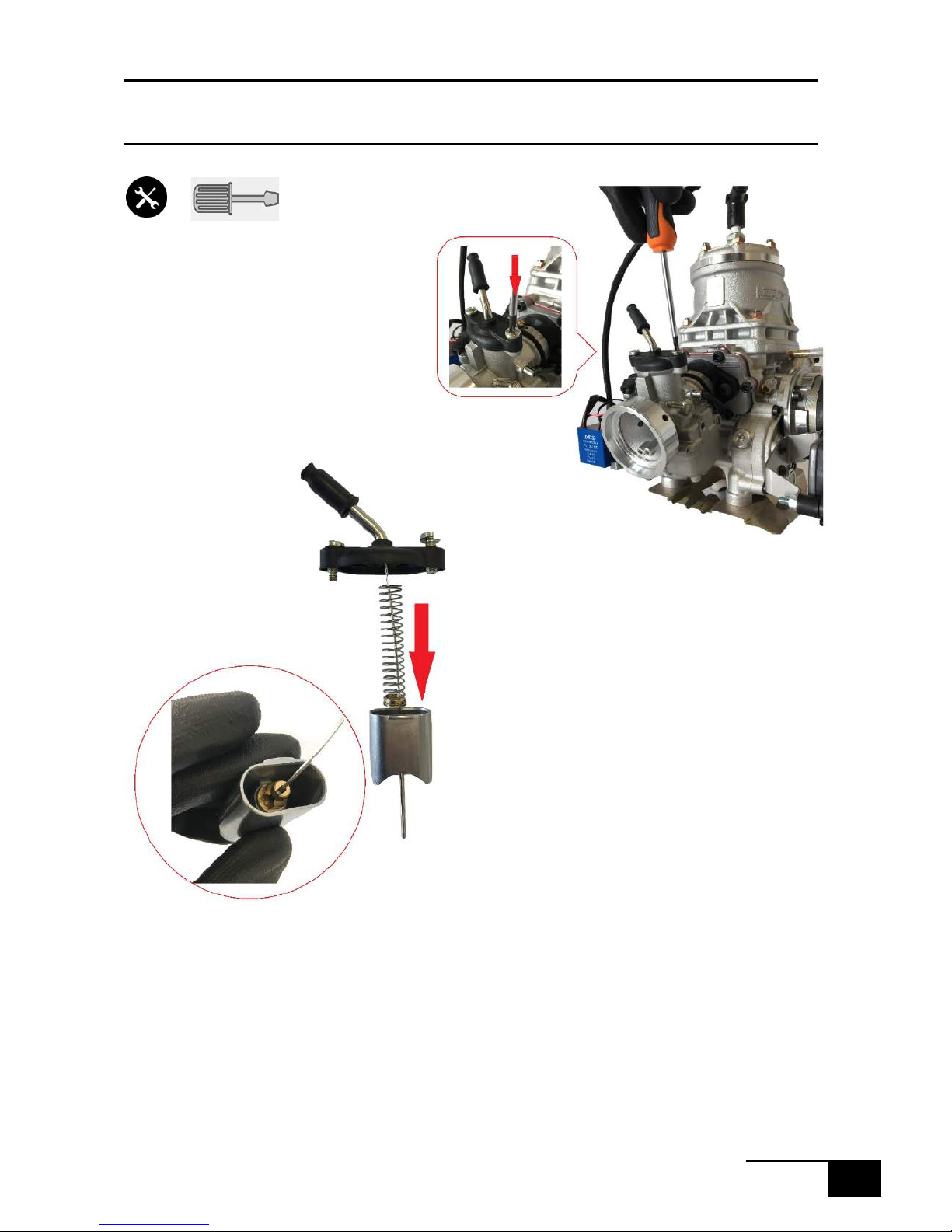

Remove the top of the carburettor by unscrewing the two screws.
Get cover, spring and slide off.
Insert the inner throttle cable into and through the elbow on top of the carburettor.
Insert the spring and then the slide. Fit the nipple on the end of the cable into the hole at centre of the slide.
Re insert the slide into the carburettor and tighten the two screws on top of it.
Page 18
ENGINE INSTALLATION
DVS-Junior
17

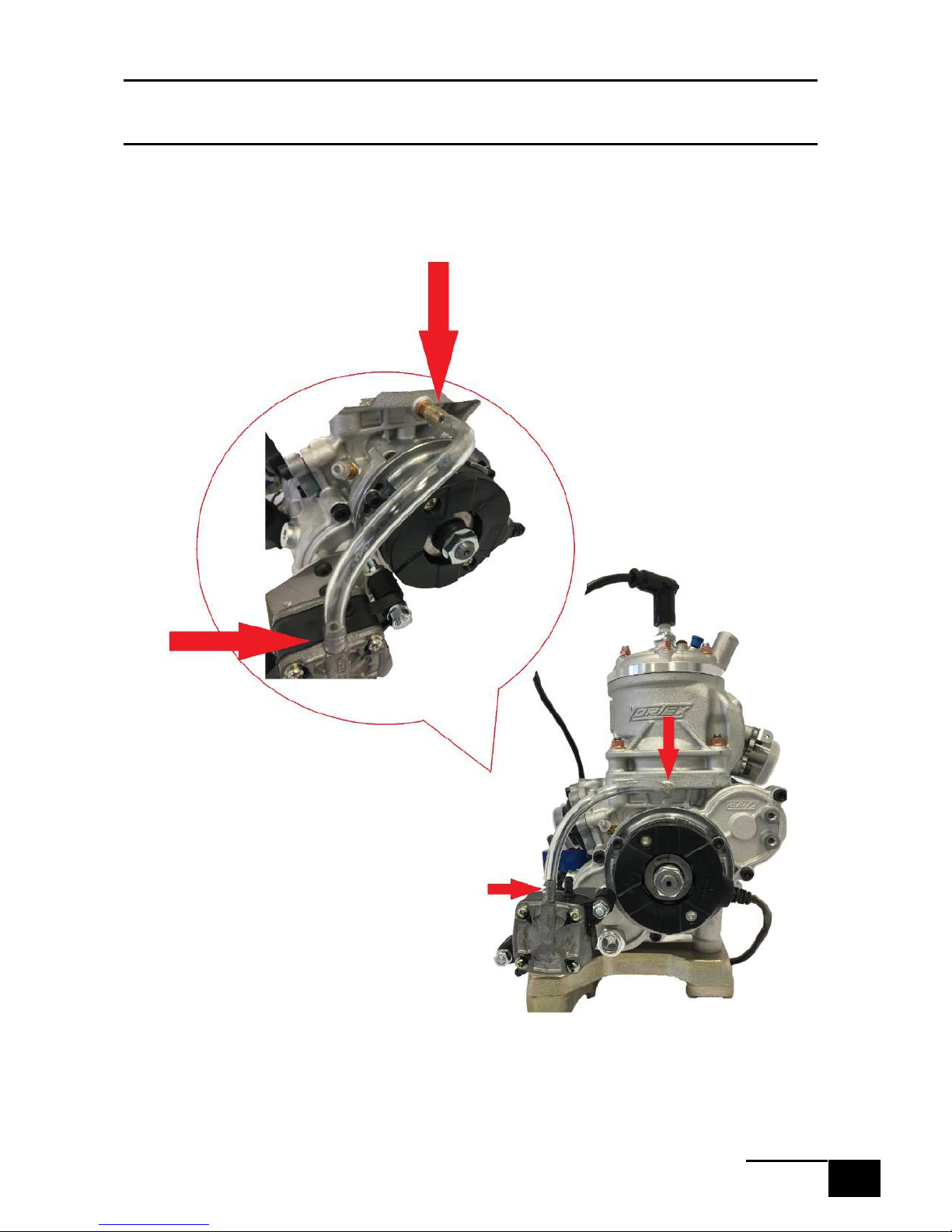

Insert now the tube from the fuel pump to the carburettor as per red arrows. Check carefully with the attached diagram.
Secure the tube to the fuel pump and the carburettor by using plastic ties.
Phillips
Screwdriver
Fasten the intake silencer to the carburettor by using the specific metal clamp supplied.
Page 19
ENGINE INSTALLATION
DVS-Junior
18
The airbox needs supporting at the front. Drill a 6mm hole through the support tab at the front of the airbox
and fit a bracket, as per photo, to support the airbox.

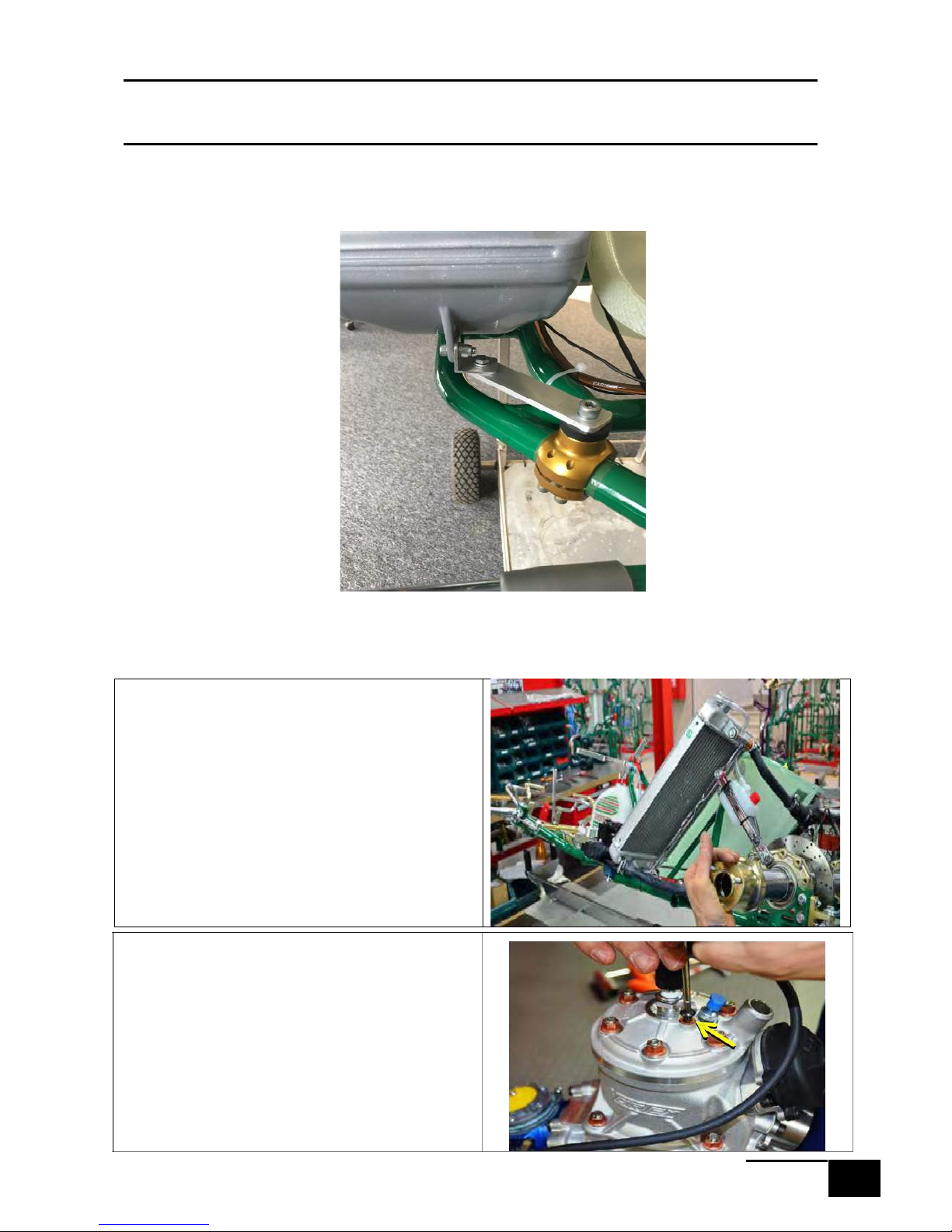

For proper operation of the cooling system it is necessary to bleed the circuit by each air bubble. To adequately perform this operation proceed
as follows: Fill the radiator with water and raising the kart from the radiator side make the excess air come out. Now top up with more water. Spin the rear axle for a few seconds to release air from the external water pump. If necessary top up the radiator again. Do not close the radiator cap.
Now bleed the cylinder head circuit. Loosen the screw on the head (yellow arrow) and keep it open until it comes out only water. Now tighten the screw and refill the radiator with water. At this point you can close the radiator cap.
Page 20
ENGINE INSTALLATION
DVS-Junior
19
Only a proper break-in will insure the best performance out of your engine in the future and guarantee its long and trouble-free life. Break-in is required when an engine is new or has undergone a major service of the engine’s main parts (piston, cylinder, connecting rod, etc.).
Prepare fuel. Vortex engine works with commercial gasoline, leaded or unleaded, as well as racing fuel, with minimum 95 Octane. Mix Oil and fuel at 5% (i.e. 50cc of oil every 1.000cc of fuel).
This engine is only to be run Motul GP engine oil.
Shake the can thoroughly to mix the fuel and the oil properly. Then fill
the gas tank in your kart.
A mistake in measurements could result in engine damage.
To start a cold engine, raise the choke lever positioned on the carburettor. Once the engine starts push the choke lever down. Warm up the engine by accelerating up and down the engine RPM alternately between RPM’s. Bring the water temperature around 48-50 ° C before stopping the engine.
Do not accelerate fully but only partially.
Check that the cooling system warms up evenly; in case it warms unevenly proceed again with the bleeding of the cooling system. Once the engine is warmed up and the cooling system works properly, proceed to the track. Run the engine by alternating RPM’s a few seconds on and off the throttle at 34 maximum throttle. Do not hold the throttle at a constant speed. Continue this way for 10/15 minutes and return to pits. Check everything on the kart is tightening properly.
Be careful, both engine and muffler are hot. Return to the track and slowly increase the RPM and duration of the acceleration phase for 10/15min more. Intermittently open the throttle fully and then release it.
After 10/15 minutes of brake-in, your engine is ready for competition.
During the break-in, nuts and bolts tend to loosen. Once the engine is cold, check the torque of the exhaust, head, etc.
Page 21
DVS-Junior
20
MAINTENANCE
Good maintenance is essential for safe, economical and trouble-free operation. Here you will find a
maintenance schedule for your engine.
Routine inspection procedures are very simple by using basic tools. Some service tasks that are more difficult or need special tools must be performed by Vortex technicians or qualified mechanics. Timing schedule periods are only indicative. Extreme carburation set ups highly modify timing schedule periods.
4.1 MAINTENANCE SCHEDULE GUIDE AND ADJUSTEMENTS
Part
Frequency
Operation
Carburettor
Every Race
Cleaning
Accelerator Cable
Every Race
Check
Spark Plug Every Race
Check
Muffler 10 hours
Internal Cleaning
Cylinder Every piston change
Check
4.2 TORQUE CHART
Part
Torque in Kgm
Notes
Cylinder/head Nuts
1.6
Cylinder/crankcase Nuts
2.0
Crankcase Ø 6 mm Screws
1.0/1.1
Ignition Rotor Nut
2.0
Exhaust manifold Nuts
1.0/1.1
4.3 MAINTENANCE
Part Hours Operation
Piston
20
Check/Replace
Spark Plug
30
Replace
Piston Pin
20
Check/Replace
Piston Pin Roller Cage
20
Check/Replace
Connecting Rod
100
Substitution
Crank Shaft Pin
50
Check/Replace
Silver Washers
50
Check/Replace
Crank Shaft Roller Cage
50
Check/Replace
Oil Seals 50 / or every crank case opening
Check/Replace
Bearings When needed
Substitution
Page 22
MAINTENANCE
DVS-Junior
19
4.4 GENERAL TOLERANCES
Part
Type
Measure
Operation
Cylinder
Ovalization
0.02
Honing
Piston/cylinder
-- 0.
12
--

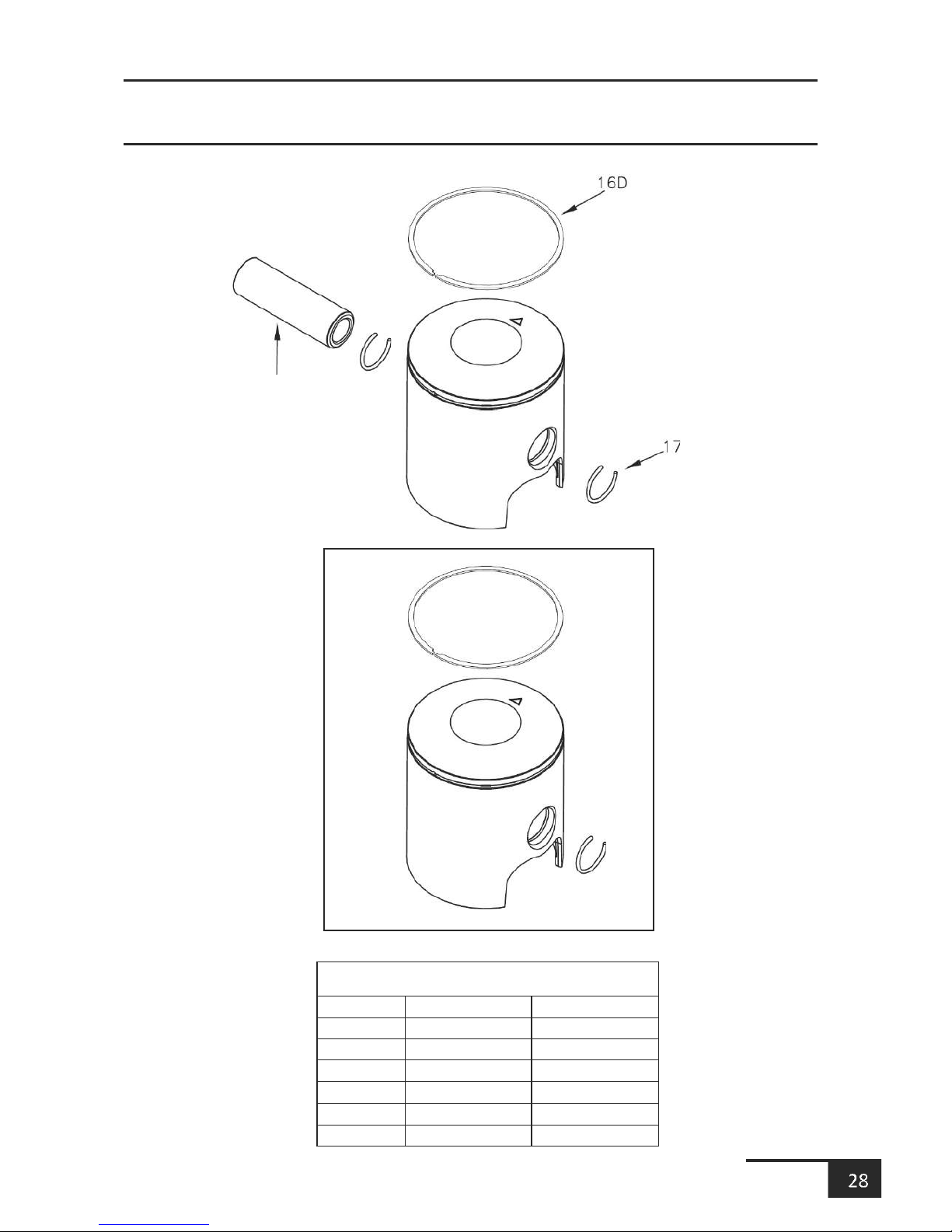

4.5 PISTON AND PISTON RINGS
Part Number
Piston Size
Piston Ring
Piston Ring Size
W10140/RKF
54.00
W260/SA10
54.10
W10141/RKF
54.01 W260/SA12
54.12
W10142/RKF
54.02 W260/SA12
54.12
W10143/RKF
54.03 W260/SA15
54.15
W10144/RKF
54.04 W260/SA15
54.15
W10145/RKF
54.05 W260/SA15
54.15
W10146/RKF
54.06 W260/SA15
54.15
W10147/RKF
54.07 W260/SA15
54.15
W10148/RKF
54.08 W260/SA20
54.20
W10149/RKF
54.09 W260/SA20
54.20
W10150/RKF
54.10 W260/SA20
54.20
W10151/RKF
54.11 W260/SA20
54.20
W10152/RKF
54.12 W260/SA25
54.25
W10153/RKF
54.13 W260/SA25
54.25
W10154/RKF
54.14 W260/SA25
54.25
W10155/RKF
54.15 W260/SA25
54.25
W10140/RKFVP
54.00
W260/SA10
54.10
W10141/RKFVP
54.01 W260/SA12
54.12
W10142/RKFVP
54.02 W260/SA12
54.12
W10143/RKFVP
54.03 W260/SA15
54.15
W10144/RKFVP
54.04 W260/SA15
54.15
W10145/RKFVP
54.05 W260/SA15
54.15
W10146/RKFVP
54.06 W260/SA15
54.15
W10147/RKFVP
54.07 W260/SA15
54.15
W10148/RKFVP
54.08 W260/SA20
54.20
W10149/RKFVP
54.09 W260/SA20
54.20
W10150/RKFVP
54.10 W260/SA20
54.20
W10151/RKFVP
54.11 W260/SA20
54.20
W10152/RKFVP
54.12 W260/SA25
54.25
W10153/RKFVP
54.13 W260/SA25
54.25
W10154/RKFVP
54.14 W260/SA25
54.25
W10155/RKFVP
54.15 W260/SA25
54.25
Page 23
MAINTENANCE
DVS-Junior
20
4.6 MAINTENANCE DETAIL
In the following section, you will find a detailed most important maintenance jobs to be performed.
4.6.1 CARBURATTOR CLEANING
Flat Screwdriver
1.Take the intake silencer off the carburettor by unscrewing the clamp.
2. Disconnect the throttle cable from the carburettor together with the spring and the guillotine slide.

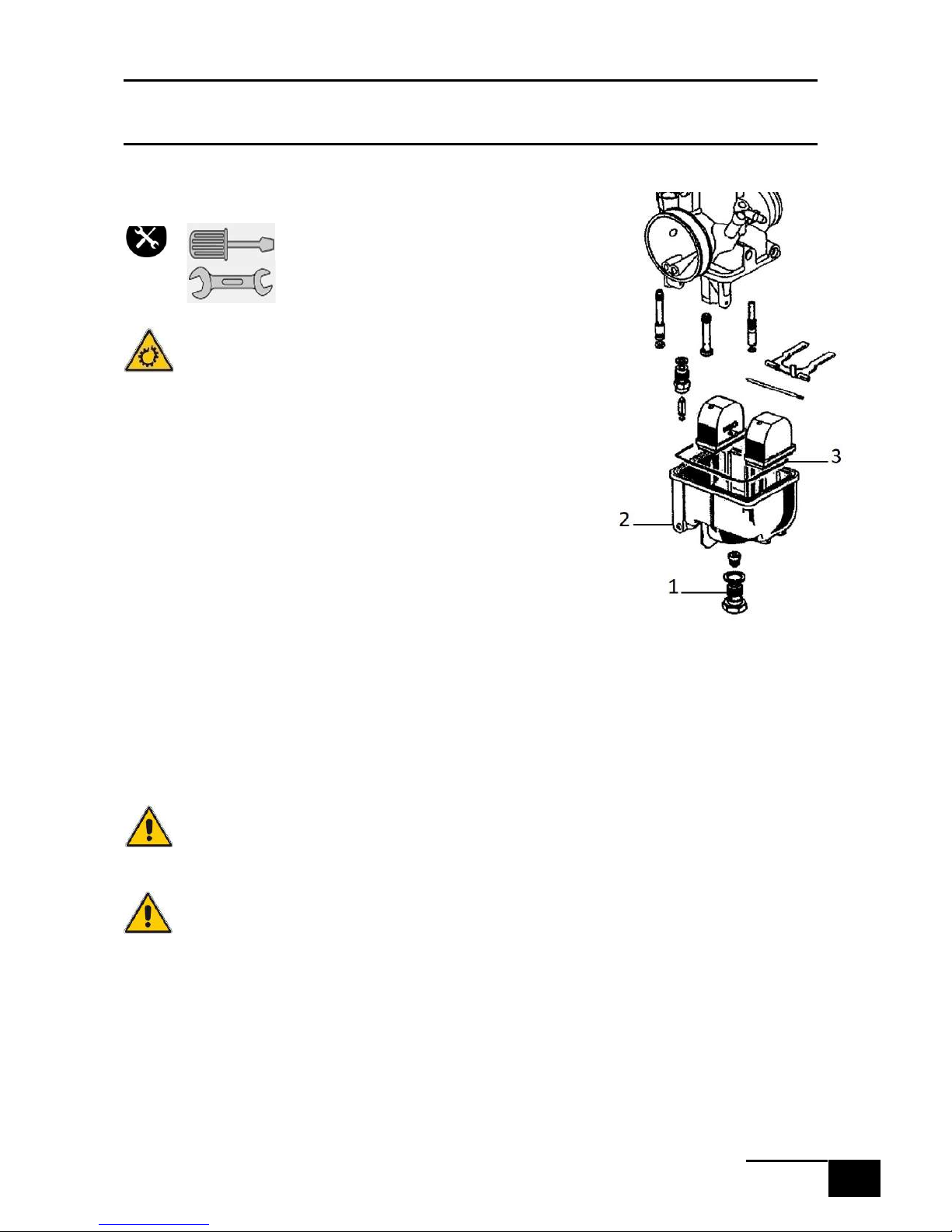

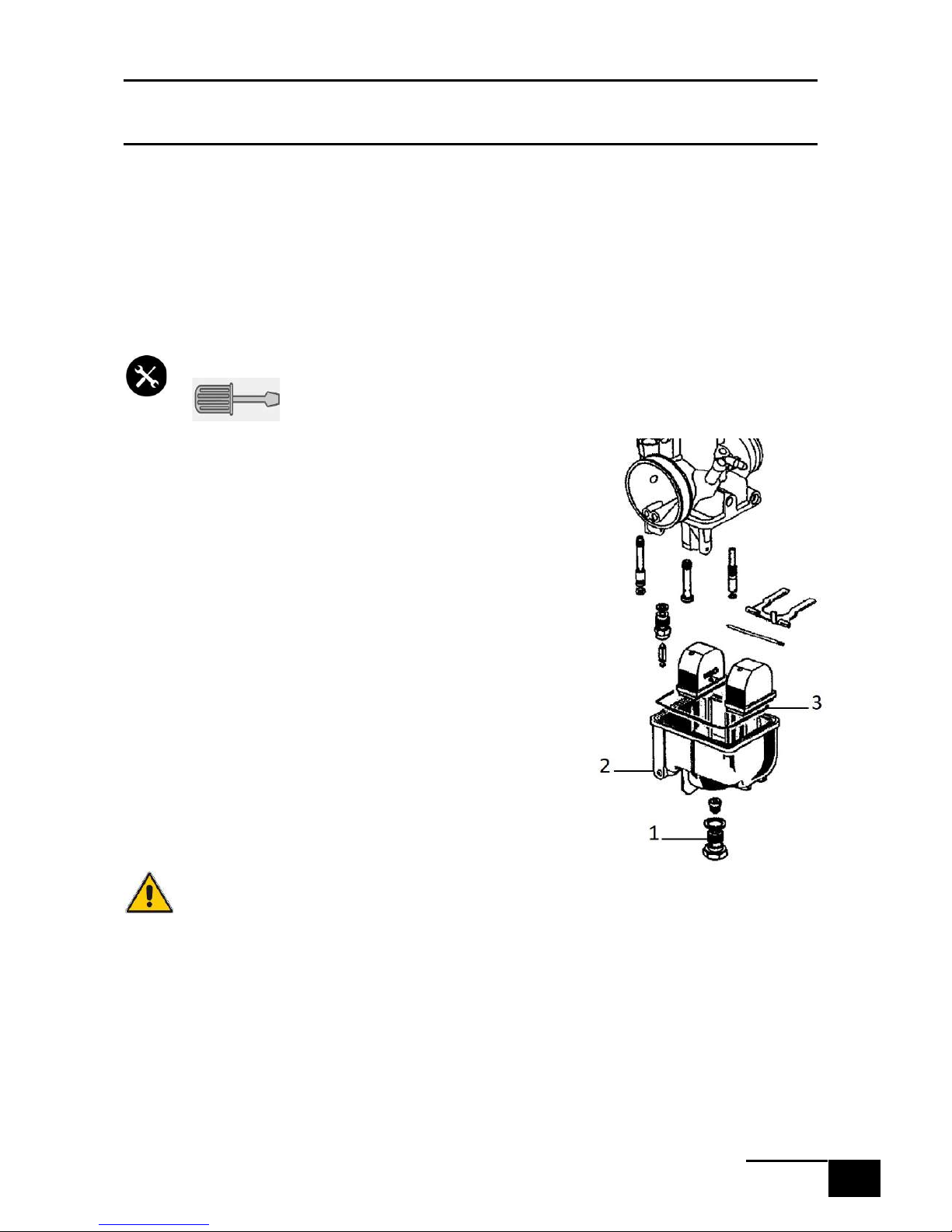

3. Take the carburettor off the engine and open the floating chamber by unscrewing the special cap in the middle of the chamber. Clean the parts, openings and passages with compressed air.
4. Unscrew the main jet by means of a flat screw driver. Replace it with another calibrated differently. Be careful, the washer must be installed in one position only. A wrong assembly may cause the carburettor complete malfunction.
5. Check the plug gasket of the floating chamber is still intact and if damaged, replace it.
6. Close the floating chamber by securing the special cap and mount the carburettor on the engine.
7. Clean the inside of the intake silencer.
8. Mount the intake silencer on the carburettor flange.
9. Tighten it with the specific clamp.
Wrong assembly will cause the loss of the intake silencer.
Page 24
MAINTENANCE
DVS-Junior
21
4.6.2 CHANGING JETS
Flat Screwdriver
22mm Fixed Wrench
Wrong carburation set up could cause sever engine
damage.
1. Take the intake silencer off the carburettor by unscrewing the clamp.
2. Disconnect the throttle cable from the carburettor together with the spring and the guillotine slide.
3. Take the carburettor off the engine and open the floating chamber by unscrewing the special cap in the middle of the chamber. Clean the parts, openings and passages with compressed air.
4. Unscrew the main jet by means of a flat plier. Replace it with another calibrated differently. Be careful, the washer must be installed in one position only. A wrong assembly may cause the carburettor complete malfunction.
5. Check the plug gasket of the floating chamber is still intact and if damaged, replace it.
6. Close the floating chamber by securing the special cap and mount the carburettor on the
engine.
7. Clean the inside of the intake silencer.
8. Mount the intake silencer on the carburettor flange.
9. Tighten it with the specific clamp.
Wrong carburettor assembling may cause engine malfunction and damage.
Wrong assembly will cause the loss of the intake silencer.
Page 25
MAINTENANCE
DVS-Junior
22
4.6.3 SPARK PLUG CLEANING AND REPLACEMENT
Spark Plug Wrench
Metal Br
ush
Risk of burning: Perform this task ONLY when engine is cool.
Oils produce carbon deposits or residues that make n
ece
ssa
ry the spark plug to be checked and cleaned, at least every 5 hours. Remove the spark plug and clean it by using a brass metal brush.
Use a specific spark plug gap gauge to set up correct gap. Correct gap: 0,8 mm. Every 30 hours is highly recommended to change spark plug.
4.6.4 EXHAUST CLEANING
Metal Brush
Heater
Oils produce carbon deposits or residues that make necessary the exhaust to be checked and cleaned, at least every 10 hours. Disassemble the exhaust from the engine by removing the two springs and check the exhaust carefully.
Heat the exhaust with a heater and remove all carbon deposits with a metal brush.
Page 26
MAINTENANCE
DVS-Junior
23

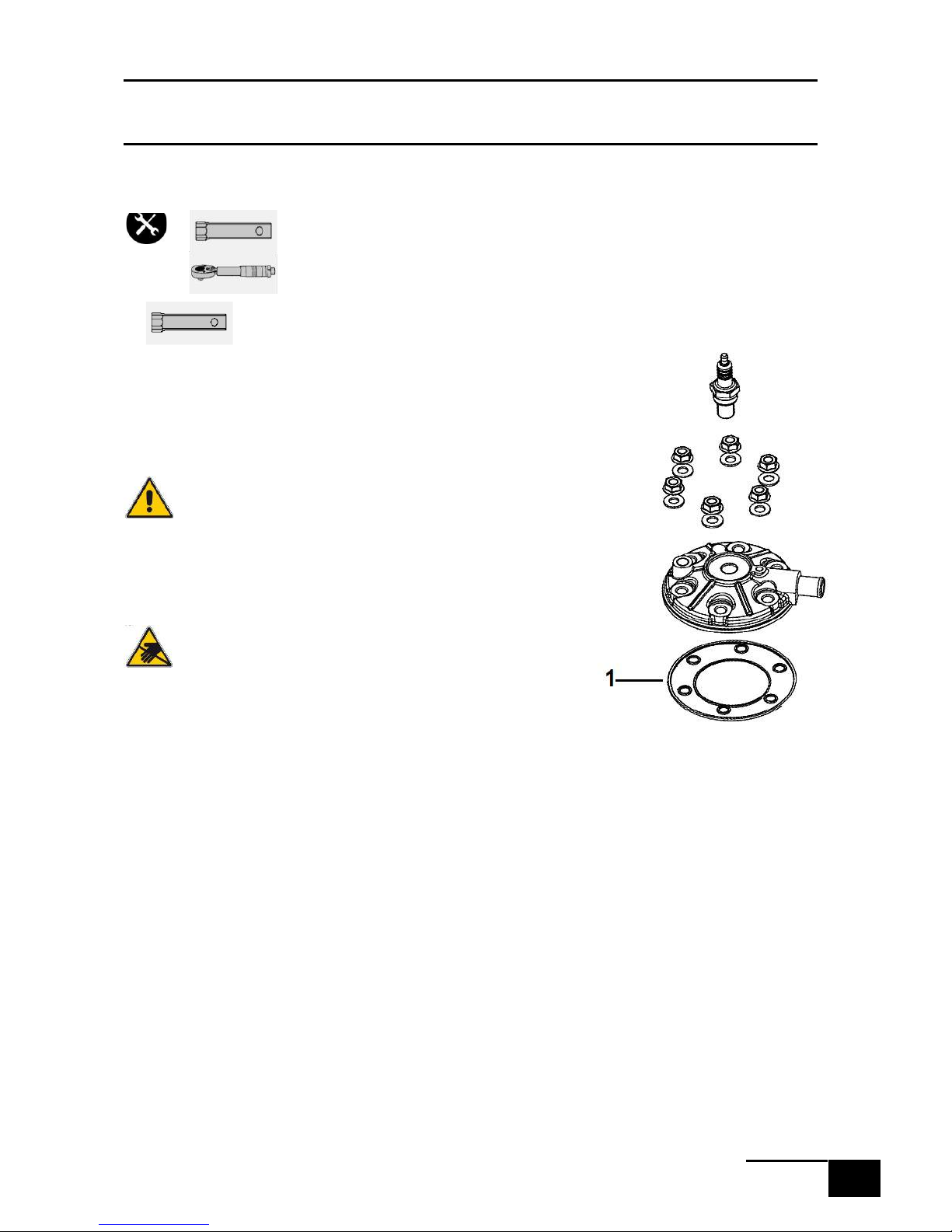

4.6.5 CYLINDER HEAD CLEANING
10mm Tube Wrench
Torque Wrench
Spark Plug Wrench
Be aware, cylinder head combustion chamber
volume may vary during the race. Carbon deposits may cause variations in cylinder head volume. Remove spark plug. Remove the six head nuts and relative washers. Remove cylinder head by pulling it up carefully.
Use rubber gloves.
After cleaning the combustion chamber with fuel, reassemble cylinder head.
Insert carefully the head on to the studs and check all o-rings are fitted in the right place. If any is damage, change it. Insert washers and nuts in the studs and tight them manually. Now, by using a torque wrench tighten them alternatively at 1,2 Kgm.
Page 27
MAINTENANCE
DVS-Junior
24
4.6.6 CYLINDER CHECK AND MAINTENEANCE
10mm Tube Wrench
Torque Wrench
To avoid engine damage, a Vortex qualified mechanic
must perform inspection and honing.
Remove exhaust.
Remove spark plug. Remove the six head nuts and relative washers. Remove cylinder head by pulling it up carefully. Remove the cylinder from the crankcase slowly. Once cylinder is separate from crankcase, hold the connecting rod with the other hand and pull the cylinder out totally by pulling it up carefully. Every time cylinder is removed we recommend changing cylinder gasket.
Cylinder must be honed when cylinder/piston
clearance is more than 0.12mm or when ovalization is
more than 0.02 mm. Change piston (see 4.6.7) New piston cylinder/piston clearance must be 0.12mm.
REASEMBLING Insert a new gasket on to the studs carefully and place it on the crankcase surface flat. Insert now the cylinder in the studs very carefully. With the other hand close piston ring and inset the piston into the cylinder. If piston ring is not closed totally, risk of damaging the cylinder and piston ring is very high. Push the cylinder down firmly. Tight four cylinder nuts with torque wrench at 20Nm. Insert cooper washer. Install, carefully, the head onto the studs and check all o-rings are fitted in the right place. If any is damaged, change it. Install washers and nuts onto the studs and tight them manually. Now, by using a torque wrench tighten them alternatively at 1,6 kgm.
Every time cylinder is honed or piston changed, the engine break-in procedure must be
performed.
Page 28
MAINTENANCE
DVS-Junior
25

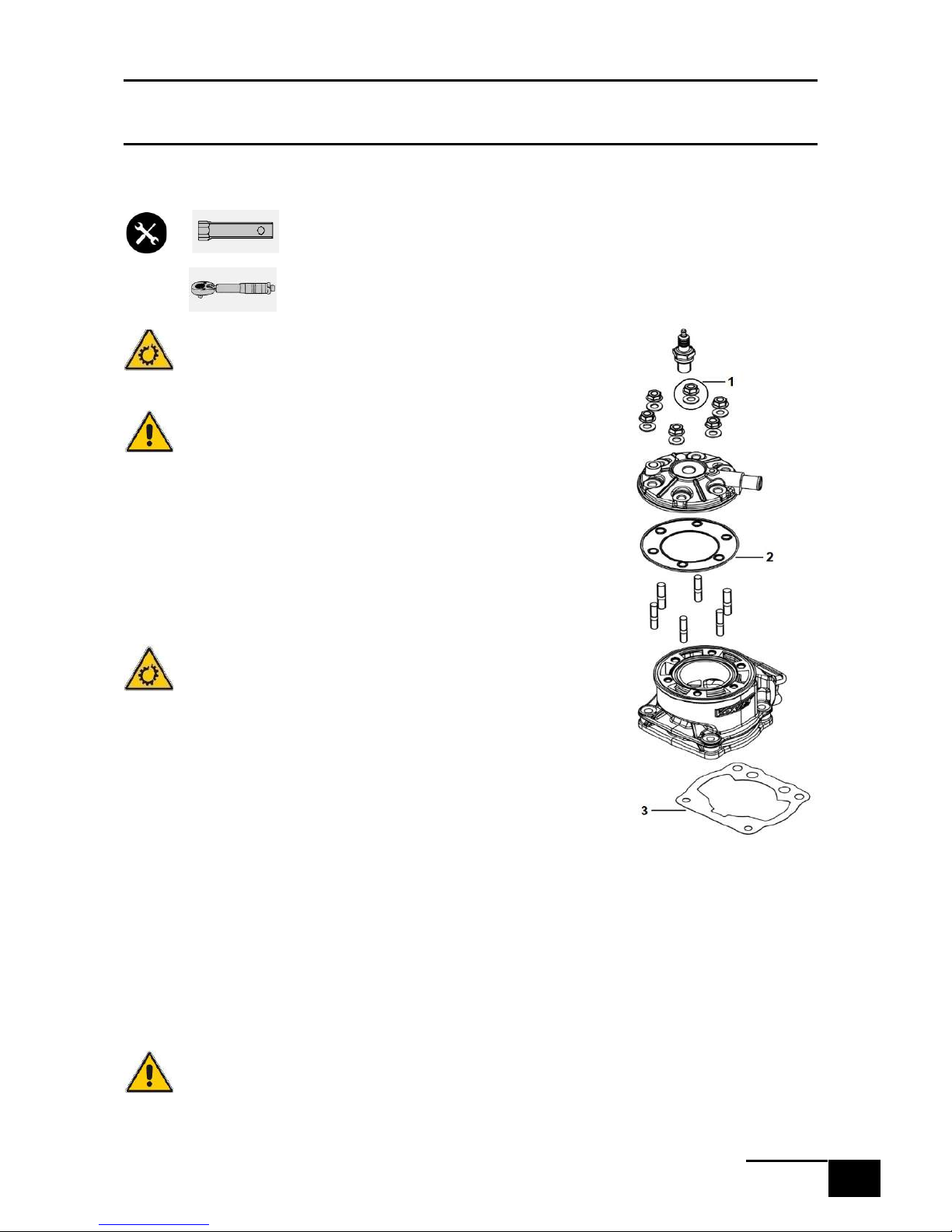

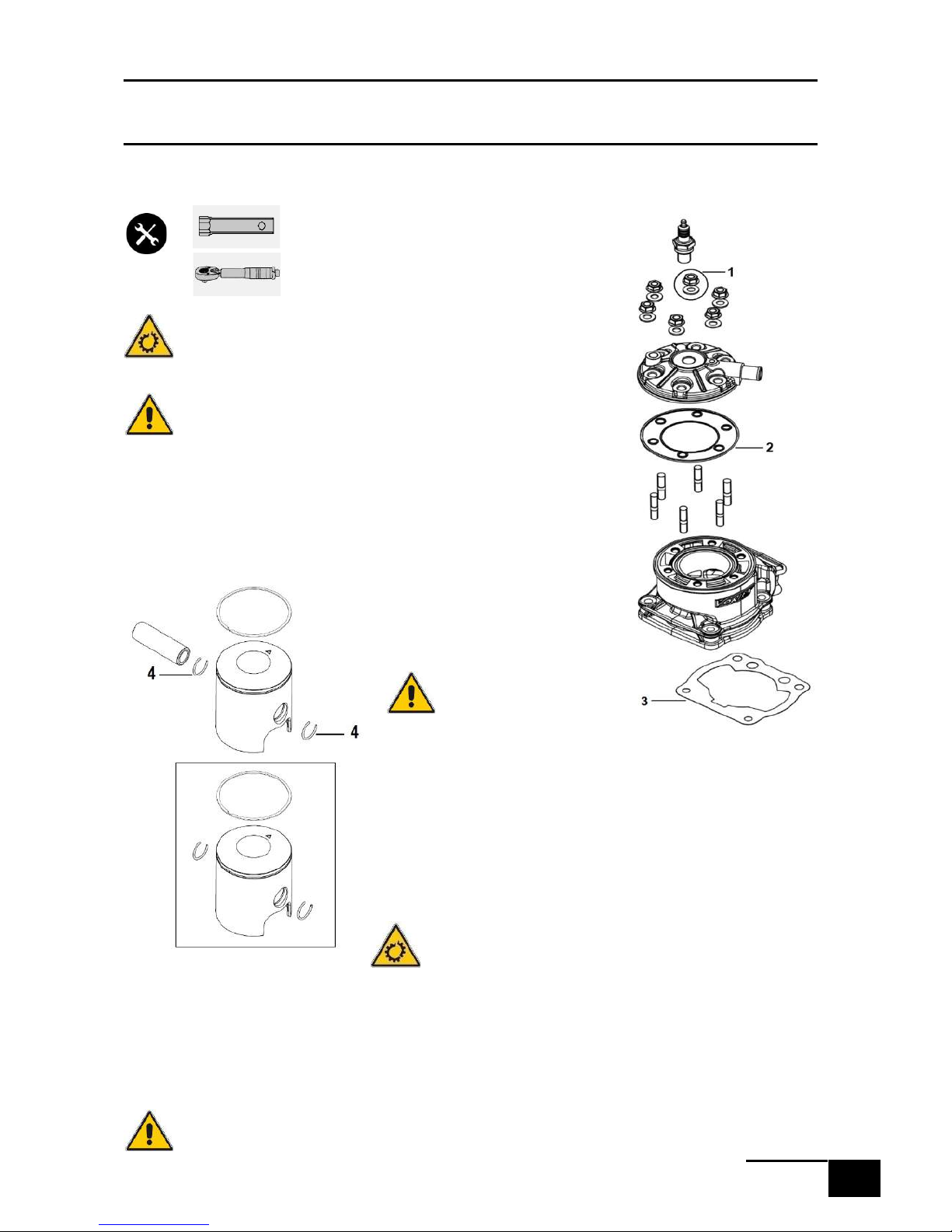

4.6.7 PISTON CHECK AND MAINTENEANCE
10mm Tube Wrench
Torque Wrench
To avoid engine damage, a Vortex qualified mechanic
must perform inspection and honing.
Remove exhaust.
Remove spark plug. Remove the six head nuts and relative washers. Remove cylinder head by pulling it up carefully. Once cylinder is separate from crankcase, hold the connecting rod with the other hand and pull the cylinder out totally by pulling it up carefully. Every time cylinder is removed we recommend changing cylinder gasket. (3)
Remove the circlips from the piston pin. Push the pin out of the piston. (4)
Before assembling a new piston check
dimensional sizes. Correct cylinder/piston clearance is 0.12mm. ASSEMBLING Oil and insert the roller cage in the connecting rod. Install the new piston in the connecting rod by placing the arrow stamped in the head of the piston facing the exhaust port. Insert now the piston pin and secure it with the circlips.
Attention, wrong circlips assembling may cause serious damage.
Insert the piston ring in the piston carefully. Check both ends of the piston ring when totally closed have a gap of 0,30/0,35 mm. Now you are ready to assemble cylinder and cylinder head as per 4.6.6
Engine needs a brake-in session when a new piston has been placed.
Page 29
PARITSTS
_
DVS-Junior
7
8
108
Page 30

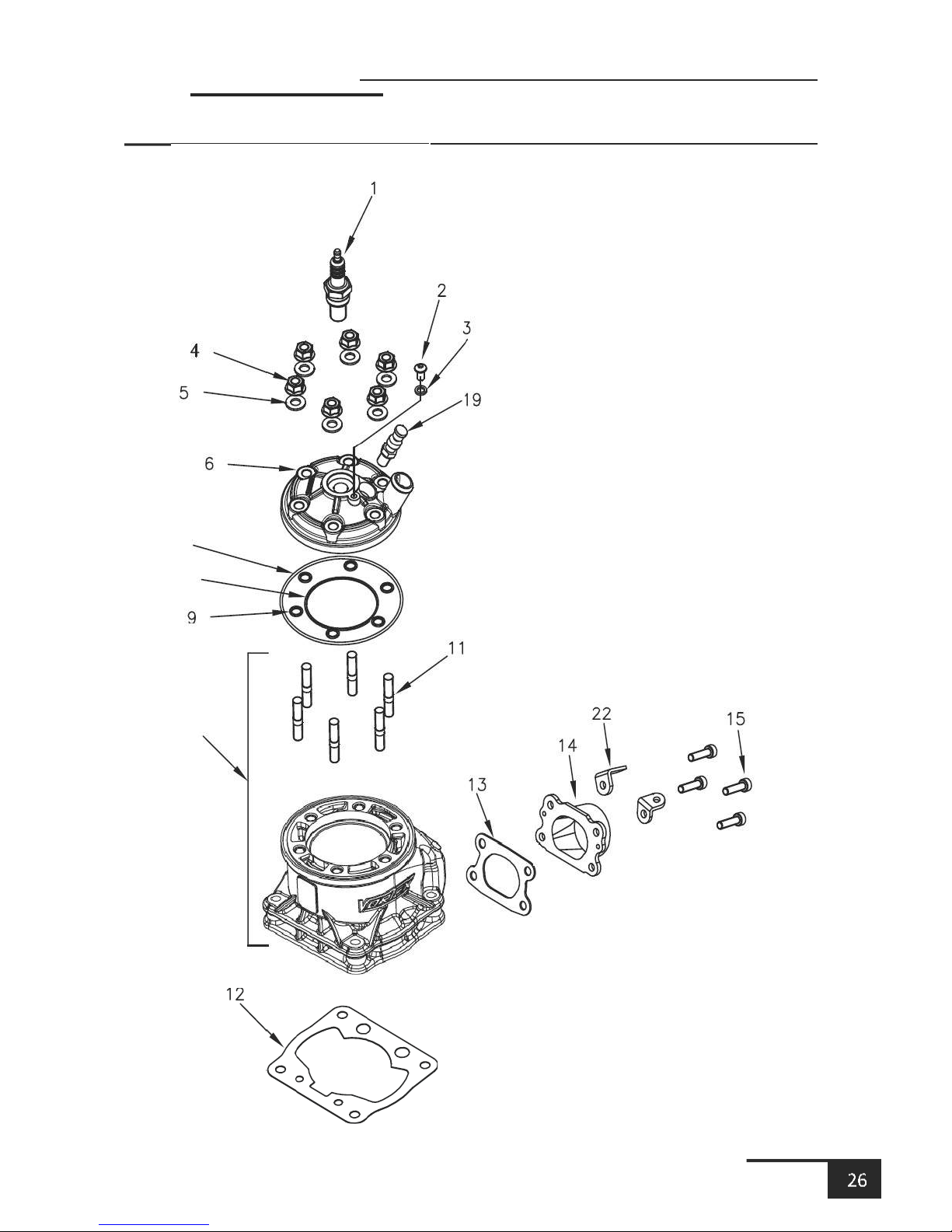

PARTS
DVS-Junior
27
1
W003 Candela NGK b10 eg Spark plug NGK b10 eg 1
2
W511/10 Vite TBCE M6x10 Roundhead screw M6 x10 10
3
W10662
Guarnizione
rame 6x10x1,5 Copper gasket 6x10x1,5 10
4
W530/10FL Dado M8 chiave 10 flangiato Nut M8x10 10
5
W560/17 Rondella 8,4x17x1,6 ZNB Washer 8,4x17x1,6 ZNB 10
6
W10010/DVSJ Testa motore DVS JUNIOR Engine head DVS JUNIOR 1
--
W630/005KF
Guarnizione
testa ottone crudo 0,05 Brass head gasket 0,05 1
--
W630/10KF
Guarnizione
testa ottone crudo 0,10 Brass head gasket 0,10 1
--
W630/20KF
Guarnizione
testa ottone crudo 0,20 Brass head gasket 0,20 1
--
W630/30KF
Guarnizione
testa ottone crudo 0,30 Brass head gasket 0,30 1
7
W629 O-ring 3400 testa/cilindro NBR O-ring
cylinder/head
3400 NBR 1
8
W620 O-ring testa 2237 viton O-ring head 2237 viton 1
9
W627 O-ring prigionieri 2031 O-ring stud bolt 2031 10
10B W10021/KF3C Cilindro motore DVS J con prigionieri Complete cylinder DVS J with studbolt 1
11
W10043/RVZ Prigionieri testa/cilindro M8x56 Cylinder head studbolt M8x56 1
12
W10104/KF1 Guarnizione base cilindro spessore 0.1 Cylinder basis gasket 0,1 1
12
W10104/KF2 Guarnizione base cilindro spessore 0.2 Cylinder basis gasket 0,2 1
12
W10104/KF3 Guarnizione base cilindro spessore 0.3 Cylinder basis gasket 0,3 1
12
W10104/KF4 Guarnizione base cilindro spessore 0.4 Cylinder basis gasket 0,4 1
12
W10104/KF5 Guarnizione base cilindro spessore 0.5 Cylinder basis gasket 0,5 1
13
W670/RKF
Guarnizione
scarico Exhaust gasket engine 1
14
W10930/DDJ Collettore scarico Exhaust manifold 1
15
W510/14 Vite brugola M6x14 8.8
Socket-head
screw M6x14 8,8 10
19
W10012/DVS Valvola decompressione
Decompression
valve 1
22
W10928/DDS
Orecchietta
attacco molla collettore di scarico Ear connector for the spring exhaust manifold 1
Page 31
160
SEGMENTO
DALLA
SELEZIONE ALLA SELEZIONE
PISTON
RING
FROM
SElECTION TO SELECTION
SA 10
54.00
SA 12
54.01 54.02
SA 15 54.03
54.07
SA 20 54.08
54.11
SA 25
54.12 54.15
PARTS
DVS-Junior
18
16C
/
Page 32
29
PARTS
16C W10140/RKF Pistone completo A.P. RKF 54.00 Complete piston A.P. RKF 54.00 1
16C W10141/RKF Pistone completo A.P. RKF 54.01 Complete piston A.P. RKF 54.01 1
16C W10142/RKF Pistone completo A.P. RKF 54.02 Complete piston A.P. RKF 54.02 1
16C W10143/RKF Pistone completo A.P. RKF 54.03 Complete piston A.P. RKF 54.03 1
16C W10144/RKF Pistone completo A.P. RKF 54.04 Complete piston A.P. RKF 54.04 1
16C W10145/RKF Pistone completo A.P. RKF 54.05 Complete piston A.P. RKF 54.05 1
16C W10146/RKF Pistone completo A.P. RKF 54.06 Complete piston A.P. RKF 54.06 1
16C W10147/RKF Pistone completo A.P. RKF 54.07 Complete piston A.P. RKF 54.07 1
16C W10148/RKF Pistone completo A.P. RKF 54.08 Complete piston A.P. RKF 54.08 1
16C W10149/RKF Pistone completo A.P. RKF 54.09 Complete piston A.P. RKF 54.09 1
16C W10150/RKF Pistone completo A.P. RKF 54.10 Complete piston A.P. RKF 54.10 1
16C W10151/RKF Pistone completo A.P. RKF 54.11 Complete piston A.P. RKF 54.11 1
16C W10152/RKF Pistone completo A.P. RKF 54.12 Complete piston A.P. RKF 54.12 1
16C W10153/RKF Pistone completo A.P. RKF 54.13 Complete piston A.P. RKF 54.13 1
16C W10154/RKF Pistone completo A.P. RKF 54.14 Complete piston A.P. RKF 54.14 1
16C W10155/RKF Pistone completo A.P. RKF 54.15 Complete piston A.P. RKF 54.15 1
16C W10140/RKFVP Pistone completo V.P. RKF 54.00 Complete piston V.P. RKF 54.00 1
16C W10141/RKFVP Pistone completo V.P . RKF 54 .01 Complete piston V.P. RKF 54.01 1
16C W10142/RKFVP Pistone completo V.P. RKF 54.02 Compl ete piston V.P. RKF 54.02 1
16C W10143/RKFVP Pistone completo V.P. RKF 54.03 Compl ete piston V.P. RKF 54.03 1
16C W10144/RKFVP Pistone completo V.P. RKF 54.04 Compl ete piston V.P. RKF 54.04 1
16C W10145/RKFVP Pistone completo V.P. RKF 54.05 Compl ete piston V.P. RKF 54.05 1
16C W10146/RKFVP Pistone completo V.P. RKF 54.06 Compl ete piston V.P. RKF 54.06 1
16C W10147/RKFVP Pistone completo V.P. RKF 54.07 Compl ete piston V.P. RKF 54.07 1
16C W10148/RKFVP Pistone completo V.P. RKF 54.08 Compl ete piston V.P. RKF 54.08 1
16C W10149/RKFVP Pistone completo V.P. RKF 54.09 Compl ete piston V.P. RKF 54.09 1
16C W10150/RKFVP Pistone completo V.P. RKF 54.10 Compl ete piston V.P. RKF 54.10 1
16C W10151/RKFVP Pistone completo V.P. RKF 54.11 Compl ete piston V.P. RKF 54.11 1
16C W10152/RKFVP Pistone completo V.P. RKF 54.12 Compl ete piston V.P. RKF 54.12 1
16C W10153/RKFVP Pistone completo V.P. RKF 54.13 Compl ete piston V.P. RKF 54.13 1
16C W10154/RKFVP Pistone completo V.P. RKF 54.14 Compl ete piston V.P. RKF 54.14 1
16C W10155/RKFVP Pistone completo V.P. RKF 54.15 Compl ete piston V.P. RKF 54.15 1
16D W260/SA10 Fascia elastica 54,10x1,5 Piston ring 54,10x1,5 1
16D W260/SA15 Fascia elastica 54,15 x1,5 Piston ring 54,15x1,5 1
16D W260/SA20 Fascia elastica 54,20x1,5 Piston ring 54,20x1,5 1
16D W260/SA25 Fascia elastica 54,25x1,5 Piston ring 54,15x1,5 1
17
W10081 Anellino fermo spinotto d.15 Piston circlip d.15 10
18
W10082 Spinotto pistone d.15 Piston pin d.15 1
DVS-Junior
Page 33
PARTS
54
63
62
64
65
66
67
69
68
72
73
75
77
820
83E
Page 34
DVS-Junior
Page 35
31

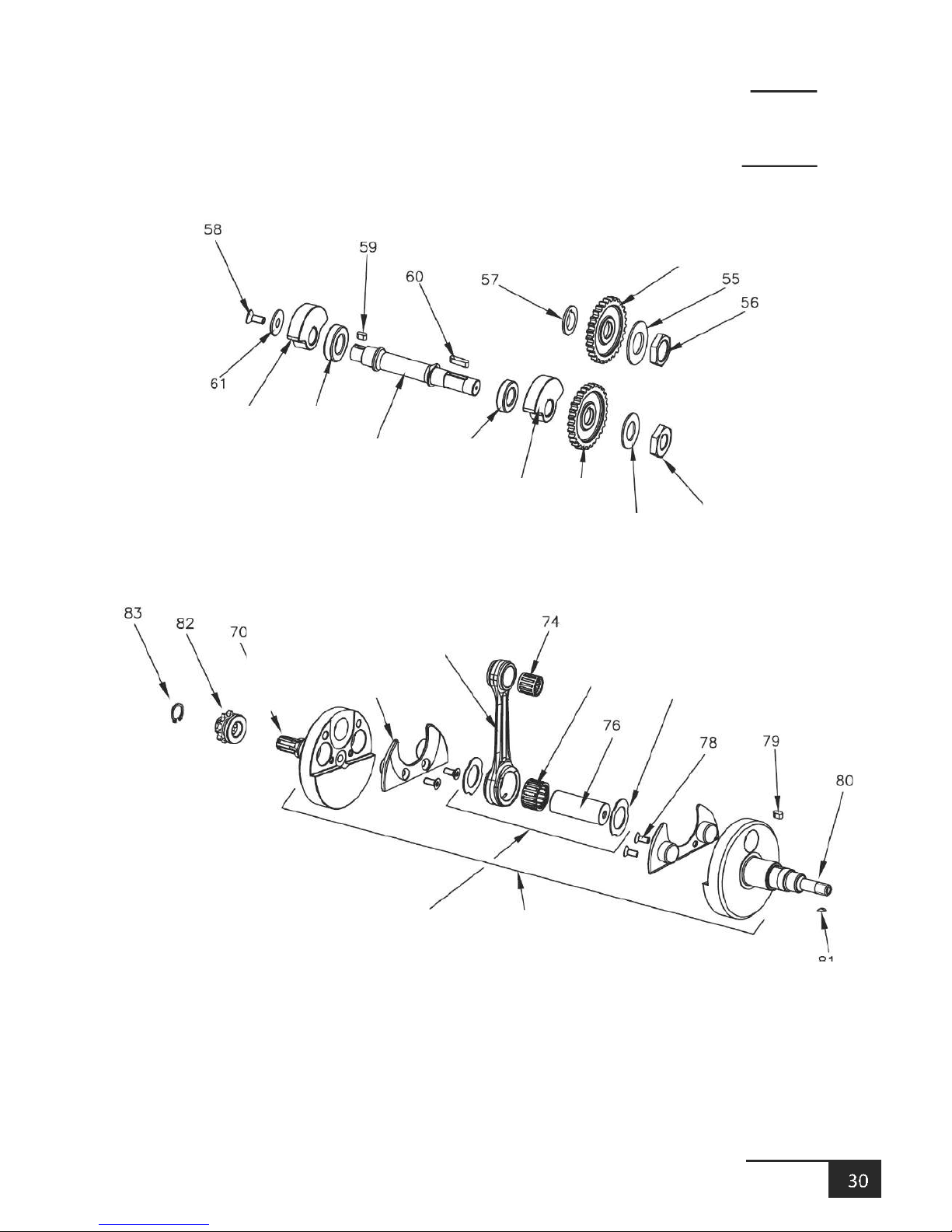

PARTS
54
W2004/KF Ingranaggio
contralbero
su albero Balancer shaft gear on shaft 1
55
W1767/1ROK Molla a tazza 20,4x32,5x1,5
Belleville
washer 20,4x32,5x1,5 1
56
W1765/KF Dado M20x1 SP.5 Nut M20x1 TH.5 1
57
W2000/DVS Distanziale pompa acqua DVS Water pump spacer DVS 1
58
W502/16T Vite TSCE M8x16 tornita Flathed screw M8x16 turned 1
59
W124 Chiavetta 4x4x10 Key 4x4x10 1
60
W126 Chiavetta 4x4x20 Key 4x4x20 1
61
W2016/KF Ralla massetta contralbero Counterweight washer balancer shaft 1
62
W2014/KF Massetta lato trasmissione contralbero Counterweight drive side balancer shaft 1
63
W302/KF Cuscinetto a rrulli nu203 ECPC3 Insert nu203 ECPC3 1
64
W2012/KF Albero contralbero Shaft balancer shaft 1
65
W301/ROK Cuscinetto 6302 tn9 c4 Insert 6302 tn9 c4 1
66
W2013/KF Massetta
contralbero
lato accensione Counterweight balancer shaft ignition side 1
67
W2003/KF Ingranaggio
contralbero
su contralbero Balancer shaft gear on balancer shaft 1
68
W1764/KF Ralla a tazza 14,3x23,7x0,4 Washer 14,3x23,7x0,4 10
69
W1768/KF Dado contralbero M14x1 filetto sx Balancer shaft nut M14x1 left 1
70
W150/DVS Semialbero lato trazione DDS/DDJ/DVS Drive side half crankshaft DDS/DDJ/DVS 1
72
W160/KF Guancetta nylon Nylon crankshaft stuffer 1
73
W230/RKF Biella nuda DVS/DVSJ/DDJ Bare conrod DVS/DVSJ/DDJ 1
74
W10085 Gabbia piede biella 15x19x20 B2 Small end needle cage 15x19x20 B2 1
74
W10085/B4 Gabbia piede biella 15x19x20 B4 Small end needle cage 15x19x20 B4 1
75
W10320 Gabbia argentata iko 20x26x15 B2 Silver plated cage iko 20x26x15 B2 1
75
W10320/B4 Gabbia argentata iko 20x26x15 B4 Silver plated cage iko 20x26x15 B4 1
75
W10320/B6 Gabbia argentata iko 20x26x15 B6 Silver - plated cage iko 20x2x15 B6 1
76
W200/KF Asse accoppiamento albero Crankshaft crankpin 1
77
W10310/KF Ralla argentata d.20.1 a stella Silver-plated s him d.20,1 1
78
W522/12 Vite TSCE M5x12 Flathead screw M5x12 10
79
W124 Chiavetta 4x4x10 Key 4x4x10 1
80
W140/KF Semialbero lato accensione DDS/DDJ/DVS PVL Magneto side half crankshaft DDS/DDJ/DVS PVL 1
81
W122 Chiavetta lato
accensione
2,5x3,7x10 Key 2,5x3,7x10 1
82
W690/3VLR Pignone z-10 Sprocket z-10 1
82
W690/3VLR11 Pignone z-11 Sprocket z-11 1
82
W690/3VLR12 Pignone z-12 Sprocket z-12 1
82
W690/3VLR13 Pignone z-13 Sprocket z-13 1
83
W693/VLR Seeg er pignone Sprocket circlip 10
82D W190/RKF Biella completa DDJ/DVS Complete conrod DDJ/DVS 1
83E W130/DDJ Albero motore completo DDJ/DVS PVL Complete crankshaft DDJ/DVS PVL 1
DVS-Junior
Page 36
PARTS
128
Page 37

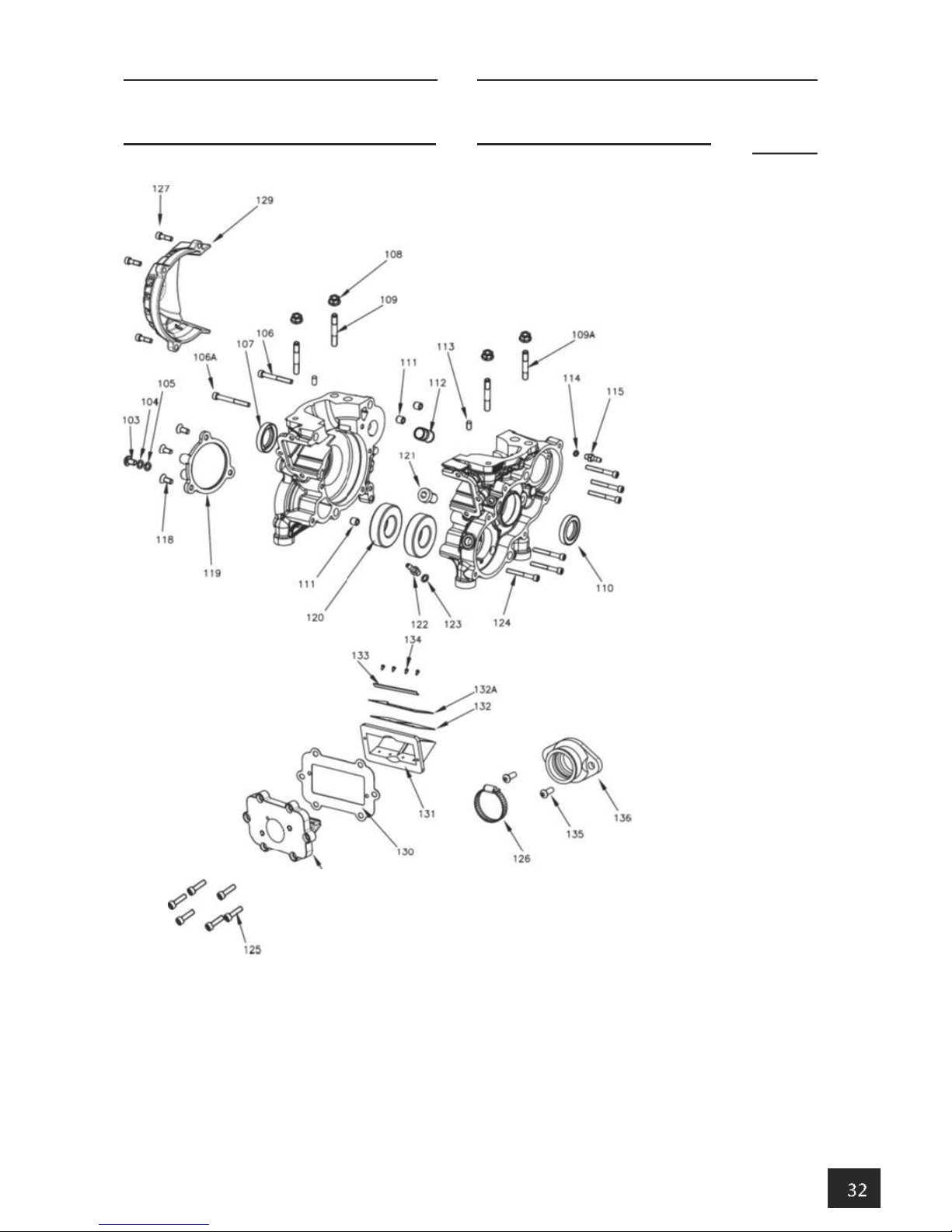

PARTS
103 W511/10 Vite TBCE M6x10 Roundhead screw M6x10 10
104 W570/12 Rondella piana 6 x12x1.5 ZNB Flat washer 6x12x1.5 ZNB 10
105 W10662
Guarnizione
rame 6x10x1,5 Copper gasket 6x10x1,5 10
106 V.TCE6X40 Vite brugola M6x40
Socket-head
screw M6x40 10
106A V.TCE6X45 Vite brugola M6x45
Socket-head
screw M6x45 10
107 W310 Paraolio FPJ 20 x35x7 doppio labbro Oilseal FPJ 20x35x7 doubble lips 1
108 W530/10FL Dado m8 chiave 10 flangiato Nut m8x10 10
109 W10042/1
Prigioniero
base cilindro M8x55 Cylinder studbolt M8x55 1
109A W10042/KF
Prigioniero
base cilindro M8x49 Cylinder studbolt M8x49 1
110 W10552 Paraolio pignone 25x40x7 Sprocket seal 25x40x7 1
111 W075/1 Bussola carter 10x10,5x6,5 Crankcase dowel 10x10,5 x6,5 1
112 W015 Raccordo acqua testa/cilindro Water head pipe fitting 1
113 W1766/1ROK Spina cilindrica 6x12 Cylindrical pin 6x12 1
114 W10662
Guarnizione
rame 6x10x1,5 Copper gasket 6x10x1,5 10
115 W800/ROK Raccordo presa depressione Depression pipe fitting 1
118 W512/14 Vite TSCE M5x14 Flathead screw M5x14 10
119 W2017/DDS Coperchio contralbero DDS/DDJ DDS/DDJ Balancer shaft cover 1
120 W300/A4 Cuscinetto banco 6205 c4 Insert
crankcase
6205 c4 1
121 W10252 Tappo olio TCEM1M12x1.5 completo Complete oil plug TCEM1M12x1,5 1
122 W800 Raccordo depressione M8 esagonale Depression pipe fitting M8 hexagonal 1
123 W10267
Guarnizione
rame 8x12x1 Copper gasket 8x12x1 10
124 V.TCE6X50 Vite brugola M6x50
Socket-head
screw M6x50 10
125 V.TCE6X16 Vite brugola M6x16
Socket-head
screw M6x16 10
126 W10277 Fascetta carburatore Carburettor clamp 1
127 V.TCE6X20 Vite brugola M6x20
Socket-head
screw M6x20 10
127 W510/14 Vite brugola M6x14 8.8
Socket-head
screw M6x14 8,8 10
128 W350/ACADEMY Convogliatore pacco lamellare DDJ academy Reed valve piramid conveyor academy 1
129 W740/MR Coperchio carter frizione Clutch guard cover 1
130 W351/RKF
Guarnizione
convogliatore pacco la mellare Conveyor reed valve pyramid gasket 1
131 W362/DVS Pacco lamellare DDS/DDJ/DVS con balestrini Reed pyram. DDS/DDJ/DVS with stiffener 1
132 W393/1KF30 Petalo carbonio spessore 0,30 Carbon petal thickness 0,30 1
132A W399/KF Balestrino carbonio 9/12 Carbon Flow deviat.9/12 1
133 W389 Piastrina lunga pacco maggiorato Enlarged pyramid long plate 1
134 W380 Viti fissaggio lamelle M3x5 Reeds fixing screws M3 x5 10
135 W501/18 Vite TBCE M8x18 10.9 Roundhead screw M8x18 10.9 10
136 W2050/DDJ24 Collettore carburatore 24mm Inlet manifold 24mm 12
DVS-Junior
33
Page 38
1
.TT
15
1
PARTS
141
158
I
140
142
144
145
/145A
146
/
@ @
@@@
(j
{jGi
nc:::::a
l.ll
(@)
150
1
54
157
155
156
Page 39
Page 40
35
PARTS

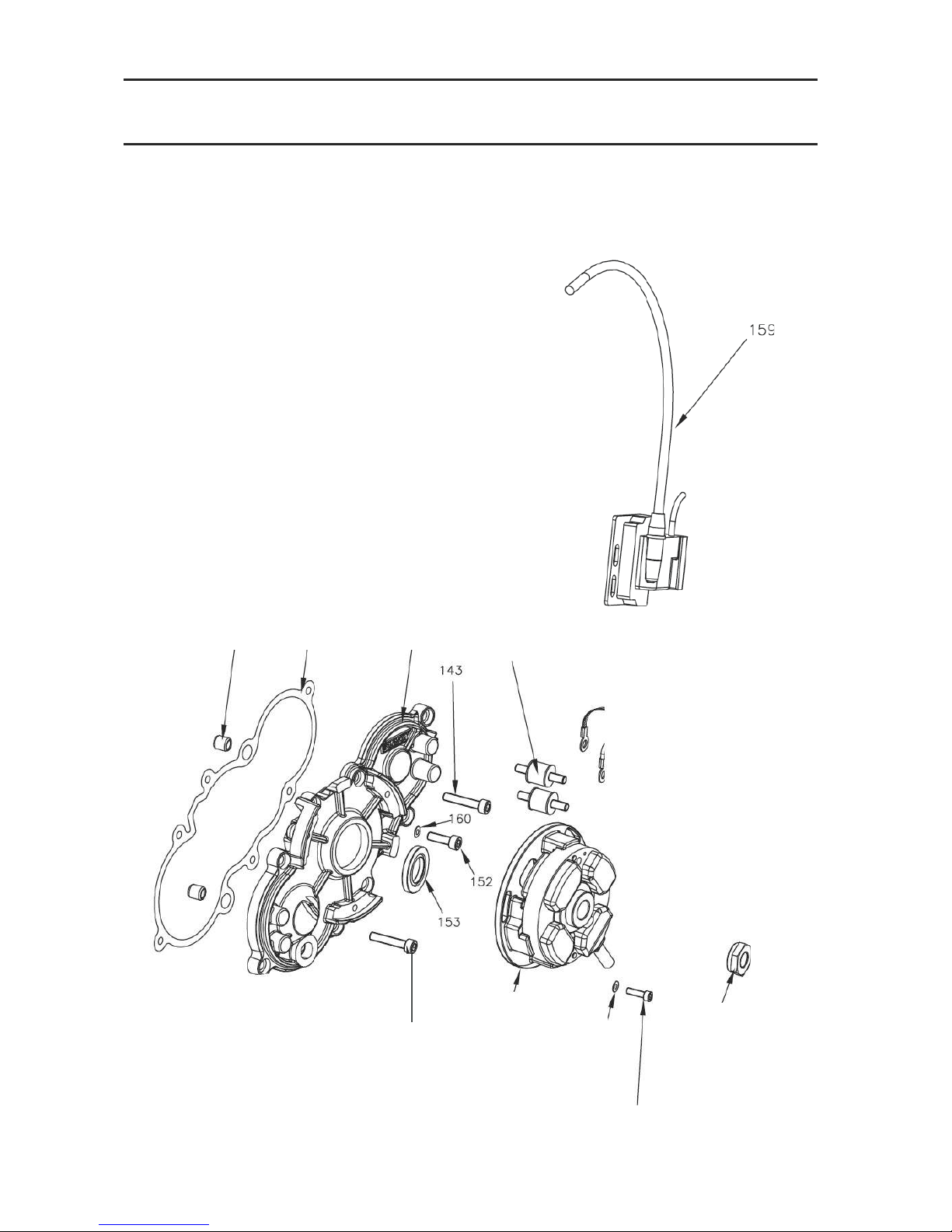

140 W075/1 Bussola carter 10x10,5x6,5 Crankcase dowel 10x10,5x6,5 1
141 W066/KF
Guarnizione
coperchio ingranaggi Gears cover gasket 1
142 W065/DDSP Coperchio ingranaggi completo PVL Gear cover PVL complete 1
143 V.TCE6X25 Vite brugola M6x25
Socket-head
screw M6x25 10
144 W440 Silent-block fissaggio bobina Coil fixing silent-block 1
145 W430/1 Cavetto massa in treccia Ground stra nded cable 1
145A W430 Cavetto massa Ground cable 1
146 R.P.6X18 Rondella piana 6x18x1 Flat washer 6x18x1 10
147 R.P.6X12 Rondella piana 6.3x12,5x1 Plain washer 6.3x12,5x1 10
148 W531/06 Dado esagonale M6x1 Hexagonal nut M6x1 10
149 V.TCE6X20 Vite brugola M6x20
Socket-head
screw M6x20 10
150 W2036/ROK Livello olio TLA2- M16x1,5 Oil level TLA2 M16x1,5 1
151 V.TCE6X25 Vite brugola M6x25
Socket-head
screw M6x25 10
152 W524/14 Vite brugola ribassata M5x14
Socket-head
screw M5x14 10
153 W320/1 Paraolio FPJ 17x28x7 doppio labbro Oil seal FPJ 17x28x7 double lip 1
154 W7002203000100 Accensione completa Bare Ignition 1
155 W580/11 Rondella piana 11,5 x5,3x1 Flat washer 11,5x5,3x1 10
156 V.TCE5X18 Vite brugola M5x18
Socket-head
screw M5x18 10
157 W695/1ROK Dado accensione M12x1 ZNB Ignition nut M12x1 ZNB 1
158 W420/2 Pipetta candela per accensione digitale Spark cap for digital ignition 1
159 W7002244000200 Bobina accensione DVS JUNIOR Coil DVS JUNIOR 1
DVS-Junior
Page 41
261
PARTS
'\'
fj
269
·
I
t::::@
265
263
264
Page 42
DVS-Junior
Page 43
DVS-Junior
37
PARTS

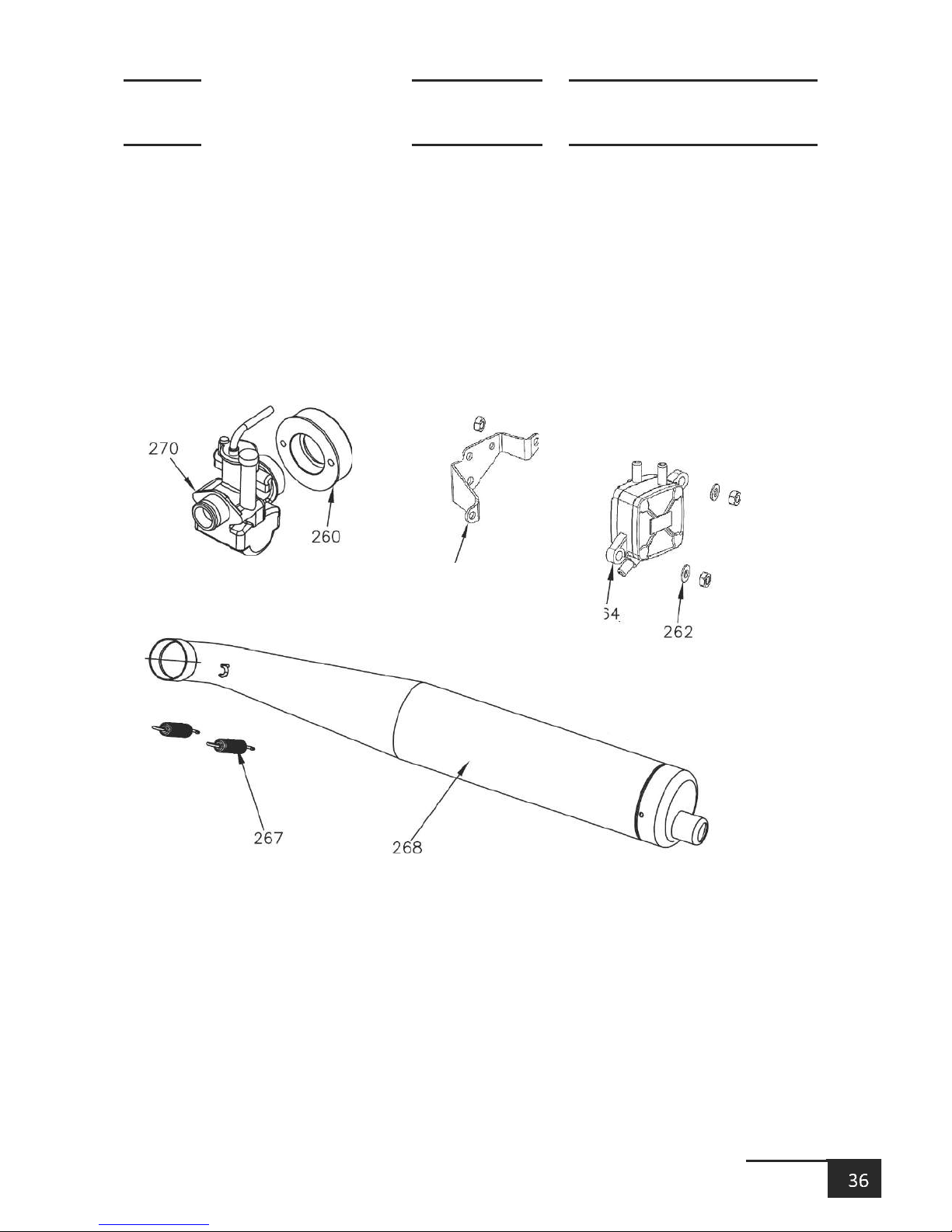

260 W849/ACADEMY Flangia carburatore academy Academy carburettor flange 1
261 W531/06 Dado esagonale M6x1 Hexagonal nut M6x1 10
262 W570/12 Rondella piana 6x12x1.5 ZNB Flat washer 6x12x1.5 ZNB 10
263 W440 Silent-block fissaggio bobina Coil fixing silent-block 1
264 W11023 Pompa depressione Dell'orto Vacuum pump Dell'orto 1
265 W10052/RVX Supporto pompa benzina Vacuum support pump 1
267 W10925/DDS Molla scarico DDJ Muffler spring DDJ 1
268 W10901/DDJ Marmitta DDJ Muffler DDJ 1
270 W10810/ACADEMY Carburatore Dell'orto WHST 24 BS Dell'orto carburettor WHST 24 BS 1
Page 44
DVS-Junior
I
PARTS
271
2811
292
297
298--0 299--1
Page 45
DVS-Junior
39
PARTS

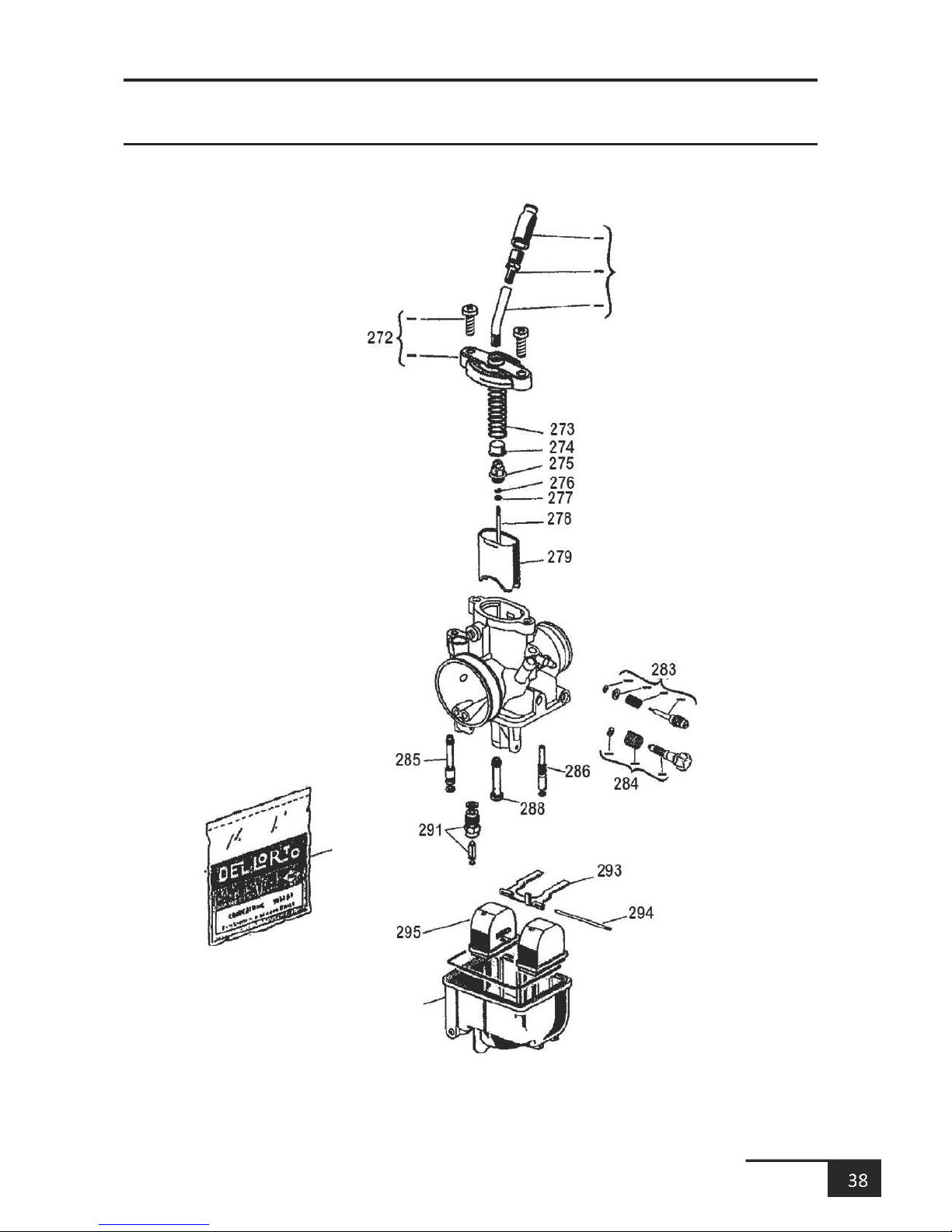

270 W10810/ACADEMY Carburatore Dell'orto WHST 24 BS Dell'orto carburettor WHST 24 BS 1
271 W7022800000900 Kit tubetto Tube kit 1
272 W7022800001000 Kit coperchio camera miscela Chamber mixture cover kit 1
273 W7022800001100 Molla richiamo valvola gas Gas valve spring 1
274 W14416 Fondello guida molla Spring bottom 1
275 W16663-04 Nipplo valvola gas Nipple gas valve 1
276 W9596211 Fermaglio spillo Needle fastener 1
277 W10825231 Rondella piana Flat washer 1
278 W702280000020A Spillo conico Conical needle 1
279 W702280000010A Valvola gas Gas valve 1
280 W7022800001200 Vite fissaggio dispositivo avviamento Starting device fixing scr ew 1
281 W7022800001300 Dispositivo avviamento Starting device 1
283 W7022800001400 Kit vite regolazione miscela minimo Adjustment minimum screw kit 1
284 W7022800001500 Kit vite regolazione valvola gas Adjustment gas valve screw kit 1
285 W702280000070A Getto avviamento Starting jet 1
286 W702280002100A Getto emulsionatore minimo Diffuser jet jet min. 1
288 W702280000030A Polverizzatore Spray nozzle 1
291 W702280000040A Valvola a spillo Needle valve 1
292 W7022800001600 Busta g uarnizioni car buratore Carburettor gaskets kit 1
293 W7022800001700 Bilanciere galleggiante Float balancer 1
294 W7022800001800 Perno galleggiante Float peg 1
295 W1576003
Galleggiante
gr. 4 Float gr.4 1
297 W7028000001900 Vaschetta Float chamber 1
298 W6413110 Getto massimo Jet max. 1
300 W7022800002000 Tappo vaschetta Float chamber plug 1
Loading...
