PURE PRO
Specifications & User manual

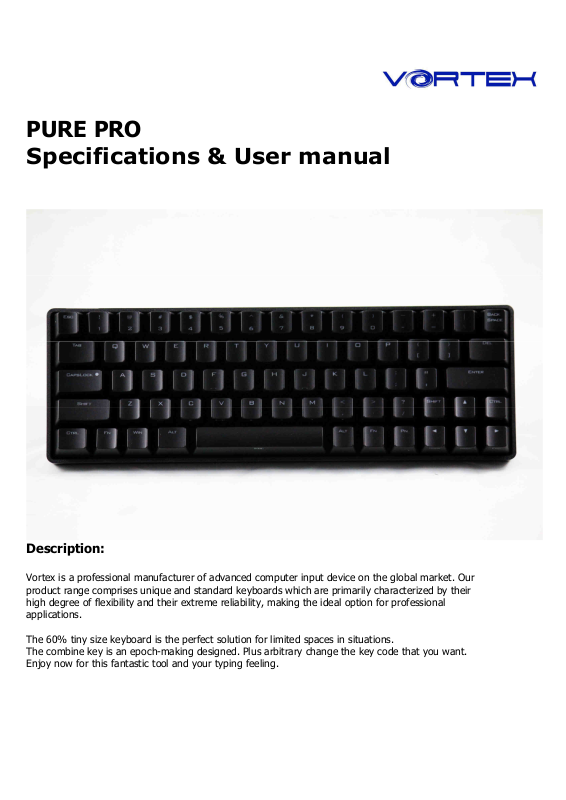

Description:
Vortex is a professional manufacturer of advanced computer input device on the global market. Our
product range comprises unique and standard keyboards which are primarily characterized by their
high degree of flexibility and their extreme reliability, making the ideal option for professional
applications.
The 60% tiny size keyboard is the perfect solution for limited spaces in situations.
The combine key is an epoch-making designed. Plus arbitrary change the key code that you want.
Enjoy now for this fantastic tool and your typing feeling.
Main Features:
1. Removable
60% keyboard with QWERTY layout (67 Key)
2.
3. Cherry MX key switch (Black, Blue, Brown, Red)
4.
Dual layer PCB
5. Key cap material: ABS(UV coating- Backlit version only)、PBT
6. LED backlight (Backlit version only)
USB Interface
7.
Package Material
1. Keyboard x 1
2. User Manual x 1
USB Cable x 1
3.
Technical Specification
Number of keys: Interface:
US ASCII (67 keys) = US Layout USB (DC5V ----100mA)
Dimension: Available layout:
29.5 x 10.2 x 3.8cm (Keyboard) US USA
Cable: JP JAPAN
1.5 meters (mini USB B type)
Key switch life time: Package:
Cherry: >5000 actuations 20 keyboards / 1 outer box
Programming Instruction
1. Press PMode(FN + Right CTRL) to enter the programming mode (PN LED flashing)
2.
Press the key you want to program (PN LED on)
3. Key in the programming content and then press PN (PN LED flashing again)
4. Repeat step 2 and step 3 to program other keys
Press PMode(FN + Right CTRL) to exit programming mode (PN LED off)
5.
Note:
• Support FN layer programming, you can select the FN combination key (e.g., FN + A) to program it
• Under SELECT state (step 1), you can press PN + any key to view its content in a word processing
software (e.g., Notepad)
• Support time delay, press 15ms key(FN + F) each time to delay 15ms, press 0.1s key(FN + G) each time
to delay 0.1s, press 0.5s key(FN + H) each time to delay 0.5s. Consecutive delay will add up but will only
be counted as 1 key stroke
• Every key can program up to 14 key strokes
• If there is no key pressed for 15 sec in programming, it will exit to normal mode
Programming Usage
Press PN + Programmed key, OR
Press Toggle(FN+Right SHIFT) to light up right FN key first. Then press the programmed key directly. If you
press PN + Programmed key at this moment, it will output the original key code.
Programming Examples
1. Program A as 123: FN + Right CTRL, A, 1, 2, 3, PN
2. Continue to program FN + A as 456: FN + A, 4, 5, 6, PN
3. Continue to program B as CTRL + C: B, CTRL(Not release), C, Release CTRL and C, PN
Continue to program C invoking CMD under WIN7: WIN, C, FN + G, M, FN + G, D, FN + H, ENTER, PN
4.
5. Finish programming: FN + Right CTRL
6. Invoking programmed A: PN + A => Output 123
7. Invoking programmed FN + A: PN + FN+ A => Output 456
8. Invoking programmed C: PN + C => Running CMD.EXE
9. Switch to PN layer: Toggle(FN + Right SHIFT) => Right FN LED on
(1) Invoking programmed B: B => Outpu CTRL + C (Same as copy)
(2) Invoking programmed FN + A: FN+ A => Output 456(No need to press PN)
(3) Invoking programmed C: C=> Running CMD.EXE
(4) If you need to get the A back (Now pressing A is 123): PN + A => A
Restore to factory default
Press and hold FN + R, Toggle LED is flashing after 3 sec. Continue to hold FN + R until the Toggle LED flashes
for 9 times will restore to factory default
FN General keys Remark
1 F1
2 F2
3 F3
4 F4
5 F5
6 F6
7 F7
8 F8
9 F9
0 F10
FN +
- _ F11
=
= + F12
I INS
P Print Screen
[ { Scroll Lock
] } Pause
X APP
↑
↓
←
→
Page Up
Page Down
HOME
END
Key code change
FN +
FN +
FN +
FN Multimedia keys Remark
Y Calculator
N Volume Down
M Volume Up
, <
=
Key code change
Mute
FN LED Control keys Remark
Backlit LED on (Except Left FN, Right FN
V
and PN)
Backlit LED off Press the 2nd time
C Reduce LED brightness
B
=
Increase LED brightness
Press the 1st time
Totally 7 level of
brightness, backlight
status and brightness will
be saved after power
down
FN Programming Control keys Remark
R Restore to factory default Need to hold for 12 sec
Switch to program layer Press the 1st time (Right FN on)
Right SHIFT
Right CTRL
=
Switch to visible layer Press the 2
Enter Programming Mode Press the 1st time (PN LED
Exit Programming Mode Press the 2
F Delay 15ms
G Delay 0.1s
H
Only valid in Programming Mode
Delay 0.5s
nd
time (Right FN LED
off)
flashing)
nd
time (PN LED off)
FN + Z =
FN Special keys Remark
SHIFT key is down even when the SHIFT
key is released. Press the SHIFT key again
will make the SHIFT key up
SHIFT key returns to normal Press the 2nd time (Left FN
Press the 1st time (Left FN
LED on)
LED off)
DIP Switch
SW 1
CAP LED = Left FN LED
Left FN LED = CAP LED
ON OFF Remark
CAP = Left FN
CAP = CAP
CAP LED = CAP LED
Left FN = CAP
Left FN = Left FN
Left FN LED = Left FN LED
Default = OFF
SW 2 Right CTRL = ` ~ Right CTRL = Right CTRL Default = OFF
SW 3 N/A N/A Default = OFF
Write protect, try to press
FN+R to program a key will
SW 4
cause PN LED flashing
Default = OFF
quickly for one sec and then
returns to normal

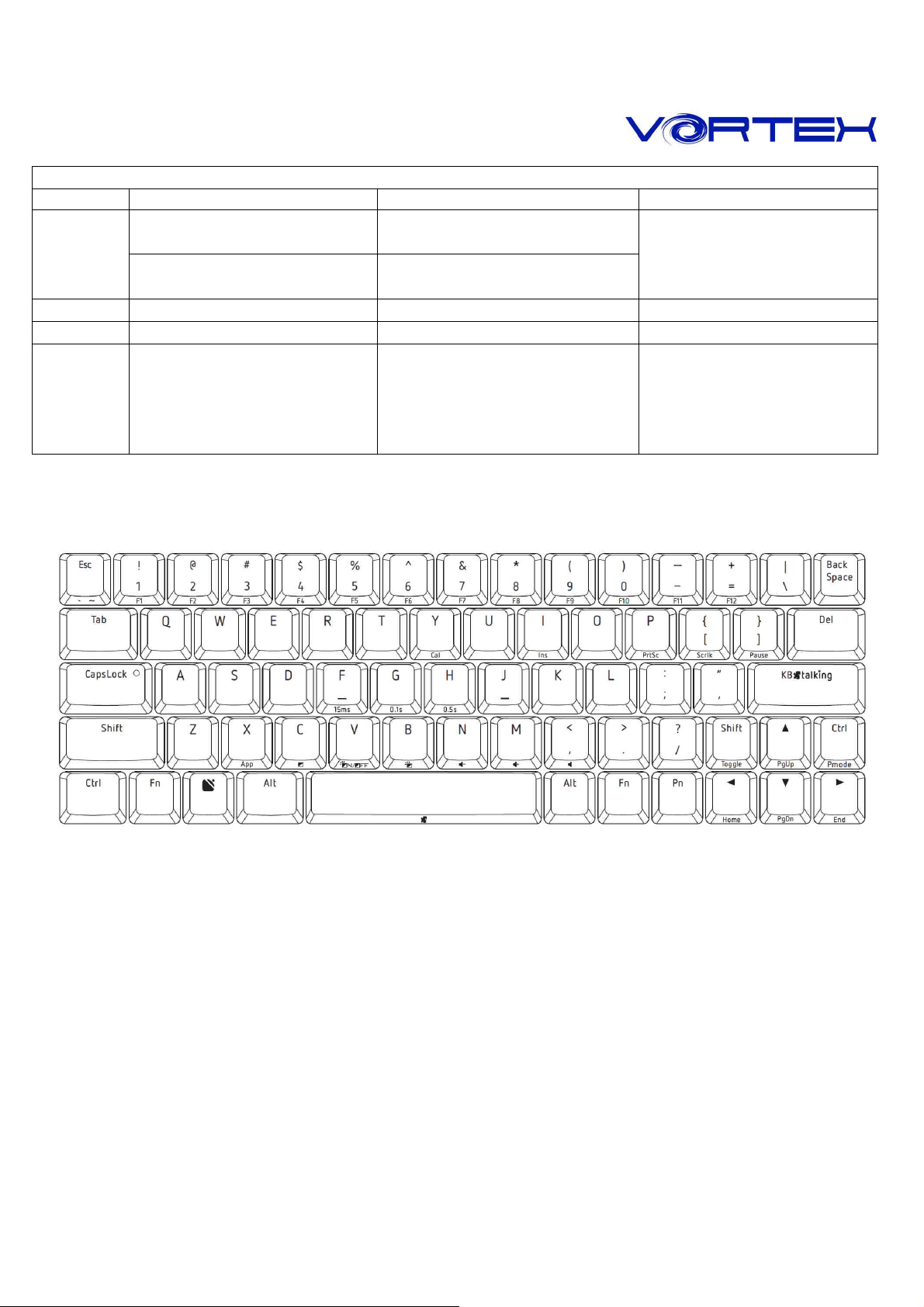

Keyboard Layout (Top view):
