FURY® HD 5000

LASER RANGEFINDING BINOCULARS

PRODUCT MANUAL

Ocular Lens

Reticle Focus Diopter Focus

Measure Button

Menu Button

Objective Lens

Center Focus

Tripod Adapter Socket

Twist-up Eyecup

Strap

Attachment

FURY® HD 5000

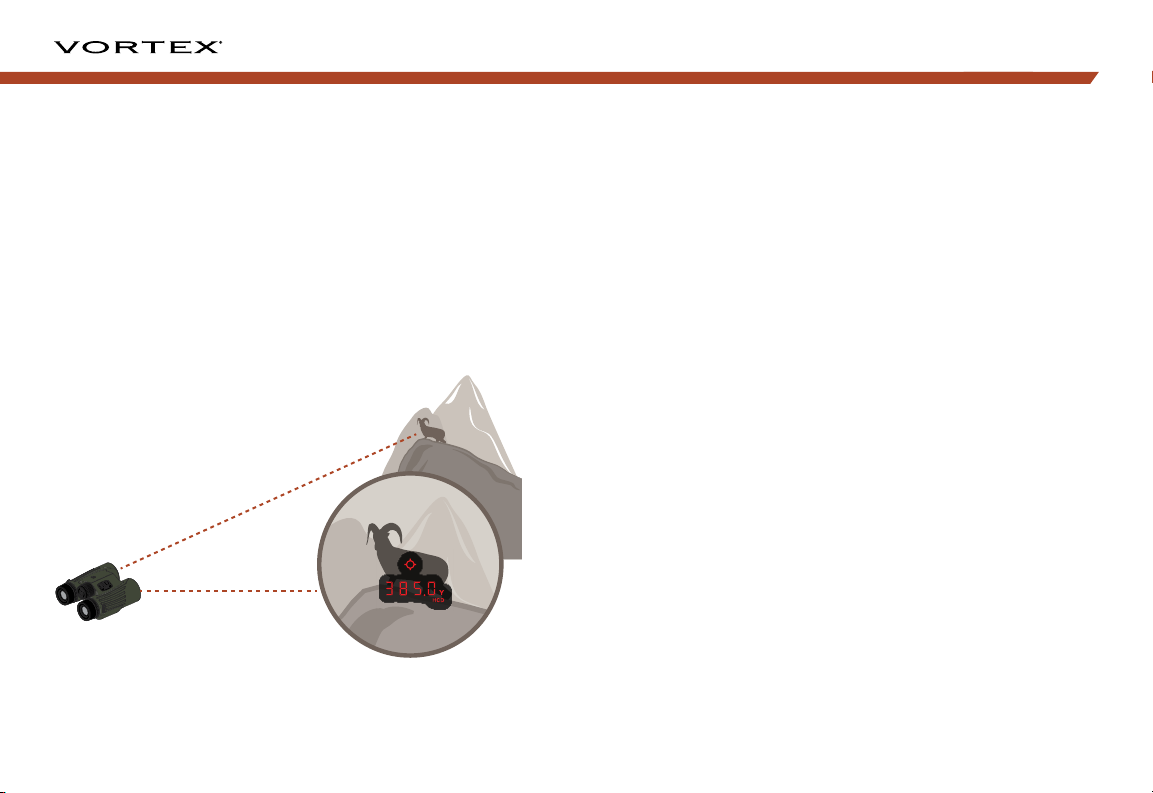

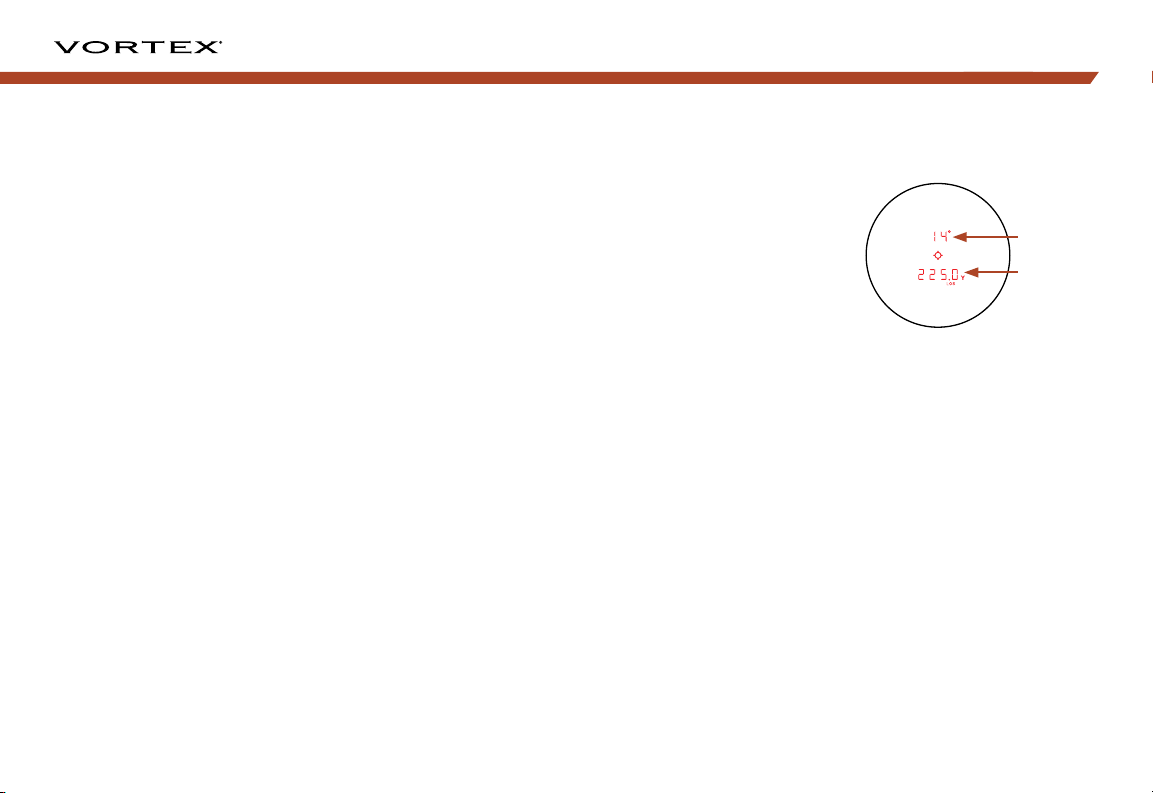

FURY® HD 5000 LASER RANGEFINDING BINOCULAR

The Fury® HD 5000 is an extremely effective angle-compensated
laser rangefinding binocular intended for hunters, archers and
shooters. The primary HCD (Horizontal Component Distance)
mode provides key angle compensated range information required
by the vast majority of rifle and bow shooters in a simple,
quick-to-read display.

The Fury
feature, along with adjustments for reading in yards or meters and
setting the brightness of the display.

®

HD 5000 also has a LOS (Line of Sight) mode and Scan

Images are for representation only. Product may vary slightly from
what is shown.

2 3

FURY® HD 5000

BASIC OPERATION

Adjust the Eyecups

The eyecups on a Fury® HD 5000
twist up and down so any viewer can
see the full field and enjoy
comfortable viewing—with or
without eyeglasses.

When not using eyeglasses or
sunglasses, keep the eyecups
fully extended. For best viewing
when wearing eyeglasses, twist
eyecups down.

Adjust the Interpupillary Distance

The interpupillary distance (IPD) is the distance between the
centers of the left and right eye pupils. Match the IPD of your eyes
to that of the binocular so you see a single image free of shading.
Rotate the binocular barrels inward or outward to line your eyes up
with ocular lenses.

Install Battery

Open the battery compartment and
install the CR2 battery included with
the Fury® HD 5000.

Install battery with

positive side facing in.

Power Up

To power up the Fury® HD 5000 and
prepare for ranging, press and release
the Measure button. The HCD or LOS
ranging screen will display. The Fury®
will power down automatically after
ten seconds of non-use.

Low Battery Icon

The low battery icon comes on at 25%
and stays on until there is no power.

–

+

4 5

FURY® HD 5000

Properly Focus the Rangefinding
Display and Binocular

For the best views, follow this process to
properly set the display, center focus, and
diopter. Choose an object that is about
20 yards away from you and stay in the
same spot until you have adjusted the
binocular for your eyes.

1. Power up the binocular and close your

left eye.

2. While viewing the rangefinding display

with your right eye, focus your right
eye on the object and adjust the
center focus wheel until the object is
in focus. Leave the center focus wheel
in this position.

3. Then, using the reticle focus

adjustment ring, adjust the reticle
focus to bring the display into sharp
focus. Once this is done, you will
not have to refocus the rangefinding
display again.

4. Close your right eye or cover the right

objective lens with your hand. Looking
at the object with your left eye, adjust
the diopter so the object is in focus.
Make note of this diopter setting in
case you need to set it again. From
this point on, you will only need to use
the center focus wheel.

6 7

Adjust Reticle Focus Ring

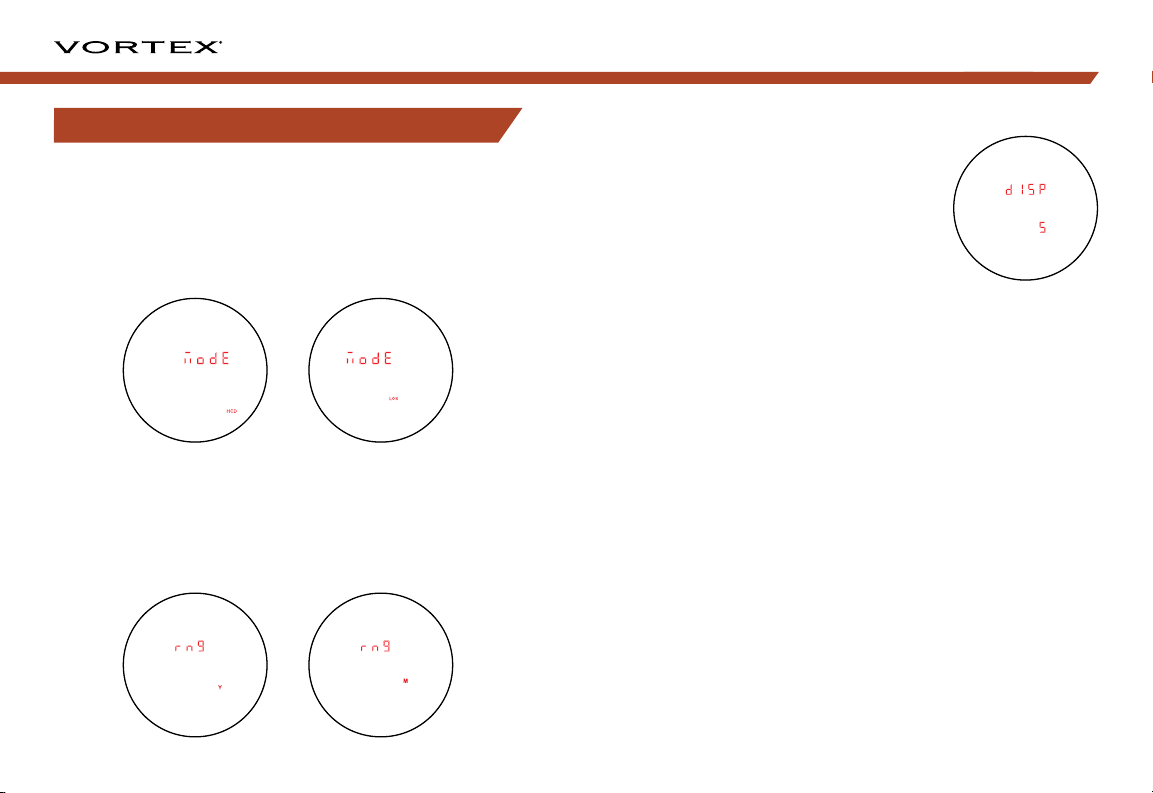

Mode Selection

Your Fury® HD 5000 is factory set to the angle compensating
HCD ranging mode, best target mode, yards, and maximum
brightness. For most users, these are the preferred settings.

To change modes: Press and release the Measure button to
power on and then press and hold the Menu button for at least
four seconds. Once the Mode Selection screen displays, release
the button.

As you progress through Mode Selection, you may exit at any
time and save your settings by pressing and holding the Menu
button for at least four seconds—the Fury
power-up condition.

Measure Button

Menu Button

®

will return to

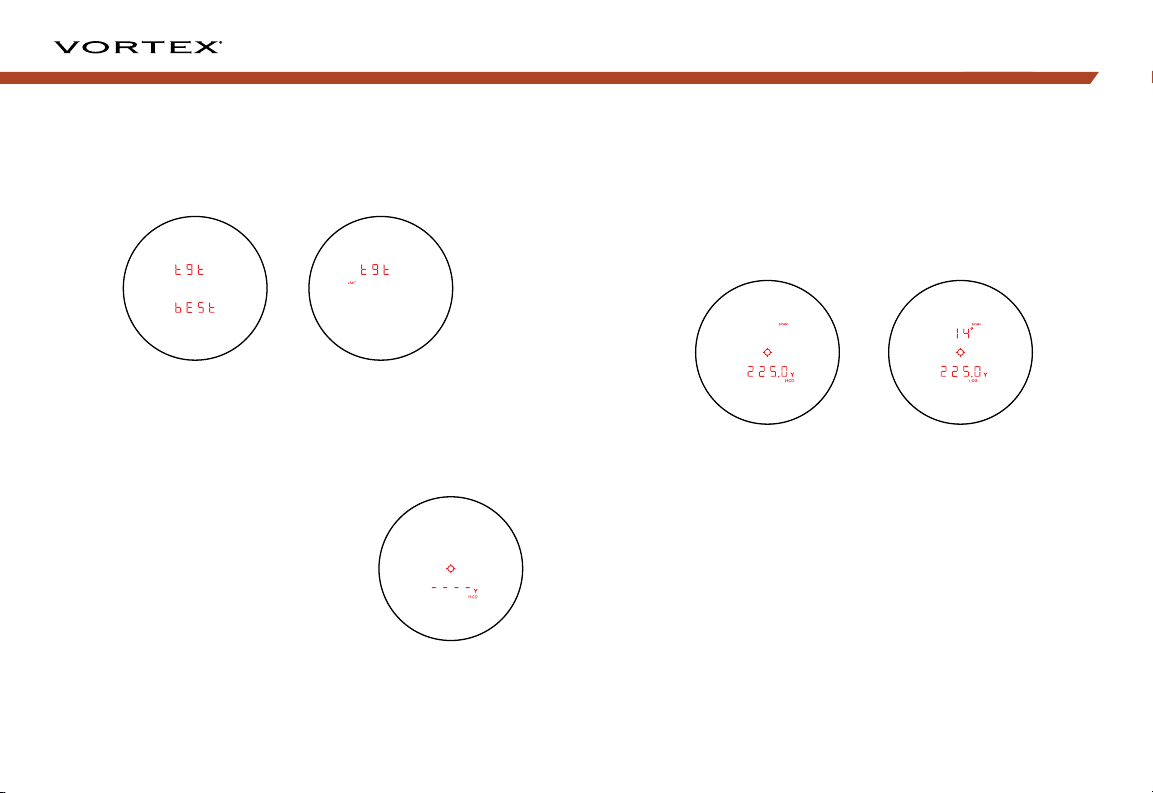

Mode Selection Display
