Vortex DB-214 User Manual

4

5

9

1

7

8

6

3

2

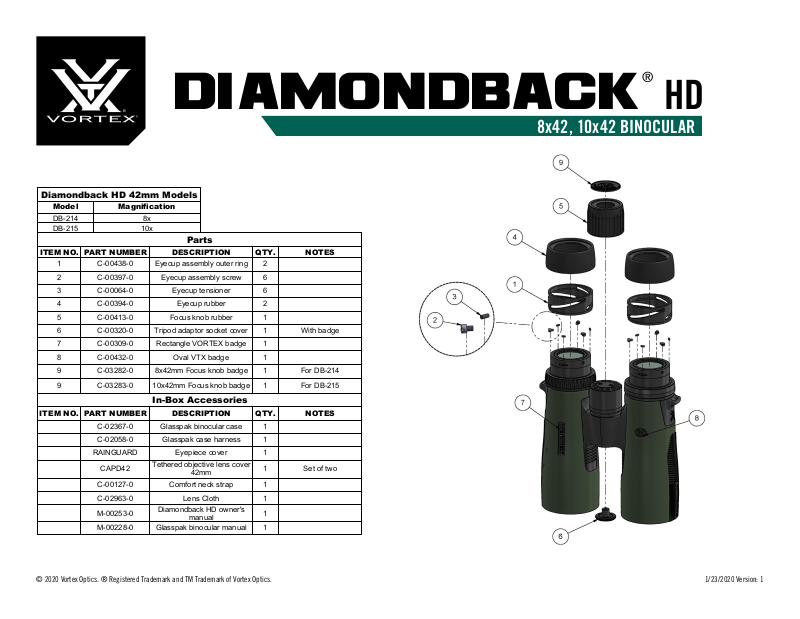

Parts

ITEM NO.

PART NUMBER

DESCRIPTION QTY.

NOTES

1

C-00438-0

Eyecup assembly outer ring

2

2

C-00397-0

Eyecup assembly screw

6

3

C-00064-0

Eyecup tensioner

6

4

C-00394-0

Eyecup rubber

2

5

C-00413-0

Focus knob rubber

1

6

C-00320-0

Tripod adaptor socket cover

1

With badge

7

C-00309-0

Rectangle VORTEX badge

1

8

C-00432-0

Oval VTX badge

1

9

C-03282-0

8x42mm Focus knob badge

1

For DB-214

9

C-03283-0

10x42mm Focus knob badge

1

For DB-215

In-Box Accessories

ITEM NO.

PART NUMBER

DESCRIPTION QTY.

NOTES

C-02367-0

Glasspak binocular case

1

C-02058-0

Glasspak case harness

1

RAINGUARD

Eyepiece cover

1

CAPD42

Tethered objective lens cover

42mm

1

Set of two

C-00127-0

Comfort neck strap

1

C-02963-0

Lens Cloth

1

M-00253-0

Diamondback HD owner's

manual

1

M-00228-0

Glasspak binocular manual

1

Diamondback HD 42mm Models

Model

Magnification

DB-214

8x

DB-215

10x

© 2020 Vortex Optics. ® Registered Trademark and TM Trademark of Vortex Optics.

Diamondback® HD

8x42, 10x42 BINOCULAR

1/23/2020 Version: 1
