Kay Home Products
21445
®
Vor tex
WARNING:
• Your grill is intended for residential outdoor use only. Do not use for commercial cooking. Do not use in or on boats
or recreational vehicles. Do not use for indoor cooking or heating. Toxic carbon monoxide fumes may accumulate
and cause death.
• Designate the grilling area as a no play zone and keep kids and pets away. Do not wear loose fitting clothing
when cooking.
• Only use your grill on a hard, level, non-combustible surface. Keep away from house, garage, trailer, building, tent
or under overhead construction.
• Grill must be kept at a distance of 36” from any building to ensure that there is no fire or melting of materials from
building. Live hot briquettes and coals can create a fire hazard.
• Do not use this product without reading all warning and operating instructions. Death, serious injury or damage to
property may occur if all warnings are not followed.
• Do not force parts together as this can cause personal injury or damage to the product. Use protective gloves when
assembling this grill. Do not use grill until it is completely assembled and all fasteners are tight. Do not modify grill.
• Check to make sure the air vents are free of debris and ash before lighting charcoal and during use. This grill
should be thoroughly clean and inspected on a regular basis.
• Do not place charcoal briquettes, wood or lump charcoal directly into bottom of grill. Place only on charcoal grid.
• Do not use gasoline, kerosene, or alcohol for lighting charcoal. Only use starter fluid made for barbecue grill to
start charcoal.
• During initial start up remove lid until charcoal turn to white coals. Use caution when opening the lid. Do not
expose any part of your body directly above grill when lighting and cooking as high heat and steam can escape
and severely burn you.
• Never handle grill while in use. Use long handled barbecue tools to avoid burns from heat, flare ups, and splatters.
Use oven mitts to protect hands from burns.
• Do not use hot grill near electrical cords, in high winds, near flammable liquids, gases or where flammable vapor
is present.
• Do not cover entire cooking area with aluminum foil. Always use a meat thermometer to ensure food is cooked to
a safe temperature.
• Never move or remove the ashes until the grill is completely cool. Always empty ashes from grill after use.
21445_092313
90 McMillen Road •
Customer Service (800) 635-3831 • Fax: (847) 395-3305
Antioch, IL 60002
Made in China
Parts List
Thoroughly inspect contents of box before assembly to ensure that there are no
missing or damaged parts. If you have missing or damaged parts DO NOT RETURN
PRODUCT TO STORE. Contact the Kay Home Products Customer Service
Department at the toll free number on the front of this manual.
Parts List
Item Qty. Part Name
A 1 Grill Bowl
B 3 Grill Leg
C 1 Charcoal Grid
D 1 Cooking Grid
E 1 Lid Handle
F 1 Grill Lid
G 1 Grill Vent
H 1 Ash Tray
I 1 Ash Tray Handle
E
Hardware List
Item Qty. Part Name
F
G
C
A
B
D
I
H
S1 1 Screw M5 x 12
S2 3 Screw M6 x 15
S3 1 Screw M3 x 8
W1 1 Grill Vent Washer
W2 5 Handle Washer
N1 1 Wing Nut
N2 1 Hex Nut
S1
S2
S3
N1
W1
W2
N2
Assembly Instructions

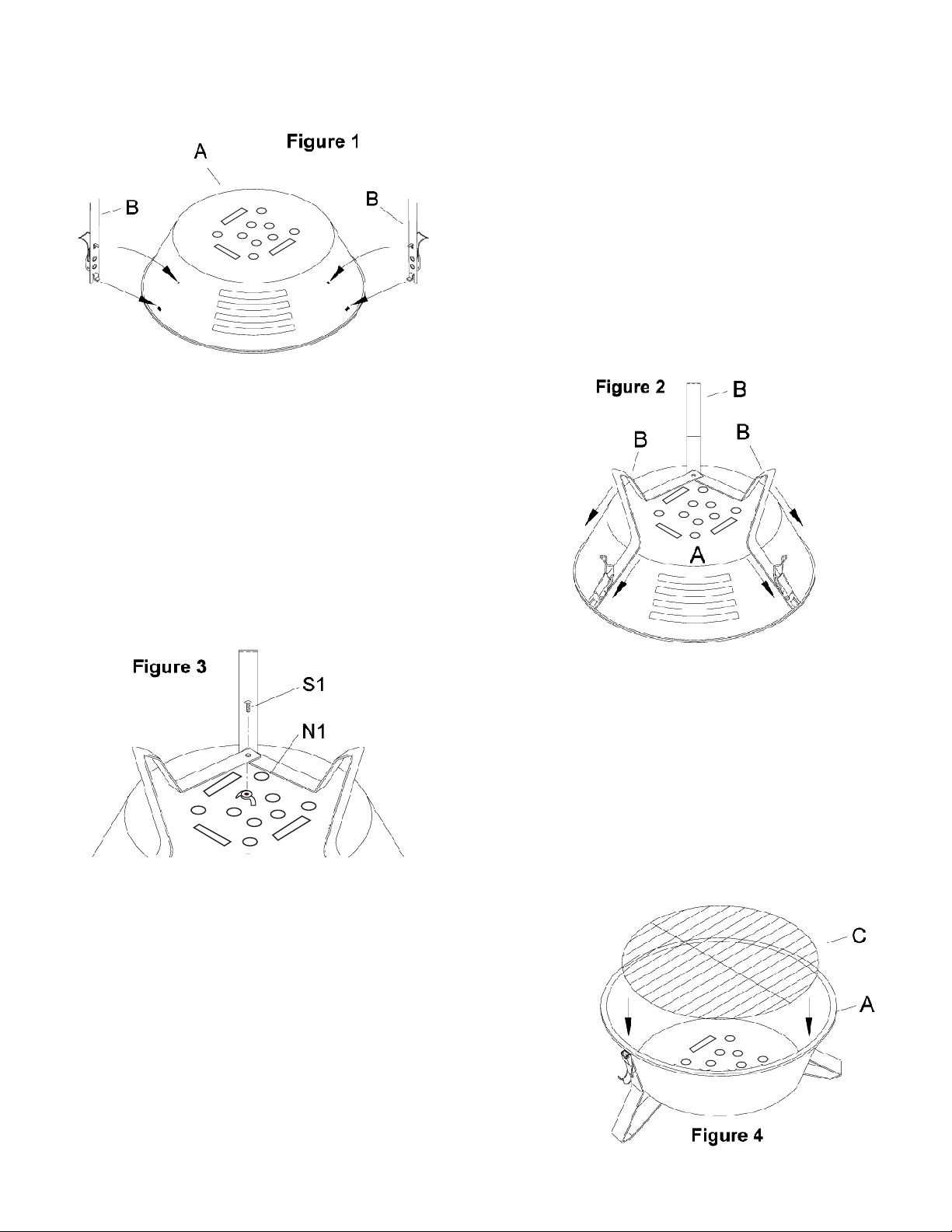

1. Locate Grill Bowl (A) and three Grill Legs
(B). Position grill bowl with the bottom side
up as shown in Figure 1.
2. Insert tabs on Grill Legs (B) into openings
along outside of grill bowl as shown in
Figure 1.
3. Lock legs into place by pushing them in the
direction shown in Figure 2 as far as they
will go.
4. Align the holes in the ends of all three
Grill Legs (B) as shown in Figure 3.
Insert Screw (S1) through all three
holes and fasten using Wing Nut (N1)
as shown.
5. Position Grill Bowl (A) right side up as shown
in Figure 4.
6. Insert Charcoal Grid (C) into grill bowl as shown
in Figure 4.
7. Insert Cooking Grid (D) into Grill Bowl (A)
as shown in Figure 5.
W2
8. Attach Lid Handle (E) to Grill Lid (F) as
shown in Figure 6 using Screws (S2) and
Washers (W2).
9. Attach Grill Vent (G) to Grill Lid (F) as
shown in Figure 6 using Screw (S3),
Washer (W1), and Nut (N2). Nut must
Figure 6
not be over tightened in order to allow
adjustment of vent.
10. Attach Ash Tray Handle (I) to Ash
Tray (H) as shown in Figure 7 using
Screw (S2) and washer (W2).
11. Slide Ash Tray (H) into slots in bottom
of Grill Bowl (A) as shown in Figure 7.
Figure 8
S2
W2
Figure 7
Figure 7
12. Place Grill Lid (F) onto Grill Bowl
(A) as shown in Figure 8.
13. When moving or storing grill, secure
grill lid to grill bowl using clamps as
shown in Figure 8.
WARNING
Never touch any part
of grill while hot!
Your 21445 Vortex is now assembled and ready for use.
Follow all safety warnings while using grill
