Setup Guide
M P10
MP10w
*ESL integration requires ReefLink
Customer Support ...................... 1
Inside the Box ............................ 2
Maintenance ............................... 3
Installing the VorTech™ .............. 4
The VorTech™ Driver .................. 8
Mounting the Driver .................... 9
Operational Modes ..................... 10
Tidal Swell Mode ........................ 12
Nutrient Transport Mode ............ 13
Congratulations on your
purchase of a VorTech™ MP10
Propeller Pump!
Please read this entire setup guide before using your pump. By purchasing,
installing or using this product, you are acknowledging that the Limited
Warranty on p. 19 is part of the sale terms.
Short Pulse Mode ....................... 14
Gyre Mode .................................. 15
Reef Crest Random Mode .......... 16
Additional Modes ....................... 16
Lagoonal Random Mode ............ 17
Troubleshooting .......................... 18
Limited Warranty ........................ 19
Regulatory Information ............... 20
1
Customer Support
Many of the steps in this guide have corresponding how-to videos. View them
on the EcoTech Marine website at ecotechmarine.com/media-gallery/video.
®
The EcoTech Marine Community is another tool for users to troubleshoot and
learn about our products. For additional information about your VorTech
Propeller Pump, please visit us at community.ecotechmarine.com.
UNITED STATES & CANADA
Contact EcoTech Marine directly for all warranty service and returns.
Visit ecotechmarine.com/support
INTERNATIONAL
Contact your local distributor directly for all warranty service and returns.
Visit ecotechmarine.com/find-retailers/international-distributors
Customer Support
1-800-785-0338
service@ecotechmarine.com or
ecotechmarine.com/support
2 3

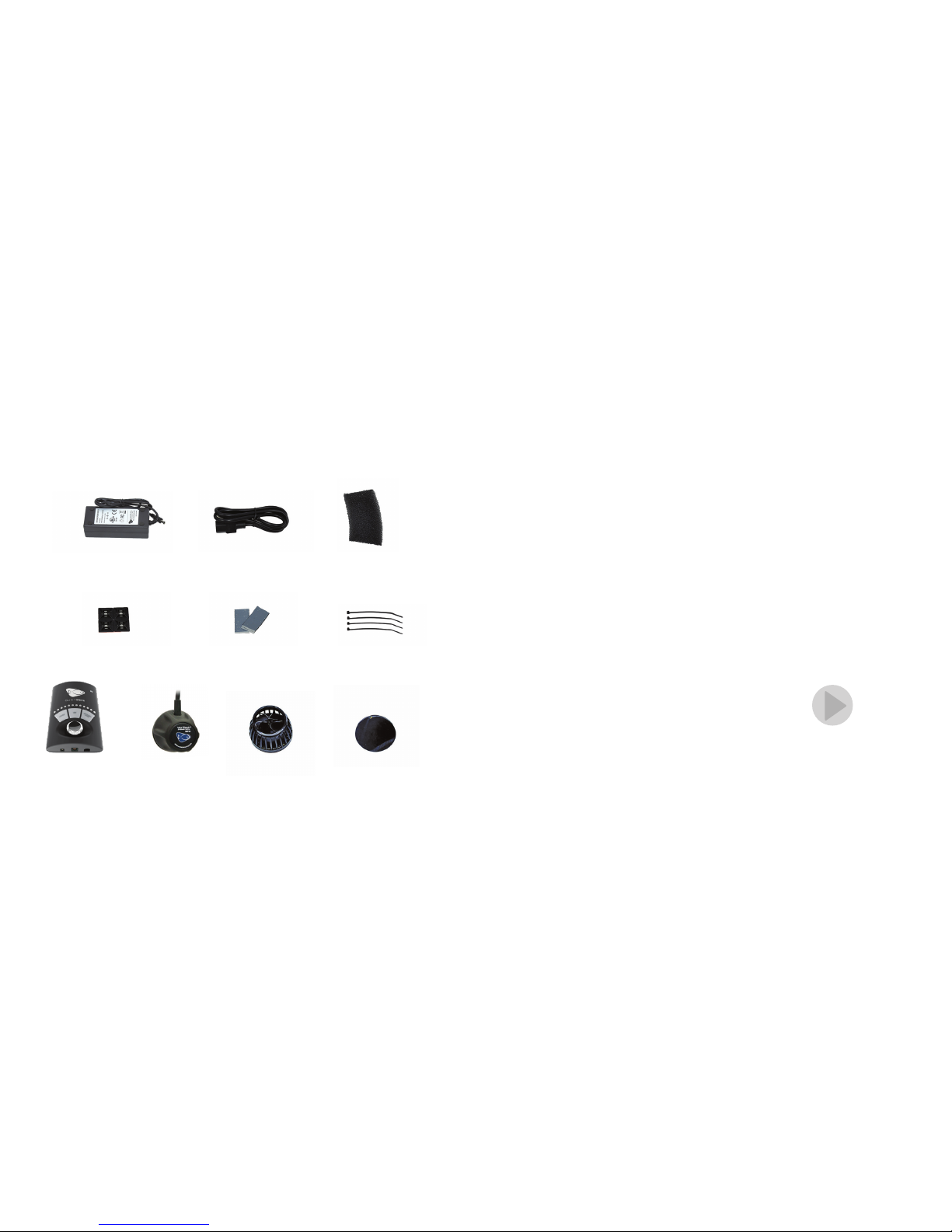

Inside the Box
POWER SUPPLY POWER CORD FOAM GUARD
MOUNTING TABS (X4)
DRIVER
VELCRO STRIPS (X2)
DRY SIDE
ZIP TIES (X4)
RUBBER SPACERWET SIDE
Your VorTech Propeller Pump is designed to
operate optimally with little attention after initial
setup; however, due to the harsh conditions of a
saltwater aquarium and resulting buildup of algae
and other organic matter, it is advisable to clean your
wet side to ensure the longevity of your purchase.
EcoTech recommends doing a wet side cleaning
every 6 to 8 weeks or as necessary.
This can be accomplished by disassembling the
pump's wet side and gently brushing with a soft
brush under running water. If there is calcium
buildup, it may be necessary to soak these
parts in a mild acid solution such as vinegar.
Do not use strong acids, because these may
damage the components.
After cleaning, reassemble the wet side.
WET SIDE
DISASSEMBLY
WATCH THE VIDEO:
ecote.ch/mp10qddisassemble
Maintenance
Installing the VorTech
™
STEP 1: Choose Pump Location
• Where the pump output is unobstructed
• High enough above the sand bed so sand is not disturbed
• Sufficiently below the surface so air is not sucked
into a vortex
STEP 2: Prepare Aquarium
• Use an aquarium scraper to clean the inside surface of
the aquarium and a damp cloth to clean the outside.
• Use caution when handling an aquarium scraper.

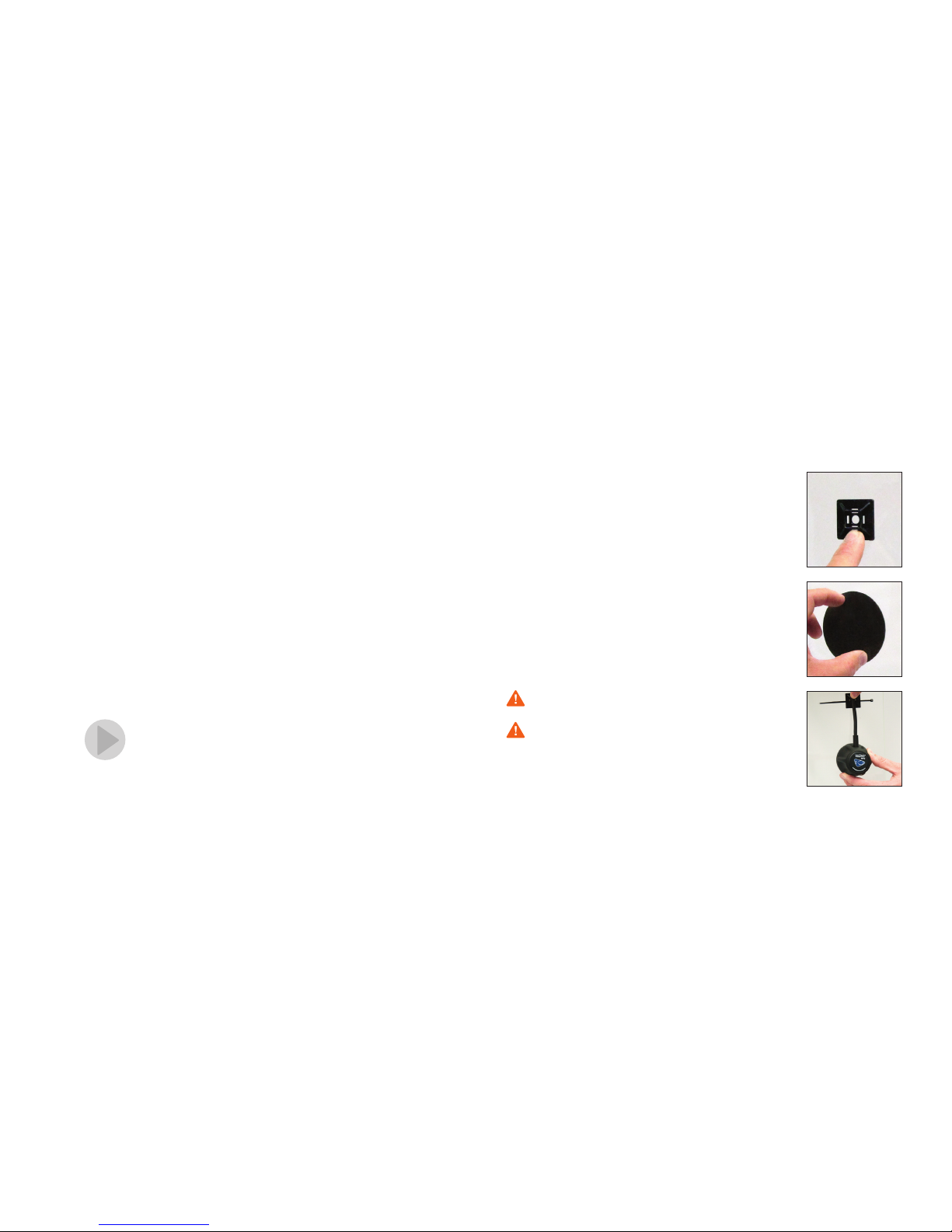

STEP 3: Attach Mounting Tab
•
Peel backing from the adhesive and place the tab 2-3"
above the desired mounting location on the outside of
the aquarium (Figure A).
STEP 4: Place Dry Side on Aquarium
•
Place the rubber spacer directly on the wall of the
aquarium at the desired location (Figure B).
• The included rubber spacer must be used between
the dry side and the aquarium wall for thicknesses
of 1/8” (3mm) and 3/16” (5mm).
• The rubber spacer is NOT needed for thicknesses
of 1/4” (6mm) or 3/8” (10mm).
• Position the dry side so the cord points straight up
in the 12 o’clock position (Figure C).
• Tie the cord to the mounting tab using a zip tie
(Figure C). Trim the excess end of the zip tie.
Never place the dry side in the aquarium.
Failure to use the rubber spacer can damage the
pump, which will NOT be covered under warranty.
4 5
Figure A
Figure C
Figure B
SET UP YOUR
MP10
WATCH THE VIDEO:
ecote.ch/mp10qdsetup
