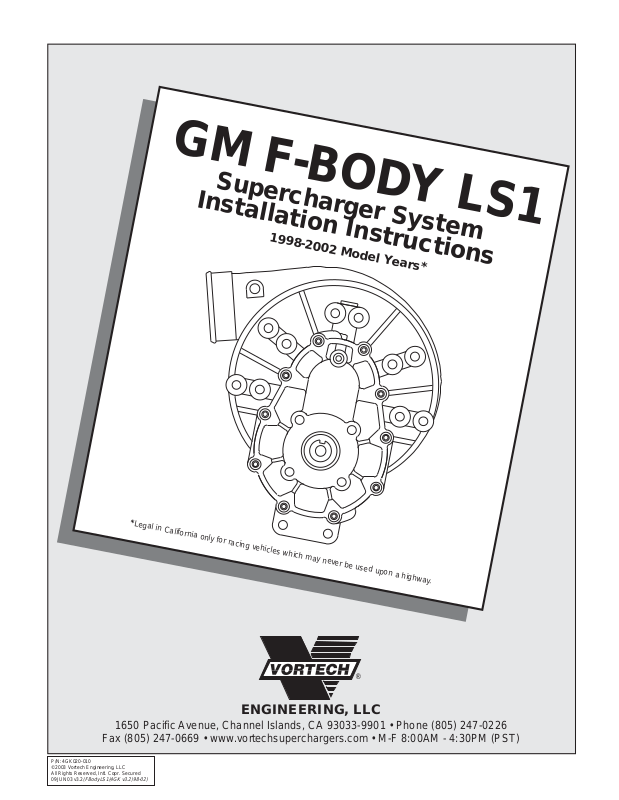

Vortech 1998-2001 5.7L LS1 F-Body User Manual

GM F-BODY LS1
Supercharger System
Installation Instructions
*Legal in California only for racing vehicles which may never be used upon a highway .
1650 Pacific Avenue, Channel Islands, CA 93033-9901 • Phone (805) 247-0226
Fax (805) 247-0669 • www.vortechsuperchargers.com • M-F 8:00AM - 4:30PM (PST)
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK v3.2)98-02)
®
ENGINEERING, LLC
FOREWORD
Proper installation of this supercharger kit requires general automotive mechanic knowledge and experience. Please browse through each step of this instruction manual determine if you should refer the job to a professional installer/ technician. Please call Vortech Engineering for installers in your area.
prior
to beginning the installation to
All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or
translated into another language in any form, by any means, without written permission of
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
© 2003 VORTECH ENGINEERING, LLC
Vortech Engineering, LLC.
ii
TABLE OF CONTENTS
FOREWORD........................................................................................................................................... ii
TABLE OF CONTENTS.......................................................................................................................... iii
IMPORTANT NOTES ............................................................................................................................. iv
CAMARO SS HOOD MODS................................................................................................................... v
TOOL & SUPPLY REQUIREMENTS ..................................................................................................... vi
PARTS LIST - 1998-2002 GM F-BODY LS1 STANDARD..................................................................... vii
PARTS LIST - 1998-2000 GM F-BODY LS1 w/CHARGE AIR COOLER .............................................. viii
PARTS LIST - 2001/2002 GM F-BODY LS1 w/CHARGE AIR COOLER .............................................. x
1.
COMPONENT REMOVAL .............................................................................................................
1
2. SUPERCHARGER MOUNTING BRACKET.............................................................................. 2
3. OIL DRAIN LINE ........................................................................................................................ 3
4. OIL FEED LINE.......................................................................................................................... 4
5. HARMONIC DAMPER INSTALLATION .................................................................................... 4
6. RADIATOR HOSE MODIFICATION.......................................................................................... 5
7. POWER STEERING INSTALLATION ....................................................................................... 5
8. FUEL INJECTOR REPLACEMENT........................................................................................... 6
9. SUPERCHARGER INSTALLATION.......................................................................................... 7
10.
CHARGE AIR COOLER
ASSEMBLY INSTALLATION ............................................................. 8
FOR STANDARD SUPERCHARGER KIT INSTALLATION (NON-CHARGE AIR COOLED), GO TO STEP 11
11. STANDARD KIT DISCHARGE DUCT INSTALLATION ............................................................ 13
FOR CHARGE AIR COOLER SUPERCHARGER KIT .............................................................
INSTALLATION, GO TO STEP 12
12. SUPERCHARGER BYPASS VALVE INSTALLATION.............................................................. 13
13. FUEL PUMP INSTALLATION.................................................................................................... 14
14. INLET DUCT INSTALLATION ................................................................................................... 17
15. REFLASH COMPUTER............................................................................................................. 18
16. FINAL ASSEMBLY AND CHECK .............................................................................................. 18
©2003 Vortech Engineering, LLC
iii
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
1998-2002 GM F-BODY LS1
IMPORTANT NOTES
(Read before installation is started)
This kit requires ECM programming. The hand-held ECM programmer is not included in the kit box and must be ordered directly from Vortech by the installing customer (the charge for this unit has been included in the purchase price).
Included in this kit is a credit tag for one (1) hand-held programmer. The programmers are made specifically for each individual vehicle with respect to the factory ECM calibration and VIN. Sim ply follow the instructions on the hand-held programmer Credit Tag.
NOTE: Vortech Engineering is not responsible for engine or ECM damage due
to an improperly installed/mishandled ECM module or ECM.
SS Models Only:
This supercharger kit does not fit vehicles with an "SS" hood installed. The customer may wish to cut the hood per the following graphic. After this modification, the supercharger will fit. However, since the engine is now drawing its intake air from the engine compartment, high under-hood temperatures will increase the likelihood of severe engine detonation. For this reason, additional care should be taken when driving a vehicle with the hood modification.
Installation of this kit requires special tools for removal and installation of the vehicle's harmonic damper. These tools may be impractical for the individual customer to purchase for one time use only. Vortech recommends having this procedure done by a dealer or professional if the tools are not available.
When driving the vehicle on non-public roads (off-road applications such as racing/high rpm) Vortech strongly recommends reducing the spark plug gap down to .032".
This product is protected by state common law, copyright and/or patent. All legal rights therein are reserved. The design, layout, dimensions, geometry, and engineering features shown in this product are the exclusive property of Vortech Engineering, LLC. This product may not be copied or duplicated in whole or part, abstractly or fundamentally, intentionally or fortuitously, nor shall any design, dimension, or other information be incorporated into any product or apparatus without prior written consent of Vortech Engineering, LLC.
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
iv
98-02 CAMARO HOOD
MODIFICATIONS (SS ONLY)
5
3.5"
2
3
3.5"
4
NOTE: Be very careful not to cut
through the top of the hood.
1. Areas to be removed.
2. Align with hood hinge and cut
perpendicularly through the air duct using a pneumatic cutting wheel.
3. Align for the second cut straight down from the first cut.
4. Cut this section symmetrically to the other using the same points of reference.
5. Measure 3.5" from the indented line in ram air. Cut perpendicularly through the air duct.
3.5" 1
©2003 Vortech Engineering, LLC
v
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
1998 - 2002
GM F-Body LS1
Installation Instructions
Congratulations on selecting the best performing and best supported automotive
supercharger available today... the VORTECH
Before beginning this installation, please read through this entire instruction booklet and the Street Supercharger System Owner's Manual and Automotive Limited Warranties Program.
Vortech supercharger systems are performance improving devices. In most cases, increases in torque of 30% to 35% and horsepower of 35% to 50% can be expected with the boost levels specified by Vortech Engineering, Inc. This product is intended for use on healthy, well maintained engines. Installation on a worn-out or damaged engine is not recommended and may result in failure of the engine
as well as the supercharger. Vortech Engineering, LLC is not responsible for engine damage. Installation on new vehicles will not harm or adversely affect the break-in period so long as factory break-
in procedures are followed.
For best performance and continued durability, please take note of the following key points:
1. Use only premium grade fuel 91 octane or higher (R+M/2).
2. The engine must have stock compression ratio.
3. If the engine has been modified in any way, check with Vortech prior to using this product.
4. Always listen for any sign of detonation (pinging) and discontinue hard use (no boost) until
problem is resolved.
5. Perform an oil and filter change upon completion of this installation and prior to test driving your vehicle. Thereafter, always use either a high grade SF rated engine oil or a high quality synthetic lubricant, and change the oil and filter at least every 3,000 miles. Never attempt to extend the oil
change interval beyond 3,000 miles, regardless of oil manufacturer's claims, as potential damage to the supercharger may result.
6. Before beginning installation, replace all spark plugs that are older than 1 year or 20,000 miles
with original heat range plugs as specified by the manufacturer (follow the procedures outlined in the factory repair manual and/or as indicated on the factory underhood emissions tag). Do not use platinum spark plugs unless they are original equipment. Change spark plugs every
40,000 miles and spark plug wires at least every 60,000 miles.
®
Supercharger!
TOOL & SUPPLY REQUIREMENTS
• Factory repair manual
• 3/8" socket and drive set: SAE & metric
• 1/2" breaker bar and 4" extension
• Flat #2 screwdriver
• Phillips #2 screwdriver
• Adjustable wrench
• Combination wrenches: SAE and metric
• 1/8", R (.339) drill bits
• 1/4", 3/16" allen wrenches
• 1 gallon factory specified engine coolant
• 1.25" hole saw
• 1 quart factory specified power steering fluid
• Power steering pulley puller and installer
• Thread sealer
• Hose cutter or knife
• Loctite threadlocker
• 5 quarts factory specified motor oil/oil filter
• Spring-lock fitting disconnect tool
• 3/8" drill motor
• Wire cutter/crimp tool
• Torque wrench
• 1/8, 3/8 NPT taps
GM TOOLS
• J 41816 Crankshaft balancer remover (or equivalent)
• J 41816-2 Crankshaft end protector
• J 42386 Flywheel holding tool
• J 41665 Crankshaft balancer and sprocket installer
• J 36660 Torque angle meter
NOTE: If your vehicle has in excess of 20,000 miles since its last spark plug change, then you will need:
• Spark plug socket
• 8 - new OE heat range spark plugs
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
vi
1998-2002 GM F-Body LS1 Standard
®
ENGINEERING, LLC
Part No. 4GK218-010SQ
PARTS LIST
IMPORTANT: Before beginning installation, verify that all parts are included in the kit. Report any shortages or damaged parts immediately.
Part Number Description Quantity Part Number Description Quantity
2D228-110 SUPERCHARGER ASSY, LS1 FBODY STD, 98-00 1
2A038-370 3.70 Drive Pulley 1 2A048-520 Belt, 8-Rib 1
4GK111-031 MOUNTING BRACKET ASSEMBLY 1
4GK111-021 Mounting Bracket 1 4GK010-020 Support 1 4FM011-052 Spring Tensioner , 5.4 1 7A375-300 3/8-16 x 3" HXCSG5P 1 7J375-044 3/8 SAE Washer, Plated 1 4FA016-170 Idler Pulley 1 4FA016-171 Dust Cover (Wide Idler Pulley) 1 7A312-074 5/16-18 x 3/4 SHCS, Plated 6 7A312-200 5/16-18 x 2" HHD 2 7A312-300 5/16-18 x 3" HHD G5 2 7K312-001 5/16 AN Washer 10 7C010-045 M10 x 1.5 x 45mm HHD 3 7J010-002 10mm Washer 2 5W001-005 3/8" Plastic Wire Loom, 1.25 ft. 1 7A312-200 5/16-18 x 2" HXHD 2 7C010-040 M10 x 1.5 x 40 HXHD 1
4GK212-030 AIR INTAKE ASSEMBLY 1
4GK112-030 Duct Inlet 1 8D001-001 Bypass Valve 1 7P100-100 1" NPT X 1" Barb Plastic Fitting 1 7U034-016 1" GS Hose, .25 ft. 1 7U034-016 1" GS Hose, 1.25 ft. 1 7R002-016 #16 Hose Clamp 4 7P500-156 1/2" X 1/4 NPT TEE 1 7P250-039 1/4 NPT to 1/4" Barb 1 7U030-046 5/32" Vacuum Line, 2 ft. 1 4GK100-010 HARDWARE ASSEMBLY 1 4GK012-040 Duct inlet 90° Elbow 1 7U035-001 3-1/2" Flex Hose, .75 ft. 1 7R002-052 #52 Goldseal Hose Clamp 2 7S350-200 3-1/2 x 2 Sleeve 2 7R002-056 #56 Goldseal Hose Clamp 4 7U375-052 3/8" Vacuum Cap 1 7U030-056 3/8 PCV Hse, 2.25 ft. 1 7U100-061 Grommet 3/8 I.D. 5/8 Flange 1 7P375-008 Elbow Union EUB 1
4GK130-036 OIL DRAIN ASSEMBLY 1
7R001-008 #8 Stainless Hose Clamp 2 7U030-036 1/2" Oil Drain Hose, 1.25 ft. 1 7U100-055 Tie Wrap, 6" Nylon 1 7P375-017 3/8 NPT X 1/2 Beaded hose barb 1 7P375-040 3/8" Female Elbow 1 7P375-041 3/8" NPT Hex Nipple 1
4GK130-026 OIL FEED LINE ASSEMBLY 1
7U030-026 1/4" Oil Feed Hose, .833 ft. 1 7P125-026 -4 to 1/8 NPT 90°, Male 2 7P525-067 .500 Crimp Ferrules 2 7P250-066 #4 Swivel X 1/4" Hose Barb 2 7S625-000 Fire Sleeve, 1 ft. 1 7R003-008 1/2" Adel Clamp 2 7U100-055 Tie Wrap, 6" Nylon 2
4GK101-001 FUEL PUMP ASSY, LS1 1
5W001-001 Wire Tap, Inline, 14-16 AWG 1 5W001-019 Solderless Connector 10-12 1 5W001-014 Fuse Holder 10 GA Wire 1 5W001-015 Fuse, Blade Type 20 amp 1 5W001-017 3/8" Ring Terminal 12 GA 2 7E010-046 #8 x 3/4 Sheet Metal 1 7J010-001 #10 Flat Washer 2 7P250-045 1/4 Male NPT x 3/8 Male Barb 1 7P312-002 5/16 Barb x 1/4 NPT Barb 1 7R001-004 #4 Hose Clamp 2 7R004-002 17.0 Stepless Clamp 4 7R004-001 15.7 Stepless Clamp 2 7U031-018 5/16 Fuel Hse Hi-Psr 1.6666' 7U032-016 3/8" Fuel Hse Hi-Psr 0.83330' 7U032-016 3/8" Fuel Hse Hi-Psr 3.0' 7U100-044 Tie Wrap, 4" Nylon 10 7U100-055 Tie Wrap, 6" Nylon 10 8F001-500 Fuel Pump, Pierburg 1 8F101-300 Pump Wiring Assy LT1 1 5W001-011 16-14 GA Eyelet .25" Hole 2 7P625-375 Reducer, 5/8 Barb to 3/8 Barb 1 7R003-028 Adel Clamp, 2-3/8" .26 Hole 2 7A250-101 1/4-20 x 1 HXHD CPSC 2 7J250-022 1/4" Washer 4
7F250-021 1/4-20 Nylock Nut Zinc Pltd. 2 7R004-004 Stepless Clamp, 1.0 O.D. Hose 2 7P312-015 Ftng, Banjo 12mm x .312 Barb 1 7F012-001 M12 Cap Nut, Fuel Pump 1 5W001-042 12-10GA x 3/16" Ring Terminal 1 7P375-072 3/8 Female Fuel Ftg, Steel 1 7P375-010 3/8 GM Fuel To 3/* Barb Ftg 1 7U033-000 5/8" Fuel Hose .25'
4GK110-010 POWER STEERING ASSEMBLY 1
4GK110-020 Fitting, Power Steering Assy 1 4GK010-010 Bracket, Power Steering 1 7A250-050 1/4-20 SHCS, Plated 2 7J006-093 6mm Washer 2 7U130-048 Assembly, Power Steering Pressure Hose 1 4GK010-060 Power Steering Reservoir Bracket 1 4GK010-090 Power Steering Reservoir Retainer 1 4GK010-100 Power Steering Reservoir Fitting 1 7C010-050 10-24 x 1/2 SHCS, Zinc 1 7F010-024 10-24 Nylock Nut 1 7J010-001 #10 Flat Washer 2 7U100-113 O-ring -113 LS1 Power Steering 2 7U030-036 1/2" Oil Drain Hose, 2 ft. 1 7R001-008 #8 Stainless Hose Clamp 2 7P375-050 3/8" Hose 1 7U032-016 3/4' x 3/8" Hose 1 7R001-004 #4 Stainless Hose Clamp 2
4GK116-031 CRANK PULLEY ASSEMBL Y 1
4GK016-011 Damper Assy, 6 Rib 1 4GK018-031 Crank Pulley 1 7C016-010 LS1 Damper Bolt, M16 x 2.0 1
4GK112-020 DISCHARGE ASSEMBLY 1
4GK012-020 Duct, LS1 Std Discharge 1 7S400-200 4" Sleeve 1 R002-064 #64 Goldseal Hose Clp 2 7S250-200 2-1/2" Sleeve 1 7R002-040 #40 Stnls Hose Clp 2
4GK110-110 COIL BRACKET RELOCATION ASSEMBLY 1
4GK010-110 Tab A, Coil Relocation 6mm 2 4GK010-120 Tab B, Coil Relocation 2 7C060-016 M6 x 1.00 x 16 HXHD 6 7F006-093 6mm Nylock Nut 4 7J006-093 6mm Washer, Plated 10
7U133-070 FILLER HOSE 1 7T560-001 CUTTER, 9/16 ROTABROACH 1 7T560-002 ARBOR, ROTABROACH 1 8H040-022 3/4 BREATHER 1 4GK020-020 HAND-HELD PROGRAMMER COUPON 1 4GK014-010 RADIATOR PIPE LS1 F-BODY 1 7R002-024 #24 GOLDSEAL HOSE CLAMP 2 8F060-038 38 lb INJECTORS 8
vii
©2003 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
1998-2000 GM F-Body LS1 w/Charge Air Cooler
®
ENGINEERING, LLC
Part No. 4GK218-060SQ
PARTS LIST
IMPORTANT: Before beginning installation, verify that all parts are included in the kit. Report any shortages or damaged parts immediately.
Part Number Description Quantity Part Number Description Quantity 2D228-100 SUPERCHARGER ASSY, 1998 LS1, W/COOLER 1
2A038-312 3.12 Drive Pulley 1 2A038-495 Belt 1
4GK111-031 MOUNTING BRACKET ASSEMBLY 1
4GK111-021 Mounting Bracket 1 4GK010-020 Support 1 4FM011-052 Spring Tensioner, 5.4 1 7A375-300 3/8-16 x 3" HXCSG5P 1 7J375-044 3/8 SAE Washer, Plated 1 2A017-033 Spacer Tensioner 1 4FA016-170 Idler Pulley 1 4FA016-171 Dust Cover (Wide Idler Pulley) 1 7A312-074 5/16-18 x 3/4 SHCS, Plated 6 7A312-200 5/16-18 x 2" HHD 2 7A312-300 5/16-18 x 3" HHD G5 2 7K312-001 5/16 AN Washer 10 7C010-045 M10 x 1.5 x 45mm HHD 3 7J010-002 10mm Washer 3 5W001-005 3/8" Plastic Wire Loom, 1.25 ft. 1 7A312-200 5/16-18 x 2" HXHD 2 7C010-040 M10 x 1.5 x 40 HXHD 1
4GK212-030 AIR INTAKE ASSEMBLY 1
4GK112-030 Duct Inlet 1 8D001-001 Bypass Valve 1 7P100-100 1" NPT X 1" Barb Plastic Fitting 1 7U034-016 1" GS Hose, .25 ft. 1 7U034-016 1" GS Hose, 1.25 ft. 1 7R002-016 #16 Hose Clamp 4 7P500-156 1/2" x 1/4 NPT Tee 1 7P250-039 1/4 NPT to 1/4" Barb 1 7U030-046 5/32" Vacuum Line, 2 ft. 1 4GK100-010 HARDWARE ASSEMBLY 1 4GK012-040 Duct Inlet 90° Elbow 1 7U035-001 3-1/2" Flex Hose, .75 ft. 1 7R002-052 #52 Goldseal Hose Clamp 2 7S350-200 3-1/2 x 2 Sleeve 2 7R002-056 #56 Goldseal Hose Clamp 4 7U375-052 3/8" Vacuum Cap 1 7U030-056 3/8 PCV Hse, 2.25 ft. 1 7U100-061 Grommet 3/8 I.D. 5/8 Flange 1 7P375-008 Elbow Union EUB 1
4GK130-036 OIL DRAIN ASSEMBLY 1
7R001-008 #8 Stainless Hose Clamp 2 7U030-036 1/2" Oil Drain Hose, 1.25 ft. 1 7U100-055 Tie Wrap, 6" Nylon 1 7P375-017 3/8 NPT X 1/2 Beaded Hose Barb 1 7P375-040 3/8" Female Elbow 1 7P375-041 3/8" NPT Hex Nipple 1
4GK130-026 OIL FEED LINE ASSEMBLY 1
7U030-026 1/4" Oil Feed Hose, .833 ft. 1 7P125-026 -4 to 1/8 NPT 90°, Male 2 7P525-067 .500 Crimp ferrules 2 7P250-066 #4 Swivel x 1/4" Hose Barb 2 7S625-000 Fire Sleeve, 1 ft. 1 7R003-008 1/2" Adel Clamp 2 7U100-055 Tie Wrap, 6" Nylon 2
4GK101-001 FUEL PUMP ASSY, LS1 1
5W001-001 Wire Tap, Inline, 14-16 AWG 1 5W001-019 Solderless Connector 10-12 1 5W001-014 Fuse Holder 10 GA Wire 1 5W001-015 Fuse, Blade Type 20 amp 1 5W001-017 3/8" Ring Terminal 12 GA 2 7E010-046 #8 x 3/4 Sheet Metal 1 7J010-001 #10 Flat Washer 2 7P250-045 1/4 Male NPT x 3/8 Male Barb 1 7P312-002 5/16 Barb x 1/4 NPT Barb 1 7R001-004 #4 Hose Clamp 2 7R004-002 17.0 Stepless Clamp 4 7R004-001 15.7 Stepless Clamp 2 7U031-018 5/16 Fuel Hse Hi-Psr 1.66' 7U032-016 3/8" Fuel Hse Hi-Psr 0.833' 7U032-016 3/8" Fuel Hse Hi-Psr 3.0' 7U100-044 Tie Wrap, 4" Nylon 10 7U100-055 Tie Wrap, 6" Nylon 10 8F001-500 Fuel Pump, Pierburg 1 8F101-300 Pump Wiring Assy LT1 1 5W001-011 16-14 GA Eyelet .25" Hole 2 7P625-375 Reducer, 5/8 Barb to 3/8 Barb 1 7R003-028 Adel Clamp, 2-3/8" .26 Hole 2 7A250-101 1/4-20 x 1 HXHD CPSC 2 7J250-022 1/4" Washer 4 7F250-021 1/4-20 Nylock Nut Zinc Pltd. 2 7R004-004 Stepless Clamp, 1.0 O.D. Hose 2 7P312-015 Ftng, Banjo 12mm x .312 Barb 1 7F012-001 M12 Cap Nut, Fuel Pump 1 5W001-042 12-10GA x 3/16" Ring Terminal 1 7P375-072 3/8 Female Fuel Ftg, Steel 1 7P375-010 3/8 GM Fuel To 3/* Barb Ftg 1
7U033-000 5/8" Fuel Hose .25'
4GK110-010 POWER STEERING ASSEMBLY 1
4GK110-020 Fitting, power steering assy. 1 4GK010-010 Bracket, power steering 1 7A250-050 1/4-20 SHCS, plated 2 7J006-093 6mm Washer 2 7U130-048 Assembly, Power Steering Pressure Hose 1 4GK010-060 Power Steering Reservoir Bracket 1 4GK010-090 Power Steering Reservoir Retainer 1 4GK010-100 Power Steering Reservoir Fitting 1 7C010-050 10-24 x 1/2 SHCS, Zinc 1 7F010-024 10-24 Nylock Nut 1 7J010-001 #10 Flat Washer 2 7U100-113 O-ring -113 LS1 Power Steering 2 7U030-036 1/2" Oil Drain Hose, 2 ft. 1 7R001-008 #8 Stainless Hose Clamp 2 7P375-050 3/8" Hose 1 7U032-016 3/4' x 3/8" Hose 1 7R001-004 #4 Stainless Hose Clamp 2
4GK116-031 CRANK PULLEY ASSEMBL Y 1
4GK016-011 Damper Assy, 6 Rib 1 4GK018-031 Crank Pulley 1 7C016-010 LS1 Damper Bolt, M16 x 2.0 1
8N301-080 POWER COOLER ASSEMBLY 1
8N101-080 Power Cooler, Welded Assy 1
8N106-040 WATER COOLER MOUNTING ASSEMBLY 1
8N006-010 Water Cooler 1 4GK010-051 Bracket, Radiator, Left 1 4GK010-052 Bracket Radiator, Right 1 7A312-100 5/16-18 x 1 HXCSGR5P 2 7F312-018 5/16-18 Nut USS, Plated 2 7J312-000 5/16 Flat Washer-SAE 4 7A250-050 1/4-20 HHD, 1/2 Long-SHCS 4 7F250-021 1/4-20 Nylock Nut 4 7J250-001 1/4 Flat Washer 8
8N107-046 WATER PUMP ASSEMBLY 1
8F001-403 Water Pump 1 7A250-050 1/4-20 X 1/2 SHCS, Plated 2 7J006-093 6mm Washer 6 7F250-021 1/4-20 Nylock Nut 2 8N010-060 Bracket Water Pump Mount 1 5W001-050 Aftercooler Pump Plug 1 5W014-010 14 GA STD Wire, Red, 10 ft. 1 5W001-013 14-16 GA Butt Splice Connectors 1 5W001-011 14-16 GA Eyelet, .25" 1 4GK010-150 Bracket, Water Pump 1 7C080-016 8mm x 1.25 x 16 HXHD Bolt 2 7J312-000 5/16 Flat Washer, SAE 3 7F008-020 M8 X 1.25 Nut 1
4GK114-010 WATER T ANK ASSEMBLY 1
8N055-030 Reservoir 1 4GK010-160 Bracket, Reservoir 1 7A250-050 1/4-20 HHD, 1/2 Long 2 7J006-093 6mm Washer 2 7U038-00 3/4" Heater Hose, 11 ft. 1 7U038-012 3/4" 90° Hose 4 X 12" 2 7R007-001 Nylon Clamp 1-1/8" 10 7P500-026 1/2 NPT to 3/4 Hose 90° Barb 6 7P500-078 1/2 NPT to 3/4 Hose Barb 2
4GK112-010 DISCHARGE ASSEMBLY 1
4GK012-010 Duct T-Body Cooler 1 7S275-200 2-3/4 x 2 Sleeve 1 7R002-044 #44 Goldseal Hose Clamp 2
4GK110-030 EGR RELOCATION 1
4GK010-030 EGR, Relocate 1 7P125-016 1/8 NPT Plug 2 4GK040-050 EGR Gasket 2 7A312-075 5/16-18 x 3/4 HXHDG5P 2 7K312-001 5/16 AN Washer 4 4GK010-040 Heat Shield 1 4GK010-140 AC Canister Anchor 1 7R002-056 #56 Hose Clamp 1 7U250-200 Foam, 1/4 X 2 X 3", Single Adhesive, .25 ft. 1 7C080-035 8mm 35mm Bolts HHD 2 5W018-030 Grey 18 GA, .833 ft. 1 5W018-030 Grey 18 GA, .833 ft. 1 5W018-080 Blue 18 GA, .833 ft. 1 5W022-120 Brown 22 GA, .833 ft. 1 5W018-020 Black 18 GA, .833 ft. 1 5W001-012 18 GA Butt Splice Connectors 10 5W001-005 3/8" Plastic Wire Loom, 1 ft. 1
8N104-061 SUPPORT COMPONENTS 1
7S400-200 4" Sleeve 1 7R002-064 #64 Goldseal Hose Clamp 2 7S250-200 2-1/2 Sleeve 1 7R002-040 #40 Stainless Hose Clamp 2 8N056-060 Surge T ank Body 1 8N055-050 Cap, Surge Tank Plastic 1
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
viii
1998-2000 GM F-Body LS1 w/Charge Air Cooler
®
ENGINEERING, LLC
Part No. 4GK218-060SQ
PARTS LIST
IMPORTANT: Before beginning installation, verify that all parts are included in the kit. Report any shortages or damaged parts immediately.
Part Number Description Quantity
8N010-110 Mtg. Tab, LS1 Fbody 1 7P375-250 3/8 x 3/8 x 1/4 Male Barb TEE 1 7P125-037 1/8 NPT - 90° to 1/4 Barb 1 7U030-030 1/4" Vacuum Hose 1.25' 7U100-055 Tie Wrap, 6" Nylon 10 7U100-044 Tie wrap, 4" Nylon 5 7A250-050 1/4-20 SHCS, 1/2 Long 2 7J006-093 6mm Washer , Plated 3
4GK110-110 COIL BRACKET RELOCATION ASSEMBLY 1
4GK010-110 Tab A, Coil Relocation 6mm 2 4GK010-120 Tab B, Coil Relocation 2 7C060-016 M6 x 1.00 x 16 HXHD 6 7F006-093 6mm Nylock Nut 4 7J006-093 6mm Washer , Plated 10
7U133-070 FILLER HOSE 1 7T560-001 CUTTER, 9/16 ROTABROACH 1 7T560-002 ARBOR, ROTABROACH 1 8H040-022 3/4 BREATHER 1 4GK020-020 HAND-HELD PROGRAMMER COUPON 1 4GK014-010 RADIATOR PIPE LS1 F-BODY 1 7R002-024 #24 GOLDSEAL HOSE CLAMP 2 8F060-038 38 lb INJECTORS 8
©2003 Vortech Engineering, LLC
ix
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
2001-2002 GM F-Body LS1 w/Charge Air Cooler
®
Part No. 4GK218-080SQ
ENGINEERING, LLC
IMPORTANT: Before beginning installation, verify that all parts are included in the kit. Report any shortages or damaged parts immediately.
Part Number Description Quantity Part Number Description Quantity
2D228-100 SUPERCHARGER ASSY, 1998 LS1, W/COOLER 1
2A038-312 3.12 Drive Pulley 1 2A038-495 Belt 1
4GK111-031 MOUNTING BRACKET ASSEMBLY 1
4GK111-021 Mounting Bracket 1 4GK010-020 Support 1 4FM011-052 Spring tensioner, 5.4 1 7A375-300 3/8-16 x 3" HXCSG5P 1 7J375-044 3/8 SAE Washer, Plated 1 2A017-033 Spacer Tensioner 1 4FA016-170 Idler Pulley 1 4FA016-171 Dust Cover (Wide Idler Pulley) 1 7A312-074 5/16-18 x 3/4 SHCS, Plated 6 7A312-200 5/16-18 x 2" HHD 2 7A312-300 5/16-18 X 3" HHD G5 2 7K312-001 5/16 AN Washer 10 7C010-045 M10 x 1.5 x 45mm HHD 3 7J010-002 10mm washer 3 5W001-005 3/8" Plastic Wire Loom, 1.25 ft. 1 7A312-200 5/16-18 x 2" HXHD 2 7C010-040 M10 x 1.5 x 40 HXHD 1
4GK212-030 AIR INTAKE ASSEMBLY 1
4GK112-030 Duct Inlet 1 8D001-001 Bypass Valve 1 7P100-100 1" NPT X 1" Barb Plastic Fitting 1 7U034-016 1" GS Hose, .25 ft. 1 7U034-016 1" GS Hose, 1.25 ft. 1 7R002-016 #16 Hose Clamp 4 7P500-156 1/2" x 1/4 NPT Tee 1 7P250-039 1/4 NPT to 1/4" Barb 1 7U030-046 5/32" Vacuum Line, 2 ft. 1 4GK100-010 HARDWARE ASSEMBLY 1 4GK012-040 Duct inlet 90° Elbow 1 7U035-001 3-1/2" Flex Hose, .75 ft. 1 7R002-052 #52 Goldseal Hose Clamp 2 7S350-200 3-1/2 X 2 Sleeve 2 7R002-056 #56 Goldseal Hose Clamp 4 7U375-052 3/8" Vacuum Cap 1 7U030-056 3/8 PCV Hse, 2.25 ft. 1 7U100-061 Grommet 3/8 I.D. 5/8 Flange 1 7P375-008 Elbow Union EUB 1
4GK130-036 OIL DRAIN ASSEMBLY 1
7R001-008 #8 Stainless Hose Clamp 2 7U030-036 1/2" Oil Drain Hose, 1.25 ft. 1 7U100-055 Tie Wrap, 6" Nylon 1 7P375-017 3/8 NPT X 1/2 Beaded Hose Barb 1 7P375-040 3/8" Female Elbow 1 7P375-041 3/8" NPT Hex Nipple 1
4GK130-026 OIL FEED LINE ASSEMBLY 1
7U030-026 1/4" Oil feed hose, .833 ft. 1 7P125-026 -4 to 1/8 NPT 90°, Male 2 7P525-067 .500 Crimp Ferrules 2 7P250-066 #4 Swivel x 1/4" Hose Barb 2 7S625-000 Fire Sleeve, 1 ft. 1 7R003-008 1/2" Adel Clamp 2 7U100-055 Tie Wrap, 6" Nylon 2
4GK101-001 FUEL PUMP ASSY, LS1 1
5W001-001 Wire Tap, Inline, 14-16 AWG 1 5W001-019 Solderless Connector 10-12 1 5W001-014 Fuse Holder 10 GA Wire 1 5W001-015 Fuse, Blade Type 20 amp 1 5W001-017 3/8" Ring Terminal 12 GA 2 7E010-046 #8 x 3/4 Sheet Metal 1 7J010-001 #10 Flat Washer 2 7P250-045 1/4 Male NPT x 3/8 Male Barb 1 7P312-002 5/16 Barb x 1/4 NPT Barb 1 7R001-004 #4 Hose Clamp 2 7R004-002 17.0 Stepless Clamp 4 7R004-001 15.7 Stepless Clamp 2 7U031-018 5/16 Fuel Hse Hi-Psr 1.6666' 7U032-016 3/8" Fuel Hse Hi-Psr 0.83330' 7U032-016 3/8" Fuel Hse Hi-Psr 3.0' 7U100-044 Tie Wrap, 4" Nylon 10 7U100-055 Tie Wrap, 6" Nylon 10 8F001-500 Fuel Pump, Pierburg 1 8F101-300 Pump Wiring Assy LT1 1 5W001-011 16-14 GA Eyelet .25" Hole 2 7P625-375 Reducer, 5/8 Barb to 3/8 Barb 1 7R003-028 Adel Clamp, 2-3/8" .26 Hole 2 7A250-101 1/4-20 x 1 HXHD CPSC 2 7J250-022 1/4" Washer 4 7F250-021 1/4-20 Nylock Nut Zinc Pltd. 2 7R004-004 Stepless Clamp, 1.0 O.D. Hose 2 7P312-015 Ftng, Banjo 12mm x .312 Barb 1 7F012-001 M12 Cap Nut, Fuel Pump 1 5W001-042 12-10GA x 3/16" Ring Terminal 1 7P375-072 3/8 Female Fuel Ftg, Steel 1 7P375-010 3/8 GM Fuel To 3/* Barb Ftg 1 7U033-000 5/8" Fuel Hose .25'
4GK110-010 POWER STEERING ASSEMBLY 1
4GK110-020 Fitting, Power Steering Assy 1 4GK010-010 Bracket, Power Steering 1 7A250-050 1/4-20 SHCS, Plated 2 7J006-093 6mm Washer 2 7U130-048 Assembly, Power Steering Pressure Hose 1 4GK010-060 Power Steering Reservoir Bracket 1 4GK010-090 Power Steering Reservoir Retainer 1 4GK010-100 Power Steering Reservoir Fitting 1 7C010-050 10-24 X 1/2 SHCS, Zinc 1 7F010-024 10-24 Nylock Nut 1 7J010-001 #10 Flat Washer 2 7U100-113 O-ring -113 LS1 Power Steering 2 7U030-036 1/2" Oil Drain Hose, 2 ft. 1 7R001-008 #8 Stainless Hose Clamp 2 7P375-050 3/8" Hose 1 7U032-016 3/4' x 3/8" Hose 1 7R001-004 #4 Stainless Hose Clamp 2
4GK116-031 CRANK PULLEY ASSEMBL Y 1
4GK016-011 Damper Assy, 6 Rib 1 4GK018-031 Crank PPulley 1 7C016-010 LS1 Damper Bolt, M16 x 2.0 1
8N301-120 POWER COOLER ASSEMBLY, 2001 1
7R002-056 #56 Hose Clamp 1 4GK010-140 AC Canister Anchor 1 4GK010-190 Brkt, 2001 After Cooler Support 1 7U250-200 Foam, 1/4" x 2" x 3" Single Adhesive 3" 7C0210-015 M10-1.5 x 15mm HXCSP 2 7J010-002 10mm Washer, Zinc Plated 2 8N101-080 Power Cooler, Welded Assy 1 7C080-016 8mm x 1.25 x 16 HXHD 2 7A312-001 5/16 AN Washer 2
8N106-040 WATER COOLER MOUNTING ASSEMBLY 1
8N006-010 Water Cooler 1 4GK010-051 Bracket, Radiator,Left 1 4GK010-052 Bracket Radiator, Right 1 7A312-100 5/16-18 x 1 HXCSGR5P 2 7F312-018 5/16-18 Nut USS, Plated 2 7J312-000 5/16 Flat Washer-SAE 4 7A250-050 1/4-20 HHD, 1/2 Long-SHCS 4 7F250-021 1/4-20 Nylock Nut 4 7J250-001 1/4 Flat Washer 8
8N107-046 WATER PUMP ASSEMBLY 1
8F001-403 Water Pump 1 7A250-050 1/4-20 x 1/2 SHCS, Plated 2 7J006-093 6mm Washer 6 7F250-021 1/4-20 Nylock Nut 2 8N010-060 Bracket Water Pump Mount 1 5W001-050 Aftercooler Pump Plug 1 5W014-010 14 GA STD Wire, Red, 10 ft. 1 5W001-013 14-16 GA Butt Splice Connectors 1 5W001-011 14-16 GA Eyelet, .25" 1 4GK010-150 Bracket, Water Pump 1 7C080-016 8mm X 1.25 X 16 HXHD Bolt 2 7J312-000 5/16 Flat Washer, SAE 3 7F008-020 M8 x 1.25 Nut 1
4GK114-010 WATER T ANK ASSEMBLY 1
8N055-030 Reservoir 1 4GK010-160 Bracket, Reservoir 1 7A250-050 1/4-20 HHD, 1/2 Long 2 7J006-093 6mm Washer 2 7U038-00 3/4" Heater Hose, 11 ft. 1 7U038-012 3/4" 90° Hose 4 x 12" 2 7R007-001 Nylon Clamp 1-1/8" 10 7P500-026 1/2 NPT to 3/4 Hose 90° Barb 6 7P500-078 1/2 NPT to 3/4 Hose Barb 2
4GK112-010 DISCHARGE ASSEMBLY 1
4GK012-010 Duct T-Body Cooler 1 7S275-200 2-3/4 X 2 Sleeve 1 7R002-044 #44 Goldseal Hose Clamp 2
8N104-061 SUPPORT COMPONENTS 1
7S400-200 4" Sleeve 1 7R002-064 #64 Goldseal Hose Clamp 2 7S250-200 2-1/2 Sleeve 1 7R002-040 #40 Stainless Hose Clamp 2 8N056-060 Surge Tank Body 1 8N055-050 Cap, Surge Tank Plastic 1 8N010-110 Mtg. Tab, LS1 Fbody 1 7P375-250 3/8 x 3/8 x 1/4 Male Barb TEE 1 7P125-037 1/8 NPT - 90° to 1/4 Barb 1 7U030-030 1/4" vacuum hose 1.25' 7U100-055 Tie Wrap, 6" Nylon 10 7U100-044 Tie Wrap, 4" Nylon 5 7A250-050 1/4-20 SHCS, 1/2 Long 2 7J006-093 6mm Washer, Plated 3
4GK110-110 COIL BRACKET RELOCATION ASSEMBLY 1
PARTS LIST
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
x
2001-2002 GM F-Body LS1 w/Charge Air Cooler
®
ENGINEERING, LLC
Part No. 4GK218-080SQ
PARTS LIST
IMPORTANT: Before beginning installation, verify that all parts are included in the kit. Report any shortages or damaged parts immediately.
Part Number Description Quantity
4GK010-110 Tab A, Coil Relocation 6mm 2 4GK010-120 Tab B, Coil Relocation 2 7C060-016 M6 x 1.00 x 16 HXHD 6 7F006-093 6mm Nylock Nut 4 7J006-093 6mm Washer, Plated 10
7U133-070 FILLER HOSE 1 7T560-001 CUTTER, 9/16 ROTABROACH 1 7T560-002 ARBOR, ROTABROACH 1 8H040-022 3/4 BREATHER 1 4GK020-020 HAND-HELD PROGRAMMER COUPON 1 4GK014-010 RADIATOR PIPE LS1 F-BODY 1 7R002-024 #24 GOLDSEAL HOSE CLAMP 2 8F060-038 38 lb INJECTORS 8
©2003 Vortech Engineering, LLC
xi
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
This Page Left Intentionally Blank
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
xii
1. COMPONENT REMOVAL
A. Disconnect the negative cable at the battery. B. Remove all ducting between the air filter cover
and the throttle body (set aside MAF meter, taking care to protect the wire elements inside).
C. Remove the air temperature sensor and grommet
from ducting (set aside).
D. Remove and discard the hose that connects the
passenger's side valve cover breather to the throttle body.
E. Cap off the throttle body nipple with the supplied
3/8" vacuum cap.
F. Remove the accessory drive and air conditioning
compressor drive belts.
G. Spray bolts on both sides of the driver's side
catalytic converter with penetrating oil.
H. Drain the coolant system until the upper radiator
hose can be removed. Remove the radiator hose connecting the engine to the power steering cooler.
I. Remove the plastic pow er steering cooler retainer,
if equipped, from the radiator shroud.
J. Remove the harmonic damper from the crankshaft
using a damper removal tool.
K. If the power steering pulley does not have the
pump mounting bolt access slots, remove the pulley with a pulley remover.
L. Use a drain pan under the power steering
reservoir and disconnect the 3/8 return hose from the bottom of the reservoir. Remove the power steering pump, bracket and pressure hose from the vehicle.
©2003 Vortech Engineering, LLC
1
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
2. SUPERCHARGER MOUNTING BRACKET
A. For 1999-2002 vehicles, the driver’s side coil
mounting bracket must be relocated 1” to make room for the supercharger inlet. Follow the steps in the coil relocate schematic (see
a, 2-b
) using the supplied 6mm hardware unless noted. Only four of the original mounting holes are utilized.
B. Unbolt the coil bracket from the valve cover (5
stud bolts).
VORTECH TAB INSTALLED
STEP 2:
BOLT THESE TWO SUPPLIED
TABS LOOSELY TO COIL BRACKET
Fig. 2-
STEP 4:
MOUNTING TABS AND TIGHTEN ALL NUTS AND BOLTS BEGINNING WITH THOSE MOUNTED TO VALVE COVER
Fig. 2-b
INSTALL THE REMAINING HARDWARE INTO THE
USE FACTORY HARDWARE
USE FACTORY
HARDWARE
THIS VALVE COVER MOUNTING
BOSS IS NOT USED
STEP 1:
BOLT TABS
TO VALVE COVER
Figure: 2-a
Coil Relocation Schematic
C. For 2000-2002 vehicles, insert the supplied small
breather into the end of the 3/4” hose that was originally connected to the stock air intake plenum.
D. Remove the two electrical connectors from the
throttle body . Open up the wire loom until the MAF sensor wire has about 15” of free length (about where the #2 injector wire joins loom). Wrap the MAF wires with electrical tape and cover with the supplied plastic wire loom. Wrap the remaining plugs with electrical tape and plastic wire loom as factory installed. Reconnect the connectors to the throttle body.
E. Clean the front of driver's side head of debris. F. Bolt the mounting bracket to the head with two of
the factory bolts and the two supplied 45mm long bolts. (See
Fig. 2-c
.)
G. Make sure that mounting bracket is seated directly
on the machined surface on the cylinder head and that no wires are pinched.
H. Tighten the four mounting bolts to 37 ft/lb
(50 N·m).
STEP 3:
INSTALL COIL BRACKET SO THAT IT PILOTS IN THIS HOLE, LOOSEL Y INSTALL 6MM BOLT AND NUT WITH WASHERS
FACTORY POWER STEERING
BRACKET BOLTS REINSTALLED
SUPPLIED
45MM BOLTS
POWER STEERING PUMP SUPPLY
FITTING RETAINING BRACKET
SOCKETHEAD CAP
1/4-20
SCREWS
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
Fig. 2-c
2
3. OIL DRAIN LINE
A. To provide an oil drain for the supercharger, it is
necessary to make a hole in the front of the oil pan. Locate and centerpunch the hole. This hole should be centered .40” from the bottom of the oil pan lip between the last bolt and the driver’s side of the oil pan. (See
B. Drill the 1/8” pilot hole at the center location. C. Use the supplied 9/16” Rotabroach to drill a hole
in oil pan. Break through the pan easily so that the cut out piece does not go into the oil pan.
D. Tap the hole with a 3/8” NPT tap to approximately
1/2” deep or until the fitting can be started. Pack the flutes of the tap with heavy grease to hold chips.
E. Thoroughly clean the threaded area. Reach inside
the oil pan and retrieve any stray chips. Apply a small amount of silicone sealer to the new threads. Apply more sealer to the 3/8” NPT hex nipple and secure in the hole. Make sure a seal is formed all around the fitting. Install elbow and barb fitting pointing up and towards the side of the alternator (see
Fig. 3-b
) so that the oil drain hose will have
maximum clearance to the damper once installed.
F. Temporarily cover the oil drain barb fitting to keep
out debris.
G. Drain the engine oil, install a new filter and refill
the engine with fresh oil.
Fig. 3-a.
)
Fig. 3-b
VIEW OF OIL DRAIN HOLE LOCATION LOOKING
AT FRONT DRIVER’S SIDE OF OIL PAN
(DIMENSIONS TO CENTER OF HOLE)
OIL PAN RAIL 9/16” THRU
.650
Fig. 3-a
.400
DRIVER’S SIDE OF OIL PAN
©2003 Vortech Engineering, LLC
3
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
4. OIL FEED LINE
A. Spray the nuts securing the driver’s side catalytic
converter with penetrating oil and remove. Use caution not to shear off the exhaust manifold studs!
B. Remove the two bolts holding the small casting
located just above the oil filter.
C. Drill through the existing hole in the casting neck
with an “R” drill bit and tap 1/8” NPT. Thoroughly clean the neck with solvent to remove metal clips.
D. Using engine oil on the threads, install the
supplied 1/8” NPT to #4 90° fitting so it will point forward and away from the exhaust when installed on the vehicle (see
E. Reinstall the neck into its original position. F. Temporarily cover one end of the oil feed line and
protect it from debris until connecting it to the supercharger.
G. Connect the open end of the oil feed line to the
fitting. Install the fire sleeve on the portion of the oil feed line that is near the exhaust and secure both with an adel clamp. Route the line along the oil pan rail to the front of the engine. Use an adel clamp at the front of pan and tie wraps to secure the line and protect it from kinking, abrasion, and high heat areas. From the front of the pan, leave the oil feed line loose (routing will be completed after the supercharger is installed). The adel clamps will need to be clipped with side cutters to allow the bolt to pass through the hole (see
Fig. 4-b
).
H. Re-install the catalytic converter.
Figure 4-a
).
Fig. 4-a
CLIP HERE
5. HARMONIC DAMPER INSTALLATION
A. Make sure no debris or oil is on the crank snout
or inner bore of the supplied damper.
B. Use the damper installation tool to seat the
damper on the crankshaft. (See Tool & Supply Requirements on page v.)
C. Install per factory manual as follows:
1. Install the original retaining bolt and torque to
240 ft/lb. Remove the bolt.
2. Lightly coat the threads of the new retaining bolt with red threadlocker. Install and torque to 37 ft/lbs.
3. Using 1/2" breaker bar, tighten the retaining bolt an additional 120° or tighten with a torque wrench to 250 ft/lbs.
D. Use a small amount of paint or equivalent to mark
the retaining bolt and balancer hub so that any relative movement between the two will be easy to check after the vehicle has been operated.
Fig. 4-b
NOTE: It is helpful to mark the breaker bar
location on the damper under light torque. Tighten the bolt until the breaker bar is at the same position under the same light torque as used previously, but is advanced two flats on the bolt head. This yields 120° of bolt rotation.
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
4
6. RADIATOR HOSE MODIFICATION
A. The object of this section is to route the radiator
hose as close to the radiator as possible to provide room for the supercharger belt and spring tensioner.
B. Drain the coolant system until the upper radiator
hose can be removed.
C. Leaving the straight legs as long as possible, trim
the supplied hose per
D. (Vehicles
with
power steering cooler) Remove the
Fig. 6-a
.
radiator hose connecting the engine to the power steering cooler. Install the trimmed hose in place of the original so the free end is routed behind the A/C line. Make sure the hose is routed between the radiator shroud and the air conditioning line.
E. (Vehicles
without
power steering cooler) Remove the engine side of the upper radiator hose. Install the trimmed hose onto the engine and route the free end behind the A/C line. Cut the original radiator hose so it will connect to the installed hose with the supplied 1-3/8" hose mender. Make sure the hose is routed between the radiator shroud and the air conditioning line.
F. If the hose is not tight against the radiator shroud,
remove the radiator side of the upper radiator hose and trim to pull hose forward.
G. Tighten all hose clamps and refill coolant system.
SUPPLIED HOSE
CUT HERE
FACTORY HOSE TO BE REPLACED (Cars equipped w/power steering cooler)
Fig. 6-a / Hose Modification
7. POWER STEERING INSTALLATION
A. Remove the reservoir from the power steering
pump and set aside.
B. Loosely install the power steering pump supply
fitting retaining bracket on the mounting bracket with 1/4-20-1/2” long socket head cap screws.
C. If separate from pressure line, install the 18mm
fitting in the power steering rack and the 16mm fitting in the power steering pump.
NOTE: Remove the factory power steering O-
rings from the ends of the factory hoses and install on the supplied fittings.
D. Loosely install the -6 90° fitting on the power
steering rack. Point the fitting upwards.
E. Attach the supplied pressure line to the power
steering pump angled so as not to contact the power steering pump pulley when installed.
F. With the factory O-ring positioned on its smallest
bore, insert the supplied power steering pump supply fitting into the pump and push until a positive stop is felt.
G. Assemble the power steering pump and front
supercharger support bracket using two 3” x 5/16-18 through bolts and the factory 8mm bolt in its original location. (See
Fig. 7-a
.)
16mm FITTING
Fig. 7-a
SUPPLIED 5/16-18 BOLTS
©2003 Vortech Engineering, LLC
5
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
7. POWER STEERING INSTALLATION, cont'd.
H. Install the assembly on the supercharger
mounting bracket. Install two 5/16 socket head cap screws through the supercharger support into the mounting bracket.
I. To ensure that the power steering supply fitting
remains seated, pry the small fitting retaining bracket downward and tighten the 1/4” screws.
J. Attach the supplied 1/2” hose to the pump fitting
and secure with a hose clamp. Hose will be routed between the supercharger support and the mounting bracket and then behind the ABS unit (if so equipped) to the reservoir.
K. Install the supplied O-ring onto the factory power
steering reservoir. Push the supplied fitting until a positive stop is felt. Attach the reservoir to the supplied bracket with the retainer and 10-24 through bolt (see
L. With the reservoir attached to the bracket, attach
the factory fluid return to the reservoir. Attach 1/2" hose from top of power steering pump to the fitting installed on the reservoir.
M. Position the assembly next to the driver’s side of
the radiator . Secure with the factory ground strap bolt located on the radiator core support (see
7-c
).
N. Attach and tighten the pressure line to the steering
rack.
O. Re-install the power steering pulley (if previously
removed).
P. Bleed system as follows (
1. Raise the front wheels off the ground.
2. Turn the steering wheel full left.
3. Fill the reservoir to “full cold” level. Maintain
level throughout procedure.
4. Turn the steer ing wheel lock to lock at least 20 times or until the bubbles stop.
Fig. 7-b
).
with the engine off
Fig.
):
Fig. 7-b
Fig. 7-c
NOTE: If the vehicle is not equipped with a
power steering cooler, use the supplied hose mender, 3/8" hose and hose clamps to extend return line to reservoir.
8. FUEL INJECTOR REPLACEMENT
NOTE: Complete removal of the fuel rail will aid in injector replacement. Separate the fuel
rail supply line from the rail using springlock disconnect tool.
A. Relieve the fuel system pressure. B. Disconnect the eight fuel injector wiring clips and retainers from the injectors.
NOTE: Do not reinstall factory injector retaining clips.
C. Remove the four 10mm bolts holding down the fuel rail on the intake manifold. Lift
up on the rails evenly, removing all eight injectors.
D. Using a small amount of clean motor oil, lightly lubricate the O-rings on both ends
on the Vortech supplied fuel injectors.
E. Install the new injectors into the fuel rails with the terminals facing outward.
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
6
8. FUEL INJECTOR REPLACEMENT, cont'd.
F. Carefully lower the fuel rail/injector assembly
down onto the intake manifold. Check to see that each injector has been seated properly into the manifold.
G. Tighten down the fuel rail assembly with the
original bolts and attach the wiring clips to the injector terminals.
9. SUPERCHARGER INSTALLATION
A. Attach the supplied 1/2" oil drain hose to the
supercharger and tighten clamp.
B. Install the supercharger loosely onto the bracket.
Start all six supercharger mounting screws.
C. Tighten the supercharger support bracket
mounting screws to 18 ft/lb (25 N·m).
D. Tighten the six supercharger mounting screws to
18 ft/lb (25 N·m).
E. Route the oil drain hose down behind the idler
and to the left of alternator. Attach the oil drain hose to the previously installed fitting in the oil pan and tighten the clamp.
F. Route oil feed hose up the front of the engine to
the supercharger and attach using supplied 90° fitting. Fitting should be installed into the oil feed fitting (7P375-094). Oil feed/air assist assembly should be checked/plumbed per
G. Make sure the oil feed hose is secured from
contact with moving or sharp objects.
H. Install the factory accessory drive belt(s) in stock
configuration.
I. Bolt the supplied spring tensioner to the mounting
pad near the supercharger drive pulley using threadlock on the threads. Line up the locating pin with bracket hole. Secure the tensioner assembly to the bracket using the supplied 3/8" bolt and 3/8" SAE washer. (See
Fig. 9-a
Fig. 9-b
TO SUPERCHARGER VOLUTE
V-9 OIL FEED
SCHEMATIC
1/8 NPT TO 1/4” HOSE BARB (7P125-036)
14.5 STEPLESS CLAMP (7R004-003) 2 PLACES
1/4” I.D. HOSE
3/8” COPPER WASHER (7J375-024) 2 PLACES
AIR ASSIST FITTING
(7P125-039)
1/8 NPT TO 1/4” HOSE BARB 90° (7P125-037)
FLOW
.
AIR CHECK VALVE
(7P125-110)
1/8 NPT HEX (7P125-108)
OIL FEED FITTING
(7P375-094)
Fig. 9-a
TO SUPERCHARGER GEARCASE OIL FEED
NIPPLE
ENGINE OIL IN
.)
NOTE: Failure to install the 3/8" washer under
the bolt head may cause the tensioner to malfunction.
J. Install the supercharger drive belt.
NOTE: Make sure the supercharger belt
tensioner does not make contact with the factory power steering cooler. Contact with the cooler during normal engine operation may cause tensioner bind and subsequent supercharger input overload resulting in supercharger failure. Make extra effort so that contact between parts is not made.
Fig. 9-b
©2003 Vortech Engineering, LLC
7
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
10. CHARGE AIR COOLER ASSEMBLY INSTALLATION,
standard supercharger kit installation, go to step 11)
A1. 1998-2000 - EGR removal, relocation/heat
shield installation
1. Remove EGR valve. Using thread sealer, in­stall 1/8" NPT plugs in the EGR relocation plate.
2. Using the new supplied gasket, bolt the EGR valve to the relocation plate using 5/16” bolts and washers.
3. Install EGR relocation plate and heat shield using new gasket and supplied 8mm bolts. The heat shield should be oriented so that the aftercooler core can rest on top of it when in­stalled (see
Fig. 10-a
4. Place supplied 1/4" foam tape on top of the heat shield (see
5. Using the supplied wire and butt connectors, lengthen the EGR plug wire approximately 10”. Stagger butt connectors and wrap with electrical tape. Connect the lengthened EGR plug to the EGR valve using a wire loom and zip ties to keep it away from hot or moving parts.
2001-2002 - Charge air cooler support installation
A2.
1. Install the supplied support bracket onto the
front of the passenger side cylinder head. Use the supplied M10 bolts to secure the bracket with the bent portion on top and pointed for­ward. (See
Fig. 10-b
2. Verify that the 1/4" foam tape is on top of the bracket to insulate the aftercooler from metal to metal contact.
B. Air conditioning canister relocation
NOTE: The object of this section is to pull the
A/C canister towards the passenger side of the vehicle to provide clearance for the charge air cooler.
).
Fig. 10-a
.)
).
Charge Air Cooler EGR Relocation and Support
NOTE: EGR valve inlet passage must remain
(for non-charge air cooled
Fig. 10-a / 1998-2000
connected to the same passage as factory installed. (i.e.: pointed side of EGR valve mounting surface must point towards the center of the vehicle).
1. Loosen the clamp on the factory A/C canister bracket. Adjust the height of the A/C canister so the supplied #56 hose clamp fits between the top of the factory A/C canister bracket and the raised step on the A/C canister.
Vehicles With T raction/Cruise Control
2a.
the traction/cruise control servo on the passenger's side just behind the battery. Re­move the bolt closest to the A/C canister which secures the servo to the strut tower. (It may be beneficial to remove the battery to gain full access to this bolt.) Insert the supplied A/C canister anchor between the cruise control servo and the strut tower. Install previously removed bolt, hand tight only.
Vehicles Without Traction/Cruise Control
2b.
Mount the A/C canister anchor in the factory hole near the middle of the A/C canister. Us­ing one of the original EGR valve mounting bolts removed in Step 10-a or use the sup­plied 8mm bolt and washer and tap the hole to M8 x 1.25. (See
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
Fig. 10-2b
. Locate
Fig. 10-b / 2001-2002 Charge Air Cooler Support
.
.)
8
Fig. 10-2b / A/C Canister Anchor Bracket
10. CHARGE AIR COOLER ASSEMBLY INSTALLATION, cont'd.
FUSE TAP
MODIFICATION
BEND UP 90° BEND UP 90°
IGNITION
RELAY
MODIFIED
FUSE TAP
INSTALLED MODIFIED
FUSE TAP
BOTTOM VIEW
86
85
87
30
IGNITION
RELAY
SIDE VIEW
C. Water reservoir assembly
D. Water pump wiring
E. Reservoir/water pump assembly installation (see
3. Place the #52 hose clamp over the raised tab
on the A/C canister anchor. A/C line support clamp may need to be removed for ease of installation. Tighten the clamp until the A/C canister is seated tightly against its anchor. Tighten the bolt securing the anchor to the strut tower. Tighten the factory clamp-on A/C canister bracket.
1. Install the 1/2” NPT 90° hose barb fitting into the bottom of the supplied plastic reservoir. Install 1/2” NPT straight barb into top reser­voir hole.
2. If the 1" NPT on top of tank has a through hole, install 1" NPT pipe plug.
1. Mount the supplied relay and #86 relay termi­nal grounding wire on to the stud on the driver’s side strut tow er . Remov e all paint and dirt from around the mounting hole to ensure a good ground.
2. Connect the supplied fuse, fuse holder and large ring terminal from the #30 relay termi­nal to the remote (+) positive battery terminal on the fuse box.
3. Open the fuse box containing the ignition re­lay. Remove the relay. Modify and install the mini fuse tap per diagram on the #86 terminal of the factory relay. Reinstall the factory igni­tion relay with the fuse tap in place. Using the yellow wire from the #85 terminal on the Vortech relay and a spade connector , connect to the fuse tap. (See
Fig. 10-c
.)
4. Using the supplied red wire, extend the posi­tive (+) wire from the pump to the #87 relay terminal.
5. Route the negative (-) wire from the pump to a clean ground free from paint and vehicle under coating. Use the supplied eyelet and screw to ground the wire to the vehicle chassis.
Fig. 10-f
on the following page.)
1. From area near radiator overflow tank, route 3/4" hose down past the outside of the bat­tery . This hose will be connected to the top of the charge air cooler reservoir.
2. Underneath the vehicle, remove the passenger's side splash panel located in front of the front wheel.
3. Remove the nut holding driving light support and the bolt directly behind it. Install the Camaro water tank bracket between driving light support and vehicle using the original nut and bolt (see
Fig. 10-d
).
INSTALLED
TANK BRACKET
USE SUPPLIED 8mm BOLT IN STOCK HORN BRACKET MOUNTING LOCATION
MOUNT HORN BRACKET ASSEMBLY IN THIS LOCATION WITH SUPPLIED 8mm BOLT AND NUT
USING THE WATER PUMP RETAINING BRACKET,
Fig. 10-c
Fig. 10-d
USE SELF TAPPING 8MM HORN
BRACKET BOLT TO SECURE
BRACKET IN THIS LOCATION
WATER PUMP
MOUNTING BRACKET
MOUNT TO THE WATER PUMP MOUNTING
BRACKET USING THE SUPPLIED 1/4”
HARDWARE ORIENTED PER PHOTO
Fig. 10-e
©2003 Vortech Engineering, LLC
9
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
10. CHARGE AIR COOLER ASSEMBLY INSTALLATION, cont'd.
TO BYPASS VALVE
®
SUPERCHARGER
DISCHARGE
MOLDED
WATER
TANK
SURGE
TANK
WATER PUMP
1/4” HOSE
(-)
TO RADIATOR
OVERFLOW
HOSE
(+)
COOLED CHARGE AIR
3/4” HOSE
WATER COOLER
(Located In Front Of Vehicle Radiator)
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
Fig. 10-f
Charge Air Cooler Schematic
10
10. CHARGE AIR COOLER ASSEMBLY INSTALLATION, cont'd.
4. Connect the hose previously routed into the
fender well to the fitting on the top of the res­ervoir. Install the clamp.
5. Remove horn bracket assembly. Using sup­plied 8mm bolt, attach water pump bracket to vehicle using original horn bracket mounting hole. Install original horn bracket retaining bolt through second water pump mounting bracket hole and tighten. Using supplied 8mm bolt and nut, bolt horn bracket assembly to water pump mounting bracket as shown (see
6. Install retaining bracket on water pump and bolt to water pump mounting bracket using supplied 1/4" hardware. Orient the retaining bracket and water pump discharge as shown (see
Figure 10-g
) and tighten bolts.
7. Connect molded 90° hose from bottom of the water tank to the inlet of the water pump (inlet is centered in the pump housing in line with the motor).
8. Feed assembly into fender well and position so there is clearance on all sides of reservoir. Bolt reservoir assembly to reservoir mount­ing bracket.
F. Charge air cooler installation
1. Loosely connect charge air cooler core as-
sembly to supercharger discharge.
2. Put sleeves on both ends of the duct connect­ing the throttle body to the charge air cooler and install duct.
3. With the charge air cooler firmly seated on the heat shield and tight against engine oil fill, tighten all clamps.
4. Carefully verify that the charge air cooler has sufficient clearance to throttle arm through­out its range of motion.
G. Surge tank installation
1. Connect the hose from the top of the reser-
voir to a 90° fitting installed in the bottom of the surge tank (trim for ideal routing).
2. Mount the tank with the bolt securing the trac­tion control box to the strut tower.
(On vehicles not equipped with traction con­trol, mount the surge tank in the existing hole in the strut tower using one of the original EGR valve mounting bolts removed in step 10-A1 or use the supplied 8mm bolt and washer.)
3. Connect the molded 90° hose from the top of the surge tank to the barb fitting on the upper left of the charge air cooler (see
4. Thread supplied 1/8 NPT to 1/4" hose barb fitting into the surge tank.
5. Cut the radiator overflow hose adjacent to the radiator cap, leaving at least 1" of the hose connected to the cap.
Fig. 10-e
Fig. 10-h
).
).
Fig. 10-g
Fig. 10-h
11
©2003 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
10. CHARGE AIR COOLER ASSEMBLY INSTALLATION, cont'd.
6. Install the supplied TEE and connect the re-
maining barb on the TEE to the barb on the surge tank using 1/4" hose.
7. Secure the hose with tie wraps.
H. Charge air cooler radiator installation
1. Remove the plastic push connectors holding
the bumper fascia on either side of the center connector.
2. From above, install 5/16" bolts through holes and radiator brackets and start nuts.
3. Line up and mark center line of the radiator inlet and outlet on the air dam. With 1.25" di­ameter hole saw, drill holes as high as pos­sible on the air dam so that the hoses will emerge just under the lower core support.
4. Install 90° fittings pointing horizontally towards the passenger's side of the vehicle, but do not secure the charge air cooler radiator until the bleeding procedure is completed.
I. Plumbing and bleeding system
1. Connect the pump discharge to charge air
cooler radiator inlet (driver’ s side fitting on the radiator).
2. Connect the charge air cooler radiator outlet to the remaining 90° fitting on the charge air cooler.
3. Allow the charge air cooler radiator to hang with the fittings at the highest point.
4. Remove the cap from the surge tank and fill the system with 25/75% coolant/water mix.
5. Install cap.
6. Key on power. If water isn’t circulating, turn
off the pump and check the system. (See step 16-G.)
7. Key off power.
8. Top off purge tank. (Repeat until level stabi-
lizes.)
9. Install the charge air cooler radiator as shown and tighten mounting bolts (see
Fig. 10-i
10. Reinstall splash panel.
J. Hood modification (
Camaro only
)
1. Verify that the charge air cooler is seated on the heat shield. The heat shield can be bent down to further lower the charge air cooler as long as clearance to the throttle arm is suffi­cient.
2. Place clay or putty on the charge air cooler and locate the area of contact with the hood.
3. Using a leather hammer, relieve the underhood bracing until there is sufficient clearance to the charge air cooler (see
10-j
).
4. Using clay or putty, verify clearance to the in­let tube and MAF. Run the vehicle and check for contact with the hood.
).
Fig.
RELIEVE AS SHOWN
(Camaro Only)
Fig. 10-i
Fig. 10-j
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
12
11. STANDARD KIT DISCHARGE DUCT INSTALLATION,
installation skip step 11 and go to step 12)
A. Loosely install the supplied sleeves on both ends
of the discharge duct. Put the discharge duct into position and slide the sleeves onto the supercharger and the throttle body.
B. Tighten clamps on both ends of the discharge
duct.
12. SUPERCHARGER BYPASS VALVE INSTALLATION
A. Thread 1" NPT plastic fitting into charge air cooler
inlet manifold. (Charge air cooled vehicles only)
B. Connect 2-1/2" length of hose from the barb on the
supercharger discharge duct to the inlet of the bypass valve. Tighten hose clamps on each connection.
C. Cut brake booster vacuum hose as shown (see
12-a
) and insert plastic TEE fitting and 3/16" barb.
D. Connect 5/32" vacuum line from the bypass valve to
TEE fitting.
Fig.
(for charge air cooler kit
INTAKE
MANIFOLD
FITTING
SUPERCHARGER DISCHARGE TUBE
BYPASS VALVE
SUPERCHARGER AIR INLET ELBOW
5/32” HOSE 1/2” TEE
1/4” NPT x 3/16” FITTING
Fig. 12-a
13
BRAKE BOOSTER
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
©2003 Vortech Engineering, LLC
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
13. FUEL PUMP INSTALLATION
A. Inside the vehicle, remove the rear paneling, fold
the carpet forward and flip the rear seats forward. Remove the rear driver's side seat.
B. Locate the fuel relay box underneath the vehicle
rear seat floor pan. Disconnect the two plugs entering the box. Trim the "cut-out" from the supplied template on page 16 (see place over the fuel relay. Center punch and drill the two holes 17/64" in diameter. Reinstall the factory relay plugs .
C. Secure the fuel pump/line assembly to the vehicle
with the supplied adel clamps, nylock nuts, and hardware (see
Fig. 13-d
).
5/16” x 14” HOSE
Fig. 13-b
) and
FACTORY
SUPPLY
LINE FROM
TANK
FUEL FITTING 7P375-010
17.0 STEPLESS CLAMP
3/8" x 10" HOSE
SUPPLIED FUEL FITTING
7P375-072
TO FUEL FILTER
17.0
STEPLESS
CLAMP
(NOT TO SCALE)
15.7 STEPLESS CLAMPS
FACTORY
FUEL FILTER
Fig. 13-a
3" x 5/8" HOSE
TO FUEL RAIL
FLOW
17.0 STEPLESS CLAMP
FUEL PUMP
SECURE ADEL CLAMPS AROUND THE FOAM FUEL PUMP ISOLATER HOUSING
5/8" STEPLESS CLAMPS
5/8 - 3/8 REDUCER FITTING
17.0 STEPLESS CLAMP
3/8" x 36" HOSE
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
14
13. FUEL PUMP INSTALLATION, cont'd.
D. Reinstall rear carpet and seats. E. Loosen the tank filler cap to vent any residual
pressure.
F. Disconnect the original plastic fuel feed hose to
the fuel filter inlet.
G. Route the fuel pump inlet hose around the front
of the fuel filter to form a smooth, gradual bend to the pump. Attach the hose to the factory supply line from the tank.
H. Attach the pump discharge line to the inlet of the
fuel filter. Use wraps to keep all fuel lines tight against the underbody. (See
NOTE: It is important that all fuel lines have no
contact with moving parts, exhaust components or sharp corners. Make sure lines are routed with gentle bends and secured with the supplied tie wraps.
I. Using a 1/8" drill, make a mounting hole in the
frame crossmember above the fuel pump to mount the relay wiring harness and provide a grounding point. Remove all paint and dirt from around the hole. Mount the relay, fuel pump grounding wire and #86 relay terminal using the supplied sheet metal screw.
J. Using the yellow wire from the #85 relay terminal
and a wire tap, splice into the grey wire in the factory fuel pump harness (see
13-e
).
K. Connect the #87 red wire on the relay to the
positive terminal on the fuel pump.
L. Run the remaining long red wire up to the battery ,
using tie wraps to keep the wire away from heat and moving parts. Connect the supplied fuse, fuse holder and large ring terminal to the wire and attach to the remote (+) positive battery terminal.
M. Replace the fuel tank filler cap.
Figs. 13-a, 13-c
Fig. 13-d,
.)
IMPORTANT! Pressurize the fuel system to
check for any leakage before starting the vehicle.
15
©2003 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
13. FUEL PUMP INSTALLATION, cont'd.
TEMPLATE FUEL PUMP KIT
CUT OUT PATTERN
AND PLACE OVER FUEL
SYSTEM RELAY AS A GUIDE
UP
CUT OUT
(RELAY)
CENTER PUNCH AND
DRILL TWO 17/64” HOLES
RELAY LOCATED UNDERNEATH THE REAR SEAT FLOORPAN IN THE DRIVER’S SIDE OF THE VEHICLE
VIEW FROM THE PASSENGER’S SIDE
PUMP
FUEL
FACTORY PLASTIC FUEL LINE
Fig. 13-b
NOTE: ENSURE WIRES INSIDE CAR ARE TUCKED DOWN AWAY FROM POSSIBLE CONTACT WITH DRILL BIT WHEN DRILLING.
STOCK RELAY BOX ATTACH
YELLOW VORTECH RELAY WIRE
TO FACTORY GREY WIRE.
VORTECH RELAY
FACTORY
PLASTIC
FUEL LINE
FRAME/CROSSMEMBER
FUEL
PUMP
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
STOCK
FUEL FILTER
16
VIEW FROM THE
REAR OF THE VEHICLE
STOCK FUEL FILTER
Fig. 13-dFig. 13-c
13. FUEL PUMP INSTALLATION, cont'd.
RELAY
(+)TERMINAL ON FUEL PUMP
(+)BATTERY TERMINAL
GROUND
87
86
87A
30
85
14. INLET DUCT INSTALLATION
A. Install the supplied grommet and 3/8” elbow into
the 180° inlet duct hole.
B. Attach short leg of large duct to supercharger with
3-1/2" sleeve and clamps.
C. Attach MAF to long end of 180° inlet duct using
3-1/2” sleeve and clamps.
WIRING CONNECTOR
Fig. 13-e
GREY PURPLE BLACK
FACTORY FUEL
IMPORTANT! Lines attached to the ABS unit
may need to be bent down for hood/duct clearance.
D. Install the air temperature sensor into the supplied
90° inlet elbow using stock grommet.
E. Install the 90° inlet elbow into the factory air box
and connect to MAF with the supplied 3-1/2" flex hose and clamps.
F. If possible, install MAF so that plug is pointing
down and MAF is oriented for maximum hood clearance.
G. Install bypass valve discharge hose and clamps
(trim for best fit).
H. Connect supplied 3/8" hose from back of inlet duct
to passenger side valve cover breather.
I. Tighten all hose clamps and verify that there is
hood clearance.
17
©2003 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
15. REFLASH COMPUTER
MICRO TUNER 2001 VEHICLE PROGRAMMING INSTRUCTIONS
IMPORTANT! To ensure trouble-free programming of your vehicle's computer:
Make sure the vehicle's battery is sufficiently charged.
Turn off
Do not attempt to program your vehicle while a battery charger is connected.
Improper battery voltage will result in failure of the programming process.
Do not disconnect the cable or turn off the ignition during programming.
A. Reconnect the battery. B. Connect the supplied cable to the 9-pin connector
at the top of the hand-held unit. If present, use the thumbscrews to secure the cable to the connector.
C. Connect the other end to your ALDL connector
located under the dash near the steering column. Make sure this connection is seated all the way in and that it is secure. You do not want this cable coming out of the connector during programming.
D. Turn the ignition key to the "on" or "run" position
but
do not start the vehicle.
E. To begin programming your vehicle, you may
either press the YES button or the A button. If you press the YES button on the hand-held unit, this will download the Superchips performance program already stored in the hand-held unit. If you press "A", you can alter some predefined options to suit your needs. These options are permanently stored in the hand-held unit. When power is removed from the unit, the changes you made will be lost.
F. You only need to press the YES button once to
start the programming cycle. The programming process takes 1 minute and 15 seconds to complete.
all accessories and close doors to prevent unnecessary drain on the battery.
not
DO NOT DISTURB THE CABLE, OR TURN THE IGNITION OFF DURING THIS TIME! IF THE PROGRAMMING IS DISRUPTED YOUR COM­PUTER WILL NOT START OR RUN YOUR VE­HICLE!
G. The hand-held unit will inform you that the
programming process has completed and to turn the ignition off and disconnect the cable. this time should the ignition be turned off and the cable removed.
H. Programming is now completed. Start the vehicle
to ensure proper operation.
16. FINAL ASSEMBLY AND CHECK
A. Make sure that the oil drain to oil pan fitting is secure
and that the engine is filled with factory specified oil.
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
Only at
18
16. FINAL ASSEMBLY AND CHECK, cont'd
B. For a vehicle equipped with an automatic
transmission, make sure that the automatic transmission cooling lines will not contact the crank pulley when the vehicle is in operation. Secure as necessary.
C. Fill the factory radiator and the factory coolant
surge tank with a 50/50 coolant/water mix.
D. If your vehicle has gone over 20,000 miles since
its last spark plug change, you will need to change the spark plugs now before test-driving the vehicle.
E. Check all fittings, nuts, bolts and clamps for
tightness. Pay particular attention to oil and fuel lines around moving parts, sharp edges and exhaust system parts. Make sure all wires and lines are properly secured with clamps or tie wraps. Make a visual inspection of the engine and engine compartment (See
F. Check all fluid levels, making sure that your tank
is filled with 91 octane or higher fuel before commencing test-drive.
G. (Charge air cooler kits only.) With key on, make
sure aftercooler water pump is operating and that water is flowing through the surge tank. Fill as necessary . If w ater is not flowing, remov e charge air cooler supply hose (attached to water cooler) and lower until water flows out of hose. This should prime the pump. Reconnect hose to charge air cooler. Verify water flow. Do not run the water pump for extended periods (30 seconds or more) without water flow.
H. Turn the key to the "on" position allo wing the fuel
pump to cycle and build pressure. Chec k the fuel rails and injectors for any leaks.
I. At this point, it is ok to start the vehicle. J. With engine running, check power steering hose
connections for leakage. Let engine run for two minutes. Tur n steer ing wheel in both directions.
Verify:
Smooth power assist
Noiseless operation
Proper fluid level
No system leaks
No bubbles, foam or discoloration in fluid
K. Recheck to be sure that no hoses, wires, etc. are
near exhaust headers or moving parts and for signs of any fluid leakage.
L. Test-drive the vehicle. M. Recheck the coolant and aftercooler fluid levels.
Periodically check the crank pulley to verify that it has not been moved out on the crankshaft. V erify that the retaining bolt is tight.
N. Read the STREET SUPERCHARGER SYSTEM
OWNER'S MANUAL AND RETURN THE WARRANTY REGISTRA TION FORM within thirty (30) days of purchasing your supercharger system to qualify for the 3 year limited warranty.
Fig. 16-a
.)
Fig. 16-a / Charge Air Cooler Kit
WARNING: Do not attempt to operate the
vehicle until ALL components are installed and ALL operations are completed including final check. Failure to do so may cause PREMATURE FAILURE OF MAJOR COMPONENTS.
Fig. 16-b / Standard Kit
WARNING: Never operate your engine at
full throttle when the engine is cold. Always allow plenty of time for the oil to reach full operating temperature before running above 2,500 RPM. Full supercharger operating temperature is generally achieved only after the engine water temperature has been at the normal indicated operating range for two or three minutes.
19
©2003 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
09JUN03 v3.2
P/N: 4GK020-010
(FBodyLS1(4GK V3.2)98-02)
1650 Pacific Avenue, Channel Islands, CA 93033-9901 • Phone (805) 247-0226
Fax (805) 247-0669 • www.vortechsuperchargers.com • M-F 8:00AM - 4:30PM (PST)
P/N: 4GK020-010 ©2003 Vortech Engineering, LLC All Rights Reserved, Intl. Copr. Secured 09JUN03 v3.2
(FBodyLS1(4GK V3.2)98-02)
®
ENGINEERING, LLC
Loading...
