Vornado Element A2 User Manual

Download

MODEL ELEMENT A2

we expect

if it’s not,

this product

to be PERFECT

WE will make

it right

vornado.com

800.234.0604 help@vornado.com

English

CONTENTS

Important Safety Instructions ..........................................................................................................3

Getting Started ................................................................................................................................ 6

Features ...........................................................................................................................................8

Controls ..........................................................................................................................................10

How to Use ....................................................................................................................................12

Cleaning .........................................................................................................................................16

Mineral Build-Up ............................................................................................................................20

Troubleshooting ............................................................................................................................22

Warranty .........................................................................................................................................24

2 English

Español p. 25 Français p. 49

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See our website to view, download and print the most current version of this owner’s guide.

INTENDED USE: This product is intended to humidify and circulate the air in indoor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or

product modication. Failure to follow these directions will void the product warranty.

WARNING: Risk to Children and Impaired Persons

- Supervision is required during the installation, operation, cleaning and maintenance of this product by children under age 12 and anyone with reduced physical, sensory or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.

INSTALLATION WARNING—To reduce risk of re, electrical shock and injury to persons,

observe the following:

- No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near

furnaces, replaces, stoves or other high temperature heat sources. Do not use in a window, on

an uneven or unstable surface, or near water.

- The appliance, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not

use this product outdoors or expose it to weather or elements.

- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route under furniture or appliances. Arrange cord away from trafc area and where it will

not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

English

SAFE USE WARNING—To reduce risk of re, electrical shock and injury to persons, observe

the following:

- WARNING: To reduce likelihood of circuit overload, re and electric shock, do not operate with a solid state speed device, such as a dimmer control switch.

- Do not operate unit if the unit has been dropped or damaged. Do not use this product if it

has a damaged power cord or plug. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged,

it must be replaced by the manufacturer, its service agent, or similarly qualied persons in

order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or consumerservice@vornado.com (email) for further instructions about replacement and repair.

- Risk of re. Your appliance may be equipped with a detachable power supply or a cord/plug with

a safety device such as a fuse. Use only the power cord and plug provided.

- Before plugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet’s power supply.

- Never use the cord as a handle or otherwise yank, strain or stretch the power cord.

- While the product is plugged in, do not insert or allow foreign objects to enter any input or

output opening as this may cause risk of electric shock or re, or damage the product.

- A loose t between wall outlet (receptacle) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualied electrician to replace

loose or worn outlets.

- This appliance has a polarized plug (one blade is wider than the other.) To reduce the risk of

electrical shock, this plug is intended to t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not

attempt to defeat this safety feature.

- The product may be hot when in use. To avoid burns, do not let bare skin touch hot surfaces.

Always allow appliance to cool at least 30 minutes before moving, relling or emptying it. Empty

all water and dry unit before storing.

- Before lling with water, moving, repositioning, servicing, cleaning and when not in use, use

the product controls to turn off the power and then unplug. To disconnect from outlet, grasp

and pull only the plug. Also, power off and unplug if the product will be left unattended for an

extended period of time or during electrical storms.

- Electric shock can occur when liquid comes in contact with electricity. Be careful when removing

the water tank and relling to avoid electric shock. Do not pour water through the top Outlet Air

Grill on the power head.

- Turn the humidier off if the relative humidity exceeds 60%. Humidity levels above 60% may allow

4 English

moisture to build up indoors and condense on surfaces, where microorganisms can settle and grow. For accurate readings, use a hygrometer which is available at most hardware stores and home centers.

SERVICING WARNING—To reduce risk of re, electrical shock and injury to persons,

observe the following:

- Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the

power on your product and unplug. Do not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning. Refer to the CLEANING instructions provided.

- Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.

- Protect against the growth of mold, mildew and other microorganisms by emptying the water tank immediately after each use. If water is left in the tank for longer than 8 hours, thoroughly clean and disinfect the unit as described in the section of this Owner’s Guide referenced as

“CLEANING”.

DISPOSAL WARNING

To reduce waste and environmental harm, observe the following:

PACKAGE RECYCLING: The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental

friendliness and disposal technology and are therefore recyclable. Dispose of all packaging

materials in an environmentally responsible manner.

FCC Consumer Advisement

This equipment may generate, use and/or radiate radio frequency energy that may cause harmful

interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to contact Vornado Consumer Service at 1-800-234-0604. Changes or modications

to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

English

GETTING STARTED

Before operating, ALWAYS lift from the bottom by using the handles located on the base. Lifting

the water tank handle on the water tank will cause the tank to detach from the humidier.

Check appliance for visible damage. DO NOT USE if there is evidence of damage. If any damage is found, contact Vornado Air, LLC at 1-800-234-0604.

CAUTION: When removing water tanks lift vertically, do not twist tanks while still in base or cap may disengage and leak.

WARNING: To avoid overlling the base, remove the water tanks before the power head to

avoid water displacement.

CHECK FOR LEAKS Damage due to shipping may cause leaks in base or water tanks. A visual inspection may not reveal hairline fractures.

1. Place humidier on a water-resistant

surface.

2. Fill water tanks with water to inspect

for leaks.

3. Pour several cups of water into base to

inspect for leaks.

Note: Be gentle handling water tanks when relling to prevent any damage.

6 English

Not Leaking?

Empty water from base and install full water tanks.

Leaking?

In the slight chance your humidier has

leaks, contact Consumer Service and we will immediately replace damaged parts.

Lift Twist Fill Replace

English

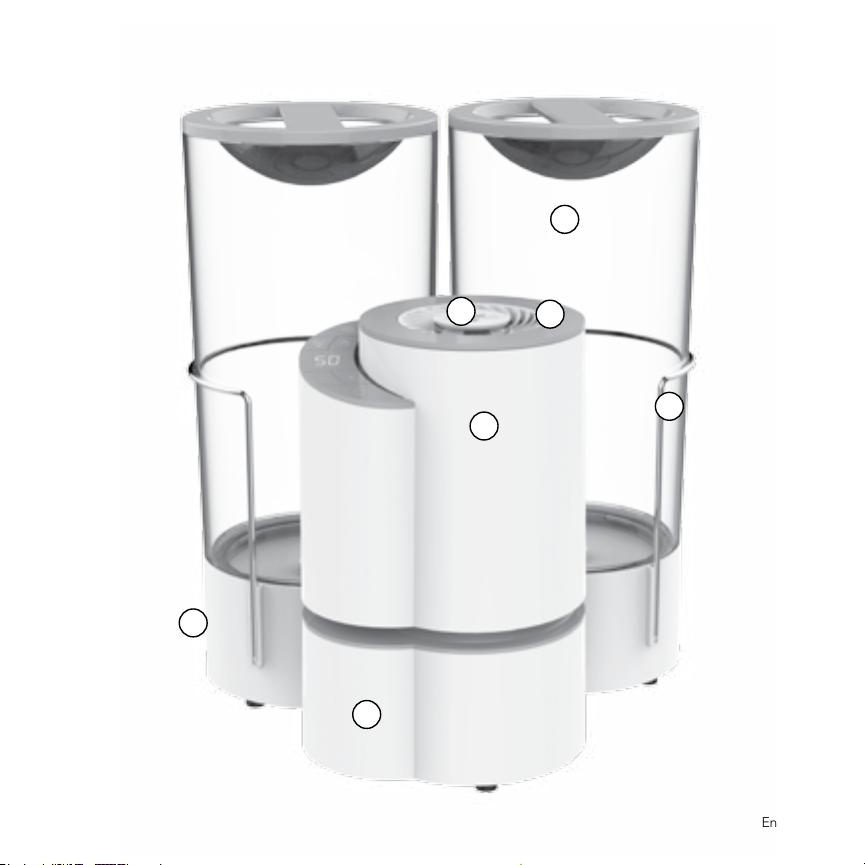

FEATURES

SIMPLETANK™ SYSTEM

This water tank is easy to carry, ll, install, clean and view water level. Two 1-gallon

capacity tanks.

WATER TANK SUPPORT ROD

Provides support to water tanks in base.

OUTLET GRILL

Emits humidity throughout the whole room.

AROMATHERAPY SCENT CUP

Aromatherapy ready; just add essential oils.

POWER HEAD

CARRY HANDLES

Integrated handles on sides of base for lifting and carrying.

BASE

Durable and easy to clean.

8 English

English

CONTROLS

POWER ON/OFF/CONTROL LOCK

Turn the humidier On/Off. Lock in desired settings.

HUMIDITY

Control humidity level at 30%–70%.

STEAM TEMPERATURE SETTINGS

Customize your steam experience with cool, warm or hot steam settings.

AUTO MODE

Delivers the right amount of humidity as the fan speed and heat element vary to maintain set

humidity level.

TIMER

Set timer for up to 12 hours.

PHOTODETECTOR

Based on the amount of light detected in the room, the photodetector sensor will automatically adjust the brightness of the control display.

10 English

English

HOW TO USE

CONTROLS

1. Touch

will illuminate white to indicate the unit is

powered on. When the humidier is powered off,

only

Note: After rst use, current settings are saved

when powering off or unplugging (excluding timer function).

to power on. All control panel LED’s

will illuminate white.

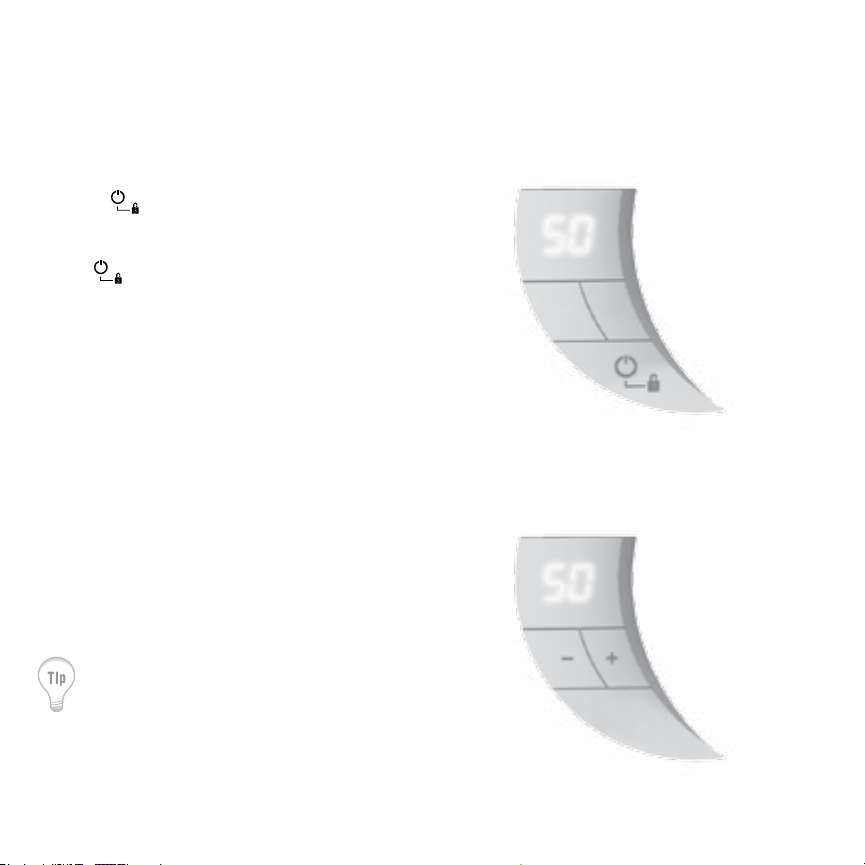

2. Set humidity level by touching

humidity settings will increase in increments of

5%. Once set humidity is reached, Element will

turn off until the humidity level drops below the selected setting.

The humidier will evaporate 4 gallons of water (+/- 10%) in 24 hours of continuous

operation. (This assumes room conditions of

70º F and 30% relative humidity.)

12 English

–/+. The

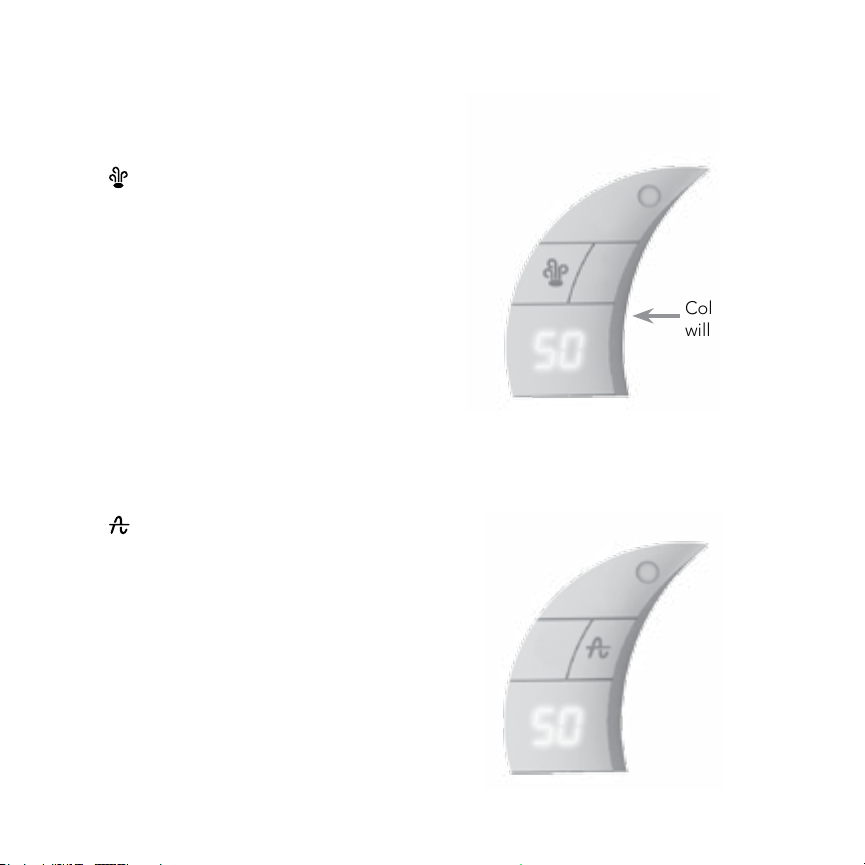

3. Touch to select desired steam setting. A color

indicator will illuminate for cool steam (purple), warm steam (pink) and hot steam (red).

Depending on selected steam setting, the

temperature of the mist at the outlet grill may be hot.

Color indicator will illuminate.

4. Touch

to select auto mode. The fan speed and heat element varies to maintain set humidity level. When your desired humidity level is reached, the fan and heat element will turn off until the humidity level drops below your desired humidity setting.

WARNING! After using the humidier, if you

disassemble the unit for any reason the boil chamber will contain hot water! The heat element will also be extremely HOT! Cool down at least 30 minutes before touching these components.

English

HOW TO USE

5. Set timer to automatically power humidier off

by touching display. Press either

hours. Once your selection is made, the display

will stop ashing, timer icon will illuminate orange

and display will return to selected humidity setting. To cancel timer operation, select 0 hours or press and hold down for 3 seconds. The timer icon will illuminate white when timer is off.

CONTROL LOCK

Element features an option to lock in your desired settings during operation. To lock press and hold

for 3 seconds, then repeat to unlock. All control panel LED’s will ash 1 time to indicate it is

locked, 2 times when unlocked and attention code LC will also ash.

While this feature is engaged you will not be able to change the settings or power off. If you try to

change settings while locked, the control panel LED’s will ash 3 times and attention code LC will also ash.

. The number 0 will ash on the

or – /+ to select up to 12

When the humidier is powered off you may still use the control lock feature. Follow the instructions above to lock and unlock. The control panel will ash LC 1 time to indicate the controls

are locked, 2 times when unlocked and 3 times when the controls are locked and you attempt to change the settings.

If Element is unplugged while locked, the lock setting will not be saved.

14 English

AROMATHERAPY SCENT CUP

Element is aromatherapy ready; just add your favorite essential oils. The steam

will heat the oil and the fragrances will be released via evaporation ensuring the therapeutic properties are not damaged or altered. Follow the essential oils usage instructions as directed. Clean the scent cup and lid periodically even if using the same oil repeatedly. If using different blends or fragrances, clean between each use. Do not overll the scent cup or put any oils directly into the water tank,

outlet grill, area under the scent cup, or base. Avoid transferring oils to the

control panel or ring around the outlet grill as decolorization or a reaction to the surface may occur.

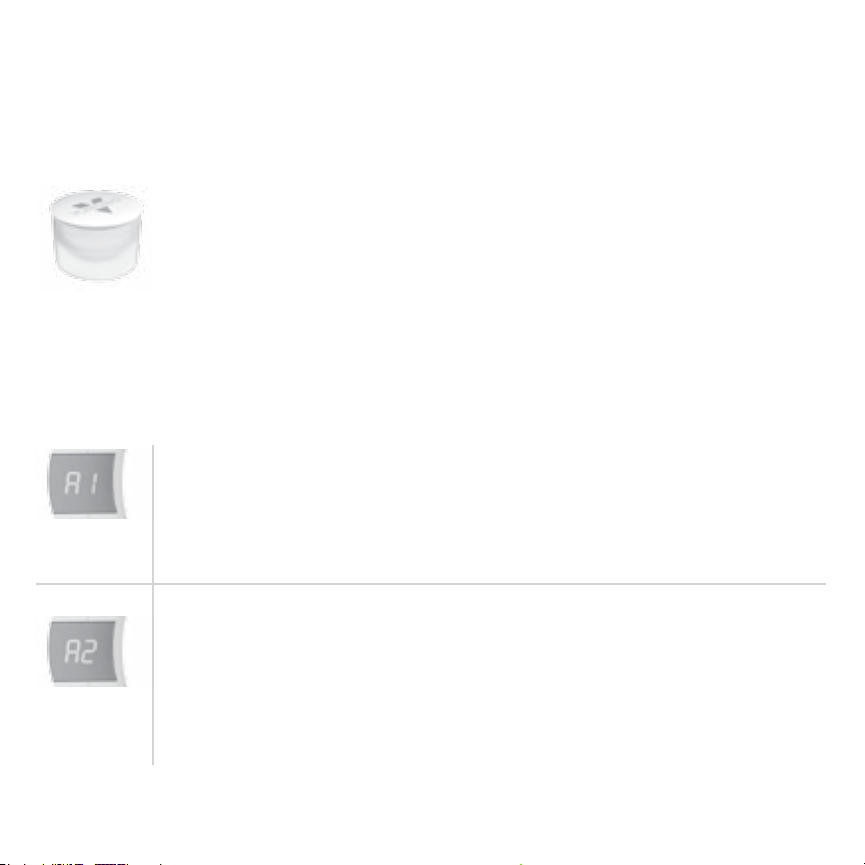

ATTENTION CODES

A1: Power head is not attached to the base. If you detach the power head

while the humidier is running, or if power head is not properly attached to the base, the humidier will power off. Control panel LED’s ash and display A1. Power button illuminates orange until power head is attached and

aligned with the base correctly and Element is powered back on.

A2: The humidier has overheated which can be caused by two different

conditions. The unit is out of water or mineral build-up on the heat element

or silicone parts requires cleaning. Control panel LED's will ash and display A2. Power button illuminates orange until the unit has been serviced and humidier is powered back on.

English

CLEANING

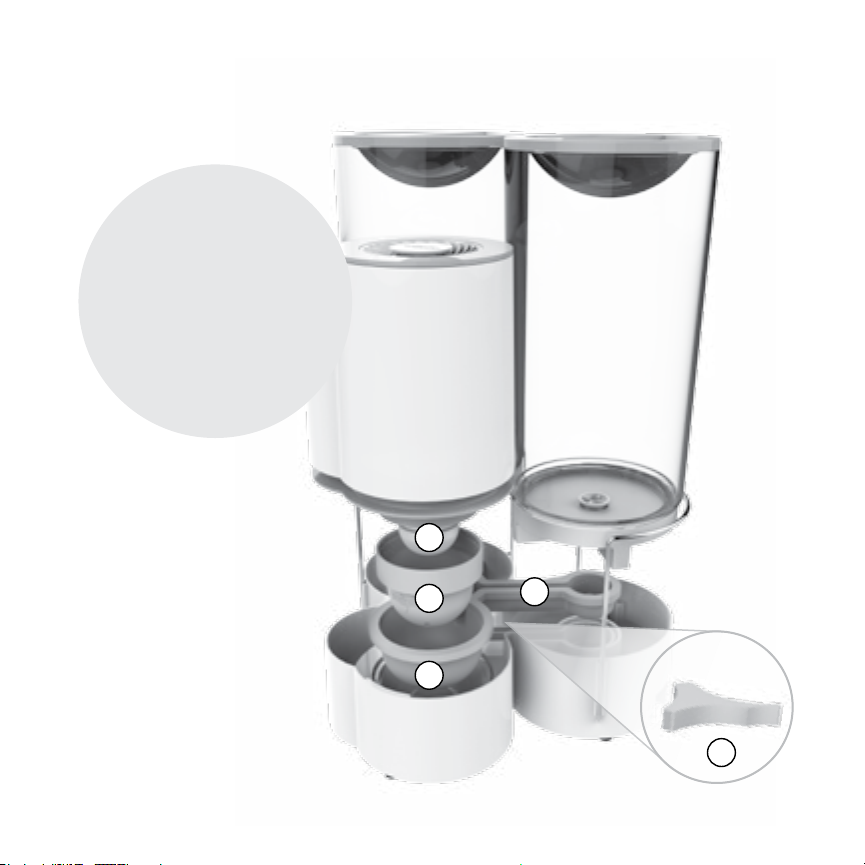

Proper cleaning is essential to the air quality and performance of your humidier. The frequency in which your humidier will need to be cleaned will vary depending on use,

water hardness and outside environmental factors. It is recommended, assuming average use, to thoroughly clean the unit once a week, or when mineral deposits or other particles begin to form.

HEAT ELEMENT

Heats water in boil chamber to generate steam.

HEAT ELEMENT COVER

Silicone cover seals steam compartment and provides protection for heat element.

BOIL CHAMBER

Silicone chamber holds water heated by heat element.

RESERVOIR

Silicone reservoir feeds water from water tanks to boil chamber.

MAGNETIC BASE COVER Ensures electrical connection between power head and base.

16 English

GENERAL CLEANING:

To clean the exterior of the

humidier, wipe down with a

soft cloth. Do not submerge

power head in water.

Clean the grill with a soft

cloth or with a can of

compressed air.

English

CLEANING

CLEAN SCENT CUP:

Remove the scent cup and lid

and clean with warm water and a

mild detergent. Rinse and dry with

clean cloth or paper towel. Clean the

scent cup and lid periodically even

if using the same oil repeatedly.

If using different blends or fragrances, clean between

each use.

The silicone parts are dishwasher safe (place on the top rack of dishwasher only). Undiluted white vinegar may also be used for cleaning these parts.

The water tanks and base are not dishwasher

safe. Do not use gasoline, thinners, solvents

or other chemicals for cleaning.

18 English

CLEANING THE BASE

1. Turn humidier off and unplug.

Note: Be sure you are near a sink or an area that will not be damaged by water. Excess water will ush

from heat element cover when disassembling.

WARNING: To avoid overlling the base, remove the water tanks before the power head to

avoid water displacement.

2. Disassemble humidier: – Remove water tanks rst. – Next remove water tank support rods by pulling the rods outward. – Then remove power head by turning power head counterclockwise to release from base and

remove the magnetic base cover and all silicone parts. WARNING: Do not grasp outlet grill to

remove power head, it may be hot.

3. Clean base and silicone parts with warm water and a mild detergent. Rinse and dry.

4. Reassemble humidier: – Ensure the magnetic base cover and silicone parts are back in place.

WARNING: Do not run humidier without the silicone parts.

– Turn power head clockwise to re-attach to base:

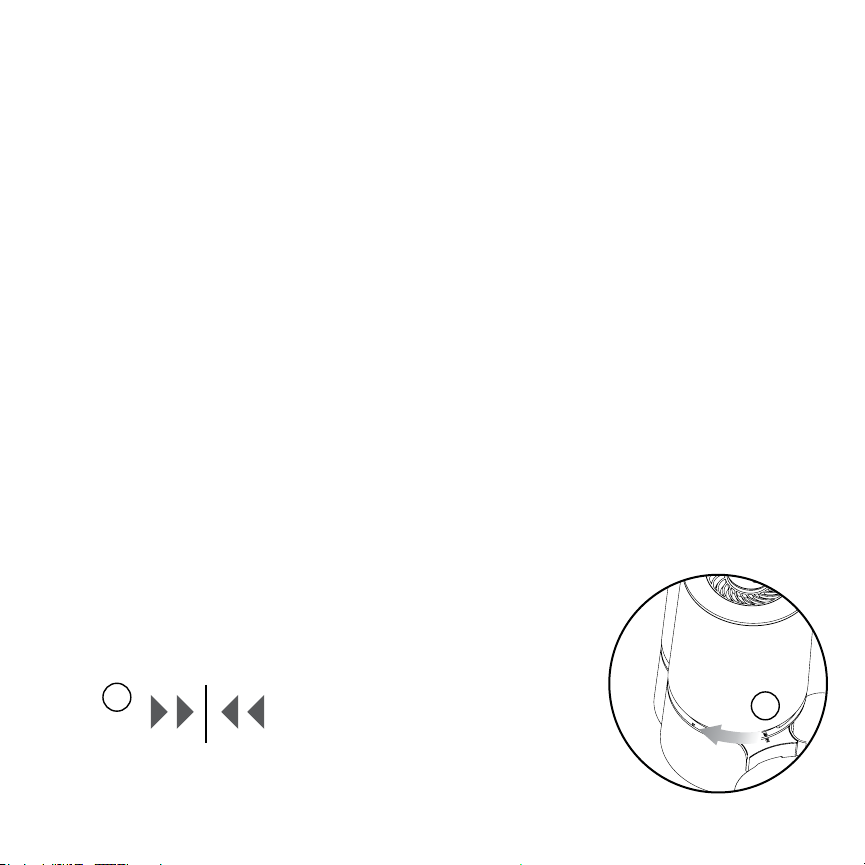

- First align arrows as shown on power head and magnetic base (A).

- Next turn power head clockwise until power head locks into place.

– Replace water tank support rods then water tanks.

English

MINERAL BUILD-UP

The best way to minimize mineral build-up is to use distilled or de-mineralized water when

using your Element Steam Humidier. In addition, it is recommended the heat element and

silicone parts be cleaned at least weekly in order to remove any deposits that form. This will help to extend the life of the product and keep it functioning at its maximum potential.

Note: Do not use hard brushes, steel wool or other abrasives on heat

element to avoid damage.

WARNING: Allow unit to cool (30 minutes for complete cooling) before cleaning heat element. Do not allow heat element to touch other objects as it cools.

REMOVE MINERAL BUILD-UP

1. Turn humidier off and unplug. Disassemble humidier as outlined in CLEANING.

2. Once cooled, remove silicone parts (heat element cover, reservoir and boil chamber) and

clean with warm water and a mild detergent. Undiluted white vinegar may also be used for cleaning these parts.

3. Wipe off the heat element with a wet cloth. If needed, you can soak heat element in 12

oz. of white vinegar for 20-30 minutes and scrub with a soft brush or soft cloth to remove mineral deposits. Rinse heat element with warm water until you cannot detect any vinegar odor.

4. If mineral build-up is found on the heat element or silicone parts and needs cleaning, it can

generate the A2 Attention Code.

20 English

Let humidier dry completely before storing. Do not store with

water inside water tank, base or around the heat element.

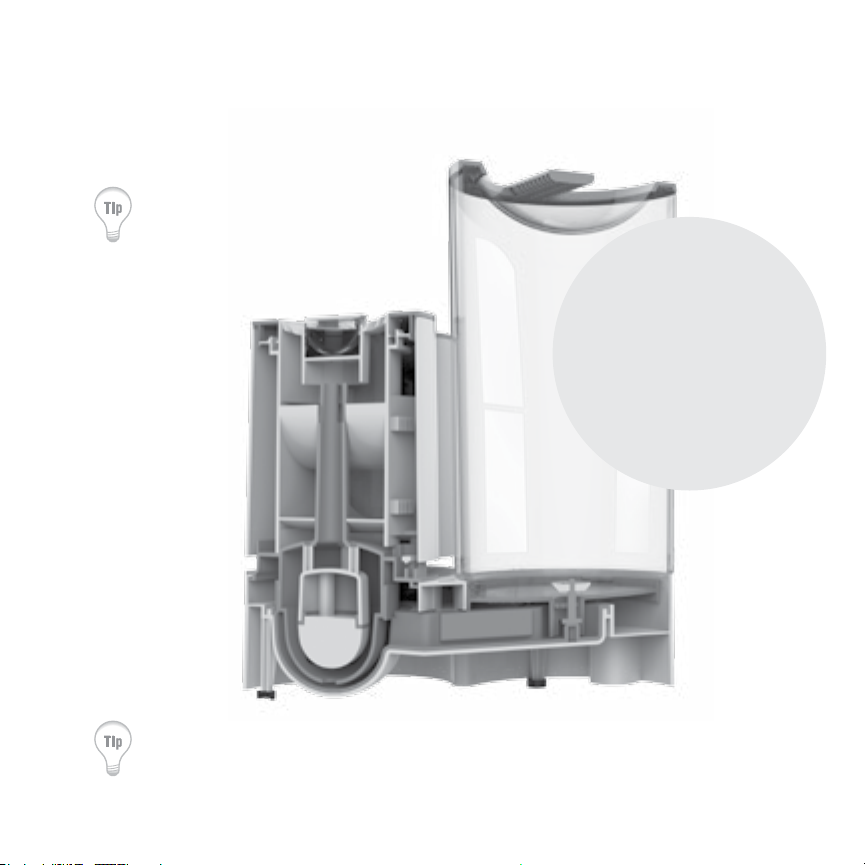

WATER TANK IMPURITIES:

On occasion the water tank

may need to be gently wiped

down or cleaned to remove

build-up of impurities. Clean

with a mild detergent and

cool water.

If the humidier is turned off with water in base for 8 hours or longer, or if humidier is not cleaned as recommended, you may experience some

growth of algae or bacteria. These microorganisms may become airborne.

English

POSSIBLE CAUSE AND SOLUTIONPROBLEM

Unit fails to power on.

Unit makes bubbling or gurgling sound.

Unit is not producing desired amount

ofhumidity.

Unit is not plugged in. Plug power cord into electrical outlet.

Household circuit breaker/ground fault circuit interrupter has tripped or blown fuse. Reset circuit breaker/ground fault

circuit interrupter, or replace fuse. For assistance, contact licensed electrician.

Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.

Ensure the magnetic base cover is securely in place to ensure electrical connection between power head and base.

If for any reason Element should overheat, as a safety precaution, the power will shut off and power button will illuminate orange. Once cooled (3-5 minutes), you may power it back on.

This is normal. Water is being dispensed into base. You may

periodically see bubbles in the tank, which is normal. This is the water tanks feeding water from the reservoir to the boil chamber.

Water level in tanks are empty or too low. Rell tanks with clean,

cool tap water.

Unit has reached its set point. When set humidity level is reached, the fan and heat element will turn off until humidity level in room drops below humidity set point.

22 English

POSSIBLE CAUSE AND SOLUTIONPROBLEM

Unit is not producing desired amount

ofhumidity (cont).

Condensation is forming on scent cup

and outletgrill.

Unit is not emitting steam.

Attention Code LC

Attention Code A1

Attention Code A2

Attention Code A3

Airow is blocked. Remove obstruction.

Unit settings are too low. Set to hot steam setting for maximum humidity output.

This is normal. As steam rises condensation may gather on these areas. You may wipe away periodically. It will not harm the unit.

There may be mineral build-up on heat element or silicone parts. See

CLEANING for instructions on how to remove mineral build-up.

Unit is locked and settings can’t be changed. See HOW TO USE –

CONTROL LOCK.

Power head is not attached to the base; does not have proper power connection. See HOW TO USE – ATTENTION CODES.

The humidier has overheated which can be caused by two

different conditions. The unit is out of water or mineral build-up on the heat element or silicone parts requires cleaning. Control panel

LED's will ash and display A2. Power button illuminates orange until the unit has been serviced and humidier is powered back on.

Unit has malfunctioned and will no longer operate. Contact Vornado Consumer Service toll-free at 800.234.0604.

English

WARRANTY

We expect this product to be perfect. If you’re not satised with this product, let us know.

Vornado Element A2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
