Vonets VOPWRT User Manual

We belong to China, we also belong to the world......HouTian

------------------------------------------------------------------------------------------------------------------------------------------

VONETS_VNET-AD Serial

300Mbps

Advertising Router

Configuration Instruction

I’m a grain of sand on the beach, but I can be found in public

HTTP://WWW.VONETS.COM

We belong to China, we also belong to the world......HouTian

------------------------------------------------------------------------------------------------------------------------------------------

VNET-AD Function Configuration Description

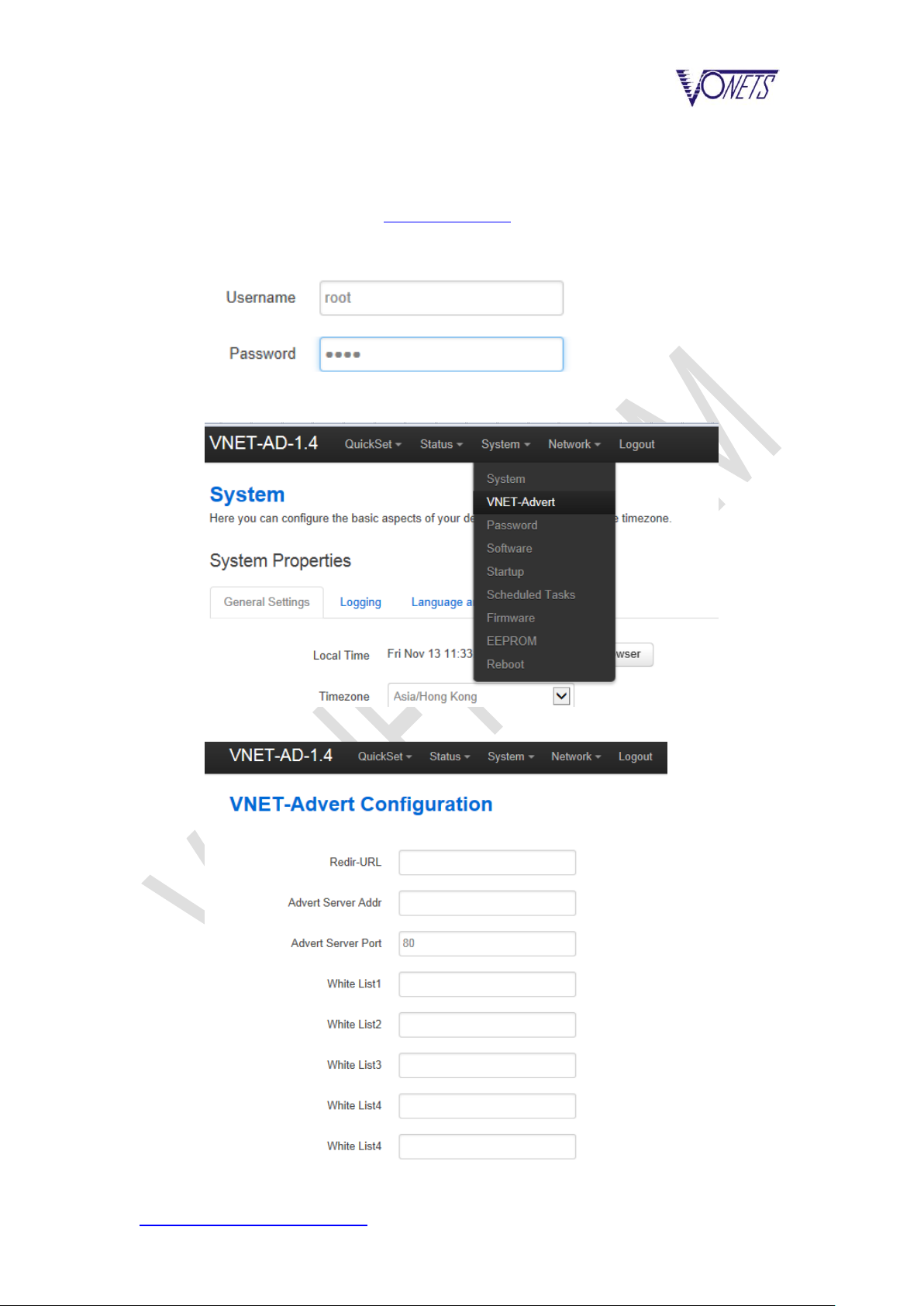

1. VNET-AD configuration page log in:

 Browser address bar input: http://vonets.cfg:81
 Input user ID: root, password: root

 Choose VNET-ADVERT Sub menu :

 VNET-AD configuration page as below:

I’m a grain of sand on the beach, but I can be found in public

HTTP://WWW.VONETS.COM

We belong to China, we also belong to the world......HouTian

------------------------------------------------------------------------------------------------------------------------------------------

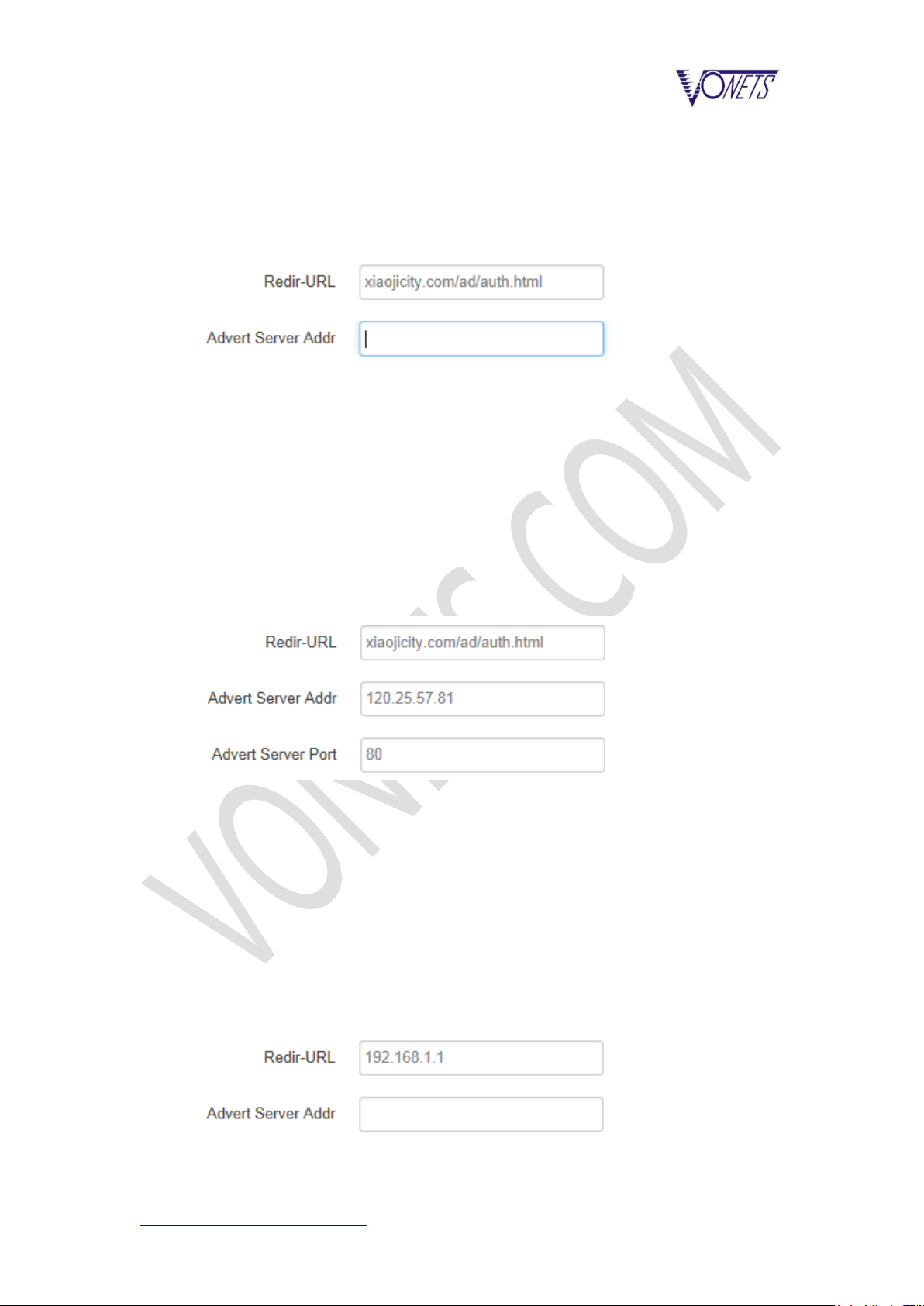

2. VNET-AD method of using no authentication server

 Fill Redir-URL（Redirect page address);
 Don’t Advert Server Addr; see the drawing below:

 The redirect page must contain a POST form with VNET-Advert protocol, for the details,

please check VNET-Advert protocol;

 No authentication server is used, after users finish visiting the redirect page, and submit

post form, users can access the internet;

3. The using method of enable authentication server:

 Fill Redir-URL;
 Fill Advert Server Addr（Protocol authentication server address);
 Fill Advert Server Port (Protocol authentication service port); please see the drawing

below:

 After enabling authentication server, users must follow the VNET-Advert protocol when

accessing the internet;

 After enabling authentication server, if you want to use this machine as a HTTP server,

the redirection page must contain a POST form that is in compliance with the
VNET-Advert protocol, and the form's submit address is the authentication server, not
the machine.

4. The use method of enabling redirection to this machine HTTP service

 Fill Redir-URL (Redirect page address) as this machine IP or this machine domain

name;

 Don’t fill Advert Server Addr, see the drawing below:

I’m a grain of sand on the beach, but I can be found in public

HTTP://WWW.VONETS.COM

We belong to China, we also belong to the world......HouTian

------------------------------------------------------------------------------------------------------------------------------------------

 Under this configuration, there are two cases, the analysis is as follows

1.internet is offline, all DNS requests are are intercepted by the kernel (all packets sent
to the machine), and resolved to 101.12.30.56,

1. Internet offline state, all DNS requests are intercepted by the kernel (all packets sent
to the machine), and resolved 101.12.30.56, then all get HTTP requests sent to the IP
are redirected to the address of the machine (Redir-URL), this redirection by advert -
portal in the IP provides Visual HTTP service, then provided by this machine IP ngnix
HTTP service;

2. Internet connection state, all DNS normal analysis, kernel block forwarding packet
(not all packets sent to this machine), to all GET request of HTTP, reply redirection
response, all GET requests are also being redirected to this machine (Redir-URL),
then HTTP services of this machine provided by ngnix;

 In this case, the Advert server will automatically invalid, all requests are pointing to the

HTTP service, users can not access the Internet.

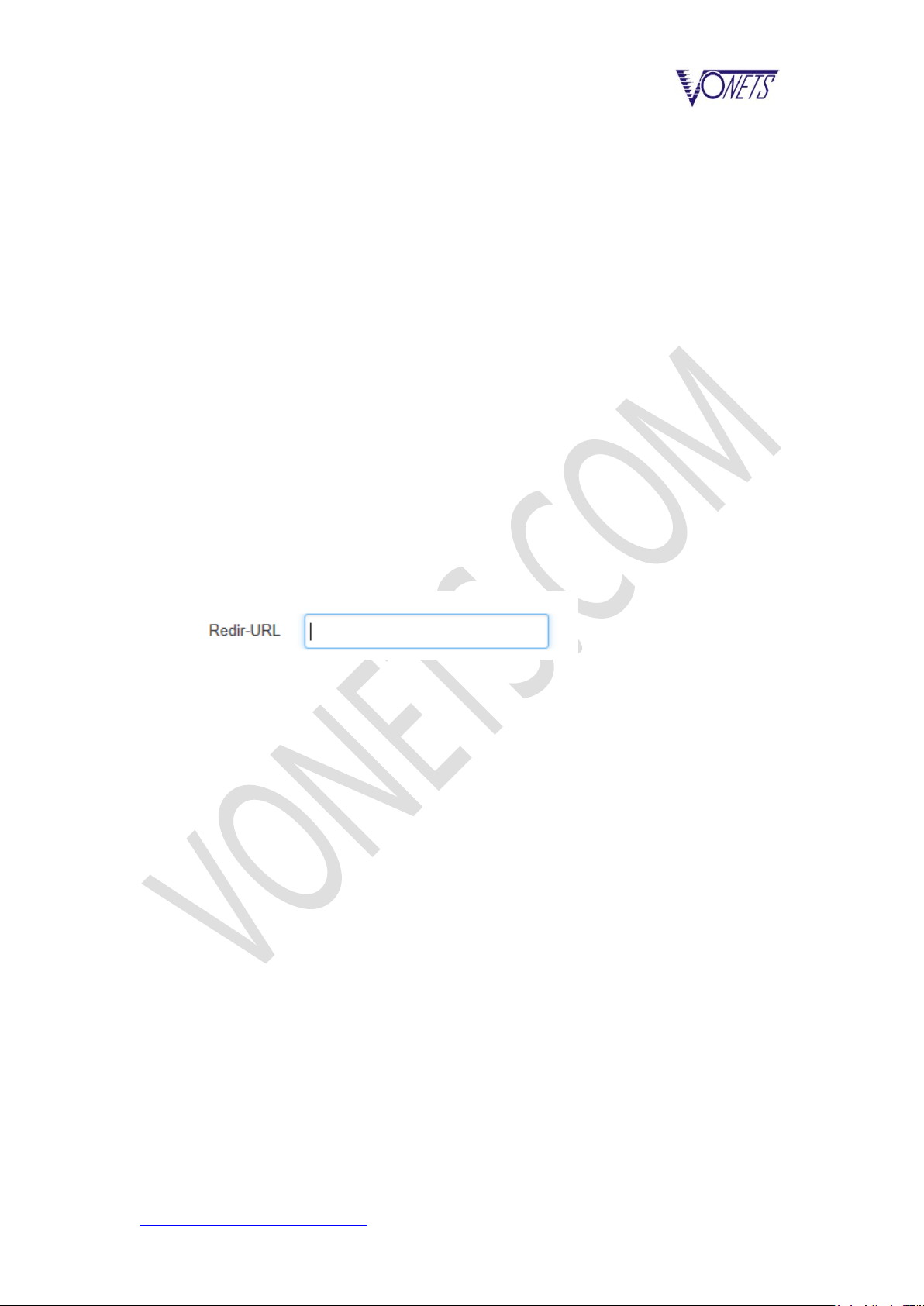

5. The use method of stopping the function of VNET-AD advertising

 Don’t fill the contents of redir_url column, will automatically disable the VNET-AD

function

 After SSH log in, use the stop #advert command to disable the VNET-AD function;

Annex 1：VONETS_VNET-AD Serial Configuration parameters
Annex 2：vonets_openwrt software function description

I’m a grain of sand on the beach, but I can be found in public

HTTP://WWW.VONETS.COM

We belong to China, we also belong to the world......HouTian

Parameter
Product item

Memory（MB）

Flash(MB)

T card（GB）

Support POE

VOPWRT

128

16 8 No

VOPWRT-1

128

32 8 No

VOPWRT-2

256

32 8 No

VOPWRT-P

64

16 8 Yes

VOPWRT-1P

128

32 8 Yes

VOPWRT-2P

256

32 8 Yes

MINIOP

128

16 8 No

MINIOP-1

128

32 8 No

MINIOP-2

256

32 8 No

MINIOP-P

64

16 8 Yes

MINIOP-1P

128

32 8 Yes

MINIOP-2P

256

32 8 Yes

------------------------------------------------------------------------------------------------------------------------------------------

Annex 1

VONETS_VNET-AD Serial Configuration Parameter

I’m a grain of sand on the beach, but I can be found in public

HTTP://WWW.VONETS.COM

We belong to China, we also belong to the world......HouTian

------------------------------------------------------------------------------------------------------------------------------------------

Annex 2

vonets_openwrt Software function description

1. Support auto mount T-card (EXT2), Mount Directory: /data;

2. Support VNET-AD 1.4 Advertising router protocol, see the file VNET-AD
configuration description and protocol documents;

3. Support PORTAL Authentication of IPhone;

4. Automatically start the web service of nginx , service configuration file:
/etc/nginx/nginx.conf;

5. Automatically start PHP service, service configuration should be set up, the
configuration file is the same as nginx;

6. Automatically start dnsmasq (DNS agent)

7. Automatically start ntp client (Automatically time)

8. The web configure address of openwrt: http//:vonets.cfg:81

9. After reset to the factory status, support automatic formatting method (T card
without OK mark)

10. Support SSH log in (user name: root, password: root)

11. Support luci script

12. Support python2.7, python-openssl

I’m a grain of sand on the beach, but I can be found in public

HTTP://WWW.VONETS.COM

We belong to China, we also belong to the world......HouTian

------------------------------------------------------------------------------------------------------------------------------------------

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-- Consult the dealer or an experienced radio/TV technician for help.

The distance between user and products should be no less than 20cm
