Page 1
VONETS——VHT4G 150M Mini Hotel Wired to Wireless & 3G/4G Wireless Router
1

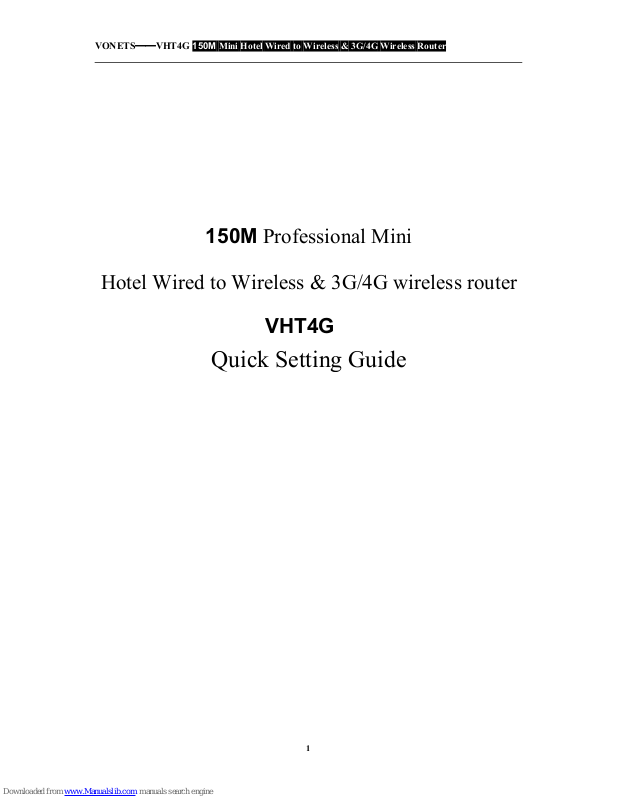

150M Professional Mini
Hotel Wired to Wireless & 3G/4G wireless router
VHT4G
Quick Setting Guide
Page 2
VONETS——VHT4G 150M Mini Hotel Wired to Wireless & 3G/4G Wireless Router
2
Declaration
Copyright © 2013 Shenzhen HouTian Network Communication Technology
Co.Ltd
All rights reserved, with retained ownership
Without Shenzhen HouTian Network Communication Technology Co.Ltd written
authorization, any company or personal can’t copy, writer or translation part or all
contents. Can’t do commodity distribution for any commercial or profitable purposes
by any ways(electricity, mechanical, photoprint, record or other methods).
VONETS is the registered trademark of Shenzhen HouTian Network Communication
Technology Co.Ltd. The other all trademarks or registered trademarks mentioned in
this documents are belong to the individual owners.
The product specifications and information technology mentioned in this manual are
just for reference, if any updates, without other notice. Except for special agreements,
this manual is just for user guidance, any statements, information and so on in this
manual can’t constitute the warranty of any forms.
Page 3
VONETS——VHT4G 150M Mini Hotel Wired to Wireless & 3G/4G Wireless Router
3
Product Introduction:
VHT4G support 3 functions
1. Hotel Wired to Wireless
（
VHT4G
）
：It Is a truly plug and play wireless
router. Stay for a business trip or traveling, you just need to plug the network cable
that provided by the hotel room into VHT4G Ethernet port,and then plug VHT4G
into an electrical outlet, then the whole room is already a Wi-Fi wireless coverage.
At this point, you can take out your cell phone, Pad or any other devices that can
support Wi-Fi wireless Internet access to share wireless Internet access anywhere
in the room, all without any settings.
2. 3G/4G wireless router(VHT4G): automatically connects to ISP’s 3G/4G
WiFi data network by an external 3G/4G network card, that creates a “hotspot” 3G/4G
to WiFi for customers, so that more than one person enjoy the simple, convenient WiFi
network at the same time.
Page 4
VONETS——VHT4G 150M Mini Hotel Wired to Wireless & 3G/4G Wireless Router
4
2. Charger(VHT4G): 2.1A charger function, low noise, automatically fit for most smart
phones, tablet PCs
Remark:
1. The default work mode of VHT4G is WiFi Repeater mode, when it is connected 3G/4G
network card, it will be switched to 3G/4G router mode automatically without any
setting to run 3G/4G WiFi network.
2. When you want to restore the factory default setting, please press RESET button on
the product for 5 seconds, after green light blink a few, it will reset automatically (it will
take about 30 seconds)
Chapter 1 Quick Setting Guide of WiFi Router mode
1. VHT4G is a plug and play wireless router，you just need to plug the network cable
that provided by the hotel room into VHT4G Ethernet port,and then plug VHT4G
into an electrical outlet, then you can surf the wireless network，without any
settings, if the user need to set the SSID and password of VHT4G, please set it as
following steps:
Page 5
VONETS——VHT4G 150M Mini Hotel Wired to Wireless & 3G/4G Wireless Router
5
Wireless connect VHT4G by laptops, smart mobiles, IPAD and other wireless
devices.
The default WiFi SSID (WiFi name) is: VONETS_the last six characters of product
MAC address.
The default WiFi password is 12345678
See the following picture
：
If you are using a computer connection, please set up your computer to automatically
obtain IP network adapter, as shown：
Page 6
VONETS——VHT4G 150M Mini Hotel Wired to Wireless & 3G/4G Wireless Router
6
2. Open the IE browser, enter http://vonets.cfg virtual domain name
setting(VDNS)
Remark:
Enter domain name, then Enter, the login page will appear, the default admin and
password is admin.
3. WIFI setting
After entering the webpage, click the WIFI settings in left column, as shown：
WiFi Settings->Basic Settings-> WiFi repeater(SSID): Enter the wireless name
you want to change, point applications button after confirmation.
WiFi Settings-> WiFi Security->Key: Enter the password you want to change,
point applications button after confirmation.
Note: after you change it successful, restart the device(VHT4G)for parameters to
take effect.
Page 7
VONETS——VHT4G 150M Mini Hotel Wired to Wireless & 3G/4G Wireless Router
7
Chapter 2 Quick Setting Guide of 3G Router mode
1. VHT4G is connected to 3G/4G network card and power adapter, VHT4G will be
switched to 3G/4G router mode automatically, users no need any setting can have run
3G/4G WiFi network. See the following picture:
Remark:
1. When the green light is blinking, it means the product is doing 3G dial-up
connection.
2. When the green light is always on, it means the dial-up connection is successful,
user can connect it by wireless devices.
3. When users connect it by wireless devices, please pay attention to:
The default WiFi SSID (WiFi name) is: VONETS_the last six characters of product
MAC address.
The default WiFi password is 12345678.
If the user has changed the wireless SSID and wireless password, using the
changed parameters
Page 8
VONETS——VHT4G 150M Mini Hotel Wired to Wireless & 3G/4G Wireless Router
8
Chapter 3 VHT4G supported 3G card model
Brand Model Device Type
HUAWEI
122
CDMA2000
189
167
1261
177
156
EC1260
E1750
WCDMA
E180
E3131
E353
ZTE
AC59
CDMA2000
AC583
AC2787
AC586
AC2746
AC582
AC2736
MF668A
WCDMA
MF656A
MF631
190
ETON
（ITON）TU930-EC4.3
CDMA2000
（ITON）TU930（WF4.2）
（ITON）TU930（WF6.4）
WCDMA
Vtion
（Vtion)E1916
CDMA2000
（Vtion)E1920
（Vtion)U2916
WCDMA
（Vtion)U1920
（Vtion)U1916
Freedom-e
W6
WCDMA
W8
U8
CDMA2000
Shenzhen HouTian Network Communication Technology Co.,Ltd
http://www.vonets.com
