Page 1
S60 / V70 / V70 XC / XC70
Section
Group
Weight(Kg/Pounds)
Year
Month
3392002
12
S60 2001, S60 2002, S60 2003, S60 2004, S60 2005, S60 2006, S60 2007, S60 2008, V70 (00-) 2000, V70 (00-) 2001, V70 (00-) 2002,
V70 (00-) 2003, V70 (00-) 2004, V70 (00-) 2005, V70 (00-) 2006, V70 (00-) 2007, V70 (00-) 2008, V70 (00-08) 2000, V70 (00-08)
2001, V70 (00-08) 2002, V70 (00-08) 2003, V70 (00-08) 2004, V70 (00-08) 2005, V70 (00-08) 2006, V70 (00-08) 2007, V70 (00-08)
2008, V70 XC (01-) /
XC70 (
-07) 2001, V70 XC (01-) /
XC70 (
-07) 2002, V70 XC (01-) /
XC70 (
-07) 2003, V70 XC (01-) /
XC70 (
-07)
2004, V70 XC (01-) /
XC70 (
-07) 2005, V70 XC (01-) /
XC70 (
-07) 2006, V70 XC (01-) /
XC70 (
-07) 2007, V70 XC (01-) /
XC70 2001,
V70 XC (01-) /
XC70 2002, V70 XC (01
-) /
XC70 2003, V70 XC (01
-) /
XC70 2004, V70 XC (01
-) /
XC70 2005, V70 XC (01
-) /
XC70
2006, V70 XC (01-) /
XC70 2007
Replaces
issue:
2000 09
M3903013
S60 / V70 / V70 XC / XC70
Section
Group
Weight(Kg/Pounds)
Year
Month
3392002
12
S60 2001, S60 2002, S60 2003, S60 2004, S60 2005, S60 2006, S60 2007, S60 2008, V70 (00-) 2000, V70 (00-) 2001, V70 (00-) 2002,
V70 (00-) 2003, V70 (00-) 2004, V70 (00-) 2005, V70 (00-) 2006, V70 (00-) 2007, V70 (00-) 2008, V70 (00-08) 2000, V70 (00-08)
2001, V70 (00-08) 2002, V70 (00-08) 2003, V70 (00-08) 2004, V70 (00-08) 2005, V70 (00-08) 2006, V70 (00-08) 2007, V70 (00-08)
2008, V70 XC (01-) /
XC70 (
-07) 2001, V70 XC (01-) /
XC70 (
-07) 2002, V70 XC (01-) /
XC70 (
-07) 2003, V70 XC (01-) /
XC70 (
-07)
2004, V70 XC (01-) /
XC70 (
-07) 2005, V70 XC (01-) /
XC70 (
-07) 2006, V70 XC (01-) /
XC70 (
-07) 2007, V70 XC (01-) /
XC70 2001,
V70 XC (01-) /
XC70 2002, V70 XC (01
-) /
XC70 2003, V70 XC (01
-) /
XC70 2004, V70 XC (01
-) /
XC70 2005, V70 XC (01
-) /
XC70
2006, V70 XC (01-) /
XC70 2007
Replaces
issue:
2000 09
M3903013

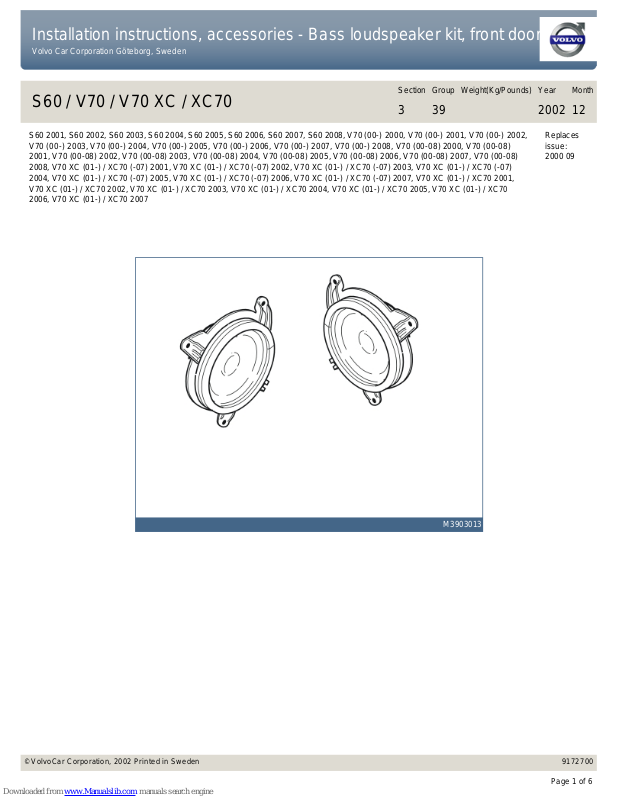

Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
Page 1 of 6
Page 2
MA Feedback
Any comments on this publication? Please contact your nearest dealer. Thank you!
Required tools
A0000162
A0000163
D3902343
Publication no: MA 9172700, Issue: 2002
-12
Comments:..........................................................................................................
............................................................................................................................
............................................................................................................................
............................................................................................................................
............................................................................................................................
.............................................................................................................................
From:...................................................................................................................
Address:.............................................................................................................
Telephone no:................................................................................................... .
Telefax:...............................................................................................................
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
Page 2 of 6
Page 3
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
Page 3 of 6
Page 4
INTRODUCTION
● NOTE! Read through the entire text before carrying out
any work.
● The front page gives the date of this edition and the edition it
replaces
● The second page shows the tools needed for the installation and
the contents of the installation kit
● The illustrations display the procedure in order of operation. The
order of operation is repeated in the text section
● Cut out the text page in order to follow the illustrations and text at
the same time.
Bass loudspeaker kit, front door
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
Page 4 of 6
Page 5

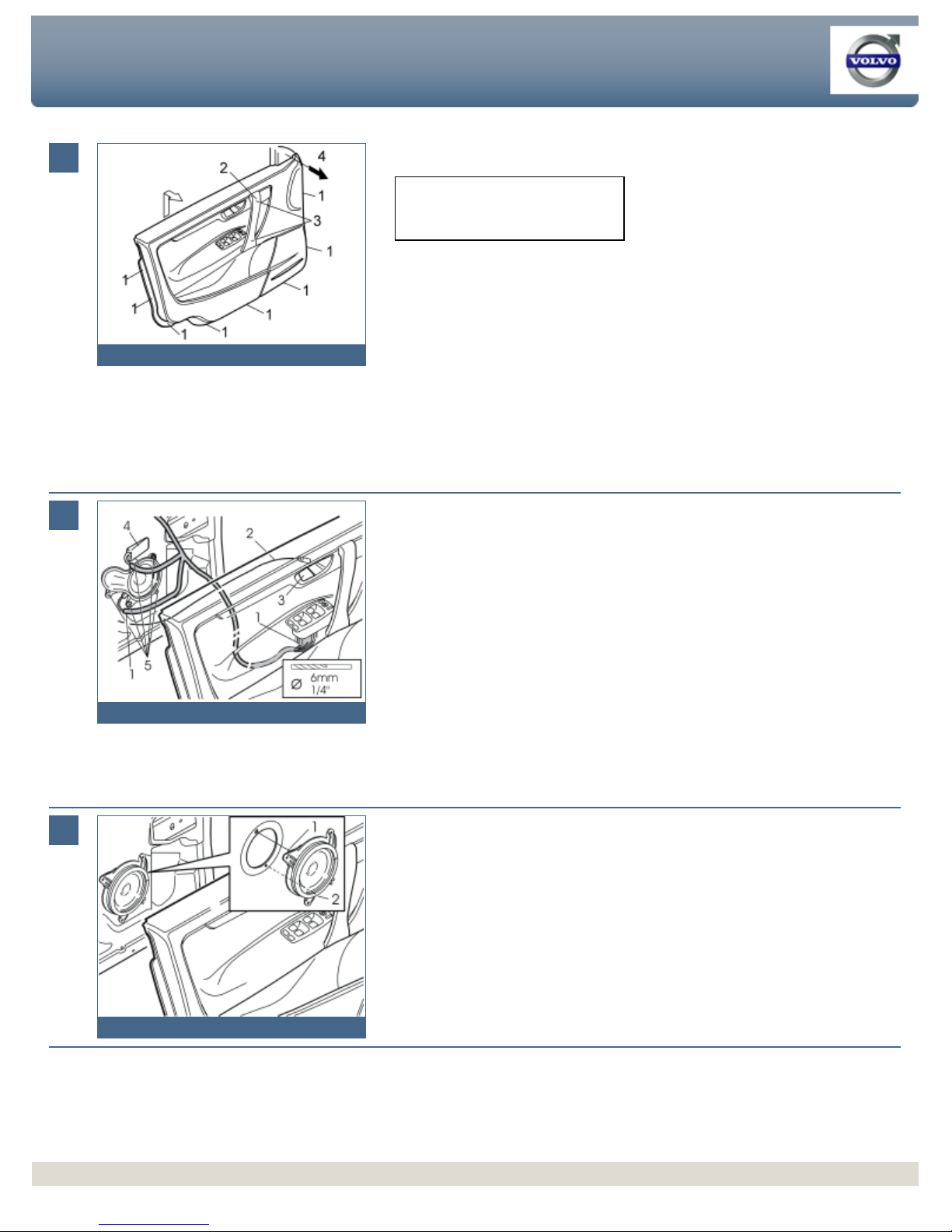

1
M8503365
Preparations
● Remove the clips (1) by pressing on the centre of the clip
● Remove the door handle cover (2) using a thin blade. Start at the top or bottom
edge
● Remove the two screws (3) underneath the cover
● Remove the door mirror cover (4) by pulling it straight off
● Remove the door trim panel by pushing it upward and unhooking it at the top
edge.
Note!
Carry out the operations on both sides.
2
M3903015
Preparations
● Disconnect the three connectors (1) on the door control module and on the
existing speaker
● Release the cable (2) from the door opener (3) by prising up the catches
●
Remove the panel
● Remove the wiring leadthrough panel (4)
●
Drill out the rivets (5) on the existing speaker using a 6 mm (1/4") drill bit
●
Remove the speaker and
clean the remains of the rivets from the holes. Remove
any rivet particles from the door.
3
M3903016
Installation
● Insert the speaker hook (1) in the oval hole in the top edge of the speaker
● Lower the speaker into its opening so that the guide pin (2) in the bottom edge is
seated in the hole in the bottom of the opening.
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
Page 5 of 6
Page 6

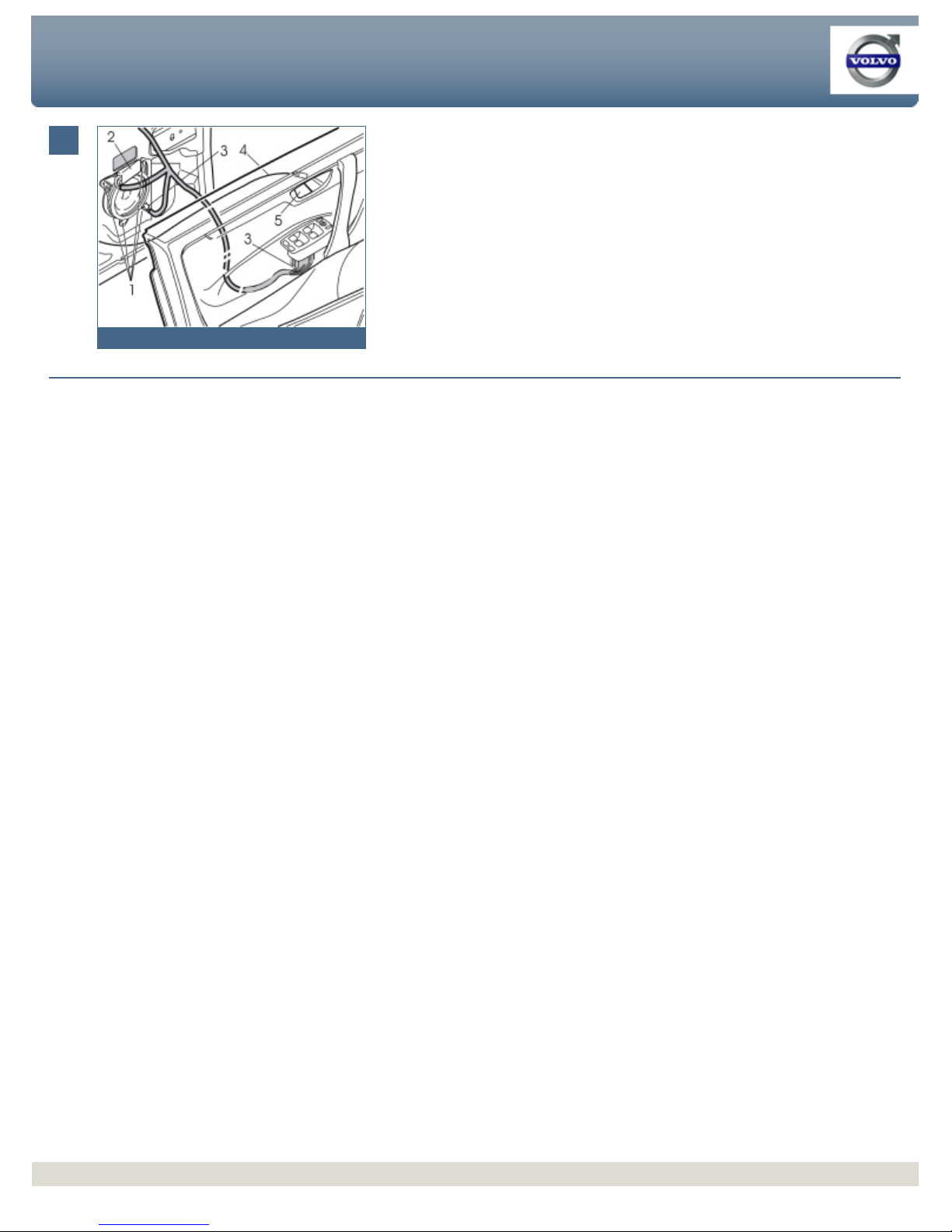

4
M3903017
Installation
● Fasten the speaker in position with the screws (1) and nuts (1) from the kit
● Refit the wiring leadthrough panel (2)
● Reconnect the speaker and door control connectors (3)
● Reconnect the cable (4) to the door opener (5)
● Refit the door trim panel, using a magnetic screwdriver, and refit the door mirror
cover as described in operation .
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
Installation instructions, accessories - Bass loudspeaker kit, front door
Volvo Car Corporation G
öteborg, Sweden
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
©
VolvoCar Corporation, 2002 Printed in Sweden
9172700
Page 6 of 6
