Page 1
Instruction No
Version
Part. No.
31414370
1.0
31357076
Infotainment, display upgrade
Instruction No
Version
Part. No.
31414370
1.0
31357076
Infotainment, display upgrade
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 1 / 15
Page 2
Equipment
IMG-
242205
IMG-
345497
IMG-
379214
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 2 / 15
Page 3
Information
1
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available before
starting installation.
Certain steps in the instructions are only presented in the form of
images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Color symbols
2
IMG-
363036
will do something.
additional parts.
screws, clips, connectors, etc.
vehicle but only hung to the side.
Note!
This colour chart displays (in colour print and electronic
version) the importance of the different colours used in the
images of the method steps.
Removal
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 3 / 15
Page 4
3
IMG-
332193
Set the ignition key to position 0.
4
IMG-
361756
5
IMG-
361757
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 4 / 15
Page 5
6
IMG-
368346
7
IMG-
352828
Remove the screws.
8
IMG-
371226
Note!
The graphic shows the back of the component before removal.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 5 / 15
Page 6

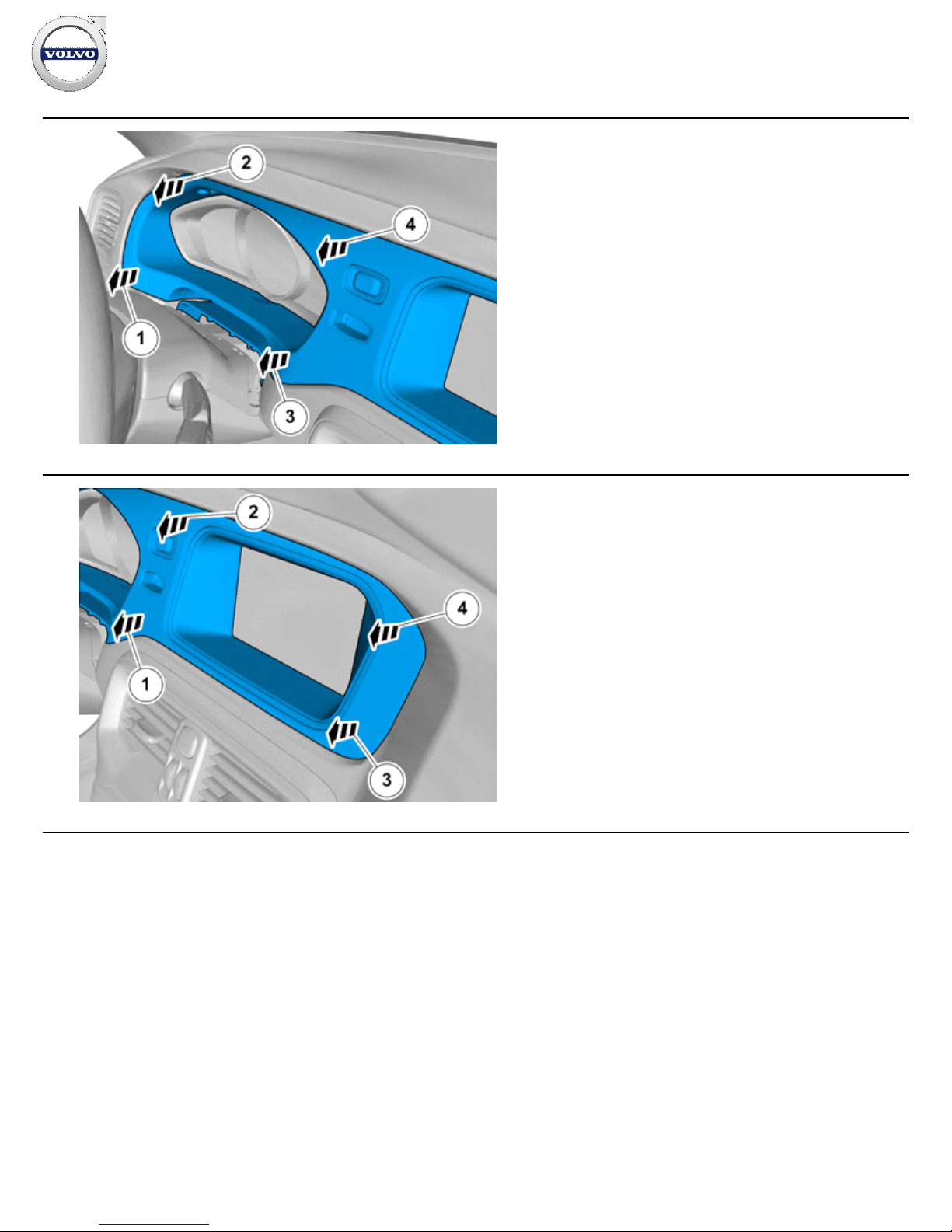

9
IMG-
371229
Use hands only.
10
IMG-
371228
Use hands only.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 6 / 15
Page 7

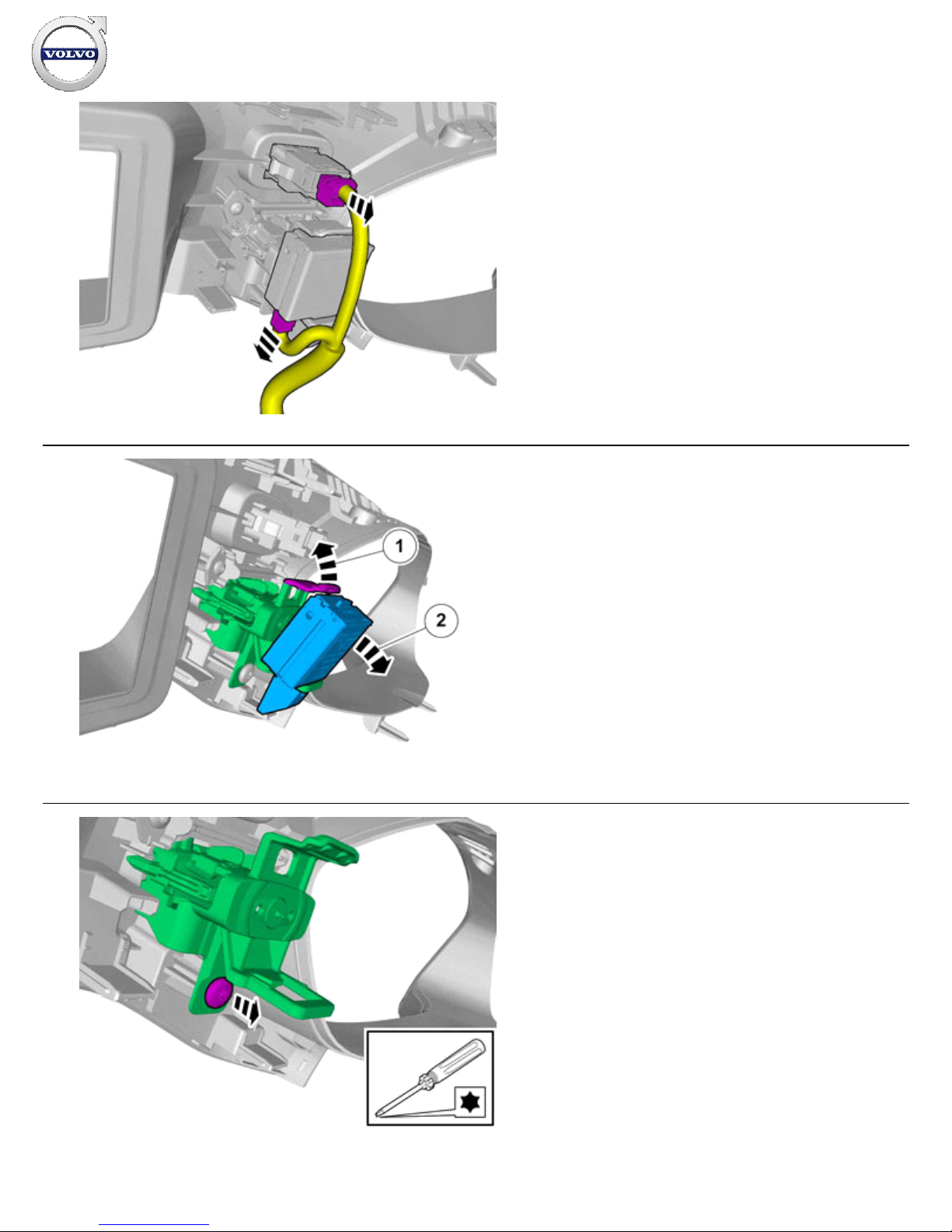

11
IMG-
367433
Disconnect the connectors.
12
IMG-
379232

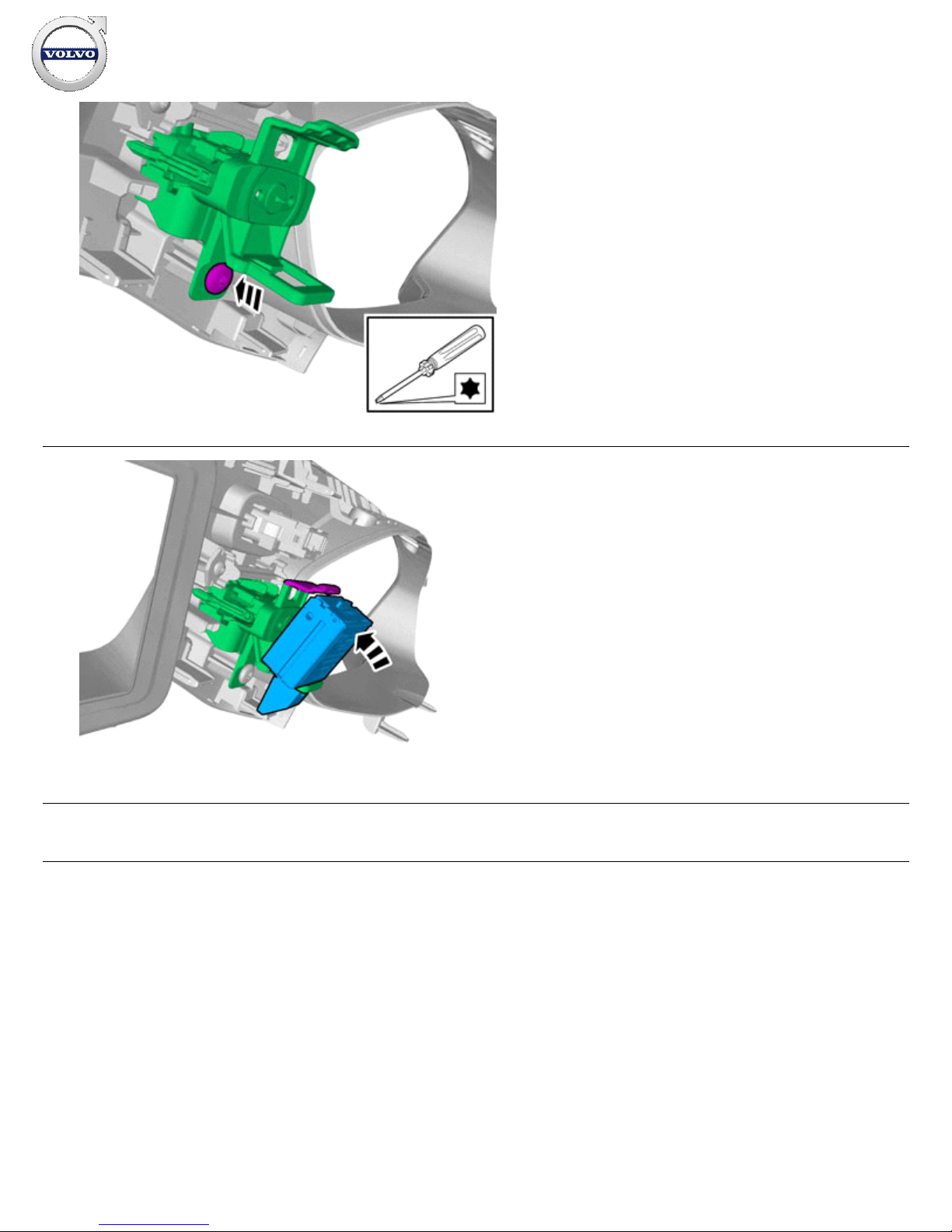

13
IMG-
379233
Remove the screw.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 7 / 15
Page 8

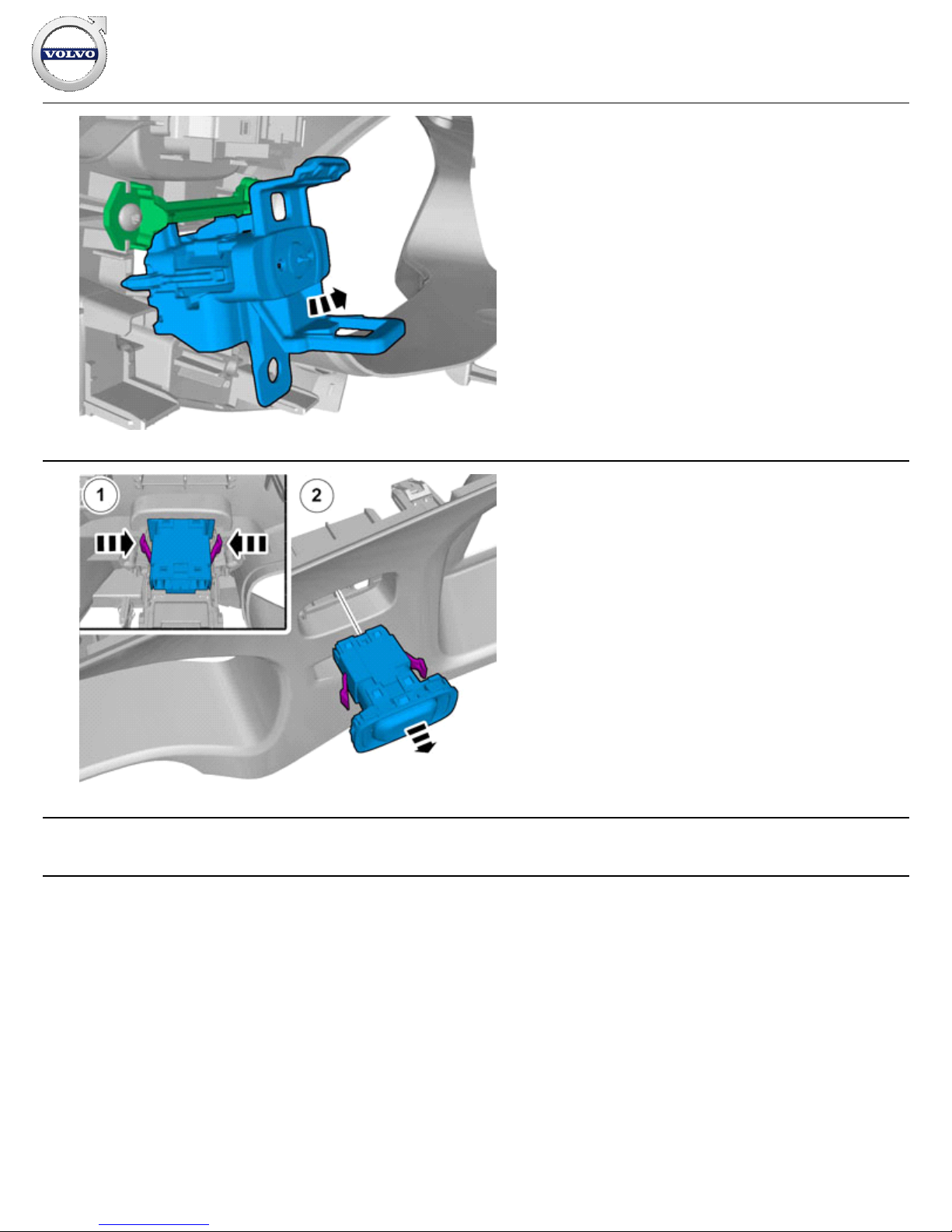

14
IMG-
379234
15
IMG-
352889
Accessory installation
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 8 / 15
Page 9

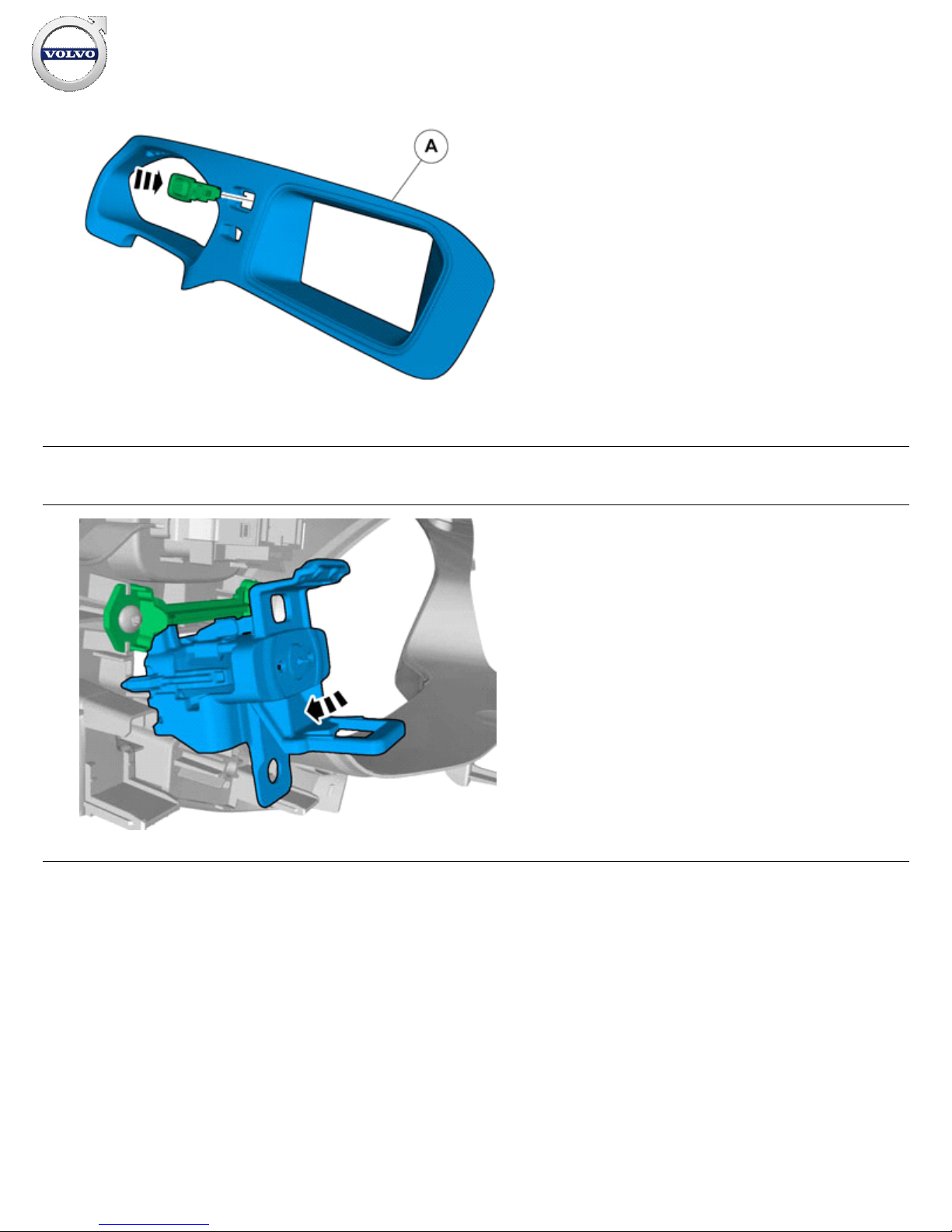

16
IMG-
353721
Installation
17
IMG-
379235
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 9 / 15
Page 10
18
IMG-
379236
19
IMG-
379237
Removal
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 10 / 15
Page 11

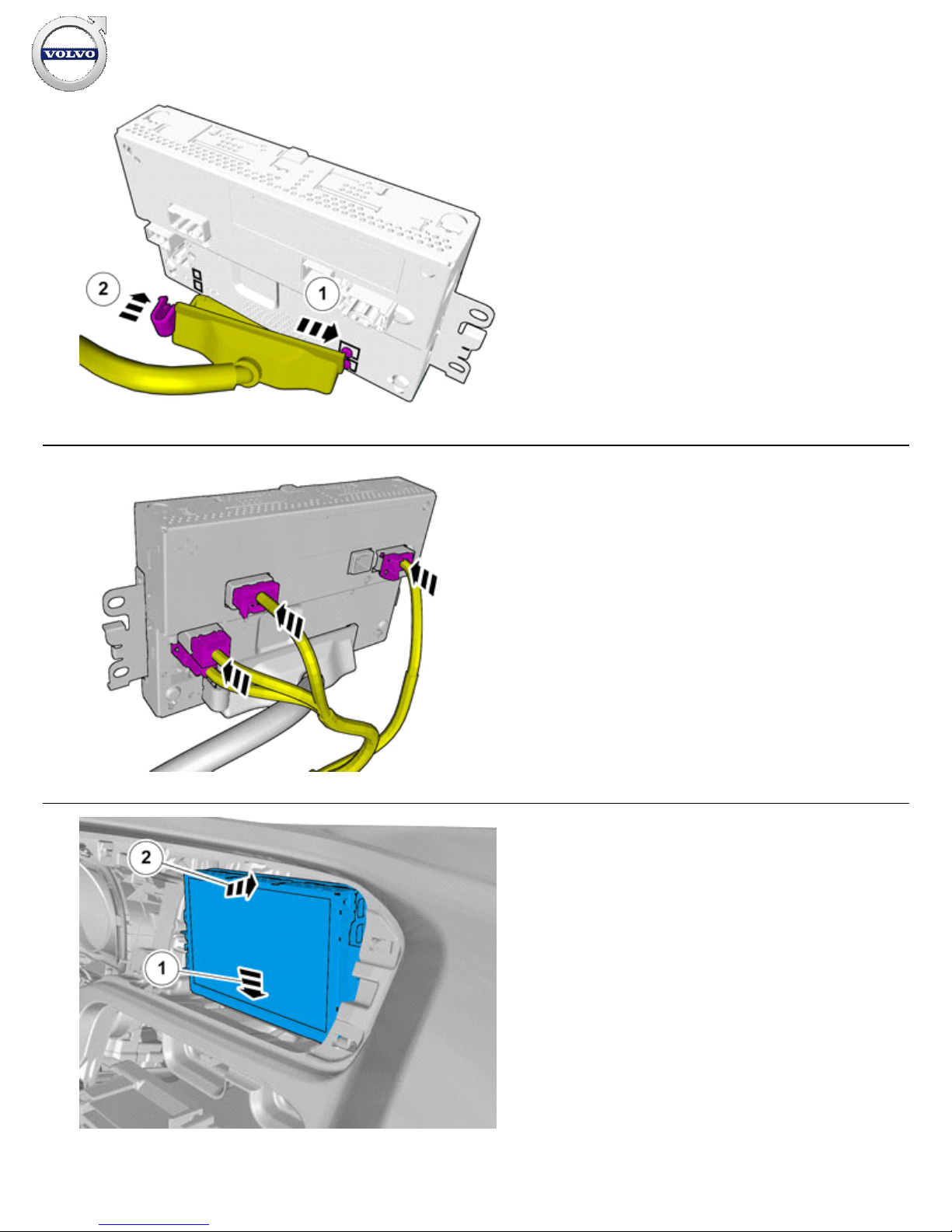

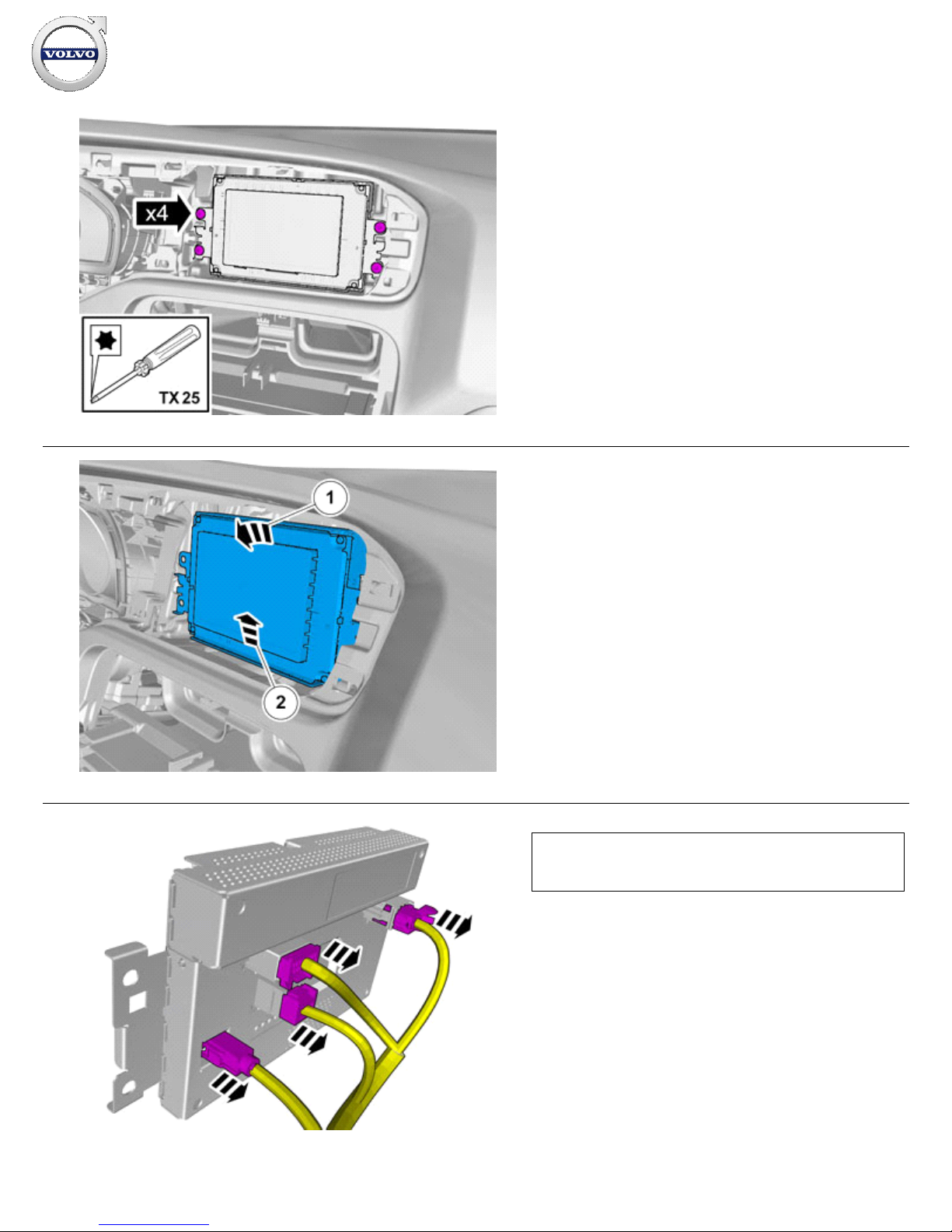

20
IMG-
379241
Remove the screws.
21
IMG-
379242
22
IMG-
346175
Disconnect the connectors.
Note!
The number of connectors may vary depending on the
vehicle's equipment level.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 11 / 15
Page 12

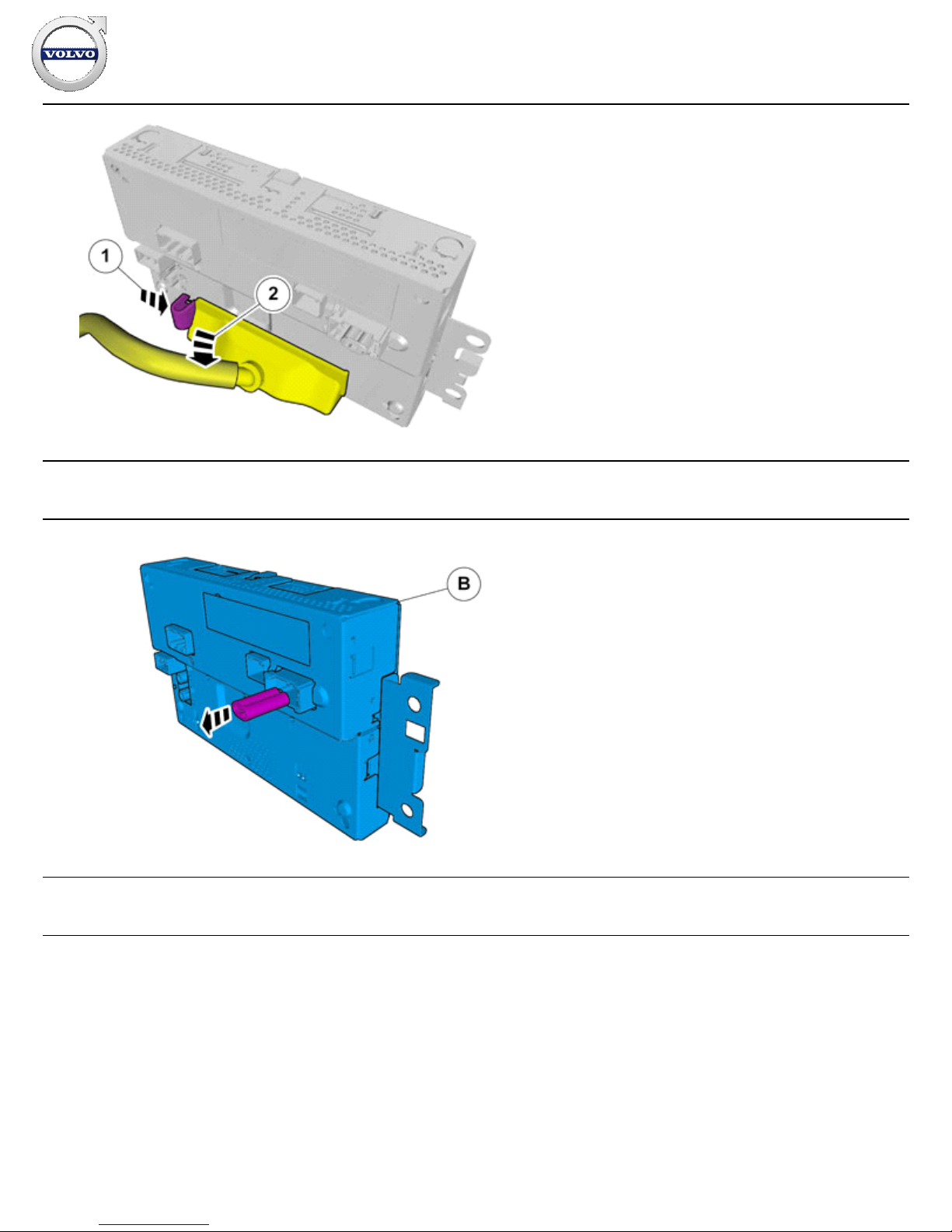

23
IMG-
356461
Accessory installation
24
IMG-
370588
Installation
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 12 / 15
Page 13
25
IMG-
369406
26
IMG-
379208
Connect the connectors.
27
IMG-
379243
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 13 / 15
Page 14

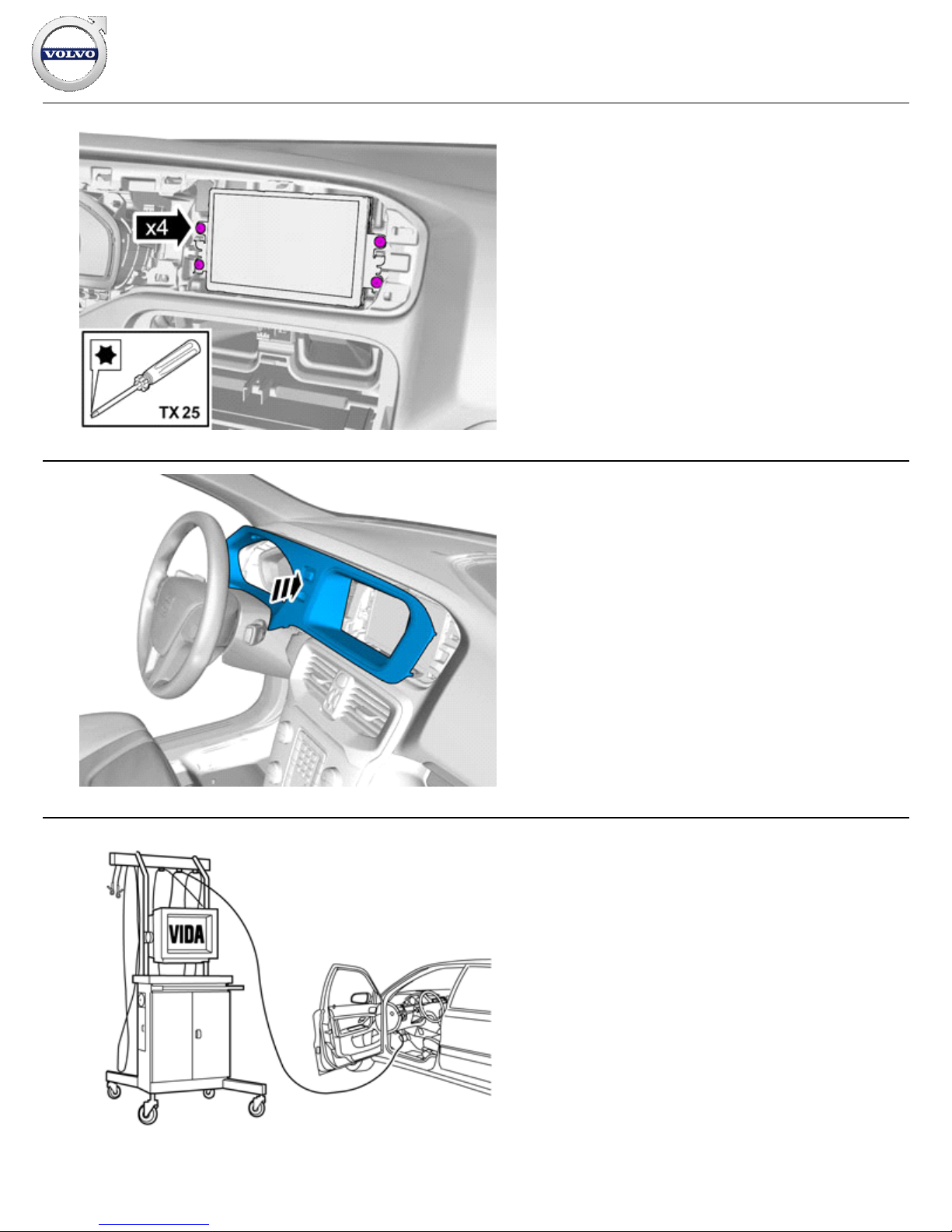

28
IMG-
379244
Reinstall the screws.
29
IMG-
379254
Connect the connectors.
Reinstall the removed part.
30
IMG-
242268
Download software (application) for the accessory's function
according to the service information in VIDA.
Order and download software according to: 31373032
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 14 / 15
Page 15
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Infotainment, display upgrade- 31414370 - V1.0
Stránka 15 / 15
