Volvo 242 1977, 244 1977, 245 1977 Owner Manual

1977 Volvo 242 244 245

1 9 7 7

VOLVO

242, 244, 245

Notice to Owner: Your Volvo has been built to comply with all North American Safety and antipollution regulations and evidence of this can be verified from the certification label on the left wheel housing in the engine compartment. For further information regarding these regulations, please consult your local dealer.

Contents

(Index see page

91)

DESCRIPTION Page

Introduction 2

Keys 3

Instruments and controls 4

Instruments 6

Warning lights 7

Ignition switch, parking brake 8

Lighting 9

Turn signals 10

Wipers 11

Clock, cigarette lighter, ash tray 12

Tailgate window wiper, electrically heated rear window, hazard warning

flasher

Heating and ventilation 14

Air conditioning 16

Front seats 18

Seat belts 20

Doors and locks 22

Rear doors, trunk lid 23

Hood 24

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_00.htm (1 of 4)12/22/2006 10:07:28 PM

1977 Volvo 242 244 245

Vent windows, rear view mirrors 25

Interior light, sun roof, fuel tank cap 26

Rear seat, model 245 27

Tailgate, model 245 28

START AND DRIVING

Breaking in 31 Starting the engine 32 Gearshift positions 33

Automatic transmission 34

Emergency towing 36

Towing information 37

Trailer hauling 38

Note 39

MAINTENANCE SERVICE

Maintenance services 41

Gas station checks 42

Engine compartment 43

Maintenance schedule 44

Engine oil 48

Cooling system 49

Emission control system 50

Transmission oils 56

Rear axle, power steering, brake fluid 57

Lubrication 58

Coolant 59

Note: alternator 60

Replacing bulbs 60

Fuses 64

Wheels and tires 65

Wheel changing 66

Washing, cleaning 68

Cleaning, anti-rust treatment 69

Paint touch-up 70

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_00.htm (2 of 4)12/22/2006 10:07:28 PM

1977 Volvo 242 244 245

Long distance trips 72

Cold weather 73

Service diagnosis 75

Specifications 80

Consumer information 86

Index 91

pg. 2 General Information

pg. 3 Keys

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_00.htm (3 of 4)12/22/2006 10:07:28 PM

1977 Volvo 242 244 245

Write the key number codes on the inside cover page. In the event the original keys are lost, duplicates can be ordered from your Volvo dealer.

Top of Page

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_00.htm (4 of 4)12/22/2006 10:07:28 PM

1977 Volvo 242 244 245

1 9 7 7

VOLVO

242, 244, 245

pg. 4 Instruments and controls

pg. 5 Instruments and controls

See page

1 Defroster outlet, side window

2 Fresh air outlet

3 Headlights, parking lights

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (1 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

4 Turn signals

5 Horn -

6 Instruments

7 Ignition switch/steering wheel

lock

8 Wiper/washer

9 Fresh air outlet

10 Clock

11 Fresh air outlet

12 Fuse box

13 Hood release handle

14 Instrument lights

15 Heating and ventilation

16 Cigarette lighter

17 Tail gate window wiper

18 Electrically heated rear window

19 Ash tray

20 Air conditioning

21 Hazard warning flasher

22 Seat belt reminder light

Pages 6-16 will give you a detailed description of the vehicle's instruments and controls. Note that vehicles may be differently equipped, depending on special legal requirements, etc.

pg. 6 Instruments

A Odometer Mile reading.

B Speedometer

C Left turn signal indicator (green)

D Parking brake reminder light (red)

E High beam indicator (blue)

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (2 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

F Brake failure warning light (red)

G Right turn signal indicator (green)

H Oil pressure warning light (red)

I Alternator warning light (red)

J Trip odometer

(last figure represents 1/10 mile)

K Trip odometer reset knob Push in to reset

L Reminder light, EGR Service (red)

M Bulb failure warning light (yellow)

N Temperature gauge The gauge pointer should normally remain inside the green range.

If the pointer enters the red range repeatedly, check coolant level and fan belt tension, see

page 49.

O Overdrive indicator light (green) Lights when overdrive is engaged.

P Fuel gauge The fuel tank capacity is approx. 60 liters=15.8 US gals/13.2 Imp. gals F Full 1/2 R Reserve

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (3 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

O Empty The red range from R to O represents approx. 8 liters=2.5 US gals/2 Imp. gals.

pg. 7 Warning lights

The warning lights described on this page should never be on when driving

These lights will come on when the ignition key is turned on, before the engine is started. The lights should go off once the engine has started. (However, the parking brake reminder light will not go off until the parking brake is fully released.)

D Parking brake reminder light (red)

This light will be on when the parking brake (hand brake) is applied. The parking brake lever is situated between the front seats.

F Brake failure warning light (red)

If the light comes on while driving and the brake pedal can be depressed further than normal, it is an indication that one of the brake circuits is not functioning. Proceed cautiously to a Volvo dealer for an inspection of the brake system.

H Oil pressure warning light (red)

If the light comes on while driving, the oil pressure is too low.

Stop the engine immediately and check the engine oil level, see

page 48.

After hard driving, the light will come on occasionally when the engine is idling. This is normal, provided it goes off when the engine speed is increased.

I Alternator warning light (red)

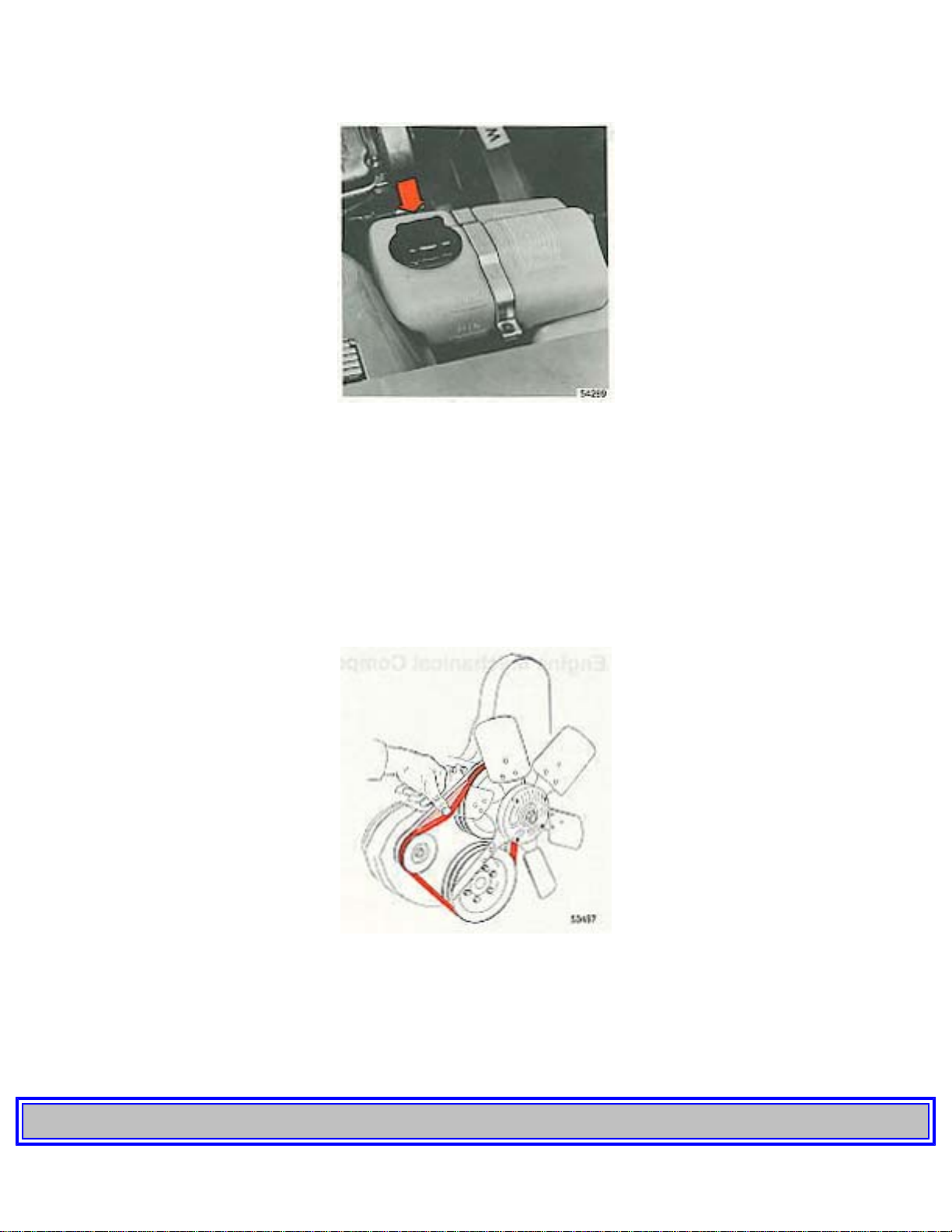

If the light comes on while the engine is running, check the tension of the alternator drive belt as soon as possible. See

page 49

NOTE: This warning light is illuminated if the alternator is not charging. However, control lights, parking

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (4 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

brake, brake failure, EGR, and bulb failure will be illuminated at the same time due to the design of the system.

L Reminder light for service of EGR system or oxygen sensor (red)

If the vehicle is equipped with exhaust gas recirculation or oxygen sensor, this light will come on at 15,000 mile intervals, as required by the U.S. Environmental Protection Agency. This is a reminder to have the EGR valve or the oxygen sensor serviced. The light will stay on until reset by servicing dealer.

M Bulb failure warning light (yellow)

The light will come on if any of the following bulbs are defective:

one of the lower beams one of the tail lights one of the license plate lights one of the brake lights (when the brake pedal is depressed).

Bulb replacement, see

page 60-63.

pg. 8 Ignition switch, parking brake

Ignition switch/steering wheel lock

The steering wheel lock might be under tension when the car is parked. Turn the steering wheel slightly

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (5 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

to free the ignition key. A buzzer will sound if the ignition key is in the ignition lock and the front door on the driver's side is open. The buzzer goes off when the front door is closed.

Parking brake (hand brake) The lever is situated between the front seats. The brake is applied to the rear wheels.

Parking brake reminder light The reminder light PARKING BRAKE on the instrument panel comes on whenever the parking brake lever is not fully released and the ignition is on.

pg. 9 Lighting

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (6 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

Headlights and position lights

All lights off

Parking lights on

Headlights and parking lights on

Switch from upper to lower beams, and vice versa, by moving the turn signal switch lever on the left side of the steering column towards the steering wheel. The lights can be used without switching on the ignition key.

Instrument light rheostat

Clockwise - brighter Counterclockwise - dimmer.

pg. 10 Turn signals

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (7 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

Turn signals

1 Signal lever engaged for normal turns.

2 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by

moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral position when released.

3 High and low beam switching (headlights on). Move the lever towards the steering wheel and release it.

3 Headlight flasher (headlights off). Move the lever towards the steering wheel. The headlight high beam will be on until the lever is released.

pg. 11 Wipers

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (8 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

Wiper/washer

1 "Single stroke" position.

Switch returns automatically when released.

2 Wipers, low speed.

3 Wipers, high speed.

4 Washer.

Adjusting washer nozzles

The nozzle may be adjusted by inserting a needle into the metal insert and rotating the nozzle. The washer fluid reservoir is located in the engine compartment and holds approx. 6 liters =1.6 US gals /1.3 Imp gals.

pg. 12 Clock, cigarette lighter, ash tray

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (9 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

Clock (some models only) To reset the hands, push in the reset knob and turn.

Cigarette lighter To operate, depress the knob fully. When the knob automatically releases, the cigarette lighter is ready for use.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (10 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

Ash trays To remove the ash trays depress the center spring and remove.

pg. 13 Tailgate window wiper, el. heated rear window, hazard warning flasher

Tailgate window wiper/washer, (model 245) (17)

0 Off

1 Wiper and washer combined operating.

Move the lever to the first stop and hold it there.

2 Tailgate wiper only

The fluid reservoir is located in the concealed storage area under the floor on the right side of the rear cargo area. Reservoir capacity is approx. 1.5 qts.

Electrically heated rear window (18)

0 Off

1 On

Switch off the rear window heater when the glass is clear of mist or frost. Otherwise the battery will be unduly strained. Do not place items against the inner surface of the rear window that may damage the printed circuit. Do not scrape the inner surface of the rear window glass with a hard object, otherwise damage to the printed circuit will occur.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (11 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

Hazard warning flasher (21)

0 Off

1 On

Four-way flashing is used to indicate that the vehicle is at a standstill and has become a traffic hazard either during daylight or at night.

Note: Regulations regarding the use of the hazard warning flasher may vary from state to state.

pg. 14 Heating and ventilation

Heating system

1 TEMP

Left = cool Right = warm

2 FLOOR Out = no air to floor In = full flow of air to floor

3 DEF (defrost) Out = low volume air flow to defroster In = full flow

4 REC (recirculation) To be used only for cars equipped with air conditioning.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (12 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

Do not use for heating.

5 FAN (Blower motor) 0 = off 1 = low speed 2 = medium speed 3 = high speed

6 Ventilation outlets The air flow through the ventilation outlets is not influenced by the position of the FLOOR (2) and DEF (3) controls.

pg. 15 Heating and ventilation

How to . . . . . . obtain max. heat

1 TEMP >>> WARM

2 FLOOR depressed

5 FAN >>> 2 (or 3)

6 All outlets halfway open.

. . . remove condensation 1 TEMP >>>WARM

3 DEF depressed

5 FAN >>> 2 (or 3)

Always keep front external inlet grille (in front of the windshield) clear of obstructions (snow, ice, etc.).

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (13 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

Fresh air outlets A Closed B Open C Directing air flow horizontally D Directing air flow vertically

Contents | Top of Page

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (14 of 14)12/22/2006 10:07:29 PM

1977 Volvo 242 244 245

pg. 16 Air conditioning

Air conditioning (optional) How to use the air conditioner:

1 FAN Position 3 for rapid cooling.

2 AIR COND Push in the button to start the compressor.

3 REC (Recirculation) Push in for rapid cooling.

4 TEMP Rotate to COOL for rapid cooling, then set to desired temperature. To obtain rapid cooling, all windows must be closed. Buttons FLOOR and DEF must be released. The air output will then be discharged through the four dash outlets which should be fully open.

Note: For rapid removal of condensation from inside glass surfaces, the air conditioner can be switched on. The air conditioner will dehumidify the air inside the vehicle.

Have your Volvo dealer check the system for correct operation yearly.

pg. 17

This page left intentionally blank.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (1 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

pg. 18 Front seats

Horizontal seat adjustment

Seat back inclination adjustment

Lumbar support adjustment

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (2 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

pg. 19 Front seats

Seat back release, 2-door models Press the button and fold forward.

Driver seat height There are two levers, each with three positions, for adjusting the height of the front or the back of the seat. This means that the seat cushion angle can be adjusted for comfort. When adjusting the seat in any position check that it is securely latched.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (3 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

Passenger seat height The front passenger seat is retained by four brackets, each with three positions. The positions are the same as for the driver's seat. However, this adjustment must be accomplished manually, using appropriate hand tools.

pg. 20 Seat belts

Seat belts, retractable Fasten the seat belts whenever you drive or ride. Rear seat passengers should also use the seat belts as

heavy braking can have serious effects on an unfastened passenger. Two lights will be illuminated for 4-8 seconds after the ignition key is turned to driving position. One light is located in the instrument cluster and one in the console between the front seats. A buzzer will sound at the same time if the driver has not fastened his seat belt.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (4 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

To buckle: Pull the belt out slowly, far enough to insert the latch plate into the buckle, until a snap is heard. The belt should not be twisted or turned. To unfasten, depress red pushbutton in buckle. Let the belts rewind into their retractors.

The seat belts are normally "unlocked". The seat belt locks and cannot be pulled out:

● if it is pulled out rapidly

● during braking and acceleration

● if the vehicle is leaning excessively

● when driving in turns

Check seat belt mechanism function as follows:

1. Attach the seat belt. Pull rapidly on the strap.

2. Brake hard from approximately 30 mph (50 km/h) or drive in a tight circle (check other traffic first!) Pull on the belt.

In these cases the belt should not be able to be pulled out.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (5 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

Note that small children (up to the age of 8-10 years) should not use Adult type seat belt. The front and the rear outboard seats are provided with self-retracting inertia belts.

pg. 21 Seat belts

Seat belts, manually adjustable The center rear seat belt is a manually adjustable belt. It should always be adjusted to the correct length.

To lengthen, turn the buckle and pull it out, as shown in the picture.

To shorten, pull the upper part of the double webbing.

Maintenance

Check periodically that the anchor bolts are secure and the belt in good condition. Use water and a detergent for cleaning.

As the seat belts lose much of their strength when exposed to violent stretching, they should be replaced after collision, even though they may appear to be undamaged.

Never modify or repair the belt on your own, but have this done by a Volvo workshop.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (6 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

pg. 22 Doors and locks

Unlocking front doors Both front doors can be unlocked by using the key. Turning the key 1/4 turn counterclockwise lifts the lock buttons on the window ledge and the door can be opened by pulling the handle.

Locking doors All doors can be locked by depressing the lock buttons. To lock the front doors, press down the lock button and keep the door handle pulled out while shutting the door.

To lock the rear doors, press down the lock button and shut the door. It is not necessary to keep the door handle pulled out.

To open a rear door from inside, the lock button must first be pulled up.

The lock buttons should not be in the down position during driving. In case of an accident, it prevents aid from entering the vehicle.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (7 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

In wintertime the door locks should be "lubricated" with at suitable agent to prevent freezing. If the lock is frozen, be careful not to break the key in the lock. Thaw the ice by heating the lock or the key.

pg. 23 Rear doors, trunk lid

Child safety locks, 244 and 245 The buttons are located on the rear door jambs.

A Normal lock function. B The door cannot be opened from the inside.

Trunk lid 242 and 244 To open the lid, turn the knob clockwise. NOTE: The key must be removed from the lock in order to be able to turn the knob. The spare wheel jack and tool kit are stowed in the left side of the trunk.

pg. 24 Hood

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (8 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

To open the hood Pull the release handle (located on the left side under the dash).

Lift the hood slightly, insert a hand under the center line of the hood and depress the safety catch handle. Open the hood. Check that the hood locks properly when closing.

pg. 25 Vent windows, rear view mirrors

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (9 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

Rear vent windows, 2-door models A Open B Closed

Inside mirror D Normal position N Night position, reduces glare from following headlights

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (10 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

Outside mirrors A Adjustment sideways B Adjustment up/down

The mirrors should always be adjusted before driving.

pg. 26 Interior lights, sun roof, fuel tank cap

Interior light 1 Light always on. 2 Light always off. 3 Light on when either front door is opened. Model 245 may be equipped with a light that differs from that in the 242-244.

Sun roof (certain models) The sun roof is operated by a handle located between the sun visors. Unfold the handle and turn it counterclockwise to open, clockwise to close. For safety reasons the handle should always be folded when driving.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (11 of 16)12/22/2006 10:07:30 PM

1977 Volvo 242 244 245

Filling fuel The gas cap is located behind the door on the right rear fender. When filling, position the cap in the special bracket on the door.

Note: Unleaded fuel is required for certain models. A label on the instrument panel and rear fender, near the filler inlet, will remind owners and filling station attendants of this requirement. Important! It is unlawful to dispense leaded fuel into any vehicle labeled "unleaded Gasoline only".

pg. 27 Rear seat, model 245

Folding rear seat Depress either lever located at the front bottom edge of the rear seat cushion (right or left side). Tilt the seat towards the front seat.

file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (12 of 16)12/22/2006 10:07:30 PM

+ 75 hidden pages
