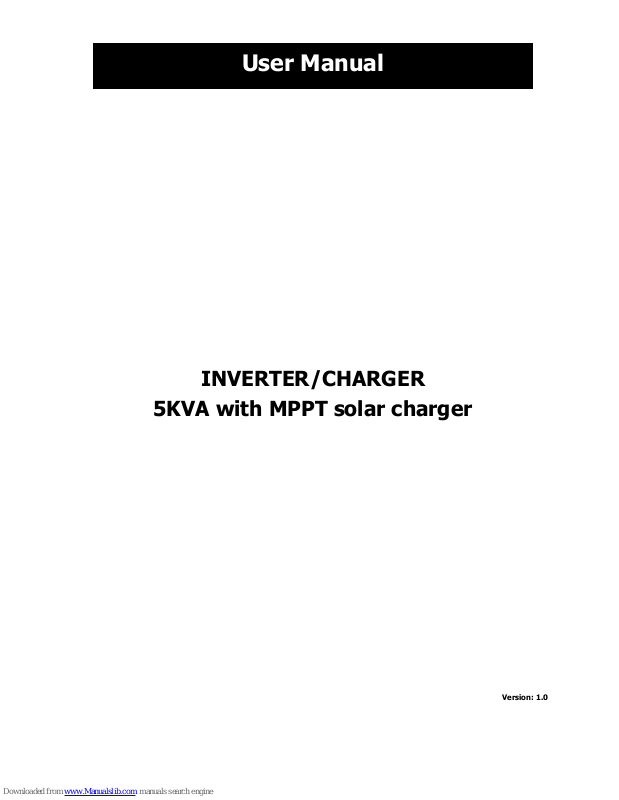

Voltronic Power Axpert Plus Duo User Manual

INVERTER/CHARGER

5KVA with MPPT solar charger

Version: 1.0

User Manual

Table Of Contents

ABOUT THIS MANUAL ..................................................................................................................... 1

Purpose ................................................................................................................................................ 1

Scope ................................................................................................................................................... 1

SAFETY INSTRUCTIONS .................................................................................................................. 1

INTRODUCTION .............................................................................................................................. 2

Features ............................................................................................................................................... 2

Basic System Architecture ...................................................................................................................... 2

Product Overview .................................................................................................................................. 3

INSTALLATION ................................................................................................................................ 4

Unpacking and Inspection ...................................................................................................................... 4

Preparation ........................................................................................................................................... 4

Mounting the Unit .................................................................................................................................. 4

Battery Connection ................................................................................................................................ 5

AC Input/Output Connection .................................................................................................................. 7

PV Connection ....................................................................................................................................... 8

Final Assembly ...................................................................................................................................... 9

Communication Connection .................................................................................................................... 9

Dry Contact Signal ................................................................................................................................. 9

OPERATION ................................................................................................................................... 10

Power ON/OFF .................................................................................................................................... 10

Operation and Display Panel ................................................................................................................. 10

LCD Display Icons ................................................................................................................................ 11

LCD Setting ......................................................................................................................................... 13

Display Setting .................................................................................................................................... 18

Operating Mode Description ................................................................................................................. 22

Fault Reference Code ........................................................................................................................... 24

Warning Indicator ................................................................................................................................ 24

SPECIFICATIONS .......................................................................................................................... 25

Table 1 Line Mode Specifications .......................................................................................................... 25

Table 2 Inverter Mode Specifications ..................................................................................................... 26

Table 3 Charge Mode Specifications ...................................................................................................... 27

TROUBLE SHOOTING .................................................................................................................... 29

Appendix I: Approximate Back-up Time Table ............................................................................. 30

Appendix II: Parallel function (Only for parallel model) .............................................................. 31

ABOUT THIS MANUAL

Purpose

This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read

this manual carefully before installations and operations. Keep this manual for future reference.

Scope

This manual provides safety and installation guidelines as well as information on tools and wiring.

SAFETY INSTRUCTIONS

WARNING: This chapter contains important safety and operating instructions. Read and

keep this manual for future reference.

1. Before using the unit, read all instructions and cautionary markings on the unit, the batteries and all

appropriate sections of this manual.

2. CAUTION --To reduce risk of injury, charge only deep-cycle lead acid type rechargeable batteries.

Other types of batteries may burst, causing personal injury and damage.

3. Do not disassemble the unit. Take it to a qualified service center when service or repair is required.

Incorrect re-assembly may result in a risk of electric shock or fire.

4. To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning.

Turning off the unit will not reduce this risk.

5. CAUTION – Only qualified personnel can install this device with battery.

6. NEVER charge a frozen battery.

7. For optimum operation of this inverter/charger, please follow required spec to select appropriate cable

size. It’s very important to correctly operate this inverter/charger.

8. Be very cautious when working with metal tools on or around batteries. A potential risk exists to drop

a tool to spark or short circuit batteries or other electrical parts and could cause an explosion.

9. Please strictly follow installation procedure when you want to disconnect AC or DC terminals. Please

refer to INSTALLATION section of this manual for the details.

10. Fuses are provided as over-current protection for the battery supply.

11. GROUNDING INSTRUCTIONS -This inverter/charger should be connected to a permanent grounded

wiring system. Be sure to comply with local requirements and regulation to install this inverter.

12. NEVER cause AC output and DC input short circuited. Do NOT connect to the mains when DC input

short circuits.

13. Warning!! Only qualified service persons are able to service this device. If errors still persist after

following troubleshooting table, please send this inverter/charger back to local dealer or service center

for maintenance.

INTRODUCTION

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery

charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers

user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger

priority, and acceptable input voltage based on different applications.

Features

 Pure sine wave inverter  Built-in MPPT solar charge controller  Configurable input voltage range for home appliances and personal computers via LCD setting  Configurable battery charging current based on applications via LCD setting  Configurable AC/Solar Charger priority via LCD setting  Compatible to mains voltage or generator power  Auto restart while AC is recovering  Overload/ Over temperature/ short circuit protection  Smart battery charger design for optimized battery performance  Cold start function

Basic System Architecture

The following illustration shows basic application for this inverter/charger. It also includes following devices to

have a complete running system:

 Generator or Utility.  PV modules

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment, including motor-type appliances

such as tube light, fan, refrigerator and air conditioner.

Figure 1 Hybrid Power System

Product Overview

Single Model Parallel Model

1. LCD display

2. Status indicator

3. Charging indicator

4. Fault indicator

5. Function buttons

6. Power on/off switch

7. AC input

8. AC output

9. PV input (Please check model no for detailed PV input numbers )

10. Battery input

11. Circuit breaker

12. RS232 communication port

13. Parallel communication cable (only for parallel model)

14. Current sharing cable (only for parallel model)

15. Dry contact

16. USB communication port

NOTE: For parallel model installation and operation,

please check separate parallel installation guide for the details.

INSTALLATION

Unpacking and Inspection

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package:

 The unit x 1  User manual x 1  Communication cable x 1  Software CD x 1

Preparation

Before connecting all wirings, please take off bottom cover by removing two screws as shown below.

Mounting the Unit

Consider the following points before selecting where to install:

 Do not mount the inverter on flammable construction

materials.

 Mount on a solid surface  Install this inverter at eye level in order to allow the LCD

display to be read at all times.

 The ambient temperature should be between 0°C and 55°C

to ensure optimal operation.

 The recommended installation position is to be adhered to

the wall vertically.

 Be sure to keep other objects and surfaces as shown in the

right diagram to guarantee sufficient heat dissipation and

to have enough space for removing wires.

SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.

Install the unit by screwing three screws. It’s recommended to use M5 screws.

Battery Connection

CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current

protector or disconnect device between battery and inverter. It may not be requested to have a disconnect

device in some applications, however, it’s still requested to have over-current protection installed. Please refer

to typical amperage in below table as required fuse or breaker size.

WARNING! All wiring must be performed by a qualified personnel. WARNING! It's very important for system safety and efficient operation to use

appropriate cable for battery connection. To reduce risk of injury, please use the proper recommended cable and terminal size as below.

Recommended battery breaker, cable and terminal size:

Model

Breaker

Size

Wire Size

Ring Terminal

Torque

Value

Dimensions

AWG

mm2

D (mm)

L (mm)

5KVA with 2 MPPTs

200A/60VDC

2 * 4AWG

10.5

10~ 12 Nm 5KVA with 3 MPPTs

250A/60VDC

2 * 2AWG

10.5

Please follow below steps to implement battery connection:

1. Assemble battery ring terminal based on recommended battery cable and terminal size.

2. Connect all battery packs as the unit requires. It’s suggested to connect at least 600Ah capacity battery.

3. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are

tightened with torque of 10-12 Nm. Make sure polarity at both the battery and the inverter/charge is

correctly connected and ring terminals are tightly screwed to the battery terminals.

Ring terminal:

WARNING: Shock Hazard

Installation must be performed with care due to high battery voltage in series.

CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring

terminal. Otherwise, overheating may occur.

CAUTION!! Do not apply anti-oxidant substance on the terminals before terminals are

connected tightly.

CAUTION!! Before making the final DC connection or closing DC breaker/disconnector, be sure

positive (+) must be connected to positive (+) and negative (-) must be connected to negative

(-).

AC Input/Output Connection

CAUTION!! Before connecting to AC input power source, please install a separate AC breaker between

inverter and AC input power source. This will ensure the inverter can be securely disconnected during

maintenance and fully protected from over current of AC input. The recommended spec of AC breaker is 50A.

CAUTION!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis -connect input

and output connectors.

WARNING! All wiring must be performed by a qualified personnel. WARNING! It's very important for system safety and efficient operation to use appropriate cable for AC input

connection. To reduce risk of injury, please use the proper recommended cable size as below.

Suggested cable requirement for AC wires

Model

Wire Size

Torque Value

AWG

mm2

5KVA

1 * 8 AWG

8.4

1.4~ 1.6Nm

Please follow below steps to implement AC input/output connection:

1. Before making AC input/output connection, be sure to open DC protector or disconnector first.

2. Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3 mm.

3. Insert AC input wires according to polarities indicated on terminal block and tighten the terminal screws. Be

sure to connect PE protective conductor ( ) first.

→Ground (yellow-green)

L→LINE (brown or black)

N→Neutral (blue)

WARNING:

Be sure that AC power source is disconnected before attempting to hardwire it to the unit.

4. Then, insert AC output wires according to polarities indicated on terminal block and tighten terminal screws.

Be sure to connect PE protective conductor ( ) first.

→Ground (yellow-green)

L→LINE (brown or black)

N→Neutral (blue)

5. Make sure the wires are securely connected.

PV Connection

CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter

and PV modules.

WARNING! All wiring must be performed by a qualified personnel. WARNING! It's very important for system safety and efficient operation to use appropriate cable for PV

module connection. To reduce risk of injury, please use the proper recommended cable size for each PV input as below.

Note! Each PV input connection is independent. Please connect to PV modules separately. Note! If users only use one PV input, please choose one from PV1 or PV2 input.

Model

Breaker size

Wire Size

Torque

AWG

mm2

5KVA

60A/150VDC

1 * 8 AWG

8.4

1.4~1.6 Nm

PV Module Selection: When selecting proper PV modules, please be sure to consider below parameters:

1. Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.

2. Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.

Solar Charging Mode

INVERTER MODEL

5KVA

Max. PV Array Open Circuit Voltage

145Vdc

PV Array MPPT Voltage Range

60~115Vdc

Min. battery voltage for PV charge

34Vdc

Please follow below steps to implement PV module connection:

1. Remove insulation sleeve 10 mm for positive and negative conductors.

2. Check correct polarity of connection cable from PV modules and PV input

connectors. Then, connect positive pole (+) of connection cable to positive pole (+) of PV input connector. Connect negative pole (-) of connection cable to negative pole (-) of PV input connector.

Only for the model with 3 MPPTs

3. Make sure the wires are securely connected.

CAUTION: Important

Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause utility

short-circuited when these inverters are worked in parallel operation.

CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to restart because it’s required

to have enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and recovers in a

short time, it will cause damage to your connected appliances. To prevent this kind of damage, please check

manufacturer of air conditioner if it’s equipped with time-delay function before installation. Otherwise, this

inverter/charger will trig overload fault and cut off output to protect your appliance but sometimes it still causes internal damage to the air conditioner.

Final Assembly

After connecting all wirings, please put bottom cover back by screwing two screws as shown below.

Communication Connection

Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and

follow on-screen instruction to install the monitoring software. For the detailed software operation, please

check user manual of software inside of CD.

Dry Contact Signal

There is one dry contact (3A/250VAC) available on the rear panel. It could be used to deliver signal to external

device when battery voltage reaches warning level.

Unit Status

Condition

Dry contact port:

NC & C

NO & C

Power Off

Unit is off and no output is powered.

Open

Power On

Output is powered from Utility.

Open

Output is

powered

from

Battery or

Solar.

Program 01

set as Utility

Battery voltage < Low DC warning

voltage

Open

Battery voltage > Setting value in

Program 13 or battery charging

reaches floating stage

Open

Program 01

is set as

SBU or

Solar first

Battery voltage < Setting value in

Program 12

Open

Battery voltage > Setting value in

Program 13 or battery charging

reaches floating stage

Open

OPERATION

Power ON/OFF

Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch

(located on the button of the case) to turn on the unit.

Operation and Display Panel

The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes

three indicators, four function keys and a LCD display, indicating the operating status and input/output

power information.

LED Indicator

Messages

Green

Solid On

Output is powered by utility in Line mode.

Flashing

Output is powered by battery or PV in battery mode.

Green

Solid On

Battery is fully charged.

Flashing

Battery is charging.

Red

Solid On

Fault occurs in the inverter.

Flashing

Warning condition occurs in the inverter.

Function Keys

Function Key

Description

ESC

To exit setting mode

To go to previous selection

DOWN

To go to next selection

ENTER

To confirm the selection in setting mode or enter setting mode

LCD display

LED indicators

Function keys

LCD Display Icons

Icon

Function description

Input Source Information

Indicates the AC input.

Indicates the PV1 input

Indicates the PV2 input

Indicates the PV3 input

Indicate input voltage, input frequency, PV voltage, battery voltage and charger current.

Configuration Program and Fault Information

Indicates the setting programs.

Indicates the warning and fault codes.

Warning: flashing with warning code.

Fault: lighting with fault code

Output Information

Indicate output voltage, output frequency, load percent, load in VA, load in

Watt and discharging current.

Battery Information

Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery

mode and charging status in line mode.

In AC mode, it will present battery charging status.

Status

Battery voltage

LCD Display

Constant

Current mode /

Constant

Voltage mode

<2V/cell

4 bars will flash in turns.

2 ~ 2.083V/cell

Bottom bar will be on and the other three bars will flash in turns.

2.083 ~ 2.167V/cell

Bottom two bars will be on and the other two bars will flash in turns.

> 2.167 V/cell

Bottom three bars will be on and the top

bar will flash.

Floating mode. Batteries are fully charged.

4 bars will be on.

In battery mode, it will present battery capacity.

Load Percentage

Battery Voltage

LCD Display

Load >50%

< 1.717V/cell

1.717V/cell ~ 1.8V/cell

1.8 ~ 1.883V/cell

> 1.883 V/cell

50%> Load > 20%

< 1.817V/cell

1.817V/cell ~ 1.9V/cell

1.9 ~ 1.983V/cell

> 1.983

Load < 20%

< 1.867V/cell

1.867V/cell ~ 1.95V/cell

1.95 ~ 2.033V/cell

> 2.033

Load Information

Indicates overload.

Indicates the load level by 0-24%, 25-50%, 50-74% and 75-100%.

0%~25%

25%~50%

50%~75%

75%~100%

Mode Operation Information

Indicates unit connects to the mains.

Indicates unit connects to the PV panel. Indicates load is supplied by utility power.

Indicates the utility charger circuit is working.

Indicates the DC/AC inverter circuit is working.

Mute Operation

Indicates unit alarm is disabled.

LCD Setting

After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN”

button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to

exit.

Setting Programs:

Program

Description

Selectable option

Exit setting mode

Escape

Output source priority:

To configure load power

source priority

Solar first

Solar energy provides power to the

loads as first priority.

If solar energy is not sufficient to

power all connected loads, battery

energy will supply power the loads at

the same time.

Utility provides power to the loads only

when any one condition happens:

- Solar energy is not available

- Battery voltage drops to either

low-level warning voltage or the

setting point in program 12.

Utility first (default)

Utility will provide power to the loads

as first priority.

Solar and battery energy will provide

power to the loads only when utility

power is not available.

SBU priority

Solar energy provides power to the

loads as first priority.

If solar energy is not sufficient to

power all connected loads, battery

energy will supply power to the loads

at the same time.

Utility provides power to the loads only

when battery voltage drops to either

low-level warning voltage or the

setting point in program 12.

Maximum charging current: To configure total charging current for solar and utility chargers. (Max. charging current = utility charging current + solar charging current)

10A

20A

30A 40A 50A

60A (default)

+ 32 hidden pages

Voltronic Power Axpert Plus Duo User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
