Page 1
MORE AT WWW.VOLTPOLSKA.PL
MANUAL
PURE SINE WAVE VOLTAGE INVERTER
12V DC to 230V AC
24V DC to 230V AC
Models in series: SINUS PLUS 1500, SINUS PLUS 3000, SINUS PLUS 4000
VOLT POLSKA SP. Z O.O.
ul. Grunwaldzka 76
81-771 Sopot
(58) 341-05-06 | (58) 341-38-80 | (22) 100-42-99
Page 2
MORE AT WWW.VOLTPOLSKA.PL
INTRODUCTION
SINUS PLUS voltage inverter should be used to power electrical appliances requiring
230V from 12V or 24V (depending on the selected voltage version) batteries and
automotive instalations. It can be successfully used as an emergency power source
for devices requiring continuous power supply, such as furnaces or CO pumps. The
distinguishing feature of the SINUS PLUS inverters from the classic simple AC/DC
inverters is pure sine wave sinusoidal alternating output voltage identical to that
present in mains in buliding. SINUS PLUS inverters can be used as power supply for
devices equipped with electric motors and transformers, such as power tools, pumps

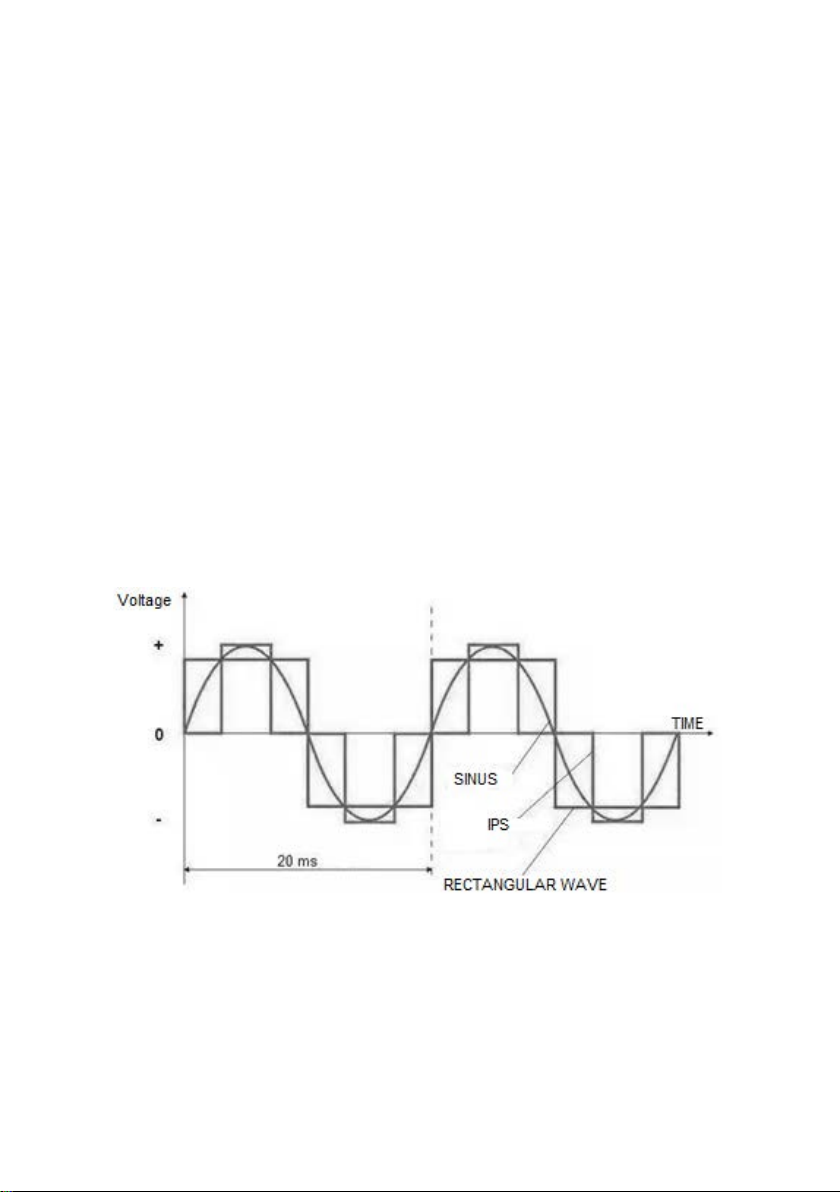

or low-power household appliances. Simple and inexpensive inverters mostly
produce close to rectangular voltage, sometimes mistakenly called approximated
sinus wave. This kind of voltage signal is not suitable for inductive or capactivie
devices and may cause damage. Using our SINUS PLUS inverters you can be 100%
sure that output voltage is pure sine wave.
Main feature that differentiates SINUS PLUS inverters from standard SINUS inverters
is capability to work in solar power supply circuits. SINUS PLUS can work with voltage
that is produced by solar controller and passed trough connected battery. It’s perfect
solution for campers, camping houses and foodtrucks etc.
(58) 341-05-06 | (58) 341-38-80 | (22) 100-42-99
Page 3
MORE AT WWW.VOLTPOLSKA.PL
GENERAL INFORMATION ON SAFETY
THIS MANUAL IS INTEGRAL PART OF DEVICE. DON’T THROW IT AWAY, KEEP IT IN
EASILY ACCESSIBLE PLACE AND GET KNOWN WITH IT’S CONTENT BEFORE FIRST
STARTUP OF THE INVERTER.
- Don’t expose inverter to direct rain, snow, dust, chemicals, oils etc.
- Don’t cover the ventilation openings. Inverter should be installed in an easilly
accessible location with a minimum 30 cm of free space around the enclosure to
ensure free circulation of the air, otherwise the unit may be exposed to overheating
(minimum air flow rate is 145 CFM).
- To reduce the risk of fire or electric shock make sure that the existing wiring is in
good cindition and the wires have the correct parameters (cross-section, lenght etc.)
Don’t operate inverter with damaged or incomplete wiring.
- In the event of fire, us a fire extinguisher designed to put out fire on live electrical
equipement in accordance with its operating instructions.
- This device contains components that may cause sparks. To avoid fire and / or
explosion, do not install device near flammable materials, or in places where are nonfire devices. This includes any location where petrol powered machines, fuel tanks,
connectors, binders, or other connections beetween fuel system components are
stored.
- Do not open / remove housing from the inverter. The appliance does not contain
any maintenance parts. Attempting to repair may result in electric shock or fire.
Capacitors inside the device remain charged when the power is disconnected.
- Don’t connect continuous and instantenous loads greater than those specified in
the unit’s operating instructions.
- The inverter must be powered by a rechargeable battery or automotive electrical
system (instalation must have rechargable battery)
- Don’t charge battery (with rectifier, pulse generator, solar controller etc.) when
inverter is connected and powered by the same battery, this type of connection may
damage inverter and will validate the warranty (we recommend sinusPRo series
models for this type of usage)
(58) 341-05-06 | (58) 341-38-80 | (22) 100-42-99
Page 4
MORE AT WWW.VOLTPOLSKA.PL
INSTALLATION OF THE DEVICE
Please observe the warnings and notes in the previous section during process of
installation. In order to connect the device, first connect wires to the inverter and
then according to the polarity (+ and -) connect them directly to the battery. Correct
polarity of the input is very important and necessary, because reverse polarity may
damage the inverter and void the warranty. After proper connection press main
starting buton for 2-3 second to switch on the inwerter. To switch it off press button
again for 2-3 seconds.
When installing the inverter, be sure to choose right battery (type and capacity) for
direct connection of the device. Battery that is overloaded will have a much higher
capacity than the one supplied by the manufacturer and will be instantly discharged
or even damaged. We recommend using lead-acid batteries for continuous operation
such as GEL, AGM or good quality acid deep discharge batteries rather than regular
starter batteries.
TECHNICAL PARAMETERS
All SINUS inverters come with a range of safety features to ensure safe and roublefree operation.
• Short-circuit protection
Thermal protection – switches off the device after about 60 - 70C
• Undervoltage protection – switches off the device if the input voltage is too
low (discharge of the battery)
• Overvoltage protection – switches off the device when the overheated
temperature is too high
• Overload protection – turns off the device when it is overloaded for more
than dozen of seconds
• Idle load – 300 mA
• Control panel for switching ON/OFF in package with inverter
(58) 341-05-06 | (58) 341-38-80 | (22) 100-42-99
Page 5
MORE AT WWW.VOLTPOLSKA.PL
Continuous power
1000 W
1000 W
Instantenous (peak) power
1500 W
1500 W
Input voltage
10.5 V - 15.5 V
21 V - 31 V
Output voltage
225 V - 235 V
225 V - 235 V
Output voltage frequency
50 Hz (+- 2 Hz)
50 Hz (+- 2 Hz)
Efficiency at full load
> 90 %
> 90 %
Working temperature
0-40 C
0-40 C
Continuous power
800 W
800 W
Instantenous (peak) power
1000 W
1000 W
Input voltage
10.5 V - 15.5 V
21 V - 31 V
Output voltage
225 V - 235 V
225 V - 235 V
Output voltage frequency
50 Hz (+- 2 Hz)
50 Hz (+- 2 Hz)
Efficiency at full load
> 92 %
> 92 %
Working temperature
0-40 C
0-40 C
Continuous power
1000 W
1000 W
Instantenous (peak) power
1500 W
1500 W
Input voltage
10.5 V - 15.5 V
21 V - 31 V
Output voltage
225 V - 235 V
225 V - 235 V
Output voltage frequency
50 Hz (+- 2 Hz)
50 Hz (+- 2 Hz)
Efficiency at full load
> 92 %
> 92 %
Working temperature
0-40 C
0-40 C
SINUS PLUS 1500
SINUS PLUS 3000
SINUS PLUS 4000
(58) 341-05-06 | (58) 341-38-80 | (22) 100-42-99
Page 6
MORE AT WWW.VOLTPOLSKA.PL
WARRANTY CARD
DEVICE TYPE
SA L E DATE
BUYER’S DETAILS (name etc.)
SELLER’S DETAILS (company name etc.)
SERVICE INFO (damage info etc.)
1. The guarantee card is valid if it is signed by the seller and the buyer and has legibly filled
boxes, no changes or deletions.
2. Volt Polska Sp. z o.o. ensures smooth operation of the device to which the Warranty Card
is issued, only when the device is used according to the intended use, service manual or
the owner’s manual.
3. In the absense or non-signing of the warranty card, the document confirming the current
warranty period is the purchase document (receipt or invoice).
4. The warranty period is 12 months for invoice sales and 24 months for sales on receipt.
5. After the warranty period VOLT POLSKA Sp. z o.o. will provide post warranty paid repairs.
6. Full service rules and warranty information can be found at www.voltpolska.pl.
YOU WILL FIND WARRANTY FORM AT MANUFACTURERS WEBSITE. COMPLETING THIS FORM
AND ATTACHING IT TO THE SHIPMENT MAKES WHOLE PROCES OF REPAIR MUCH FASTER.
(58) 341-05-06 | (58) 341-38-80 | (22) 100-42-99
