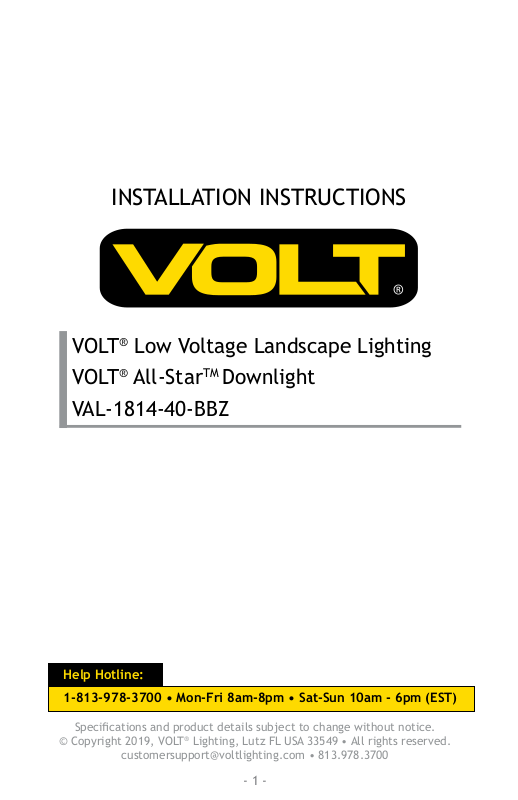

INSTALLATION INSTRUCTIONS

VOLT® Low Voltage Landscape Lighting

VOLT® All-Star

Downlight

VAL-1814-40-BBZ

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

- 1 -

Page 2

INSTALLATION INSTRUCTIONS

VOLT® All-Star

Downlight

VAL-1814-40-BBZ

Important: Please Read Before Installation

This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6 inches (152 mm).

7. If additional lengths of low voltage cable are required, please contact www.voltlighting.com or call 1-813-978-3700.

Package Contents

A. (1) Fixture Body

B. (1) Glare Guard

C. (1) Allen Key

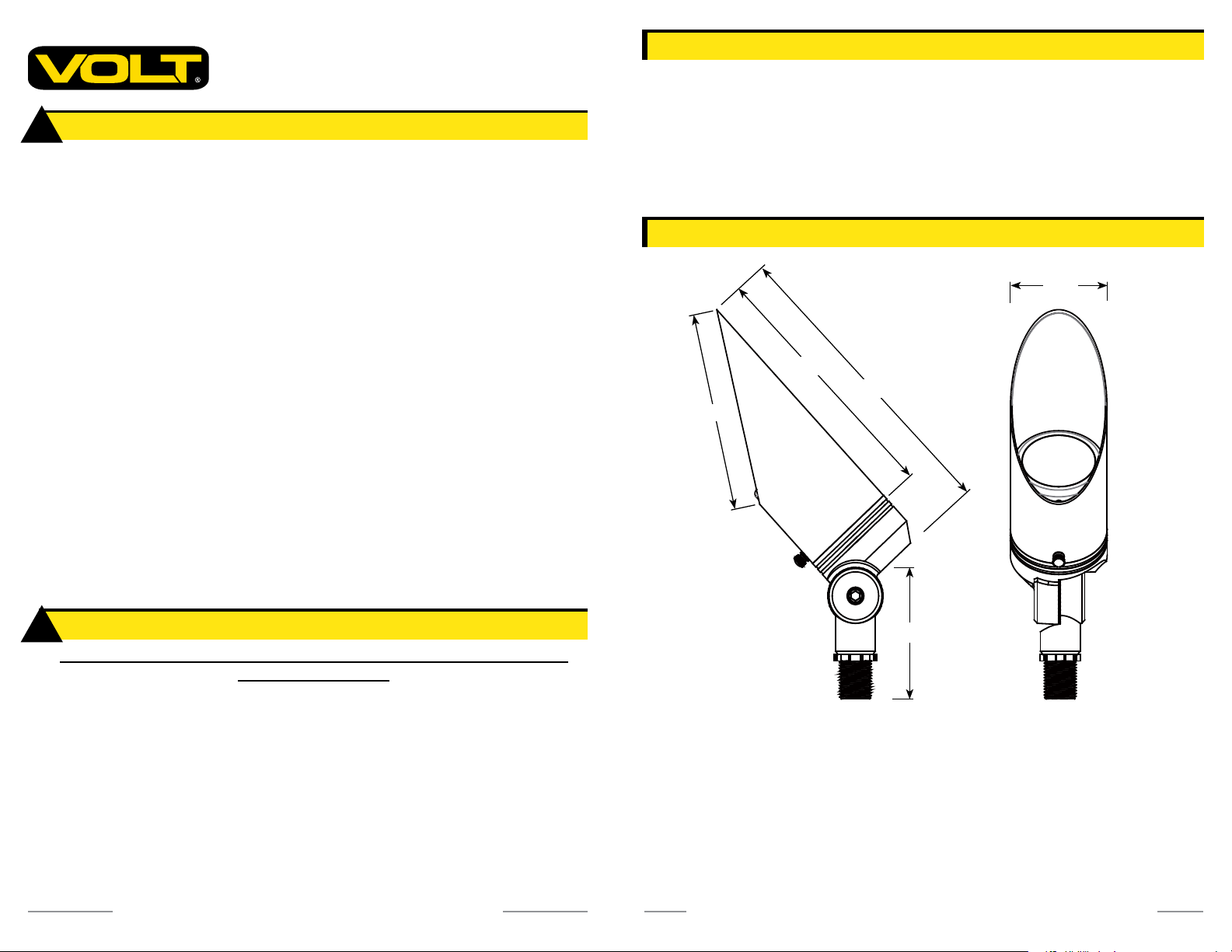

Product Dimensions

2.5”

6.25”

7.63”

5”

Important Safety Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

www.voltlighting.com

- 2 -

3.25”

[email protected] • 813.978.3700

- 3 -

Page 3

INSTALLATION INSTRUCTIONS

VOLT® All-Star VAL-1814-40-BBZ

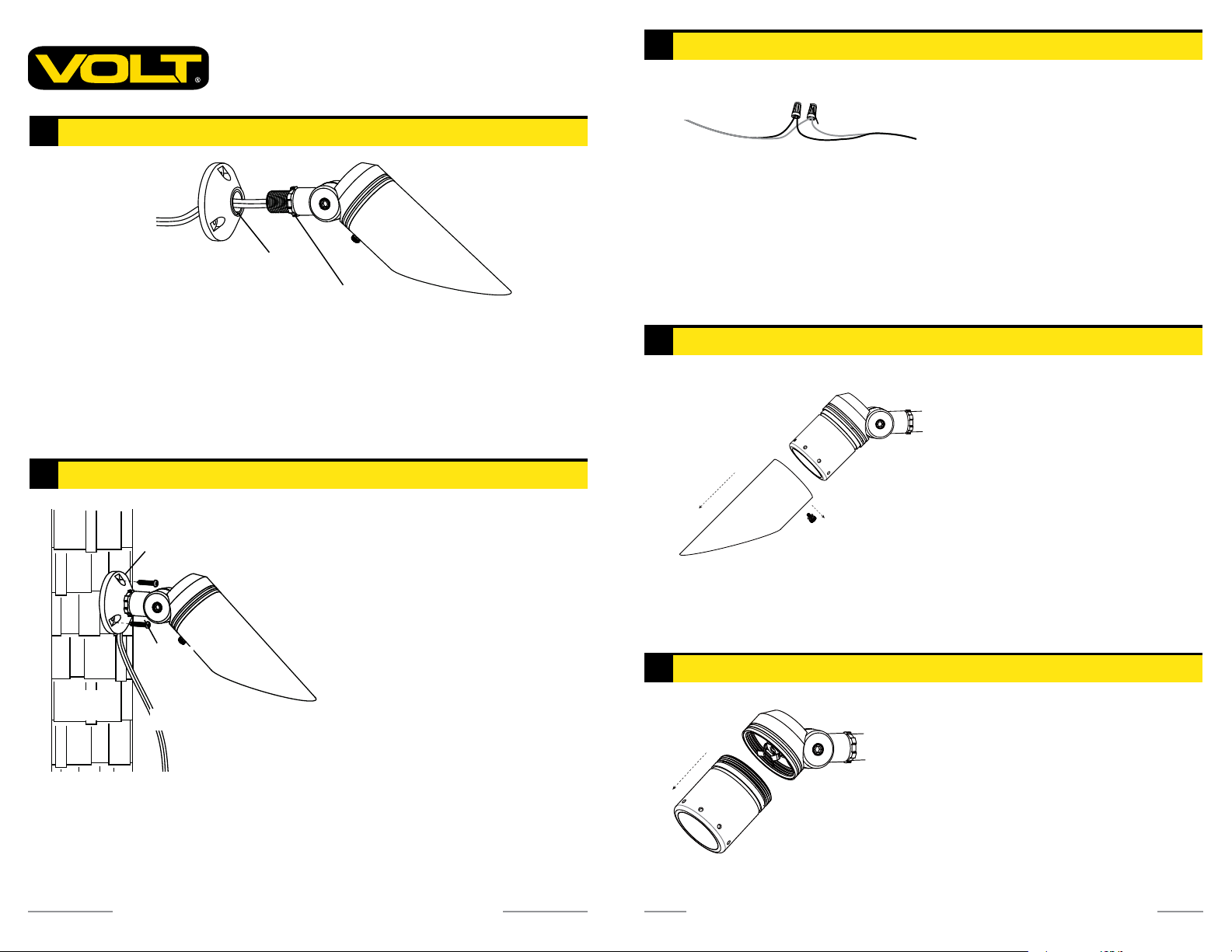

Install Fixture to Base

Downlight

Wire Connection

Fixture Pigtail

Wire Connectors

Main Supply Cable

Fixture Body

Supply Wire

Base

Place the supply wire through the base and thread the base onto the xture body. Make sure the gap on the base and the xture body are in the same direction. Tighten the lock nut against the base.

Install Base

Base

Gap

Lock Nut

Pull the supply wire through the gap on the base. Attach the base onto the tree by securing with the screws. Tighten with a screwdriver.

Remove Glare Guard

Fixture Body

REMOVE

Glare Guard

Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.

Loosen the set screw and remove the glare guard from the xture body.

Set Screw

Tree

Screw

Supply Wire

www.voltlighting.com

- 4 -

Remove Lens

Rotate the lens to remove it from the xture body.

Fixture Body

Lens

[email protected] • 813.978.3700

- 5 -

Page 4

INSTALLATION INSTRUCTIONS

VOLT® All-Star VAL-1814-40-BBZ

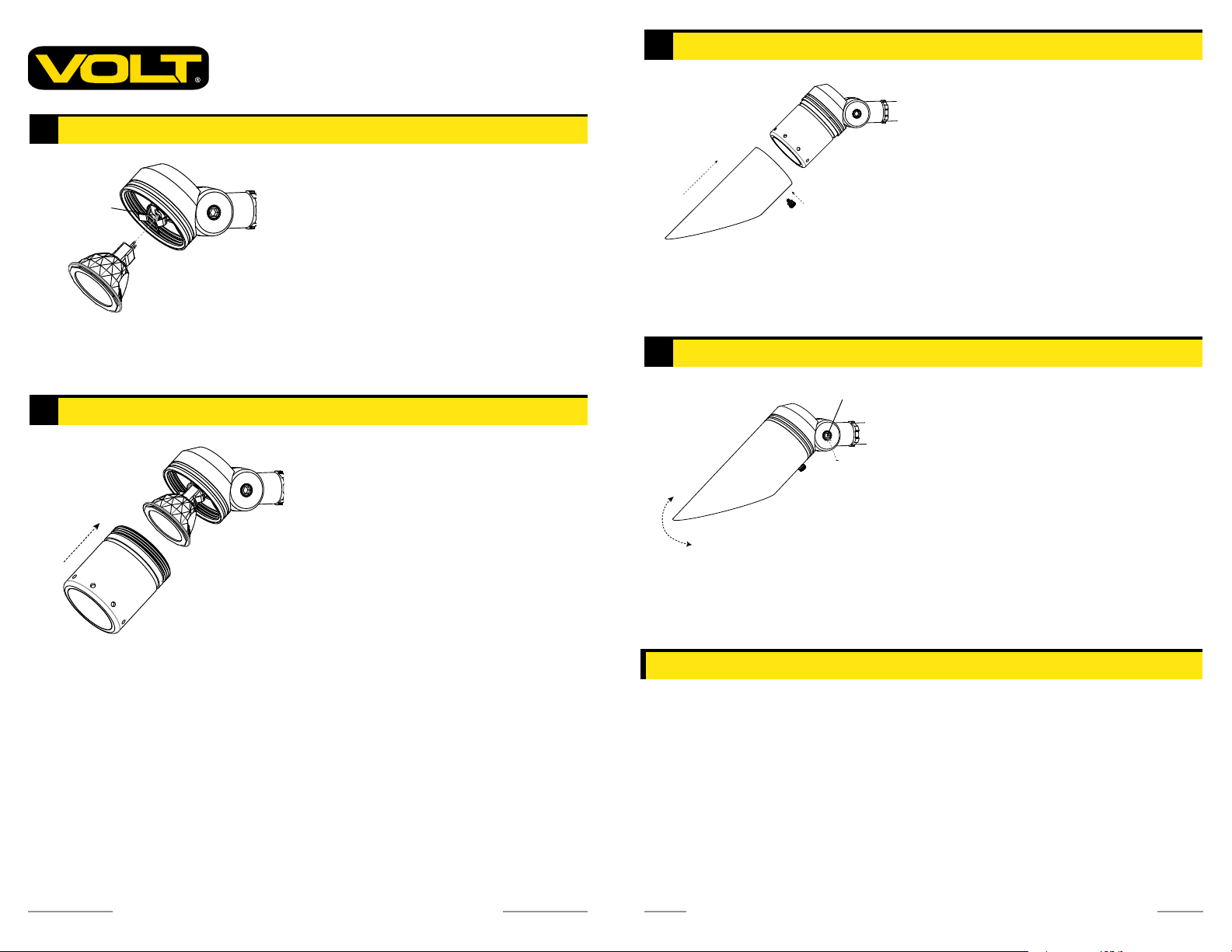

Bulb Installation

Install MR16 Bulb

Socket

Downlight

Insert the MR16 bulb with the correct wattage and type marked on the xture label and secure into place.

Install Glare Guard

Fixture Body

Install the glare guard back onto the xture body and secure with previously removed set screw. Hand tighten until snug.

Set Screw

Install Lens

Fixture Body

MR16 Bulb

Lens

CAUTION: Do not exceed maximum wattage marked on luminaire label.

Place the lens back onto the xture body and rotate it until it is secured properly.

Glare Guard

Adjust Fixture Direction

Set Screw

Fixture Body

Allen Wrench

ROTAT E

By using an Allen wrench, loosen the set screw on the knuckle and adjust the xture body to the desired direction. Once the desired direction is achieved, tighten the set screw to secure.

Install/Replace Bulb

Remove the glare guard and the lens to expose the MR16 bulb and replace it with the correct wattage and type marked on the xture label. Then, reinstall the lens and the glare guard.

www.voltlighting.com

- 6 -

IMPORTANT: MR16 bulb must be protected from moisture and dust at all times. Always reinstall the lens and the glare guard when removed.

[email protected] • 813.978.3700

- 7 -

Page 5

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

www.voltlighting.com

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

IS-VAL-1814-ver1.pdf
