VOLT Lighting VLLG1018 Installation & Assembly

Download

Page 1

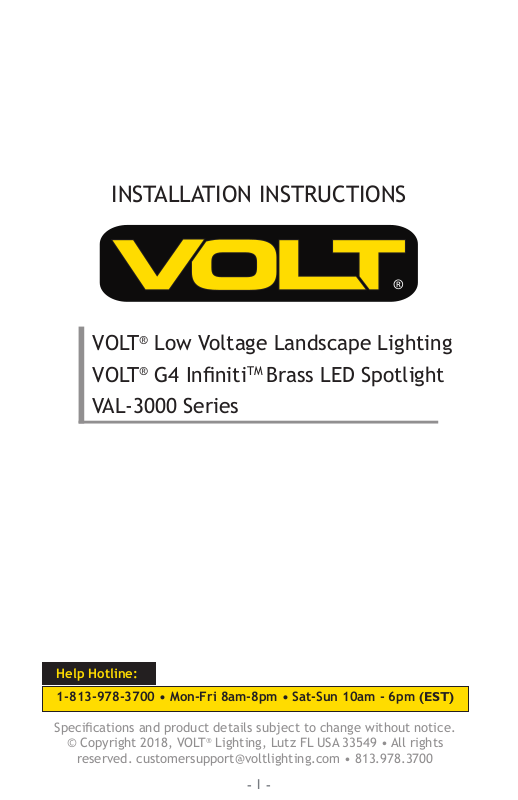

INSTALLATION INSTRUCTIONS

VOLT® Low Voltage Landscape Lighting

VOLT® G4 Inniti

Brass LED Spotlight

VAL-3000 Series

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

- 1 -

Page 2

INSTALLATION INSTRUCTIONS

VOLT® Inniti

Brass LED Spotlight

VAL-3000 Series

Important: Please Read Before Installation

This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6 inches (152 mm).

Important Safety Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

www.voltlighting.com

- 2 -

Page 3

Package Contents

A. (1) Fixture

B. (1) Stake

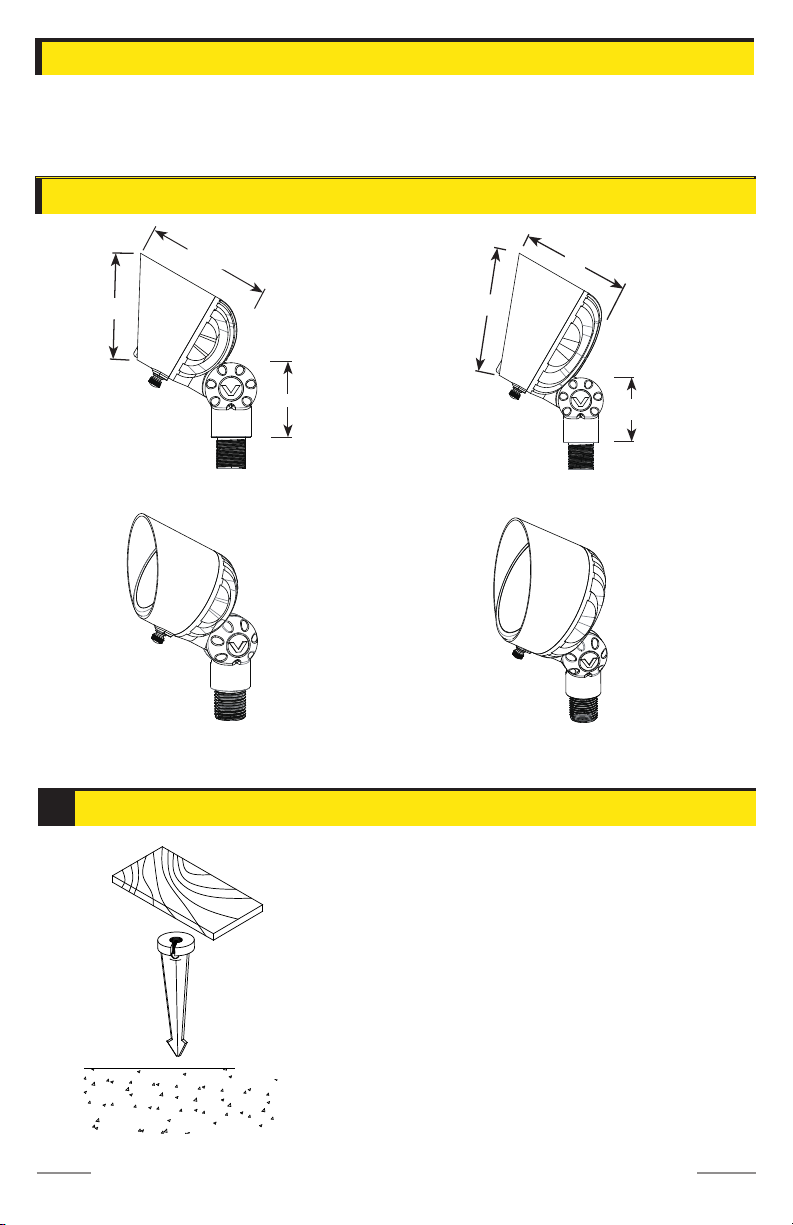

Product Dimensions

2.5”

Install Stake

3.25”

Inniti

3”

3.5”

1.75”

Inniti

1.75”

Determine the desired location for

Board

mounting the xture. Hammer the stake into the ground until ange of stake is ush to grade. To avoid damage to the stake, place a board on top of

Stake

the stake while hammering.

NOTE: If the ground is hard and the

Ground

stake is dicult to install, make a crosscut in the ground using a at

Soil

shovel.

[email protected] • 813.978.3700

- 3 -

Page 4

INSTALLATION INSTRUCTIONS

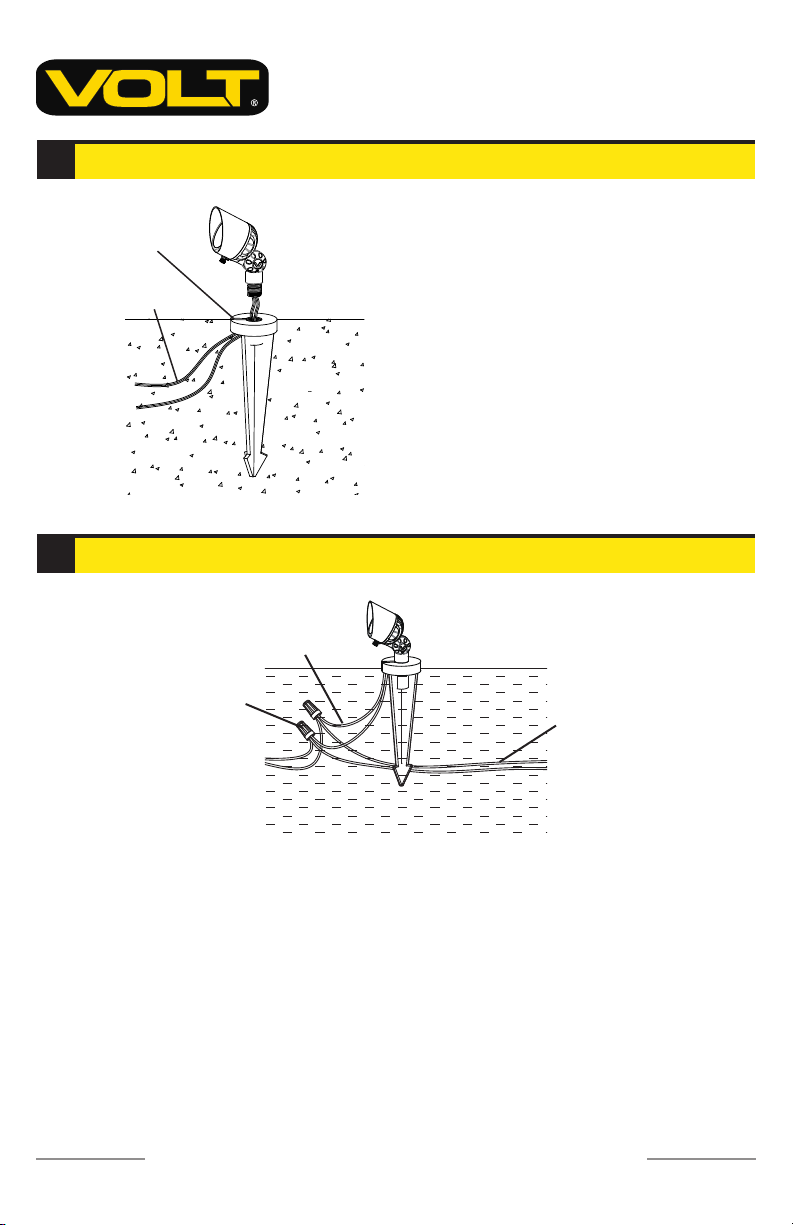

Install Fixture to Stake

Wireway Slot

Fixture

Pigtail

Stake

Wire Connection

VOLT® Inniti

VAL-3000 Series

Brass LED Spotlight

Clear away an area in the

ground at the wireway slot on top of the stake. Lay the luminaire pigtail into

the wireway slot and screw

the xture on to the stake. Tighten until snug.

Pigtail

Wire Connectors

Main Supply Cable

Strip both the leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.

www.voltlighting.com

- 4 -

Page 5

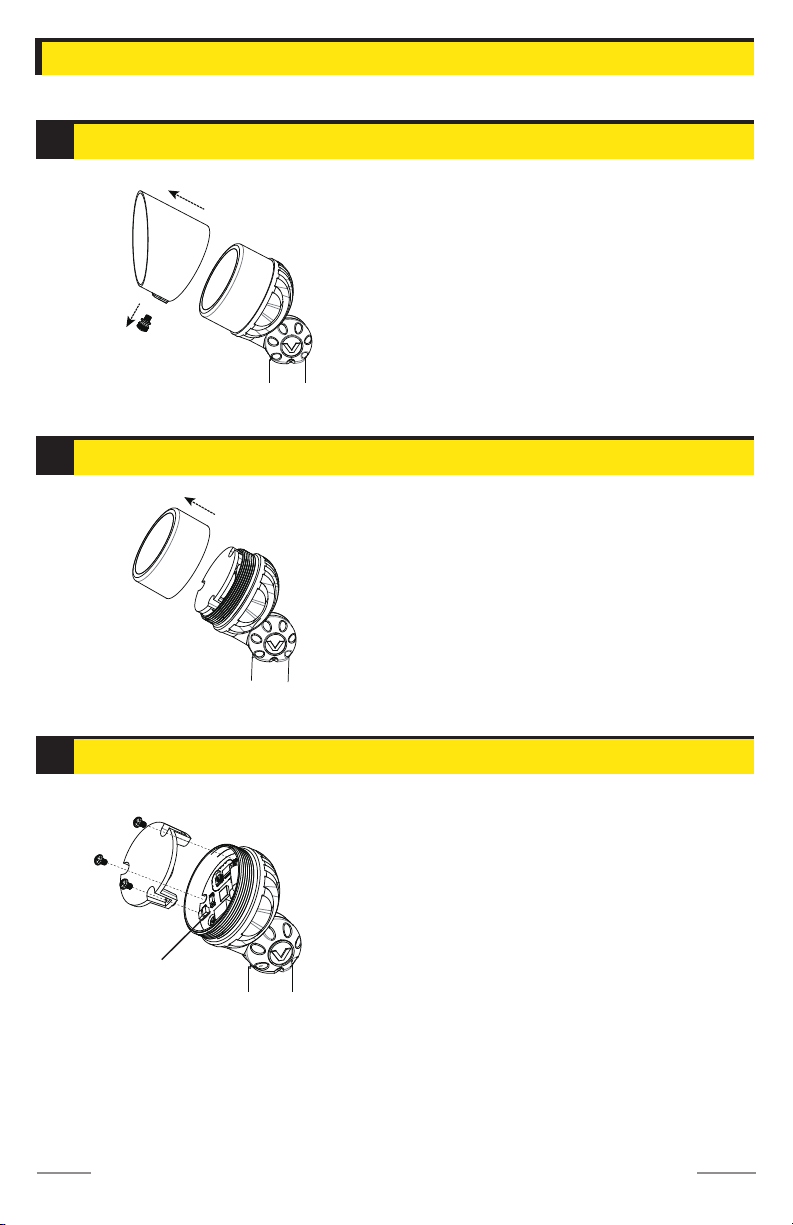

Install/Replace Optic

Remove Glare Guard

Glare

Guard

Loosen the set screw and

remove the glare guard from the xture.

Set Screw

Remove Fixture Lens

Fixture Lens

Replace Optic

Screw

Optic

LED Board

Fixture

Loosen the xture lens and remove it from the xture.

Loosen the screws and remove the optic from the xture.

Install the new optic in the xture and reverse Step 3 - Step 1. Make sure that you have the optic properly aligned over the LED board before tightening down. Improper alignment when tightening the screws can cause the optic to break.

[email protected] • 813.978.3700

- 5 -
