Page 1

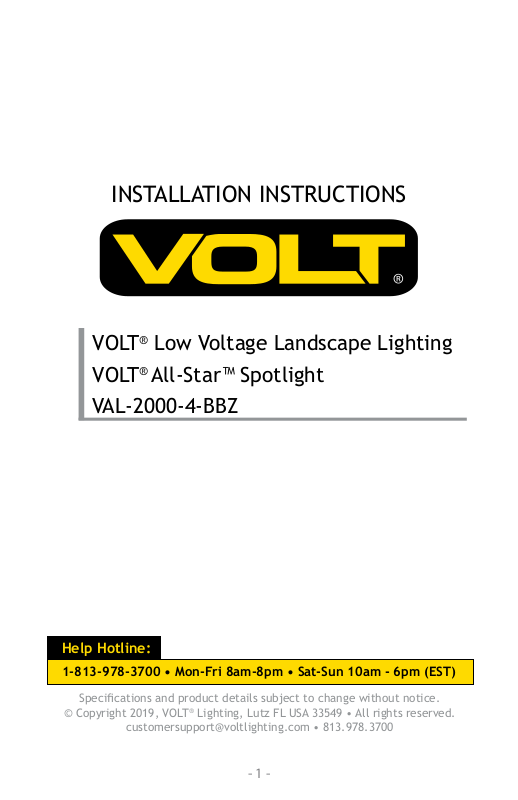

INSTALLATION INSTRUCTIONS

VOLT® Low Voltage Landscape Lighting

VOLT® All-Star™ Spotlight

VAL-2000-4-BBZ

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

- 1 -

Page 2

INSTALLATION INSTRUCTIONS

VOLT® All-Star™ Spotlight VAL-2000-4-BBZ

Package Contents

A. (1) Fixture

Important: Please Read Before Installation

This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6 inches (152 mm).

7. If additional lengths of low voltage cable are required, please contact www.voltlighting.com or call 1-813-978-3700.

Parts Required

A. (1) MR16 Lamp (sold separately)

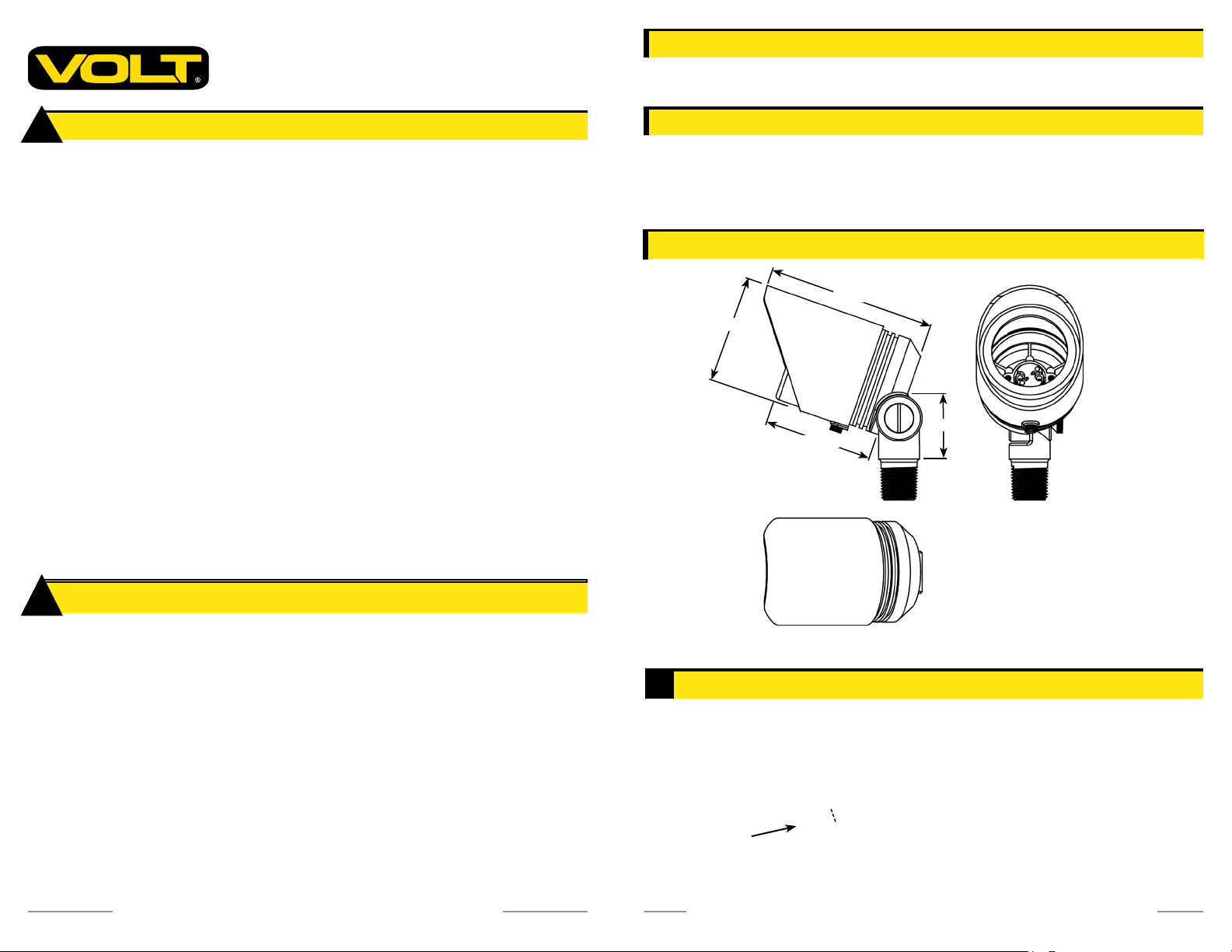

Product Dimensions

4.25”

2.6”

1.56”

2.65”

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

www.voltlighting.com

- 2 - - 3 -

Remove Glare Guard and Shield from Fixture

Glare Guard

Shield

Lock Screw

Fixture

Unlock the lock screw and remove the glare guard from the shield. Unscrew the shield and remove it from the xture.

[email protected] • 813.978.3700

Page 3

INSTALLATION INSTRUCTIONS

Install MR16 Lamp

Socket

VOLT

All-Star™ Spotlight

VAL-2000-4-BBZ

Insert the lamp with the correct wattage and type as marked on the xture label.

Install Fixture to Stake

Wireway Slot

Pigtail

Stake

Fixture

Clear away an area in the

ground at the wireway slot on top of the stake. Lay the luminaire pigtail into

the wireway slot and screw

the xture onto the stake. Tighten until snug.

MR16 Lamp

(sold separately)

Install Glare Guard and Shield to Fixture

Glare Guard

Shield

Lock Screw

Fixture

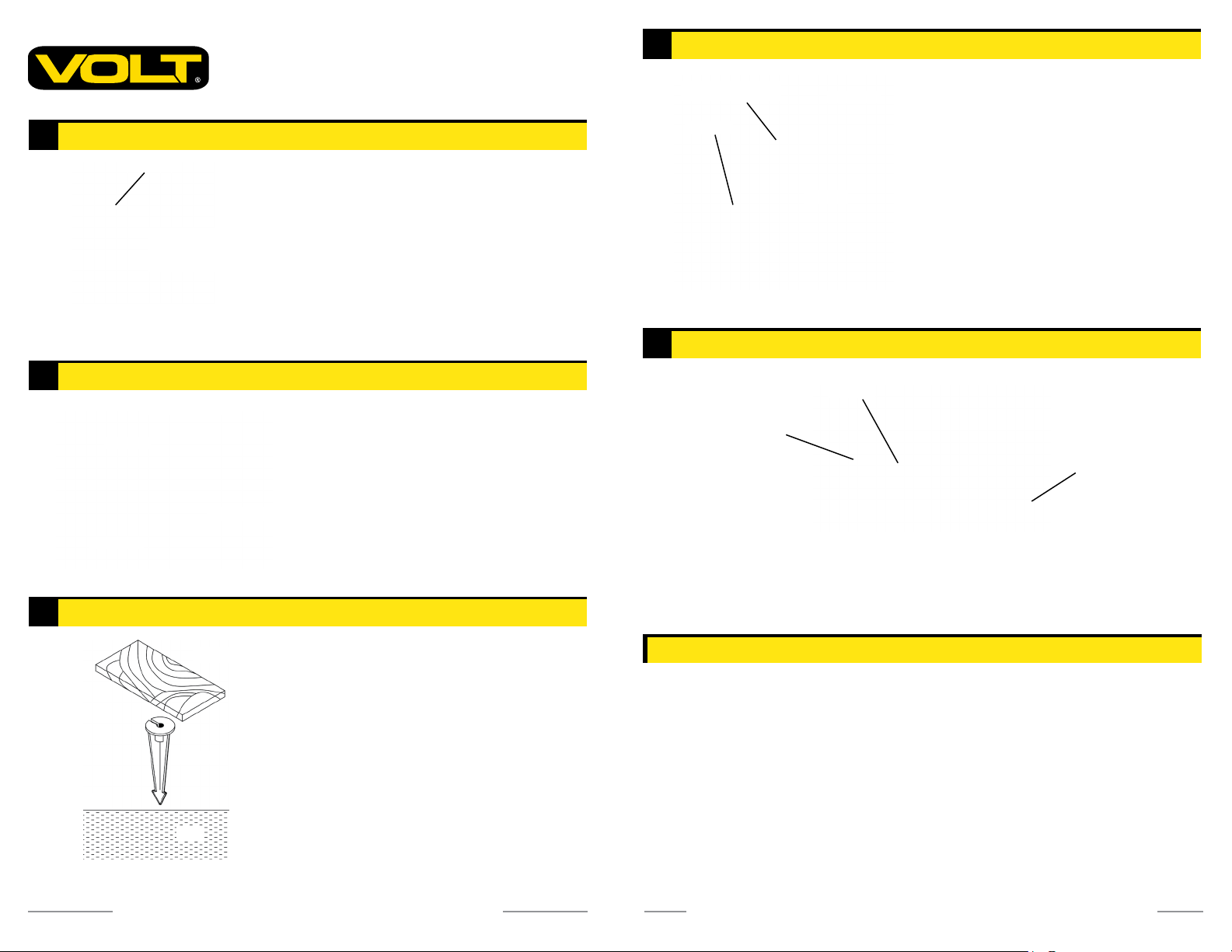

Install Stake

Board

Stake

Ground

Soil

CAUTION: Do not exceed maximum wattage marked on luminaire label.

NOTE: DO NOT touch lamp with bare hands. Use soft cloth to handle lamp.

Screw the shield back onto the xture. Pass the glare guard over the shield and secure with the lock screw. Tighten until snug.

Determine the desired location for mounting the xture. Hammer the stake into the ground until ange of stake is ush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.

NOTE: If the ground is hard and the stake is difcult to install, make a crosscut in the ground using a at shovel.

Wire Connections

Pigtail

Wire Connectors

Main Supply Cable

Strip both leads from the xture pigtail. Using two wire connectors (sold separately), connect the leads from the xture to the main low voltage supply cable lead.

Install/Replace Lamp

Remove the glare guard and the shield to expose the lamp and replace it with the correct wattage and type marked on the xture label. Then reinstall the shield and glare guard to the xture.

IMPORTANT: Halogen lamps must be protected from moisture and dust at all times. Always reinstall shield when moved.

www.voltlighting.com

- 4 -

[email protected] • 813.978.3700

- 5 -
