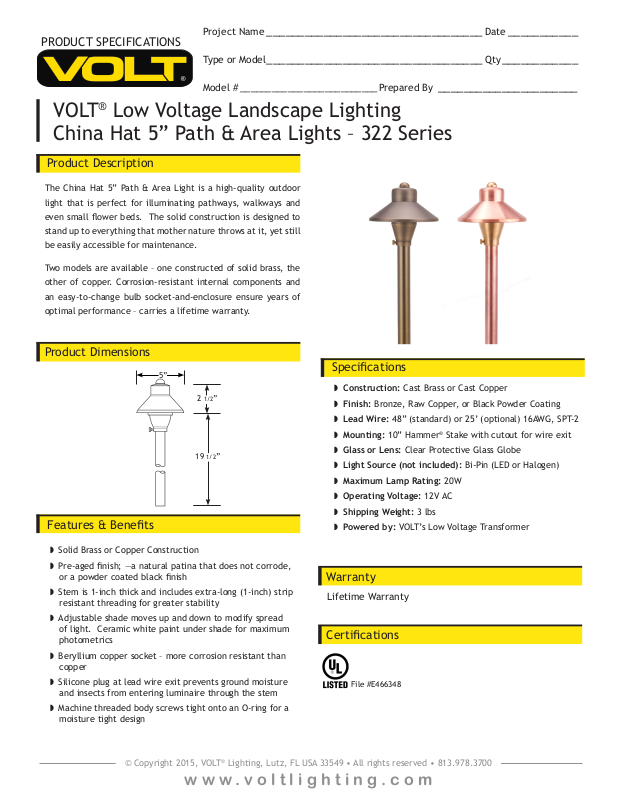

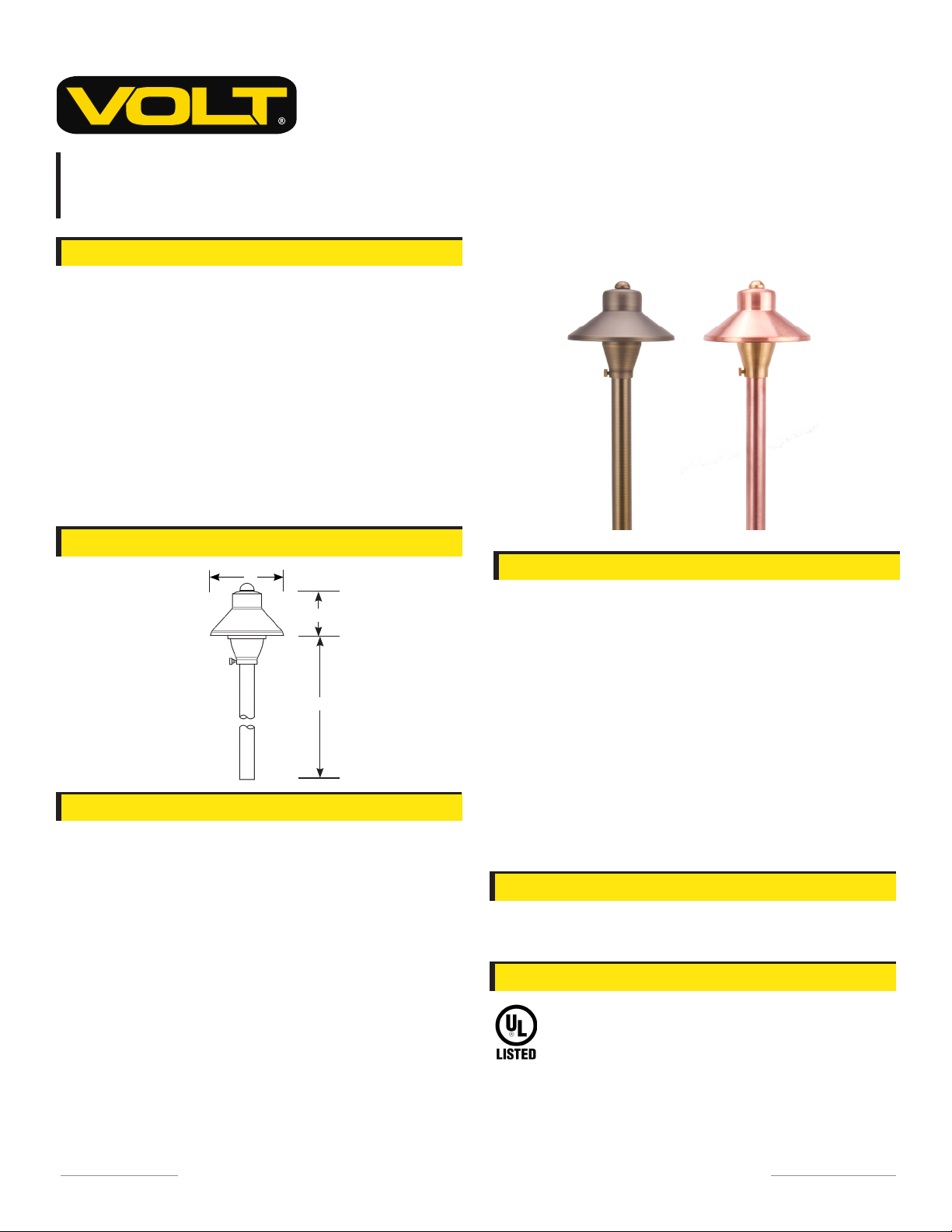

Page 1
Project Name __________________________________ Date ___________
PRODUCT SPECIFICATIONS
Type or Model __________________________________ Qty ____________
Model # __________________________Prepared By ______________________
VOLT® Low Voltage Landscape Lighting
China Hat 5” Path & Area Lights – 322 Series
Product Description
The China Hat 5” Path & Area Light is a high-quality outdoor
light that is perfect for illuminating pathways, walkways and
even small ower beds. The solid construction is designed to
stand up to everything that mother nature throws at it, yet still
be easily accessible for maintenance.
Two models are available – one constructed of solid brass, the
other of copper. Corrosion-resistant internal components and
an easy-to-change bulb socket-and-enclosure ensure years of
optimal performance – carries a lifetime warranty.
Product Dimensions
5”
2 1/2”
19 1/2”
Features & Benets
◗ Solid Brass or Copper Construction
◗ Pre-aged nish; —a natural patina that does not corrode,
or a powder coated black nish
◗ Stem is 1-inch thick and includes extra-long (1-inch) strip
resistant threading for greater stability
◗ Adjustable shade moves up and down to modify spread
of light. Ceramic white paint under shade for maximum
photometrics
◗ Beryllium copper socket – more corrosion resistant than
copper
◗ Silicone plug at lead wire exit prevents ground moisture
and insects from entering luminaire through the stem
◗ Machine threaded body screws tight onto an O-ring for a
moisture tight design
Specications
◗ Construction: Cast Brass or Cast Copper
◗ Finish: Bronze, Raw Copper, or Black Powder Coating
◗ Lead Wire: 48” (standard) or 25’ (optional) 16AWG, SPT-2
◗ Mounting: 10” Hammer® Stake with cutout for wire exit
◗ Glass or Lens: Clear Protective Glass Globe
◗ Light Source (not included): Bi-Pin (LED or Halogen)
◗ Maximum Lamp Rating: 20W
◗ Operating Voltage: 12V AC
◗ Shipping Weight: 3 lbs
◗ Powered by: VOLT’s Low Voltage Transformer
Warranty
Lifetime Warranty
Certications
File #E466348
© Copyright 2015, VOLT® Lighting, Lutz, FL USA 33549 • All rights reserved • 813.978.3700
www.voltlighting.com
Page 2
PRODUCT SPECIFICATIONS
Lamp Options
VOLT® Low Voltage Landscape Lighting
China Hat 5” Path & Area Lights – 322 Series
Item Number Description
G4-15-12V-827 VOLT® 15 watt equivalent LED Bi-Pin 2700K
G4-20-12V-827 VOLT® 20 watt equivalent LED Bi-Pin 2700K
G4-35-12V-827 VOLT® 35 watt equivalent LED Bi-Pin 2700K
G4-15-12V-830 VOLT® 15 watt equivalent LED Bi-Pin 3000K
G4-20-12V-830 VOLT® 20 watt equivalent LED Bi-Pin 3000K
G4-35-12V-830 VOLT® 35 watt equivalent LED Bi-Pin 3000K
8JC10-10W 10W Bi-Pin Halogen Lamp
8JC10-20W 20W Bi-Pin Halogen Lamp
Lamp Specs
15 watt Equivalent 20 watt Equivalent 35 Watt Equivalent
75 Lumens 115 Lumens 160 Lumens
Accessories
Item Number Description
Power Supply
Requirement
2W
3W
4W
2W
3W
4W
10W
20W
9C-AB VOLT’s Hammer Stake with Solid Brass Top Cover
9SM-AB Surface Mount – Brass with Bronze Finish
9TRIDENT8 8” Brass Trident Stake with Bronze Finish
9BRASSSTAKE Brass Stake
9HAMMERSTAKE13 13” XL Hammer Stake
9R-BRASS-RISER-P-1 Solid Brass Extension Pole 6”
9R-BRASS-RISER-P-2 Solid Brass Extension Pole 12”
9R-BRASS-RISER-P-3 Solid Brass Extension Pole 24”
9R-COPPER-RISER-P-1 Solid Copper Extension Pole 6”
9R-COPPER-RISER-P-2 Solid Copper Extension Pole 12”
9R-COPPER-RISER-P-3 Solid Copper Extension Pole 24”
Ordering Information
Example: Order # 322C-48
322 -48
Product Family Construction Wire Length
322 = China Hat 5” blank = Brass
“C” = Copper
48 = 48”
25 = 25’
Specications subject to change without notice.
© Copyright 2015, VOLT® Lighting, Lutz, FL USA 33549 • All rights reserved • 813.978.3700
www.voltlighting.com
ss-322-ver4.pdf
