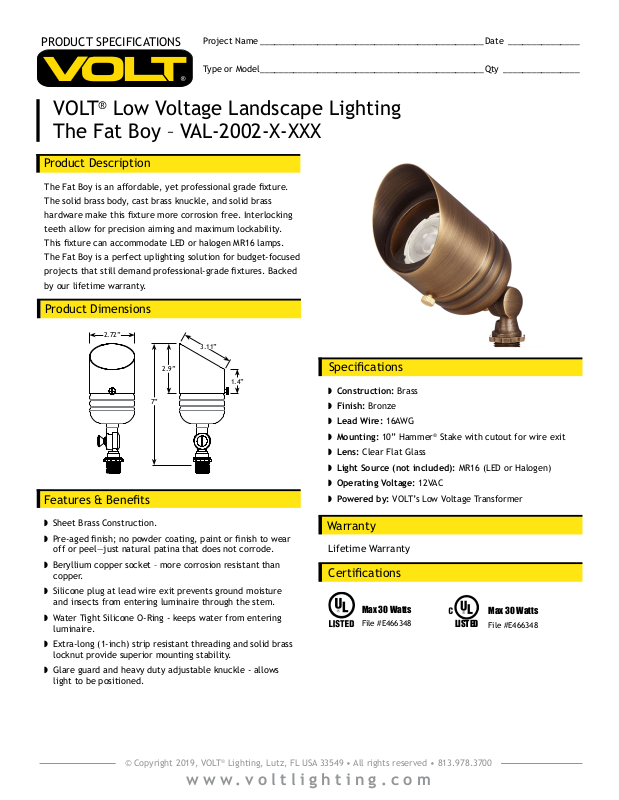

VOLT Lighting VLLG1007 Specifications

Download

Page 1

PRODUCT SPECIFICATIONS

Project Name _______________________________________________Date _______________

Type or Model _______________________________________________ Qty ________________

VOLT® Low Voltage Landscape Lighting The Fat Boy – VAL-2002-X-XXX

Product Description

The Fat Boy is an affordable, yet professional grade xture.

The solid brass body, cast brass knuckle, and solid brass

hardware make this xture more corrosion free. Interlocking

teeth allow for precision aiming and maximum lockability.

This xture can accommodate LED or halogen MR16 lamps.

The Fat Boy is a perfect uplighting solution for budget-focused

projects that still demand professional-grade xtures. Backed

by our lifetime warranty.

Product Dimensions

2.72”

3.11”

2.9”

1.4”

7”

Features & Benets

◗ Sheet Brass Construction.

◗ Pre-aged nish; no powder coating, paint or nish to wear

off or peel—just natural patina that does not corrode.

◗ Beryllium copper socket – more corrosion resistant than

copper.

◗ Silicone plug at lead wire exit prevents ground moisture

and insects from entering luminaire through the stem.

◗ Water Tight Silicone O-Ring - keeps water from entering

luminaire.

◗ Extra-long (1-inch) strip resistant threading and solid brass

locknut provide superior mounting stability.

◗ Glare guard and heavy duty adjustable knuckle - allows

light to be positioned.

Specications

◗ Construction: Brass

◗ Finish: Bronze

◗ Lead Wire: 16AWG

◗ Mounting: 10” Hammer® Stake with cutout for wire exit

◗ Lens: Clear Flat Glass

◗ Light Source (not included): MR16 (LED or Halogen)

◗ Operating Voltage: 12VAC

◗ Powered by: VOLT’s Low Voltage Transformer

Warranty

Lifetime Warranty

Certications

Max 30 Watts

File #E466348

LISTED

Max 30 Watts

File #E466348

www.voltlighting.com
