INSTALLATION
INSTRUCTIONS
SUPERCAM 2
CT150 / 160
Churchill Way, Lomeshaye Industrial Esate, Nelson, Lancashire BB9 6RT, England
T el: (01282) 695 500 Fax: (01282) 695 511 Helpline: 09066 191 133*
Email: sales@voltek.co.uk Web site www.voltek.co.uk
*Helpline Calls Cost 60p/min Open 9am to 5pm Mon to Fri
Specifications subject to change without notice. Ó2004 Voltek Automation Ltd. Issue 1
KEY PRODUCT FEATURES
Power
supply
18m cable
SuperCam2
Chime box
Phono to
scart adapter
fixing kit
The SuperCam 2 is a combined camera and PIR detector with a built in microphone and
loud speaker providing you the ability to ‘see’ then talk to who ever is outside your property
using your own TV set and the chime box . The Chime box supplied with the camera will sit
neatly on top of your TV or VCR allowing you to monitor and control the system.
• Black & white or colour camera with wide viewing angle.
• Built-in high quality PIR sensor for detecting intruders / visitors.
• Loud Speaker built in to your Camera providimg the option of talking to your visitors
outside the house
• Pre-connected 20 metre lead. Extendable up to 100 metres.
• Will connect to any UK television or video recorder that has a SCART socket,
making the installation very simple.
• Chime box offers 2 camera capability
Dual Phono
Connecting
Lead
SYSTEM CONTENTS
Before starting the installation we recommend that you temporarily connect the
SuperCam2 to your TV or VCR to help determine the best mounting position.
INSTALLING THE SUPERCAM2
Page1
There are two connection methods shown, choose the method that suits your
requirements the best.
If you are not using a VCR, connect the SuperCam2 to your TV as shown.
T o view the SuperCam2 picture ;
Select the AV channel on your TV . See HOW T O SELECT THE AV INPUTif you
are not sure how to do this.
If you are using a VCR and have a spare Scart socket on the VCR connect the
SuperCam2 as shown.
CONNECTION METHOD 2
Power Supply Input Voltage 220V/240V ac 56/60 Hz
Output Voltage 12V dc
Output Current 500mA (max)
Weatherproofing IP30 (indoor use only)
2 Metre Cable type 6 core alarm cable
Camera Lead Connectors 6 pin mini-DIN plug
18 Metre Lead Cable type 6 core alarm cable
Connectors 6 pin mini-DIN socket / plug
Chime Box Input Voltage 12V
Input Current 50mA
Video Output 1VP/P into 75W load
Audio Output 2v P/P into 47k load
Weight 0.2Kg
Size 127mm (W) x 32mm (H) x 95mm (D)
Inputs 2 camera connection via 6 pin mini DIN
Power 12V DC via 2.1mm power jack
Outputs Audio and Video to TV or VCR
connection via phono socket
VCA option VCR adaptor connection
via stereo 3.5mm jack socket
Door interface ( not supplied)
Controls front Manual camera select
Auto camera cycle
Talk button
Controls side Audio volume
Weatherproofing IP30
This product has a 1 year manufacturers warranty which covers parts and labour.
Page2
CAMERA SPECIFICATIONS (continued)
CHIME BOX SPECIFICATIONS
WARRANTY
Page 9
2. Select the AV input on your VCR . See HOW TO SELECT THE AV INPUT if you are not
sure how to do this.
To install your 2nd camera you will require the Voltek CT151/161 which will plug
directly into the Cam2 socket on the chime box. The power must be switched off when
connecting the 2nd Camera.
2 CAMERA INSTALLATION
To view the SuperCam2 picture ;
1. Select the VCR channel on your TV. This is the channel you normally use for
watching a video tape.
The Supercam2 is designed for outside use and should be positioned at a height of
between 2.3 to 3.0 metres, no more than 5 metres away from where conversation
would be held
Please also bear in mind the following points when choosing a mounting position.
• The camera must be positioned so that it will not point directly into the sun
(sunrise and sunset) or any bright light, as this may cause damage to the
camera.
• Avoid viewing areas where half the area is in bright sunlight and the other
half is dark, such as in the shadow of a building. All types of cameras have
difficulty in ‘seeing’ with such a large lux level variation.
WHERE TO POSITION THE SUPERCAM
Note : some models of TV use channel 0 for the AV input. See the television
instruction for further details
When you connect the SuperCam2 to a Scart socket NO TUNING is
required. Simply press the appropriate button on the TV or VCR to see the
picture.
The button will look like one of the following ;
HOW TO SELECT THE AV INPUT
Page 3
IF THE SCART SOCKET IS IN USE, OR THE PICTURE IS TO BE VIEWED ON MULTIPLE
TVS:
RF Modulator - CT210
This unit will allow the SuperCam1 to be connected to the aerial input of your TV or video
recorder. This means that the SuperCam1 can be connected to your TV even if the scart
socket is occupied and it will also enable viewing on other TV sets in the property with the use
of an aerial distribution amplifier.
IF THE CABLE SUPPLIED IS TOO SHORT:
15 metre Extension lead - CT253
This 15 metre lead will simply plug in between the supplied lead and the camera head lead
adding to the distance that the camera can be installed away from the TV. Up to 5 extension
leads may be used with one camera enabling it to be sited up to 95 metres away from the TV.
IF YOU REQUIRE THE CAMERA TO ACTIVATE YOUR VIDEO RECORDER
AUTOMATICALLY:
Video Activator - CT220-1
This unit plugs into the SuperCam1 lead and when it is switched into the record mode it will
automatically activate the record facility of most domestic VCRs on receiving an alarm signal
from the SuperCam1s PIR for a period of 30/60 seconds.
IF YOU REQUIRE A DATED RECORD OF AN EVENT:
Time and Date Generator- CT230
This unit will plug in between the scart plug of the superCam2 lead and video recorder and
superimpose the actual time and date on to any recording of events as they happen.
If you have any questions about our products or if you have difficulty in locating
accessories for the SuperCam2 please call our HELPLINE on 09066 191 133*.
SuperCam 2 Operating voltage 11 - 13V dc
Current consumption 80 mA (approx.) @12Vdc
Camera type Mono 1/4” CMOS / Colour 1/4” CMOS
Lens 0.14” (3.6mm), 78
o
viewing angle
Resolution 300 TV lines
Minimum illumination (CT150) 2 lux
(CT151) 4 lux
Video signal (CT150) CCIR 1V pk-pk into 75 Ω
(CT151) PAL format
Audio signal 2V pk-pk into 47K Ω
PIR Sensor 7 Metre 90º range
Operating temperature -10ºC to +40
ºC
Weatherproofing IP54 (outdoors and indoors)
Overall size 89mm (W) x 109mm (H) x 114.mm (D)
GETTING THE BEST FROM YOUR SUPERCAM 2
CAMERA SPECIFICATIONS
• The camera will work in low light conditions, but ensure a light, such as a
200W tungsten halogen lamp, is fitted near to the camera for good visibility
at night-time.
• The PIR sensor is at it’s most sensitive when a person moves across the face of
the sensor rather than towards the sensor. This means the person crosses
more detection beams and the PIR sensor is therefore more sensitive.
Maximum detection range is 7 metres.
• Avoid placing the SuperCam 2 close to heater flue outlets, trees or bushes
which may cause a false alarm.
• The camera cable supplied may be extended up to 100 metres. Please bear
this in mind when choosing your siting position.
PLEASE NOTE - THE SUPERCAM PIR SENSOR WILL NOT OPERATE THROUGH
GLASS & PLASTICS
Pag
You can now check the camera’s view in different positions enabling you to choose the best
position for your property,
When laying the cable, please bear in mind the following points.
a) Keep the camera cable away from other cables where possible to
reduce the risk of picture and audio interference
b) Avoid laying the cable next to anything which runs hot which could
possibly burn the cable.
c) If the cable is run along the ground, a protective covering must be
used to prevent the cable from being damaged.
COMPLETING THE INSTALLATION
USING THE SUPERCAM2
Cycle Time Setting ( Time Taken to switch between cameras)
To alter the cycle time press both the “Auto” and “Manual” buttons on the front of
the unit simultaneously. Each flash of the LED is one extra second of cycle time
added. Cycle time can range between 2-30 seconds. Cycle time is preset to 4
seconds.
Door release
The Chime box has a door release button which can be used to operate an electronic door release mechanism. By pressing the door button for 2 seconds, this
provides a 5 sec output for the door release. By adding the CT255 15 metre door
release cable, which plugs directly into the socket marked door. This will provide
an output which can be used to control an electronic door release.
USING THE CHIME BOX (continued)
Page 7
Each flash of
LED is one
extra second
Press “Auto” and
“Manual” Buttons
simultaneously
Page 5
After turning the power on the Chime Box will scan through all camera inputs to
detect the presence of cameras.
Choosing the Mode
Auto Cycle Mode: Automatically switches between cameras.
Manual Cycle Mode: User can manually switch between cameras
Cycle time: The time it takes to switch between the cameras when in “Auto” mode
(2-30 seconds)
The Chime box powers up in Auto cycle mode with a cycle time of 4 seconds, the
status LED lights up GREEN to indicate Auto mode. Any unused camera inputs will
be ignored during camera selection, both auto cycle and manual.
Y ou can manually select the camera view by pressing the manual button, the
status LED lights up RED to indicate manual mode. Pressing the auto button
returns the monitor to auto cycle mode.

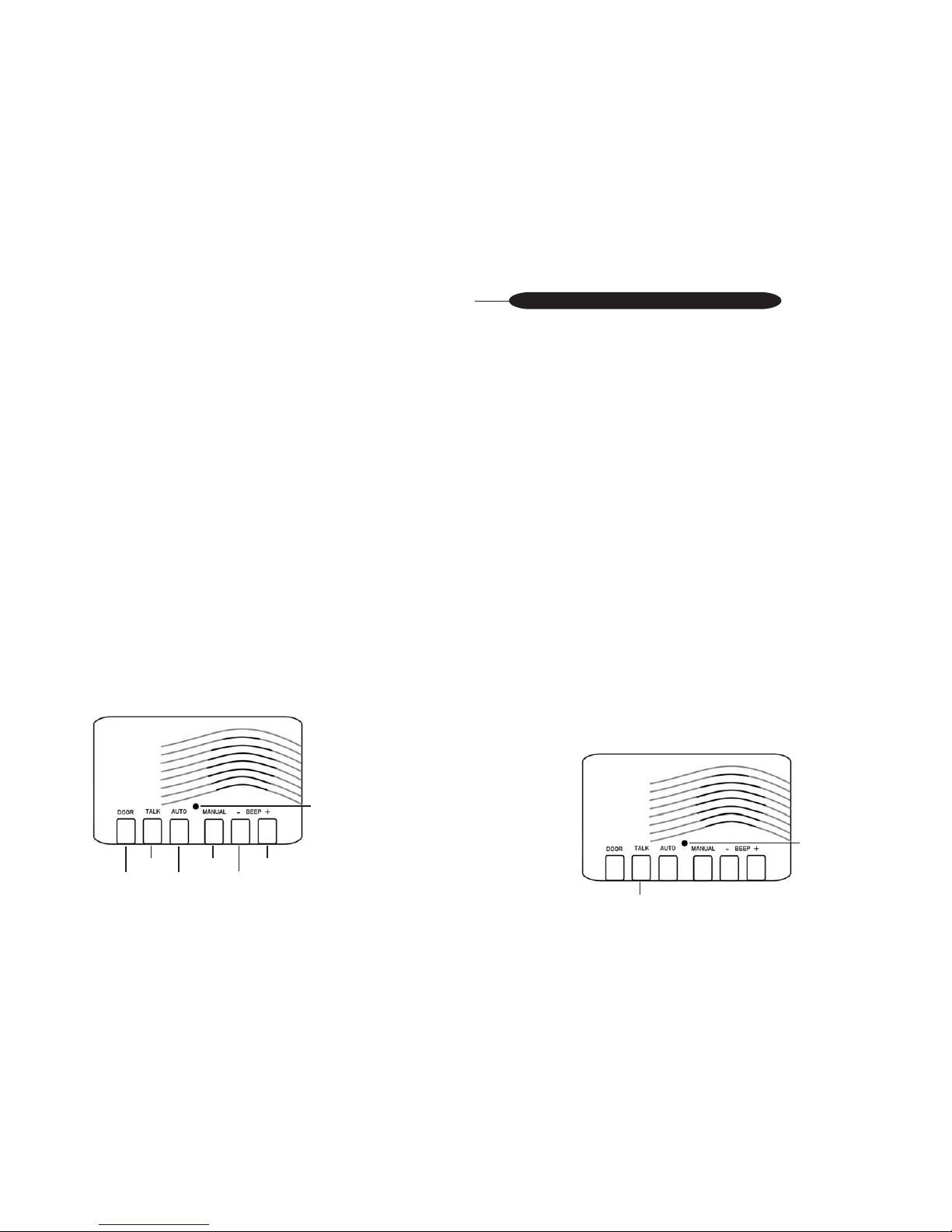

USING THE CHIME BOX
Status LED
Beep-
Auto
Talk
Door
Green: Auto cycle
Red: Manual cycle
Manual Beep+
Page 6
Motion Detection
The full alarm sounds only when a new event is detected. A shorter reminder alarm
sounds if motion continues in front of the same camera. However if the Chime Box
changes to the other camera the full alarm will sound.
The current view is paused for a minimum of 2 seconds even if the monitor detects motion on the other camera. This allows for a stable picture when recording
with a VCR.
If movement is detected by the PIR sensor the chime box will bleep to bring your
attention to the fact someone is outside your property . You can then select the correct
TV channel to view the area.
The alarm volume can be adjusted upwards or downwards by holding down
the + or - buttons.
Using two way speech
Note: Camera view is locked when the talk button is pressed and the status LED
flashes orange.
T o use the two way speech feature you must have a two way camera connected to
the chime box. If you require to speak with your visitors press and hold the talk
button and speak clearly into the chime box. To hear your visitors reply release the
talk button. ( To increase the volume of the camera microphone the chime box has
a volume control on the side of the box.)
Status LED Flashes
Orange
Press and hold
“Talk” Button to
speak
