Voltek Guardsman GS250 Installation & User's Instructions

Churchill Way , Lomeshaye Ind. Est, Nelson, Lancs, BB9 6R T, England

T el 01282 695 500 Fax [phone] Helpline 09066 191 133*

E-mail [e-mail] Website www.voltek.co.uk

*Helpline calls cost 60p/minute. Open 9am to 5pm, Mon to Fri.

Voltek reserves the right to change any product or

specification without notice (c) 2005 Issue1

Page 7

Guardsman ALARM SYSTEM

- Rapid Deployment Intruder Detection System

INST ALLATION & USER

INSTRUCTIONS

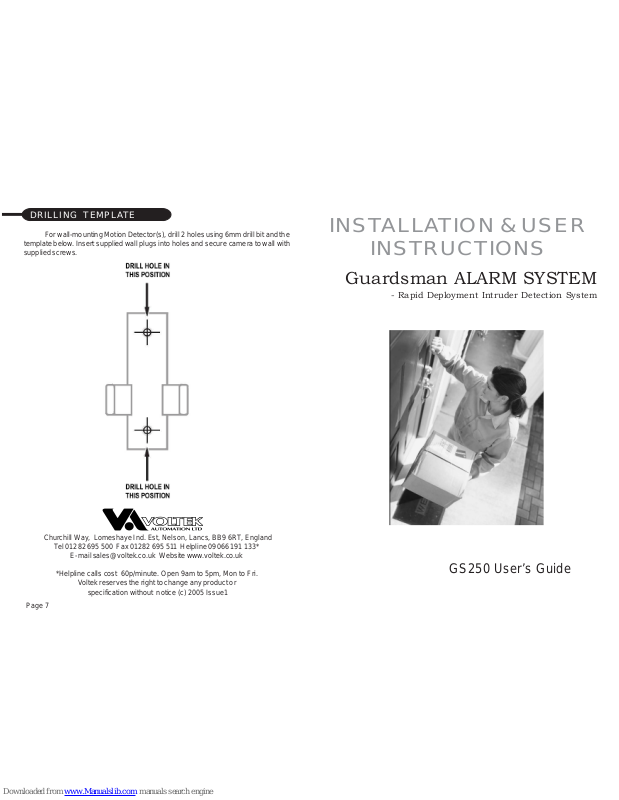

DRILLING TEMPLATE

For wall-mounting Motion Detector(s), drill 2 holes using 6mm drill bit and the
template below. Insert supplied wall plugs into holes and secure camera to wall with
supplied screws.

GS250 User’s Guide

SAFETY FIRST

Page 1 Page 6

ALARM UNIT

PRODUCT DESCRIPTION

P A CKAGE CONTENTS

The VOLTEK ‘Guardsman GS250 ALARM SYSTEM’ is a simple plug and play
unit that allows for convenient monitoring of multiple zones by wireless motion sen­sors. The system is ideal for monitoring residential homes, small business and even
situations that require a “rapid and mobile deployment” system such as a boat, or
caravan

Every Guardsman System has 3 zones that can be armed independently from
each other. In addition, you can have up to 3 Motion Sensors per zone, for a total of 9
Motion Sensors. If motion is detected in a particular zone, such as the garden zone,
downstairs zone, or pool area zone, the Receiver Base will sound an alarm and the LED
on the Receiver Base for that particular zone will blink red. If a sensor has a low battery
level it sends a message to the Receiver Base which then shows a LED flashing every
few seconds for the zone with the low battery level and also provides an intermittant
audible tone.

The advantage to having upto 3 Motion Sensrs in one zone such as the garden or
pool area, is that you can cover a much larger area using several sensors than you
could with just one.

Notes ..

Base Receiver with Power Adaptor andBuilt-In Rechargeable Battery .
2 X Motion Sensors with Wall andTable T op Mounts and Batteries.
2 X Screw packs.
Installation instructions.
