Voltek DVR4H User Manual
Multiplex 4CH/8CH/16CH
H.264
Network DVR
Support 3G/3.5G mobile
phone/PDA
(Symbian/Windows Mobile/iPhone/iPad/Blackberry/Android)
Support Mouse
User Manual
V1.0
1
INDEX
1 STARTING ------------------------------------------------------------------------------------------------6
1.1 PRODUCT SPECIFICATION ---------------------------------------------------------------------------- 6
1.2 WHAT ARE INSIDE THIS DVR PA CK A GE ?----------------------------------------------------------- 8
1.3 STARTING THIS DVR ---------------------------------------------------------------------------------8
1.3.1 Before Turning On The DVR -------------------------------------------------------------------- 8
1.3.2 DVR local Setup----------------------------------------------------------------------------------- 8
1.3.3 DVR Network Setup and Web Browser---------------------------------------------------------9
1.3.4 DVR information after Setup and others------------------------------------------------------- 9
1.3.5 CD content inside the package------------------------------------------------------------------ 9
1.4 MENU TREE ----------------------------------------------------------------------------------------- 10
2 HARDWARE INTRODUCE--------------------------------------------------------------------------11
2.1 F
RONT PANEL --------------------------------------------------------------------------------------- 11
2.2 R
EMOTE CONTROLLER----------------------------------------------------------------------------- 13
2.3 REAL PANEL----------------------------------------------------------------------------------------- 14
2.4 BASIC INPUT AND VGA/TV OUTPUT SWITCH--------------------------------------------------- 15
2.5 HDD INSTALL -------------------------------------------------------------------------------------- 16
2.6 PTZ CONTROL (RS-485) -------------------------------------------------------------------------- 17
3 LOGIN AND POP-UP MENU ----------------------------------------------------------------------- 18
3.1 LOGIN DVR----------------------------------------------------------------------------------------- 18
3.2 POP-UP MENU--------------------------------------------------------------------------------------- 18
3.2.1 『Multi-Screen』Display---------------------------------------------------------------------- 19
3.2.2 『Next Screen』Function---------------------------------------------------------------------- 19
3.2.3 『PTZ』Control Function--------------------------------------------------------------------- 20
3.2.4 『Information』Function --------------------------------------------------------------------- 21
3.2.5 『Playback』Function------------------------------------------------------------------------- 24
3.2.6
『
Backup』Function--------------------------------------------------------------------------- 26
3.2.7 『Logout/Shutdown』Function--------------------------------------------------------------- 26
4 DVR SYSTEM CONFIGURE ----------------------------------------------------------------------- 27
4.1 SYSTEM T
AB -------------------------------------------------------------------------------------- 27
4.1.1 『Common Setting』--------------------------------------------------------------------------- 27
4.1.2 『Advance Setting』--------------------------------------------------------------------------- 28
4.1.3 『Maintenance』------------------------------------------------------------------------------- 30
4.2 CHANNEL T
AB------------------------------------------------------------------------------------ 31
4.2.1
『
Display』Setting ----------------------------------------------------------------------------- 31
4.2.2 『Video Setting』------------------------------------------------------------------------------- 31
4.2.3 『PTZ』Setting --------------------------------------------------------------------------------- 34
4.3 LIVE TAB ------------------------------------------------------------------------------------------- 35
4.3.1 『Video Setting』------------------------------------------------------------------------------- 35
4.3.2
『
Audio Setting』------------------------------------------------------------------------------ 36
4.4 RECORD T
AB -------------------------------------------------------------------------------------- 37
4.4.1 『Record Schedule』Setting ------------------------------------------------------------------ 37
4.4.2
『
Record Quality』Setting -------------------------------------------------------------------- 38
4.5 ALARM T
AB --------------------------------------------------------------------------------------- 40
2
4.5.1 『Alarm In』Setting---------------------------------------------------------------------------- 40
4.6 NETWORK TAB ----------------------------------------------------------------------------------- 41
4.6.1 『IP Setting』----------------------------------------------------------------------------------- 41
4.6.2 『Port Setting』-------------------------------------------------------------------------------- 42
4.6.3 『Advance Setting』--------------------------------------------------------------------------- 43
5 DVR NETWORK SURVEILLANCE WITH WEB BROWSER ----------------------------- 45
5.1 ENABLE DOWNLOAD UN-SIGNED ACTIVE CONTROL IF NECESSARY -------------------------- 45
5.2 TURN OFF UAC FOR WINDOWS 7 AND VISTA --------------------------------------------------- 45
5.3 MICROSOFT INTERNET EXPLORER (IE)----------------------------------------------------------- 46
IE Main Screen------------------------------------------------------------------------------------------- 46
5.4 OPERATION – FULL SCREEN/MULTI WINDOW --------------------------------------------------- 47
5.5 DVR REMOTE CONFIGURE------------------------------------------------------------------------ 47
5.5.1
『
DEVICE PARAMETER』TAB-------------------------------------------------------------- 48
5.5.2
『
CHANNEL SETTING』TAB---------------------------------------------------------------- 49
5.5.3 『CHANNEL PARAMETER』TAB ----------------------------------------------------------- 50
5.5.4 『ALARM SETTING』TAB ------------------------------------------------------------------- 51
5.5.5 『NETWORK MANAGMENT』TAB--------------------------------------------------------- 51
5.6 IE REMOTE PLAYBACK ---------------------------------------------------------------------------- 53
5.6.1 Playback Window ------------------------------------------------------------------------------- 53
5.6.2 Playback Operation ---------------------------------------------------------------------------- 53
5.7 PTZ CONTROL -------------------------------------------------------------------------------------- 54
5.8 DEVICE INFOMATION ------------------------------------------------------------------------- 55
5.8.1 『SYSTEM INFO.』TAB ---------------------------------------------------------------------- 55
5.8.2 『CHANNEL STATUS』TAB ----------------------------------------------------------------- 55
5.8.3 『ALARM STATUS』TAB --------------------------------------------------------------------- 56
5.8.4 『NETWORK INFO.』TAB ------------------------------------------------------------------- 57
5.8.5 『LOG INQUIRY』TAB ----------------------------------------------------------------------- 57
5.9 BACKUP ------------------------------------------------------------------------------------------- 58
6 MOBILE PHONE SURVEILLANCE ------------------------------------------------------------- 59
6.1 W
INDOWS MOBILE --------------------------------------------------------------------------------- 59
6.2 N
OKIA/LG/SAMSUNG SYMBIAN S60 3RD AND 5TH MOBILE ------------------------------------ 60
6.3 LIST OF SYMBIAN SUPPORTED MOBILE PHONES ------------------------------------------------ 63
6.4 APPLE IPHONE AND IPAD -------------------------------------------------------------------------- 64
6.5 B
LACKBERRY MOBILE ----------------------------------------------------------------------------- 66
6.6 A
NDROID (GOOGLE PHONE)----------------------------------------------------------------------- 72
7 TROUBLESHOOTING------------------------------------------------------------------------------- 75
8 APPENDIX ---------------------------------------------------------------------------------------------- 77
8.1 APPENDIX A-HDD CAPACITY/RECORDING TIME ESTIMATE ---------------------------------- 77
8.2 A
PPENDIX B– COMPATIBLE HDD LIST ---------------------------------------------------------- 77
8.3 A
PPENDIX C– COMPATIBLE USB PORTABLE DVD BURNER LIST ---------------------------- 78
3
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE.
PLEASE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
NOTE: This equipment has been tested and found to comply with the limits for a
Class “A” digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the users will be required to correct the
interference at their own expense.
FCC Caution: To assure continued compliance, use only shielded interface cables
when connecting to computer or peripheral devices. Any changes or
modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This Class A digital apparatus meets all the requirements of the Canadian
Interference Causing Equipment Regulations.
4
LIMITATION OF LIABILITY
This users’ manual is supplied ‘as is’, with no warranties, be it expressed or implied,
including, but not limited to, the implied warranties of merchantability, suitability for any
exact purpose, or non-infringement of any third party’s rights.
This publication may include technical inaccuracies or typos. The manufacturer holds
the right to introduce any changes to the information contained herein, for any purpose,
including but not limited to, improvements of the publications and/or related to the
product, at any time, without prior notice.
DISCLAIMER OF WARRANTY
The supplier shall not be liable to any party or any person, except for replacement or
reasonable maintenance of this product, for the cases, included but not limited to the
following:
Any damage or loss, including but not limited to: direct/indirect, consequential,
special, exemplary use arising out of or related to the product;
Inappropriate use or negligence of the user in operation of the product, resulting in
personal injury or any damage;
Unauthorized disassembly, repair or modification of the product by the user;
Any problems or consequential inconvenience, loss or damage, caused by
connecting this product to devices of the third parties;
Any claim or action for damages, brought by any photogenic subject, be it a person
or organization, due to violation of privacy whereby the surveillance picture and/or
saved data becomes public or is used for the purpose other than surveillance.
SAFETY INSTRUCTIONS
Read these instructions and keep them in a safe place for future reference.
Please refer all work related to the installation of this product to qualified service personnel or
system installers.
Do not operate the appliance beyond its specified temperature, humidity or power source
ratings.
Place the unit on a flat surface not prone to vibration or impact.
Use the appliance at temperatures between 0oC ~ +45oC (32oF ~ 113oF) and humidity below
85%.
The input power source for this appliance is between 90 ~ 264 VAC, 47 ~ 63 Hz.
Install the unit away from heat sources such as radiators, heat registers and stoves. Installation
of the unit near consumer electronics devices, such as stereo receiver/amplifiers and televisions,
is permitted as long as the air surrounding the terminal does not exceed the above mentioned
temperature range.
Handle hard disk drives with care.
It is possible to damage hard drives if they are moved while their motors are still running. To
5
allow the hard drive to spin down and park its heads, wait at least 10 seconds after
disconnecting power before moving the unit.
To avoid shock and vibration damage to the internal hard drive, do not move the unit while it is
plugged in.
Protect hard disk drives from static electricity.
Do not stack hard disk drives or keep them upright.
Do not use an electric or magnetic screwdriver to fix hard disk drives.
Do not place the unit in an enclosed area where the cooling vents are blocked or impede the
flow of air through the ventilation openings.
Protect the power cord from being stepped on or pinched particularly at plugs and the points
where they exit from the apparatus.
Do not drop metallic parts through slots. This could permanently damage the appliance. Turn
the power off immediately and contact qualified service personnel for service.
Handle the appliance with care. Do not drop or shake, as this may damage the device.
Do not expose the appliance to water or moisture, nor try to operate it in wet areas. Do not
install the unit in an area where condensation occurs. Do not operate with wet hands. Take
immediate action if the appliance becomes wet. Turn the power off and refer servicing to
qualified service personnel. Moisture may damage the appliance and also cause electric shock.
Do not use strong or abrasive detergents when cleaning the appliance body. When the dirt is
hard to remove, use a mild detergent and wipe gently.
Do not overload outlets and extension cords as this may result in a risk of fire or electric shock.
Please make a note of your settings and save them. This will help when you are required to
change the system configuration, or when an unexpected failure or trouble occurs.
Distributing, copying, disassembling, reverse compiling, reverse engineering, and also
exporting in violation of export laws of the software provided with this product, is expressly
prohibited.
CARING FOR THE ENVIRONMENT BY RECYCLING
When you see this symbol on a product, do not dispose of the product with
residential or commercial waste.
Recycling your Electrical Equipment
Please do not dispose of this product with your residential or commercial waste.
Some countries or regions, such as the European Union, have set up systems to
collect and recycle electrical and electronic waste items. Contact your local
authorities for information about practices established for your region
COPYRIGHT STATEMENT
All rights reserved. No part of this publication may be reproduced in any form or by any means,
transcribed, translated into any language or computer language, transformed in any other way,
stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical,
recording, photocopying or otherwise, without the prior written permission of the owner.
6
1 Starting
1.1 Product Specification
Channel 4CH_DVR 8CH_DVR 16CH_DVR
Video Input
4 Channel
BNC_1Vp-p_75Ω
8 Channel
BNC_1Vp-p_75Ω
16 Channel
BNC_1Vp-p_75Ω
Audio Input
4 Channel
BNC_2Vp-p_600Ω
8 Channel
BNC_2Vp-p_600Ω
16 Channel
BNC_2Vp-p_600Ω
VGA Output
1 x D-SUB-15 Connector Max. Resolution: 1024x768@75Hz
Support 4：3 and 16：9 display ratio
Composite/TV
Output
1 x BNC Connector 1Vp-p_75Ω, One Call out only for 16CH_DVR
(VGA and Composite/TV output cannot output concurrently for 4CH)
Audio Out 1 x BNC_2Vp-p_600Ω
USB ports 2 x USB port at real panel
RS485/PTZ 1 x RS485
Network RJ45 10/100Mbps AUTO MDI
Alarm In 4 pairs 16 pairs
Alarm Out 1 Relay Output 4 Relay Output
Power
DC12V/3.5A or DC12V/5A(optional for 2 HDD)
DC12V/6A or AC
90~264V, 200W(optional
for 4 HDD)
Interface
HDD Disk
2
x SATA Port
s
4 x SATA Ports
User Interface
Multi-Language Support, Mouse Operation, Easy Graphic User Interface,
On-Screen Display of Recording, HDD Access and Alarm Status.
Record
Normal Record、Motion Detection Record、Alarm Trigger Record.
Record Quality (Bit Rate) and Resolution can configure by each individual channel
When HDD Storage is Full, DVR Gradually Overwrite Oldest Video Automatically
Playback
Time-line Display of 24 Hours footage in Each Day, Easy Drag & Drop Control of
Fast Forward and Rewind. Support 4ch/8ch audio/video playback at the same time.
Video Backup
Support USB Pen Drive/Flash Disk, Portable HDD, USB CD/DVD Burner, only for
AVI format
Function
Network
Support PPPOE client, DHCP client, Dynamic DNS.
Internet Explorer Client Support Live Monitor, Remote Playback, Remote Upgrade
Remove DVR Configure and DVR Status.
Support Dual Steaming for Local Recording and Network Transmit.
7
Mobile
Surveillance
Support Nokia Symbian, iPhone 3G/3GS, Windows Mobile
PTZ Control Support Pelco-P、Pelco-D，Samsung , Panasonic Protocol
Alarm
Support 4/16 pairs of input connector, 1/4 relay output.
Support Multi-Region Video Motion Detection.
Both Event Can Trigger Video Record, PTZ Preset Point, E-Mail Notify and Alarm
Output Enable.
Event Log Automatic keep track of DVR operation and DVR Alarm History.
Configure System Setting, Live Display Setting, Record and Schedule Setting.
Account
Support Multi-User Account. Configurable Operate Authority For Normal User
Account. 【Admin 】Super Account With Fully Access Authority and cannot
modify.
Compression H.264
Video System NTSC / PAL
Record
Resolution
PAL: 352X288 (CIF) ，704X576 (D1)
NTSC: 352X240 (CIF)，704X480 (D1)
Frame Rate
CIF: 25fps_PAL / 30fps_NTSC per channel
D1: 6fps_PAL / 7fps_NTSC per channel
Encode Bit Rete 256 ~ 2048kbps
Live Resolution PAL: 704x576 (D1) Horizontal：450 Vertical：450
Playback
Resolution
PAL: 352x288 (CIF) 704x576 (D1)
Record
Function
Playback
Function
4CH Audio/video
playback at the same time,
16x ~ /16 Fast Forward
and Single Step Forward.
8CH Audio/video
playback at the same time,
16x ~ /16 Fast Forward
and Single Step Forward.
16CH Audio/video
playback at the same time,
16x ~ /16 Fast Forward
and Single Step Forward.
Audio
ADPCM
Sample Rate 8KHz
Audio Channel Mono
Audio
Sample
16 Bits
SATA HDD
Maximum 2TB or 4TB(optional) Maximum 4TB or
Storage
Backup Device Portable USB HDD, USB DVD/CD Burner, USB Flash Disk
8
1.2 What are inside this DVR package?
When unpack the DVR retail box, you may find the following:
• This DVR device
• This hard copy user manual(for reference only, please refer to soft copy inside the
CD for more details)
• Change Notice inserts or file inside the CD root if any change on the DVR
operations.
• CD(Manuals, mobile software), please refer to Appendix D for details
• Remote control with battery(option)
• Power adaptor with power cord
• Installation precautions, grounding wire and 4 screws for HDD
• USB Mouse (optional, depends on the model)
• Hard disk drive (optional, the installer may have set up for you), if you would like to
install Hard disk drive, please see Appendix B for the list of compatible HDDs)
1.3 Starting this DVR
1.3.1 Before Turning On The DVR
Please install SATA HDD in the Hard Disk Tray. (Chapter 2.5 and Appendix B)
Please refer to Chapter 2.4 for all connections.
To use the remote controller (Chapter 2.2)
If want to use web browser or 3G/3.5G mobile phones from internet, you have
to apply the Internet connection service, please contact your mobile service provider
for details.
1.3.2 DVR local Setup
Please wait for about 45 ~ 60 seconds for the system to start up.
VGA port and TV(Composite) can not display at the same for 4CH DVR, if
can not see the display, please press and Hold
, over 5 Seconds
and release will switch VGA or TV (CVBS) Output
Please login the system (Chapter 3.1), and then physically format the HDDs
(Chapter 4.1.3). (Please note that the HDD cannot be used for recording if
they are not formatted by this DVR yet.)
Please refer to Chapter 1.4 for all basic operations path in the Menu Tee
Please refer to Chapter 4.1.1 to setup the system correctly, esp. for NTSC/PAL,
VGA Resolution, Time & Language.
Please refer to Chapter 4.3.1 for Preview Cruise(Rotation Display) and screen
adjustment.
Please refer to Chapter 4.4 for recording setting.
Please refer to Chapter 3.2.5, Chapter 3.2.6 to search, playback, and backup the
recorded video/audio.
Please refer to Chapter 4.2.2 for motion Detection, Privacy Mask, Video Lost, and
Chapter 4.5
for Alarm setting; and Even Handle as well
Please refer to Chapter 2.6
for PTZ camera connection, Chapter 4.2.3 and Chapter
3.2.3 to set up and control the PTZ cameras correctly.
Please refer to Chapter 4.6 for Network Setting including DHCP/Static IP/PPPoE,
9
ports no., DDNS and E-mail Server
1.3.3 DVR Network Setup and Web Browser
Please refer to Chapter 5 for remote access(live view, playback, backup and set up)
via internet or intranet from PC/Laptop
Please refer to Chapter 6 for remote access via internet or intranet from 3G/3.5G
mobile phones(Windows Mobile, Nokia Symbian S60 3
rd/
and 5th Edition OS,
Google Android, Black Berry OS 4.x and Apple iPhone/iPad.)
1.3.4 DVR information after Setup and others
Please refer to Chapter 7 for trouble shooting if any problems
Please refer to Chapter 3.2.4(local) or Chapter 5.8(Network) for DVR Device
information such as System Info., Channel Status, Alarm Status, Network Info., and
LOG
Please refer to Appendix A for the estimated recording time.
Please refer to Appendix B and Appendix C for the compatible HDD/USB portable
DVD Burner List
1.3.5 CD content inside the package
* Multiplex H264 DVR Utility V1.0
1. DVR User Manual or Change Notice file(if any change) in the root
2. WebOcxClean.dat in the root- to delete the old Active X components from the PC
web client if this DVR upgraded by new software or conflicted with other DVR,
please close IE before run it
3. Windows mobile software for 5.0/6.0/6.1 Windows PDA: “amplayersetup.CAB” in
the /Mobile Phone software/Windows Mobile
4. Symbian S60 3rd mobile software: “QQeye_3rd_240x320.sisx”, or
“QQeye_3rd_320x240.sisx” in the /Mobile Phone software/Symbian S60 3
rd
5. Symbian S60 5
th
mobile software: “QQeye_5th.sisx” in the /Mobile Phone
software/Symbian S60 5th
6. BlackBerry software “QQEye.alx/QQEye.cod” in the /Mobile Phone
software/BlackBerry
7. Android software “QQeye_ceshi.apk” in the /Mobile Phone software/Android,
please change your Android phone language to be “English” before install
10
1.4 Menu Tree
11
2 Hardware Introduce
2.1 Front panel
1. CHANNEL 1 ~ 4 / or 1~8/ or 1 ~16, ,
Using these buttons you can choose to output video on your monitor either as a full-screen
view of each of the cameras individually (Channels 1 through 4/*8 depending on the model),
or from all Channels simultaneously (Quad).
Press and Hold over 5 Seconds and release will switch VGA or TV (Composite) Output
2. MENU
Displays the main menu
3. ESC
Use this button to exit any active windows
4. REC
Start or Stop manual recording
12
5. Backup
Opens video search and backup menu
6. Play /Pause ( )
Open video search and playback menu. When the playback mode is activated press this
button to play/pause playback
7. PTZ
(Pan-Tilt-Zoom) High Speed Dome camera functionality
8. 、 、 、 、 Enter
Use arrow buttons to move among the menu items. Press
, to move to selection boxes,
press
, to select submenu parameters. Press Enter to confirm your choice
9. Record LED
LED lights indicating DVR recording video.
10. Power LED
LED lights indicating your connection to the power supply
13
2.2 Remote Controller
No. Name Description
1 Alarm reset
Clears the alarm input or alarm output
status.
2 REC
Manual recording. Has the same
function as the button on the
device’s front panel.
3
Numeric
buttons
Input numbers or select to change
relevant channels.
4
Functional
Buttons
Enter the main menu.
Switch from the single window view
mode to multiple split view mode
Return to upper menu, same as the
button on the front panel
Enable PTZ control, same as the
button on the front panel
5
Playback
Control
FN
Play in slow mode / rewind
Play/Pause
Stop
Fast forward
Go to next frame
Function, access to auxiliary settings.
6
Adjustment
Parameters
Buttons for adjusting brightness
Buttons for adjusting contrast
7
Arrow
Buttons
Similar to the functions of arrow
buttons on the front panel
8 DEL DELETE button
14
2.3 Real Panel
(4-8CH_DVR Real Panel View)
(16CH_DVR Real Panel View)
1. USB connectors
Use these USB ports to connect the backup devices (flash drive, DVD recorder).
2. USB Mouse Connector
3. Audio Output Connector
1 channel audio output, RCA (2Vp-p, 600Ω)
(8ch/16ch will use D-SUB cable for audio input/output)
4. Audio Input Connectors (AUDIO IN 1-4/1-8/1-16)
4 channel audio input, RCA (2Vp-p, 600Ω)
(8ch/16ch will use D-SUB cable for audio input/ouput)
5. Video Input Connectors (1-4/1-8/1-16)
4 channel video input, BNC (1Vp-p, 75Ω)
6. Video Output Connector(CVBS)
Video output to display monitor, BNC (1Vp-p, 75Ω)
7. Ethernet Connector
15
RJ-45 10/100 Base-T Ethernet network
8. VGA Connector
For connecting VGA/LCD monitor
9. Alarm Input Connectors (ALARM IN 1-4, 5-6 Ground)
For connecting to external sensor device (for 16ch:Alarm in1-8,10-17; 9,18Gronud)
Alarm Output Connectors (ALARM OUT 7-8)
For connecting to external alarm device (for 16ch: alarm out:1+-,2+-,3+-,4+-)
RS-422 / RS-485 Connector
For connecting PTZ camera control ( RS485 :TX+, TX-)
10. Power Switch
11. Power Input Socket (12V DC)
12. Cooling fan/CALL OUT(only for 16CH)
13. Audio Input/output Connector (Only for 8Channel)
Connect with attached DB9PIN to RCA cable adapter for audio input/output.
TV(Composite) and VGA output can not be at the same time for 4CH, please press ,
for more than 5 seconds and release to switch
2.4 Basic Input and VGA/TV Output Switch
Cameras
Connect each of the cameras’ outputs to the video input socket in the rear panel of
the DVR using appropriate cables. The video input interface is a standard BNC
connector, 1Vp-p, 75 Ω. Please keep the video signal cable away from strong
electromagnetic and electric interference.
Audio Connection
The audio input interface is a standard RCA socket, 2Vp-p, 600 Ω.
Please keep the audio signal cable away from strong electromagnetic and electric
interference.
Remark: for audio input, please consider “ACTIVE MICROPHONE” to
increase input voice level for better audio record quality.
Monitor
Connect the main output connector to a monitor or a TV screen. Use the
BNC-to-RCA connector to work with the Audio/Video RCA cable.
Power
Please use the 12V DC adapter supplied for connecting your DVR device with the
power source.
Alarm Input/output
Connect Alarm In 1-4 to N.O. (Normally Open) or N.C. (Normally Closed) alarm
connectors and one Ground connection. Connect Alarm Out to the corresponding
connections and Ground accordingly.
4/8 channel 16channel
16
For detailed description please see Chapter 4.5.1 Alarm In Setting
Ethernet
For remote access to the video images from your cameras via LAN or the Internet,
please connect the standard RJ-45 twisted-pair Ethernet cable to the Ethernet
connector.
USB
For connecting the mouse, USB flash drive, USB portable HDD, USB portable DVD
Recorder (for the list of compatible HDDs see Appendix 3, for the list of compatible
DVD Recorders see Appendix 4).
2.5 HDD Install
Your HDD should be installed inside the DVR. Please connect the HDD in the standard
Before you can record onto your HDD it should be formatted by the DV
R
system, because standard PC formatting is not compatible. It can be done
in the Maintenance Tab of the Tool Bar Main Menu. Please refer to
Section 7.5.3 HDD Manage for the detailed description of this process.
Depending on the size of your HDD, the format process can take several
minutes.
17
way. All necessary cables are delivered with the DVR. Use instructions that came
together with the hard drive for exact wiring. Please connect the power cable to the
appropriate socket, and the data cables to their corresponding connectors.
For the list of HDD drives tested for compatibility please see Appendix 3.
2.6 PTZ Control (RS-485)
Connect the PTZ control jacks to the corresponding RS422/RS485 TX+ and TXinterfaces on the rear panel.
(4/8 channel DVR)
(16 Channel DVR)
For detailed description of PTZ protocols, baud rates and IDs, please refer to the
setu
p
section in the PTZ manual.
18
3 Login and Pop-up Menu
3.1 Login DVR
Switch on your DVR and wait for the system program to load. If you have not yet installed
any hard disk drive into the device, a buzzer will sound and the “No Hard Disk” message
will appear on the screen, for HDD install and format, please refer to Chapter 2.5
and 4.1.3
When you enter the system you will be asked to log in. Select user name and input
password in order to operate the device. Move mouse and click text box to show on-screen
keyboard for input text and number. Click “Caps” to capitalize text and click “12@#” to
input number. Press OK to confirm or Cancel to clear the field and enter another value.
Default password for Admin User is “888888”
Press “Play /Pause ( )” on the front panel and release until Beep sound
will get back to this default password if forget
3.2 Pop-up Menu
After enter DVR live screen, please click mouse right button to open Pop-up Menu:
19
3.2.1 『Multi-Screen』Display
Click 『Multi-Screen』，it will show more display options：
(PS : 4CH only support single channel or four channel display, 8CH only support
Single/Four/Six/Eight channel display.. Other options cannot work)
3.2.2 『Next Screen』Function
4CH DVR：Switch to 『Single Channel』mode, click 『Next Screen』，DVR will
switch to next single channel windows in sequence.
8CH DVR：
Switch to 『Single Channel』mode, click 『Next Screen』，DVR will
switch to next single channel windows in sequence.
Switch to 『Four Channel』mode, click 『Next Screen』，DVR will switch
from 1 /2 /3 /4 screen to 5 /6 /7 /8 screen.
20
Switch to 『Six Channel』mode, click 『Next Screen』，DVR will switch
from 1 /2 /3 /4 /5 /6 screen to 3/ 4/ 5 /6 /7 /8 screen.
16CH DVR：
Switch to 『Single Channel』mode, click 『Next Screen』，DVR will
switch to next single channel windows in sequence.
Switch to 『Four Channel』mode, click 『Next Screen』，DVR will switch
from 1 /2 /3 /4 screen to 5 /6 /7 /8 screen.
Switch to 『Six Channel』mode, click 『Next Screen』，DVR will switch
from 1 /2 /3 /4 /5 /6 screen to 3/ 4/ 5 /6 /7 /8 screen.
Switch to 『Eight Channel』mode, click 『Next Screen』，DVR will
switch from 1 /2 /3 /4 /5 /6 /7 /8 screen to 9/ 10/ 11/ 12/ 13/ 14/ 15/ 16
Switch to 『Nine Channel』mode, click 『Next Screen』，DVR will
switch from 1 /2 /3 /4 /5 /6 /7 /8 /9 screen to 8/ 9/ 10/ 11/ 12/ 13/ 14/ 15/
16
Switch to 『Sixteen Channel』mode, click 『Next Screen』，DVR will
switch from 1 /2 /3 /4 /5 /6 /7 /8 /9 /10/ 11/ 12/ 13/ 14/ 15/ 16 screen
3.2.3 『PTZ』Control Function
There are two modes for 『PTZ』camera control:
A. Switch to 『Single Channel』mode，right click mouse to show the Pop-up
menu then click 『PTZ』. There is a message bar will show up as picture 3.2.3.
In the meantime, moving mouse cursor to control PTZ camera direction.
Use mouse wheel to adjust Zoom in / Zoom out function.
B. In multi-screen mode, move mouse and left click to select one channel. Right
click to show Pop-up menu and click 『PTZ』. DVR will automatic switch to
single channel with PTZ control function.
(Remark_1: There is no direction icon for PTZ control in this model. Mouse operate only)
(Remark_2 : Please configure PTZ protocol in order to control PTZ camera)
Under PTZ model, right click mouse can open『Preset』,『Path』and『Cruise』
menu as Picture 3.2.3.1. User can call pre-define PTZ camera position by Preset
point. In addition, user can combine multi preset point as Path and Cruise.
21
For setting preset point, path and Cruise please refer to PTZ configure chapter.
The icons from left to right are 『Small Iris』, 『Big
Iris』, 『Near Focus』, 『Far Focus』, 『Zoom In』 and 『Zoom Out』
3.2.4 『Information』Function
It will shows DVR software/hardware and operating information.
A. System Info
• Current Software Version
• Current Hardware Version
• Language Amount (how many language options for this DVR)
• Hard Disk Info:
a. Available Free Disk Space /HDD Total Space
b. How Many Hours Remain for Record
22
B. Channel
It will show record parameter for each channel:
• No(Channel No.).: 1 ~ 4 or 1 ~ 8 CH or 1 ~ 16CH
• Status(Recording):
• Type(Recording): Manual, Motion or Alarm.
• Rates: Recording bit Rate
• FPS : Recording Frame Rate:
• Size: Resolution (D1, Half D1 or CIF)
• Motion: Indicate whether motion detected
(PS. Click Column name can sort by the content, user can use mouse to move Column
borders to see wording clearly in case of being hidden )
C. Alarm In
• No. - Channel Number, Display 1 ~ 4 or 1 ~ 8 CH or 1 ~ 16CH
• Type : Normal Open(NO) or Normal Close (NC)
Status：Display equipment status in normal or alarm triggered.
23
D. Network Info
• MAC Address : Each DVR must have unique MAC address
• IP Address: Current DVR IP address
• Gateway: Network gateway IP address
• PPPoE Dial-up:
◦ State：it will show if 『Connected』f PPPoE dial-up successful, in
contrast it will show 『Not Connect』.
◦ IP Address: it will show current IP address after PPPoE connected.
• DDNS：
◦ State：when DDNS function was enable in DVR it will show 『Open
』. In contrast, it shows 『Close』.
◦ Domain name：show current domain name setting.

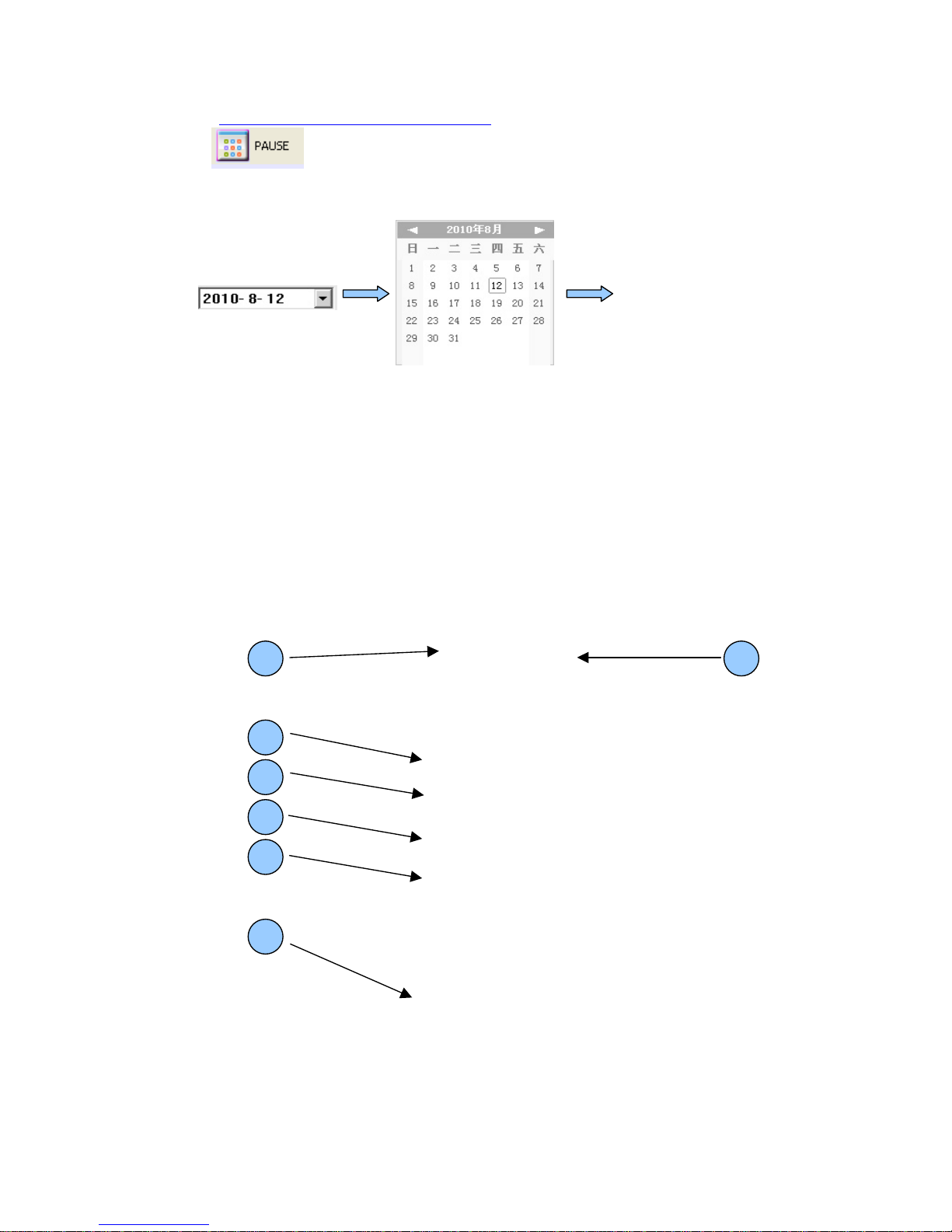

E. LOG View
• Adjust year by click ◄ ► icon
• Adjust month by click ◄ ► icon
• Decide target query date by mouse left click in calendar window
