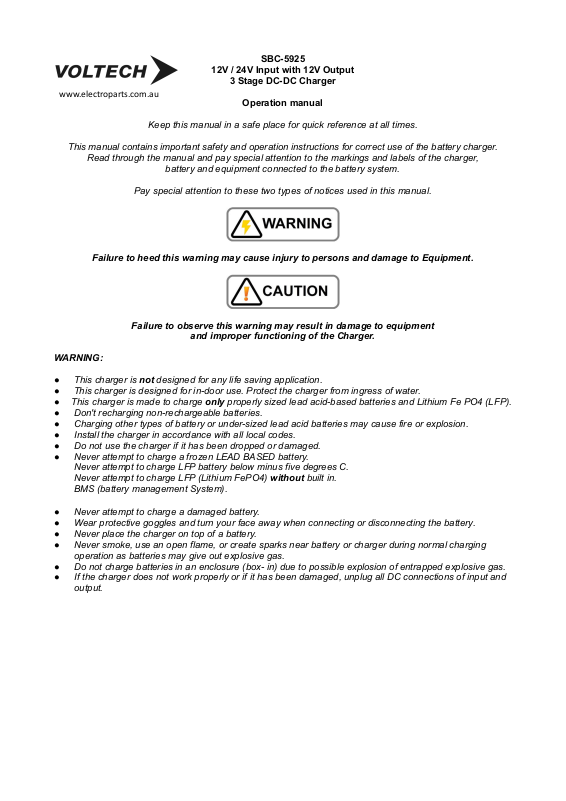

Voltech SBC-5925 Operation manual

SBC-5925
www.electroparts.com.au
12V / 24V Input with 12V Output
3 Stage DC-DC Charger
Operation manual
Keep this manual in a safe place for quick reference at all times.
This manual contains important safety and operation instructions for correct use of the battery charger.
battery and equipment connected to the battery system.
Pay special attention to these two types of notices used in this manual.
Failure to heed this warning may cause injury to persons and damage to Equipment.
Failure to observe this warning may result in damage to equipment
and improper functioning of the Charger.
WARNING:
This charger is not designed for any life saving application.
This charger is designed for in-door use. Protect the charger from ingress of water.
This charger is made to charge only properly sized lead acid-based batteries and Lithium Fe PO4 (LFP).
Don't recharging non-rechargeable batteries.
Charging other types of battery or under-sized lead acid batteries may cause fire or explosion.
Install the charger in accordance with all local codes.
Do not use the charger if it has been dropped or damaged.
Never attempt to charge a frozen LEAD BASED battery.
Never attempt to charge LFP battery below minus five degrees C. Never attempt to charge LFP (Lithium FePO4) without built in. BMS (battery management System).
Never attempt to charge a damaged battery.
Wear protective goggles and turn your face away when connecting or disconnecting the battery.
Never place the charger on top of a battery.
Never smoke, use an open flame, or create sparks near battery or charger during normal charging
operation as batteries may give out explosive gas.
Do not charge batteries in an enclosure (box- in) due to possible explosion of entrapped explosive gas.
If the charger does not work properly or if it has been damaged, unplug all DC connections of input and
output.
Table of content
Introduction Features & Protections Supplied Accessories Installation Procedure Indicators & Controls Battery Type Selection Connections Charger Control Modes Automatic Ignition Control Manual Ignition Control Vibration Sensor Control Cancel Ignition Control Input Voltage Control Summary of 3 Control Modes Operation Voltages Wiring Diagrams & Connections to LED Module Specifications Trouble Shooting
Introduction
Especially designed for vehicles with Smart Alternator, Start-Stop, Regenerative Braking system
This charger is designed to address to the issues of wide swing of output voltages from the smart alternator, braking regenerative EURO 5/6 vehicles in fully charging the house battery. It is suitable for use with all old alternator system and distant house battery. The charger Booster provides fast safe charging profiles for 4 types of lead based and 2 types of Lithium FePO4 batteries.
The built-in vibration sensor makes it possible to use the charger by just connecting to the starter battery terminal without touching the car’s electrical /electronic wiring thus avoiding any possible excuse of revoking the car’s warranty.
The digital control design makes it automatically select & adapt to 12V or 24V input alternator/ battery system.
Multistage Charging
This is a select (battery type) and forget charger designed for fast and accurate recharge of your deep cycle house battery. The smart multistage charging enables the charger to be connected permanently to your battery banks without the worry of overcharging or drying out the electrolyte.
Lead acid-based Battery
A 3 Stage Bulk, Absorption & Float charging profile for 4 types of lead acid-based battery with maximum constant charging current at the Bulk Stage and a Constant Voltage with decreasing charging at the Absorption Stage and a reduced voltage Float Charge for maintenance when battery is full.
LiFePO4 (LFP) Battery
A 2 Stage charging is specially for 2 types LiFePO4 battery and charging current stops at the end of Absorption stage.
Three Charge Control Methods:
Ignition Control : Charger starts charging only when ignition is on and stops charging when
Vibration Sensor Control : Charger starts charging when repeated vibrations are detected and stops
Input Voltage Control : This is for non-intelligent alternator with sufficient high & uniform voltage.
Features
Auto select for 12V or 24V car system.
Design for all alternators, conventional, smart alternators, start-stop & regenerative braking.
3 DC Charge Control Modes to select: Vibration Sensor Control Mode.
Ignition Control Mode with Automatic on when ignition is on & off when Ignition is off or Manual Control setting. Input Voltage Control.
Suitable for standard Lead Acid, AGM and Lithium Fe PO4 battery.
3 Stage charge for 4 types of Lead Acid based batteries.
Specific 2 Stage charge for 2 types LiFePO4 battery.
Protections
Self Recoverable Input Under Voltage Protection.
Self Recoverable Output Over Voltage Protection.
Self Recoverable Over Temperature Protection.
Self Recoverable Over Load Protection (C.C.) with constant current at decreased output voltage.
Self Recoverable Input Reverse Polarity Protection
Output Reverse Polarity Protection by thermal fuse.
Ignition is off.
charging when no vibration is detected for over 2 minutes.
Charging is cut off easily due to high threshold voltage to protect starting battery.
Supplied Accessories
Remote LED Indicator Module (with 2M cable) like the unit front panel.
4 heavy duty electrical eye connectors.
One plastic wire guide.
Double side sticker tape for the Remote Indicator Module.
Two thin wires for Pin Connections
One spare 8 Pin Connection sticker label
Installation Procedure
Do NOT install this unit in the vehicle engine bay. This is a fan cooled electronic device not for use in high temperature, corrosive and dusty environment which will drastically shortens the life and performance of the charger.
This charger is designed only for internal mounting and away from direct sunlight, heat and rain. Allow at least 80mm of space at both ends for ventilation.
We recommend wiring by a qualified automobile electrician to ensure local safety and on-board standard are followed
1. To provide the best cooling effect, mount the unit in vertical position with the terminal end facing
2. First install the charger as close to the house battery as possible via a fuse.
3. See Quick Start Guide to select battery type and charge functions.
4. Before connect input to DC Alternator, check on type of alternator of car, for new car with smart alternator select ether Vibration Sensor Mode or Ignition Control Mode.
5. Do not charge LFP battery without built in Battery Management System.
6. Do not charge LFP battery below minus 5C.
downwards due to the top front exhaust design.
Figure: correct installation direction
Charging status LED
Charging stage
Fast flashes
Bulk charge
Slow flashes
Absorption
Solid
Float
Charging status LED
Charging stage
Fast flashes
Bulk charge
Slow flashes
Absorption
Indicators and Controls
Figure: 7 LED display
SET button
The SET button is for selection of battery & deactivate Ignition Control Mode. Long press for 5 second for battery selection and long press for 15 second to deactivate Ignition Control Mode.
Charging Status LED for LEAD ACID Battery - 3 Stages
Charging Status LED for Lithium Fe PO4 Battery - stages
LED status
Battery Voltage Level
Fast Flashes
Battery Voltage lower than 12.5V
Slow Flashes
Battery Voltage between 12.5V and 13.6V
Solid
Battery Voltage higher than 13.6V
Output Voltage LED
This LED shows the voltage level at the V OUT terminal. It becomes the battery voltage when there is no Load connected to the battery and no input voltage.
Battery Type Selection
1. Press and hold the only Set Button for about 5 seconds until the LED flashes.
2. Quick presses will move the LED in cyclic order from Lead--> AGM--> LFP-->Type2 + Lead --> Type2 + AGM --> Type2 + LFP --> Lead-->AGM-->LFP….
3. Stop at the chosen battery type and wait till LED turns to solid to lock in your selection.
Connections
Allow 10 seconds delay time after connections are done correctly with proper input & output voltage for selected charge control.
Fig.3 Terminals & 8 PIN connectors
1 T+: Vibration sensor enable pin. Connect to Vout for Ignition pin to enable sensor control. .
2 Red: Connection to remote module Red wire. 3 Green: Connect to remote module green wire. 4 Yellow: Connect to remote module yellow wire. 5 Alarm: Alarm output pin. 12V 50mA for external alarm. 6 GND: Ground pin for remote module. Connect to remote control black wire. 7 Ignition: Connect this pin to ignition car ignition to make the charger operate in sync with
vehicle ignition control. 8 Vout for Ignition: 12 Voltage signal. Short this pin to pin 7 (Ignition) to enable manual ignition control of unit to ON. Short this pin to Pin1( T+ ) to enable vibration sensor mode. *This pin is for Ignition and Vibration sensor only. Don’t connect to other devices.
Vibration
Charger Control Modes
There are 3 automatic charge modes plus one manual ON-OFF to switch on and off the charger to give the optimal charging current to the auxiliary battery.
Automatic Ignition Control Mode
Automatic Ignition Control It synchronizes ON/OFF of the DC-DC charger with the car’s ignition. This mode requires connection to the car’s Ignition Signal Terminal 15 see wiring diagram page 10 electrical circuit which gives out a positive DC Voltage from the car’s electrical wiring when the ignition is tuned on .The ignition control will set to ON once the Ignition Pin 7 is applied with 9-32V voltage. The charging operation stops when Ignition is off & engine stops running. This mode is recommended for all alternator type including Europe 6, 6+plus with start/ stop energy saving.
Manual Ignition Control
You can wire a contact switch with one end to the Ignition Pin 7 and the other to Vout for Ignition Pin 8. Shorting both pins will turn on the charger, disconnect will turn off the charger.
Vibration Sensor Control Mode
The built-in vibration sensor with special software control turns on the charging when trains of vibrations are detected. Installation is simple and quick and without touching the car’s electrical system for the sensor to work.
Enable build-in vibration sensor
The built-in vibration sensor is enabled by connecting T+ Pin1 to Vout for Ignition Pin 8. The vibration sensor is in standby mode with output is OFF (no charging). When sensor is triggered by a series of vibrations which switch on the charger. The charging output will be switched ON for about 100 seconds continuously. Any further vibration during the 100 seconds active mode, will extend the output ON for another 100 seconds. The output will be OFF if no more vibration detected within 100 seconds of last vibration.
Override of all Control Modes by Vibration Sensor Control
Built-in vibration sensor when enabled, dominates the control of output and overrides all other Control Modes including the Ignition Control. That is only vibration can make the charger start charging with output ON. To disable the Vibration Sensor: Take out the connection between the Pin1(T+) from Pin 8 (Vout for Ignition).
CAUTION: DO NOT USE VIBRATION SENSOR CONTROL WHEN CAR IS ON FERRY, TRAIN OR OTHER TRANSPORT PLAFORM.
REMARK
Once the Vibration Sensor Mode is disabled, the charger will return to the last selected mode.
Cancel Ignition Control
CHARGE MODE
12V CAR
24V CAR
Input Voltage
Output Status
Input Voltage
Output Status
Vibration Sensor Mode
< 9V > 11V
Cut OFF Resume to On
< 18V > 22V
Cut OFF Resume to On
Ignition Control Mode
< 9V > 11V
Cut OFF Resume to On
< 18V > 22V
Cut OFF Resume to On
Input Voltage Control Mode
< 12.8V > 13.5V
Cut OFF Resume to On
< 25.6V > 27.0V
Cut OFF Resume to On
i) Take out connection to the Ignition pin. ii) Press and hold button for around 15 seconds until the 3 LED battery type flash at the same time. iii) Release button and charger is changed to Input Voltage Control.
Input Voltage Control Mode
This mode requires increased voltage (>13.4V) of the starter battery which is only possible with short thick cable connection and a non-intelligent alternator with sufficiently high and stable charging voltage. This Control Mode is not suitable for modern cars due to wide voltage range such as Euro 5/6. Cancel the Ignition Control first in order to get into this mode.
Summary of 3 Control Modes Operation voltages
The Ignition Control and Vibration Sensor modes are suitable for Constant Voltage Alternators, Smart Alternators, Start Stop, Euro 5 and 6 engines, cars with Regenerative Braking.
Wiring Diagram & connection to Remote LED Module
Ignition Signal
Individual fuse/ breaker is required to be close to starting battery (charger input) and close to house battery (charger output wire).
Terminal 15 (DIN 72552)
Figure: Connection diagram
Specification
Rated output power
25A at 13.8VDC
Optimal Efficiency
≥89%
Input Voltage
DC Input Voltage Range
9 - 16VDC (12VDC Input) / 18 - 32VDC (24VDC Input)
No load input current
<50mA
Output (Charge) Voltage
Battery Type
Absorption
Float
Lead
14.4V
13.3V
Lead 2
14.6V
13.5V
AGM
14.2V
13.1V
AGM 2
14.7V
13.6V
LiFePO4
14.4V
Stop
LiFePO4 2
14.8V
Stop
Alarm Output
12V / 50mA
Size(W x L x H)
130x200x55 mm
Weight
Approx. 870g
Operation Temperature
-10 to +40ºC (Ambient Temperature)
Operating Mode
12V CAR
24V CAR
Input Voltage
Output Status
Input Voltage
Output Status
Vibration Sensor Mode
< 9V > 11V
Cut OFF Resume to On
< 18V > 22V
Cut OFF Resume to On
Ignition Control Mode
< 9V > 11V
Cut OFF Resume to On
< 18V > 22V
Cut OFF Resume to On
Input Voltage Control Mode
< 12.8V > 13.5V
Cut OFF Resume to On
< 25.6V > 27.0V
Cut OFF Resume to On
Trouble Shooting
Problem
Indication
Possible Causes
Suggested Solution
Recovery Condition
Low Voltage
Fault LED ON
12V battery system:
Check the starter
12V battery system:
60s.
Fault LED ON
24V battery system:
24V battery system:
60s.
Low Voltage
Fault LED ON
12V battery system:
Check the starter
12V battery system:
rises above 11V for 5s.
Fault LED ON
24V battery system:
24V battery system:
rises above 22V for 5s.
Output Over Voltage
Fault LED ON
Software OVP:
Disconnect any load to
Software OVP:
+0.3V for 3s.
Fault LED ON
Hardware OVP:
Hardware OVP:
blown FUSE.
Input Over Voltage
hardware
Fault LED ON
Software input OVP:
Check input battery
Software Input OVP: Input Over Voltage
All LEDs OFF
Hardware Input OVP:
Find out about the
the new fuse.
Hardware input OVP:
FUSE.
Over Temperature
Fault LED ON
Charger internal
Check input & exhaust
clearance.
Automatic recovery
FAN fault
Fault LED ON
FAN not working
Check for objects
out of order.
Remove objects which
the fan.
The Fault LED is solid on when a protection is triggered and output of the charger is off. When the cause of the fault has been clear up, Fault LED becomes off and charger returns to normal operation. Almost all the protections are by software design and self-recoverable, once the cause of fault has been dealt with. There are two layers of protection for Input and Output Over-Voltage, the first layer is by software and the second layer by hardware as a double insurance to protect the charger and the connected devices.
Disconnect (LVD) Ignition Control is not set to Auto ON
Disconnect (LVD) Ignition Control is set to Auto ON
Protection (Output OVP)
Two layers of protection First layer by software Second layer by hardware
Input voltage <12.8V for 20s.
Input voltage <25.6V for 20s
Input voltage <9V for 5s
Input voltage <18V for 5s
Output terminal voltage >set absorption Voltage +0.6V for 2s.
Output terminal voltage >17.0V. FUSE will blow.
battery voltage.
Use correct size cable between charger and starter battery.
battery voltage.
Use correct size cable between charger and starter battery.
battery and check battery voltage.
If no load connected to battery in first place. Check battery voltage if over set absorption voltage, disconnect battery.
Automatic recovery when input voltage rises above 13.4V for
Automatic recovery when input voltage rises above 26.8V for
Automatic recovery when input voltage
Automatic recovery when input voltage
Automatic recovery when the voltage on output terminal is reduced below absorption Voltage
Does not automatic recovery Required to replace the
Protection (Input OVP) Two layers of protection First layer by software Second layer by
Protection (Input OVP) by hardware.
Protection (OTP)
PV LED may also be on at the same time.
including the FAULT LED.
Charger output will be shut down when input DC voltage higher than 32V.
The FUSE will blow when input terminal voltage higher than 33.5V.
temperature is too high.
voltage is not higher than 32V.
Input source condition & spec such as voltage surge etc. Before replacing with
ends have no blockage and a minimum 10mm
jamming fan or Fan is
Automatic recovery when the voltage on input terminal is reduced below 31.5V for 5s.
Does not automatic recovery Required to replace the blown
when charger temperature reduces to normal level.
jamming
2021-02 Rev.2
7673-5925-3526
Loading...
