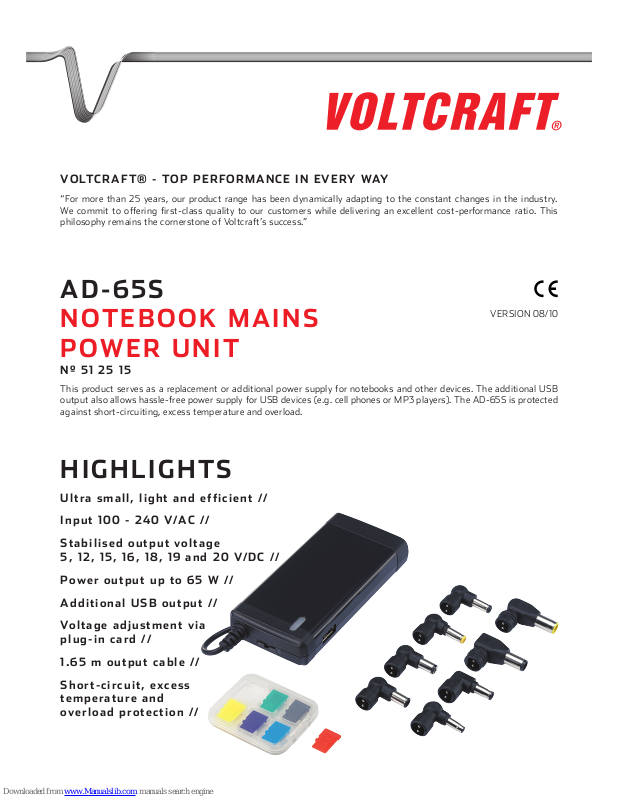

VOLTCR A FT ® - TOP PE R FOR M AN C E I N E VERY WAY

“For more than 25 years, our product range has been dynamically adapting to the constant changes in the industry. We commit to offering first-class quality to our customers while delivering an excellent cost-performance ratio. This philosophy remains the cornerstone of Voltcraft’s success.”

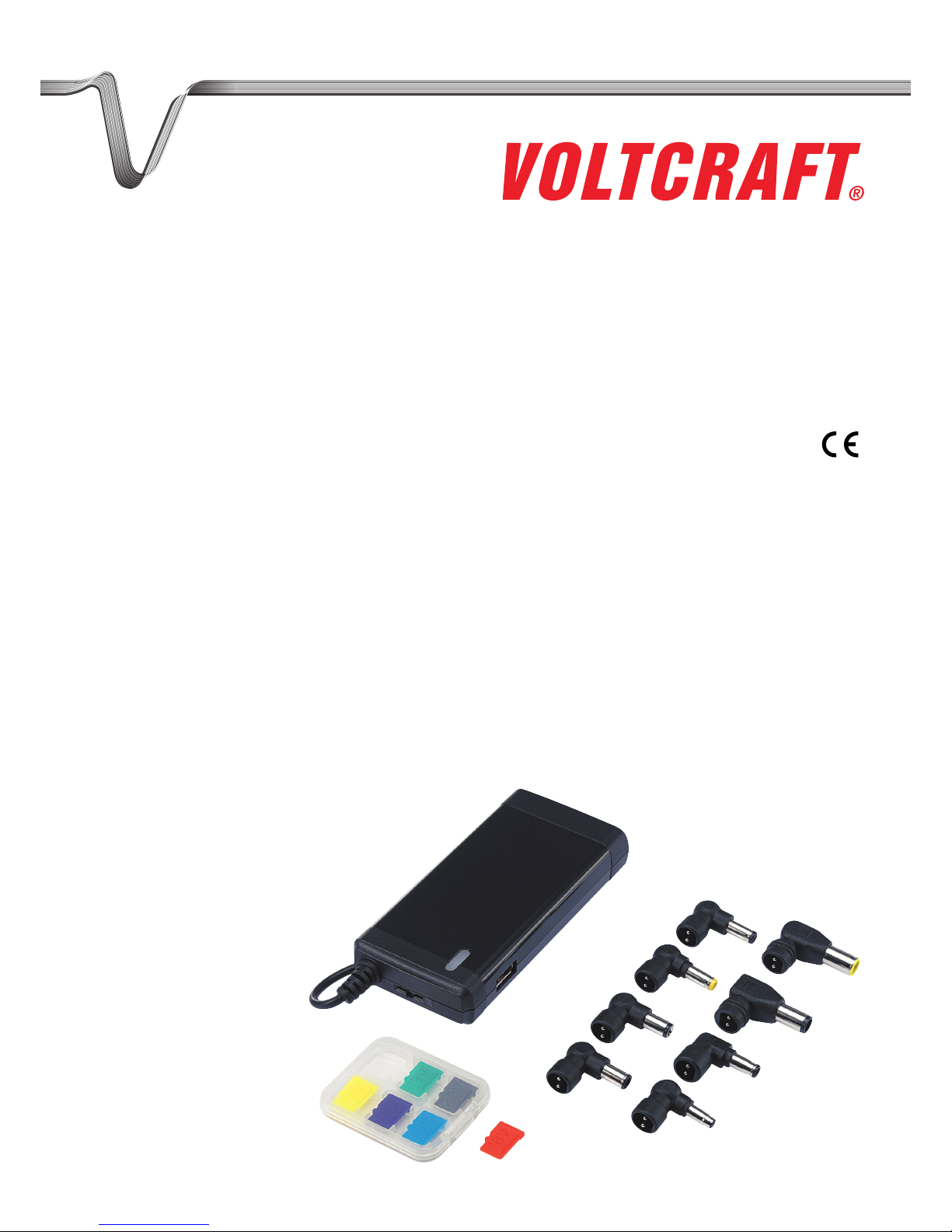

AD-65S

NOTEBOOK MAINS POWER UNIT

VERSION 08/10

Nº 51 25 15

This product serves as a replacement or additional power supply for notebooks and other devices. The additional USB output also allows hassle-free power supply for USB devices (e.g. cell phones or MP3 players). The AD-65S is protected against short-circuiting, excess temperature and overload.

HIGHLIGHTS

Ultra small, light and efficient //

Input 100 - 240 V/AC //

Stabilised output voltage 5, 12, 15, 16, 18, 19 and 20 V/DC //

Power output up to 65 W //

Additional USB output //

Voltage adjustment via plug-in card //

1.65 m output cable //

Short-circuit, excess temperature and overload protection //

Page 2

TECHNICAL DATA

Input voltage: 100 to 240 V/AC, 50/60 Hz, 2 A max. Output power: 65 W max. Output voltage: 12 V/DC: 3 A max. (with yellow plug-in card)

15 V/DC: 4 A max. (with purple plug-in card) 16 V/DC: 4 A max. (with blue plug-in card) 18 V/DC: 3.42 A max. (with red plug-in card) 19 V/DC: 3.42 A max. (with green plug-in card) 20 V/DC: 3.26 A max. (with grey plug-in card) 5 V/DC: 0.5 A max. / 2.5 W (USB power port)

Efficiency:

≥

87 % (100 V/AC / at full load)

≥

90 % (240 V/AC / at full load) Operating temperature: 0 ºC to +40 ºC Dimensions (W x H x D): 115 x 21 x 56 mm Weight: 220 g

OUTPUT PLUG SPECIFICATIONS

Type Outer diameter (mm) Inner diameter (mm) Polarity

A 6.5 4.5

B 6.3 3

C 5.5 2.5

D 5.5 2.1

E 4.75 1.7

I2 5.5 3.4

L 7. 9 5.6

S 7.4 5

COMPATIBILITY LIST

Notebook brand Voltage (V) Plug-in card colour Connector

Acer 19 green C, D

Asus Eee PC 12 yellow E

Compaq 19 green C, E, S

Dell 18 red S Dell 19 green C

Fujitsu-Siemens 19 green C

Gateway 19 green C, D

HP 19 green C, E, S

IBM 16 blue C

Lenovo 20 grey L

Sony 16 blue A

Sony 19 green A Toshiba 15 purple B, C Toshiba 19 green A

Samsung 16 blue I2 Samsung 19 green I2

PACKAGE CONTENT

Notebook mains power unit // 8 x output plug // 6 x voltage adjustment plug-in card // Power cord // Operating instructions

This data sheet is published by Voltcraft®, Lindenweg 15, D-92242 Hirschau / Germany, Phone +49 180 586 582 7. The data sheet reflects the current technical specifications at time of print. We reserve the right to change the technical or physical specifications.
