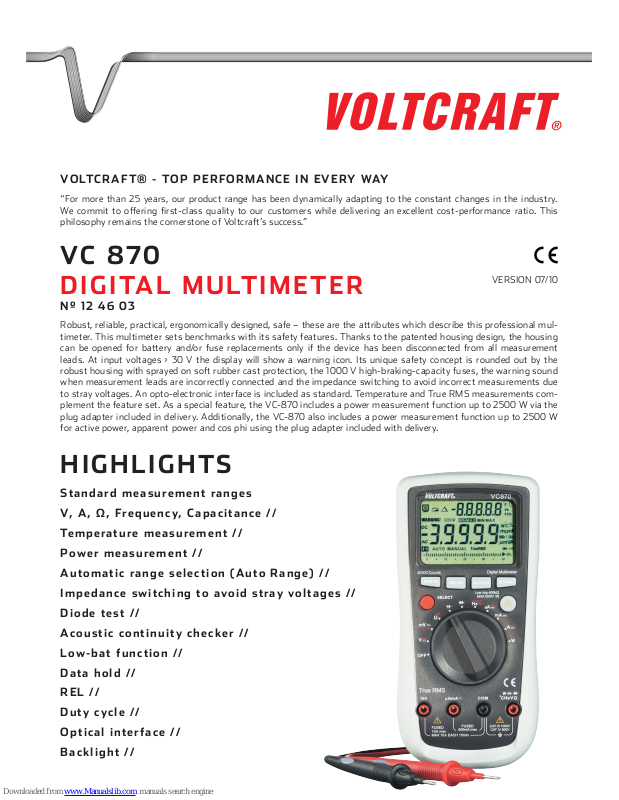

VOLTCR A FT ® - TOP PE R FOR M AN C E I N E VERY WAY
“For more than 25 years, our product range has been dynamically adapting to the constant changes in the industry.
We commit to offering first-class quality to our customers while delivering an excellent cost-performance ratio. This
philosophy remains the cornerstone of Voltcraft’s success.”
VC 870
DIGITAL MULTIMETER
VERSION 07/10
Nº 12 46 03
Robust, reliable, practical, ergonomically designed, safe – these are the attributes which describe this professional multimeter. This multimeter sets benchmarks with its safety features. Thanks to the patented housing design, the housing
can be opened for battery and/or fuse replacements only if the device has been disconnected from all measurement
leads. At input voltages > 30 V the display will show a warning icon. Its unique safety concept is rounded out by the
robust housing with sprayed on soft rubber cast protection, the 1000 V high-braking-capacity fuses, the warning sound
when measurement leads are incorrectly connected and the impedance switching to avoid incorrect measurements due
to stray voltages. An opto-electronic interface is included as standard. Temperature and True RMS measurements complement the feature set. As a special feature, the VC-870 includes a power measurement function up to 2500 W via the
plug adapter included in delivery. Additionally, the VC-870 also includes a power measurement function up to 2500 W
for active power, apparent power and cos phi using the plug adapter included with delivery.
HIGHLIGHTS
St a nda rd m ea s ure m en t ran ges
V, A, Ω, Frequency, Capacitance //
Tempe ra tur e m e as u rem e nt //
Power measurement //
Automatic range selection (Auto Range) //
Impedance switching to avoid stray voltages //
Di o de tes t / /
Acoustic continuity checker //
Low-bat function //
Data hold //
REL //
Duty cycle //
Optical interface //
Backlight //
GENERAL SPECIFICATIONS
DISPLAY: 40000 counts MEASURING RATE: Approx. 2-3 measurements / second MEASURING LINE LENGTH: Approx. 90 cm each
MEASURING IMPEDANCE: > 10 MΩ (V range) BAR GRAPH MEASUREMENT RATE: Approx. 10 measurements / second
OPERATING VOLTAGE: 9 V block battery WORKING CONDITIONS: 0 to 30 ºC (<75 %RF), 30 to 40 ºC (<50 %RF)
OVER-VOLTAGE CATEGORY: CAT III 1000 V, CAT IV 600 V. contamination degree 2 OPERATING ALTITUDE: max 2000 m
STORAGE TEMPERATURE: -10 to +50 ºC WEIGHT: Approx. 380 g DIMENSIONS (W X H X D): 185 x 91 x 43 mm
TECHNICAL DATA
Functions Range Resolution Accuracy
±(a% reading + b digits)
Overload
protection
Remarks
DCV 400 mV 0.01 mV
±(0.1 % + 5)
1000 V
Impedance: 10 MΩ
4 V 0.1 mV
40 V 1 mV
400 V 0.01 V
1000 V 0.1 V ±(0.2 % + 5)
ACV 4 V 0.001 V
±(1 % + 4)
750 V
Frequency range: 45 - 1000 Hz;
Impedance: 10 MΩ;
TrueRMS in the measuring area of 10 – 100%:
Crest factor: max. 3.0 (at 750V max. 1.5)
40 V 0.01 V
400 V 0.1 V
750 V 1 V ±(1.5 % + 4)
DCA 400 μA 0.01 μA
±(0.5 % + 10)
Fuses
Measurement time limit > 5A: max. 10 s with
10 min break
4 mA
0.1 μA
40 mA
1 μA
400 mA 0.01 mA ±(0.8 % + 10)
10 A 1 A ±(1.5 % + 5)
ACA 400 μA 0.1 μA
±(1.2 % + 4)
750 V
Fuses
Measurement time limit > 5A: max. 10 s with
10 min pause;
Frequency range: 45 - 1000 Hz;
TrueRMS in the measuring area of 10 – 100%:
Crest factor: max. 3.0 (at 750V max. 1.5)
4 mA
1 μA
40 mA 0.01 mA
400 mA 0.1 mA
10 A 0.01 A ±(2.0 % + 3)
Ω
400 Ω 0.01 Ω
±(0.8 % + 10) with REL
function
1000 V
Measurement voltage:
approx. 0.3 V
4 kΩ 0.1 Ω ±(0.5 % + 10)
40 kΩ 0.01 kΩ
±(0.5 % + 3)400 kΩ 0.1 kΩ
4 MΩ 1 kΩ
40 MΩ 0.01 MΩ ±(1.5 % + 5)
PACKAGE CONTENT
Multimeter with spay-cast rubber protection // 9V block battery // Safety measuring cable // Output measuring adapter
// Software CD // Operating instruction
This data sheet is published by Voltcraft®, Lindenweg 15, D-92242 Hirschau / Germany, Phone +49 180 586 582 7. The data sheet reflects the current
technical specifications at time of print. We reserve the right to change the technical or physical specifications.
© Copyright 2010 by Voltcraft®. v1_0710_02-hl
