How to Charge Voltbox
Please use 5V/2A output charger (not included) to recharge Voltbox mini.
Backward compatible with 5V/1A output charger.
Remarks: Please charge the Voltbox Mini for at least six hours before the first Initial use.
What Are Included
Voltbox Mini Speaker
USB Charging Cable:
iPhone Compatible Charging Cable x 2,
Micro USB Charging Cable x 1
User Guide
1
Voltbox Mini with Bluetooth Speakers
Power Capacity Indicators
Battery Checking Button
Microphone
USB Charging Ports
USB Retractable Cable Ports
Bluetooth Status Indicators
Volume Decrease Button
Bluetooth Power Switch
Volume Increase Button
Checking for Power Level
Press "Battery Checking Button" once - Power indicators will lightup in (Green) to
indicate the current battery power capacity. The light will turn off automatically in 20 seconds
if no charging device is plugged in.
Turning on Voltbox Mini for Charging
Automatically - Plug in cellphone or tablet to Voltbox Mini through USB charging
cables. Voltbox Mini will detect the connecting device and start charging automatically.
Power indicators stay in green during charging to display the battery level in Voltbox Mini .
Turning off Voltbox Mini for Charging
Automatically - Voltbox Mini will shut down automatically in 20 seconds after charging
device is detached from Voltbox Mini.
2
Bluetooth Operation
Turning on -
Turning Off -
Pairing -
Unpairing -
Auto Off -
Volume
Increase
Volume
Decrease
Remarks: Bluetooth feature will be suspended once battery capacity goes below 20%.
Press and hold "Bluetooth Power Switch" for 4 seconds to turn on Bluetooth
Speakers. Bluetooth control keys and status light will be on.
Press and hold "Bluetooth Power Switch" for 4 seconds to turn off Bluetooth
Speakers.
As the first time connection, turn on Bluetooth feature on either cellphone or tablet
and search/select "Voltbox" Bluetooth ID name to connect. Voltbox Mini will
always search and try to connect with previous connected device once it is being
turn on. A confirmation tone will go off when pairing completes successfully.
Turn off Bluetooth feature on the cellphone or tablet.
If no device is connected, Bluetooth will be turned off in 2 minutes as power saving
feature.
Short press "Volume Increase Button" to increase volume step by step.
Press and hold "Volume Increase Button" for continuous increase of volume.
(A beep tone will go off when maximum volume is reached.)
-
Short press "Volume Decrease Button" to decrease volume step by step.
Press and hold "Volume Decrease Button" for continuous decrease of volume.
(A beep tone will go off when minimum volume is reached.)
Troubleshooting
Music playback distorted
Bluetooth cannot be paired
Mobile device cannot be
charged through Voltbox
Mobile device is out of the connection range from Voltbox Mini.
Battery level is below the Bluetooth operation required and a alarm beep tone
will go off before Bluetooth turns off automatically.
Check on previous paired mobile device to ensure that it is completely
disconnected/unpaired from Voltbox Mini. Please make sure that Bluetooth is
turned on on the going-to-be paired device.
Check and ensure that Voltbox has been turned on.
Check battery level of Voltbox Mini.
Secure the cable connection in between Voltbox and mobile device.
3

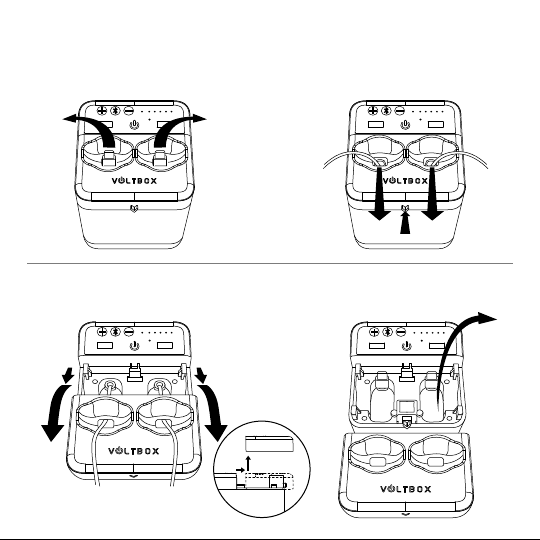

How to Replace Retractable Cables
1. Pull out a portion of both retractable cables
from the ports.
Press and hold the V shape button against
2.
the main unit. Then grab and slide out the
top cover.
3.
Slide out the top cover all the way. Then pull
out the green cable cartridge for replacement.
* Make sure the V shape lock button raised from
the main unit to ensure that cover is locked properly.
4.
Swap the replacement cable cartridge and
revise the step 3 to put back the cover.*
4
LIMITED WARRANTY
Voltbox LLC warrants to the end-user customer that the Voltbox Mini with Bluetooth
Speakers will be free from defects in material and workmanship within 90 days from the
original purchase date.
Limited warranty covers only those defects that arise as a result of normal use of the
product and does not cover any other problems, including those that arise as a result of:
improper maintenance, operation outside the product’s specifications, unauthorized
modification or misuse.
Voltbox LLC shall have no obligation to repair or replace until the customer returns the
defective product to Voltbox LLC. Any repaired or replacement product may be either new
or like-new, provided that it has functionality at least equal to that of the product being
replaced.
CONTACTING VOLTBOX LLC
If your product fails during the 90 days warranty period, please visit www.voltboxusa.com
to contact customer service for product support.
5
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
6

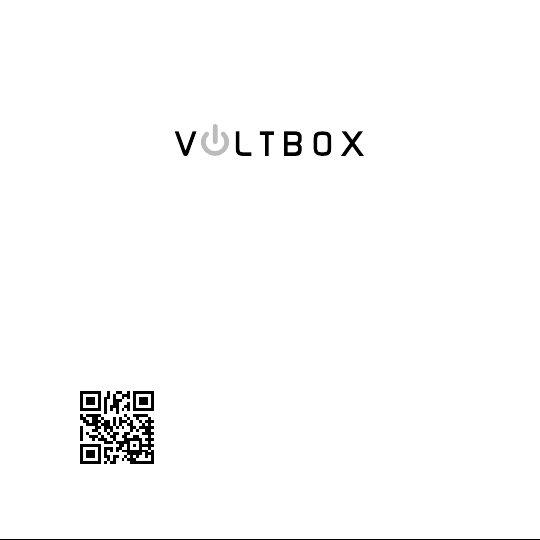

Voltbox LLC.
Website：www.voltboxusa.com
Address：230 Acadia Terrace, Celebration, FL 34747, USA
For enquiry, please send email to: enquiry@voltboxusa.com
