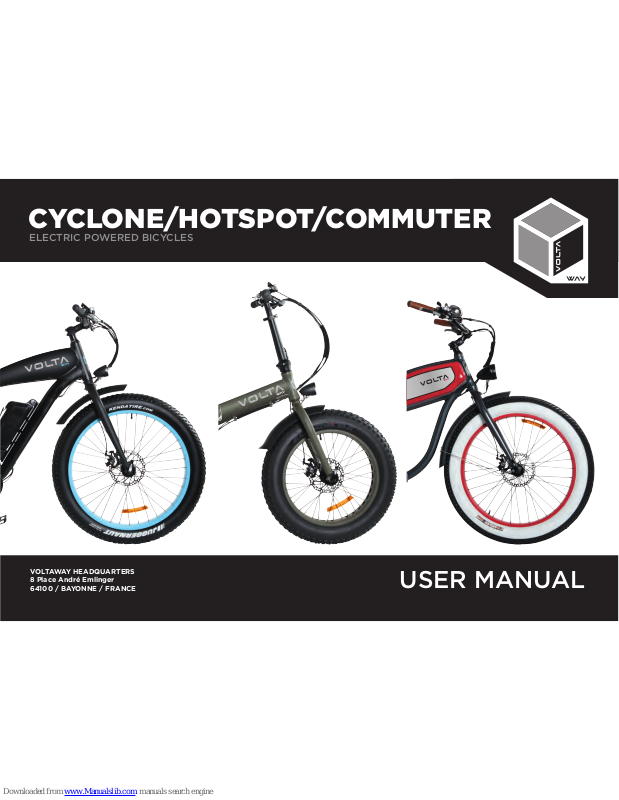

VOLTAWAY CYCLONE, HOTSPOT, COMMUTER User Manual
CYCLONE/HOTSPOT/COMMUTER
ELECTRIC POWERED BICYCLES
VOLTAWAY HEADQUARTERS
8 Place André Emlinger
64100 / BAYONNE / FRANCE
USER MANUAL
BICYCLE OWNER’S MANUAL
IMPORTANT
This manual contains important safety, performance and service information. Read it before you take the first ride on your
new electric bicycle, and keep it for reference.
Additional safety, performance and service information for specific components such as batteries or pedals on your bicycle,
or for accessories such as helmets or lights that you purchase, may also be available. Make sure that you have been given all
the manufacturers’ literature that was included with your bicycle or accessories. In case of a conflict between the instructions in this manual and information provided by a component manufacturer, always follow the component manufacturer’s
instructions. If you have any questions or do not understand something, take responsibility for your safety and consult with
your dealer or the bicycle’s manufacturer.
NOTE
This manual is not intended as a comprehensive use, service, repair or maintenance manual. Please see your dealer or call
the manufacturer for all service, repairs, or maintenance. Your dealer may also be able to refer you to classes, clinics or
books on bicycle use, service, repair or maintenance."
CONGRATULATIONS !
You’ve just bought one of the finest electric bicycles in the world! We developed and refined the quality that an electric
bicycle should be and presented it to you. We work with top name suppliers to identify the best new materials and latest
developments in our technology.
We ride Volta bicycles every day to evaluate and improve our products. The result is a durable, stylish, high performance
electric bicycle that we’re sure you will be proud to own and ride for many years to come.
We are extremely proud of the products we oer, and the service oered by our sta and our distributors.
We are certain that our commitment to excellence will be evident every time you go for a ride. So here’s wishing you many
hours of fun and enjoyment!
Thanks for investing in a Voltaway Bicycle,
-The Voltaway Team-
02
TABLE OF CONTENTS
CHAPTER 1: BEFORE YOU RIDE
A. Bike Fit
B. Safety First
C. Mechanical and Electric Safety Check
D. First Ride
CHAPTER 2: SAFETY
A. The Basics
B. Riding Safety
C. O Road Safety
D. Wet Weather Riding
E. Night Riding
F. Changing Components or Adding Accessories
CHAPTER 3: MAINTENANCE INFORMATION
A. Wheels
1. Removing and Installing Wheels
2. Removing a disk brake - Front Wheel
3. Installing a disk brake - Front Wheel
4. Removing the rear disc brake
5. Installing a rear disc brake
B. Seat Post Quik Release
C. Brakes
D. Shifting Gears
E. Pedals
F. Tires and Tubes
G. Battery
H. Charger
I. Charging the Battery
J. Motor
CHAPTER 4: BIKE COMPUTER
A. Functions
B. Display
C. Button Definition
D. Set Up
E. Operation
CHAPTER 5: SERVICE INTERVALS
CHAPTER 6: FOLDING YOUR COMMUTER BIKE
07
07
07
09
10
11
12
13
13
14
15
15
15
16
16
16
17
18
19
20
20
22
22
22
22
23
23
24
24
25
28
30
03
COMMUTER FOLDABLE ELECTRIC FATBIKE
Super portable, and easy folding design. Perfect for camping and/or transportation in car trunks.
Seat
Seat Post
Rear Light
Quick release
Seat Tube
Battery Pack
Seat Stay
Rear Brake
Hub Motor
Gear Control Cable
Wheel Reflector
Rear Derailleur
Chain Stay
Shift Lever
Brake Lever
Control Cables
Handlebar Quick Release
Handlebar Hinge
Front Light
Tire Valve
Front Fork
Front Brake
Front Hub
Spokes
Rim
Tire
Chain Wheel
Crank Arm
Pedal
Chain
Handlebar
Handlebar Stem
Head Set
Top Tube
Framefold
Quick Release
04
HOTSPOT SPORT ELECTRIC FATBIKE
Mountain bicycles are designed to give maximum comfort over a wide variety of road surfaces. The wider handlebars and
convenient shift lever position make them very easy to control. Wider rims and tires give them a softer ride with more
traction on rough surfaces. The frame and fork on sport style bicycles are generally much sturdier than those on racing
style bicycles.
Seat
Seat Post
Rear Light
Quick release
Seat Tube
Seat Stay
Rear Brake
Hub Motor
Gear Control Cable
Rear Derailleur
Wheel Reflector
Chain Stay
Handlebar Stem
Head Tube
Top Tube
Battery Pack
Shift Lever
Brake Lever
Handlebar
Control Cables
Head Set
Front Light
Tire Valve
Front Fork
Front Brake
Front Hub
Spokes
Rim
Tire
Chain Wheel
Crank Arm
Pedal
Chain
05
CYCLONE RETRO ELECTRIC FATBIKE
You’re riding it because it looks gnarly and rides smooth. Introducing the new Voltaway Cyclone. The fatty 26”x 4” tires,
super wide rims and 12 gauge spokes practically float over softer surfaces with maximum stability. Meanwhile the disc
brakes keep all that awesome under control.
Seat
Seat Post
Quick release
Seat Tube
Rear Light
Seat Stay
Rear Brake
Hub Motor
Gear Control Cable
Rear Derailleur
Chain Stay
Shift Lever
Brake Lever
Handlebar
Control Cables
Head Set
Front Light
Wheel Reflector
Front Fork
Front Brake
Front Hub
Spokes
Tire Valve
Rim
Tire
Handlebar Stem
Head Tube
Top Tube
Battery Pack
(False Tank Hidden)
Chain Guard
Crank Arm
Pedal
Chain
06
CHAPTER 1 : BEFORE YOU RIDE
NOTE : We strongly urge you to read this Manual in its entirety before your first ride. At the very least, read and make sure
that you understand each point in this section, and refer to the cited sections on any issue which you don’t completely
understand. Please note that not all bicycles have all of the features described in this Manual. Ask your dealer to point out
the features of your bicycle.
A. BIKE FIT
1. Is your bike the right size? If your bicycle is too large or too small for you, you may lose control and fall.
2. Is the seat at the right height?
3. Are seat and seat post securely clamped? A correctly tightened seat will allow no seat movement in any direction.
4. Are the stem and handlebars at the right height for you?
5. Can you comfortably operate the brakes? If not, you may be able to adjust their angle and reach. See Section 3C
6. Do you fully understand how to operate your new bicycle? If not, before your first ride, have your dealer explain any
functions or features which you do not understand.
B. SAFETY FIRST
1. Always wear an approved helmet when riding your bike, and follow the helmet manufacturer’s instructions for fit, use and
care.
2. Do you have all the other required and recommended safety equipment? See Section 2. It’s your responsibility to familiarize yourself with the laws of the areas where you ride, and to comply with all applicable laws.
3. Do you know how to correctly secure your front and rear wheels? Check Section 3A to make sure. Riding with an improperly secured wheel can cause the wheel to wobble or disengage from the bicycle, and cause serious injury or death.
C. MECHANICAL AND ELECTRIC SAFETY CHECK
Routinely check the condition of your electric bicycle before every ride. Nuts, bolts screws & other fasteners: you must use
a torque wrench and the correct tightening torque specifications from the bicycle or component manufacturer or from
your dealer. If you need to make an adjustment at home or in the field, we urge you to exercise care, and to have the
fasteners you worked on checked by your dealer as soon as possible.
07
WARNING : Correct tightening force on fasteners –nuts, bolts, screws– on your bicycle is important. Too little force,
and the fastener may not hold securely. Too much force, and the fastener can strip threads, stretch, deform or break. Either
way, incorrect tightening force can result in component failure, which can cause you to loose control and fall.
Make sure nothing is loose. Lift the front wheel o the ground by two or three inches, then let it bounce on the ground.
Anything sound, feel or look loose? Do a visual and tactile inspection of the whole bike. Any loose parts or accessories? If
so, secure them. If you’re not sure, ask someone with experience to check.
TIRES & WHEELS : Make sure tires are correctly inflated (Section 3.F). Check by putting one hand on the saddle, one on the
intersection of the handlebars and stem, then bouncing your weight on the bike while looking at tire deflection. Compare
what you see with how it looks when you know the tires are correctly inflated; and adjust if necessary. Tires in good shape?
Spin each wheel slowly and look for cuts in the tread and sidewall. Replace damaged tires before riding the bike. Wheels
true? Spin each wheel and check for wheel wobble, side to side even slightly, take the bike to a qualified bike shop to have
the wheel trued.
BRAKES : Check the brakes for proper operation (Section 3.C). Squeeze the brake levers. All control cables seated and
securely engaged? Can you apply full braking force at the levers without having them touch the handlebar? If not, your
brakes need adjustment. Squeeze the levers again, and twist the throttle at the same time, does the motor engage? If so,
the inhibitors are not working correctly. Do not ride the bike until the brakes are properly adjusted by a professional bicycle
mechanic.
WHEEL RETENTION SYSTEM : Make sure the front and rear wheels are correctly secured. (Section 3.A)
SEAT POST : If your seat post has an over-center quick-release fastener for easy height adjustment, check that it is properly
adjusted and in the locked position. (Section 3.B).
HANDLEBAR AND SADDLE ALIGNMENT : Make sure the saddle and handlebar stem are parallel to the bike’s center line
and clamped tight enough so that you can’t twist them out of alignment.
08
BATTERY CHECK : Depending on the model, the battery is located behind the seat tube and underneath the seat. Make
sure the battery turns on. Turn the key counter-clock wise until you hear a click and the key stops turning. Check controller-lights to see if they are lit. If they are not, press the power button to activate the system. If there is no response double
check the cables, then contact the distributor if the problem is not resolved.
LIGHTS : Make sure the lights turn on and o by pressing at the same time the two upper buttons.
D. FIRST RIDE
When you buckle on your helmet and go for your first familiarization ride on your new electric bicycle, be sure to pick a
controlled environment, away from cars, other cyclists, obstacles or other hazards. Ride to become familiar with the
controls, features and performance of your new bike. Familiarize yourself with the braking action of the bike (see Section
4.C). Test the brakes at slow speed, putting your weight toward the rear and gently applying the brakes, rear brake first.
Sudden or excessive application of the front brake could pitch you over the handlebars. Applying brakes too hard can lock
up a wheel, which could cause you to lose control and fall. Skidding is an example of what can happen when a wheel locks
up.
Practice shifting the gears (see Section 3.D). Remember to never move the shifter while pedaling backward, nor pedal
backwards immediately after having moved the shifter. This could jam the chain and cause serious damage to the electric
bicycle. Check out the handling and response of the bike; and check the comfort. If you have any questions, or if you feel
anything about the bike is not as it should be, consult your dealer before you ride again.
“ON” POSITION
“OFF” POSITION
“UNLOCKED” POSITION”
09
CHAPTER 2: SAFETY
A. THE BASICS
WARNING:
The area in which you ride may require specific safety devices. It is your responsibility to familiarize yourself with the laws of
the area where you ride and to comply with all applicable laws, including properly equipping yourself and your bike as the law
requires. Observe all local bicycle laws and regulations. Observe regulations about bicycle lighting, licensing of bicycles, riding
on sidewalks, laws regulating bike path and trail use, helmet laws, child carrier laws, special bicycle trac laws. It’s your
responsibility to know and obey the laws.
1. Always wear a cycling helmet which meets the latest certification standards. Always follow the helmet manufacturer’s
instructions for fit, use and care of your helmet. Most serious bicycle injuries involve head injuries which might have been
avoided if the rider had worn an appropriate helmet.
WARNING: Failure to wear a helmet when riding may result in serious injury or death.
2. Always do the Mechanical Safety Check (Section 1.C) before you get on a bike.
3. Be thoroughly familiar with the controls of your bicycle: brakes (Section 3.C); pedals (Section 3.E); shifting (Section 3.D)
4. Always wear:
• Shoes that will stay on your feet and will grip the pedals. Make sure that shoe laces cannot get into moving parts, and
never ride barefoot or in sandals.
• Bright, visible clothing that is not so loose that it can be tangled in the bicycle or snagged by objects at the side of
the road or trail.
• Protective eyewear (to protect against airborne dirt, dust and bugs) tinted when the sun is bright, clear when it’s not.
5. Don’t jump or take any drops with your electric bike, it can put huge and unpredictable stress on the electric bicycle and its
components. Riders who insist on performing jumps with their bikes risk serious damage, to their electric bicycles as well as to
themselves.
6. Ride at a speed appropriate for conditions. Higher speed means higher risk.
10
