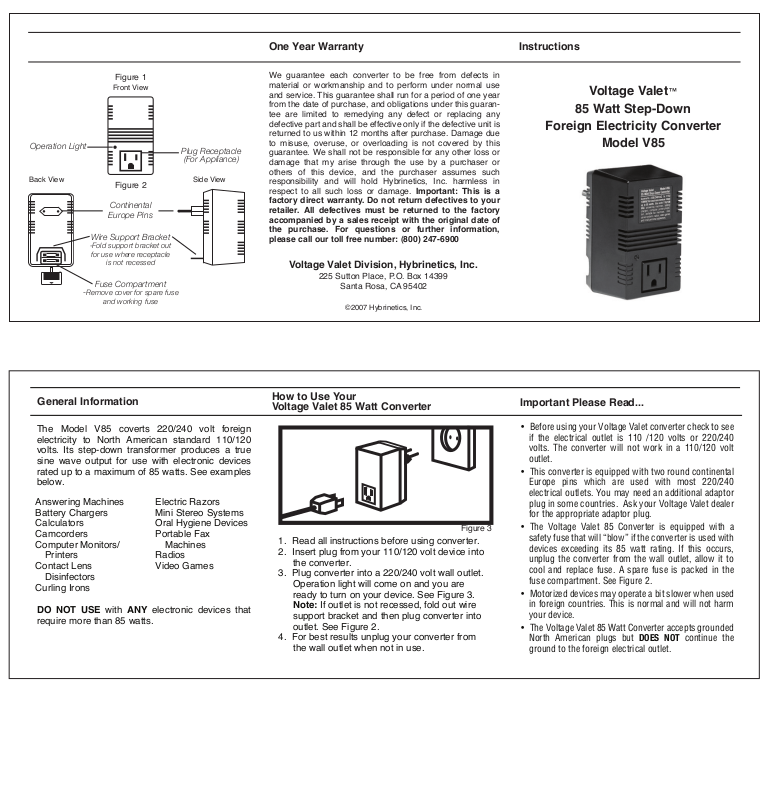

Voltage Valet V85 User Manual

One Year Warranty

Instructions

Operation Light

Back View

Figure 1

Front View

Figure 2

Continental

Europe Pins

Wire Support Bracket

-Fold support bracket out
for use where receptacle

is not recessed

Fuse Compartment

-Remove cover for spare fuse

and working fuse

Plug Receptacle

(For Appliance)

Side View

We guarantee each converter to be free from defects in
material or workmanship and to perform under normal use
and service. This guarantee shall run for a period of one year
from the date of purchase, and obligations under this guaran­tee are limited to remedying any defect or replacing any
defective part and shall be effective only if the defective unit is
returned to us within 12 months after purchase. Damage due
to misuse, overuse, or overloading is not covered by this
guarantee. We shall not be responsible for any other loss or
damage that my arise through the use by a purchaser or
others of this device, and the purchaser assumes such
responsibility and will hold Hybrinetics, Inc. harmless in
respect to all such loss or damage. Important: This is a

factory direct warranty. Do not return defectives to your
retailer. All defectives must be returned to the factory
accompanied by a sales receipt with the original date of
the purchase. For questions or further information,
please call our toll free number: [phone]

Voltage Valet Division, Hybrinetics, Inc.

225 Sutton Place, P.O. Box 14399

Santa Rosa, CA 95402

©2007 Hybrinetics, Inc.

Voltage Valet™

85 Watt Step-Down

Foreign Electricity Converter

Model V85

General Information

The Model V85 coverts 220/240 volt foreign
electricity to North American standard 110/120
volts. Its step-down transformer produces a true
sine wave output for use with electronic devices
rated up to a maximum of 85 watts. See examples
below.

Answering Machines
Battery Chargers
Calculators
Camcorders
Computer Monitors/

Printers

Contact Lens

Disinfectors

Curling Irons

DO

NOT USE with ANY electronic devices that

require more than 85 watts.

Electric Razors
Mini Stereo Systems
Oral Hygiene Devices
Portable Fax

Machines
Radios
Video Games

How to Use Your
Voltage Valet 85 Watt Converter

Figure 3

1.

Read all instructions before using converter.

2. Insert plug from your 110/120 volt device into
the converter.

3. Plug converter into a 220/240 volt wall outlet.
Operation light will come on and you are
ready to turn on your device. See Figure 3.
Note: If outlet is not recessed, fold out wire
support bracket and then plug converter into
outlet. See Figure 2.

4. For best results unplug your converter from
the wall outlet when not in use.

Important Please Read...

• Before using your Voltage Valet converter check to see
if the electrical outlet is 110 /120 volts or 220/240
volts. The converter will not work in a 110/120 volt
outlet.

• This converter is equipped with two round continental
Europe pins which are used with most 220/240
electrical outlets. You may need an additional adaptor
plug in some countries. Ask your Voltage Valet dealer
for the appropriate adaptor plug.

• The Voltage Valet 85 Converter is equipped with a
safety

fuse that will “blow” if the converter is used with
devices exceeding its 85 watt rating. If this occurs,
unplug the converter from the wall outlet, allow it to
cool and replace fuse. A spare fuse is packed in the
fuse compartment. See Figure 2.

• Motorized devices may operate a bit slower when used
in foreign countries. This is normal and will not harm
your device.

• The Voltage Valet 85 Watt Converter accepts grounded
North

American

ground to the foreign electrical outlet.

plugs but DOES NOT continue the
