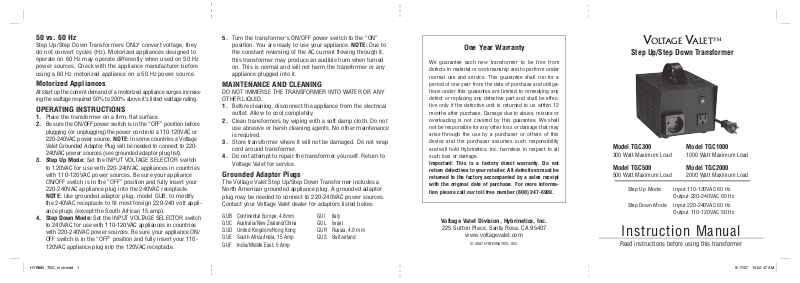

Voltage Valet TGC2000 User Manual

50 vs. 60 Hz

Step Up/Step Down Transformers ONLY convert voltage, they
do not convert cycles (Hz). Motorized appliances designed to
operate on 60 Hz may operate differently when used on 50 Hz
power sources. Check with the appliance manufacturer before
using a 60 Hz motorized appliance on a 50 Hz power source.

Motorized Appliances

At start up the current demand of a motorized appliance surges increas­ing the wattage required 50% to 200% above it's listed wattage rating.

OPERATING INSTRUCTIONS

1. Place the transformer on a firm, flat surface.

2.

Be sure the ON/OFF power switch is in the “OFF” position before
plugging (or unplugging) the power cord into a 110-120VAC or
220-240VAC power source. NOTE: In some countries a Voltage
Valet Grounded Adaptor Plug will be needed to connect to 220­240VAC power sources (see grounded adaptor plug list).

3. Step Up Mode: Set the INPUT VOLTAGE SELECTOR switch

to 120VAC for use with 220-240VAC appliances in countries
with 110-120VAC power sources. Be sure your appliance
ON/OFF switch is in the “OFF” position and fully insert your
220-240VAC appliance plug into the 240VAC receptacle.
NOTE: Use grounded adaptor plug, model GUB, to modify
the 240VAC receptacle to fit most foreign 220-240 volt appli­ance plugs (except the South African 15 amp).

4. Step Down Mode: Set the INPUT VOLTAGE SELECTOR switch

to 240VAC for use with 110-120VAC appliances in countries
with 220-240VAC power sources. Be sure your appliance ON/
OFF switch is in the “OFF” position and fully insert your 110­120VAC appliance plug into the 120VAC receptacle.

5. Turn the transformer's ON/OFF power switch to the “ON”
position. You are ready to use your appliance. NOTE:
the constant reversing of the AC current flowing through it,
this transformer may produce an audible hum when turned
on. This is normal and will not harm the transformer or any
appliance plugged into it.

Due to

MAINTENANCE AND CLEANING

DO NOT IMMERSE THE TRANSFORMER INTO WATER OR ANY
OTHER LIQUID.

1. Before cleaning, disconnect the appliance from the electrical
outlet. Allow to cool completely.

2. Clean transformers by wiping with a soft damp cloth. Do not
use abrasive or harsh cleaning agents. No other maintenance
is required.

3. Store transformer where it will not be damaged. Do not wrap
cord around transformer.

4. Do not attempt to repair the transformer yourself. Return to
Voltage Valet for service.

Grounded Adaptor Plugs

The Voltage Valet Step Up/Step Down Transformer includes a
North American grounded appliance plug. A grounded adaptor
plug may be needed to connect to 220-240VAC power sources.
Contact your Voltage Valet dealer for adaptors listed below.

GUB Continental Europe, 4.8mm
GUC Australia/New Zealand/China
GUD United Kingdom/Hong Kong
GUE South Africa/India, 15 Amp
GUF India/Middle East, 5 Amp

GUI Italy
GUL Israel
GUR Russia, 4.0 mm
GUS Switzerland

One Year Warranty

We guarantee each new transformer to be free from
defects in material or workmanship and to perform under
normal use and service. This guarantee shall run for a
period of one year from the date of purchase and obliga­tions under this guarantee are limited to remedying any
defect or replacing any defective part and shall be effec­tive only if the defective unit is returned to us within 12
months after purchase. Damage due to abuse, misuse or
overloading is not covered by this guarantee. We shall
not be responsible for any other loss or damage that may
arise through the use by a purchaser or others of this
device and the purchaser assumes such responsibility
and will hold Hybrinetics, Inc. harmless in respect to all
such loss or damage.

Important: This is a factory direct warranty. Do not
return defectives to your retailer. All defectives must be
returned to the factory accompanied by a sales receipt
with the original date of purchase. For more informa­tion please call our toll free number [phone].

Voltage Valet Division, Hybrinetics, Inc.

225 Sutton Place, Santa Rosa, CA 95407

www.voltagevalet.com

© 2007 HYBRINETICS, INC.

VOLTAGE VALET™

Step Up/Step Down Transformer

Model TGC300

300 Watt Maximum Load

Model TGC500

500 Watt Maximum Load

Step Up Mode: Input 110-120VAC 60 Hz
Output 220-240VAC 60 Hz

Step Down Mode: Input 220-240VAC 50 Hz
Output 110-120VAC 50 Hz

Model TGC1000

1000 Watt Maximum Load

Model TGC2000

2000 Watt Maximum Load

Instruction Manual

Read instructions before using this transformer

HYB880_TGC_Instr.indd 1 9/17/07 10:52:47 AM

IMPORTANT SAFEGUARDS

I

O

120VAC

RECEPTACLE

ON/OFF
SWITCH

240VAC

RECEPTACLE

FUSE

HOLDER

VOLTAGE

SELECTION

SWITCH

FUSE

When using electrical appliances, especially when children are pres­ent, certain basic safety precautions should always be followed,
including:

Read all instructions before using.

DANGER

are electrically live even when the switch is off. To reduce the
risk of injury or death by electric shock:

1. KEEP THIS APPLIANCE AWAY FROM WATER.

2. Do not immerse the transformers in water or other liquid.

3. Do not use while bathing.

4. Do not place or store appliance where it can fall or be pulled

5.

Always unplug this appliance immediately after use.

WARNING

injury:

1. Do not leave unattended when connected to electrical outlet.

2. Always disconnect the transformer from the electrical outlet

3.

Close supervision is necessary when any appliance is used

—As with most electrical appliances, electrical parts

into bathtub or sink. If the appliance falls into water, UNPLUG
IT IMMEDIATELY. DO NOT REACH INTO THE WATER TO
RETRIEVE IT WHILE IT IS STILL PLUGGED IN. DO NOT USE
THE UNIT IF IT HAS BEEN IMMERSED IN WATER.

—To reduce the risk of burns, electrocution, fire, or

immediately after use or before cleaning. Never yank the cord to
disconnect from outlet; instead, grasp plug and pull to discon­nect.

by or near children or invalids.

4. Use the transformer for its intended use only as described

in this manual. Never use any attachments with this unit that
were not made specifically by Voltage Valet for use with this
product.

5.

Never operate appliance with a damaged cord or plug, or

if the unit has been dropped or damaged. To avoid the risk
of electrical shock, do not disassemble the transformer. No
user-serviceable parts are contained. Instead, return the
unit to Voltage Valet for examination and repair. Incorrect
reassembly can cause risk of electric shock when the trans­former is used.

6.

Do not allow cord to touch hot surfaces. Let transformer

cool completely before putting away.

7. Burns can occur while touching hot parts.

8. Never drop or insert any other object into the transformer or

any other openings.

9. Do not use

being

used,

outdoors or

where

operate where aerosol products are

oxygen

is being administered, or in the

presence of explosive and/or flammable fumes.

10. This appliance is intended for household and travel use only;

it is not intended for commercial or industrial use.

11. This transformer is intended for use with single phase alter-

nating current (A.C.). Never plug the unit into a direct current
(D.C.) outlet.

Figure 1 – front view Figure 2 – rear view

SPECIAL INSTRUCTIONS

Input Power Source

1. Caution—Use only with single phase 110-120VAC or 220-

240VAC electrical power sources.

2. Earthing—The output receptacles, transformer case, power cord

and plug are grounded. Do not defeat the grounding system.

Transformer Overload

Voltage Valet Step Up/Step Down Transformers are equipped
with a replaceable fuse to protect your appliance and the trans­former from overload. To replace the fuse:

1. Unplug the power cord and push the ON/OFF switch to the

"OFF" position.

2. Unscrew the cap on the fuse holder.

3. Remove the opened fuse and replace with a new fuse of the

same rating (see chart). Replace the fuse cap.

Model TGC300

Maximum Load: 300 Watts
Fuse Rating: 3A 250VAC
Fuse Size: 5mm X 20mm
Fuse Type: Time Delay (SLO BLO)

Model TGC500

Maximum Load: 500 Watts
Fuse Rating: 5A 250VAC
Fuse Size: 5mm X 20mm
Fuse Type: Time Delay (SLO BLO)

Model TGC1000

Maximum Load: 1000 Watts
Fuse Rating: 10A 250VAC
Fuse Size: 5mm X 20mm
Fuse Type: Time Delay (SLO BLO)

Model TGC2000

Maximum Load: 2000 Watts
Fuse Rating: 20A 250VAC
Fuse Size: 1/4" X 1 1/4"
Fuse Type: Time Delay (SLO BLO)

SAVE THESE INSTRUCTIONS

To Move Transformer

1. Be sure the ON/OFF switch is in the “OFF” position and the

power cord is disconnected. Allow transformer to cool.

2. As transformer is heavy, use caution when moving. Be sure

you have a secure grip on the transformer case or handle.
